Vents VENTS TT Series User manual

CENTRIFUGAL INLINE FAN
USER’S MANUAL
www.ventilation-system.com
TT
EN

2
EN
CONTENTS
Delivery set ...............................................................................................................................................................................................................6
Brief description ....................................................................................................................................................................................................6
Fan modifications .................................................................................................................................................................................................6
Operation guidelines ..........................................................................................................................................................................................7
Designation key ....................................................................................................................................................................................................8
Mounting ..................................................................................................................................................................................................................9
Maintenance ...........................................................................................................................................................................................................12
Transportation and storage rules ................................................................................................................................................................12
Manufacturer’s warranty...................................................................................................................................................................................13
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation
of the TT unit and all its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems
and should be able to work in accordance with workplace safety rules as well as construction norms and
standards applicable in the territory of the country.

3
EN
All user’s manual requirements as well as the provisions of all the
applicable local and national construction, electrical, and technical
norms and standards must be observed when installing and
operating the unit.
Disconnect the unit from the power supply prior to any connection,
servicing, maintenance, and repair operations.
Only qualied electricians with a work permit for electrical units
up to 1000 V are allowed for installation and maintenance. The
present user’s manual should be carefully read before beginning
works.
• Check the unit for any visible damage of the impeller, the casing,
and the grille before starting installation. The casing internals must
be free of any foreign objects that can damage the impeller blades.
• While mounting the unit, avoid compression of the casing!
Deformation of the casing may result in motor jam and excessive
noise.
• Misuse of the unit and any unauthorised modifications are not
allowed.

4
EN
• Do not expose the device to adverse atmospheric agents (rain, sun,
etc.).
• Transported air must not contain any dust or other solid impurities,
sticky substances, or fibrous materials.
• Do not use the unit in a hazardous or explosive environment
containing spirits, gasoline, insecticides, etc.
• Do not close or block the intake or extract vents in order to ensure
the efficient air flow.
• Do not sit on the unit and do not put objects on it.
• The information in this user’s manual was correct at the time of the
document’s preparation.
• The Company reserves the right to modify the technical
characteristics, design, or configuration of its products at any time in
order to incorporate the latest technological developments.

5
EN
WARNING! Similar to the use of any other household electrical
appliances when operating this fan, the following basic rules
must be followed:
• Never touch the unit with wet or damp hands.
• Never touch the unit when barefoot.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with
the appliance.
The connection to the supply mains must be made through a
means of disconnection, which is incorporated in the fixed wiring in
accordance with the wiring rules, and has a contact separation in all
poles that allows for full disconnection under overvoltage category III
conditions.

6
EN
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualified persons in order
to avoid a safety hazard.
If the cord set is damaged, it must be replaced by a special cord set
available from the manufacturer or its service agent.
CAUTION: In order to avoid a safety hazard due to inadvertent
resetting of the thermal cut-out, this appliance must not be supplied
through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by the utility.
Ensure that the appliance is switched off from the supply mains
before removing the guard.
Precautions must be taken to avoid the back-flow of gases into the
room from the open flue of gas or other fuel-burning appliances.

7
EN
DELIVERY SET
Fan: 1 pc.
Screws and dowels: 4 pcs.
User’s manual: - 1 pc.
Packing box: 1 pc.
BRIEF DESCRIPTION
The unit described herein is an mixed-flow fan for supply or exhaust ventilation of premises.
The fan are designed for connection to Ø 4”, 5”, 6”, 8”, 10”, 12 3/8” ducts.
FAN MODELS
VENTS TT XXX: basic model contains 2-speed-switch and power cord
XXX: spigot diameter, mm

8
EN
OPERATION GUIDELINES
The fan is rated for connection to single-phase ac 120 V/60 Hz power mains.
The unit is rated for continuous operation.
The unit is rated as a Class II electrical appliance.
The arrow on the fan casing must match the air direction in the system.
Ingress protection rating against access to hazardous parts and water ingress is IPX4.
The fan is rated for operation at the ambient air temperature from +34 °F up to +104 °F.
Transported air temperature — from -13 °F up to +140 °F.

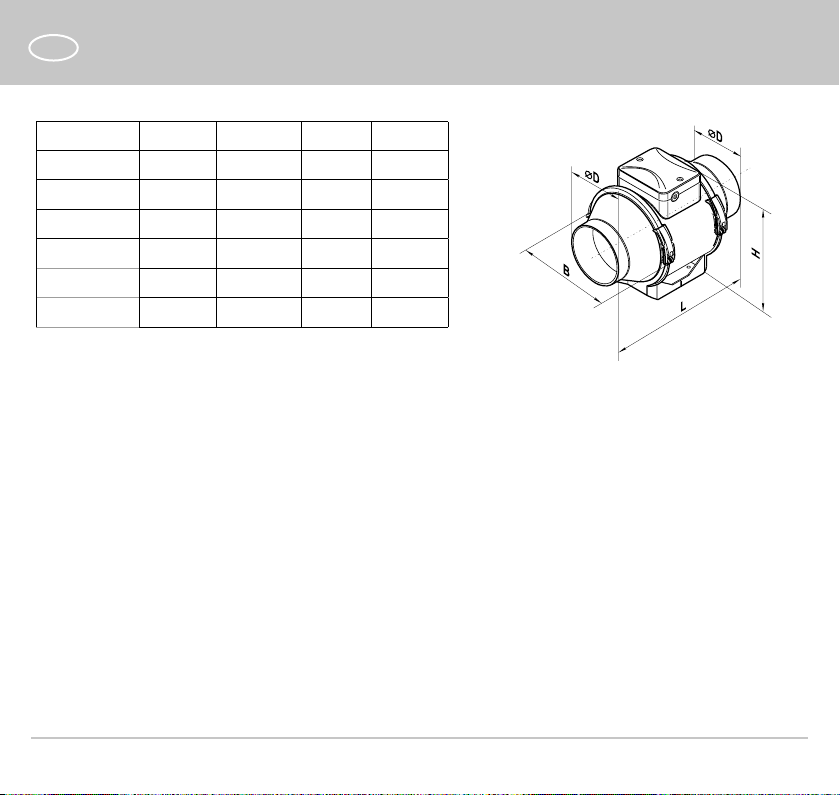

Ø D B H L
TT 100 3 3/4” 6 9/16” 7 1/2” 9 11/16”
TT 125 4 13/16” 6 9/16” 7 1/2” 9 11/16”
TT 150 5 3/4” 8 3/4” 9 13/16” 11 5/8”
TT 200 7 13/16” 9 7/16” 10 1/4” 11 5/8”
TT 250 9 3/4” 11 5/16” 12 11/16” 15 1/16”
TT 315 12 3/8” 14 1/4” 16 1/16” 22 15/16”

9
EN
MOUNTING
The fan is designed for horizontal or vertical installation on the floor, on the wall or on the ceiling (Fig. 1). The
fan can be installed independently or as part of a set with parallel or in-series connection (Fig. 2).
To be installed on the intake spigot side:
• 3.28 ft long air duct in case of horizontal fan installation
• ventilation hood in case of vertical fan installation
The exhaust spigot must always be connected to the air duct.

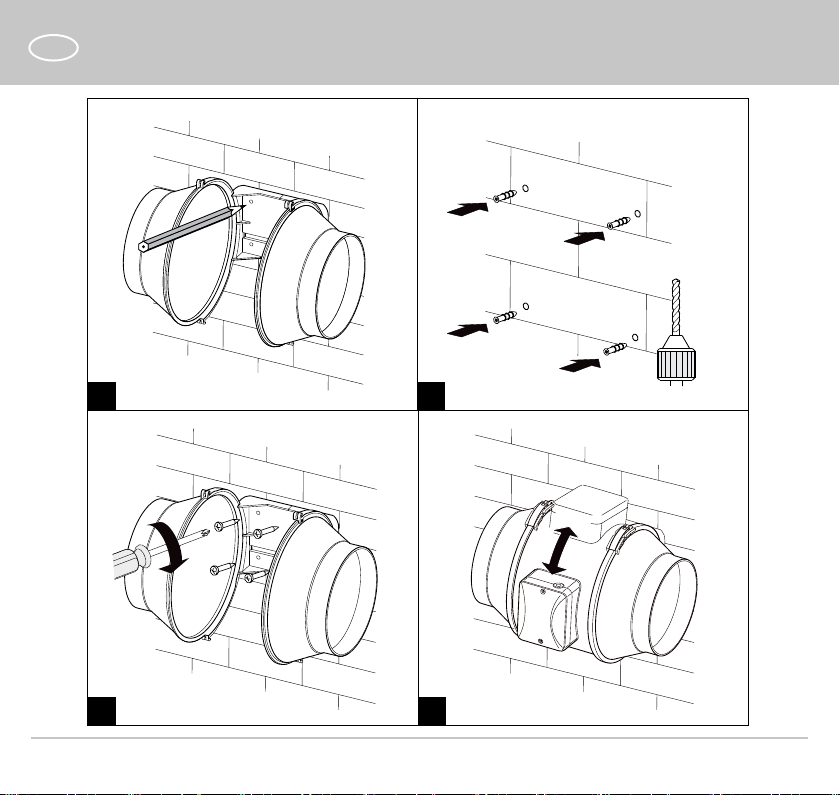

The fan mounting steps are shown in Fig. 3–10.
MAINTENANCE

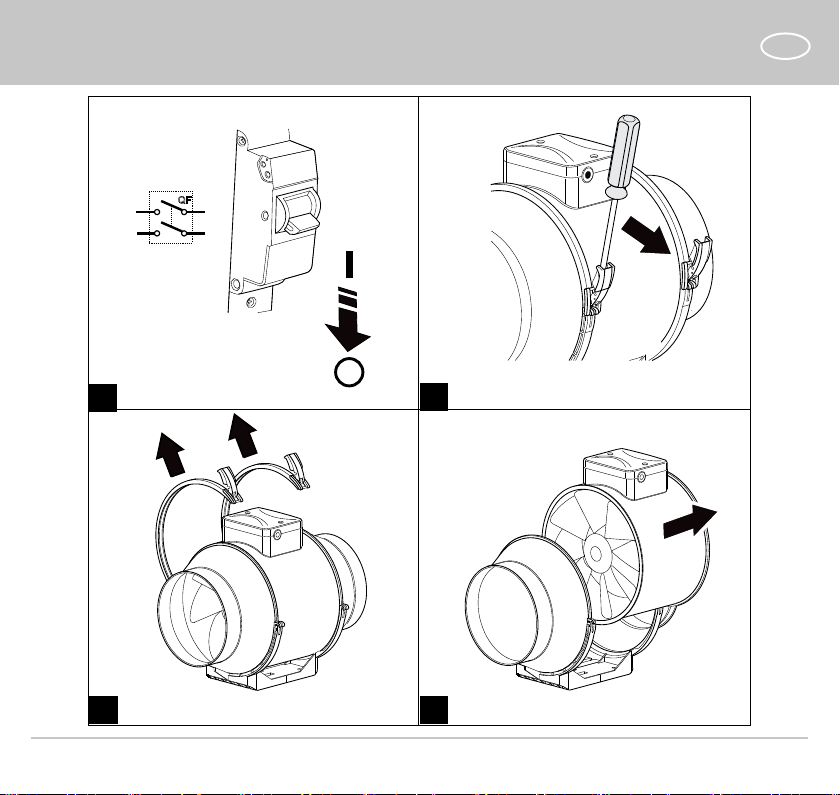

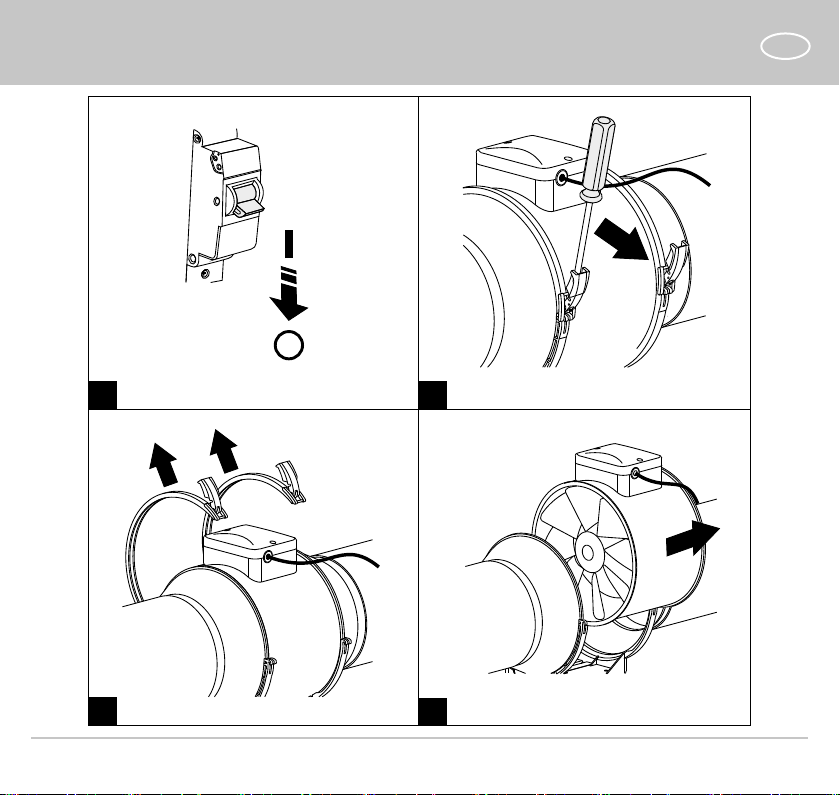

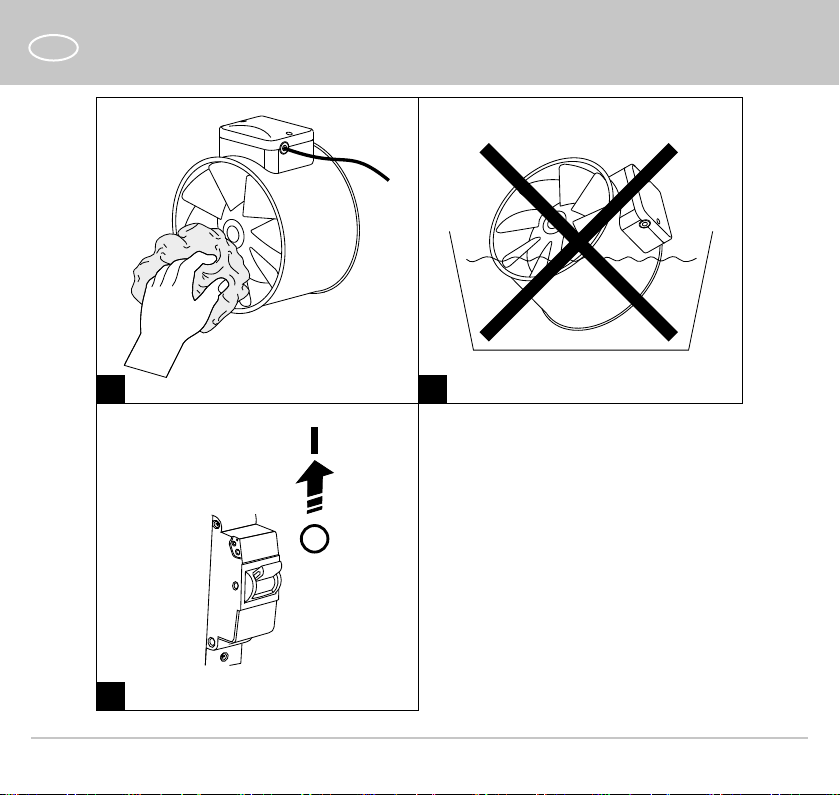

Clean the fan surfaces of dirt and dust each 6 months (Fig. 11–17).
Disconnect the fan from power supply prior to any maintenance operations.
For cleaning the fan use a soft cloth or a brush wetted in a mild detergent solution.
Avoid water dripping on the electric components (Fig. 16)!
Wipe the fan surfaces dry after cleaning.
STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with
temperature range +41...+104 °F and relative humidity up to 70 %.
• Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion,
insulation, and sealing deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection
against precipitation and mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating
temperature for at least 3-4 hours.

10
EN
MANUFACTURER’S WARRANTY
Production meets standard operating requirements in the USA and Canada.
Vents US warrants to the original purchaser of the unit that it will be free from defects in materials or workmanship
for a period of 60 months from the date of original purchase. The Vents US warrants to the original purchaser
of the unit that the integrated control unit will be free from defects in materials and workmanship for a period
of 60 months from the date of original purchase.
THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During the stated warranty period, Vents US will, at its option, repair or replace, without charge, any product
or part which is found to be defective under normal use and service. This warranty does not cover (a) normal
maintenance and normal service or (b) any products or parts which have been subject to misuse, negligence,
accident, improper maintenance or repair (other than by Vents US), faulty installation or installation contrary to
recommended installation instructions. Labor to remove and replace products is not covered. The duration of
any implied warranty is limited to the time period specified for the express warranty. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
VENTS US OBLIGATION TO REPAIR OR REPLACE, AT VENTS US OPTION, SHALL BE THE PURCHASER’S
SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. VENTS US SHALL NOT BE LIABLE FOR
INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH
PRODUCT USE OR PERFORMANCE.

11
EN
Some states do not allow the exclusion or limitations of incidental or consequential damages, so the above
limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties. If proof of sales
date is absent, warranty period is calculated from the production date. The unit can be exchanged at the
following address:
Vents-US
400 Murray Road, Cincinnati, OH 45217, USA
Tel: [phone], Fax: [phone]
E-mail: [email protected]
www.vents-us.com
Please follow guidelines in this manual for product problem-free operation.
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND TROUBLE-FREE
OPERATION OF THE UNIT.
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON PRESENTATION OF THE
UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL WITH THE PURCHASE DATE STAMP.

12
EN
min 1 m
1.
2.

13
EN
QF
3. 4.
5. 6.

14
EN
7. 8.
9. 10.

15
EN
11. 12.
13. 14.

16
EN
21
15. 16.
17.

17
EN

18
EN

19
EN
Approval mark
Manufacturing date
Sold
(name and stamp of the seller)
Sales date

VUSA10EN-12
Certificate of acceptance
The fan is recognized as serviceable.
TT________
