Vents VN E 80 User manual

CENTRIFUGAL EXTRACT FAN
User’s manual
www.ventilation-system.com
VN E 80
EN

2
EN
CONTENTS
Delivery set............................................................................................................................................................................................................................................. 6
Brief description .................................................................................................................................................................................................................................. 6
Designation key................................................................................................................................................................................................................................... 8
Operation guidelines ....................................................................................................................................................................................................................... 9
Installation............................................................................................................................................................................................................................................... 15
Connection to power mains ....................................................................................................................................................................................................... 28
Timer and humidity sensor adjustment............................................................................................................................................................................... 32
Technical maintenance................................................................................................................................................................................................................... 34
Storage and transportation regulations............................................................................................................................................................................... 36
Manufacturer’s warranty................................................................................................................................................................................................................ 37

3
EN
READ THE USER’S MANUAL CAREFULLY BEFORE PROCEEDING WITH INSTALLATION WORKS.
COMPLIANCE WITH THE MANUAL REQUIREMENTS ENSURES RELIABLE OPERATION AND LONG
SERVICE LIFE OF THE UNIT.
KEEP THE USER’S MANUAL AVAILABLE AS LONG AS YOU USE THE UNIT. YOU MAY NEED TO RE-READ
THE INFORMATION ON THE PRODUCT SERVICING.
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about the purpose, technical details, operating principle, design, and installation of the
VN E unit (-s) and all of its (their) modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should
be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the
territory of the country.
The information in this user’s manual is correct at the time of the document’s preparation.
The Company reserves the right to modify the technical characteristics, design, or configuration of its products at any time
in order to incorporate the latest technological developments.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means in any
information search system or translated into any language in any form without the prior written permission of the Company.

4
EN
FOLLOW THE USER’S MANUAL REQUIREMENTS TO ENSURE DURABLE AND
TROUBLE-FREE OPERATION OF THE UNIT.
Disconnect the unit from power supply prior to any connection, servicing, maintenance, and repair
operations.
Only qualied electricians with a work permit for electrical units up to 1000 V are allowed
for installation and maintenance. The present user’s manual should be carefully read
before beginning works.
• Single-phase power mains must comply with the acting local electrical norms and standards.
• Fixed electrical wiring must be equipped with an automatic circuit breaker.
• The unit must be connected to power mains through a QF automatic circuit breaker integrated
into the fixed wiring system. The gap between the circuit breaker contacts on all poles must be
not less than 3 mm. Check the unit for any visible damages of the impeller and the casing before
starting installation. The casing internals must be free of any foreign objects that can damage the
impeller blades.
• While mounting the unit, avoid compression of the casing! Deformation of the casing may result
in the motor jam and noisy operation. Misuse of the unit and any unauthorised modifications are
not allowed.
• Take steps to prevent ingress of smoke, carbon monoxide, and other combustion products into
the room through open chimney flues or other fire-protection devices. Sufficient air supply must
be provided for proper combustion and exhaust of gases through the chimney of fuel burning

5
EN
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.
equipment to prevent back drafting. Transported air must not contain any dust or other solid
impurities, sticky substances, or fibrous materials.
• Do not use the unit in a hazardous or explosive environment containing spirits, gasoline,
insecticides, etc.
• Do not close or block the intake or extract vents in order to ensure the efficient air flow.
• Do not sit on the unit and do not put objects on it.
• The unit is allowed to be used by children aged from 8 years old and above and persons with
reduced physical, sensory, or mental capabilities or no experience and knowledge provided that
they have been given supervision or instruction regarding safe use of the unit and understand
the risks involved.
• Do not allow children to play with the unit.

6
EN
DELIVERY SET
VN E 80(К)
VN-1 E
80 К
VNV-1 E 80 KV
VNV-1 E 80 KP
VNV-1 E 80 KVK
VNV-1 E
80 E
KV 80
KP 80
KVK 80
Fan assembly, pcs 1 1 - -
Ventilation unit, pcs - - 1 -
Casing, pcs - - 1
Fastener set, pcs 1 1 1 1
Mounting bracket, pcs - 2 - -
Cardboard spacer, pcs - - - 1
Plastic screwdriver (models with timer only), pcs 1 1 1 -
Noise-absorbing insert set, pcs 1 1 - -
Operation manual, pcs 1 1 1 1
Packing box, pcs 1 1 1 1
BRIEF DESCRIPTION
The product is a double-speed pressure fan for exhaust ventilation of small and medium-sized domestic spaces heated
during the cold season. In the base models the fan speed is manually set by means of an external switch.
The fan can be mounted to the ceiling or onto a wall with air extraction into a ventilation shaft or a matching diameter round
air duct. Each specific fan model differs by mounting type:
- VN E 80 (К) / VN-1 E 80 (К) — wall mounting
- VNV-1 E 80 E KV / KP / KVK — concealed (through-the-wall) installation
- VNV-1 E 80 — fan assembly designed for installation into a pre-installed KV E 80, KP E 80 or KVK E 80 casing.

7
EN
The VNV-1 E 80 KP, VNV-1 E 80 KVK, VN-1 E 80 K and VN E 80 К meet special fire safety requirements and are designed
for preventing smoke fume penetration into the serviced spaces through air ducts in the event of a fire.
Fan options:
Т — timer
ТР — user-adjustable timer
I— intermittent operation switch
N — humidity sensor

8
EN
DESIGNATION KEY
VN V X E 80 K X X X
Additional options
T— timer ТР — user-adjustable timer
I — intermittent operation switch Н— humidity sensor
Connection of air ducts from another room
_ — not available L— left-hand side
R— right-hand side D— bottom side
Casing type (VNV models)
_ — no casing
KP — fire-proof casing
KV — plastic casing
KVK — plastic casing with fire damper
KV2 — casing with rear connection
K — re-safety damper
Fitting diameter [mm]
Fan modiсation
Design variant
_ — grille
1— plastic decorative front panel
2 — aluminium trim plate of decorative front panel
V — concealed (in-wall) mounting variant
Pressure fan

9
EN
OPERATION GUIDELINES
The fan is rated for connection to single-phase AC 220...240 V/50 Hz power mains. Ingress protection rating against access
to hazardous parts and water ingress is IP55. The fan is rated for operation at ambient temperatures ranging from +1 °C to
+45 °C. The unit is rated as a Class II electrical appliance.
Conventional designation of casings for VN fans
X 80 K
K — re-safety damper
80 — connection diameter [mm]
Casing type
P — fire-safety casing
KPP — fire-safety casing for ceiling mounting
KV — plastic casing
TECHNICAL DATA
The fan is rated for connection to single-phase AC 220-240 V/50 (60) Hz power mains.
Ingress protection rating against access to hazardous parts and water ingress is IP55.
The fan is rated for operation at ambient temperatures ranging from +1°C to +45°C.
The unit is rated as a Class II electrical appliance.
The main technical specifications are given on the fan casing.

10
EN
The outside and connecting dimensions as well as the appearance of the units are given on Fig. 1 through 11.
VN E 80
235
215
199
135
79
102244
VN-1 E 80
235
215
244
203
138
79
102
1
2

11
EN
VN E 80 K
244 215
80
75
138
204
235
VN-1 E 80 K
244 215
80
75
138
204
235
3
4

12
EN
VNV-1 E 80 KV
235
215
90
102
138
244
47
304
VNV-1 E 80 KP
271
109
102
80
156
265
320
56
5
6

13
EN
VNV-1 E 80 KVK
265
67
135
102
80
75
215
320
235
VNV-1 E 80
7
8

14
EN

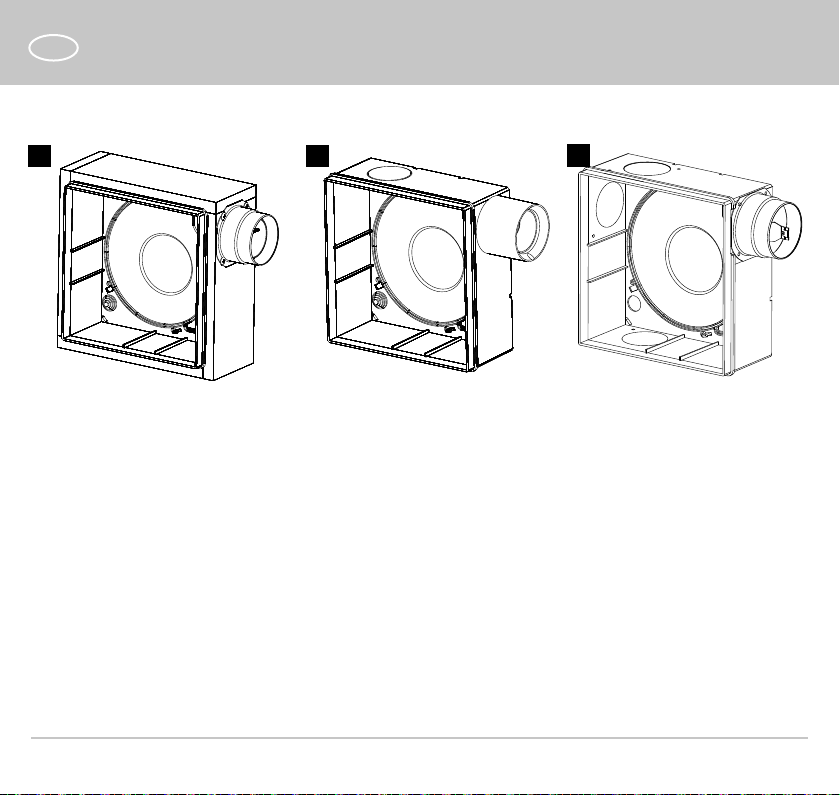

KP 80 KV 80 KVK 80
9 10 11

15
EN
INSTALLATION
The fan is designed for wall or ceiling mounting with direct air exhaust to the ventilation shaft or into the round air duct of
matching diameter.
The fan mounting example is shown in Fig. 12-22.
Through-the-wall installation of fans with an additional inlet pipe is shown on Fig. 23 and 24.
VN-1 E 80 fan installation steps:
1.1. Mark and drill a hole for the fan outlet connection according to one of the 4 possible placement variants (Fig. 25 to 28).
1.2. Take off the front panel (Fig. 29).
1.3. Remove the filter (Fig. 30).
1.4. Undo the screw and take off the grille (Fig. 31). Remove the noise-absorbing inserts (Fig. 32).
1.5. Position the fan casing properly (Fig. 25 to 28) and mark the mounting holes for self-tapping screws (Fig. 33).
1.6. Drill the dowel holes and insert the dowels.
1.7. Mount the fan casing complete with the scroll and secure it to the mounting surface with self-tapping screws (Fig. 34).
1.8. Complete steps 1.2 to 1.4. in the reverse order.
VN E 80 fan installation steps:
2.1. Mark and drill a hole for the fan outlet connection according to one of the 4 possible placement variants (Fig. 25 to 28).
2.2. Remove the decorative plug (Fig. 35).
2.3. Undo the grille mounting screw (Fig. 36).
2.4. Take off the grille (Fig. 37). Remove the noise-absorbing inserts (Fig. 32).
2.5. Complete steps 1.6. and 1.7.
2.6. Complete steps 2.2. to 2.5. in the reverse order.
VN-1 E 80 K fan installation steps:
3.1. Mark and drill a hole for the fan outlet connection according to one of the 3 possible placement variants (Fig. 25 to 27).
3.2. Complete steps 1.2. and 1.4.

16
EN
3.3. Set the fire-safety swing damper to the mounting position (Fig. 38).
3.4. Mark the dowel holes (Fig. 39).
3.5. Drill the dowel holes and insert the dowels (Fig. 40).
3.6. Secure the fire-safety swing damper with self-tapping screws (Fig. 41).
3.7. Rotate the fan to match the mounting hole of the casing with that of the swing damper, and mark the dowel holes (Fig.
42).
3.8. Rotate the fan to access the markings, drill the dowel holes and insert the dowels (Fig. 43).
3.9. Rotate the fan and align the mounting holes of the casing and those of the swing damper, and secure the fan with self-
tapping screws (Fig. 44).
3.10. Complete steps 1.2 to 1.4. in the reverse order.
VN E 80 K fan installation steps:
4.1. Complete step 3.1.
4.2. Complete steps 2.2. and 2.4.
4.3. Complete steps 3.3. and 3.9.
4.4. Complete steps 2.2. to 2.4. in the reverse order.
VNV-1 E 80 KV, VNV-1 E 80 KVK and VNV-1 E 80 KP fans consist of VNV-1 E 80 fan assembly and KV 80, KVK 80 and
KP 80 fan casings correspondingly.
These fans are installed in two phases: first the casing installation and then the final installation:
- the casing is installed during the shell and core phase;
- the final installation, which is performed after the fit-out works, includes the installation of VNV-1 E 80 fan assembly into
KV 80, KVK 80 or KP 80 casing.
The KV 80 and KVK 80 installation steps are as follows:
5.1. Complete steps 1.2. and 1.4.
5.2. Remove the fan assembly from the casing (Fig. 45 and 46).
5.3. Bend the mounting bracket to the necessary length according to the actual wall measurements and secure it to the fan
casing with M4 screws supplied with the unit (Fig. 47-50);

17
EN
5.4. Route the power cable into the fan casing.
5.5. Fill the gaps between the fan casing and the wall opening with mortar, sealing foam etc.
5.6. Once the installation has been completed, cover the casing with the cardboard spacer to prevent damage or
contamination during the fit-out works in the space (Fig. 51).
To install KP 80 casing:
6.1. Complete steps 5.1. and 5.2.
6.2. Make a recess in the shaft wall for the fan casing (Fig. 21).
6.3. Connect an air duct to the fan outlet.
6.4. Prior to installing the casing make sure that the fire-stop spring-loaded backdraft damper of KP 80 casing to be installed
in the recess is properly closed by the spring in the absence of air flow.
6.5. Install KP 80 casing into the recess and fix it with mortar. Route the power cable through the gland in the rear side of
the casing. Allow at least 250 mm of cable from the casing. The casing can also be integrated into a wall or the ceiling using
mounting brackets (Fig. 22).
6.6. Once the installation has been completed, cover the casing with the cardboard spacer to prevent damage or
contamination during the fit-out works in the space (Fig. 51).
The final installation of VNV-1 E 80 KV, VNV-1 E 80 KVK and VNV-1 E 80 KP fans includes the following steps:
7.1 On completing the fit-out works in the space remove the cardboard spacer and install VNV-1 E 80 fan assembly (Fig. 53
and 54). The mountings allow fine adjustments of the grille angle relative to the fan casing for a level fit even if the casing is
misaligned (Fig. 55).
If KV 80, KVK 80 or KP 80 casing and VNV-1 E 80 fan assembly are supplied separately the installation does not require
disassembling the fan.
The rest of the installation steps remain unchanged.

18
EN
Before proceeding with the fan installation check the position of backdraft damper 2 which must close
under its own weight in the absence of air flow (Fig. 56). By default the position of backdraft damper
corresponds to the outlet connection to the right or upwards. If the outlet connection is pointed to the
left after the installation remove the backdraft damper from outlet pipe 1, turn the damper 180° and
insert it into the pipe.
For sectional air vents use rectangular-section steel ducts or SPIROVENT spirally wound air vents.
For air duct connections use ALUVENT or THERMOVENT flexible air ducts.
The nominal diameter of air duct connections is 80 mm.
If the connection air duct is concealed within a brick wall it should be wrapped with self-adhesive PVC
tape to prevent mortar-induced corrosion

19
EN
VN E 80, VN-1 E 80, VN E 80 К, VN-1 E 80 K installation options
12 13
14 15
16

20
EN
VNV-1 E 80 KV and VNV-1 E 80 KVK installation options
19 20
17 18
VNV-1 E 80 KP installation options
21 22
