Verity Medical NeuroTrac IFC Rehab User manual

OPERATION MANUAL
IFC Stimulator / Dual channel TENS&NMS Stimulator
Three product in one!

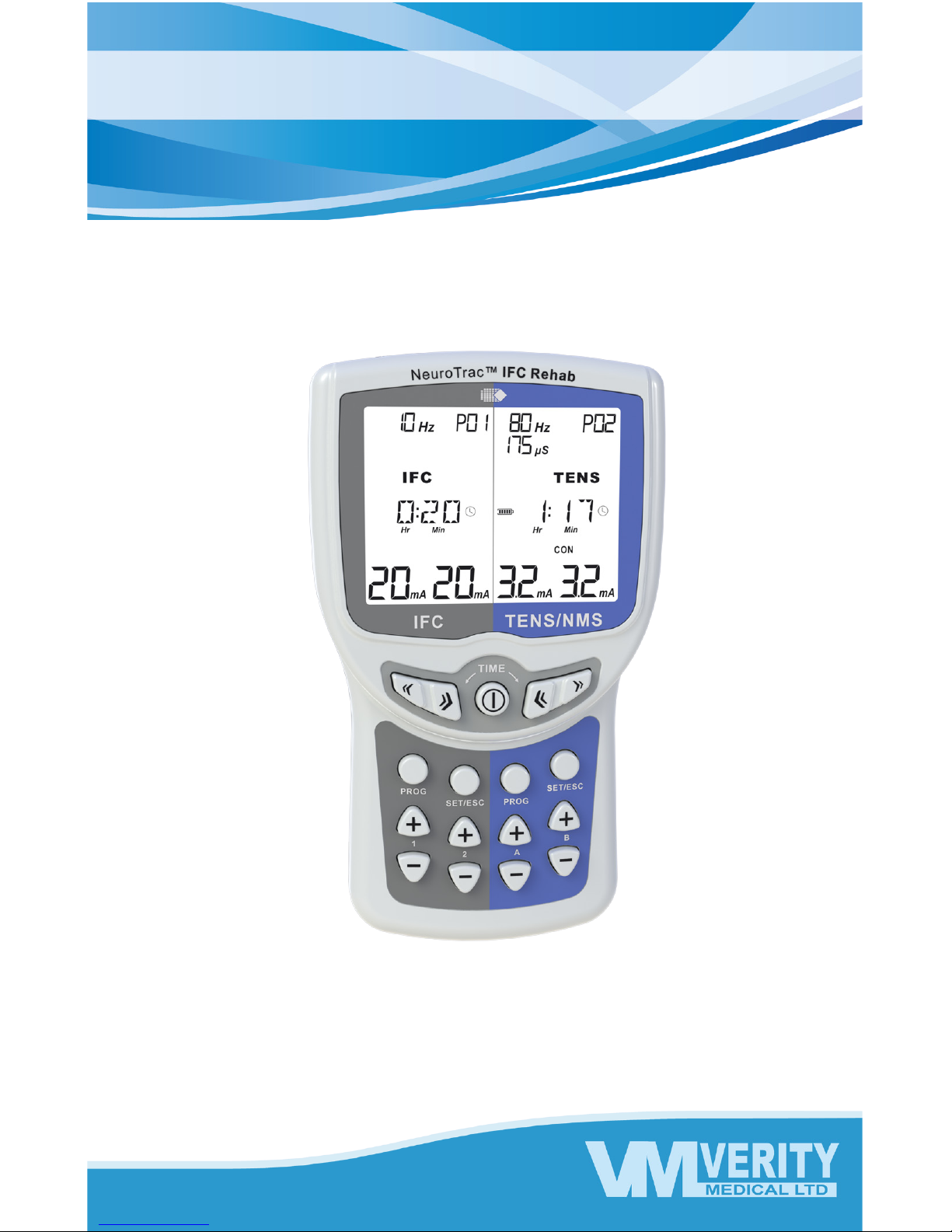

NeuroTrac IFC Rehab
TM
ENG

NeuroTrac™ IFC Rehab Operation Manual
2
Table of Contents
1. Contra Indications Precautions and Warnings______________ _ 3
2. Introduction to the product______________________________6
2.1. What is Pain _____________________________________ 6
2.2. What is TENS_____________________________________ 6
2.3. What is NMS_____________________________________ 7
2.4. What is Interferential stimulation(IFC)________________ 7
3. Description of Display__________________________________ 8
4. Description of Controls _________________________________ 8
5. Operating NeuroTrac™IFC Rehab __________________________ 10
5.1. Getting Started __________________________________10
5.2. Setting up IFC custom programme__________________ 12
5.3. Setting up TENS/NMS custom programme____________ 13
5.4. IFC Programme table and modes____________________15
5.5. TENS/NMSProgramme table and modes______________17
5.6. Lock Mode function______________________________ 27
6. Skin Electrodes placement and maintenance___________ ____28
7. Care & Maintenance___________________________________ 30
8. Information regarding Electromagnetic
compatibility and interference (EMC) ______________________31
9. Technical Specication_________________________________ 35
10. Troubleshooting______________________________________39
11. Warranty____________________________________________40

NeuroTrac™ IFC Rehab Operation Manual
3
1. Contra indications Precautions and Warnings
Please read the following prescription information carefully before using your
NeuroTrac™ IFC Rehab. If you have any questions regarding this information,
consult with your physician or therapist before proceeding.
Contra indications:
Do not use NeuroTrac™ IFC Rehab:
yWith demand type cardiac pacemakers
yOver the carotid sinuses (neck) region,
yTranscerebrally ( over the head),
yOver the eyes,
yWhenever pain syndromes are undiagnosed, until the etiology has been
established ,
yWhen there is a tendency to hemorrhage following acute trauma or frac�
ture,
yFollowing recent surgical procedures when muscle contraction may dis�recent surgical procedures when muscle contraction may dis�
rupt the healing process,
yOver areas of skin which lack normal sensation,
yOn cancer patients.
Warnings:
yThe NeuroTrac™ IFC Rehab mast be used with the guidance of a Clinician
or Therapist.
yThe long�term eects of continuous electrical stimulation are unknown.
ySafety during pregnancy, labour and delivery has not been established for
either mother or foetus.
yThe NeuroTrac™ IFC Rehab is not eective in treating pain of central ori�
gin, including headache.
yThe NeuroTrac™ IFC Rehab in TENS or IFC mode provides symptomatic
treatment and as such suppresses the sensation of pain, which would oth�
erwise serve as a protective mechanism.
yAdequate precautions should be taken in the case of persons with sus�
pected heart problems.
yAdequate precautions should be taken in the case of persons with sus�
pected or diagnosed epilepsy.

NeuroTrac™ IFC Rehab Operation Manual
4
yStimulation should not be applied over the carotid sinus nerves, particu�
larly in patients with a known sensitivity to the carotid sinus reex.
yApplication of electrodes near the thorax may increase the risk of cardiac
brillation.
yOperation in close proximity (e.g. 1m) to a shortwave or microwave therapy
equipment may produce instability in the stimulator output.
ySimultaneous connection of a patient to a high frequency surgical equip�
ment may result in burns at the site of the stimulator electrodes and pos�
sible damage to the stimulator.
yPatient Electrodes are for single patient use only!
yDo not use stimulation on your facial area unless you are under strict guid�
ance from a qualied clinician.
yStimulation should not be applied over the neck or mouth. Severe spasm of
the laryngeal and pharyngeal muscles may occur and the contraction may
be strong enough to close the airway or cause diculty breathing.
yStimulation should not be applied transthoracically in that the introduction
of electrical current into the heart may cause cardiac arrhythmias.
yStimulation should not be applied transcerebrally.
yStimulation should not be applied over swollen, infected, or inamed areas
or skin eruptions, e.g., phlebitis, thrombophlebitis, varicose veins, etc.
yStimulation should not be applied over, or in proximity to, cancerous le�
sions.
yElectronic monitoring equipment (such as ECG monitors and ECG alarms)
may not operate properly when NeuroTrac™ IFC Rehab stimulation is in use.
yDo not immerse unit into water or any other substance.
yDo not insert lead wires into mains power supply
yDo not use the NeuroTrac™ IFC Rehab in the presence of a ammable
anaesthetic gas mixture and air or with Oxygen or Nitrous Oxide.
yIf using rechargeable AA Nickel Metal Hydride batteries be sure to use CE
marked battery charger. We recommend not to use Ni�Cad type recharge�
able batteries.
yNever connect the NeuroTrac™ IFC Rehab directly to a battery charger any
other mains powered equipment.
yNo modication of this equipment is allowed!

NeuroTrac™ IFC Rehab Operation Manual
5
Precautions:
Isolated cases of skin irritation may occur at the site of the electrode place�
ment following long�term application. Consult your physician if skin irrita�
tion develops.
The eectiveness of NeuroTrac™ IFC Rehab in TENS mode is highly de�
pendent upon programme selection by a person qualied in the manage�
ment of pain patients.
Caution should be used in the presence of the following:
� When there is a tendency to hemorrhage following acute trauma or
fracture
� Following recent surgical procedures when muscle contraction may
disrupt the healing process
� Over the menstruating or pregnant uterus
� Over areas of the skin which lack normal sensation
Some patients may experience skin irritation or hypersensitivity due to
the electrical stimulation or electrical conductive medium. The irritation
can usually be reduced by using an alternate conductive medium or an
alternate electrode placement
Electrode placement and stimulation settings should be based on the
guidance of the prescribing practitioner
Powered muscle stimulators should be kept out of the reach of children
Powered muscle stimulators should be used only with the leads and elec�
trodes recommended for use by the manufacturer
Portable powered muscle stimulators should not be used while driving,
operating machinery, or during any activity in which involuntary muscle
contractions may put the user at undue risk of injury
Adverse Reactions:
Skin irritation and electrode burns are potential adverse reactions.

NeuroTrac™ IFC Rehab Operation Manual
6
2. Introduction to the product
NeuroTrac™ IFC Rehab is a pain control and muscle stimulator device. It combines
Interferential stimulator (IFC), Transcutaneous Electrical Nerve Stimulator (TENS)
and Neuromuscular Electrical stimulator (NMS) in one unit. The device consists of
two independent circuits, one for IFC, another for TENS/NMS stimulation. There
are two output Channels for the NMS and another two for the IFC allowing it
to operate 2 pairs of electrodes for each side of the device. They are all isolated
from each other and work independently with no exchange of current between
any of the channels.
IFC Rehab has 11 built� in preset programmes for Interferential stimulation ,
12 for TENS stimulation and 15 for NMS stimulation. Additionally there are
custom programmes ( 2 for IFC, 2 for NMS and 1 for TENS) which allow to vary
programme parameters.
Each of two parts of the device ( IFC or TENS/NMS) can be locked separately by
Physician to prevent patient from changing programme parameters and to allow
verication of the training by collecting “total time used” and average output
amplitude statistic.
2.1. What is Pain
When we feel pain it is the body’s process of informing us that something is
wrong. To feel pain is important, without this feeling abnormal conditions may
go undetected, creating damage or injury to critical parts of the body.
Although pain is essential in warning our body of trauma or malfunction, nature
may have gone too far in its design. Continued long�term chronic pain has no
useful value apart from its importance in diagnosis. Pain only begins when a
coded signal travels to the brain where it is decoded, and analysed. The pain
message travels from the injured area of the body along small diameter nerves
leading to the spinal cord. At this point the message is switched to a dierent
kind of nerve that travels up the spinal cord to the brain area. The brain then
analysis the pain message, refers it back and the pain is felt.
2.2. What is TENS
Transcutaneous Electrical Nerve Stimulation (TENS) is a non�invasive method of
controlling acute and principally long term intractable pain. It can also be used
as an adjunctive treatment in the management of post surgical traumatic pain
problems. In TENS mild electrical impulses are transmuted through the skin via
surface electrodes to modify the body’s pain perception. TENS does not cure
problematic physiological conditions; it only helps to control the pain perception.
TENS will not work for every user. However Physical Therapists and Physicians
throughout the world prescribe TENS extensively and it is generally seen to work
for the majority of users. There are millions of small nerve bres throughout the
body and it only requires a few impulses to produce chronic pain. In addition to
small bres, which allow the sensation of pain to be felt, the body is also made
up of larger diameter nerve bres.

NeuroTrac™ IFC Rehab Operation Manual
7
These larger nerve bres transmit less unpleasant sensations such as touch or
warmth, assisting us to form an impression of our environment.
Stimulating the larger nerve bres using TENS may have the eect of inhibiting
the transmission of pain along the smaller nerve bres to the spinal cord (this
eect is known as the ‘Pain Gate Theory’).
2.3. What is NMS (NMES)
Neuromuscular Electrical Stimulation is the elicitation of muscle con�
traction using electric impulses. The impulses are generated by a device
and delivered through electrodes on the skin in direct proximity to the
muscles to be stimulated. The impulses mimic the action potential com�
ing from the central nervous system, causing the muscles to contract.
It is commonly used as a therapeutic intervention for muscle strengthening. It can
be used to augment the strength of either injured or healthy muscle. Generally
it is used on the supercial muscles of the arms and shoulder gridle, the legs,
and low back. An isolated injury with specic muscular strength decits , such
as quadriceps weakness or lumbar para spinal weakness , is the most common
impairment that is treated with NMS for strengthening.
2.4. What is Interferential Stimulation (IFC)
Interferential stimulation diers from conventional neuromascular stimula�
tion (NMS) and transcutaneous electrical nerve stimulation (TENS). Both TENS
and NMS uses discrete electric impulses delivered at low frequencies of 2�200
pulses per second which deliver most stimulation to the surface of the skin
directly under the electrode.
Interferential stimulation depends upon the interaction or interference of two
medium�frequency electrical outputs that dier slightly in frequency. In other
words , the current that would be produced by one channel interacts with
(interferes with) the current produced by second channel and produces a net
ionic movement dierent from that produced by either channel alone. Such
resultant current (called interference current) has a frequency that is equal to
the dierence in frequency of on the two channels. Since the frequencies of
interferential stimulation are much higher than those used in TENS and NMS
the tissue impedance is reduced and the currents are induced in deeper tissue
level.
NeuroTrac™ IFC Rehab uses a xed carried frequency of 4000Hz and an pre set
or adjustable frequency in a range: 4001 � 4150Hz. When the two frequencies
mix inside the tissue they interfere , producing an interference frequency.

NeuroTrac™ IFC Rehab Operation Manual
8
3. Description of display
IFC side TENS/NMS side
1. Programme number
2. Frequency
3. Lock status indication
4. Mode indiction
5. Programme timer
6. Modality indication
7. Channel 1, 2 mA level
4. Description of Controls
1. ON/OFF button.
Switches the unit on and o.
2. IFC Prog button
Scrolls through IFC programmes
(P01-P11 for predened programmes
PC1and PC2 for custom pro-
grammes).
8. Programme number
9. Lock status indication
10. Programme Hz, uS
11. Mode indication
12. Battery Level indication
13. Programme timer
14. Modality indication
15. Channel A, B mA level

NeuroTrac™ IFC Rehab Operation Manual
9
3. IFC SET/ESC Button:
a). SET function (home screen of custom programme). Pressed and hold for
3 seconds enables to enter custom programme set up menu .
b). ESC function: while programme is running pressed one time pauses the
programme, reduces mA level to 0 and freezes the clock, pressed second
time returns to home screen; while in custom programme settings menu
saves the settings and returns to home screen.
4. IFC intensity buttons (Ch1+/- and Ch2+/-)
Start the programme and increase (or decreases) mA level. In custom pro�
gramme set up menu Ch1 buttons for parameter selection and Ch2 but�
tons for parameter value adjustment.
5. TENS/NMS intensity buttons (ChA+/- and ChA+/-)
Start the programme and increases ( or decreases) mA level. In custom
programme set up menu ChA buttons for parameter selection and ChB
buttons for parameter value adjustment.
6. TENS/NMS SET/ESC Button
a). SET function (home screen of custom programme). Press and hold for 3
seconds to enter the custom programme set up menu .
b). ESC function: while programme is running press once to pause the pro�
gramme , it reduces mA level to 0 and freezes the clock. Press again to
return to the home screen. If in custom programme settings menu and
ESC is pressed, it saves the settings and returns to the home screen.
7. TENS/NMS Prog button
Scrolls through TENS/NMS programmes
(P01-P11 for TENS programmes ,P13-P27 for
NMS programmes , PC1 for custom TENS ,PC2
and PC3 for custom NMS programmes) .
8. Timer buttons
Programme time adjustment.
9. TENS/NMS lock button.
10. IFC lock button.

NeuroTrac™ IFC Rehab Operation Manual
10
5. Operating NeuroTrac™ IFC Rehab
5.1 Getting started
1. Insert four AA batteries into the battery compartment (the battery images
engraved in the base of the compartment indicates correct battery position.
2. Connect the lead cables to the electrodes. The lead pins must be fully inserted
into the electrode connector.
3. Place the electrodes on the sides prescribed by your physician or therapist,
and press them rmly onto the skin (place the two electrode pairs that are
controlled by the same amplitude buttons on muscles that are about the
same size).
4. Insert the plugs at the end of the electrode lead cable into device output
sockets : CH1 and CH2 output sockets for IFC stimulation or CHA and CHB
output sockets for TENS/NMS stimulation.
5. Press On/O button to switch the unit on. The unit always starts up with
previously selected programme.
6. Press IFC PROG button or TENS/NMS programme button to select the programme :
a) IFC PROG button: P01 � P11 for preset programmes, PC1 or C2 for
Custom programmes .
b) TENS/NMS PROG button: P01�P12 for preset TENS programmes,
P13�P27 for preset NMS programmes, PC1 for TENS custom programme,
PC1 or PC2 for NMS custom programmes.

NeuroTrac™ IFC Rehab Operation Manual
11
7. When the programme is done amplitude automatically returns to 0
8. If required adjust the time of the programme by using timer button. Time of
predened IFC , TENS and NMS P13�P15 programmes can be adjusted in the
range: 1min� 12hrs, ( Note: time of predened NMS programmes P16 � P27
cannot be changed as these are multiphasic programmes).
9. Start the stimulation by setting the desired amplitude using “+ Plus” buttons.
To reduce stimulation press the “ - Minus” buttons.
Note: Patients respond dierently to the level of intensity, this is due to
dierences in individual patient’s skin resistance, enervation and the type
and condition of electrode being used.
10. You can always stop the programme by pressing
To pause the programme press ESC button which will reduce mA to 0
and freeze programme time counter, pressing ESC again will return the
programme to home screen.
Intensity Lock Out Feature
To prevent an accidental increase of the treatment amplitude (intensity),
NeuroTrac™IFC Rehab has an Intensity Lock Out feature implemented. Once
the stimulation current is raised above zero, with no buttons activity for
greater than 10 seconds, the unit will lockout the Increase intensity buttons
(CH1+ and CH2+ for IFC or CHA+ and CHB+ for TENS/NMS). To deactivate
Intensity Lock out “� Minus” button needs to be pressed .
Open Circuit Detect
If the closed circuit is broken, for example if a lead wire is broken, or electrode
does not provide proper contact with the skin the current of the channels
switches o automatically which is indicated by the amplitude dropping to 0
mA and timer paused. To resume the treatment the problem needs to be cor�
rected and programme restarted by setting the amplitude. The programme
picks up where it left o.
How long do I use TENS or IFC for?
This depends on the individual patient’s
condition, accuracy of electrode place�
ment, stimulation and the characteristics
selected, but typically the onset of pain
relief starts after 20 � 30 minutes. General�
ly TENS is used for longer periods of nor�
mally 1 hour 30 minutes per session. With
some patients it can be much longer.

NeuroTrac™ IFC Rehab Operation Manual
12
5.2. Setting up IFC Custom programme.
Continuous mode custom IFC programme (PC1)
1. Select PC1 by pressing IFC PROG. button
2. Press and hold IFC SET/ESC button for 3 seconds to enter custom pro�
gramme parameter adjustment menu
3. Flashing Hz symbol indicates that frequency can be adjusted. Use “CH2 +”
or “CH2 -” to adjust frequency in range from 1 � 150 Hz ( 1 Hz step)
4. Once frequency is adjusted press SET/ESC button to save settings and
return to Home screen
Work/Rest mode IFC custom programme(PC2)
1. Select PC2 by pressing IFC PROG. button
2. Press and hold SET/ESC button for 3 seconds to enter custom programme
parameter adjustment menu
3. Flashing Hz symbol indicates that frequency can be adjusted. Use “CH2 +”
or “CH2 - “ button to adjust frequency in range from 1 � 150 Hz ( 1 Hz step)
4. Press “CH1+” button to change to work time adjustment screen. Flashing
WORK segment indicates that work period can be adjusted. Use “CH2 +”
or “CH2 - “ button to adjust the time in range from 1 � 99 seconds (1 sec.
increments).
5. Press “CH1+” button again to change to rest time adjustment screen.
Flashing REST segment indicates that rest period can be adjusted. Use
“CH2 +” or “CH2 - “ button to adjust the time in range from 1 � 99 seconds
(1 sec. increments).
6. Press SET/ESC button to save settings and return to home screen.
If “CH1+” button was pressed again rather than SET/ESC then the device
would loop back to the Hz adjustment screen, similarly if “CH1�” button
was pushed LCD would loop back to Work time setting screen.
7. Repeat above procedure to re�adjust custom programme.

NeuroTrac™ IFC Rehab Operation Manual
13
5.3. Setting up TENS/NMS Custom programme.
Custom TENS programme (PC1)
1. Select PC1 by pressing TENS/NMS PROG. button
2. Press and hold TENS/NMS SET/ESC button for 3 seconds to enter custom
programme parameter adjustment menu
3. Flashing Hz symbol indicates that frequency can be adjusted. Use “ CHB
+” or CHB - to adjust frequency in range from 2 � 200 Hz (selectable Hz
values: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 20, 25, 30, 35, 40, 50, 60, 70, 80,
100, 150 , 200)
4. Press “CHA+” button to change to Pulse Width adjustment screen. Flash�
ing µS segment indicates that pulse width can be adjusted. Use “CHB
+” or “CHB - “ button to adjust the width in range from 50 � 300 µS.
( selectable µS values: 50, 75, 100, 125, 150, 175, 200, 220, 250, 275, 300)
5. Once Pulse width has been adjusted press SET/ESC button to save set�
tings and return to Home screen.
If “CHA+” or “CHB �” button was pressed again rather than SET/ESC then
the device would loop back to the Hz adjustment screen .
6. Repeat above procedure to readjust custom programme.
Custom NMS programme (PC2, PC3)
1. Select PC2 or PC3 by pressing TENS/NMS PROG. button
2. Press and hold TENS/NMS SET/ESC button for 3 seconds to enter custom
programme parameter adjustment menu.
3. Flashing Hz symbol indicates that frequency can be adjusted.
Use “ CHB +” or CHB - to adjust frequency in range from 2 � 100 Hz (se�
lectable Hz values: 2, 3, 4, 5, 6, 7, 8 , 9, 10, 12, 14, 15, 20, 25, 30, 35, 40, 50,
60, 70, 80, 100 )
4. Press “CHA+” button to change to Pulse Width adjustment screen. Flash�
ing µS segment indicates that pulse width can be adjusted. Use “CHB
+” or “CHB - “ button to adjust the width in range from 50 � 450 µS.
( selectable µS values: 50, 75, 100, 125, 150, 175, 200, 220, 250, 275, 300,
450 )

NeuroTrac™ IFC Rehab Operation Manual
14
5. Press “CHA+” button again to change to work time adjustment screen.
Flashing WORK segment indicates that work period can be adjusted.
Use “CHB +” or “CHB - “ button to adjust the time in range from 1 � 99
seconds (1 sec. increments).
6. Press “CHA+” button again to change to rest time adjustment screen.
Flashing REST segment indicates that rest period can be adjusted. Use
“CHB +” or “CHB - “ button to adjust the time in range from 1 � 99 sec�
onds (1 sec. increments).
7. Press “CHA+” button again to change to ramp up time adjustment
screen. Flashing RMP segment indicates that ramp up time can be ad�
justed can be adjusted. Use “CHB +” or “CHB - “ button to adjust the time
in range 0.3 � 9.9 seconds ( 0.1 sec increments)
8. Press “CHA+” button again to change to ramp up time adjustment
screen. Flashing RMP segment indicates that ramp up time can be ad�
justed can be adjusted. Use “CHB +” or “CHB - “ button to adjust the time
in range 0.3 � 9.9 seconds ( 0.1 sec increments)
9. Press “CHA+” button again to change to output SYN/ALT selection screen
(synchronous or alternating) . Flashing SYN (or ALT) symbol indicates
that output type can be set to synchronous (SYN) or alternating (ALT).
Use “CHB +” or “CHB - “ button to select SYN or ALT.
Synchronous (SYN) means that both Channel A and Channel B will give
output at the same time of each Work period.
Alternating (ALT) means that Channel A will work while Channel B will
be o for one Work period and then for the next Work period Channel B
will be on while but Channel A will be o and so on until the end of the
programme time.
10. If SYN (Synchronous) has been selected, press the “CHA+” button
again to change to delay time adjustment screen. Flashing DLY symbol
indicates that delay time of channel B can be adjusted. Use “CHB +” or
“CHB - “ button to set required time in range 0 � 4 seconds ( 0.1 sec incre�
ments).
11. Once delay ( or output synchronization) has been adjusted press SET/ESC
button to save settings and return to Home screen.
If “CHA+” or “CHB �” button was pressed again rather than SET/ESC then
the device would loop back to the Hz adjustment screen .
12. Repeat above procedure to readjust custom programme.

NeuroTrac™ IFC Rehab Operation Manual
15
5.4. IFC programme table and modes
Prog No. MODE Interferential
Frequency
Dwell , modulation
or W/R time Prog.
IFC predened
P01 ABT
1min �12h
P02 ABT
P03 ABT
P04 SWP
P05 SWP
P06 ABT
SWP
P07 ABT
SWP
P08 WORK/REST
P09 WORK/REST
P10 WORK/REST
CON
P11 CON
WORK/REST
IFC Custom
PC1 CON �
PC2 WORK/REST

NeuroTrac™ IFC Rehab Operation Manual
16
Description of IFC modes:
1. Abrupt (ABT)
Output with low frequency for a set dwell time and then abrupt change to
high frequency for the same dwell time. Cycle is repeated over programme
duration
2. Ramp (SWP)
Stimulation frequency ramps smoothly from low frequency to high fre�
quency for a dened modulation time , then back . Cycle is repeated over
programme duration
3. Intermittent stimulation (WORK/REST)
Intermittent stimulation where output amplitude ramps up in 0.5 sec. to
adjusted level and stimulates for a dened WORK time , then it ramps down
in 0.5 sec. to 0 mA, and stays with no stimulation for a dened REST time.
Cycle is repeated over programme duration.
4. Continuous (CON)
Train of constant value pulses on both channels delivered with no inter�
ruption for entire treatment period
5. Dual Treatment ( ABT / SWP, WORK/REST / CON)
In Programme P06, P07, P10, P11 two modes are combined together into
one programme. Each mode lasts for ½ of the dened total programme
time. When changing from one mode to another the amplitude is reduced
50 % and needs to be readjusted by patient to desired level.

NeuroTrac™ IFC Rehab Operation Manual
17
5.5. TENS/NMS programme tables and modes
Prog No. Mode Frequency (Hz) Pulse Width (µS) Prog.
Time
TENS predened
P01 CON
1min �12h
P02 CON
P03 BST
P04 MOD
P05 CON
P06 CON
P07 CON
P08 CON
P09 CON
P10 CON
P11 MOD
P12 BST
NMS predened
P13 NMS
1min�1.5h
P14 NMS
P15 NMS
P16 NMS 50min
P17 NMS 40min
P18 NMS 37min
P19 NMS 35min
P20 NMS 35min
P21 NMS 25min
P22 NMS 50min
P23 NMS 30min
P24 NMS 35min
P25 NMS 50min
P26 NMS 15min
P27 NMS 55min
CUSTOM
PC1 Custom CON 1min �12h
PC2 Custom NMS 1min�1.5h
PC3 Custom NMS

NeuroTrac™ IFC Rehab Operation Manual
18
Description of TENS/NMS modes
1. Continuous /Conventional TENS (CON)
Continuous train of constant value pulses (xed frequency and pulse dura�
tion) on both channels delivered with no interruption for entire treatment
period.
2. Burst Modulated TENS (BST)
Regular burst of pulses ( nine pulses of 200µS or 175 µS at 150Hz) repeated
2 times per second .This mode is comparable to the low rate TENS technique
except that each low rate pulse is substituted for by a short BURST of pulses.
It is a combination of conventional and low rate TENS.
3. Modulated TENS
Systematic modulation( lowering from and rising to the maximum settings)
of the pulse duration and pulse frequency . This mode was designed to help
prevent nerve accommodation that some patient’s experience. It is achieved
by continuously cycling the pulse width and rate.
Modulation is exponential. For example: Modulation time 6 seconds,
50�250 µS means starting at 50 µS increasing exponentially (fast then
slow) to 250 µS in 3 seconds and returning (fast then slow) back to 50 µS
to complete the cycle in 6 seconds.
4. NMS (Neuromuscular Electrical Stimulation)
Intermittent stimulation where output amplitude ramps up in to adjusted
level and stimulates for a dened WORK time , then it ramps down to 0
mA, and stays with no stimulation for a dened REST time. Cycle is repeated
over programme duration.

NeuroTrac™ IFC Rehab Operation Manual
19
Programme : P13 Phase 1 Phase 2 Phase 3 Phase 4 Phase 5
Phase time min 6
Mode CON
Frequency work
Frequency rest
Pulse duration
Ramp up time secs
Ramp down time secs
Work time secs
Rest time secs
Alternating
Synchronous √
Overall time 6 min
Programme: P14 Phase 1 Phase 2 Phase 3 Phase 4 Phase 5
Phase time min 20
Mode CON
Frequency work
Frequency rest
Pulse duration
Ramp up time secs
Ramp down time secs
Work time secs
Rest time secs
Alternating
Synchronous √
Overall time 20 min

NeuroTrac™ IFC Rehab Operation Manual
20
Programme: P15 Phase 1 Phase 2 Phase 3 Phase 4 Phase 5
Phase time min 50
Mode W/R
Frequency work
Frequency rest
Pulse duration
Ramp up time
Ramp down time
Work time
Rest time
Alternating
Synchronous √
Overall time 50 min
Programme: P16 Phase 1 Phase 2 Phase 3 Phase 4 Phase 5
Phase time min 5 12 7 10 16
Mode CON W/R CON W/R CON
Frequency work
Frequency rest
Pulse duration
Ramp up time
Ramp down time
Work time
Rest time
Alternating
Synchronous √ √ √ √ √
Overall time 50 min
