Warnings
DANGER
WARNING
If you smell gas:
1. Shut off gas to the appliance;
2. Extinguish any open flame;
3. Open lid;
4. If odor continues, keep away from the appliance and immediately
call your gas supplier or your fire department.
Do not store or use gasoline or other flammable liquids or vapors in the
vicinity of this or any other appliance.
An LP cylinder not connected for use shall not be stored in the vicinity of
this or any other appliance.
Always read and understand the WARNINGS and SAFETY
INSTRUCTIONS that are contained in this Manual before attempting to
use this Gas Barbecue Grill, to prevent possible bodily injury or property
damage.
Always keep this Manual in or near the Grill, for convenient future reference.
Page i

Warnings
Page ii
The Signal Words used in this Manual, and their intended meanings, are as follows :
Indicates that a failure to observe the safety instructions could result in death or
catastrophic bodily injury.
Indicates that a failure to observe the safety instructions could result in serious
bodily injury.
Indicates that a failure to observe the safety instructions could result in property
damage or minor bodily injury.
Designates important information relating to the safe use of the Grill.
Since this outdoor cooking appliance is movable, is fueled by natural or propane gas, generates
very high temperatures for cooking and emits carbon monoxide as a by-product of combustion,
prudent precautions must be taken to assure its safe use.
This Grill has been designed for OUTDOOR use only.
Never use this outdoor Grill inside any building, garage, shed or breezeway, or inside any boat,
trailer or recreational vehicle, to prevent a possible fire and to prevent the possibility of carbon
monoxide poisoning or asphyxiation
Exposing an overfilled or a disconnected propane cylinder to heat could cause
venting of fuel through the pressure release valve. Since propane vapor is heavier than air it
tends to pool and, if ignited, could produce a violent fire or explosion.
Never install a propane cylinder if it is more than 80% full, as the contents may lack adequate
room for expansion when exposed to heat.
Never store a spare Propane Gas Cylinder in the cylinder compartment of this Grill, because it
will be exposed to high temperatures when the Grill is in use.
This Gas Barbecue Grill will provide you with many hours of pleasure and enjoyment, if it is
used in accordance with the Warnings and Safety Instructions contained in this Manual.
The essential Warnings and Safety Instructions are located throughout the pages of this Manual,
but some of the principal ones have been summarized as follows for your convenience:
DANGER:
WARNING:
CAUTION:
NOTE:
DANGER:
DANGER:
SIGNAL WORDS:
IMPORTANT WARNINGS:

A. SAFE LOCATIONS FOR USE OF THIS OUTDOOR GRILL
Warnings
Page iii
DANGER:
WARNINGS:
Never use this outdoor Grill inside any building, garage, shed or breezeway, or inside any boat, trailer or
recreational vehicle, to prevent a possible fire and to prevent the possibility of carbon monoxide poisoning
or asphyxiation.
Always confirm that this Grill is not positioned under a combustible object (e.g., an awning or umbrella) or
in a covered area (e.g., a porch or gazebo) before lighting it, to prevent a possible fire.
Always confirm that this Grill is not positioned under the overhang of a house, a garage or other structure
before lighting it. An overhang will serve to deflect flare-ups and radiated heat into the structure itself, which
could result in a fire.
Always confirm that the installation of this Grill conforms with the requirements of all local Codes or, in the
absence of any applicable local Codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA54, or
CAN/CGA-B149.1, Natural Gas and Propane Installation Code.
Always confirm that this Grill is positioned more than
36” (1 m) away from any combustible materials or
surfaces before lighting it, and that no gasoline or other
volatile substances are stored in the vicinity of this
Grill. The temperature of a grease fire or of the
radiated heat might otherwise be sufficient to ignite
nearby combustibles or volatile substances.
Always locate this Grill where there will be ample
combustion and ventilation air, but never position it in
the direct path of a strong wind.
Never allow the Grill to operate while unattended, to
prevent uncontrolled grease fires from erupting.
Never store or use gasoline or other flammable or
volatile substances in the vicinity of this Grill or in the
vicinity of any other heat-generating appliance,
because of the danger of starting a fire.

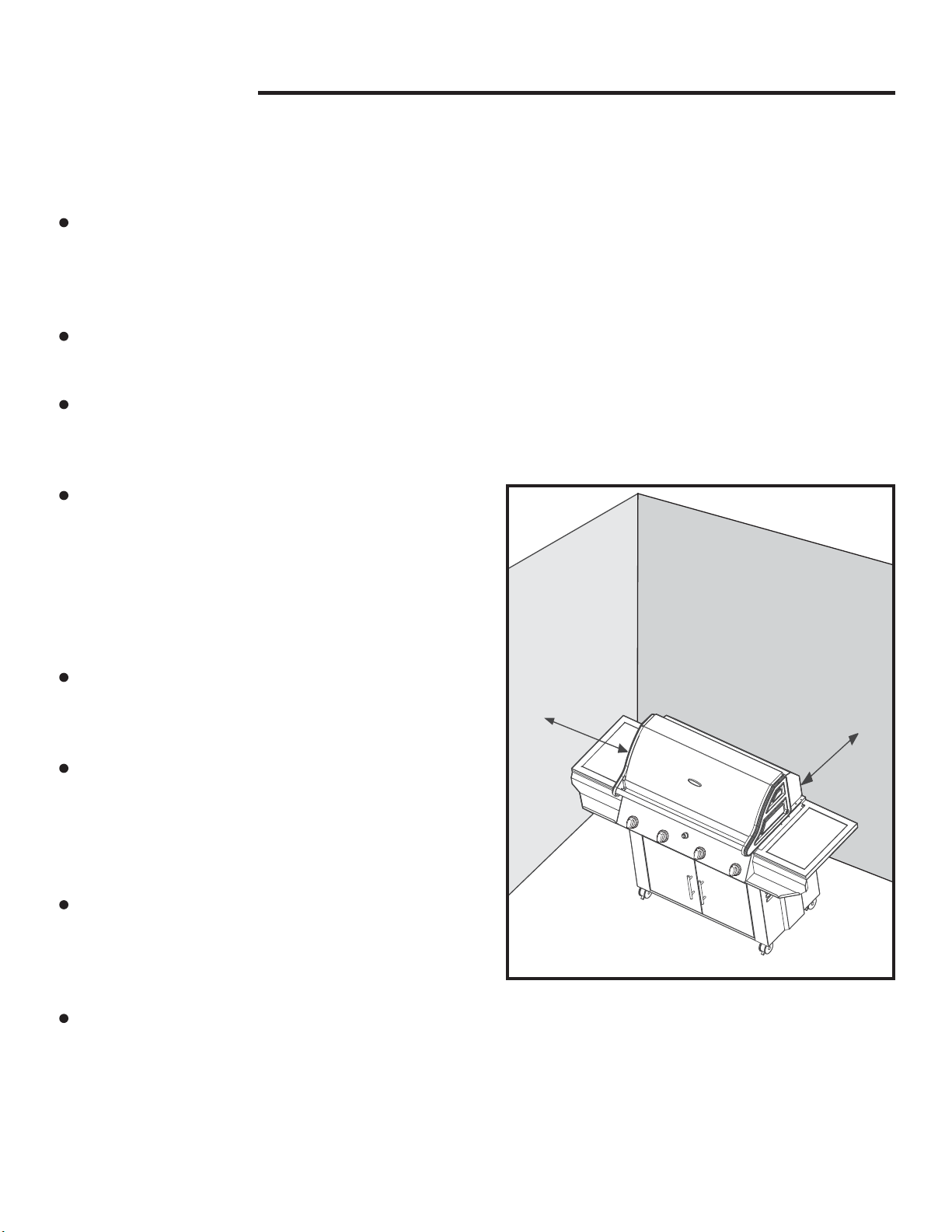

Fig. 1
36” (1 m)
36” (1 m)
Never attempt to move this Grill while it is in operation
or while it is still hot, to prevent possible personal injury.

B. SAFE USE OF LP (PROPANE) GAS
C. SAFE USE OF NATURAL GAS
Always store your spare Propane Gas Cylinders in an outdoor area that is well-ventilated, shady, cool and
removed from any heat source. Always store those cylinders in an upright position. Never store a spare
cylinder in the vicinity of this Grill, or in the vicinity of any other heat-generating appliance.
Page iv
DANGER:
WARNINGS:
Never install a propane cylinder that is more than 80 % full, as the contents may lack adequate room for
expansion when exposed to heat. Propane vapor may then be vented through the pressure release valve,
which could accumulate in a pool and later result in a fire or explosion.
Always instruct your certified propane fuel supplier to confirm by weight that your cylinder is not more than
80 % full. An empty cylinder will weigh about 19 lb., while a properly filled cylinder should weigh no more
than 39 lb.
Never store a spare Propane Cylinder in the cylinder compartment of this Grill. Exposing a disconnected
cylinder to heat could result in the venting of propane vapor through the pressure release valve, and the
pooled vapor could result in a violent fire. (No hazard is posed by the connected cylinder if it is not
overfilled, however, as it tends to refrigerate itself while it is being used.)
Always confirm that all openings in the cylinder compartment of this Grill are free of any obstructions that
would restrict the circulation of ventilation air. Good ventilation will prevent the pooling of leaked propane
vapor, which is heavier than air, and which could explode if ignited.
Always consult the Rating Label on the back of the Grill to confirm which fuel must be used with the Grill.
Never operate the Grill with propane gas if it has been configured to use natural gas, to prevent hazardous
overheating.
Always confirm that there are no gas leaks before lighting this Grill. Apply a 50/50 solution of liquid soap
and water to the gas supply line connectors with a brush or spray bottle, and watch for bubbles. Never use a
match or open flame to test for gas leaks.
Always visually inspect the gas supply line for fraying, cracking or rodent damage before each use of this
Grill and, if necessary, install a replacement obtained from your dealer before lighting this Grill.
Always consult the Rating Label on the back of the Grill to confirm which fuel must be used with the Grill.
Never attempt to operate the Grill with natural gas if it has been configured to use propane gas, to prevent
possible bodily injury.
Always employ a qualified service agency to install all necessary gas supply plumbing, for safety reasons and
to assure compliance with all applicable Codes.
Warnings

D. PREVENTION OF BURNS
E. ELECTRICAL SAFETY
Page v
Always promptly shut off the gas supply and immediately extinguish all flames if you smell gas. Always seek
assistance from your gas supplier or local Fire Department if the gas smell persists, because of the danger of
fire or explosion.
Always confirm that there are no gas leaks before lighting this Grill. Apply a 50/50 solution of liquid soap
and water to the gas supply line connectors with a brush or spray bottle, and watch for bubbles. Never use a
match or open flame to test for gas leaks.
Always visually inspect the gas supply line for fraying, cracking or rodent damage before each use of this
Grill and, if necessary, install a replacement before lighting this Grill.
Never permit a gas supply line to contact any heated surface of this Grill.
Always keep children and pets under close supervision when using this Grill, and never permit them to come
near the Grill while it is in use, as the exterior surfaces will be very hot.
Always wear insulated protective mitts when working at the Grill, or when attempting to close a gas supply
valve after cooking has been completed, to prevent possible burns. Always use insulated pot holders when
handling containers of hot food.
Always wear an insulated protective mitt when adding a smoking agent to a Smoker Box.
Never store or use gasoline or other flammable or volatile substances in the vicinity of this Grill, or in the
vicinity of any other heat-generating appliance.
Always confirm that this Grill has been grounded in accordance with local Codes or, in the absence of local
Codes, with the National Electrical Code, ANSI/NFPA No. 70 or the Canadian Electrical Code, CSA C22.1,
when an external electrical source is being utilized for the Rotisserie Motor.
Always use a grounded three-prong outlet and a three-prong extension cord to energize the Rotisserie
Motor. Never alter or remove the grounding prong on the Rotisserie Power Cord, as an electric shock hazard
would then result.
Never permit an electrical supply cord to contact any heated surface of this Grill.
Safety

Page 1
Table of Contents
Safety
Gas Hookup
Operation
Cooking
Care &
Maintenance
Troubleshooting Guide
Important Warnings
Clearance Requirements
Table of Contents
Fuels
Safety
Hooking Up to the Gas Supply
LP Gas Supply Connection
Natural Gas Supply Connection
Test for Leaks
Control Functions
Lighting the Main Burners
Turning the Burners Off
Flare-ups
Match Lighting the Main Burner
Lighting the Rotisserie Burner
Match Lighting the Rotisserie Burner
Rotisserie Setup
Lighting the Side Burner
Shutting the Side Burner Off
Methods of Cooking
Preparing Food for the Grill
Grilling Tips
Cooking Time Chart
Burners
Rotisserie Burners
Side Burners
Cooking Grids
Drip Tray
Stainless Steel Panels
Porcelain Enamel Castings
Burner Adjustment
i-v
ii
1
2
3
4
4
5
5
6
7
8
8
8
9
9
10
11
11
12
13
14
15
18
19
19
19
20
20
20
21
22

FUELS
WARNING:
WARNING:
Never use Natural Gas in a Grill that has been configured to burn Propane Gas, and never use
Propane Gas in a Grill that has been configured to use Natural Gas, to avoid possible bodily injury. Always
consult the Rating Label on the back of your Grill to confirm which fuel must be used with the Grill.
Use only the pressure regulator and type I propane gas supply coupling and hose that is
originally provided with this appliance or as specified, (see Fig. 2).
Page 2
ADDITIONAL WARNINGS:
Always install a 20 lb. propane cylinder that is equipped with a
type I valve outlet (see Fig. 3), and that has a 12” diameter and
an 18” height. Always use a propane cylinder that has been
constructed and marked in conformance with either the
specifications for LP Gas Cylinders of the U.S. Department of
Transportation or the specifications in the National Standard
of Canada, CAN/CSA-B339, Cylinder, Spheres and Tube for
Transportation of Dangerous Goods, as applicable.
Always confirm that your propane cylinder is equipped with a
shutoff valve terminating in a Type I propane cylinder valve
outlet connection, and that it has been provided with a collar to
protect the cylinder valve.
Never install a propane cylinder in this Grill unless it is
equipped with a listed Overfill Protection Device (OPD).
Always have a new propane cylinder properly purged of air by
your certified propane gas dealer. Since a new cylinder is
initially filled with air, the air must first be purged before it is
filled with propane.
Always visually inspect the gas supply line for fraying, cracking
or rodent damage before each use of this Grill and, if
necessary, install a replacement obtained from your dealer
prior to lighting this Grill.
Place dust cap on cylinder valve outlet whenever the cylinder is
not in use. Only install the type of dust cap on the cylinder
valve that is provided with the cylinder valve. Other types of
caps or plugs may result in leakage of propane.
Safety

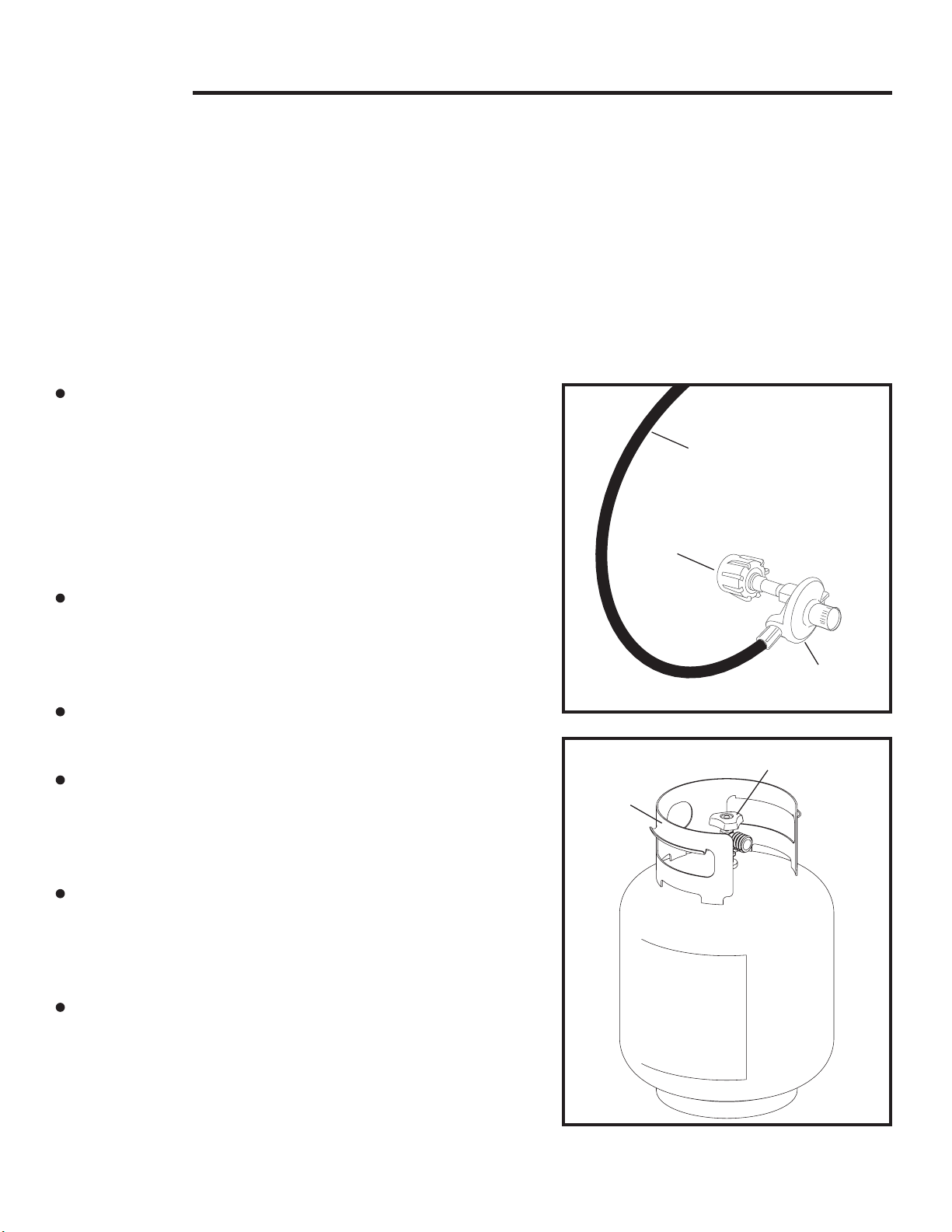

Fig. 2
Type 1
Connector
Check hose for breaks
or wear before each use.
Regulator
Shutoff Valve
Collar
Fig. 3

DANGER:
ADDITIONAL WARNINGS:
a) Do not store a spare LP - Gas Cylinder under or near this appliance
b) Never fill the cylinder beyond 80% full; and
c) If the information in a) and b) is not followed exactly, a fire causing death or serious injury may occur.
WARNING: Always confirm that the openings in the cylinder compartment of the Grill are free of any
obstructions that would restrict the circulation of ventilation air. Good ventilation will prevent any possible
accumulation of leaked propane vapor, which is heavier than air and which could explode if ignited.
NOTE: Always have a certified propane gas supplier inspect and re-qualify your refillable propane gas cylinder
prior to each refilling, in accordance with DOT or TC requirements for propane cylinders.
Page 3
Always handle propane cylinders with great care, as the contents are under high pressure.
Always close the propane cylinder valve promptly after each use of the Grill.
Always store propane cylinders outdoors, in an upright, secure position, out of direct sunlight, away from
living quarters and in a well-ventilated, cool, dry area. NEVER STORE A CYLINDER IN A BUILDING,
GARAGE OR OTHER STRUCTURE OR ENCLOSED AREA.
Always keep cylinders out of reach of children.
Always confirm that a valve dust cap has been tightly installed and that the valve itself is fully closed,
whenever a propane cylinder has been disconnected.
Always transport a propane cylinder in an upright, secure position, after confirming that its valve is closed.
Always stabilize a cylinder so that it cannot move, when it is being transported in a car trunk.
Never transport a propane cylinder in the passenger compartment of a car or truck.
Never store a Gas Grill indoors, unless the propane cylinder has first been disconnected and removed from
the Grill.
Never expose a propane cylinder to any heat source, never apply heat directly to a cylinder and never store a
spare cylinder in the vicinity of this Grill.
Never paint a propane cylinder a dark color, as this can cause the cylinder and its contents to overheat.
The LP cylinder must be arranged for vapor withdrawal. The cylinder must be upright with the valve at the
top. (Fig. 3)
Safety

Page 4
Fig. 5
Gas Hookup
Hooking Up to the LP (Propane) Gas Supply
FOR YOUR SAFETY
LP (PROPANE) GAS SUPPLY CONNECTION
WARNING:
CAUTION:
1.
2.
1.
2.
3.
Always conduct a leak test before lighting the
Grill, to prevent a possible fire or explosion (see page 5).
For connection of an LP gas grill to a fixed pipe
LP bulk system, consult your local gas supplier.
WARNING:
WARNING:
Never store or use gasoline or any
other volatile substance in the vicinity of this Grill.
Never store a spare propane cylinder
in the vicinity of this Grill, or in the vicinity of any
other potential heat source.
Always place the propane tank in the tank locator hole in
the bottom pan of the cylinder compartment.
Always confirm that all burner control knobs are in the
OFF position before activating the gas supply.
Always connect the gas supply regulator as follows:
Insert the nipple of the valve coupling into the tank valve
and tighten the connection collar by turning it clockwise
with one hand while holding the regulator with the other
(see Fig. 4).
Fig. 4

NATURAL GAS SUPPLY CONNECTION
TO CONNECT:
TO DISCONNECT:
TESTING FOR GAS LEAKS
WARNINGS:
1.
2.
3.
1.
Before attempting to operate this Grill:
1.
2.
3.
4.
5.
6.
Page 5
Push back the Sleeve on the Socket as shown below
(see Fig. 6a).
Insert Plug and release the Sleeve (see Fig. 6b).
Push the Plug until Sleeve snaps forward to lock the
Plug in the Socket.
Always conduct the following safety tests
before lighting the Grill, to prevent a possible fire or
explosion (see leak test below).
Push Sleeve back and pull the Plug out.
Always confirm that all burner control knobs are in the OFF position.
Always connect the gas supply hose first and then open the gas shutoff valve.
Always use a brush or spray bottle to apply a 50/50 solution of liquid soap and water to all connection points
(see Fig. 5) to test for gas leaks. Never use a match or open flame for that purpose.
Always look for bubbles to appear, as the appearance of bubbles will indicate a gas leak. Always turn off the
gas immediately and tighten the connection, if you find that a leak exists.
Always repeat this procedure until no further gas leaks are found to exist, before lighting the Grill.
Never attempt to light this Grill, however, if a leak cannot be stopped. Always call your gas supplier
promptly to obtain assistance.
Always consult the Rating Label on the back of the Grill to confirm that it has already been configured to
burn Natural Gas.
All gas supply plumbing should be performed only by a qualified service agency. In the U.S., the supply
connection must be made in accordance with local code or, in the absence of local codes, with the national
fuel gas codes, ANSI Z223.1/NFPA54. In Canada, the supply connection shall be carried out in accordance
with the provincial authorities having jurisdiction and in accordance with the requirements of the CAN/
CGA 1-B149.1 installation code. A shutoff value must be installed between the gas grill and the main supply.
For natural gas, use a 3/8” or 1/2” natural gas supply line capable of an a input of up to 100,000 BTUs
(depending on the model).
Always disconnect the Grill and close its individual manual shutoff valve, when conducting pressure tests of
the gas supply piping system at pressures which exceed 1/2 psi (3.5 kPa).
Always isolate the Grill from the gas supply piping system by closing its individual manual shutoff valve.
WARNING:
Gas Hookup
Retract Sleeve
Fig. 6a
Release Sleeve
Release Sleeve
Fig. 6b

CONTROL FUNCTIONS
PROPANE TANK VALVE
WARNING:
BURNER CONTROL VALVES
ACTIVATING THE IGNITER
ELECTRONIC IGNITION SYSTEM
PIEZO IGNITION SYSTEM
Never open the Tank Valve unless the Grill is being prepared for use, to prevent the pooling of
propane vapor.
Always open the Valve immediately before lighting the Grill, and always close it immediately after cooking has
been completed.
(see Fig. 7)
On Models VCS3006, VCS3506 & VCS3506BI, there are three independent control valves for the main
burners, and a separate control valve for the rotisserie burner (if equipped).
On Models VCS4006 & VCS4106, there are four independent control valves for the main burners, and a
separate control valve for the rotisserie burner (if equipped).
On Models VCS5006, VCS5016, & VCS5006BI, there are five independent control valves for the main
burners, and a separate control valve for the rotisserie burner.
On Models VCS6006, there are six independent control valves for the main burners, and a separate control
valve for the rotisserie burner.
The OFF position is indicated above each knob. A full range of flame adjustment is available from High to
Low, (by turning a knob counterclockwise).
As you push and hold the Igniter Button, you will hear a series of clicks as the igniter module generates an
ignition spark to the burners. The burner should light within five seconds. Depending on which model you
have, the system is powered by either a single “AA” or a single “AAA” battery. Ensure the battery has been
installed before using the igniter. To remove or replace the battery, turn the push button knob counter-
clockwise, and carefully pull out the spring and battery. Ensure that the positive end of the battery is in the
down (bottom) position before replacing the knob.
(if equipped)
As you turn the Igniter Knob clockwise, you will hear a click as the Piezo module generates an ignition spark to
the burner. Rotate the Igniter Knob until the burner lights. The burner should light within five seconds.
Page 6

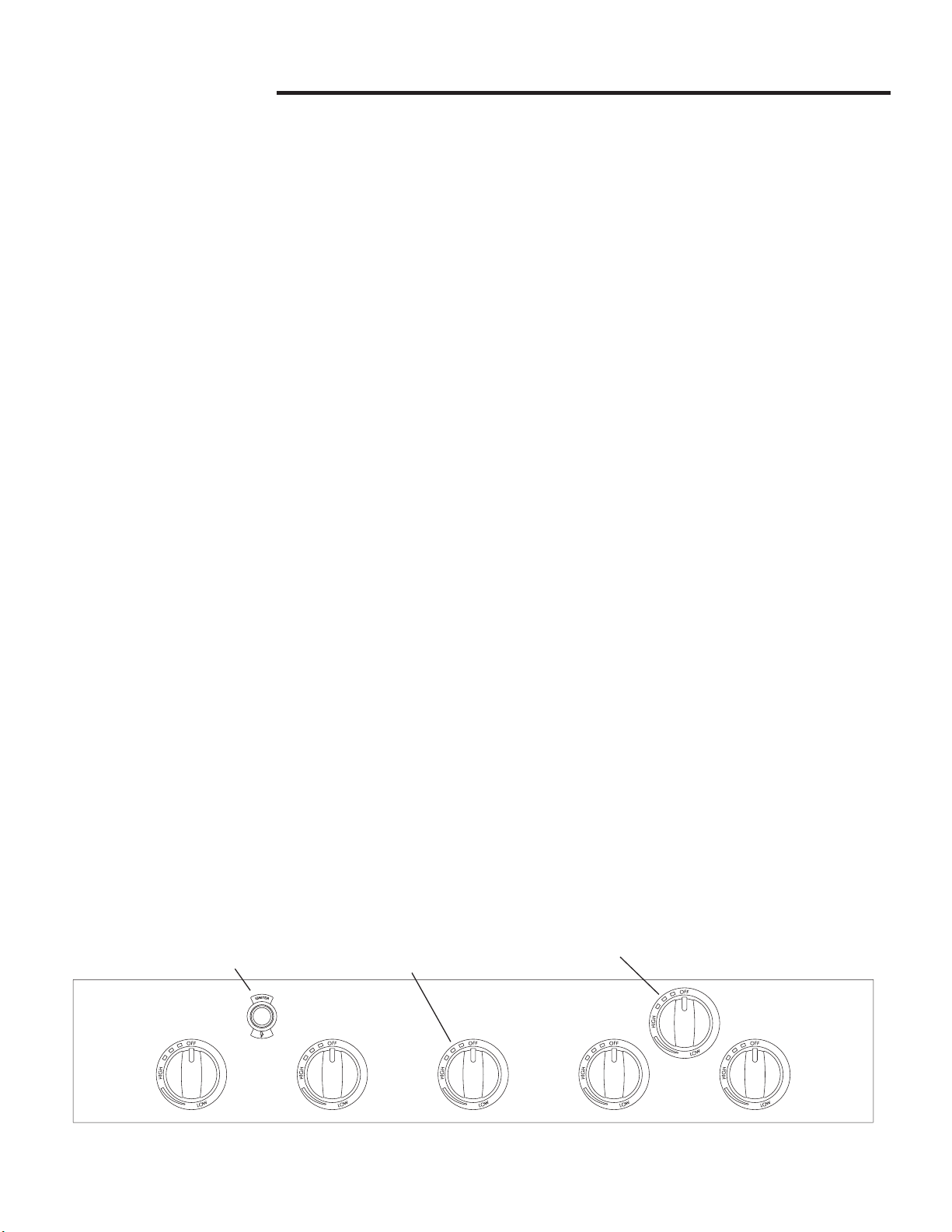

(VCS5006 Model Shown) Fig. 7
Igniter Button
(All Models)
Main Burners
(3,4,5or6)
Rotisserie Burner Control
(if equipped)
Operation

LIGHTING THE MAIN BURNERS
WARNING:
WARNING: IF THE SELECTED BURNER DOES NOT LIGHT,
1.
Never stand with your head directly over the
Grill when preparing to light the main burners, to prevent
possible bodily injury.
2.
3.
4.
5.
immediately turn the burner
control knob to the OFF position, to prevent gas buildup. Wait five (5) minutes for the gas to clear and then
repeat the preceding starting procedure. If the burner will not light when using the Igniter, follow the match
lighting instructions (see Page 8).
6.
7.
8.
Page 7
Confirm that the burner is properly lit and that the flame pattern is as desired, (see Figs. 9a, 9b & 9c, for the
proper flame patterns). If the flame pattern is other than normal, consult the Troubleshooting Guide on
Page 23 for corrective action.
Always preheat the grill before starting cooking. Light all burners and adjust them to the HIGH position for
5 to 10 minutes. Before placing any food on the Grill, clean the cooking grids with a brass wire brush.
Adjust the Controls to a medium setting for most cooking requirements. A light coating of cooking oil on
the cooking grids, before heating the Grill, will prevent foods from sticking to the Grill.
Always open the Hood completely and always inspect
the Grill and burners to confirm that all components are
properly positioned before lighting the main burners.
Always confirm that all of the burner control knobs are
in the OFF position before opening the gas supply.
Turn on the propane gas supply valve at the tank (1 to 2
turns) or turn on the main natural gas supply valve (see
Fig. 8).
Turn the selected Burner Control Knob to the HIGH
position by pushing down on the knob and turning it
counter-clockwise.
Immediately activate the Igniter (see Page 6). The
selected burner should light within five seconds. Light
the burners sequentially from either left to right or right
Operation
NOTE: When lighting the grill for the first time, burn with
the main burners on HIGH for at least 30 minutes, to burn
off any manufacturing residues.
Fig. 8
Fig. 9a Fig. 9b Fig. 9c
Normal: Soft blue flames Out of Adjustment: Noisy, hard blue
flames indicate too much air Poor Combustion: Wavy yellow flames indicate too little air.

Page 8
Operation
TURNING THE BURNERS OFF
FLARE-UPS
1.
2.
3.
“Flare-ups” sometimes occur when food drippings fall onto the hot sear plates or burners and ignite. Some
flaring is normal and desirable, as it helps impart the unique flavors associated with grilled foods.
Controlling the intensity of the flare-ups is also desirable, however, in order to avoid burned or unevenly
cooked foods and to prevent the possibility of an accidental fire.
MATCH LIGHTING THE MAIN BURNERS:
WARNING:
1.
Never stand with your head directly over
the Grill when preparing to light the main burners, to
prevent possible bodily injury.
2.
3.
4.
5.
Always turn the burner control knob(s) to the OFF position when cooking has been completed.
Promptly turn OFF the gas supply valve at the propane cylinder or at the main natural gas supply line.
Close the Hood of the Grill.
Always monitor the Grill carefully while cooking and turn the flame level down (LOW), or
OFF, if flare-ups intensify.
WARNING:
Always open the Hood completely and inspect the
Grill and burners to confirm that all components are
properly positioned, before lighting the main
burners.
Always confirm that all of the burner control knobs
are in the OFF position before opening the gas
supply.
Always turn on the propane gas supply valve at the
tank (1 to 2 turns) or turn on the main natural gas
supply valve.

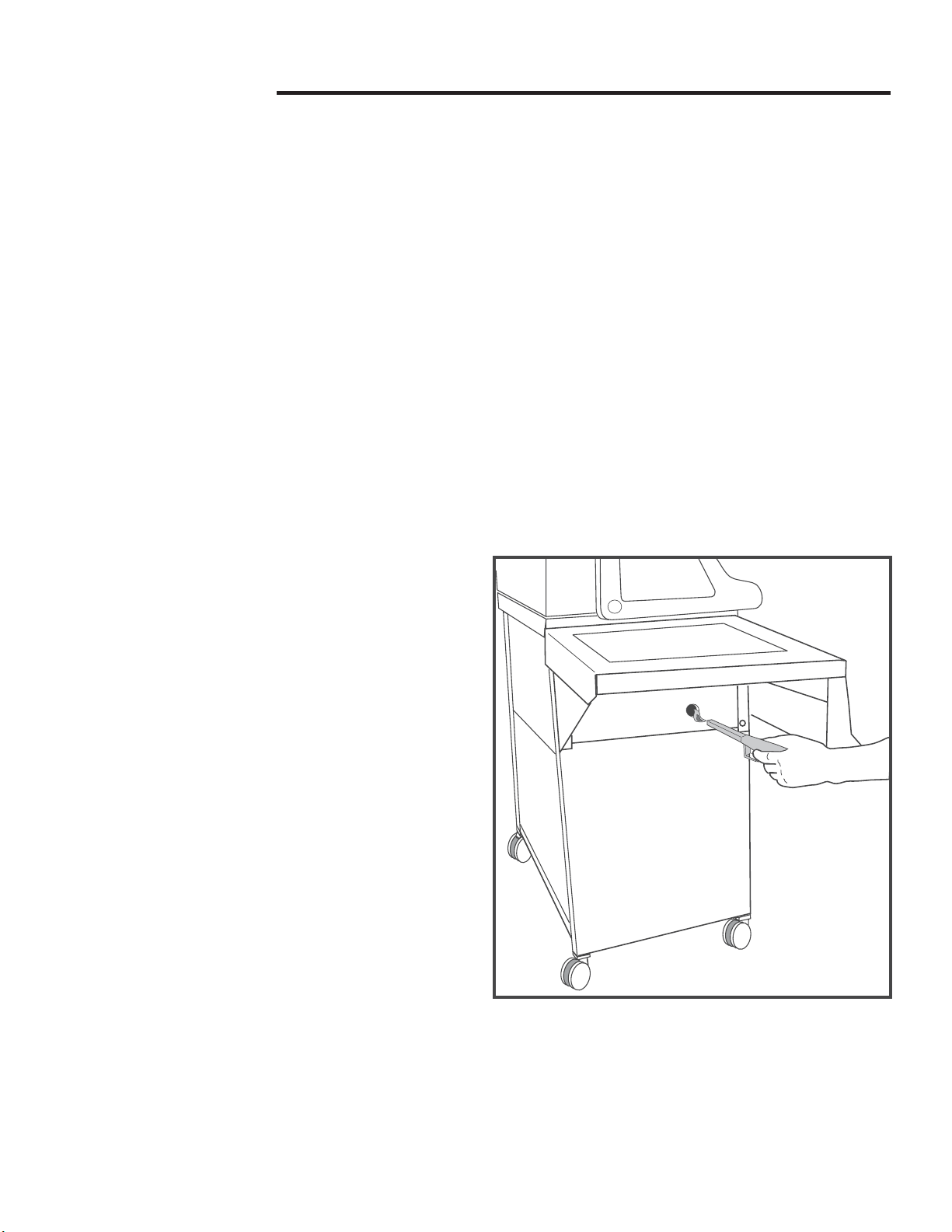

Insert a lit match or a butane lighter into the match
lighting hole located on the left hand side of the base,
(see Fig. 10).
Turn the left Burner Control Knob to the HIGH
position by pushing down on the knob and turning it
counterclockwise.
Fig. 10

LIGHTING THE ROTISSERIE BURNER
TO START THE ROTISSERIE BURNER:
MATCH LIGHTING THE ROTISSERIE BURNER:
WARNING:
(if equipped)
The Rotisserie burner provides the steady, even heat required to cook poultry and roasts to self-basted
perfection.
1.
2.
3.
4.
5.
6.
7.
1.
Never stand with your head directly over the Grill
when preparing to light the Rotisserie Burner, to prevent possible
bodily injury.
2.
3.
4.
5.
Page 9
Fig. 11
Always open the Hood completely before attempting to light the Grill.
Never stand with your head directly over the Grill when preparing to light the Rotisserie
burner, to prevent possible bodily injury.
Always confirm that all of the burner control knobs are in the OFF position before opening the gas supply.
Turn on the propane gas supply valve at the tank (1 to 2 turns) or turn on the main natural gas supply valve.
Turn the Rotisserie Burner Control Knob to the HIGH position, by pushing down on the knob and turning
it counterclockwise.
Immediately push the Igniter Button. The Rotisserie burner should light within five seconds. (Note: on 6-
burner model grills, the rotisserie igniter is located on the side burner.)
IF THE ROTISSERIE BURNER DOES NOT LIGHT, immediately turn the burner
control knob to the OFF position, to prevent gas buildup Wait five (5) minutes for the gas to clear and then
repeat the preceding starting procedure. If the burner will not light when using the Igniter, follow the match
lighting instructions below.
Confirm that the burner is properly lit and that the flame pattern is as desired, (see Figs. 9a, 9b & 9c, for the
proper flame patterns). If the flame pattern is other than normal, consult the Troubleshooting Guide on
Page 22 for corrective action.
Always preheat the Grill before starting to cook on the rotisserie.
Always open the Hood completely, before attempting to light the Grill.
Always confirm that all of the burner control knobs are in
the OFF position before opening the gas supply.
Turn on the propane gas supply valve at the tank (1 to 2
turns) or turn on the main natural gas supply valve.
Insert a lit match or a butane lighter into the match lighting
hole located below the rotisserie screen (see Fig. 11).
Turn the Rotisserie Control Knob to the HIGH position by pushing
down on the knob and turning it counterclockwise.
WARNING:
WARNING:
Operation
Rotisserie
Lighting Hole

Page 10
Operation
ROTISSERIE SETUP
WARNING:
(if equipped)
The Rotisserie burner is intended to be used for rotisserie cooking only.
Never use the main burners while using the Rotisserie burner, as that could result in igniting the
drippings, or overheating your Grill.
The Rotisserie assembly includes a
counter-weight for large or irregular
food items ; using the counterweight
will reduce the strain on the motor.
1.
2.
3.
4.
5.
6.
7.
NOTES:
Engage the Motor Bracket to the left side of the base as
per Rotisserie instructions.
Engage the Rotisserie Motor in the Motor Bracket (see
Fig. 12a).
Assemble the spit and meat forks. Adjust the retainer
bushing to keep the spit in place (see Fig. 12a).
Tighten the thumbscrews with small pliers.
Insert the Spit Rod into the Rotisserie Motor.
Always use the counterweight to balance the spit when cooking large or irregular food items.
The Rotisserie Motor is rated to turn a maximum load of 12 lb.
Never use the Rotisserie Motor in the rain, and never use it if it has become wet.
Always use a grounded three-prong outlet and a three-prong extension cord to energize the Rotisserie
Motor. Never alter or remove the grounding prong on the Rotisserie Power Cord, as an electric shock hazard
would then result.
Never permit an electrical supply cord or a gas supply line to contact any heated surface of this Grill.
WARNINGS:
Remove the warming rack. Lay a flat
pan directly on the cooking grates to
catch drippings. Large food items
may require that you remove the
middle cooking grate(s), and place
the pan on the sear plates.
Insert the ends of the Rotisserie
Support into the slots of the right
cooking grate, so that the edge of the
support is approximately 1” from the
right casting (10” on model
VCS6006), and the top groove is in
line with the rotisserie spit hole in the
left casting (see Fig. 12a).
Fig. 12a
Fig. 12b
Spit Rod - Motor End
Rotisserie
forks
Motor
bracket
Rotisserie
motor
Rotisserie
support
Bushing

Fig. 13
Control
knob
Igniter
LIGHTING THE SIDE BURNER
WARNING:
NOTE:
SHUTTING THE BURNER OFF
(if equipped)
Never stand with your head directly over the Grill when preparing to light the side burner, to
prevent possible bodily injury.
1.
2.
Observe the flame pattern. Soft blue flames are normal ; hard blue flames or wavy yellow flames are
not. You can adjust the flame with the air shutter below the control knob (see Fig 19). If yellow flames persist,
refer to the Troubleshooting Guide on Page 22.
1.
Page 11
Turn the side burner control knob to HIGH (see Fig. 13).
Turn the Igniter Knob clockwise until the burner ignites. The burner should light within four clicks of the
igniter. NOTE: Some models are equipped with an electronic ignter. Refer to page 6 for respective piezo
and electronic igniter systems.
Turn the control knob counterclockwise to the HIGH position, then depress it and turn it to OFF. NEVER
force the knob without depressing it, as that can damage the valve.
Operation
NOTE: Single burner
model shown.

Page 12
Cooking
METHODS OF COOKING
With its combination of burners and accessories your gas grill can provide for
virtually every conceivable style of cooking.
The powerful deliver the middle and high range of temperatures
desired for traditional barbecuing. This includes searing and finishing steaks,
hamburgers, pork chops and the like, or grilling chicken parts, sausages, or
kebabs with more moderate heat (see Fig. 14a).
The , if equipped, delivers the succulent self-basted flavors of
chickens, ducks and hams or pork, beef and lamb roasts that only rotisserie
cooking can achieve. Also, the radiant infrared unit ensures that you will be
enjoying the results much sooner (see Fig. 14b).
The , if equipped, boils, sautés, stir fries or warms all with equal
aplomb. Plus its high power is more than adequate for deep frying seafood,
vegetables and meats or hard boiling soups, lobsters or corn on the cob (see Fig.
14c).
Main burners
Rotisserie burner
Side burner
STOVETOP
GRILL
ROTISSERIE
Fig. 14a
Fig. 14b
Fig. 14c

Page 13
Cooking
One of the keys to extending your range of grilling capabilities is a fundamental understanding of the two
common methods of cooking, and cooking.
In the , food is placed directly above the heat source. This method is used in searing
for example where you require high and immediate heat to quickly brown the outside layer of meats thereby
sealing in their juices to enhance flavor. On the grill this is accomplished using one or both of your main
burners and placing the food on the porcelain cooking grids directly over the burners. This may be done with
the grill hood either open or closed.
In the , food is placed on the grill offset from the heat source. With the grill lid
closed reflected heat surrounds the food cooking it more evenly and gently. This approximates the action of a
convection oven where heat is circulated by the use of a fan to achieve a similar result. This method is perfect
for cooking roasts of any kind but is also useful whenever you want to slow cook or bake a wide variety of
foods. Indirect cooking on your grill is accomplished using one of the main burners and placing the food on
the porcelain cooking grid above the opposite burner, or on the warming rack burner. The grill hood should
always be closed when employing the indirect cooking method.
Always observe safe food-handling and safe food-preparation practices when using this Grill,
to prevent food-borne illnesses :
Direct Indirect
Direct cooking method
Indirect cooking method
PREPARING FOOD FOR THE GRILL:
WARNING:
Always cook foods adequately. Undercooked foods can retain bacteria, especially if thawed or exposed to
warm conditions prior to cooking.
Always use a meat thermometer to confirm that foods have been fully cooked.
Always use separate plates and utensils for the handling of raw food. Never place raw food and cooked food
on the same plate, and never place cooked food on a plate that was used for handling raw food. Always
carefully wash all plates and utensils used to handle raw food before using them to handle cooked food.
Always wash all vegetables, seafood and poultry before cooking.
Always leave uncooked foods in the refrigerator until you are ready to start cooking.
Always marinate meat in the refrigerator. Always dispose of the excess marinade, and never reuse it.
Always preheat your Grill for 5 to 10 minutes before cooking, and clean off all grease and food residue
before using the cooking grids.

Page 14
Cooking
Grilling Tips:
WARNING:
NOTE:
A few helpful hints will ensure that your grilling results are perfect every time.
Never let the tray boil dry. That could be hazardous, as grease from fatty foods that have
collected in the tray could ignite and possibly cause bodily injury or property damage.
Always trim excess fat from your foods to reduce the occurrence of flare-ups during cooking.
Apply a light coating of cooking oil to your cooking grids before grilling, to prevent foods from sticking.
Cook similar portion sizes together, so that they all cook evenly.
Use tongs to turn foods on the Grill.
Never pierce foods while they are cooking on the Grill, as this will dry them out.
On foods such as pork chops and steak, slit the fat strip to prevent the meat from curling during cooking.
Turn foods infrequently. Some chefs say that a good steak should never be turned more than once.
Apply sugar-based sauces such as commercial barbecue sauces only during the latter stages of cooking, to
prevent charring.
Soak the string you use to tie up roasts and poultry on the Rotisserie spit to protect it from burning. Also,
soak the wooden skewers that you intend to use for kebabs for several minutes before using them for
cooking.
Use a disposable aluminum tray filled with water, fruit juice, wine or a marinade to add extra flavor and
moisture to slow-cooked foods like roasts, whole chickens, turkeys or ducks. Place the tray on top of the sear
plates below the Grill surface and immediately under the foods being cooked. This will buffer the heat from
below, thereby slowing the cooking process and protecting the bottom of the food from overcooking.
Check the tray periodically during cooking and keep it filled with liquid.
