Vermont Castings Signature VCS301 Series User manual
20302820
VCS Users guide cover
10/10
20302820 1/11 Rev. 1 En
Model VCS501
Model VCS301
Model VCS401
*Includes all colors.
20302820
2
...............................................................................................2
.............................................................................................3
Important Warnings ..............................................................4
Clearance Requirements ......................................................5
Safety ...................................................................................6
Fuels ......................................................................................9
Connecting the Gas Supply ................................................ 11
LP Gas Supply Connection ................................................ 11
Natural Gas Supply Connection .........................................12
Test for Leaks .....................................................................12
Control Functions ...............................................................13
Lighting the Main Burners ...................................................14
Turning the Burners Off .....................................................15
Flare-ups ............................................................................15
Match Lighting the Main Burner ..........................................15
Lighting the Rotisserie Burner ............................................16
Match Lighting the Rotisserie Burner .................................16
Rotisserie Setup .................................................................17
Lighting the Side Burner .....................................................18
Shutting the Side Burner Off ...............................................18
Methods of Cooking ............................................................19
Preparing Food for the Grill ..............................................20
Grilling Tips ........................................................................21
Cooking Time Chart ..........................................................22
Burners ...............................................................................25
Rotisserie Burners ..............................................................26
Side Burners .......................................................................26
Cooking Grids ......................................................................26
Drip Tray ............................................................................27
Stainless Steel Panels ........................................................27
Porcelain Enamel Castings ................................................27
Burner Adjustment ...............................................................28
....................................................................................29
.............................................................................................31
Table of Contents
20302820 3
Parts Identification
910003
VCS500 users display
12/08
Lid
Cooking Grates
Warming Rack
Side Burner
Side Burner
Cover
Side Shelf
Condiment Tray
Burner Control Knobs
Rotisserie Control Knob
(if equipped)
Igniter
Console Light Button
Condiment Tray
Grill Light
(if equipped)
Side Shelf
Optional Skirt
Utensil Hooks
Towel Bar
B340
VCS3 display
Burner Control Knobs
Utensil Hooks
Optional
Skirt
Condiment Tray
Condiment Tray
Side Shelf
Side Shelf
LP Cylinder Location
Console Light Button
Towel Bar
Igniter
Optional
Side Burner
Lid
Cooking Grates
Warming Rack
20302820
4
The Signal Words used in this Manual, and their intended meanings, are as follows :
Indicates that a failure to observe the safety instructions could result in death or cata-
strophic bodily injury.
Indicates that a failure to observe the safety instructions could result in serious bodily
injury.
Indicates that a failure to observe the safety instructions could result in property dam-
age or minor bodily injury.
Designates important information relating to the safe use of the Grill.
Since this outdoor cooking appliance is movable, is fueled by natural or propane gas, generates
very high temperatures for cooking and emits carbon monoxide as a by-product of combustion,
prudent precautions must be taken to assure its safe use.
This Gas Barbecue Grill will provide you with many hours of pleasure and enjoyment, if it is used
in accordance with the Warnings and Operating Instructions contained in this Manual.
Always comply with all of the Warnings and Operating Instructions contained in this manual
to prevent personal injury or property damage.
•This Grill has been designed for OUTDOOR use only.
Never use this outdoor Grill inside any building, garage, shed, breezeway, or any other enclosed
area, to prevent a possible re and to prevent the possibility of carbon monoxide poisoning or
asphyxiation.
This outdoor cooking gas appliance is not intended to be installed in or on boats (any vessels).
This outdoor cooking gas appliance is not intended to be installed in or on recreational vehicles.
Exposing an overlled or a disconnected propane cylinder to heat could cause venting of fuel
through the pressure release valve. Since propane vapor is heavier than air it tends to pool and, if ignited,
could produce a violent re or explosion.
Never install a propane cylinder in this grill if it is more than 80% full, as the contents may lack
adequate room for expansion when exposed to heat.
Never store a spare Propane Gas Cylinder in the cylinder-compartment of this Grill, because it
will be exposed to high temperatures when the Grill is in use.
Warnings
20302820 5
Warnings
• (i.e. where it is
enclosed in any type of construction), to prevent a re or gas explosion.
•
or recreational vehicle, to prevent a possible re and to prevent the possibility of carbon mon-
oxide poisoning or asphyxiation.
• to prevent the accumulation of gas and a
possible re or explosion.
•
•
a combustible object (e.g., an awning or umbrella) or in
a covered area (e.g., a porch or gazebo) before lighting
it, to prevent a possible re.
•
the overhang of a house, a garage or other structure be-
fore lighting it. An overhang will serve to deect are-ups
and radiated heat into the structure itself, which could
result in a re.
•
36” (914 mm) away from any combustible materials or
surfaces before lighting it, and that no gasoline or other
volatile substances are stored in the vicinity of this Grill.
The temperature of a grease re or of the radiated heat
might otherwise be sufcient to ignite nearby combus-
tibles or volatile substances.
•
combustion and ventilation air, but never position it in
the direct path of a strong wind.
• to prevent uncontrolled grease res from erupt-
ing.
• or while it is still hot, to prevent possible
personal injury.
• in the vicinity of this Grill
or in the vicinity of any other heat-generating appliances, because of the danger of starting a re.
•
or, in the absence of any applicable local Codes, with either the National Fuel Gas Code, ANSI
Z223.1/NFPA54, or CSA-B149.1, Natural Gas and Propane Installation Code.
36" (1m)
36" (1m)
"
CLEARANCE
B123
20302820
6
• Never install a propane cylinder that is more than 80 % full, as the contents may lack adequate room
for expansion when exposed to heat. Propane vapor may then be vented through the pressure release
valve, which could accumulate in a pool and later result in a re or explosion.
Always instruct your certied propane fuel supplier to conrm by weight that your cylinder is not more
than 80 % full. An empty cylinder will weigh about 19 lbs., while a properly lled cylinder should weigh
no more than 39 lb.
• Never store a spare Propane Cylinder in the cylinder-compartment of this Grill. Exposing a disconnected
cylinder to heat could result in the venting of propane vapor through the pressure release valve, and
the resulting pooled vapor could cause a violent re. (No hazard is posed by the connected cylinder if
it is not overlled, however, as it tends to refrigerate itself while it is being used.)
Always conrm that all openings in the cylinder compartment of this Grill are free of any obstructions
that would restrict the circulation of ventilation air. Good ventilation will prevent any leaked propane
vapor (which is heavier than air) from pooling. Pooled propane vapor is a hazard, as it could explode
if ignited.
• Always store your spare Propane Gas Cylinders in an outdoor area that is well-ventilated, shady, cool
and removed from any heat source. Always store those cylinders in an upright position. Never store a
spare cylinder in the vicinity of this Grill, or in the vicinity of any other heat-generating appliance.
•
Always consult the Rating Label on the back of the Grill to conrm which fuel must be used with
the Grill. Never operate the Grill with propane gas if it has been congured to use natural gas, to
prevent hazardous overheating.
•
Always conrm that there are no gas leaks before lighting this Grill. Turn on the main gas valve
while the burner valves are set to the “OFF” position. Apply a 50/50 solution of liquid soap and
water to the gas supply line connectors with a brush or spray bottle, and watch for bubbles. If
bubbles appear, a leak is indicated.
•
Turn off the gas supply and repair the leak. Repeat this test until no bubbles appear. Never use a
match or open ame to test for gas leaks.
•
Always visually inspect the gas supply line for fraying, cracking or rodent damage before each use
of this Grill. If necessary, install a replacement hose and regulator obtained from the manufacturer
before lighting this Grill. This procedure requires the opening of a door (or doors) in the Grill.
• Always consult the Rating Label on the back of the Grill to conrm which fuel must be used with the
Grill.
• Never attempt to operate the Grill with natural gas if it has been congured to use propane gas, and
never attempt to use propane gas if it has been congured to use natural gas, to prevent possible bodily
injury.
• Always employ a qualied service agency to install all necessary natural gas supply plumbing, for safety
reasons and to assure compliance with all applicable Codes.
Safety
20302820 7
Safety
• Always promptly shut off the gas supply and immediately extinguish all ames if you smell gas.
• Always seek assistance from your gas supplier or your local Fire Department if the gas smell persists,
because of the danger of re or explosion.
• Always conrm that there are no gas leaks before lighting this Grill. Apply a 50/50 solution of liquid
soap and water to the gas supply line connectors with a brush or spray bottle, and watch for bubbles.
If bubbles appear, a leak is detected.
• Turn off the gas supply and repair the leak. Repeat this test until no bubbles appear. Never use
a match or open ame to test for gas leaks.
• Always visually inspect the gas supply line for fraying, cracking or rodent damage before each use of
this Grill. If necessary, install a replacement before lighting this Grill. This procedure requires the open-
ing of a door or doors in the Grill.
• Never permit a gas supply line to contact any heated surface of this Grill.
• Always keep children and pets under close supervision when using this Grill, and never permit them
to come near the Grill while it is in use, as the exterior surfaces will be extremely hot.
• Always wear insulated protective mitts when working at the Grill, or when attempting to close a gas
supply valve after cooking has been completed, to prevent possible burns. Always use insulated pot
holders when handling containers of hot food.
• Always wear an insulated protective mitt when adding a smoking agent to a Smoker Box.
• Never store or use gasoline or other ammable or volatile substances in the vicinity of this Grill, or in
the vicinity of any other heat-generating appliance.
20302820
8
Safety
• Always conrm that this Grill has been grounded in accordance with applicable local Codes or, in the
absence of local Codes, with the National Electrical Code, ANSI/NFPA No. 70 or the Canadian Electri-
cal Code, CSA C22.1, when an external electrical source is being utilized for the Rotisserie Motor.
1. Never immerse the power cord or power plug in water, or in any other liquid to protect against electric
shock;
2. Always unplug the power cord from the outlet when not in use, and before cleaning the Grill. Always
allow the unit to cool before installing or removing any Rotisserie components;
3. Always contact the manufacturer for necessary repair services, if the unit has malfunctioned or has
been damaged in any manner, and never attempt to operate the unit with a damaged power cord or
power plug;
4. Never allow the power cord to contact a hot surface or to hang over the edge of a table, where it might
sustain damage;
5. Never use this Grill for any purpose other than the ones specically intended by the manufacturer;
6. Always connect the power cord to the Grill rst, and then plug it into the power outlet;
7. Always connect this Grill to an electrical circuit protected by a Ground Fault Interrupter (GFI);
8. Never remove the 3-pronged (grounded) power plug from the existing Rotisserie Motor power cord,
and never connect the 3-pronged (grounded) power plug to a 2-pronged adapter.
9. If it is necessary to use an extension cord, always select one that has a 3-pronged (grounded) power
plug; that is adequate for the power rating of the unit; and that has been approved for outdoor use, and
has a W-A marking.
10.Keep any electrical supply cord and the fuel supply hose away from any heated surface.
11.Electrical Grounding Instructions: This outdoor cooking gas appliance is equipped with a three-pronged
(grounding) plug for your protection against shock hazard and should be plugged directly into a properly
grounded three-pronged receptacle. Do not cut or remove the grounding prong from this plug.
Replacing the battery incorrectly might result in an explosion. Replace the battery only with the same or
equivalent type recommended by the manufacturer. Dispose of used batteries according to your local
environmental guidelines.
20302820 9
Safety
Never use Natural Gas in a Grill that
has been congured to burn Propane
Gas, (and never use Propane Gas in
a Grill that has been congured to use
Natural Gas) to avoid possible bodily
injury. Always consult the Rating Label
on the back of the Grill to conrm that
it has been congured to burn Propane
Gas.
Always install the pressure regulator
and Type 1 propane gas supply cou-
pling and hose that has been provided
with your Propane Grill, as pictured in Figure 2.
• Always install a standard 20 lb. propane cyl-
inder that has been equipped with a Type I
valve outlet as shown in Figure 3, and that is
12” in diameter and 18” in height. Always use
a propane cylinder that has been constructed
and marked in conformance with either the
specications for LP Gas Cylinders of the U.S.
Department of Transportation or the speci-
cations in the National Standard of Canada,
CAN/CSA-B339, Cylinder, Spheres and Tube
for Transportation of Dangerous Goods, as
applicable.
• Always conrm that your propane cylinder is equipped with a
shutoff valve terminating in a Type I propane cylinder valve outlet
connection, and that it has been provided with a collar to protect
the cylinder valve.
• Never install a propane cylinder in this Grill unless it is equipped
with a listed Overll Protection Device (OPD).
• Always have a new propane cylinder properly purged of air by
your certied propane gas dealer. Since a new cylinder is initially
lled with air, the air must rst be purged before it is lled with
propane.
• Always visually inspect the gas supply line for fraying, cracking
or rodent damage before each use of this Grill and, if necessary,
install a replacement hose and regulator obtained from the manu-
facturer prior to lighting this Grill.
• Always place a dust cap on the cylinder valve outlet whenever
the cylinder is not in use and always install the dust cap that was provided with the cylinder valve. The
use of an incorrect dust cap could result in leakage of propane.
"
,0TANK
Shutoff Valve
Collar
B125
Figure 3
"
HOSEREGULATOR
Check hose for breaks or
wear before each use.
Type 1 Connector
Regulator B124
Figure 2
To Main Burner
Manifold
To Side
Burner Valve
"
QUICKCONNECTHOSE
B232
Figure 2a
Type 1 Connector
Check hose for breaks or wear
before each use.
Regulator
To Main Burner
Manifold
Quick Connect for Reg-
ular Side Burner and
Optional Side Burner of
Built-in Models
20302820
10
Never install a freestanding outdoor propane Grill in an “island” conguration, (i.e. where it is enclosed in
any type of construction), to prevent a re or gas explosion.
a) Never store a spare LP - Gas Cylinder under or near this appliance
b) Never ll the cylinder beyond 80% full; and
c) Always comply with these warnings, to prevent a re causing death or serious injury.
Always conrm that all opening in the cylinder-compartmet of this Grill are free of any obstructions that
would restrict the circulation of ventilation air. Good ventilation will prevent any leaked propane vapor (which
is heavier than air) from pooling. Pooled propane vapor is a hazard, as it could explode if ignited.
,
away from living quarters and in a well-ventilated, cool, dry area.
•
•
whenever a propane cylinder has been disconnected.
•
•
•
•
•
•
•
•
as shown in Figure 3.
Safety
NOTICE
Always have a certied propane gas supplier inspect and re-qualify your rellable propane gas cylinder
prior to each relling, in accordance with DOT or TC requirements for propane cylinders.
20302820 11
1. Always secure the propane tank in the
tank locator hole in the bottom pan of
the cylinder-compartment. (Portable
gas grill only.)
2. Always conrm that all burner control
knobs are in the OFF position before
activating the gas supply.
3. Always connect the gas supply regulator
by rst
inserting the nipple of the valve
coupling into the tank valve and then
tightening the connection collar by turning
it clockwise with one hand while holding the
regulator with the other as shown in Figure 4.
Always conduct the gas leak test described on Page 12
before attempting to light this Grill, to prevent a possible
re or explosion.
1. Never store or use gasoline or any other volatile substance
in the vicinity of this Grill.
2. Never store a spare propane cylinder in the vicinity of this Grill,
or in the vicinity of any other potential heat source.
Always consult your local gas supplier for professional
assistance before attempting to connect this Grill to a
xed pipe bulk Propane (LP) gas supply system.
B218
lp tank connect
10/07
Gas Connection
Figure 4
B218a
"
LEAKTEST
Figure 5
B126
50/50 Solution of liquid
soap and water
NOTICE
20302820
12
Gas Connection
1. Retract the Sleeve on the Socket as shown in Figure 6a.
2. Insert Plug and release the Sleeve. (Fig. 6b)
3. Push the Plug until Sleeve snaps forward to lock the Plug in
the Socket.
1. Push Sleeve back and pull the Plug out.
• Never use Propane Gas in a Grill that has been congured to
burn Natural Gas, (and never use Natural Gas in a Grill that
has been congured to use Propane Gas), to avoid possible bodily injury. Always consult the Rating
Label on the back of the Grill to conrm that it has been congured to burn Natural Gas.
• Always utilitze a qualifed service agency to perform all required gas supply plumbing. In the U.S., the
supply connection must be made in accordance with local code or, in the absence of local codes, with
the national fuel gas codes, ANSI Z223.1/NFPA54. In Canada, the supply connection shall be carried
out in accordance with the provincial authorities having jurisdiction and in accordance with the require-
ments of the CSA 1-B149.1 installation code.
• A shutoff value must be installed between the gas grill and the main supply. For natural gas, use a
3/8” or 1/2” natural gas supply line capable of an input of at least 100,000 BTUs (depending on the
model).
• Always disconnect the Grill and close its individual manual shutoff valve, when conducting pressure
tests of the gas supply piping system at pressures which exceed 1/2 psi (3.5 kPa).
• Always isolate the Grill from the gas supply piping system by closing its individual manual shutoff
valve.
1. Always conrm that all burner control knobs are in the OFF position.
2. Always connect the gas supply hose rst and then open the gas shutoff valve.
3. Always use a brush or spray bottle to apply a 50/50 solution of liquid soap and water to all connection
points (as illustrated in Figure 5) to test for gas leaks. Never use a match or open ame for that pur-
pose.
4. Always look for bubbles to appear, as the appearance of bubbles will indicate a gas leak. Always turn
off the gas immediately at the gas supply valve and tighten the connection, if you nd that a leak ex-
ists.
5. Always repeat this procedure until no further gas leaks are found to exist, before lighting the Grill.
6. Never attempt to light this Grill, however, if a leak cannot be stopped. Always call your gas supplier
promptly to obtain assistance.
Retract Sleeve
Release Sleeve
B127
sleeve connect
8/07
Figure 6a
Figure 6b B127
20302820 13
Always open the Propane Tank Valve immediately before lighting the Grill and always close it im-
mediately after cooking has been completed.
Never open the Propane Tank Valve unless the Grill is being prepared for use, to prevent the pooling of
propane vapor.
Always open the Valve immediately before lighting the Grill, and always close it immediately after cooking
has been completed.
(Fig. 7)
On VCS301 Series, three valves independently control gas ow to each burner.
On VCS301BI Series, three valves independently control gas ow to each burner and a separate control
valve for the rotisserie burner.
On VCS401 Series, four valves independently control gas ow to each burner and a separate control
valve for the rotisserie burner.
On VCS501 Series and VCS501BI Series, ve valves independently control gas ow to each burner and
a separate control valve for the rotisserie burner.
The OFF position is indicated above each knob. A full range of ame adjustment is available from High
to Low, (by turning a knob counterclockwise).
Turn on one or more burner control valves. Push and hold the burner igniter. As you push and hold the
Igniter Button, you will hear a series of clicks as the igniter module generates an ignition spark to the
burners. The burner should light within ve seconds. Depending on which model you have, the system is
powered by either a single “AA” or a single “AAA” battery. Ensure the battery has been installed before
using the igniter. To remove or replace the battery, turn the push button knob counterclockwise, and care-
fully pull out the spring and battery. Ensure the positive end of the battery is in the down (bottom) position
before replacing the knob.
Operation
"
6#3CONTROLPANEL
Back Light
Lumiere arriere
Lux posterior
Igniter
Allumoir
Encendido
ROTISSERIE
#!54)/.
2EADLIGHTINGINSTRUCTIONSONDOORBELOW
!CCESSIBLESURFACESMAYBECOMEHOT
4URNTANKOFFWHENNOTINUSE
$ONOTOPERATEROTISSERIEBURNERWHILEMAINBURNERSAREON
-)3%%.'!2$%
,ISEZLESINSTRUCTIONSDgALLUMAGEALgINTERIEURDELAPORTECIDESSOUS
,ESSURFACESADECOUVERTPEUVENTDEVENIRBRULANTES
&ERMERLEROBINETDELABOUTEILLEDgALIMENTATIONENGAZLORSQUELgAPPAREILNgESTPASUTILISE
)LNEFAUTPASUTILISERLEBRULEURDELAROTISSERIELORSQUELESBRULEURSPRINCIPAOUXSONTALLUMES
02%#!5#)/.
,EALASINSTRUCCIONESDEENCENDIDOENELINTERIORDELAPUERTAINFEROR
,ASSUPERFICIESDESCUBIERTASPUEDENCALENTARSE
!PAGUEELTANQUECONNOESTAENUSO
.OOPEREELQUEMADORDELROSTIZADORMIENTRASLOSQUEMADORESPRINCIPALESESTAN
ENCENDIDOS
Burner Igniter
Back Light
(if equipped)
B219
Figure 7
Rotisserie
(if equipped)
20302820
14
B220a
turn on tank
10/07
Never stand directly over the Grill when lighting the main
burners, to avoid exposure to possible are-ups.
1.
the Grill and burners before lighting the main
burners.
2.
are in the OFF position before opening the gas supply.
3. (1 to 2
turns) (Fig. 8)or turn on the main natural gas supply
valve.
4.
position by pushing down on the knob and turning it
counterclockwise.
5. (Refer to Page 13)
The selected burner should light within ve seconds.
Light the burners sequentially from either left to right or
right to left.
immediately turn the burner control knob to the OFF
position, to prevent gas buildup. Wait ve (5) minutes for the gas to clear and then repeat the preceding
starting procedure. If the burner will not light when using the Igniter, follow the match lighting instructions.
(Refer to Page 15)
6. Conrm that the burner is properly lit and the ame pattern is as desired. Refer to Figures 9a, 9b &
9c, for the proper ame patterns. If the ame pattern is other than normal, consult the Troubleshooting
Guide on Page 29 for corrective action.
7. Always preheat the grill before starting cooking. A light coating of cooking oil on the cooking grids,
before heating the Grill, will prevent foods from sticking to the Grill. Light all burners and adjust them
to the HIGH position for 5 to 10 minutes. Before placing any food on the Grill, clean the cooking grids
with a brass wire brush.
8. Adjust the Controls to a medium setting for most cooking requirements.
"
#ORRECTBURNERFLAMES
Figure 9a Figure 9b Figure 9c
Normal: Soft blue ames Out of Adjustment: Noisy, hard blue
ames indicate too much air
Poor Combustion: Wavy, yellow ames
indicate too little air.
B129
When lighting the grill for the rst time, burn with the
main burners on HIGH for at least 30 minutes, to burn off any
manufacturing residues.
Figure 8
B220a
Operation
20302820 15
Operation
1. Always turn the burner control knob(s) to the OFF position before turning off the main supply valve
when cooking has been completed.
2. Promptly turn OFF the gas supply valve at the propane cylinder or at the main natural gas supply
line.
3. Close the Hood of the Grill.
“Flare-ups” sometimes occur when food drippings fall onto the hot sear plates or burners and ignite. Some
aring is normal and desirable, as it helps impart the unique avors associated with grilled foods. Control-
ling the intensity of the are-ups is also desirable, however, in order to avoid burned or unevenly cooked
foods and to prevent the possibility of an accidental re.
Never allow the Grill to operate while unattended to prevent uncontrolled grease res from erupting.
Always monitor the Grill carefully while cooking and turn the flame level down (LOW), or OFF,
if are-ups intensify.
Never stand directly over the Grill when lighting
the main burners, to avoid exposure to possible
are-ups.
1. a. Always open the Hood completely and
inspect the Grill and burners before lighting
the main burners.
b. Make sure the grease cup is empty and
grease tray is clean.
c. Always visually inspect the gas supply line
for fraying, cracking or rodent damage before
lighting the grill and, if necessary, install a
replacement obtained from the manufacturer prior to lighting the grill.
2. Always conrm that all of the burner control knobs are in the OFF position before opening the gas sup-
ply.
3. Always turn on the propane gas supply valve at the tank (1 to 2 turns) or turn on the main natural gas
supply valve.
4. Insert a lit match or a butane lighter into the match lighting hole located on the left hand side of the
base. (Fig. 10)
5. Turn the left Burner Control Knob to the HIGH position by pushing down on the knob and turning it
counterclockwise.
Never store ammable or easily combustible objects (matches, butane lighters, cloths, etc.) in the
pull out food warming drawer (if equipped).
Figure 10
"
MATCHLIGHT
B168
20302820
16
The Rotisserie burner provides the steady, even heat required to cook poultry and roasts to self-basted
perfection.
Never stand directly over the Grill when lighting the main burners, to avoid exposure to possible are-
ups.
1. Always open the Hood completely before attempting to light the Grill.
2. Always conrm that all of the burner control knobs are in the OFF position before opening the gas sup-
ply.
3. Turn on the Propane Tank Valve at the tank (1 to 2 turns) or turn on the main natural gas supply valve.
4. Turn the Rotisserie Burner Control Knob to the HIGH position, by pushing down on the knob and turn-
ing it counterclockwise.
5. Immediately push the Igniter Button. The Rotisserie burner should light within ve seconds.
IF THE ROTISSERIE BURNER DOES NOT LIGHT, immediately turn the burner control knob to
the OFF position, to prevent gas buildup. Wait ve (5) minutes for the gas to clear and then repeat the
preceding starting procedure. If the burner will not light when using the Igniter, follow the match lighting
instructions below.
6. Conrm that the burner is properly lit and that the ame pattern is as desired. Refer to Figures 9a, 9b &
9c for the proper ame patterns. If the ame pattern is other than normal, consult the Troubleshooting
Guide on Page 29 for corrective action.
7. Always preheat the Grill before starting to cook on the
rotisserie.
1. Always open the Hood completely, before attempting to
light the Grill.
2. Always conrm that all of the burner control knobs are in
the OFF position before opening the gas supply.
3. Turn on the Propane Tank Valve at the tank (1 to 2 turns)
or turn on the main natural gas supply valve.
4. Insert a lit match or a butane lighter into the match lighting
hole located below the rotisserie screen. (Fig. 11)
5. Turn the Rotisserie Control Knob to the HIGH position by
pushing down on the knob and turning it counterclock-
wise.
"
ROTISSERIEMATCHLITE
Figure 11
B130
Rotisserie
Lighting Hole
Operation
20302820 17
Operation
The rotisserie assembly includes a coun-
terweight for large or irregular foods; us-
ing the counterweight reduces strain on
the motor which is rated to turn a maxi-
mum of 12 lbs.
1. Attach the Rotisserie Motor Bracket to
the left side of the base by aligning the
holes and securing the pieces together
using the two (2) bolts and two (2) lock
nuts provided. (Fig. 12a)
2. Remove the warming rack. Lay a at non-
combustible pan directly on the cooking
grates to catch drippings. Large food items may require that you remove the
middle cooking grate(s), and place the pan on the sear plates. Never use the
main burners while using the rotisserie burner.
3. Insert the ends of the Rotisserie Support into the slots of the right cooking
grate, so the edge of the support is approximately 1” from the right casting,
and the top groove is in line with the rotisserie spit hole in the left casting.
(Fig. 12b)
4. Engage the Motor Bracket to the left side of the base as per Rotisserie instruc-
tions.
5. Engage the Rotisserie Motor in the
Motor Bracket. (Fig. 12b)
6. Assemble the spit and meat forks.
Adjust the retainer bushing to keep
the spit in place. (Fig. 12b)
7. Tighten the thumbscrews with
small pliers.
8. Insert the Spit Rod into the Rotis-
serie Motor. (Fig. 12c)
"
SPITROD
Spit Rod - Motor End
B132
Figure 12c
"
ROTISSERIESETUP
Rotisserie
Forks
Rotisserie
Motor
Bushing
Rotisserie
Support
B131
Figure 12b
Motor
Bracket
NOTICE
"
ROTISSERIEBRACKET
Rotisserie Motor Bracket
B163
Figure 12a
"
")ROTISSERIEBRACKET
Rotisserie Motor
Bracket for Built-
In Models
B231
20302820
18
Operation
NOTE: Side burner assembly instructions are included in the box with the Side Burner Kit.
Never stand directly over the Grill when lighting the side burner, to avoid exposure to possible are-ups.
1. Ensure the main Propane Tank Valve or the main Natural Gas supply valve are in the on position. Turn
the side burner control knob to HIGH. (Fig. 13)
2. Push and hold the Igniter Button, you will hear a series of clicks as the igniter module generates an
ignition spark to the burners. The burner should light within ve seconds. (Refer to Page 13)
3. Check the ame pattern. Soft blue ames are normal, hard blue ames or wavy yellow ames
are not. Adjust the ame pattern with the air shutter below the control knob. (Fig. 18, as nec-
essary. If yellow ames persist, refer to the
Troubleshooting Guide on Page 29.
Turn the control knob counterclockwise to the HIGH posi-
tion, then depress it and turn it to OFF.
NEVER apply force to the control knob without depressing
it, as that can damage the valve.
NOTICE
"
6#3SIDEBURNER
OFF
HI
Figure 13
B210
• Never attempt to use the rotisserie burner for any purpose other than rotisserie cooking.
• Never use the main burners while using the Rotisserie burner, as that could result in igniting the drip-
pings, or overheating your Grill.
• Never use the Rotisserie Motor in the rain, and never use it if it has become wet.
• Always use a grounded three-prong outlet and a three-prong extension cord to energize the Rotisserie
Motor. Never alter or remove the grounding prong on the Rotisserie Power Cord, as an electric shock
hazard would then result.
• Keep any electrical supply cord and the fuel supply hose away from any heated surface.
• Electrical Grounding Instructions: This outdoor cooking gas appliance is equipped with a three-prong
(grounding) plug for your protection against shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.
20302820 19
With its combination of burners and accessories your gas grill can provide for virtually every conceivable
style of cooking.
•
The powerful deliver the middle and high range of temperatures
desired for traditional barbecuing. This includes searing and nishing steaks,
hamburgers, pork chops and the like, or grilling chicken parts, sausages, or
kebabs with more moderate heat. (Fig. 14a)
Cooking
ROTISSERIE
B133
cooking methods
8/007
GRILL
STOVETOP
Figure 14a
Figure 14b
Figure 14c
•
The , if equipped, delivers the succulent self-basted avors
of chickens, ducks and hams or pork, beef and lamb roasts that only rotisserie
cooking can achieve. Also, the radiant infrared unit ensures that you will be
enjoying the results much sooner. (Fig. 14b)
•
The , if equipped, boils, sauts, stir fries or warms all with equal
aplomb. Plus its high power is more than adequate for deep frying seafood,
vegetables and meats or hard boiling soups, lobsters or corn on the cob. (Fig.
14c)
20302820
20
One of the keys to extending your range of grilling capabilities is a fundamental understanding of the two
common methods of cooking, and cooking.
In the , food is placed directly above the heat source. This method is used in
searing for example where you require high and immediate heat to quickly brown the outside layer of
meats thereby sealing in their juices to enhance avor. On the grill this is accomplished using one or more
of your main burners and placing the food on the porcelain cooking grids directly over the burners. This
may be done with the grill hood either open or closed.
In the , food is placed on the grill offset from the heat source. With the grill lid
closed reected heat surrounds the food cooking it more evenly and gently. This approximates the action
of a convection oven where heat is circulated by the use of a fan to achieve a similar result. This method
is perfect for cooking roasts of any kind but is also useful whenever you want to slow cook or bake a wide
variety of foods. Indirect cooking on your grill is accomplished using one of the main burners and placing
the food on the porcelain cooking grid above the opposite burner, or on the warming rack burner. The grill
hood should always be closed when employing the indirect cooking method
Always observe safe food-handling and safe food-preparation practices when using this Grill, to prevent
food-borne illnesses :
•
Always cook foods adequately. Undercooked foods can retain bacteria, especially if thawed or exposed
to warm conditions prior to cooking.
•
Always use a meat thermometer to conrm that foods have been fully cooked.
•
Always use separate plates and utensils for the handling of raw food. Never place raw food and cooked
food on the same plate, and never place cooked food on a plate that was used for handling raw food.
Always carefully wash all plates and utensils used to handle raw food before using them to handle
cooked food.
•
Always wash all vegetables, seafood and poultry before cooking.
•
Always leave uncooked foods in the refrigerator until you are ready to start cooking.
•
Always marinate meat in the refrigerator. Always dispose of the excess marinade, and never reuse it.
•
Always preheat your Grill for 5 to 10 minutes before cooking, and always remove all grease and food
residue before using the cooking grids.
Cooking
Other manuals for Signature VCS301 Series
1
This manual suits for next models
5
Table of contents
Languages:
Other Vermont Castings Grill manuals
Vermont Castings
Vermont Castings CF9055 User manual
Vermont Castings
Vermont Castings VCS4000 Manual
Vermont Castings
Vermont Castings VM448 User manual
Vermont Castings
Vermont Castings VCS Series User manual
Vermont Castings
Vermont Castings CF9050 User manual
Vermont Castings
Vermont Castings VCS300SSBI Series Manual
Vermont Castings
Vermont Castings Signature VCS3507 User manual
Vermont Castings
Vermont Castings Vanguard XE G54004 User manual
Vermont Castings
Vermont Castings Vanguard 2-Burner Barbecue User manual
Vermont Castings
Vermont Castings VANGUARD G54003 User manual
Vermont Castings
Vermont Castings VCSeries User manual
Vermont Castings
Vermont Castings Signature VCS5008 Series User manual
Vermont Castings
Vermont Castings CF9030 User manual
Vermont Castings
Vermont Castings Signature VCS310 Series User manual
Vermont Castings
Vermont Castings VC200 User manual
Vermont Castings
Vermont Castings Signature VCS5027 User manual
Vermont Castings
Vermont Castings VCT323SSN/P Manual
Vermont Castings
Vermont Castings Signature Series Manual
Vermont Castings
Vermont Castings VANGUARD G53901 User manual
Vermont Castings
Vermont Castings VCS Series User manual
Popular Grill manuals by other brands
MasterChef
MasterChef GRILL TURISMO P40101 Assembly manual
BlueRhino
BlueRhino Outdoor LP Gas Barbecue Grill 129322 owner's manual
Char-Griller
Char-Griller DC50 owner's manual
Magic Chef
Magic Chef MCCCB24 user manual
FLORABEST
FLORABEST FLG 34 C1 Operating instructions and safety instructions
Calflame
Calflame LTR20081044 owner's manual
Silvercrest
Silvercrest 373076 2104 operating instructions
TriStar
TriStar BQ-2812 user manual
BlueRhino
BlueRhino UniFlame GBC850W-C owner's manual
Char-Griller
Char-Griller Outlaw #2137 owner's manual
FLORABEST
FLORABEST KH 4236 Assembly and operating instructions
BlueRhino

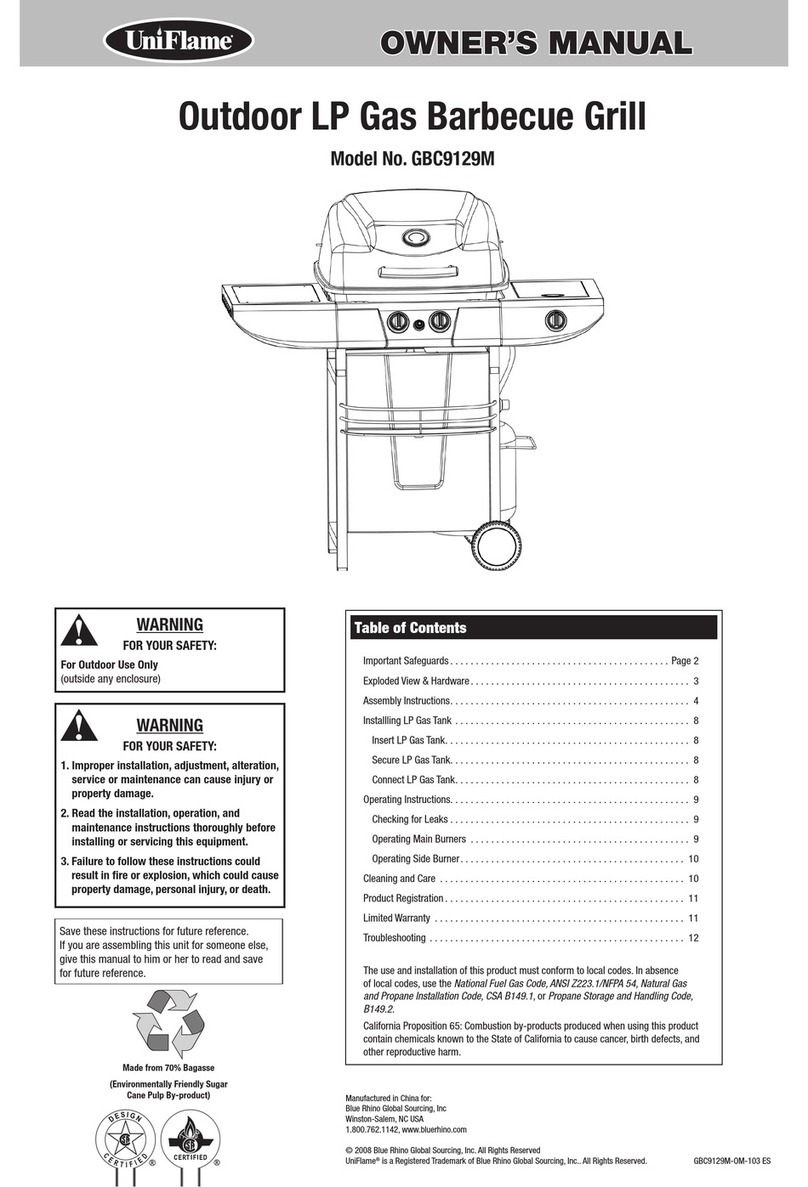

BlueRhino UniFlame GBC9129M owner's manual
