Vermont Castings 380IDVNV User manual
57D0215 9/13 Rev. 17
570215
380IDV cover
257D0215
380IDV/490IDV Fireplace Insert
High Elevations .......................................................5
Gas Pressures ........................................................5
Gas Specications & Orice Size ...........................5
Before You Start ......................................................7
Installation Planning ................................................7
Clearances ..............................................................7
Installation Precautions .........................................11
Venting Requirements ...........................................11
Altitude Considerations .........................................12
Vent Congurations ...............................................13
Manifold Removal and Installation ........................14
Check Gas Type....................................................15
Install Gas Piping ..................................................15
Electrical Wiring ....................................................18
Remote Wall Mounted Switch ...............................18
What To Do If You Smell Gas ................................25
Lighting Pilot for the First Time .............................25
Lighting Pilot ........................................................26
Lighting Burner .....................................................27
To Turn Off Gas ....................................................27
Adjust Blower Speed .............................................27
Air Shutter Adjustment - Natural Gas ONLY .........28
Glass Replacement .....................................................29
Vent System ..........................................................30
Glass Door ............................................................30
PIlot and Burner Flames .......................................30
Firebox Cleaning ...................................................31
Maintaining Heater's Appearance .........................31
Yearly Service Procedure ......................................32
Blower ...................................................................34
Firebox Components .............................................35
57D0215
380IDV/490IDV Fireplace Insert
3
4. Never install the insert
• in a recreational vehicle
• where curtains, furniture, clothing, or other am-
mable objects are less than 36" from the front, top,
or sides of the insert
• in high trafc areas
• in windy or drafty areas
5. This insert reaches high temperatures. Keep children
and adults away from hot surfaces to avoid burns or
clothing ignition. Insert will remain hot for a time after
shutdown. Allow surfaces to cool before touching.
6. Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to
accidental contact burns. A physical barrier is recom-
mended if there are at risk individuals in the house. To
restrict access to a replace or stove, install an adjust-
able safety gate to keep toddlers, young children and
other at risk individuals out of the room and away from
hot surfaces.
7. Do not modify insert under any circumstances. Any
parts removed for servicing must be replaced prior to
operating insert.
8. Turn insert off and let cool before servicing, installing,
or repairing. Only a qualied service person should
install, service, or repair the insert. Have burner system
inspected annually by a qualied service person.
9. You must keep control compartments, burners, and
circulating air passages clean. More frequent cleaning
may be needed due to excessive lint and dust. Turn off
the gas valve and pilot light before cleaning insert.
10. Have venting system inspected annually by a quali-
ed service person. If needed, have venting system
cleaned or repaired. Refer to Cleaning and Mainte-
nance, Page 29.
11. Keep the area around your insert clear of combustible
materials, gasoline, and other ammable vapor and liq-
uids. Do not run insert where these are used or stored.
Do not place items such as clothing or decorations on
or around insert.
This insert is a vented product. This insert must be properly
installed by a qualied service person. The glass door must
be properly seated and sealed. If this unit is not properly
installed by a qualied service person with glass door prop-
erly seated and sealed, combustion leakage can occur.
Early signs of carbon
monoxide poisoning are similar to the u with headaches,
dizziness and/or nausea. If you have these signs, the
insert may not have been installed properly. Get fresh air at
once! Have the insert inspected and serviced by a qualied
service person. Some people are more affected by carbon
monoxide than others. These include pregnant women,
people with heart or lung disease or anemia, those under
the inuence of alcohol, and those at high altitudes.
Propane/LP gas and natural gas are both odorless. An
odor-making agent is added to each of these gases. The
odor helps you detect a gas leak. However, the odor added
to these gases can fade. Gas may be present even though
no odor exists.
Make certain you read and understand all warnings. Keep
this manual for reference. It is your guide to safe and proper
operation of this insert.
1. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases unless a certied
kit is used.
2. For propane/LP insert, do not place propane/LP supply
tank(s) inside any structure. Locate propane/LP supply
tank(s) outdoors. To prevent performance problems,
do not use propane/LP fuel tank of less than 100
lbs. capacity.
3. If you smell gas
• shut off gas supply.
• do not try to light any appliance.
• do not touch any electrical switch; do not use any
phone in your building .
• immediately call your gas supplier from a neigh-
bor’s phone. Follow the gas supplier’s instruc-
tions.
Please leave these instructions with the appliance.
Please retain these instructions for future reference
.
457D0215
380IDV/490IDV Fireplace Insert
Continued from page 3
12. Do not use this insert to cook food or burn paper or
other objects.
13. Never place anything on top of insert.
14. Do not use any solid fuels (wood, coal, paper, card-
board, etc.) in this insert. Use only the gas type indi-
cated on rating plate.
15. This appliance, when installed, must be electrically
grounded in accordance with local codes or in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical Code,
CSA C22.1.
16. Do not obstruct the ow of combustion and ventilation
air in any way. Provide adequate clearances around
air openings into the combustion chamber along with
adequate accessibility clearance for servicing and
proper operation.
17. Do not use insert if any part has been exposed to or has
been under water. Immediately call a qualied service
technician to inspect the appliance and replace any
part of the control system and any gas control which
as been submerged in water.
18. Do not operate insert if any log is broken.
20. Do not operate the insert with glass door removed,
cracked, or broken.
Direct Vent type appliances draw all combustion air from
outside of the dwelling through the vent pipe.
These appliances have been tested by CSA and found to
comply with the established standards for DIRECT VENT
GAS FIREPLACE HEATERS in the USA and Canada as
follows:
TESTED TO:
ANSI Z21.88-2009/CSA 2.33-2009 STANDARDS
A manufactured home (USA only) or mobile home OEM
installation must conform with the Manufactured Home
Construction and Safety Standard,
or when such a standard is not applicable, the
, or
.
WARNING
!
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
AVERTISSEMENT
!
Un panneau vitré chaud peut
causer des brûlures.
Laissez refroidir le panneau
vitréavant d’y toucher.
Ne laisser jamais les enfants
toucher le panneau vitré.
It is normal for replaces fabricated of steel to
give off some expansion and/or contraction noises
during the start up or cool down cycle. Similar
noises are found with your furnace heat exchanger
or car engine.
It is not unusual for gas replaces to give off some
odor the rst time it is burned. This is due to the
manufacturing process.
It is recommended that you burn your replace
for at least ten (10) hours the rst time you use it.
Place the fan switch in the “OFF” position during
this time.
57D0215
380IDV/490IDV Fireplace Insert
5
FP2621
IDV controls
• This appliance has been certied for use with
either natural or propane gas. Refer to the
appropriate data plates.
• This appliance is not for use with solid
fuels.
• The appliance is approved for bedroom or
bedsitting room installations.
• The appliance must be installed in accor-
dance with local codes if any. If none exist
use the current installation code. ANSI
Z223.1/NFPA 54 in the USA, CSA B149 in
Canada.
• The appliance must be properly connected
to a venting system.
Piezo Igniter

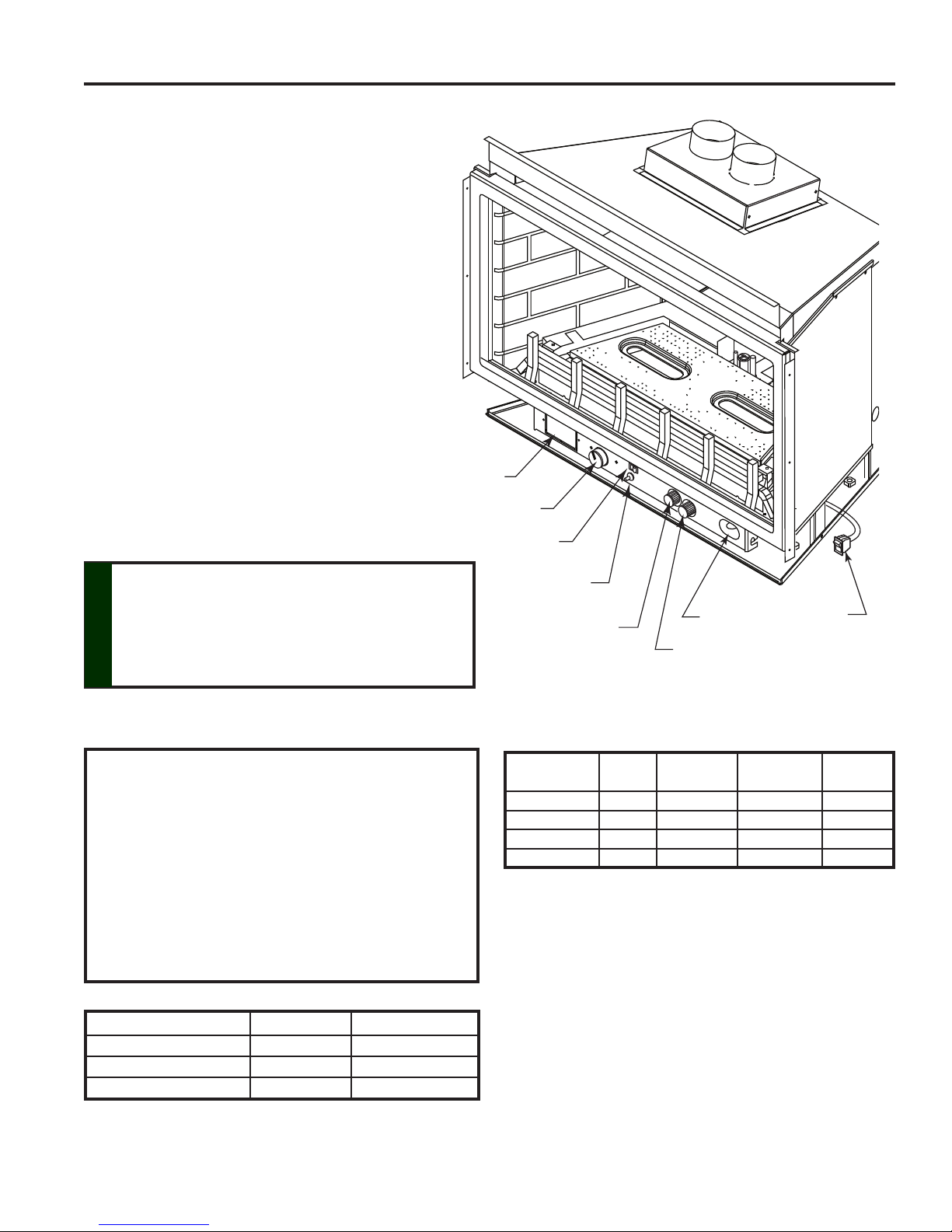

Figure 1 -
IDV Series Fireplace Insert
Optional
Remote
Receiver
Blower Knob
ON/OFF Switch
OFF/Pilot/ON
Knob
HI/LO Knob Gas Shut-Off
Valve
On/Off
Remote
Switch
FP2621
*Aftermarket: Completion of sale, not for purpose of resale,
from the manufacturer.
Input ratings are shown in BTU per hour and are certied
without deration for elevations up to 4,500 feet (1,370
m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1/NFPA 54 and/or local codes having juris-
diction.
In Canada, please consult provincial and/or local authori-
ties having jurisdiction for installations at elevations
above 4,500 feet (1,370 m).
Natural Propane (LP)
Inlet Minimum 4.5” w.c. 11.0” w.c.
Inlet Maximum 10.5” w.c. 13.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.
380IDVNV Nat. 30,500 20,500 #35
380IDVPV LP 22,000 18,000 #53
490IDVNV Nat. 40,000 26,500 #30
490IDVPV LP 37,500 29,000 #50
The IDV Series gas inserts are equipped with a variable
speed output gas control.
IDV Series gas inserts operate without any elec-
trical supply. Blower must be attached to 110/120V AC.
657D0215
380IDV/490IDV Fireplace Insert
Figure 2 -
IDV Fireplace Insert Dimensions
C
D
E
M
L
G
F
B
A
B
A
H
K
I
J
570016
IDV dims
A 22C\v" (578 mm) 24C\v" (629 mm)
B 30C\zn" (767 mm) 33ZZ\zn" (856 mm)
C 27B\," (702 mm) 31Z\," (791 mm)
D 17M\zn" (443 mm) 19ZZ\zn" (500 mm)
E 10C\," (264 mm) 11Z\x" (292 mm)
F 29Z\x" (749 mm) 33" (838 mm)
G 15>\zn" (395 mm) 17Z\x" (445 mm)
H 20C\v" (527 mm) 22C\v" (578 mm)
I 21B\," (549 mm) 23ZC\zn" (605 mm)
J 22C\v" (578 mm) 24ZB\zn" (633 mm)
K 16B\zn" (414 mm) 18B\zn" (465 mm)
L 8XC\cx" (221 mm) 9XM\cx" (250 mm)
M 4Z\x" (114 mm) 5B\," (143 mm)
A 28" (711 mm) 31" (787 mm)
B 21" (533 mm) 23" (584 mm)
C 21" (533 mm) 23" (584 mm)
D 21" (533 mm) 23" (584 mm)
E 16" (406 mm) 18" (457 mm)

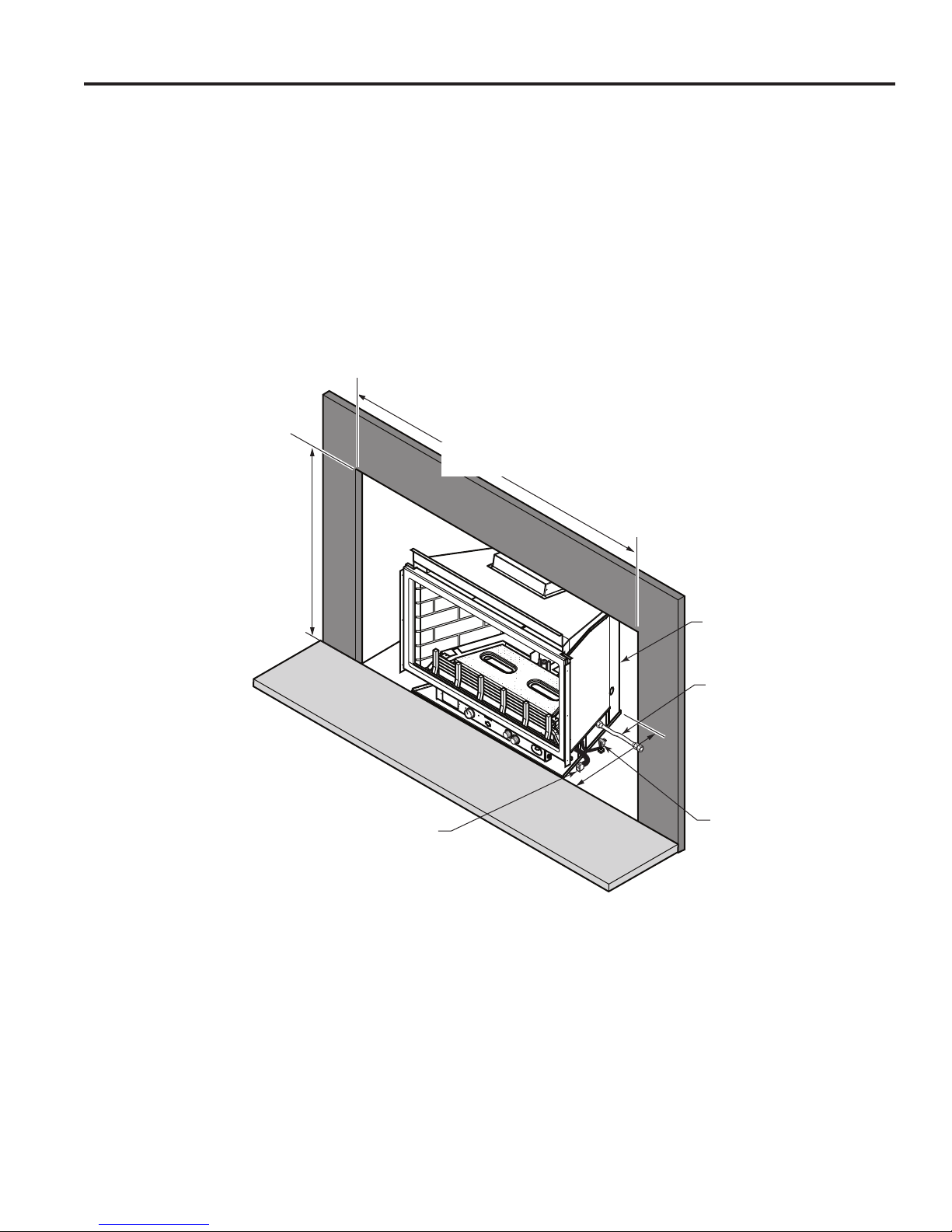

Figure 3 -
IDV Fireplace Insert Opening Dimensions
C
A
D
B
FP2530
hearth dims
E
57D0215
380IDV/490IDV Fireplace Insert
7
Read this homeowner manual thoroughly and follow all
instructions carefully. Inspect all contents for shipping
damage and immediately inform your dealer if any damage
is found. Do not install any unit with damaged, incomplete,
or substitute parts. Check your packing list to verify that all
listed parts have been received.
Plan for the installation of your insert. This includes deter-
mining the size of replace in which unit is to be installed,
length of venting to be used and nishing details, and
whether any optional accessories (i.e. wall switch, or
remote control) are desired. Consult your local building
code agency to ensure compliance with local codes, includ-
ing permits and inspections.
The following factors should be taken into consideration:
• This insert should have sufcient access for its safe
operation and maintenance.
• The ow of combustion and ventilation air must not be
obstructed.
• Minimum clearances to combustibles, such as mantels,
must be maintained. Refer to Pages 8 and 9, Figures 4
and 5.
• Never obstruct the front opening of the insert.
• Do not install in the vicinity where gasoline or other
ammable liquids may be stored.
• These units can be installed in a bedroom. Refer to
National Fuel Gas Code ANSI Z233.1/NFPA 54 (current
edition), the Uniform Mechanical Code (current edi-
tion), and Local Building Codes for specic installation
requirements.
.
The dimensions shown on Pages 8 and 9,
Figures 4 and 5, are minimum clearances to
maintain when installing this heater. Follow
these instructions carefully to ensure safe
installation. Failure to follow instructions
exactly can create a re hazard.
Maintain the following minimum clearances for service and
maintenance. Refer to Pages 8 and 9.
Before installing the gas replace insert, consider the
functioning needs of the replace. Conrm the size of the
replace cavity, the design of the chimney, and the avail-
ability of the gas supply and electricity for the insert fan.
When the unit is installed into a wood burning replace,
the minimum distance the mantel can be placed above the
replace is governed by local building codes applicable to
wood burning replaces. Consult local authorities having
jurisdiction for these clearances. The underside of the
mantel will become warm. Use only nishes which are heat
resistant and do not discolor.
857D0215
380IDV/490IDV Fireplace Insert
No combustibles (ie: drapes, doors) may be within, or swing
within 36" of the front of the insert.
The insert must be installed on a noncombustible hearth
extending a minimum of 12" from the replace opening
(local codes may require a larger hearth). The hearth must
also extend to both sides of the face.

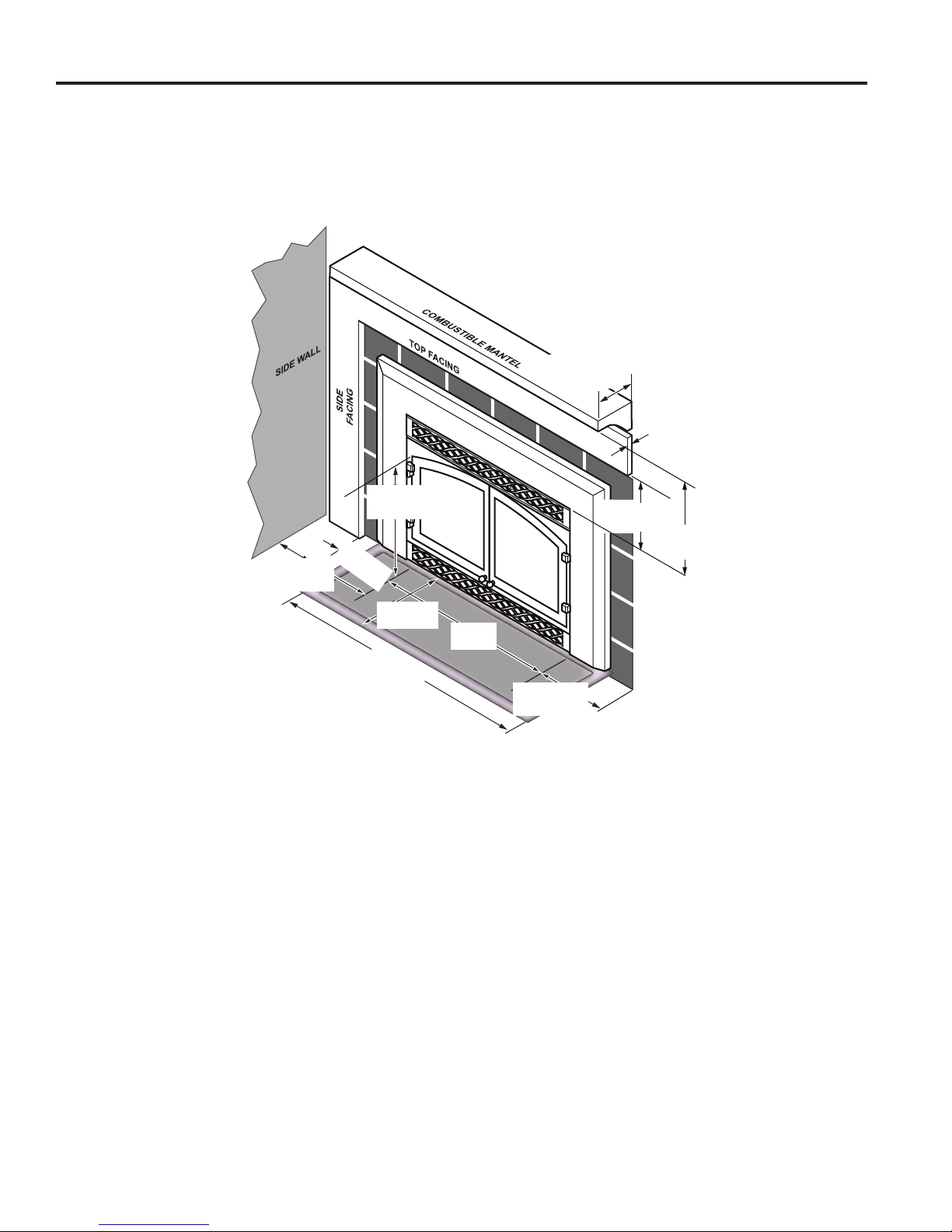

Figure 4 -
Mantel Clearances
FP2623
Minimum clearances
Max.
13”
Max.
3/4”
Min.
9”
Min.
11”
13” (330 mm)
Maximum Depth
Minimum
8” (203 mm)
22”
(559 mm)
Minimum
10” (254 mm)
Hearth Should be
Width of Face Minimum
Minimum
8” (203 mm)
Minimum
8” (203 mm)
32”
(813 mm)
Minimum
12” (305 mm)
Minimum
11” (279 mm)
3/4" Maximum
Depth
Combustible
Facing
FP2623
57D0215
380IDV/490IDV Fireplace Insert
9
• The insert must be placed within a code-conforming
masonry replace or a tested and listed zero-clear-
ance (UL-127, solid fuel) replace. Repair any replace
damage prior to installation.
• Because the insert uses a circulation blower, clean the
replace, smoke shelf and chimney before installing.
• This heater may be placed in a bedroom. Please be
aware of the large amount of heat this appliance pro-
duces when determining a location.
FP2624
insert placement
Figure 5 -
Insert Placement
For tight ts you may remove the
manifold. Refer to "Remove the
Manifold" Section
For minimum dimensions,
Refer to Page 7
The insert protrudes into
the replace. Refer to
Page 7 for dimensions.
The gas line should be
installed prior to insert
placement
Run the power cord
either side of the
insert along the face
Use the leveling bolts for
replaces with recessed
oors
Run the on/off
switch wires to the
right - behind the
surround panels
FP2624
For minimum
dimensions,
Refer to Page
7
10 57D0215
380IDV/490IDV Fireplace Insert
• The damper and grate must be removed.
•
The smoke shelf, internal bafes, screen, refractory and
metal or glass doors may be removed (if applicable)
.
• Do not remove or alter the insulation or any structured
rigid frame members (metal sides, oor, door frames,
face of the replace, etc.).
Please review the following carefully.
It is normal for inserts fabricated of steel to give off some
expansion and/or contraction noises during the start up or
cool down cycle. Similar noises are found with your furnace
heat exchanger or car engine.
It is not unusual for your insert to give off some odor the
rst time it is burned. This is due to the curing of the paint
and any undetected oil from the manufacturing process.
Burn your insert for at least six (6) hours on "HIGH" the
rst time you use it. Place the fan in the "OFF" position
during this time.
&P
ZEROCLEARANCEREQUIREMENTS
Insulation
Damper
Smoke
Shelf
Masonry Lining or Refractory
Screen
Metal or Glass Doors
Internal
Bafes
Masonry Lining or Refractory
Grate
Figure 6 -
Metal Fireplace Zero-Clearance Requirements
57D0215
380IDV/490IDV Fireplace Insert
11
Consult local building codes before beginning the installa-
tion. The installer must make sure to select the proper vent
system for installation. Before installing vent kit, the installer
must read this insert manual and vent kit instructions.
Only a qualied installer/service person should install vent-
ing system. The installer must follow these safety rules:
• Wear gloves and safety glasses for protection.
• Use extreme caution when using ladders or when
on rooftops.
• Be aware of electrical wiring locations in walls and
ceiling.
The following actions will void the warranty on your vent-
ing system:
• Installation of any damaged venting component.
• Unauthorized modication of the venting system.
• Installation of any component part not manufactured
or approved by Vermont Castings Group.
• Installation other than permitted by these instruc-
tions.
Figure 6
• The exhaust vent must reline the entire length of chim-
ney and terminate above chimney top.
• Vent must meet all vent manufacturer's requirements
when installed.
• Make sure you have the following before installing
unit:
• 3" and 3" UL 1777 Listed gas liner for air inlet and
exhaust.
• Vertical termination kit (AI31TK33A)
• 4" and 3" UL 1777 Listed gas liner for air inlet and
exhaust.
• Vertical termination kit (AI42TK43A)
FP2625
typical venting
Exhaust
Inlet
Maximum 12"
(305 mm) Offset at
Base of Insert
Maximum
Height
40' (12.9 m)
Minimum
Height
10' (3 m)
FP2625
Figure 7 -
Venting Unit
12 57D0215
380IDV/490IDV Fireplace Insert
This heater has been tested at altitudes ranging from sea
level to 4,500 feet (1,370 m). In this testing, heater with
standard orice burns correctly with just an air shutter
adjustment. If you need to resize orice for use at high
altitude, contact your dealer.
High-Temp
Silicone
High-Temp
Silicone
FP2626
connect exhaust pipe
380 Series - 3" and 3"
UL 1777 Gas Liner
490 Series - 4" and 3"
UL 1777 Gas LIner
Apply high-temperature silicone to
lines on both ends and secure with
two (2) screws
Figure 8 -
Connecting Vent Pipe to Heater
FP2626
Inlet
Exhaust
(Centered on unit)
Termination Kit
380 Series - AI3TK33A, HEDV321212, HEDVRT
490 Series - AI42TK43A
57D0215
380IDV/490IDV Fireplace Insert
13
You may use either reline conguration with a
masonry or zero-clearance replace.
FP2627
inlet exhaust reline
Exhaust
Inlet
Recommended block-off
plate (noncombustible
metal). Prevents odors from
chimney entering room.
UL 127 Solid
Fuel Z.C Fire-
box

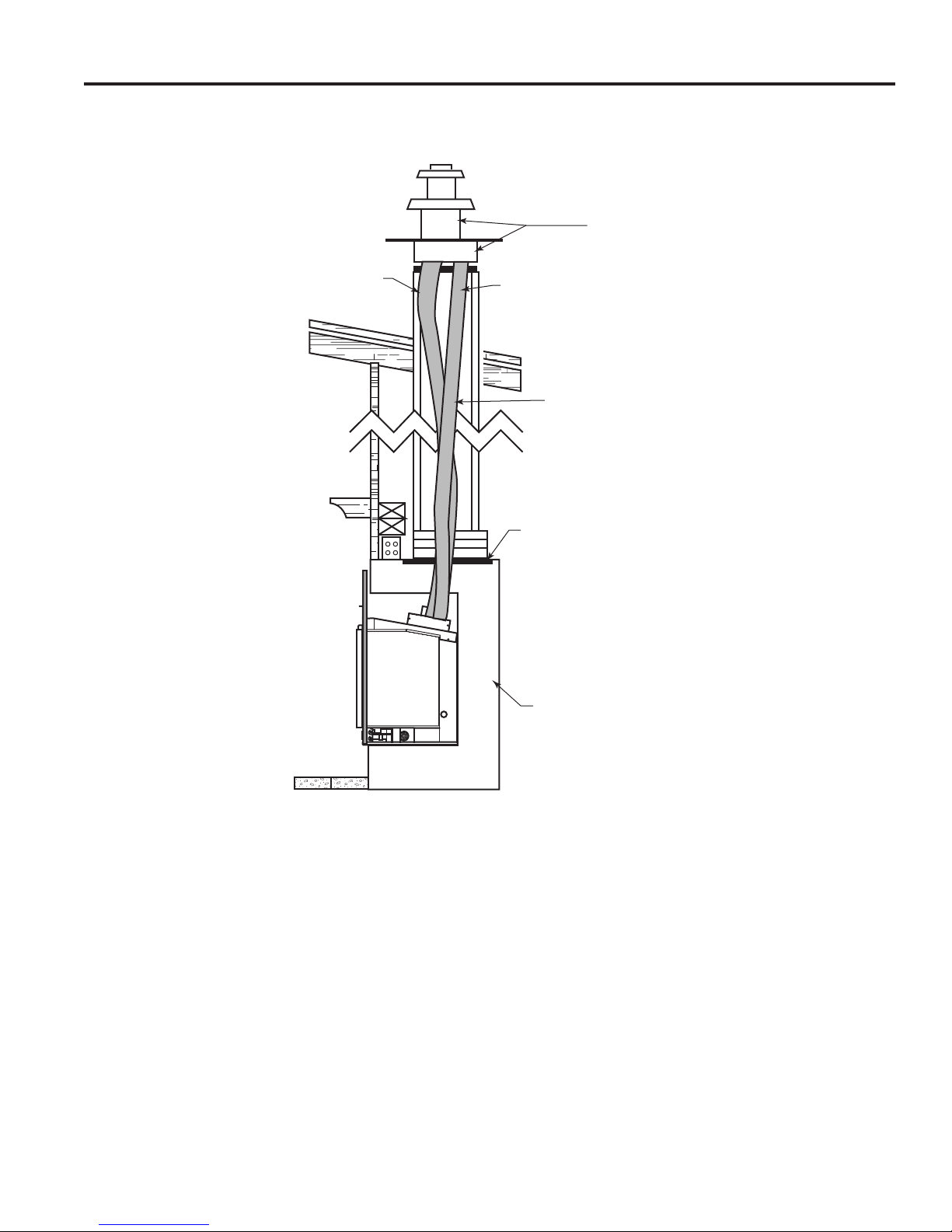

Figure 9 -
Inlet and Exhaust Reline
FP2627
3" (76 mm) or 4" (102 mm) Exhaust
UL 1777 Gas Liner 3" (75 mm) Inlet
Termination Kits:
380 Series: AI31TK33A
490 Series: AI42TK43A
14 57D0215
380IDV/490IDV Fireplace Insert
The manifold is shipped attached to insert. It may be
removed to allow tight installation. Manifold may be loos-
ened and rotated for desired
pipe location.
1. Remove brick liner and
bafe.
2. Remove manifold. Place
manifold in replace.
3. Route ex vent through chim-
ney from above. Figure 10.
Leave an extra 3" (914 mm)
at the top.
FP2629
flex vent
Flex
Vent
Chimney
Manifold
Bracket
Nut
FP2629

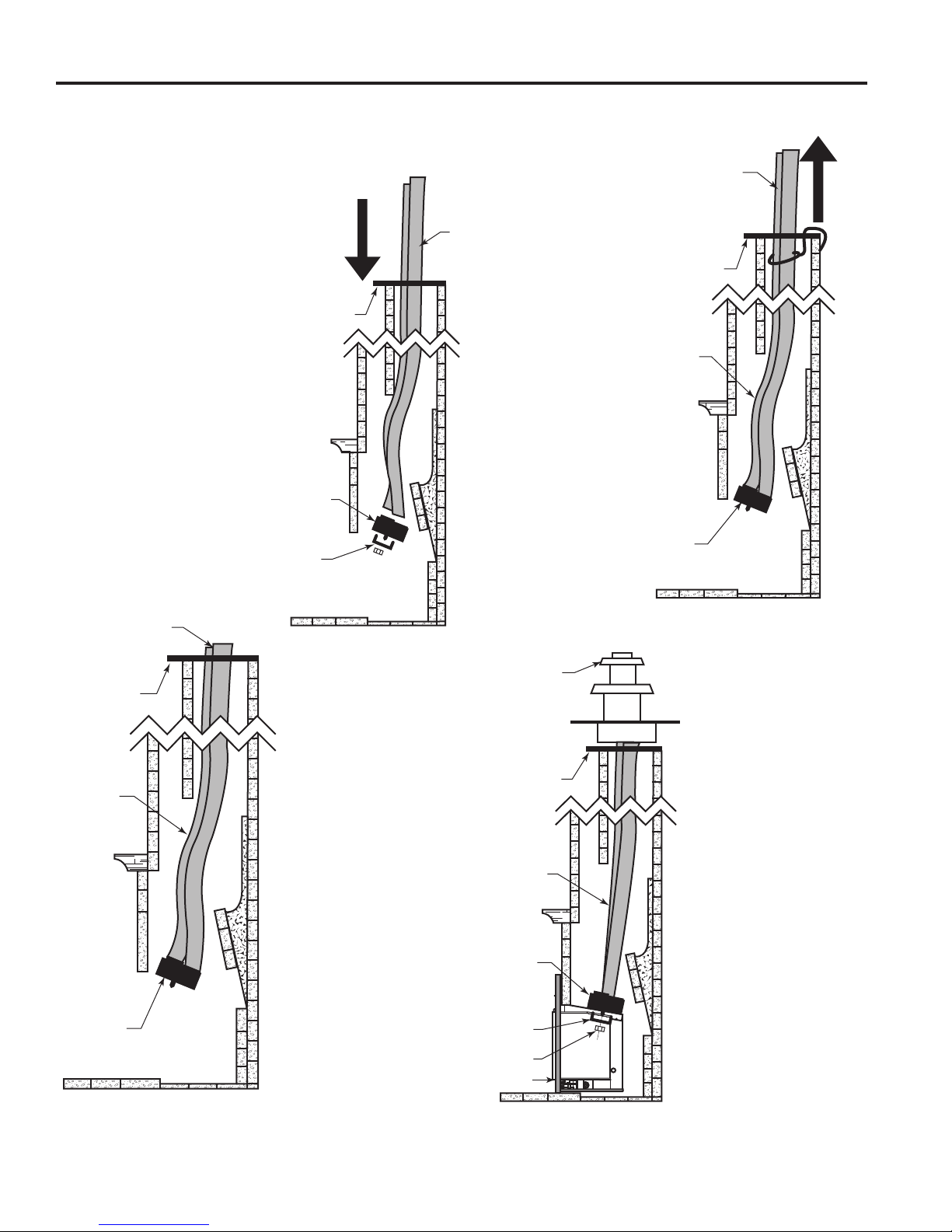

Figure 10 -
Place Manifold into Fireplace
FP2630
attach flex vent
Extra 3"
Chimney
Flex
Vent
Manifold
FP2630
Figure 11 -
Attach Flex Vent to Manifold
4. Attach ex vent to
manifold. Figure 11.
Seal with silicone
and attach with
screws.
FP2631
pull excess vent
Excess
Flex
Vent
Chimney
Slack in
Flex Vent
Manifold
FP2632
Figure 12 -
Pull on Excess Flex Vent
5.Place manifold in
an upright posi-
tion. Pull on excess
vent. Figure 12.
Temporarily attach
ex vent to top of
chimney. Leave
some extra slack
in ex vent.
FP2632
place insert
Vent
Termination
Chimney
Excess Slack
Take out of Flex
Vent
Manifold
Bracket
Nut
FP2632
Figure 13 -
Slide Insert into Place
Insert
6. Slide insert into place.
Guide the manifold
over the insert until it
is fully in place. Figure
13
7. Remove any slack from
ex vent. Attach mani-
fold to insert. Figure
13
8. Remove any excess
slack in ex line. Attach
vent termination.
Figure 13
9. Replace baffle and
brick liner.
57D0215
380IDV/490IDV Fireplace Insert
15
Make sure you have the items listed below before install-
ing appliance.
• External regulator (supplied by installer)
• Piping (check local codes)
• Test gauge connection*
• Sealant (resistant to propane/LP gas)
• Sediment trap (optional but recommended)
• Tee joint
• Pipe wrench
• approved exible gas line with gas connector (if allowed
by local codes — not provided)
* A CSA design-certied equipment shutoff valve with 1/8"
NPT tap is an acceptable alternative to test gauge connec-
tion. Purchase the CSA design-certied equipment shutoff
valve from your dealer.
For propane/LP connections only, the installer must supply
an external regulator. The external regulator will reduce
incoming gas pressure. You must reduce incoming gas
pressure to between 11 and 13 inches of water. If you do
not reduce incoming gas pressure, burner system regula-
tor damage could occur. Install external regulator with the
vent pointing down as shown in Figure 14. Pointing the
vent down protects it from freezing rain or sleet.
&0
EXTERNALREGULATOR
External
Regual-
tor
Vent
Pointing
Down
100 gal. (min.
Propane/LP
Supply Tank
FP1930
Figure 14 -
External Regulator with Vent Pointing Down
(Propane/LP Only)
Use proper gas type for the replace you are installing.
If you have conicting gas type, do not install replace.
See dealer where you purchased the replace for proper
replace according to your gas type.
When using copper or ex connectors use only ttings
approved for gas connections. The gas control inlet is
3/8" NPT.
16 57D0215
380IDV/490IDV Fireplace Insert
Figure 15
A listed manual shutoff is factory installed upstream of
appliance. Union tee and plugged 1/8" NPT pressure tap-
ping point should be installed upstream of the appliance.
Figure 15
The main gas valve is for turning on or
shutting off the gas to the insert.
Check your building codes for any special requirements for
locating equipment shutoff valve to inserts.
Apply pipe joint sealant lightly to threads. This will prevent
excess sealant from going into pipe. Excess sealant in pipe
could result in clogged burner system valves.
From Gas Meter
(4.5" w.c. to 10.5" w.c. Pressure)
From External Regulator
(11" w.c. to 13" w.c. Pressure)
3" Minimum
FP1931
gas connection
9/08
Approved Flexible
Gas Line Supplied
with Appliance
Tee Joint
Pipe Nipple
Cap
Figure 15 -
Gas Connection
We recommend that you install a sediment trap/drip leg in
supply line as shown in Figure 15. Locate sediment trap/drip
leg where it is within reach for cleaning. Install in piping
system between fuel supply and burner system. Locate
sediment trap/drip leg where trapped matter is not likely to
freeze. A sediment trap traps moisture and contaminants.
This keeps them from going into the burner system gas con-
trols. If sediment trap/drip leg is not installed or is installed
wrong, burner system may not run properly.
57D0215
380IDV/490IDV Fireplace Insert
17
1. Check gas type. The gas supply must be the
same as stated on the appliance’s rating decal.
If the gas supply is different from the replace,
Do not install the appliance. Contact your
dealer immediately.
2. Install and attach ex line provided on this appli-
ance to 1/2" gas line.
3. After completing gas line connection, purge air
from gas line and test all gas joints from the gas
meter to the replace for leaks. Use a soap and
water solution or a gas sniffer.
4. To adjust ame height, turn HI/LO knob to HI to
get maximum pressure to burner. Turn HI/LO
knob to LO to get minimum pressure.
5. To check gas pressures at valve, turn captured
screw counter clockwise 2 or 3 turns and then
place tubing to pressure gauge over test point.
Turn unit to high. Figure 16. After taking pressure
reading, be sure and turn captured screw clock-
wise rmly to reseal. Do not over torque. Check
test points for gas leaks with a soap and water
solution or an electronic gas leak detector.
FP1932
valve regulator with knobs
Pressure
Test "IN"
Pressure Test
"OUT"
HI/LO Knob Pilot Adjustment Screw
FP1932
Figure 16 -
Gas Pressure Check at Gas Valve
18 57D0215
380IDV/490IDV Fireplace Insert
A remote wall switch and up to fteen (15) feet of 18 Ga.
wire may be used with this appliance. Attach the wall
switch in a junction box at the desired location on the wall.
Figure 17
This insert will work without any electrical supply. Electricity
is only needed to operate blower.
Verify proper operation after servicing.
National Electrical Code ANSI/NFPA 70 (lat-
est edition)Canadian Electrical Code,
CSA C22.1
PILOT HI
LO
ON
OFF
FP1933
wall switch wiring
Figure 17 -
Wiring Diagram for Wall Switch
Sparker
Thermocouple
Piezo Igniter
Thermopile
Pilot Assembly
Switch
Millivolt
Valve
TH
TP
TH/TP
ON OFF
Optional 15'
Wall Switch
Optional
Remote Control
ON
OFF
ON
OFF
57D0215
380IDV/490IDV Fireplace Insert
19
- This unit is supplied with seven (7)
ceramic ber logs. Do not handle these logs with your bare
hands.
After handling the logs, wash your
hands gently with soap and water to remove any traces
of bers.

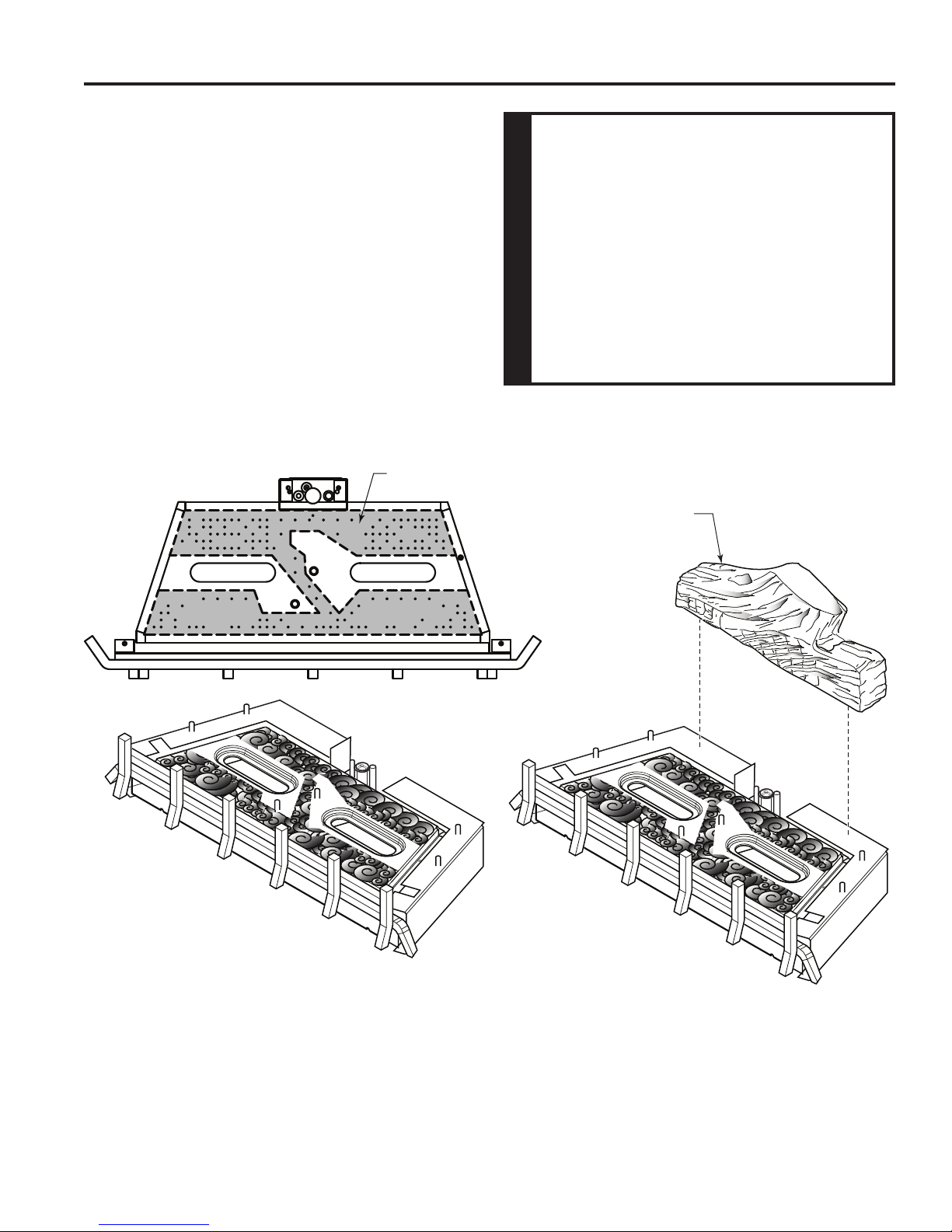

1. Open front door of rebox.
2. Break up rock wool (ember material) into dime-sized
pieces. Place evenly as shown. Do not exceed 1" layer.
Figure 18
3. Carefully remove the seven (7) logs from wrapping.
4. Place rear log #1 against back of rebox. Figure 19
LG765
place rockwool
Rockwool
Areas
LG765
LG766
rockwool
LG766
Figure 18 -
Rockwool Placement
LG767
Rear log #1
Rear Log
#1
LG767
Figure 19
20 57D0215
380IDV/490IDV Fireplace Insert
5. Align holes in the bottom of the left base
log #2 with two (2) pins on the left side of
insert. Install left base log. Figure 20
LG766
rockwool
Left Front Log
#2
LG768
Figure 20
6. Align holes in bottom of right base log #3
with two (2) to the right of rear log. Figure
21
7. Align hole in bottom left center log #4 with
pin on burner. Figure 22
LG769
place right base log 3
Right Base Log
#3
LG769
Figure 21
LG770
place left ctr log 4
Left Center Log
#4
LG770
Figure 22
This manual suits for next models
3
Table of contents
Other Vermont Castings Indoor Fireplace manuals
Vermont Castings
Vermont Castings 2050 Instruction Manual
Vermont Castings
Vermont Castings WDVST500NTSCSB User manual
Vermont Castings
Vermont Castings Winter Warm Small Insert Mounting instructions
Vermont Castings
Vermont Castings SA36C User manual
Vermont Castings
Vermont Castings ICVCTK01 User manual
Vermont Castings
Vermont Castings OD30CFLN/P User manual
Vermont Castings
Vermont Castings SA18SHKRN User manual
Vermont Castings
Vermont Castings 500DVMNSCSB User manual
Vermont Castings
Vermont Castings 30ILDVNV User manual
Vermont Castings
Vermont Castings STLDVPNSC User manual
Vermont Castings
Vermont Castings SB38 Installation guide
Vermont Castings
Vermont Castings VFF32LI Manual
Vermont Castings
Vermont Castings Defiant Encore 0028 User manual
Vermont Castings
Vermont Castings Insert Studio LHEC20 User manual
Vermont Castings
Vermont Castings DBT33 User manual
Vermont Castings
Vermont Castings A18CFLRN/P User manual
Vermont Castings
Vermont Castings Chateau DVT38 Assembly instructions
Vermont Castings
Vermont Castings ICFDV40LNTSC User manual
Vermont Castings
Vermont Castings BLDV300N SC7SB User manual
Vermont Castings
Vermont Castings Resolution VHLDV500 User manual
Popular Indoor Fireplace manuals by other brands
Pacific energy
Pacific energy ESPRIT Installation and operating instructions
Miles Industries
Miles Industries 739MN Installation & owner's manual
Flavel
Flavel Caress traditional Installation, maintenance & user instructions
Monessen Hearth
Monessen Hearth SC18-R Log Placement Instructions
Dimplex
Dimplex DF2608 Practical user's guide
Twin-Star International
Twin-Star International Classic Flame 25MMS9783 manual
komodo
komodo SP5749 user manual
MHSC
MHSC BBV400 Installation and operating instructions
Empire Comfort Systems
Empire Comfort Systems DVCT35CBN95N-1 Installation instructions and owner's manual
Superior
Superior DRT4040DMN Installation and operation instruction
Escea
Escea ST900 user guide
Planika
Planika Totem manual
Regency
Regency Alterra CI1203 Owners & installation manual
Nordpeis
Nordpeis Estoril installation manual
New Buck Corporation
New Buck Corporation 80ZC Operation maintenance safety
mFi
mFi MASON-LITE MGFP39 instructions
Desa
Desa VSGF33PRC OWNER'S OPERATION AND INSTALLATION MANUAL
Dru
Dru Global 120 Triple BF RCE installation manual
