Vermont Castings DBR33 User manual

- 1 -
INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER 10002788
06/00 Rev. 0
Builder
Rear Vent
Direct Vent
Models
DBR33
DBR36
DBR39
DO NOT STORE
OR USE GASOLINE OR OTHER
FLAMMABLE VAPOURS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY
OTHER APPLIANCE.
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS:
* Do not try to light any appliance.
* Do not touch any electric switch; do not use
any phone in your building.
* Extinguish all flames.
* Immediately call your gas supplier from
your neighbours phone. Follow the gas
suppliers instructions.
* Ifyoucannotreachyourgassuppliercallthe
fire department.
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE,PERSONAL INJURY OR LOSS OF LIFE.
Installation Instructions & Homeowner's Manual
FOR YOUR SAFETY
* Installationandservicemustbeperformed
by a qualified installer, service agency or
your gas supplier.

- 2 -
TABLE OF CONTENTS
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE.
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these
instructions may result in a possible fire hazard and will void the warranty.
Installation Instructions ................................................................................................................3
Important Curing/Burn Information.....................................................................................3
Locating your Fireplace......................................................................................................3
Fireplace Dimensions.........................................................................................................4
Mantels ..............................................................................................................................5
Mantel Chart.......................................................................................................................5
Clearance to Combustibles ................................................................................................5
Framing & Finishing ...........................................................................................................5
Final Finishing ....................................................................................................................6
Hearth ..............................................................................................................................6
Gas Specifications .............................................................................................................6
Gas Line Installation...........................................................................................................7
Remote Switch Installation.................................................................................................7
General Information on Assembling Vent Pipes ................................................................8
General Venting Information.........................................................................................................9
Termination Clearances ...................................................................................................10
Rear Venting Applications................................................................................................10
Rear Wall Installations .....................................................................................................11
Vertical Sidewall Applications ..........................................................................................12
How To Use the Vertical Sidewall Vent Graph.................................................................13
General Information on Assembling Vent Pipes ..............................................................13
Vertical Sidewall Installation.............................................................................................14
Below Grade Installations ................................................................................................16
Vertical Through the Roof Applications............................................................................16
Vertical Through the Roof Installations ............................................................................17
Operating Instructions ................................................................................................................18
General Glass Information ...............................................................................................18
Louvre Removal ...............................................................................................................18
Glass Frame Removal .....................................................................................................18
Glass Cleaning.................................................................................................................18
Installation of Logs ...........................................................................................................19
Ember Material Placement...............................................................................................19
Lava Rock ........................................................................................................................19
Flame Adjustment ............................................................................................................19
Flame Characteristics ......................................................................................................20
Inspecting the Venting System.........................................................................................20
Maintenance.....................................................................................................................20
Cleaning the Standing Pilot Control System ....................................................................20
Lighting and Operating Instructions .................................................................................21
Troubleshooting Gas Control (820 Millivolt Gas Valve) ...................................................22
Troubleshooting Gas Control (822 Millivolt Honeywell Valve) .........................................23
Replacement Parts List ...............................................................................................................24
Replacement Parts Pictorial.............................................................................................25
Optional Accessories Kits ......................................................................................................26
Fan Kit -FK12 and FK24 ..................................................................................................26
Wiring Instructions............................................................................................................26
Electrical Box EB1............................................................................................................27
Bay Window Installation ...................................................................................................27
Screen Kit Installation ......................................................................................................28
Ceramic Refractory Lining................................................................................................28
Remote Control ................................................................................................................28
Crimped End Venting Components ..................................................................................29
Twist Lock Venting Components ...............................................................................................30

- 3 -
IMPORTANT:
PLEASE REVIEW THE FOLLOWING
CAREFULLY
Remove any plastic from trim parts before turning
the fireplace ON.
Itisnormalforfireplacesfabricatedofsteeltogive
off some expansion and/or contraction noises
during the start up or cool down cycle. Similar
noisesarefoundwithyourfurnaceheatexchanger
or car engine.
It is not unusual for your gas fireplace to give off
some odour the first time it is burned. This is due
to the curing of the paint and any undetected oil
from the manufacturing process.
Please ensure that your room is well
ventilated - open all windows.
Itisrecommendedthatyouburnyour fireplacefor
a least six (6) hours the first time you use it. If
optionalfankit has been installed, place fan in the
"OFF" position during this time.
This gas appliance should be installed by a qualified installer in
accordance with local building codes and with current CAN /
CGA-B149(.1or.2)InstallationcodesforGasBurningAppliances
andEquipment.orforU.S.AInstallationsfollowlocalcodesand/
or the current National Fuel Gas Code. ANSI Z223.1.
FORSAFEINSTALLATIONANDOPERATIONOFYOUR
DIRECT VENT FIREPLACE PLEASE NOTE THE
FOLLOWING:
1. This fireplace gives off high temperatures and should
be located out of high traffic areas and away from
furniture and draperies.
2. Childrenandadultsshouldbealertedtothehazardsof
the high surface temperatures of this fireplace and
shouldstayawayto avoid burnsorignitionofclothing.
3. CAUTION: Due to high glass surface temperature
childrenshouldbecarefullysupervisedwhenthey
are in same room as your fireplace.
4. Undernocircumstancesshouldthisfireplacebemodi-
fied. Parts having to be removed for servicing should
be replaced prior to operating this fireplace again.
5. Installation and any repairs to this fireplace should be
carried out by a qualified service person. A profes-
sional service person should be contacted to inspect
this fireplace annually. Make it a practice to have all
of your gas fireplaces checked annually. More
frequent cleaning may be required due to excess
lintanddustfromcarpeting,beddingmaterial,etc.
6. Control compartments, burners and air passages in
thisfireplaceshouldbekeptcleanandfreeofdustand
lint. Make sure that the gas valve and pilot light are
turned off before you attempt to clean this fireplace.
7. The venting system (chimney) of this fireplace should
be checked at least once a year and if needed your
venting system should be cleaned.
8. Keep the area around your fireplace clear of combus-
tible materials, gasoline and other flammable vapour
and liquids. This fireplace should not be used as a
drying rack for clothing, nor should Christmas stock-
ings or decorations be hung in the area of it.
9. Underno circumstancesshould anysolid fuels(wood,
coal,paperorcardboardetc.)beusedinthisfireplace.
10.The flow of combustion and ventilation air must not be
obstructed in any way.
11.Whetherthefireplaceisinstalled directly oncarpeting,
vinyltileor anycombustiblematerial other thanwood,
this fireplace must be installed on a metal or wood
panelextendingthefullwidthanddepthofthefireplace.
12.This fireplace requires adequate ventilation and
combustion air to operate properly.

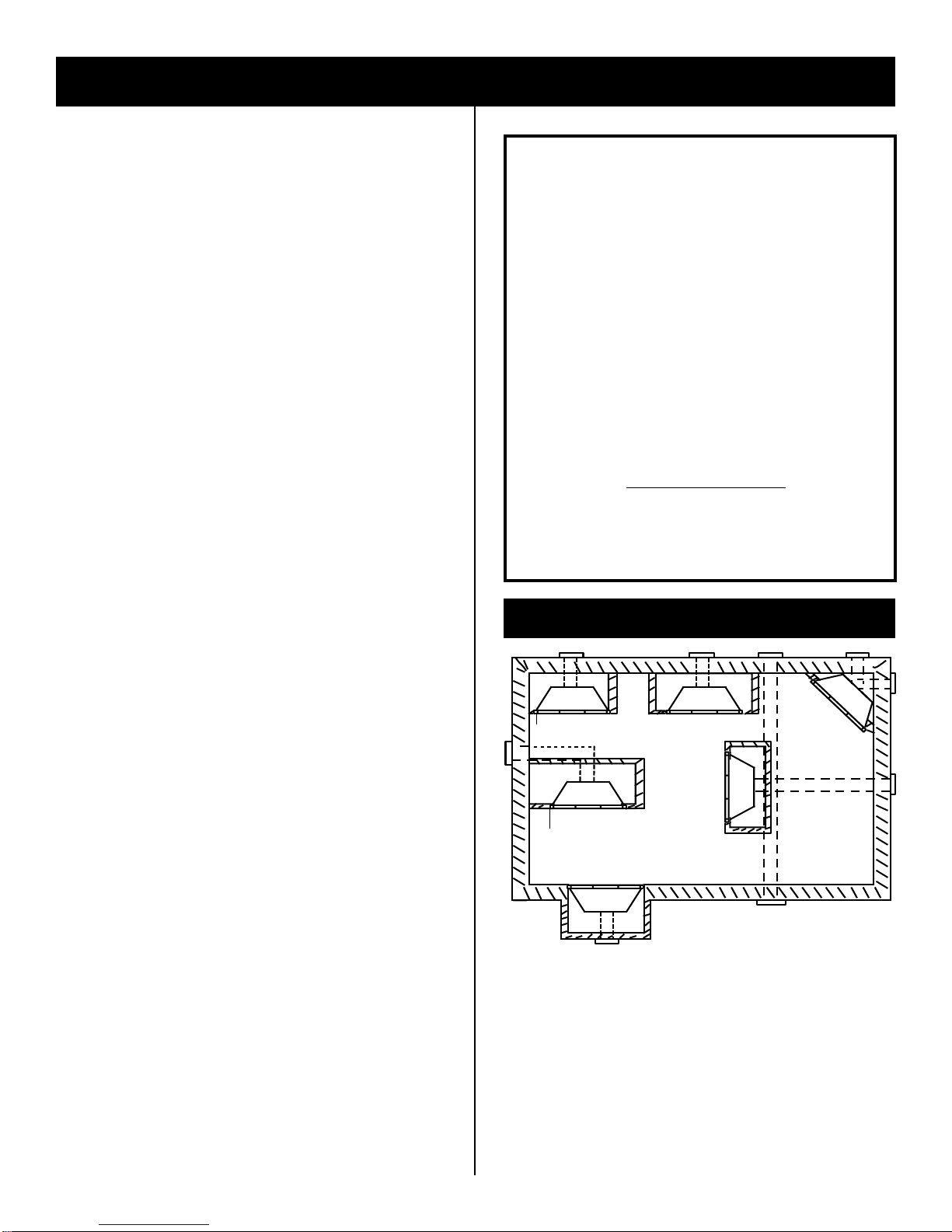

LOCATING YOUR INSTA-FLAME
LOCATING YOUR GAS FIREPLACE
YD
F
X
X
AE B
C
Y
Fig. 1
A) Flat on wall B) Crosscorner
C) **Island D) *Roomdivider
E) *Flat on wall corner F) Chaseinstallation
Y) 6"minimum
Note (Fig. 1):
** Island (C) and Room Divider (D) installation is possible
aslongasthehorizontalportionoftheventsystem(X)does
notexceed20feet(610cm). SeedetailsinVentingSection.
* When you install your Majestic fireplace in(D) Room
divider or (E) Flat on wall corner positions (Y), a minimum
of 6 inches (153mm) clearance must be maintained from
the perpendicular wall and the front of the fireplace.
INSTALLATIONINSTRUCTIONS

- 4 -
A 36" 914mm
B 34 1/4" 870mm
C 21" 533mm
D 33" 838mm
E 24" 610mm
F 16" 406mm
G 19" 483mm
H 23 7/8" 606mm
I 27 1/2" 698mm
J6
3/4" 171mm
K 10" 254mm
L 13 1/2" 343mm
M 41 5/8" 1057mm
N 58 7/8" 1495mm
O 29 7/8" 748mm
ROD 16 1/2" 419mm
ROW 36 1/2" 927mm
ROH 35" 889mm
A 39" 991mm
B 34 1/4" 870mm
C 21" 533mm
D 36" 914mm
E 24" 610mm
F 16" 406mm
G 19" 483mm
H 23 7/8" 606mm
I 27 1/2" 698mm
J6
1/4" 159mm
K8
3/8" 213mm
L 12 1/2" 318mm
M 44" 1118mm
N 62 1/4" 1581mm
O 31 1/8" 790mm
ROD 16 1/2" 419mm
ROW 39 1/2" 1003mm
ROH 35" 889mm
FIREPLACE DIMENSIONS
Fig. 2
DBR36 DBR39
Table 2 Table 3
A 33" 838mm
B 28 7/8" 733mm
C 16 3/8" 416mm
D 31" 787mm
E 22 1/16" 560mm
F11
1/2" 292mm
G 14 3/4" 375mm
H 20 1/4" 515mm
I 24 1/2" 622mm
J 5" 127mm
K7
1/2" 191mm
L8
1/2" 216mm
M 36" 914mm
N 51" 1295mm
O 25 1/2" 648mm
ROD 12" 305mm
ROW 33 1/2" 851mm
ROH 29" 737mm
DBR33
Table 1
A
D
C
B
A
E
F
HI
ROD
M
M
N
G
B
K
J L
ROW
ROH
FRAMING & FINISHING
O

- 5 -
Ref. Mantel Ref. Mantel From Mantel Leg from
Depth Top Louvre Fireplace Side
V 10" (254 mm) A 12" (305 mm) 10" (254mm)
W 8" (203 mm) B 10" (254 mm) 8" (203mm)
X 6" (152 mm) C 8" (203 mm) 6" (152mm)
Y 4" (101 mm) D 6" (152 mm) 4" (101mm)
Z 2" ( 51 mm) E 4" (101 mm) 2" (51mm)
MANTEL CHART
Table 4
Fig. 3
;;
;;
;;
;;
X
Y
Z
WALL
TOP
LOUVRE
OPENING
E
D
C
B
A
W
V
SIDE VIEW
OPTIONAL
HEARTH
GAS
KNOCK-OUT ELECTRICAL CABLE
KNOCK-OUT
FRONT GLASS
ELECTRICAL
BOX KNOCK-OUT
MANTELS
Depending on the width of the mantel it may be installed
higher or lower from the top of the louvre opening. See
drawing and chart below for proper installation height of
yourcombustiblemantelpiece. Non-combustiblemantels
maybeinstalledatanyheightabovetheapplianceopening.
When using paint or lacquer to finish the
mantel, such paint or lacquer must be
heat resistant to prevent discolouration.
Fig. 5
Fig. 4
CLEARANCE TO COMBUSTIBLES
1. Choose fireplace location.
2. Place fireplace into position and secure to floor with
1-1/2" screws, or nails. The holes to secure the
fireplace to the floor are located just behind the
accessdoorgrillontheleftandrighthandsideofthe
fireplace.
3. Frame infireplacewith aheaderacross the top. Itis
important to allow for finished face when setting the
depth of the frame.
4. Attach fireplace to frame using adjustable frame
drywall strips(located behind access door for
shipping). Preset depth to suit facing material
(adjustable to 1/2" , 5/8" or 3/4" depths). Fig. 4.
5. Screw through slotted holes in drywall strip and
then screw into pre-drilled holes on fireplace side.
Measure from face of fireplace to face of drywall
strip to determine final depth. (Fig. 5 & 6)
FRAMING AND FINISHING
ADJUSTABLE DRYWALL STRIP
(NAILING FLANGE)
C
A
B
SCREW
POSITION
A
B
C
DRYWALL
DEPTHS
1/2" / 13mm
5/8" / 16mm
3/4" / 19mm
Adjustable 1/2",5/8"
& 3/4" spacing
Fig. 6
Back........ 0 mm/0 inches
Side......... 0 mm/0 inches
Floor........ 0 mm/0 inches
Top.......... 0 mm/0 inches
Table 5

- 6 -
Do not use this fireplace if any part of it has
beenunderwater. Immediatelycallaqualified
service technician to inspect the fireplace
and replace any part of the control which has
been under water.
Coldclimate installation recommendation:
When installing this unit against a non-
insulated exterior wall or chase, it is
mandatorythattheouterwallsbeinsulated
to conform to applicable insulation codes.
Non-combustible materials such as brick and tile can be
extended over the outer face of the unit (Do not cover
louvresorglassdoor). IfaTrimKitisgoingtobeinstalled,
brick and tile will have to be installed flush with the side of
this appliance.
FINAL FINISHING
HEARTH
A hearth is not mandatory but it is recommended for
aesthetic purposes. We recommend a non-combustible
hearth which does not obstruct louvre opening.
GAS SPECIFICATIONS
MAX. MIN.
INPUT INPUT
MODEL FUEL GAS CONTROL B.T.U.H B.T.U.H.
DBR33 RN Natural Gas Millivolt Hi/Lo 15,000 10,500
DBR33 RP Propane Gas Millivolt Hi/Lo 15,000 11,250
DBR36 RN Natural Gas Millivolt Hi/Lo 18,000 12,600
DBR36 RP Propane Gas Millivolt Hi/Lo 18,000 13,500
DBR39 RN Natural Gas Millivolt Hi/Lo 22,000 15,400
DBR39 RP Propane Gas Millivolt Hi/Lo 22,000 16,500
CERTIFIED TO:
ANSI Z1.88b-1999/CSA Z2.33-M-99 harmonized,
standard for Vented Gas Fireplace.
Table 6
The installation of your Fireplace must
conform with local codes, or in the absence
of local codes, with National Fuel Gas Code,
ANSI Z223.1 — latest edition, or CAN 1 B1-
149.1and.2InstallationCode. (EXCEPTION:
Do not derate this appliance for altitude.
Maintain the manifold pressure at 3.5 inches
W.C. for Natural Gas and 10 inches W.C. for
LP gas.)
GAS INLET & MANIFOLD PRESSURES
Input Minimum
Input Maximum
Manifold Pressure
NATURAL LP (Propane)
11" wc
13" wc
10" wc
4.5" wc
7" wc
3.5" wc
Table 7

- 7 -
When using copper or flex connector use only approved
fittings. Always provide a union so that gas line can be
easilydisconnectedforburnerorfanservicing.SeeFig.7.
See gas specification for pressure details and ratings.
Always check for gas leaks with a mild
soap and water solution. Do not use an
open flame for leak testing.
The gas control is equipped with a captured screw type
pressuretestpoint,therefore itisnotnecessarytoprovide
a 1/8" test point up stream of the control.
The fireplace valve must not be subjected to any test
pressures exceeding 1/2 psi. Isolate or disconnect this or
any other gas appliance control from the gas line when
pressuretesting.
REMOTE SWITCH INSTALLATION
FOR RN/RP
1. Threadwirethroughthe electrical knockoutlocatedon
eithersideoffireplace.. Donotcutwireorinsulationon
metal edges. Ensure that wire is protected. Run the
other end to a conveniently located wall receptacle
box.
2. Attach wire to switch and install switch into receptacle
box. Attach cover plate to switch.
3. Connect wiring to gas valve. (Fig. 8)
Fig. 8
ALTERNATE SWITCH LOCATION:
Remoteswitchcanbeinstalledoneither sideoftheaccess
door. Simply mount the switch to the switch bracket
provided. Screw the bracket on either side of the frame,
lining up the screws with the pre-punched holes. (Fig. 9)
P
I
L
O
T
TPTH TP TH
THERMOPILE
ON/OFF SWITCH
VALVE
DO NOT WIRE MILLIVOLT REMOTE WALL
SWITCH FOR GAS FIREPLACE TO A 120V
POWER SUPPLY.
FOR LIGHTING INSTRUCTIONS PLEASE
REFER TO LIGHTING INSTRUCTION PAGE
Fig. 9
Fig. 7
When purging gas line the front glass must
be removed.
The gas pipeline can be brought in through the right side,
leftsideoftheapplianceaswellasthebottom. Knockouts
are provided at convenient locations to allow for the gas
pipe installation and testing of any gas connection. It is
most convenient to bring the gas line in from the right
side, as this allows fan installation or removal without
disconnecting the gas line.
The gas line connection can be made with
properly tinned 3/8" copper tubing, 3/8"
rigid pipe or an approved flex connector.
GAS LINE INSTALLATION
1/2" Gas Supply
1/2" X 3/8" Reducer
3/8" Nipple
3/8" Nipple
3/8" Nipple
3/8" X 3/8" Shut Off Valve
3/8" Uni n
TYPICAL GAS LINE CONNECTION

- 8 -

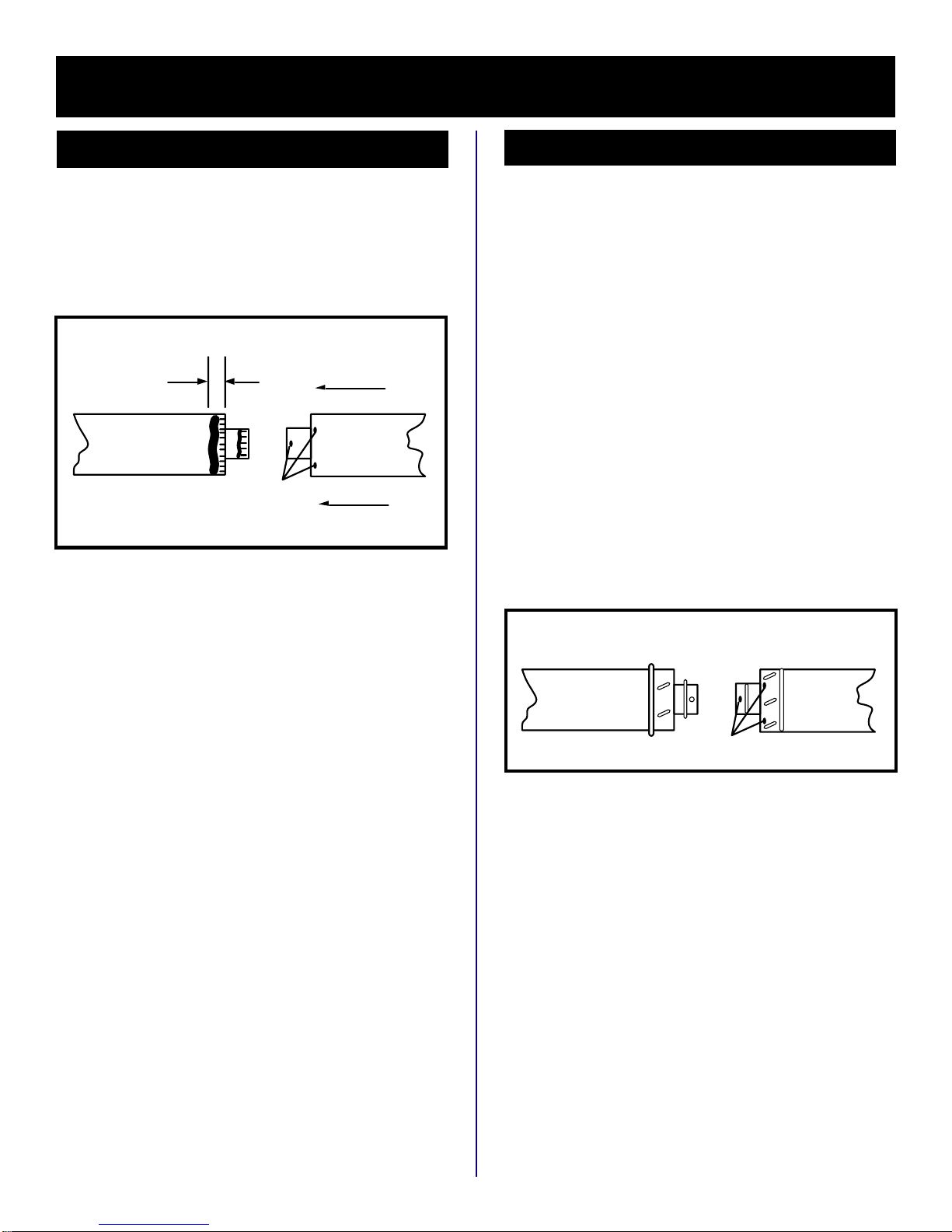

GENERAL INFORMATION ON ASSEMBLING
THE VENT PIPES
Join pipes and secure joints with three (3) sheetmetal
screws. (See Fig. 10) Wipe off excess sealant.
CRIMPED END PIPES
Before joining elbows and pipes apply a bead of high
temperature sealant to crimped end of elbow or pipe.
(Fig. 10).
Fig. 10
CANADIAN INSTALLATIONS:
The venting system must be installed in accordance with
the current CAN/CGA-B149 (.1 or .2) installation code.
U.S.A. INSTALLATIONS:
The venting system must conform with local codes and/or
the current National Fuel Gas Code, ANSI Z223.1.
Only venting components manufactured by The CFM
Majestics Products Company may be used.
When using twist lock pipe it is not necessary to use
sealant at the twist lock joints.
The only areas of the venting that need to be sealed with
high temperature silicone sealant are the collars on the
fireplace and termination, and the sliding joint of any
telescopic vent pipes used in the system.
To join the twist lock pipes together, simply align the
beads of the male end with the grooves of the female
end, then while bringing the pipes together, twist the
pipe until the flange on the female end contacts the
external flange on the male end.
TWIST LOCK PIPES
Fig. 11
It is recommended that you secure the joints with 3
sheet metal screws however this is not mandatory with
twist lock pipe.
To make it easier to assemble the joints we suggest
putting a lubricant (Vaseline or similar) on the male end
of the twist lock pipe.
TWIST LOCK PIPE JOINT
Screw H les
BEAD LOCATION
1" Fr m crimped end f pipe
1''
Screw H les

- 9 -
;
;
;;
;;
;;
V
V
V
V
V
V
V
V
V
X
X
;;
;;
X
D
E
B
BB
C
BM
B
AJKA
F
L
G
G
;
TERMINATION CAP AIR SUPPLY INLET GAS METER RESTRICTED AREA
(TERMINATION PROHIBITED)
H
I
Fixed
Closed
Fixed
Closed
Openable
Openable Fixed
Closed
G
G
NN
A
Fig. 12
Your fireplace is approved to be vented either through
the side wall, or vertical through the roof.
-Only Majestic venting components specifically
approved and labelled for this fireplace may be
used.
-Minimum clearances between vent pipes and
combustible materials is one (1") inch (25 mm),
except where stated otherwise.
- Venting terminals shall not be recessed into a wall
or siding.
- Horizontal venting must be installed on a level
plane without an inclining or declining slope.
Theremustnotbeanyobstructionsuchasbushes,garden
sheds,fences, decks or utility buildingswithin 24" from the
front of the termination hood.
Do not locate termination hood where excessive snow or
ice build up may occur. Be sure to check vent termination
area after snow falls, and clear to prevent accidental
blockage of venting system. When using snow blowers,
make sure snow is not directed towards vent termination
area.
Location of Vent Termination
Itisimperativethattheventterminationbelocatedobserv-
ing the minimum clearances as shown on this page.
*
Check with local codes or in absence of local codes, with
NationalFuelGasCode,ANSIZ223.1-latesteditionforUSA,or
CAN1B1-149.1and.1InstallationCodeforCanada.
A = clearanceabovegrade,veranda,porch,deck,or
balcony[*12inches(305mm)minimum]
B = clearancetowindowordoorthatmaybeopened
12"(306mm).
C = clearancetopermanentlyclosedwindow[minimum
12inches(305mm)recommendedtopreventcon-
densationonwindow]
D = verticalclearancetoventilatedsoffitlocatedabove
thetermina/withinahorizontaldistanceof24inches
(610mm)fromthecentre-lineoftheterminal[18
inches(458mm)minimum]
E = clearancetounventilatedsoffit[12inches(305mm)
minimum
F = clearancetooutsidecomerseenextpage
G = clearancetoinsidecomerseenextpage
H = *nottobeinstalledaboveameter/regulatorassem-
blywithin36inches(914mm)horizontallyfromthe
centre-lineoftheregulator
† aventshallnotterminatedirectlyaboveaside-walkorpaveddrivewaywhichislocatedbetweentwosinglefamily
dwellingsandservesbothdwellings*
‡ onlypermittedifveranda,porch,deck,isfullyopenonaminimum2sidesbeneaththefloor*
* checkwithlocalcodes,orintheabsenceoflocalcodes,withNationalFuelGasCode,ANSIZ223.1-latestedition
forUSA,orCAN1B1-149.1and.2InstallationCodeforCanada.
Note: Localcodesorregulationsmayrequiredifferentclearances.
I = clearancetoserviceregulatorventoutlet[*72inches
(1828mm)minimum]
J = clearancetonon-mechanicalairsupplyinletto
buildingorthecombustionairinlettoanyother
fireplace[*12inches(305mm)minimum]
K = clearancetoamechanicalairsupplyinlet[*72inches
(1828mm)minimum]
L = †clearanceabovepavedside-walkorapaved
drivewaylocatedonpublicproperty[*84inches
(2133mm)minimum]
M = clearanceunderveranda,porch,deck[*12inches
(305mm)minimum‡]
N = Clearanceabovearoofshallextendaminimumof
24"(610mm)abovethehighestpointwhenitpasses
throughtheroofsurface,andanyotherobstruciton
withinahorizontaldistanceof18"(450mm).
GENERAL VENTING INFORMATION

- 10 -
Fig. 13
*IMPORTANT* DIRECT THROUGH SIDEWALL
Note: Vent Starter Kit Model 7DVRVT must be used in straight out the wall rear vent applications.
Maximum Vent Length .......................... 20" (508mm)- Fig. 14
Fig. 14
REAR VENTING APPLICATIONS
Note: It is not necessary to seal the vent pipe joints for any straight out the wall rear vent applications.
Minimum clearance
between vent pipes and
combustible materials is
one (1") inch (25 mm) on
sidesandbottomandtwo
(2") inch (50 mm) on top.
When vent termination
exits through foundation
less than 20" (508mm)
belowsidingoutcrop,the
vent pipe must flush up
with the siding. A 7DVSS
must also be used.
TOP VIEW
20" (508mm)
TOP VIEW
CROSS CORNER VENT
TO THE LEFT.
20"
508mm
45°
TOP VIEW
CROSS CORNER VENT
TO THE RIGHT.
20"
508mm
45°
;;
;;
;;
;
Outside Corner
Inside Corner
Termination Clearances
Termination clearances for buildings with combustible and noncombustible exteriors.
A =
Combustible
6"(152mm)
Noncombustible
2"(50mm)
B =
Combustible
6"(152mm)
Noncombustible
2"(50mm)
;
;;
A
;;
;;
;;
Balcony -
with no side wall
G =
Combustible&
Non-Combustible
12"(305mm)
G
Balcony -
with perpendicular side wall
H = 24"(610mm)
J = 20"(508mm)
H
J
B
Recessed Location
C = Maximum depth of 48"
(1219mm) for recessed
location.
D = Minimum width for back wall
of a recessed location.
Combustible 38"(965mm)
Noncombustible 24"(610mm)
E = Clearance from corner in
recessed location.
Combustible 6"(152mm)
Noncombustible 2"(50mm)
;;;
CDC
E
V
V
Combustible &
Non-Combustible
VV
V

- 11 -
Measure wall thickness and cut adjustable zero clearance
sleeve parts to proper length (MAXIMUM 12"/305mm).
Adjust sleeve to maximum (10-3/8 x 9-3/8). and attach to
firestop with #8 sheet metal screws (supplied). (Fig. 16)
Install firestop assembly.
#8
SCREWS(2)
ADJUSTABLE ZERO
CLEARANCE SLEEVE
ADJUSTABLE
ZERO CLEARANCE
SLEEVE
#8
SCREWS(2)
#8
SCREWS(2)
Maximum Length
12" (294mm)
FIRESTOP
Fig. 15
STEP 2
Fig. 16
Combustible Walls. Cut a 10-3/8"H x 9-3/8"W (265mm
x 240mm) hole through the exterior wall and frame as
shown. Fig. 15.
Non-Combustible Walls: Hole opening must be 7.5"
(190mm) in diameter.
REAR WALL INSTALLATIONS
STEP 1
Locateventopeningonwall. To locate holecentreconsult
with appropriate fireplace dimensions, page 4. Frame as
shown below.
(240mm)
9-
3/8 "
10-
3/8 "
(255mm)
7-
1/2 "
(190mm)
Vent Opening —
Noncombustible Wall
(framing detail)
Vent Opening —
Combustible Wall
STEP 4
Slip4"and7" pipes ontorespectivefluecollars. Make sure
tofixto the fireplacecollarthe 4" pipewiththree (3) screws
before fixing the 7" pipe on the 7" collar. Both pipes must
be on a level plane. Fig. 17.
STEP 3
Measure from fireplace collar or elbow face to face of
outside wall (add 2" for vent pipe overlap. Mark pipes and
cuttolength.Itisveryimportantthatthetwopipesareflush
withtheoutsidewalloncethefireplaceisinitsfinallocation.
STEP 5
Guidetheventtermination4"collarintothe4"pipethenthe
7" collar into the 7" pipe. Do not force the venting into
position. If the pipes do not line up with the termination
collars, disassemble pipes and reattach to the fireplace
collar. (Fig. 18)
STEP 6
Securefireplaceto floor throughfloorholesandadjustable
frame drywall strip (nailing flange) to frame. (See Framing
& Finishing Section)
Fig. 18
Straight Out Thru the Wall Application
FINISHED
WALL VENT
TERMINATION
;
;
;
;
FIRESTOP
ZERO
CLEARANCE
SLEEVE
Fig. 17

- 12 -

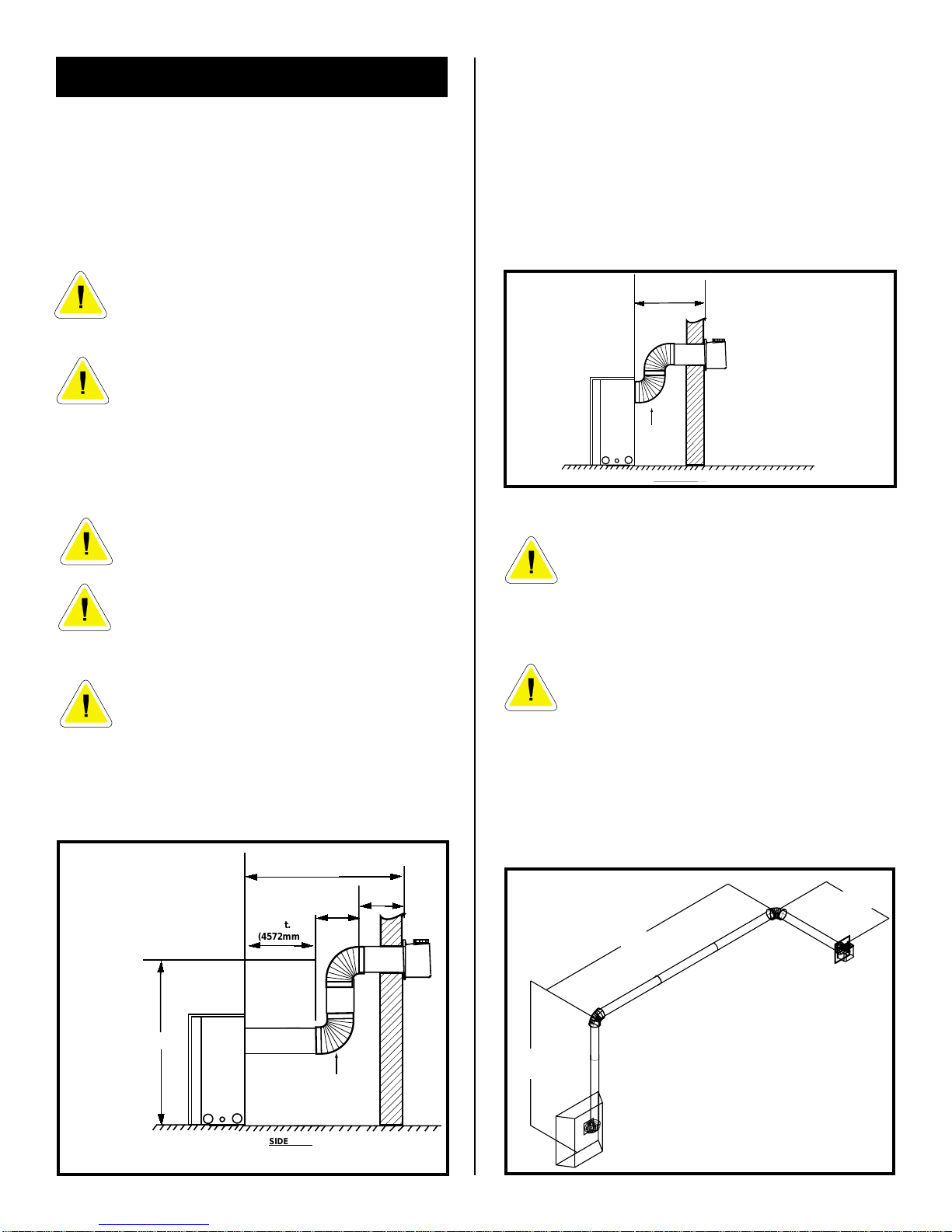

The maximum horizontal vent run is 20 feet (6100mm)
when the vertical vent rise is 7.5 feet (2286mm). Fig. 19
Fig. 19
VERTICAL SIDEWALL APPLICATIONS
Since it is very important that the venting system
maintainitsbalancebetweenthecombustionairintake
andthefluegasexhaust,certain limitations as to vent
configurations apply and must be strictly adhered to.
The graph showing the relationship between vertical and
horizontal side wall venting will help to determine the
various vent lengths allowable. Fig. 23.
Minimum clearance between vent pipes and
combustible materials is one (1") inch (25
mm) on top, bottom and sides unless
otherwise noted.
When vent termination exits through
foundation less than 20" below siding
outcrop, the vent pipe must flush up with the
siding. A 7DVSS must also be used.
It is always best to locate the fireplace in such a way that
minimizes the number of offsets and horizontal vent
length.
The horizontal vent run refers to the total
length of vent pipe from the flue collar of the
fireplace to the face of the outer wall.
Horizontal plane means no vertical rise
exists on this portion of the vent assembly.
Forsomeinstallations,itmaybedesirableto
havesomeamountofthehorizontalventrun
immediately after the fireplace. A vertical
rise must be used but can be located any-
whereintheventsystem,tomeettheperim-
eters identified in the venting graph.
The maximum number of 90 degree elbows per side wall
installationis three(3)plusonetransitionelbow, 7DVRT90
off back of unit.
The maximum number of 45 degree elbows permitted per
side wall installation is two (2). These elbows can be
installed in either the vertical or horizontal run.
When one 900elbow is installed directly onto another off
the back of the fireplace the maximum horizontal vent
length is 36" (914mm). Fig. 20.
Fig. 20
Fig. 21
For each 45 degree elbow installed in the
horizontal run (while maintaining a constant
horizontal plane), the length of the horizontal
run MUST be reduced by 18" (457mm). This
does not apply if the 45 degree elbows are
installedontheverticalpartoftheventsystem.
If a 90 degree elbow is used in the horizontal
vent run (level height maintained) the maxi-
mum horizontal vent length is reduced by 36
inches. Fig. 21. This does not apply if the 90
degree elbows are used to increase or redi-
rect a vertical rise.
Example: According to the vent chart the maximum
horizontalventlengthis20ft.whentheverticalheightis7.5
ft. from fireplace base height. If one 90 degree elbow is
required in the horizontal vent it must be reduced to 17 ft.
SIDE VIEW
MAXIMUM
3' (914mm)
7DVRT90
ELBOW
;
;
;
;
SIDE VIEW
MAXIMUM
20 ft. (6100mm)
90" (2286mm)
VERTICAL
DIMENSION
7.5 ft. MINIMUM
WHEN HORIZONTAL
RUN IS 20 ft.
7DVRT90
ELBOW
;;
;;
;;
;;
;;
15 ft.
(4572mm)
48"
(1220mm)
12"
(305mm)
90"
2286mm
120"
3048mm
84"
2134mm
90
o
elbow=3'

- 13 -
HORIZONTAL DIMENSION
SEE PAGE 15 FOR VENTING
REQUIREMENTS FOR SNORKELS.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
eg: A
eg: B
VERTICAL DIMENSION FROM THE FLOOR OF THE UNIT
TO THE CENTRE OF THE HORIZONTAL VENT PIPE
Fig. 23
HOW TO USE THE VENT GRAPH
1. Determine the height of the centre of the horizontal
vent pipe exiting through the outer wall. Using this
dimension on the Sidewall Vent Graph (Fig. 21),
locate the point it intersects with the slanted graph
line.
2. From the point of this intersection, draw a vertical
line to the bottom of the graph.
3. Select the indicated dimension, and position the
fireplace in accordance with same.
EXAMPLE A:
If the vertical dimension from the floor of the unit is 11
feet (3352mm) the horizontal run to the face of the outer
wall must not exceed 14 feet (4267mm).
EXAMPLE B:
If the vertical dimension from the floor of the unit is 7 feet
(2133mm), the horizontal run to the face of the outer wall
must not exceed 8-1/2 feet (2590mm).
VERTICAL SIDEWALL VENTING GRAPH
(Dimensions in Feet)
Fig. 22
The maximum number of elbow degrees in a system is
270 o. (This does not include transition elbow from rear
vent to vertical vent.) Fig. 22.
Sample: 1 - 90 o
(Fig. 20) 2 - 45 o
3 - 45 o
4 - 90 o
Total - 270 o

- 14 -

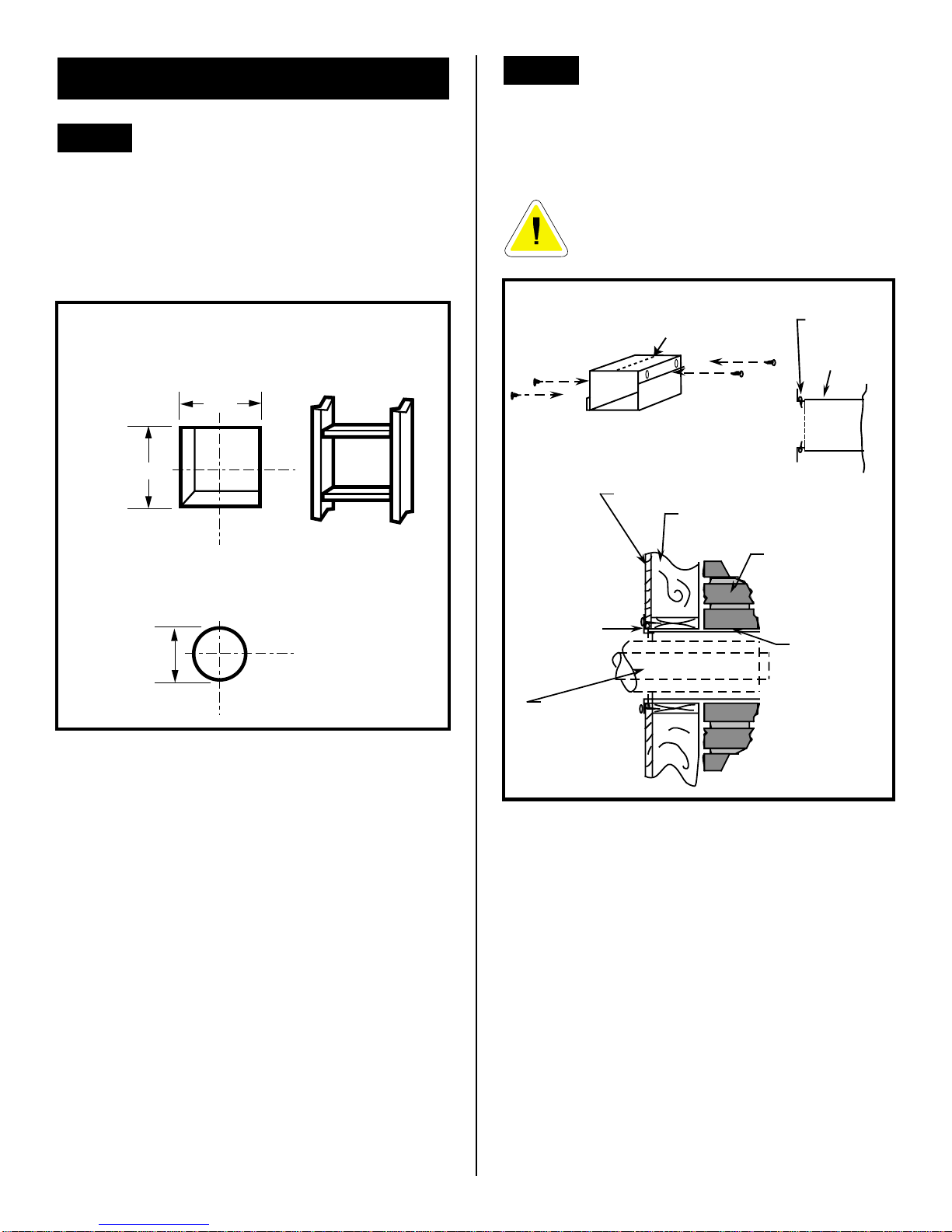

COMBUSTIBLEWALLS(Fig.25): Cuta9-3/8"Hx9-3/8"W(240
mmx240mm)holethroughtheexteriorwallandframeasshown
(Fig. 24).
NON-COMBUSTIBLE WALLS (Fig. 25): Hole opening must be
7.5" (190 mm) in diameter.
(240mm)
9-3/8"
9-3/8"
(240mm)
7-1/2"
(190mm)
Vent Opening —
Combustible Wall
Vent Opening —
Noncombustible Wall
(framing detail)
Fig. 25
STEP 1
Locateventopeningonthewall. Itmaybenecessarytofirst
position the fireplace and measure to obtain hole location.
Depending on whether the wall is combustible or non-
combustible, cut opening to size. Fig. 25.
(For combustible walls first frame in opening).
VERTICAL SIDEWALL INSTALLATION
VERTICAL SIDEWALL APPLICATION
STEP 2
Fig. 26. Measure wall thickness and cut adjustable zero
clearance sleeve parts to proper length (MAXIMUM 12"/
305mm). Adjust sleeve to minimum (9-3/8" x 9-3/8") and
attach to firestop with #8 sheet metal screws (supplied).
Install firestop assembly.
Zero clearance sleeve is only required for
combustible walls.
Fig. 26
#8
SCREWS(2)
ADJUSTABLE ZERO
CLEARANCE SLEEVE
ADJUSTABLE
ZERO CLEARANCE
SLEEVE
#8
SCREWS(2)
#8
SCREWS(2)
Maximum Length
12" (294mm)
FIRESTOP
WOOD FRAMING
WALL EXTERIOR
VENT PIPE
FIRESTOP ZERO
CLEARANCE
SLEEVE
FLUSH WITH
WALL
EXTERIOR
DRYWALL

- 15 -

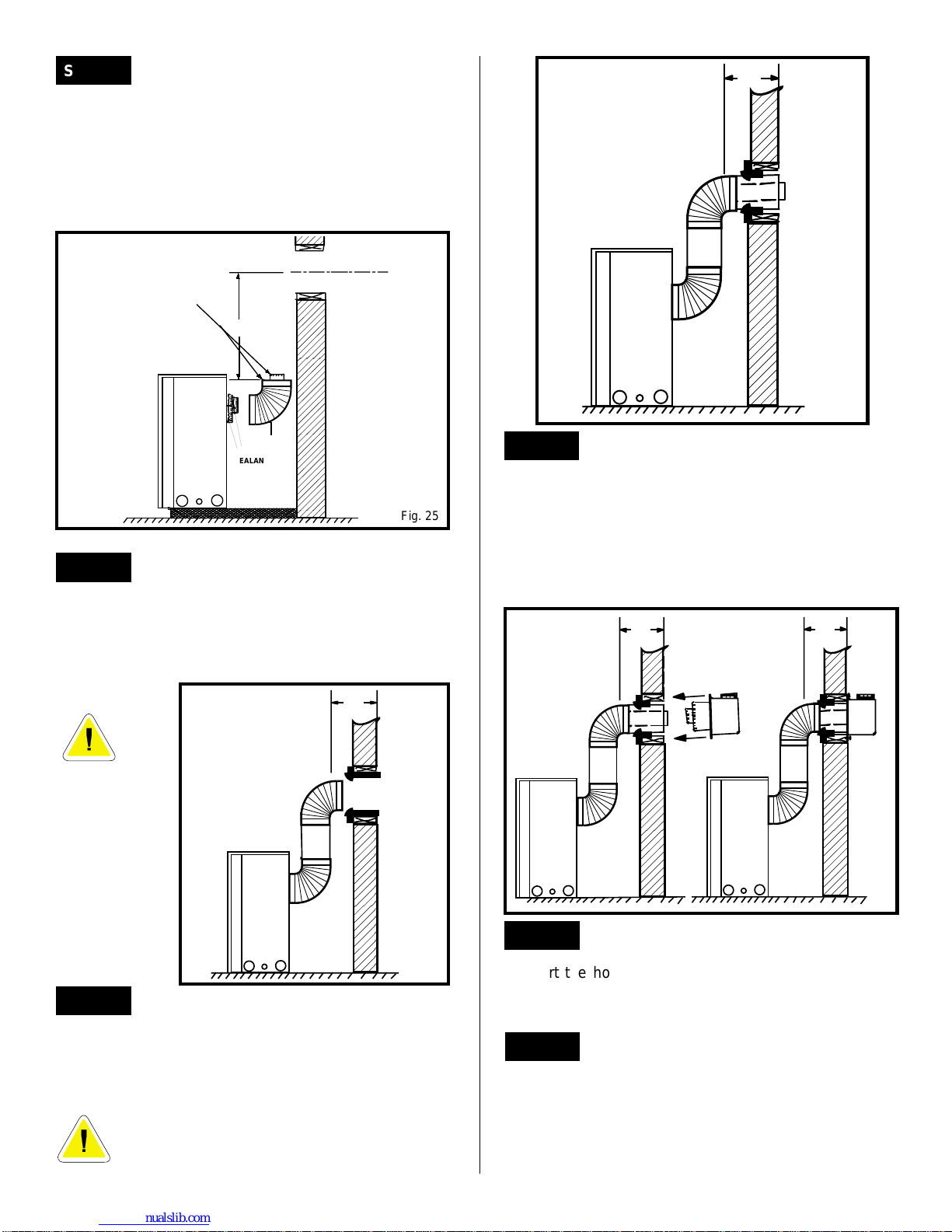

STEP 4
(Fig. 28) Measure the horizontal length requirement
including a 2" (50mm)overlap, i.e. from the elbow to the
outside wall finish plus 2" (or the distance required if
installing a second 90o elbow).
Always install
horizontal
venting on a
level plane.
Fig. 28
X
;;
;;
;;
;;
;
Fig. 25
STEP 3
(Fig. 27) Apply a bead of high temperature sealant to the
inner and outer flue collars of the fireplace and using
appropriate ventingcomponent(s)attachtofireplacewith
three (3) screws. Follow with the installation of the inner
andouter elbow. Again securejoints withthree(3) sheet
metal screws. Wipe off any excess high temperature
sealant.
X
7DVRT90
ENSURE PIPES
ARE CONCENTRIC
;
;
;
;
;
BEAD OF
SEALANT
Sealing vent pipe and firestop gaps with hi-
temperaturesealantwillrestrictcoldairbeing
drawn in around fireplace.
STEP 5
(Fig. 29) Use the appropriate length of pipe section –
telescopic or fixed – and install. The 20" (508mm) section
of pipe which goes through the wall is packaged with the
7DVSK kit, and can be cut to suit if necessary.
STEP 6
(Fig. 30) Apply high temperature sealant to 4" and 7"
collars one inch away from crimped end. Guide the vent
termination 4" and 7" collars into their respective vent
pipes. Doublecheckthattheventpipesoverlapthecollars
by 2" (50mm). Secure the termination to the wall with
screws provided and caulk around the wall plate to
weatherproof.
Fig. 27
;;
;;
X
;;
;;
STEP 7
Support the horizontal pipes every 36 inches (914mm)
with metal pipe straps. Make sure that the horizontal vent
pipe is installed on a level horizontal plane.
STEP 8
Recheck the fireplace to make sure that it is levelled,
properly positioned, and nailed or screwed to the floor.
If applied, the fireplaces adjustable frame drywall strips
(nailing flanges) should be fastened. See "Framing &
Finishing.
Fig. 30
XX
;
;
;;
;;
;
;
;;
;;

- 16 -
DONOTBACKFILLAROUNDSNORKEL.
SOIL SHOULD NOT BE LESS THAN 4"
(100mm) BELOW SNORKEL.
FOUNDATION
RECESS SNORKEL
SCREWS
WALL
SCREWS
SHEET METAL
WATERTIGHT
SEAL
AROUND
PIPE
If the foundation is recessed, use recess brackets (not
supplied) for securing lower portion of the snorkel. Fasten
brackets to wall first and then secure to snorkel with self
drilling #8 x 1/2 sheet metal screws. It will be necessary to
extend vent pipes out as far protruding wall face (Fig. 32).
VERTICAL THROUGH THE
ROOF APPLICATIONS
This Gas Fireplace has been approved for,
a) Verticalinstallationsupto40feet(12 metres)inheight.
Up to a 10 ft.(3048mm) horizontal vent run can be
installed within the vent system using a maximum of
three 90oelbows.
b) Uptotwo45oelbowsmaybeusedwithinthehorizontal
run. For each 45oelbow used on the horizontal level
themaximumhorizontallengthmustbereducedby 18
inches (457mm).
Example: Maximum horizontal length
0-45
oelbows 10 ft. (3048mm)
1-45
oelbows 8.5 ft. (2590mm)
2-45
oelbows 7 ft. (2133mm)
BELOW GRADE INSTALLATIONS
When it is not possible to meet the required vent terminal
clearances of 12 inches (305mm) above grade level a
model #7DVSKS vent kit is required. It allows installation
depthofdownto7inches(178mm)belowgradelevel. The
7inchesismeasuredfrom the centreofthehorizontalvent
pipe as it penetrates through the wall.
If venting system is installed below ground,
werecommendawindowwellwithadequate
and proper drainage.
Ensure sidewall venting clearances are observed.
T hemaximumhorizontalrunwith24" (610mm)
verticalriseis36"(914mm)fromthebackofthe
fireplace to the face of the exterior wall. See
ventgraph(Fig. 21)forextendedhorizontalrun
if the vertical exceeds 24" (610mm).
1. Establish vent hole through the wall. See page 14
2. Remove soil to a depth of approximately 16"
(406mm) below base of snorkel. Install window well
(not supplied). Refill hole with 12" (305mm) of
coarse gravel leaving a clearance of approximately 4"
(100mm)below snorkel. (Fig. 31)
3. Install vent system. See page 13, Steps 2 through 5.
4. Ensure a watertight seal is made around the vent
pipe coming through the wall.
5. Apply high temperature sealant caulking (supplied)
around the 4 and 7 inch 7DVSKS's snorkel collars.
6. Slide into vent pipe and secure to the wall.
7. Level the soil so as to maintain a 4"
(100mm)clearance below snorkel (Fig. 31).
Fig. 33
c) A minimum of an 8 ft. vertical rise.
d) Two sets of 45 degree elbow offsets within these
vertical installations. From 0 to a maximum of 8 ft.
(2438mm) a vent pipe can be used between elbows.
(Fig. 35)
e) 7DVCS must be used to support offsets. (Fig. 35)
Thisapplicationwillrequirethatyoufirstdeterminetheroof
pitch and use the appropriate 7DVSKV (A,B or F). (see
Venting Components, page 28)
Fig. 31
Fig. 32
MAXIMUM
10 FT
(3048mm)
PIPE STRAPS
EVERY 3'
(914mm)
MINIMUM
8 FT./
MAXIMUM
40 FT.
VERTICAL
RISE
GRAVEL
DRAIN
FIRESTOP
FOUNDATION WALL
WINDOW WELL
7DVSKS
(SNORKEL)
GROUND
24"/608mm
MINIMUM*
7" PIPE SCREWS MINIMUM
4" CLEARANCE
ZERO CLEARANCE
SLEEVE IF REQUIRED
A minimum f 24"/608mm
vertical pipe must be installed when
using the 7DVSKS/7TDVSKS kit.
The 22" vertical rise (center t
center) f the sn rkel may be
included f r calculati n f max.
h riz ntal run.
*
*

- 17 -
Fig. 39
Clearance above a roof shall extend a mini-
mumof24"(610mm)abovethehighestpoint
whenit passes throughtheroofsurface, and
any other obstruciton within a horizontal
distance of 18" (450mm).
1. Locate your fireplace.
2. Plumb to centre of the (4") 90ºtransition elbow
(7DVRT90) from ceiling above and mark position.
3. Cut opening equal to 9-3/8" x 9-3/8" (240 mm x 240
mm).
4. Proceed to plumb for additional openings through the
roof.Inallcases,theopeningmustprovideaminimum
of 1 inch clearance to the vent pipe, i.e., the hole must
be a minimum of 9-3/8" x 9-3/8" (240 mm x 240 mm).
5. Place firestop(s) #7DVFS into position and secure.
(Fig. 38)
6. Install roof support (Fig. 35) and roof flashing making
sure upper flange of flashing is below the shingles.
(Fig. 39)
7. Install appropriate pipe sections until above the flash-
ing. (See Fig. 39 for #'s 7, 8 and 9).
8. Install storm collar and seal around the pipe.
9. Add additional vent lengths for proper height.
10. Apply high temperature sealant to 4" and 7" collars of
vent termination and install.
VERTICAL THRU THE ROOF INSTALLATION
Fig. 38 If there is a room above ceiling level,
firestop spacer must be installed on both the
bottom and the top side of the ceiling joists. If
an attic is above ceiling level a 7DVAIS (Attic
Insulation Shield) must be installed.
Fig. 39. The enlarged ends of the vent section
always face downward.
SEALANT
SHEETMETAL
SCREWS (#5) —
3 PER JOINT
STORM
COLLAR
JOIST
11"
11"
Attic
Insulation
Shield
Ceiling
Installation
JOIST
NAILS (4)
FIRESTOP
SPACER
11"
11"
UPPER FLOOR
Fig. 36
TYPICAL 7DVCS
APPLICATION
TYPICAL ROOF
SUPPORT
APPLICATION
Fig. 37
Fig. 38
Fig. 34
Fig. 35
45°
45°
2438mm
MAX.
8 FEET
2438mm
MAX.
8 FEET
TYPICAL OFFSET INSTALLATION
40 FEET
(12.2m)
TYPICAL STRAIGHT-UP INSTALLATION
40 FEET
(12.2m)
ATTIC INSULATION
SHIELD
JOISTS
ROOF
VENT TERMINATION
ATTIC INSULATION
ROOF SUPPORT
STORM COLLAR
ROOF FLASHING
2' Min.
CEILING JOISTS

- 18 -

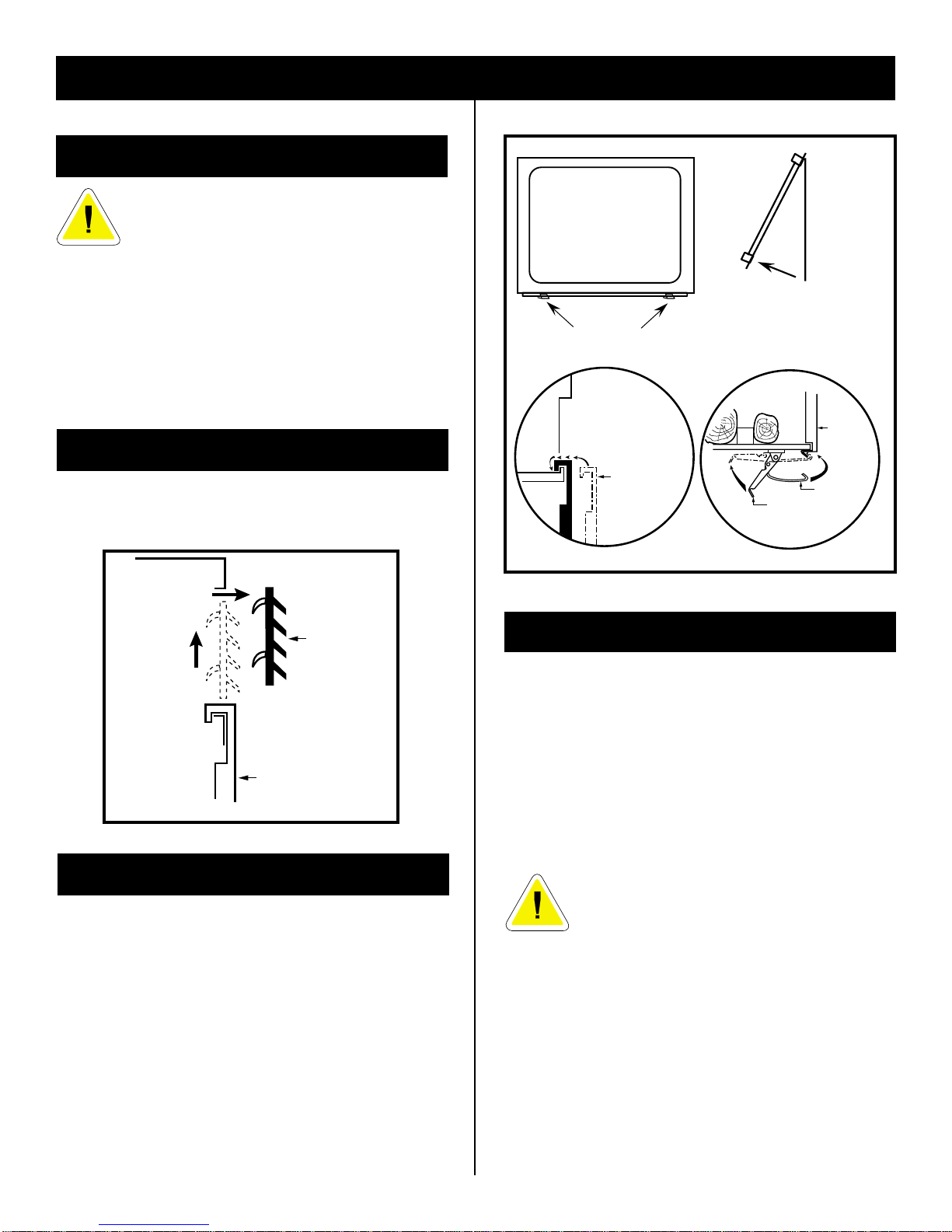

GLASS FRAME REMOVAL
1. Shut off gas.
2. Let the fireplace cool if it has been operating.
3. Remove top louvre. (See Louvre Removal)
4. Open the lower louvre assembly.
5. Release the two clamps at the bottom of the window
frame by pulling down on the clamp handles.
6. Lift off the glass frame as shown.
7. To reinstall glass follow the above procedure in
reverse. (Fig. 41)
CLAMPS
FIREPLACE
FRONT
GLASS
FRAME
OPERATING INSTRUCTIONS
WINDOW
FRAME
WINDOW
FRAME
PULL
CLAMP HOOK
PUSH
CLAMP HANDLE
(Fig. 40) To remove top louvre pull louvre up and then
lift out.
GLASS
PANEL
LOUVRE
1.
2.
GENERAL GLASS INFORMATION
Only glass approved for use in products
may be used for replacement.
1 . Theuseofsubsituteglasswillvoidallproductwarranties.
2. Care must be taken to avoid breakage of the glass.
3. Under no circumstances should this appliance be
operatedwithoutthefront glassorwithabroken glass.
Replacement of the glass (with gasket) as supplied by
themanufacturershouldbedonebyalicencedqualified
service person.
LOUVRE REMOVAL
Fig. 41
Fig. 38
It will be necessary to clean the glass periodically. During
start-upcondensation,whichisnormal,formsontheinside
of the glass and causes lint, dust and other airborne
particles to cling to the glass surface. Also initial paint
curingmay deposit a slight filmon the glass. Itis therefore
recommendedthattheglassbecleanedtwoorthreetimes
with a non-ammonia household cleaner and warm water
(werecommendgasfireplaceglasscleaner). Afterthatthe
glass should be cleaned two or three times during each
heating season depending on the circustances present.
Cleanglassafterfirsttwoweeksofoperation.
Do not clean glass when hot.
Do not use abrasive cleaners.
Do not strike or slam the glass.
GLASS CLEANING

- 19 -
1 . Remove front glass. (See "Glass Removal" Section)
2. Remove logs from the packaging.
As with all plastics —these are not toys
and should be kept away from children and
infants.
3. Place rear log on rear bracket (ensure log is seated
properly, leveled and centered to the unit), so it will not
move from side to side and it is firmly positioned on the
bracket.
4. Place front left log on top of burner, left side. Use log's
bottom holes to locate it into the left bracket log locator
studs.
5. Placefrontrightlogontopofburner,rightside. Uselog's
bottomholestolocateitintotherightbracketloglocator
studs.
6. Place ember material on top of burner. (See "Ember
Material Placement" Section).
7. Place top left log onto locator notches. Ensure log is
secure.
8. Place top right log onto locator notches. Ensure log is
secure. LAVA ROCK
The lava rock provided with this fireplace must be
placed on the firebox base on either side of the burner
assembly.
Under no circumstances should this lava
rock be placed on any part of the burner
assembly.
front logs. Do NOT pack down, leave in fluffy, loose
condition for most realistic ember effect.
EMBER MATERIAL PLACEMENT
Separate the ember material into small pieces, roughly
1/2" in diameter and place onto the burner in front of the
INSTALLATION OF LOGS
Fig. 43
FLAME ADJUSTMENT
For fireplaces equipped with Hi/Lo valves, flame adjust-
ment is accomplished by rotating the Hi/Lo adjustment
knob located near the centre of the gas control. Fig. 46a
and 46b.
Fig. 46a
Front Left Log BA2 BB6 BC5
Front Right Log BA3 BB7 BC6
Rear Log BA4 BB8 BC7
Top Left Log BA5 BB9 BC8
Top Right Log BA6 BB10 BC9
Top logs must be placed properly onto
notches.
DBR39
DBR36
Fig. 42
DBR33
Fig. 44
LOGS DBR33 DBR36 DBR39
Fig. 46b
BA5
Log Top Left
BA2
Log
Front
Left
BA6
Log Top Right
BA4
Log Rear
BA3
Log Front
Right
BB8
Log Rear
BB9
Log Top Left BB10
Log Top Right
BB6
Log Front Left
BB7
Log Front Right
BC7
Log Rear
BC8
Log Top Left BC9
Log Top Right
BC5
Log Front Left
BC6
Log Front
Right
Turn
c untercl ckwise
t decrease
flame height
Turn cl ckwise
t increase
flame height
H neywell Valve
Turn
c untercl ckwise
t increase
flame height
Turn cl ckwise
t decrease
flame height
SIT 820 Valve

- 20 -
The burner and control system consists of:
•burner tube •gas orifices
•pilot assembly •thermopile
•millivolt gas valve
Mostof these componentsmay requireonly an occasional
checkup and cleaning and some may require adjustment.
If repair is necessary, it should be performed by a
qualified technician.
1. Turn off pilot light at gas valve side
2. Let fireplace cool if it has been running.
3. Remove glass. (see Glass Removal)
4. Remove logs.
LOGS MAY BE HOT
5. Vacuumburnercompartmentespeciallyaroundorifice
primary air openings.
6. Visually inspect pilot. Brush or blow away any dust or
lint accumulation.
7. Reinstall logs.
8. Ignite pilot - see Operating Section of Manual.
8. Reinstall glass.
To obtain proper operation, it is imperative that the pilot
and burner's flame characteristics are steady, not lifting
or floating.
Typically, the top 3/8" or 1/2" of the thermopile should be
engulfed in the pilot flame. See Fig. 47.
To adjust pilot burner (by a Qualified Service
Representative)
1. Remove pilot adjustment cap.
2. Adjust pilot screw to provide properly sized flame.
3. Replace pilot adjustment cap.
The primary air shutter is set at factory and should
only be adjusted (if necessary) by a qualified service
person.
Fig. 48
FLAME CHARACTERISTICS
It is important to periodically perform a visual
checkofthepilotandtheburnerflames.Com-
pare them to the pictorials illustrated below
(Fig. 47, 48, 49, and 50). If any of the flames
appear abnormal call a service person.
INSPECTING THE VENTING SYSTEM
Thisapplianceventingsystemwasdesignedandconstructed
todevelopapositiveflowadequatetoremovefluegasestothe
outside atmosphere.
Any foreign objects in the venting system, except those
designed specifically for the venting system, may cause
spillage of flue gases.
To inspect the venting system, make sure the main gas valve
is off. Remove glass frame (See Glass Frame Removal
Section). Using a flashlight, check the area above the baffle
in the combustion dome. Clean if necessary.
CLEANING THE STANDING PILOT
CONTROL SYSTEM
MAINTENANCE
1. It is important to keep the burner and the burner
compartment clean. This must be done periodically,
at least once per season.
2. Clean the brass trim using a soft clean cloth, slightly
dampened with lemon oil and buff with a soft clean
cloth. Do NOT use brass polish or household
cleaners as these products will damage the brass
trim. Lemon oil can be obtained at supermarkets or
hardware stores.
3. The optional FK24 fan does require periodic clean-
ing. Check the area under the control door and in
front of the fan and wipe or vacuum at least once a
month during the operating season.
4. Contact your local representative to arrange an
annual service program.
Fig. 47
Fig. 50
Fig. 48
DBR33
DBR39
DBR36
