Vermont Castings 36CDVZRRN Assembly instructions

Installation Instructions and
Homeowner’s Manual
20014621 7/13 Rev. 9
Builder Direct Vent
Models:
36CDVZRRN (Rear Vent)
36CDVZTRN (Top Vent)
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER
APPLIANCE.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electric switch;
do not use any phone in your
building.
• Immediately call your gas supplier
from your neighbor’s phone. Follow
the gas suppliers instructions.
• If you cannot reach your gas
supplier call the re department.
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR
EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS
OF LIFE.
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND US-
ING APPLIANCE
INSTALLER/CONSUMER
SAFETY INFORMATION
FOR YOUR SAFETY
Installation and service must
be performed by a qualied
installer, service agency or the
gas supplier.
14621
CDVRZ cover
4/09
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

2
CDVZ Series Direct Vent Gas Fireplace
20014621
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE.
Thank you and congratulations on your purchase of a Vermont Castings Group replace.
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions fully may result in a possible re hazard and will void the warranty.
Table of Contents
Installation & Operating Instructions
General Information, Warnings, Cautions ............................................................................................3
Requirements for the Commonwealth of Massachusetts ....................................................................4
Fireplace Dimensions ..........................................................................................................................5
Locating Your Fireplace .......................................................................................................................7
Clearance to Combustibles .................................................................................................................7
Mantels .............................................................................................................................................7
Hearth .............................................................................................................................................8
Framing and Finishing .........................................................................................................................8
Hood Installation ..................................................................................................................................8
Final Finishing .....................................................................................................................................8
Gas Specications ...............................................................................................................................9
Gas Inlet and Manifold Pressures .......................................................................................................9
High Elevations ....................................................................................................................................9
Gas Line Installation ............................................................................................................................9
Remote ON/OFF Switch ......................................................................................................................9
120V Electrical Hook Up ....................................................................................................................10
General Venting Information
General Venting .................................................................................................................................10
General Venting Information-Termination Location ...........................................................................11
General Information Assembling Vent Pipes .....................................................................................12
36CDVZR Venting - How to Use the Vent Graph ..............................................................................13
Rear Wall Venting Applications & Installation (Exterior outside wall 7” - 20” from rear of unit) ..........13
Rear Wall Vent Installation - Flex Vent PIpe ......................................................................................15
Rear Wall Vent Application (Exterior outside wall 13” - 20” from rear of unit) ....................................16
Rear Wall Vent Application (Exterior outside wall 20” - 32” from rear of unit) ....................................16
Vertical Sidewall Applications & Installation .......................................................................................17
Below Grade Installation ....................................................................................................................19
Vertical Through-the-Roof Applications & Installation ........................................................................20
36CDVZT Vertical Venting - How to Use the Vent Graph ..................................................................22
36CDVZT Top Vent Bafe ..................................................................................................................22
Vertical Sidewall Applications & Installation .......................................................................................23
Below Grade Installation ....................................................................................................................25
Vertical Through-the-Roof Applications & Installation ........................................................................26
Operating Instructions
Glass Information ..............................................................................................................................28
Louvre Removal ................................................................................................................................28
Window Frame Assembly Removal ...................................................................................................28
Glass Cleaning ..................................................................................................................................28
Logs ...........................................................................................................................................29
Ember Material and Lava Rock Placement .......................................................................................29
Flame & Temperature Adjustment .....................................................................................................29
Flame Characteristics ........................................................................................................................29
Lighting and Operating Instructions ...................................................................................................30
Troubleshooting .................................................................................................................................32
Fuel Conversion Instructions .............................................................................................................33
Maintenance
Cleaning the Standing Pilot Control System ......................................................................................35
Replacement Parts ...................................................................................................................................36
Venting Components ........................................................................................................................................38
Optional Accessories ................................................................................................................................41
Warranty .......................................................................................................................................................43
Energuide ....................................................................................................................................................44

3
CDVZ Series Direct Vent Gas Fireplace
20014621
This gas appliance should be installed by a qualied installer,
preferably NFI or WETT (Canada) certied, in accordance with
local building codes and with current CSA-B149.1 Installation codes
for Gas Burning Appliances and Equipment. For USA Installations
follow local codes and/or the current National Fuel Gas Code.
ANSI Z223.1/NFPA 54.
FOR SAFE INSTALLATION AND OPERATION PLEASE NOTE
THE FOLLOWING:
1. This replace gives off high temperatures and should be
located out of high trafc areas and away from furniture and
draperies.
2. Children and adults should be alerted to the hazards of high
surface temperatures of this replace and should stay away
to avoid burns or ignition of clothing.
3. CAUTION: Due to high glass surface temperature children
should be carefully supervised when in the same room
as replace.
IMPORTANT:
PLEASE REVIEW THE FOLLOWING CAREFULLY
Remove any plastic from trim parts before turning the
replace ON.
It is normal for replaces fabricated of steel to give off
some expansion and/or contraction noises during the
start up or cool down cycle. Similar noises are found
with your furnace heat exchanger or car engine.
It is not unusual for your gas replace to give off some
odor the rst time it is burned. This is due to the curing of
the paint and any undetected oil from the manufacturing
process.
Please ensure that your room is well ventilated -
open all windows.
It is recommended that you burn your replace for at
least ten (10) hours the rst time you use it. If the optional
fan kit has been installed, place the fan switch in the
“OFF” position during this time.
Installation & Operating Instructions
Proposition 65 Warning: Fuels used in gas, wood-
burning or oil red appliances, and the products of
combustion of such fuels, contain chemicals known to
the State of California to cause cancer, birth defects
and other reproductive harm.
California Health & Safety Code Sec. 25249.6
WARNING: Check with your electronics manufacturer
before installing a television or other electronic device
above this replace.
10. Under no circumstances should any solid fuels (wood, coal,
paper or cardboard etc.) be used in this replace.
11. The ow of combustion and ventilation air must not be ob-
structed in any way.
12. When replace is installed directly on carpeting, vinyl tile or
any combustible material other than wood, the replace must
be installed on a metal or wood panel extending the full width
and depth of the replace.
13. This replace requires adequate ventilation and combustion
air to operate properly.
14. This replace must not be connected to a chimney ue serving
a separate solid fuel burning replace.
15. When the replace is not in use it is recommended that the
gas valve be left in the OFF position.
16. These units have been approved for bedroom use.
This appliance may be installed in an aftermarket
permanently located, manufactured home or mobile home,
where not prohibited by local codes.
This appliance is only for use with the type of gas indicated
on the rating plate. This appliance is not convertible for use
with other gases, unless a certied kit is used.
The CDVZR has been approved for mobile home
installations.
WARNING
!
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
AVERTISSEMENT
!
Un panneau vitré chaud peut
causer des brûlures.
Laissez refroidir le panneau
vitréavant d’y toucher.
Ne laisser jamais les enfants
toucher le panneau vitré.
4. Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to acci-
dental contact burns. A physical barrier is recommended
if there are at risk individuals in the house. To restrict
access to a replace or stove, install an adjustable
safety gate to keep toddlers, young children and other
at risk individuals out of the room and away from hot
surfaces.
5. Under no circumstances should this replace be modied. Parts
removed for servicing should be replaced prior to operating
this replace again.
6. Installation and any repairs to this replace must be performed
by a qualied installer, service agency or gas supplier. A pro-
fessional service person should be contacted to inspect this
replace annually. Make it a practice to have all of your gas
replaces checked annually. More frequent cleaning may be
required due to excess lint and dust from carpeting, bedding
material, etc.
7. Control compartments, burners and air passages in this re-
place should be kept clean and free of dust and lint. Make
sure the gas valve and pilot light are turned off before you
attempt to clean this replace.
8. The venting system (chimney) of this replace should be
checked at least once a year and if needed your venting
system should be cleaned.
9. Keep the area around your replace clear of combustible
materials, gasoline and other ammable vapor and liquids.
This replace should not be used as a drying rack for cloth-
ing, nor should Christmas stockings or decorations be hung
on or around the replace.

4
CDVZ Series Direct Vent Gas Fireplace
20014621
Requirements for the Commonwealth of
Massachusetts
All gas tting and installation of this heater shall only be
done by a licensed gas tter or licensed plumber.
For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in whole
or in part for residential purposes, including those owned
or operated by the Commonwealth and where the side wall
exhaust vent termination is less than seven (7) feet above
nished grade in the area of the venting, including but not
limited to decks and porches, the following requirements
shall be satised:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gas tter
shall observe that a hard wired carbon monoxide detector
with an alarm is installed on each additional level of the
dwelling, building or structure served by the side wall
horizontal vented gas fueled equipment. It shall be the
responsibility of the property owner to secure the services
of qualied licensed professionals for the installation of
hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled
equipment is installed in a crawl space or an attic, the hard
wired carbon monoxide detector with alarm and battery
back-up may be installed on the next adjacent oor level.
In the event that the requirements of this subdivision can not
be met at the time of completion of installation, the owner
shall have a period of thirty (30) days to comply with the
above requirements; provided, however, that during said
thirty (30) day period, a battery operated carbon monoxide
detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accordance
with the above provisions shall comply with NFPA 720 and
ANSI/UL 2034 listed and IAS certied.
Signage
A metal or plastic identication plate shall be permanently
mounted to the exterior of the building at a minimum height
of eight (8) feet above grade directly in line with the exhaust
vent terminal for the horizontally vented gas fueled heating
appliance or equipment. The sign shall read, in print size no
less than one-half (1/2) inch in size, “GAS VENT DIRECTLY
BELOW, KEEP CLEAR OF ALL OBSTRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizontally
vented gas fueled equipment shall not approve the
installation unless, upon inspection, the inspector observes
carbon monoxide detectors and signage installed in
accordance with the provisions of 248 CMR 5.08(2)(a)1
through 4.
Exemptions
The following equipment is exempt from 248 CMR
5.08(2)(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment
Not Required To Be Vented” in the most current edition
of NFPA 54 as adopted by the Board; and
• Product Approved side wall horizontally vented gas fueled
equipment installed in a room or structure separate from
the dwelling, building or structure used in whole or in
part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting
system design or venting system components with the
equipment, the instructions provided by the manufacturer
for installation of the equipment and the venting system
shall include:
• Detailed instructions for the installation of the venting
system design or the venting system components;
and
• A complete parts list for the venting system design or
venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall
horizontally vented gas fueled equipment does not provide
the parts for venting the ue gases, but identies “special
venting systems”, the following requirements shall be
satised by the manufacturer:
• The referenced “special venting system” instructions shall
be included with the appliance or equipment installation
instructions; and
• The “special venting systems” shall be Product
Approved by the Board, and the instructions for that
system shall include a parts list and detailed installation
instructions.
A copy of all installation instructions for all Product Approved
side wall horizontally vented gas fueled equipment, all
venting instructions, all parts lists for venting instructions,
and/or all venting design instructions shall remain with
the appliance or equipment at the completion of the
installation.
Installation & Operating Instructions

5
CDVZ Series Direct Vent Gas Fireplace
20014621
76”
(187 mm)
166”
(422 mm)
3656M” (921 mm)
Minimum Rough Opening Width
Minimum
Rough
Opening
Height
Minimum
Rough
Opening
Depth
*4856M” (1226 mm)
**416” (1051 mm)
*6856M” (1734 mm)
**586” (1483 mm)
1756”
(435 mm)
25” (635 mm)
22”
(559 mm)
1856O”
(470 mm)
2156”
(537 mm)
3556M” (895 mm)
35”
(889 mm)
346M”
(883 mm)
2(6”
(73 mm)
16”
(35 mm)
356M”
(83 mm)
Gas Line
Access
Gas Line
Access
Low Voltage
Electrical
Access
Electrical
Access
33” (838 mm)
C
L
Centerline of
7" Collar
856O”
(216 mm)
Low
Voltage
Access
16”
(35 mm) 76”
(187 mm)
856O”
(216 mm)
3256”
(816 mm)
14”
(356 mm)
14621
CDVZR specs
4/09
356M”
(83 mm)
*Must be adhered to
if using 7TCD45KT
Flex Vent Kit
**If using Rigid 45°
with Starter Pipe
*4856M” (1226 mm) **416” (1051 mm)
*3456” (867 mm)
**2956” (740 mm)
Fireplace Dimensions - Rear Vent
Fig. 1 Fireplace specications and framing dimensions.
*
*
*
*
36CDVZR / 36CDVZT
Certied To
ANSI Z21.88-2009 / CSA 2.33-2009
Vented Gas Fireplace Heaters

6
CDVZ Series Direct Vent Gas Fireplace
20014621
76” (187 mm)
166”
(422 mm)
3656M” (921 mm)
Minimum Rough Opening Width
Minimum
Rough
Opening
Height
Minimum
Rough
Opening
Depth
416” (1051 mm)
586” (1483 mm)
1756”
(435 mm)
25” (635 mm)
2156”
(537 mm)
3556M” (895 mm)
35”
(889 mm)
346M”
(883 mm)
2(6”
(73 mm)
16” (35 mm)
356M”
(83 mm)
Gas Line
Access
Low Voltage
Electrical
Access
Electrical
Access
33” (838 mm)
856O” (216 mm)
Low Voltage Access
16”
(35 mm) 76”
(187 mm)
856O”
(216 mm)
3256”
(816 mm)
14”
(356 mm)
10175
CDVT specs
1/06
8” (203 mm)
2956”
(740 mm)
416” (1051 mm)
356M”
(83 mm)
Gas Line
Access
CAUTION:
*Maintain minimum 1” clearance
between combustible header
and vent pipe.
Fireplace Dimensions - Top Vent
Fig. 2 Fireplace specications and framing dimensions.
*NOTE: If using a 2 x dimensional lumber for header,
install on-end to maintain 1” minimum clearance to
vent pipe.

7

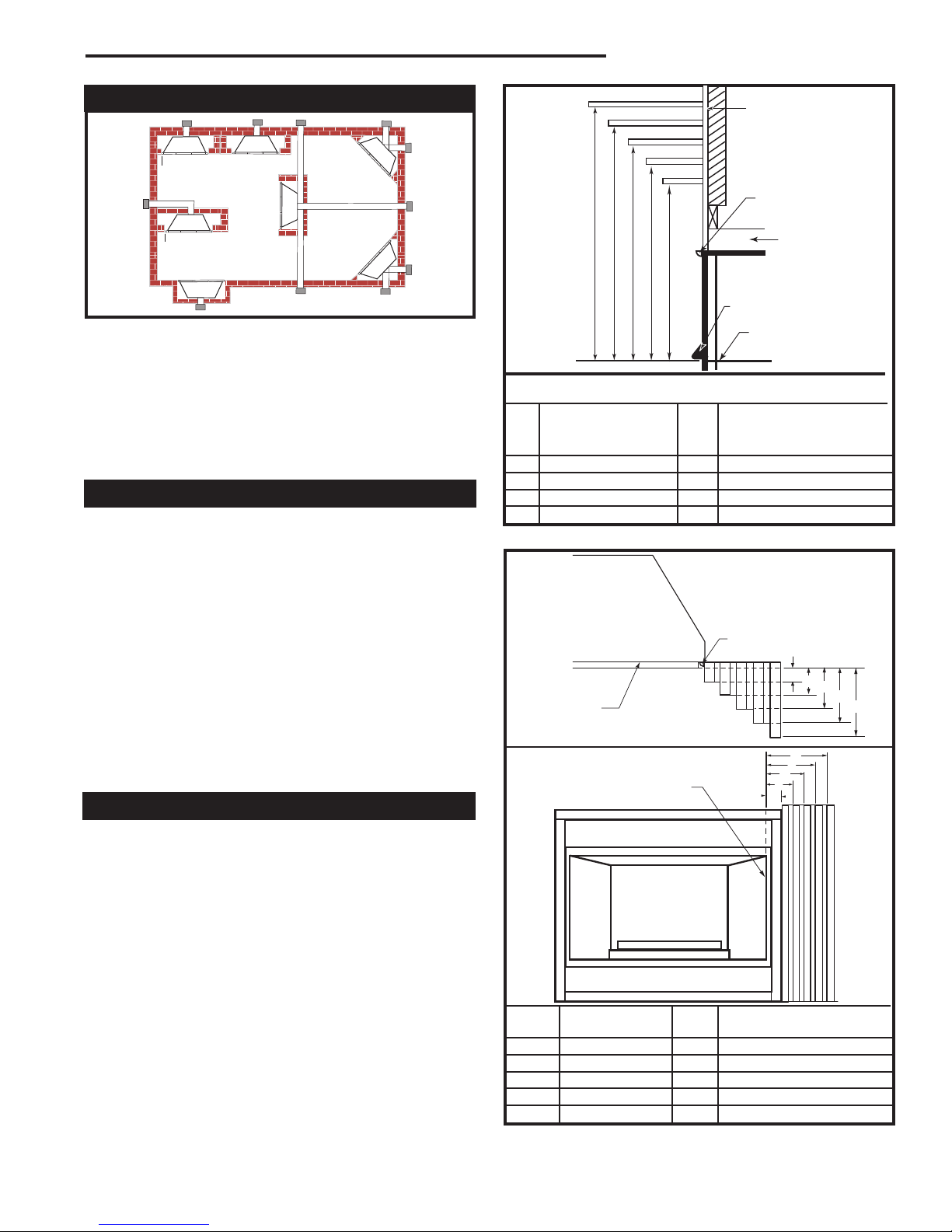

CDVZ Series Direct Vent Gas Fireplace
20014621
Top of Unit to Ceiling ..................................36” (914 mm)
Front of Unit to Combustibles .....................36” (914 mm)
Appliance
Top .............................................................0” (0 mm)
Bottom ........................................................0” (0 mm)
Side ............................................................0” (0 mm)
Back ...........................................................0” (0 mm)
Venting
Concentric sections of DV Vent
Top, bottom & sides .................................1” (25 mm)
Flex Vent......................................................7/8” (22 mm)
NOTE: Hood must be permanently installed with three
(3) sheet metal screws supplied in replace. (Refer to
hood installation in this manual.)
Mantels
The height that a combustible mantel is tted above the
replace is dependent on the depth of the mantel. This also
applies to the distance between the mantel leg (if tted)
and the replace.
For the correct mounting height and widths refer to Figs.
4a and 4b, and the following Mantel Charts.
The tting of a bay window trim kit does not effect the
distances and reference points referred to in the diagram
and chart.
Noncombustible mantels and legs may be installed at any
height and width around the appliance.
When using paint or lacquer to nish the mantel, such paint or
lacquer must be heat resistant to prevent discoloration.
Clearance to Combustibles
CFM170
J
F
G
H
I
Mantel
Leg
CFM164a
Mantel Leg Chart
06/22/01 sta
Black
Surround
Face
CFM170
DV Builder Front
View
O
N
M
L
K
Side of
Combustion Chamber
CFM164a
Mantel Mantel Leg FromSide
Ref. Leg Depth Ref. of Comb. Opening
F 10” (254 mm) K 11¹⁄₂” (292 mm)
G 8” (203 mm) L 9¹⁄₂” (241 mm)
H 6” (152 mm) M 7¹⁄₂” (191 mm)
I 4” (101 mm) N 5¹⁄₂” (140 mm)
J 2” (51 mm) O 3¹⁄₂” (89 mm)
Fig. 4b Combustible mantel leg minimum installation.
A) Flat on wall B) Cross corner C) **Island
D) Room divider E) Flat on wall corner F) Chase installation
Y) Refer to “Clearance to Combustibles” Section
NOTE: (Fig. 3)
** Island (C) and Room Divider (D) installation is possible as
long as the horizontal portion of the vent system (X) does not
exceed 20’ (6 m) with a minimum vertical of 4’ (122 cm). See
details in Venting Section.
Locating Your Fireplace
Y
EAB
C
D
F
YB
X
LU584-R
Locating unit
2/23/01 sta
X
LU584-R
Fig. 3 Locate gas replace.
CFM146
A B C D E
V
W
X
Y
Z
Fireplace
CFM146
DV Mantel Chart
7/5/01 sta
Hood
Top of Combustion
Chamber
Mantel Chart
Mantel Shelf or Mantel from Top of
Ref. Breast Plate Depth Ref. Combustion Chamber
V 10” (254 mm) A 17” (432 mm)
W 8” (203 mm) B 15” (381 mm)
X 6” (152 mm) C 13” (330 mm)
Y 4” (101 mm) D 11” (279 mm)
Z 2” (51 mm) E 9” (229 mm)
Fig. 4a Combustible mantel minimum installation.
Standoff
Finish Wall
3/4” (19 mm) Scribe
Moulding for use
with Vermont Cast-
ings Group Cabinets
3/4” (19 mm) Scribe
Moulding for use with
Vermont Castings Group
Cabinets

8

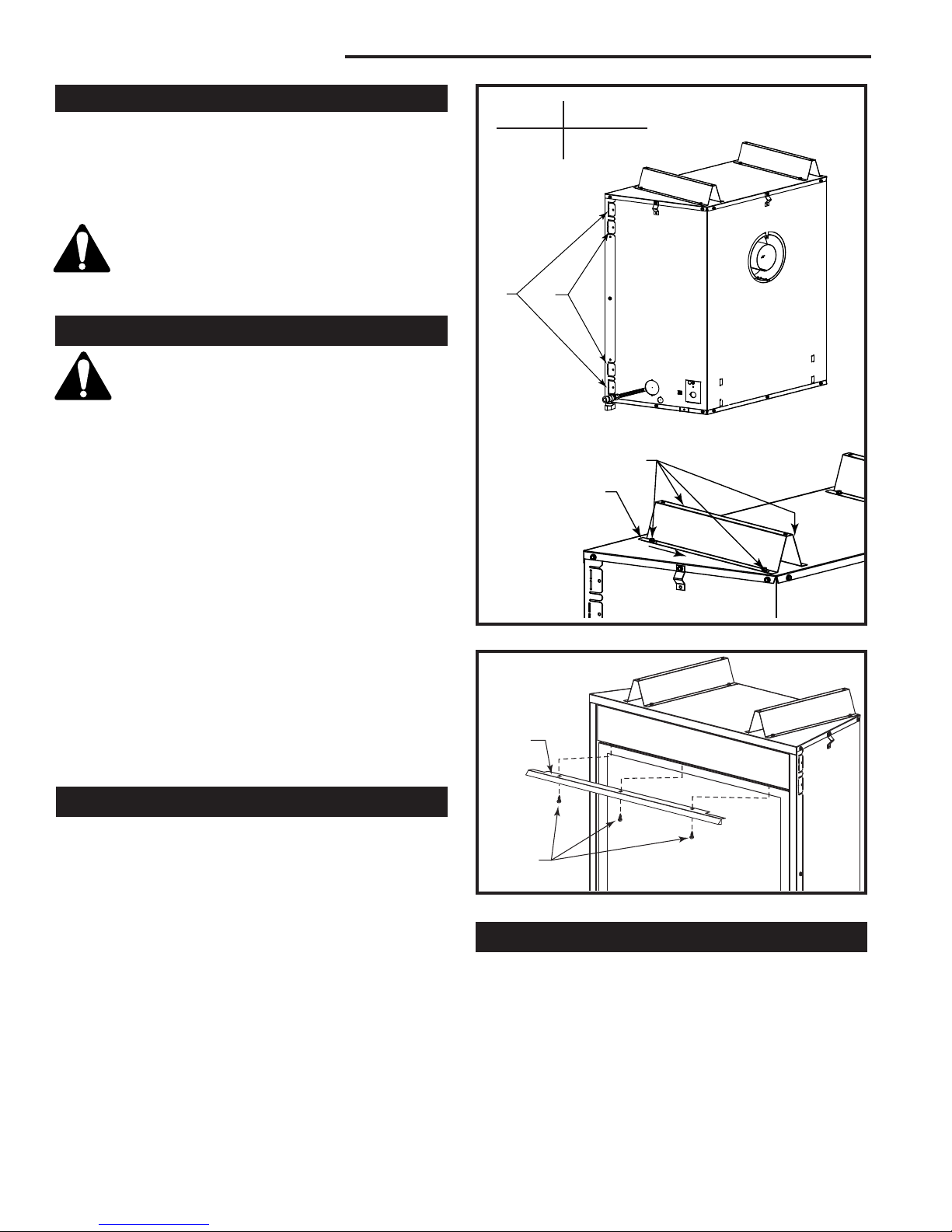

CDVZ Series Direct Vent Gas Fireplace
20014621
A hearth is not mandatory but is recommended for aes-
thetic purposes. We recommend a noncombustible hearth
which projects out 12” (305 mm) or more from the front of
the replace.
Cold climate installation recommendation:
When installing this unit against a non-
insulated exterior wall or chase, it is
mandatory that the outer walls be insulated
to conform to applicable insulation codes.
Hearth
Framing and Finishing
Check replace to make sure it is levelled
and properly positioned.
To mount the appliance:
1. Choose the location.
2. This unit comes with four (4) anges pre-mounted on
both sides of the replace to allow two different drywall
thicknesses to be used. Flange “A” is for 1/2” drywall
while ange “B” is for 5/8” drywall.
3. Bend the desired anges out 90° on both sides of the
replace. Slide the replace into the framed opening
until the anges contact the front surfaces of the fram-
ing. Level the unit and secure it rmly in place.
4. The standoffs are adjustable for different drywall thick-
nesses. The unit is shipped from the factory at 1/2”
(13 mm). Loosen the four (4) screws securing each
standoff to the top of the replace. Slide the standoff
back. Tighten the screws. This yields a 5/8” (16 mm)
thick drywall space. Removing the standoff and having
the tabs on the standoff face the rear of the unit yields
a 3/4” (19 mm) drywall space. (Fig. 5)
NOTE: Drywall must stop at standoffs and not touch top
of unit.
Hood Installation
CAUTION: Hood MUST be permanently installed.
1. Remove top panel by removing two (2) screws on each
end. Carefully remove hood from inside top opening.
2. Remove three (3) sheet metal screws in bottom ange
of panel.
3. Install the hood by aligning the three holes in bottom
ange of panel top. (Fig. 6)
4. Secure hood to bottom ange of top panel using three
screws removed in Step 2. (Fig. 6)
5. Carefully remove protectors under the relief plates on
top of the rebox.
6. Replace top panel.
A
B
FP1603
flange location
12/05
Fig. 5 Nailing anges and standoffs.
Flange Drywall
Position Depth
A 1/2” / 13 mm
B 5/8” / 16 mm
Flange Location for Desired
Drywall Depth at Stud Wall
FP1603a
standoff location
3/06
Screws
Tabs
Standoff Location for Desired Finish Wall Depth at
Header
FP1603a
FP1603
FP2376
install hood
4/09
Hood
Sheet
Metal
Screws
FP1609
Fig. 6 Secure hood to replace with sheet metal screws.
Noncombustible materials such as brick or tile may be
extended over the edges of the face of the replace. DO
NOT cover any vent or grille panels.
If a Trim Kit is going to be installed on the replace, the
brick or tile will have to be installed ush with the edges
of the replace.
Final Finishing

9
CDVZ Series Direct Vent Gas Fireplace
20014621
Gas Specications
Max. Min.
Input Input
Model Fuel Gas Control BTU/h BTU/h
36CDVZRRN Nat Millivolt 21,000 14,700
36CDVZRRP* Prop Millivolt 21,000 15,750
36CDVZTRN Nat Millivolt 21,000 14,700
36CDVZTRP* Prop Millivolt 21,000 15,750
*Using conversion kit
Installation
1. Carefully unwrap the remote wire that is attached to the
valve. There are two 1/2” (13 mm) knockouts, one on
each side of the outer casing.
2. Remove the knockout desired and insert the plastic
snap bushing on the remote wire in the 1/2” hole. Feed
the remote wire through the outer casing.
3. Attach the wire to an ON/OFF switch (not supplied) and
install the switch into the receptacle box. (Fig. 8)
Do not wire the remote ON/OFF wall switch
for the gas replace to the 120 volt power
supply.
Remote ON/OFF Switch
Always check for gas leaks with a mild soap
and water solution. Do not use an open ame
for leak testing.
FP297A
INSTA VENT FREE
UVHB26 GAS SUPPLY
7/1/98
FP297A
1/2” Gas Supply
1/2” NPT x 1/2” Flare Shut-
off Valve
3/8” Flex Line
(From Valve)
Fig. 7 Typical gas supply installation.
TP
TH
TP
TH
FP1224
Remote switch
11/02
Remote ON/OFF Switch
or Thermostat
or Remote Control
Gas
Control
Valve
FP1224
Fig. 8 Remote switch wiring diagram.
Gas Line Installation
When purging the gas lines, the front window
frame assembly must be removed.
The gas pipeline can be brought in through the rear of the
appliance as well as the bottom. Knockouts are provided
on the bottom behind the valve to allow for the gas pipe
installation and testing of any gas connection. It is most
convenient to bring the gas line in from the rear right side of
the valve as this allows fan installation or removal without
disconnecting the gas line.
The gas line connection can be made with properly tinned
3/8” copper tubing, 3/8” rigid pipe or an approved ex con-
nector. Since some municipalities have additional local
codes, it is always best to consult your local authority and
the National Fuel Gas Code, ANSI Z223.1/NFPA 54 in the
USA or the CSA-B149.1 installation code.
The gas control is equipped with a captured screw type
pressure test point, therefore it is not necessary to provide
a 1/8” test point up stream of the control.
When using copper or ex connector use only approved
ttings. Always provide a union when using black iron pipe
so the gas line can be easily disconnected for burner or
fan servicing. See gas specication for pressure details
and ratings.
The replace valve must not be subjected to any test pres-
sures exceeding 1/2 psi. Isolate or disconnect this and
any other gas appliance control from the gas line when
pressure testing.
Inlet Minimum 5.5” w.c. 11.0” w.c.
Inlet Maximum 14.0” w.c. 14.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.
Gas Inlet and Manifold Pressures
Natural LP (Propane)
High Elevations
Input ratings are shown in BTU per hour and are
certied without deration for elevations up to 4,500
feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the cur-
rent ANSI Z223.1/NFPA 54 and/or local codes having
jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installations at
elevations above 4,500 feet (1,370 m).

10
CDVZ Series Direct Vent Gas Fireplace
20014621
The replace, when installed, must be electri-
cally connected and grounded in accordance
with local codes or, in the absence of local
codes, with the current CSA C22.1 Canadian
Electrical Code.
For USA installations follow local codes and
the national electrical code ANSI/NFPA No.
70.
It is strongly suggested that wiring of the
Electrical Junction Box be carried out by a
licensed electrician.
Ensure that the power to the supply line has
been disconnected before commencing this
procedure.
The electrical junction box has been tted standard on
this model to allow for the easy connection of an optional
fan kit.
To connect the electric box to the house electrical supply
follow the steps below.
1. Unscrew the retaining screw holding the electric cover
to the outside of the unit. (Fig. 9)
2. Remove the knockout from the electric cover plate.
3. Insert the wire connector through the hole in the electric
cover plate and secure.
120V Electrical Hook Up 4. Insert the house wire through the connector on the cover
plate.
5. Secure the wires from the receptacle to the incoming
line.
6. The receptacle has four wires connected to it. The re-
ceptacle is set up for a split system. The top plug of the
receptacle is wired separately from the bottom one.
7. Green is ground. White is neutral, Black and red are
line voltage to each plug on the receptacle.

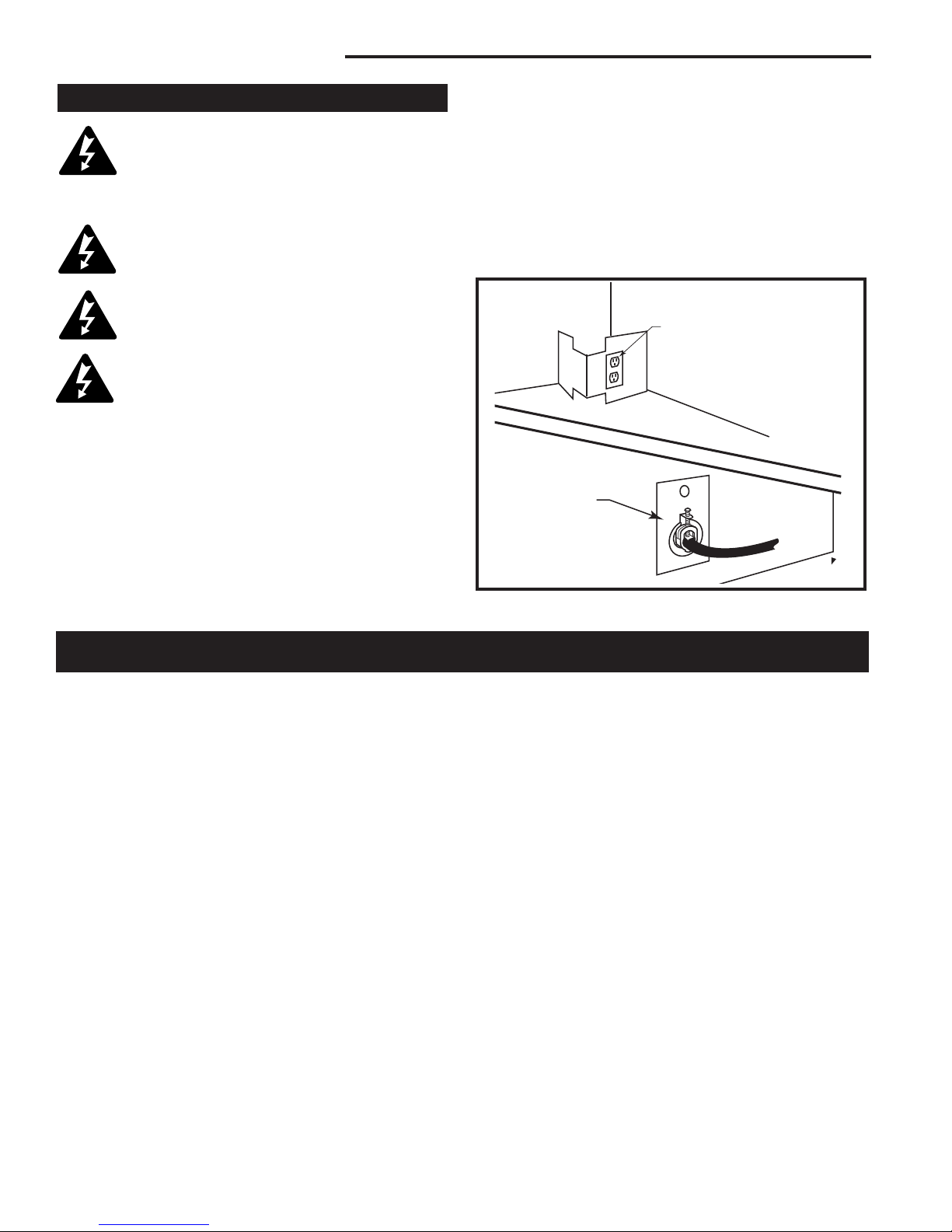

FP1597
Fig. 9 Electric receptacle.
FP1597
receptacle install
12/05
OUTSIDE
INSIDE
BACK OF UNIT
Electric Receptacle
Electric Receptacle
Cover Plate
Your replace is approved to be vented either through the
side wall, or vertically through the roof.
• Only Vermont Castings Group venting components
specically approved and labelled for this replace may
be used.
• Vent terminations shall not be recessed into a wall or
siding.
• Horizontal venting which incorporates the twist lock pipe
must be installed on a level plane without an inclining
or declining slope.
• Horizontal venting which incorporates the use of ex
venting shall have an inclining slope from the unit of 1”
(25 mm) per 24” (610 mm).
General Venting
There must not be any obstruction such as bushes,
garden sheds, fences, decks or utility buildings within 24”
(610mm) from the front of the termination hood.
Do not locate termination hood where excessive snow or ice
build up may occur. Be sure to check vent termination area
after snow falls, and clear to prevent accidental blockage
of venting system. When using snow blowers, make sure
snow is not directed towards vent termination area.
Location of Vent Termination
It is imperative the vent termination be located observing
the minimum clearances as shown on the next page.
*Check with local codes or in absence of same with
CSAB149.1 Installation Codes (1991) for Canada or follow
the current National Fuel Gas Code, ANSI Z223.1/NFPA
54 for installations in the USA.

11
CDVZ Series Direct Vent Gas Fireplace
20014621
V
X
X
X
D
E
B
B
B
C
B M
B
A
J
K
F
L
VENT TERMINATION AIR SUPPLY INLET AREA WHERE TERMINAL IS NOT PERMITTED
H
I
Fixed
Closed
Operable
Operable Fixed
Closed
B
CFM145a
DV Termin Location
5/01/01 Rev. 12/05/01
sta
INSIDE
CORNER DETAIL
A
G
CFM145a
V
V
V
VV
V
V
V
General Venting Information - Termination Location
A = Clearance above grade, veranda, porch, 12” (30cm) 12” (30cm)
deck, or balcony
B = Clearance to window or door that may be 6” (15cm) for appliances 6” (15cm) for appliances
opened < 10,000Btuh (3kW), 12” (30cm) < 10,000 Btuh (3kW), 9”
for appliances > 10,000 Btuh (3kW) and (23cm) for appliances > 10,000
< 100,000 Btuh (30kW), 36” (91cm) Btuh (3kW) and < 50,000 Btuh
for appliances > 100,000 Btuh (30kW) (15kW), 12” (30cm) for
appliances > 50,000 Btuh (15kW)
C = Clearance to permanently closed window 12” (305mm) recommended to 12” (305mm) recommended to
prevent window condensation prevent window condensation
D = Vertical clearance to ventilated soft located
above the terminal within a horizontal 18” (458mm) 18” (458mm)
distance of 2’ (610mm) from the center
line of the terminal
E = Clearance to unventilated soft 12” (305mm) 12” (305mm)
F = Clearance to outside corner see next page see next page
G = Clearance to inside corner (see next page) see next page see next page
H = Clearance to each inside of center line 3’ (91cm) within a height of 15’ (5m) 3’ (91cm) within a height of 15’
extended above meter/regulator assembly above the meter/regulator assembly (5m) above the meter/regulator
assy
I = Clearance to service regulator vent outlet 3’ (91cm) 3’ (91cm)
J = Clearance to nonmechanical air supply inlet 6” (15cm) for appliances < 10,000 6” (15cm) for appliances
to building or the combustion air inlet to any Btuh (3kW), 12” (30cm) for < 10,000 Btuh (3kW), 9”
other appliances appliances > 10,000 Btuh (3kW) and (23cm) for appliances > 10,000
< 100,000 Btuh (30kW), 36” (91cm) Btuh (3kW) and < 50,000 Btuh
for appliances > 100,000 Btuh (30kW) (15kW), 12” (30cm) for
appliances > 50,000 Btuh (15kW)
K = Clearance to a mechanical air supply inlet 6’ (1.83m) 3’ (91cm) above if within 10
feet (3m) horizontally
L = Clearance above paved sidewalk or paved 7’ (2.13m)† 7’ (2.13m)†
driveway located on public property
M = Clearance under veranda, porch, deck or 12” (30cm)‡ 12” (30cm)‡
balcony
N = Clearance above a roof shall extend a minimum of 24” (610mm) above the highest point when it passes through the roof
surface, and any other obstruction within a horizontal distance of 18” (450mm).
1 In accordance with the current CSA-B149 Installation Codes
2 In accordance with the current ANSI Z223.1/NFPA 54 National Fuel Gas Codes
† A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and
serves both dwellings
‡ only permitted if veranda, porch, deck or balcony is fully open on a minimum 2 sides beneath the oor:
NOTE: 1. Local codes or regulations may require different clearances.
2. The special venting system used on Direct Vent Fireplaces are certied as part of the appliance, with clearances tested and
approved by the listing agency.
3. Vermont Castings Group assumes no responsibility for the improper performance of the appliance when the venting system
does not meet these requirements.
Canadian Installations1 US Installations2
Fig. 10 Vent termination locations.

12
CDVZ Series Direct Vent Gas Fireplace
20014621
General Information Assembling Vent Pipes
Canadian Installations:
Venting system must be installed in accordance with the
current CSA-B149.1 installation code.
USA Installations:
The venting system must conform with local codes and/or the
current National Fuel Gas code ANSI Z223.1/NFPA 54.
Only venting components manufactured or approved
by Vermont Castings Group can be used in Direct VentVermont Castings Group can be used in Direct Vent can be used in Direct Vent
systems.
Flex Vent Pipes
Before joining the ex vent pipe to the unit, apply a bead of
high temperature sealant* (provided) to the 4” pipe exiting
the replace. Secure ex vent pipe in place with a hose
clamp (provided).
*Be sure the ex pipe overlaps at least 1” (25 mm) onto the
collars of the replace and termination. If the termination
has an internal bead, be sure to overlap and secure 1” (25
mm) past the bead.
Fig. 11 Termination clearances.
* Be sure the vent is actually crushed before proceeding.
Apply a tug to be sure the vent will not slip off the collars.
Repeat process with 7” ex vent pipe. The same procedure
must be performed on the vent side.
FP1471
flex vent
Hose Clamp
Apply High Tempera-
ture Sealant
FP1471a
Fig. 12 Apply high temperature sealant to 4” and 7” pipes.
Outside Corner
Inside Corner
Termination Clearances
Termination clearances for buildings with combustible and noncombustible exteriors.
G =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
F =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
G
Balcony -
with no side wall
M =
Combustible &
Noncombustible
12" (305 mm)
M
Balcony -
with perpendicular side wall
M = 12" (305 mm)
P = 6” (152 mm)
M
F
Alcove Applications*
C
D
C
E
V
V
Combustible &
Noncombustible
E= Min. 2” (51 mm) for
non-vinyl sidewalls
Min. 12” (305 mm) for
vinyl sidewalls
O= 8’ (2.4 m) Min.
O
P
V
V
V
584-15
No.
of Caps DMin. CMax.
1 3’ (914 mm) 2 x DActual
2 6’ (1.8 m) 1 x DActual
3 9’ (2.7 m) 2/3 x DActual
4 12’ (3.7 m) 1/2 x DActual
DMin. = # of Termination caps x 3
CMax. = (2 / # termination caps) x DActual
*NOTE: Termination in an alcove space (spaces open only on one side and with an overhang) is permitted with the dimensions
specied for vinyl or non-vinyl siding and softs. 1. There must be a 3’ (914 mm) minimum between termination caps. 2. All
mechanical air intakes within 10’ (1 m) of a termination cap must be a minimum of 3’ (914 mm) below the termination cap. 3. All
gravity air intakes within 3’ (914 mm) of a termination cap must be a minimum of 1’ (305 mm) below the termination cap.

13
CDVZ Series Direct Vent Gas Fireplace
20014621
The vent chart should be read in conjunction with the
following vent installation instructions to determine the
relationship of the vertical and horizontal dimensions of
the vent system.
1. Determine the height of the center of the horizontal vent
pipe exiting through the outer wall. Using this dimension
on the Sidewall Vent Graph (Fig. 14) locate the point
intersecting with slanted graph line.
2. From the point of this intersection, draw a vertical line
to the bottom of the graph.
3. Select the indicated dimension, and position the replace
in accordance with same.
Example A:
If the vertical dimension from the oor of the
replace is 11’ (3.4 m) the horizontal run to the face
of the outer wall must not exceed 14’ (4.3 m).
Example B:
If the vertical dimension from the oor of the unit is
7’ (2.14 m), the horizontal run to the face of the outer
wall must not exceed 8¹⁄₂’ (2.6 m).

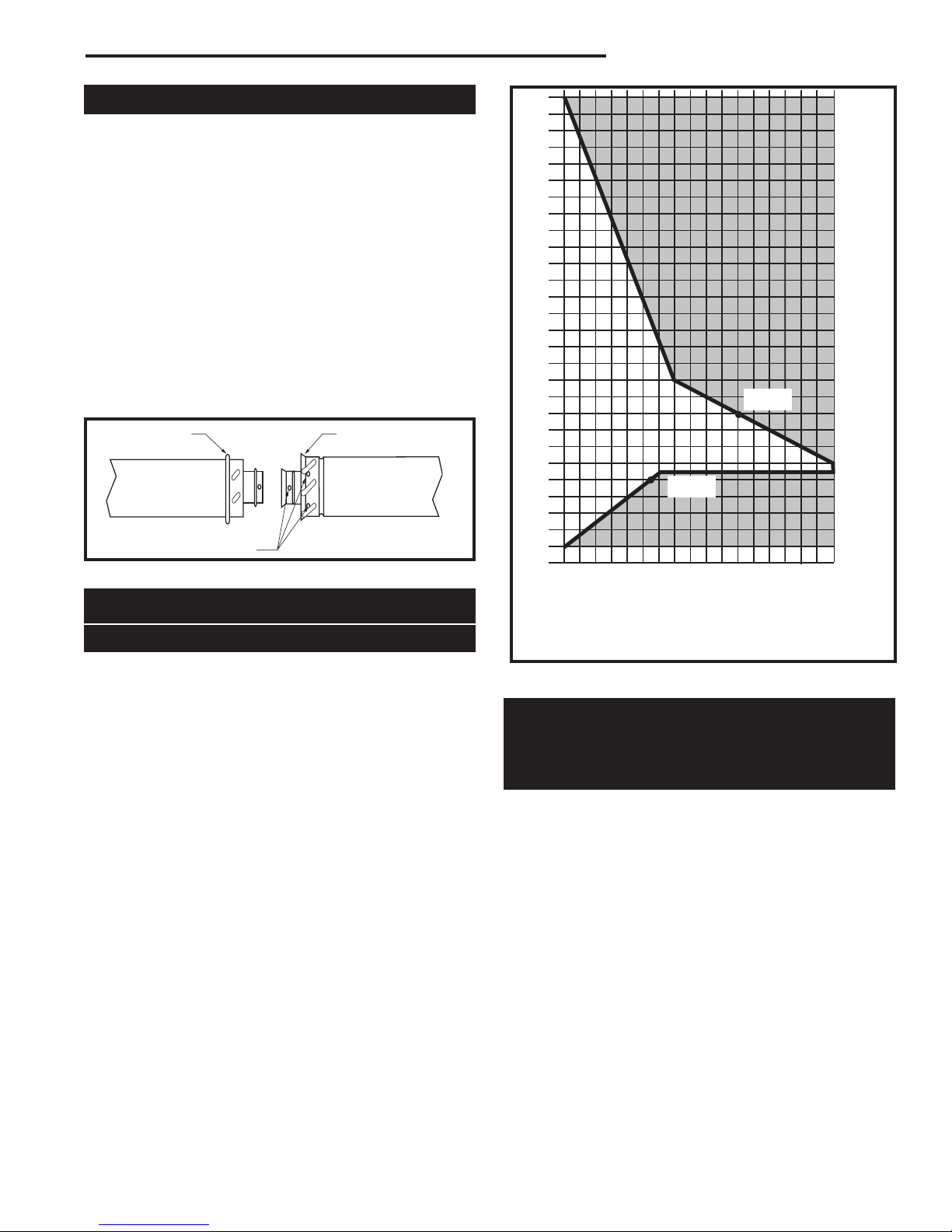

How to Use the Vent Graph
Horizontal dimension from the outside face of the
wall to the center of the replace vent ange
Sidewall vent graph showing the relationship between vertical
and horizontal dimensions for a Direct Vent ue system.
Vertical dimension from the oor of the unit
to the center of the horizontal vent pipe
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
eg: A
eg: B
CFM102
DV Graphic
9/28/00 sta
Fig. 14 Sidewall venting graph. (Dimensions in feet)
Rear Wall Venting Applications
* Exterior Outside Wall
7” (178 mm) to 20” (508 mm)
From Rear of Unit *
With this application, the following rigid pipe kits may be
used:
7” to 13” (178 - 330 mm) to outside wall: 7TCRVT
13” to 20” (330 - 305 mm) to outside wall: 7TCRVT1320
45° elbow with 20” (508 mm) Starter for corner applica-
tions
When installed as a rear vent unit this appliance may be
vented directly to a termination located on the rear wall
behind the appliance.
• Only Vermont Castings Group venting componentsVermont Castings Group venting components venting components
are approved to be used in these applications. (Refer
to “Venting Components” listed for different installation
requirements)
• The maximum straight out the back horizontal
distance between the rear of the appliance and the
outside face of the rear wall is 20” (508 mm). The
minimum is 7” (178 mm). (Fig. 15)
Twist Lock Pipes
When using Vermont Castings Group twist-lock pipe, it isVermont Castings Group twist-lock pipe, it is twist-lock pipe, it is
not necessary to use sealant on the joints. The only areas
of the venting system that need to be sealed with high
temperature silicone sealant are the sliding joint of any
telescopic vent section used in the system.
To join the twist lock pipes together, simply align the beads
of the male end with the grooves of the female end, then
while bringing the pipe together, twist the pipe until the
ange on the female end contacts the external ange
on the male end. It is recommended that you secure the
joints with three (3) sheet metal screws, however this is
not mandatory with twist lock pipe.
To make it easier to assemble the joints we suggest putting
a lubricant (Vaseline or similar) on the male end of the twist
lock pipe prior to assembly.
36CDVZR Venting
TWL100
Twist Lock Pipe
3/12/99 djt
Male End Female End
Screw Holes TWL100
Fig. 13 Twist-lock pipe joints.

14
CDVZ Series Direct Vent Gas Fireplace
20014621
• Minimum clearances between vent pipe and combus-
tible materials are as follows:
Top - 1” (25 mm)
Sides - 1” (25 mm)
Bottom - 1” (25 mm)
• The maximum horizontal distance between the end of the
transition elbow in a corner application and the outside
face of the rear wall is 20” (508 mm). (Fig. 16)
• Only one 45° elbow is allowed in these installations.
Top View
Straight Venting
Fig. 15 Rear vent applications.
20"
(508 mm)
Max.
&0A
REARVENT
NOELBOWS

FP1598
20” (508 mm)
Max.
FP1188
Fig. 16 Rear vent application, one 45° elbow.
Rear Wall Installation
Twist Lock Pipe
STEP 1
Locate vent opening on the wall. To locate hole center
consult with appropriate replace dimensions, Page 4.
Frame as shown below.
Combustible Walls (Fig. 17): Cut a 9³⁄₈”H x 9³⁄₈” W (240
x 240 mm) hole through the exterior wall and frame as
shown.
Noncombustible Walls (Fig. 17): Hole opening must be
7¹⁄₂” (190 mm) in diameter.
STEP 2
Install interior restop as shown in Figure 18.
STEP 3
Remove telescoping collar from termination.
&0
FIRESTOP

Firestop FP1600
Fig. 18 Install restop.
Bend Tab
STEP 4
Bend tab on outer casing up and insert collar onto replace
collars. (Fig. 18)
STEP 5
Twist the termination collar so it locks onto replace col-
lars. Run screw through tab to keep collar from turning.
(Fig. 19)
STEP 6
Slide replace into position.
STEP 7
From the outside of the house, slide the termination onto
the collars.
STEP 8
Secure the termination to the house with the four (4) screws
provided.
VO584-100
Vent Opening
2/99 djt
Vent Opening for Combustible Wall
9³⁄₈”
(240 mm)
9³⁄₈”
(240 mm)
Fireplace Hearth
Framing
Detail
Opening for Noncom-
bustible Wall
7¹⁄₂”
(190 mm)
VO584-100
Fig. 17 Locate vent opening on wall.
When using all
venting except
7TCRVT1320
9³⁄₈”
(240 mm)
10³⁄₈”
(264 mm)
When using
7TCRVT1320
venting Only

15
CDVZ Series Direct Vent Gas Fireplace
20014621
FP1005
Side View Vent Termination
1/25/00 djt
22”
(559 mm)
C
L
Finished
Wall
Secure with Screw
Vent Termination
Firestop
FP1005a
Fig. 19 Side view of nal unit location.
Rear Wall Vent Installations -
45° Flex Vent Pipe
Using Kit 7TCD45KT
NOTE: The corner placement dimensions on Page 5,
Figure 1 of the manual must be adhered to! Figures 20 &
21 show general installations. Refer to instructions below
for a detailed description of installation.
1. Determine where the termination is to be installed.
Locate the center of the hole 29Z\x” (749 mm) off
the oor. (Fig. 20)
NOTE: The location of the termination hole must be
adhered to!
2. Install the restop as shown on Page 14.
3. Remove the ex vent and extend the ex vent out to
its longest length.
4. Bend the tab on the back of the replace up. (Fig.
18)
FP1473
corner flex install
4/04 djt
C
L
to Floor
2956O”
(749 mm)
Termination
Flex Section
Appliance
Collars
FP1473
Fig. 20 Grasp the vent pipe close to the collar and bend to 45°
angle. Do not exceed 45°.
5. Insert the collar on the ex vent that has the twist lock
embosses on it onto the collar of the replace. Twist
the collar to “lock it” onto the replace. Run a screw
through the tab and into the collar to secure the collar
onto the replace.
6. Bend the ex pipe up 90° as close to the replace as
possible. (Fig. 21)
7. Slide the replace partially into the corner and, while
holding the vertical portion of the ex vent pipe, grab
the exposed end collar and bend it down to the height
of the opening in the wall.
8. While pushing the unit in place, slide the collar through
the restop. NOTE: It may be necessary to trim some
material off of the collar. The collar is made long to
accommodate brick nished houses. (Fig. 23)
9. Secure the collar in place by running a screw through
the tab in the restop and through the collar.
10. Slide the termination into the collar and secure with
the 4 screws provided. (Fig. 23)

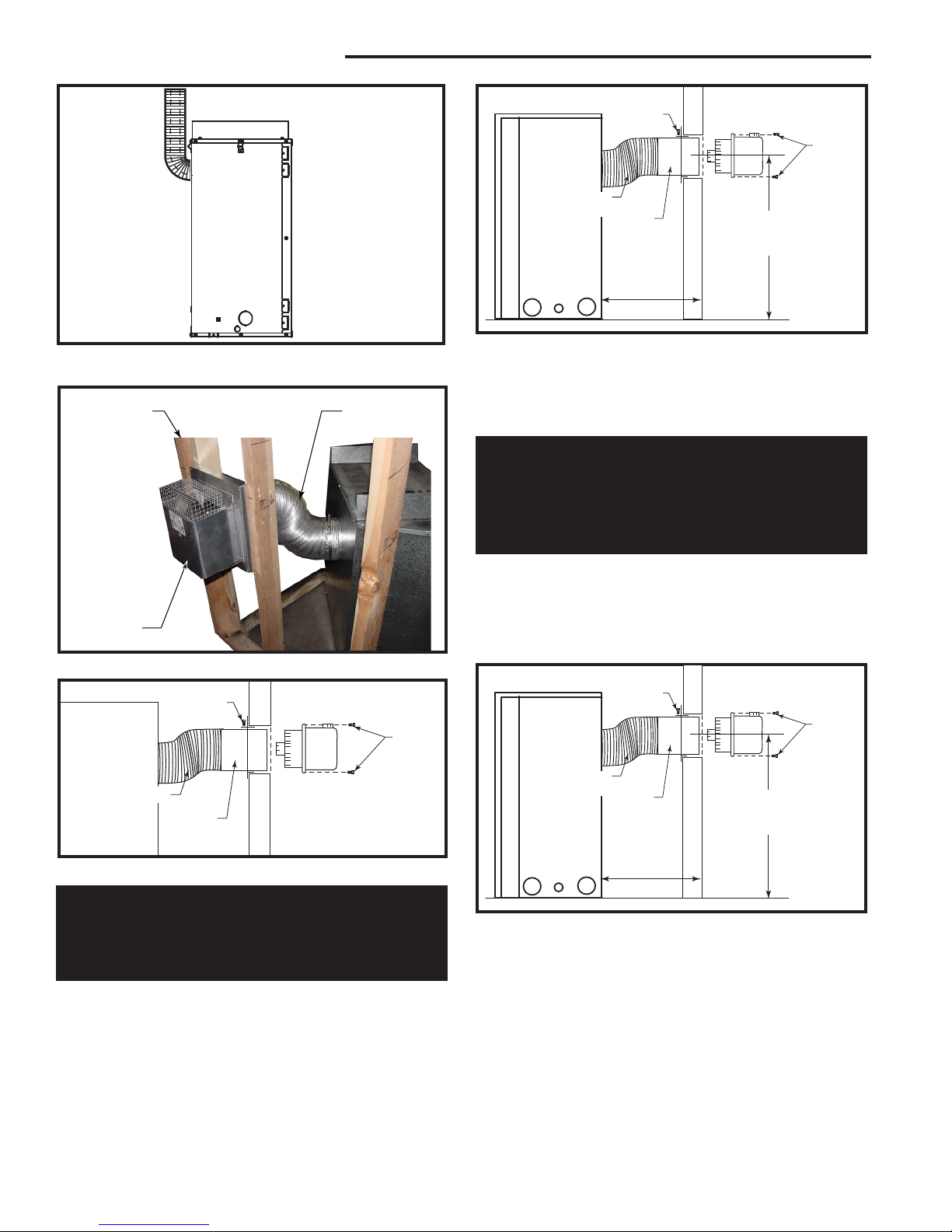

16
CDVZ Series Direct Vent Gas Fireplace
20014621
&0
REARFLEXVENT

Fig. 21 Bend ex pipe up 90° as close to replace as possible.
FP1604
&0
REARVIEWFLEXVENT

Do Not Exceed
45° Bend
Corner
Framing
Termination
FP1606
Fig. 22 Rear view of corner installation.
&0
FLEXTERM

Screw
Collar
Screws
FP1605
Fig. 23 Secure collar in place, slide termination into collar.
Flex Vent
Rear Wall Vent Application
* Exterior Outside Wall
13” to 20” (330 - 508 mm)
From Rear of Unit * Using Flex Venting Kit
1. Determine the location of the termination. (Fig. 24)
IMPORTANT: Vent must have a 2¹⁄₂” (64 mm) rise
for this application.
2. Locate the hole 24Z\x” (622 mm) off the oor. This is
the center line of the termination. Refer to “Rear Wall
Installation Twist Lock Pipe” section.
&0A
FLEXTERM

Screw
Screws
Flex Vent
Collar
FP1605a
Fig. 24 The centerline of the termination must be 24¹⁄₂”
(622 mm) off the oor.
24¹⁄₂”
(622 mm)
13” - 20”
(330 - 508 mm)
3. Proceed with Step 3 of “Rear Wall Vent Application
*Exterior Outside Wall 20” to 32” (508-813 mm) from
Rear of Unit” section (below).
Rear Wall Vent Application
* Exterior Outside Wall
20” - 32” (508 - 813 mm)
From Rear of Unit * Using Flex Vent Kit
7TCD45KT
1. Determine where the termination is to be installed.
(Fig. 25)
2. Locate the hole 27Z\v” (692 mm) off the oor. This is
the center line of the termination. Refer to “Rear Wall
Installation Twist Lock Pipe” section.
&0A
FLEXTERM

Screw
Screws
Flex Vent
Collar
FP1605a
Fig. 25 The centerline of the termination must be 27¹⁄v”
(692 mm) off the oor.
27¹⁄v”
(692 mm)
20” - 32”
(508 - 813 mm)
3. Mount the ex pipe assembly to the replace collars
and twist the collar that the ex pipe is attached to
onto the replace.
4. Once the collar is twisted onto the replace collar, se-
cure with a screw through the tab. (Fig. 19)
5. While sliding the replace into position, lift up the end
of the ex pipe and slip it through the restop. *Be
careful not to extend the ex too much. The ex pipe

17
CDVZ Series Direct Vent Gas Fireplace
20014621
needs to have an immediate rise before going horizon-
tal. NOTE: Be careful not to distort the outer ex as this
will affect the performance of the replace.
6. Secure the collar to the restop by bending the tab out
on the restop and running a screw through the tab
and collar.
7. From outside the house, slide the termination onto the
collars sticking through the restop.
8. Secure the termination to the house with the four (4)
screws provided. Be sure to seal around the termina-
tion and house cladding.
Vertical Sidewall Applications
Since it is very important that the venting sys-
tem maintain its balance between the com-
bustion air intake and the ue gas exhaust,
certain limitations as to vent congurations
apply and must be strictly adhered to.
The Vent Graph shows the relationship between
vertical and horizontal side wall venting and will help to
determine the various dimensions allowable.
Minimum clearance between vent pipes and combus-
tible materials is 1” (25 mm) on top, bottom
and sides unless otherwise noted.
When vent termination exits through foundations
less than 20” below siding outcrop, the vent pipe
must ush up with the siding. It is always best to locate
the replace in such a way that minimizes the number of
offsets and horizontal vent length.
The horizontal vent run refers to the total length of vent
pipe from the ue collar of the replace to the face of the
outer wall.
Horizontal plane means no vertical rise exists on this por-
tion of the vent assembly.
• The maximum horizontal vent run is 20 ft. (6.1 m) when
the vertical vent rise is 7¹⁄₂ ft. (2.3 m). (Fig. 26)
• The maximum number of 90° elbows per side wall
installation is three (3).
• If a 90° elbow is used in the horizontal vent run (level
height maintained) the maximum horizontal vent length
is reduced by 36” (914 mm). (Fig. 27) This does not
apply if the 90° elbows are used to increase or redirect
a vertical rise. (Fig. 28)
Example: According to the chart the maximum hori-
zontal vent length in a system with a 7.5’ (2.3 m) vertical
V584-201
Horizontal Run
2/99 djt
10 ft.
(3048 mm)
7 ft. 6 in.
(2286 mm)
7 ft.
(2134 mm)
A
B
CFM147
Fig. 28 Maximum vent run with elbows.
90° Elbow = 3 ft.
A + B = 17 ft. (Max.)
Maximum
3' (914mm)
CFM142
Venting
2/2/01 sta
CFM142
Fig. 27 Maximum horizontal vent run.
7TCDV90
rise is 20’ (6 m) and if a 90° elbow is required in the
horizontal vent it must be reduced to 17’ (5.2 m). In
Figure 28 Dimension A plus B must not be greater than
17’ (5.2 m).
• The maximum number of 45° elbows permitted per side
wall installation is two (2). These elbows can be installed
in either the vertical or horizontal run.
• For each 45° elbow installed in the horizontal run, the
length of the horizontal run MUST be reduced by 18” (45
cm). This does not apply if the 45° elbows are installed
on the vertical part of the vent system.
• The maximum number of elbow degrees in a system is
270°. (Fig. 29)
•IMPORTANT• Minimum clearance between vent pipes
and combustible materials is one (1”) inch (25 mm) on bot-
CFM141
2/2/01 sta
Maximum
20 ft. (6.1m)
7.5'
(2.3m)
Vertical Dimension
7¹⁄₂’ Minimum When
Horizontal Run is
20’
CFM141
Fig. 26 Maximum number of 90° elbows is three (3).
7TCDV90
7TDV90

18
CDVZ Series Direct Vent Gas Fireplace
20014621
tom, sides and top.
Twist Lock Vent Starter Kit 7TCRVT, plus Elbow 7TCDV90
must be used in Vertical Sidewall installations.
Canadian & USA Installations:
The venting system must conform with local codes,
or in the absence of local codes, with National
Fuel Gas Code, ANSI Z223.1/NFPA 54 - latest edition, or
CSA B149.1 Installation Code.
Only Vermont Castings Group venting components spe-
cically approved and labelled for this replace may be
used.
Vertical Sidewall Installation
STEP 1
Locate vent opening on the wall. It may be necessary to rst
position the replace and measure to obtain hole location.
Depending on whether the wall is combustible or noncom-
bustible, cut opening to size. (Page 14, Fig. 17)
For combustible walls rst frame in opening.
Combustible Walls (Fig. 17): Cut a 9³⁄₈”H x 9³⁄₈” W (240
x 240 mm) hole through the exterior wall and frame. For
7TCRVT1320 cut a 10³⁄₈”H x 9³⁄₈” W (264 x 240 mm)
hole.
Noncombustible Walls (Fig. 17): Hole opening must be
7.5” (190 mm) in diameter.
STEP 2
Slide venting component on collar of replace. Secure
component to replace by running a screw (self-tapping)
through tab & into outer casing. (Fig. 30)
8
CFM143
2/2/01 sta
Ensure Pipes are
Concentric
CFM143a
Fig. 30 Always start vertical run with 7TCDV90 on 36CDVR
unts.
7TCDV90
STEP 3
Measure the horizontal length requirement including a 2”
(51 mm) overlap, i.e. from the elbow to the outside wall
nish plus 2”, or the distance required if installing a second
90° elbow. (Fig. 31)
CFM136
Rear Vent horizontal length
2/26/01 sta
X
Always install hori-
zontal venting on a
level plane.
CFM136
Fig. 31 Measure horizontal length including 2” overlap.
STEP 4
Use appropriate length of pipe section - telescopic or xed
- and install the horizontal vent sections. A starter section
of pipe which goes through the wall is packaged with the
7TCRVT kit, and can be cut to suit if necessary. (Fig. 32)
Sealing between the vent pipe and restop with
high temperature sealant will restrict cold air
being drawn in around replace.
STEP 5
Guide the vent termination’s 4” and 7” collars into their
respective vent pipes. Double check that the vent pipes
overlap the collars by 2” (51 mm). Secure the termination
to the wall with screws provided and caulk around the wall
plate to weatherproof. (Fig. 33)
1
2
3
4
1 + 2 + 3 + 4 = 270
o
CFM132
Insert Rear Vent Sidewall
2/26/01 sta
CFM132
Fig. 29 Maximum number of elbows.
Example:
Elbow 1 = 90°
Elbow 2 = 45°
Elbow 3 = 45°
Elbow 4 = 90°
Total angular variation = 270°

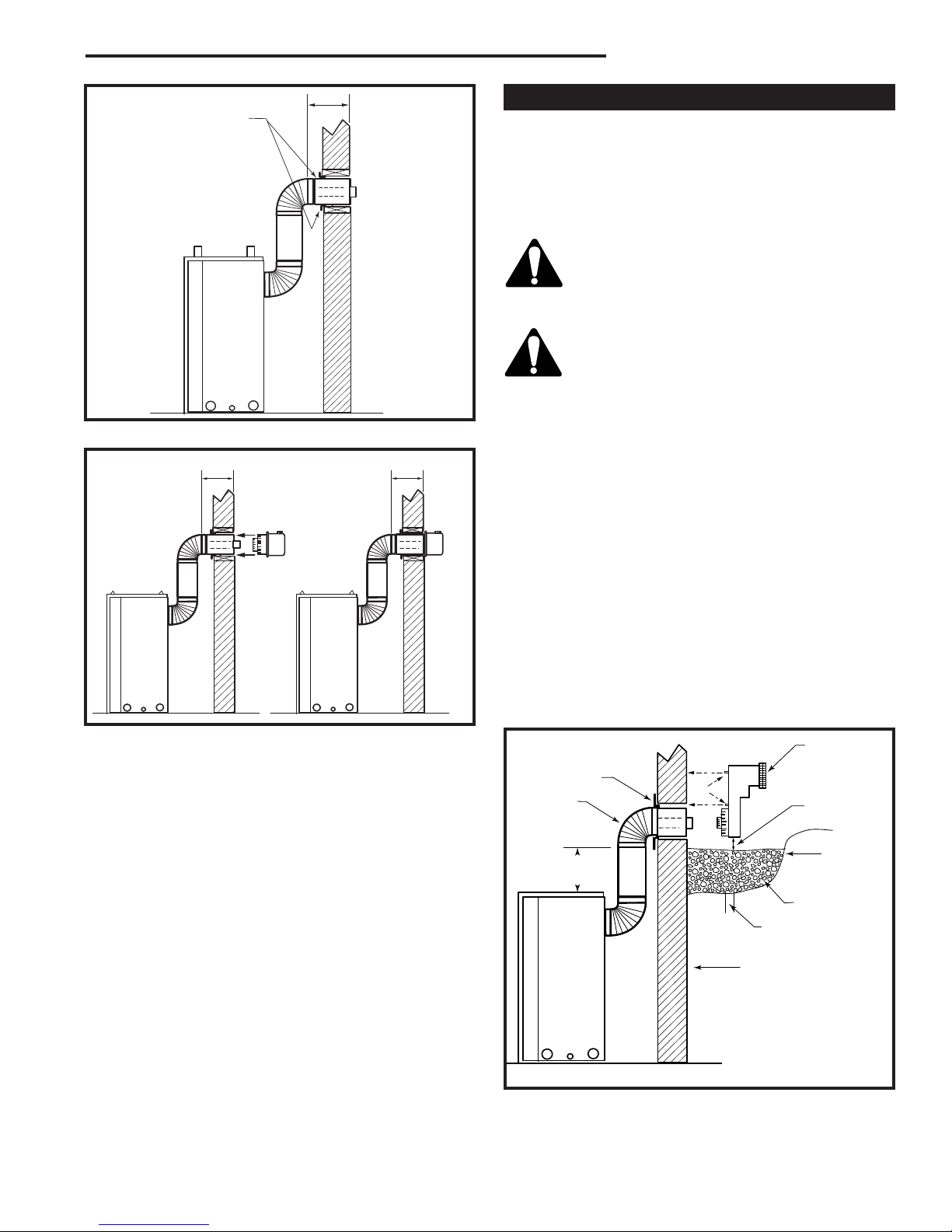

19
CDVZ Series Direct Vent Gas Fireplace
20014621
STEP 6
Support the horizontal pipes every 36” (914 mm) with
metal pipe straps. Make sure that the horizontal vent pipe
is installed on a level horizontal plane.
STEP 7
Re-check the replace to make sure that it is levelled,
properly positioned, and nailed or screwed to the oor.
If applied, the replaces adjustable frame drywall strips
(nailing anges) should be fastened. Refer to “Framing &
Finishing”.
CFM137
Rear Vent length
2/26/01 sta
X
High
Temperature Sealant
CFM137
Fig. 32 Apply high temperature sealant.
CFM138
4", 7" collar
2/26/01 sta
XX
CFM138
Fig. 33 Horizontal length requirement.
Below Grade Installation
When it is not possible to meet the required vent terminal
clearances of 12” (305 mm) above grade level a snorkel
vent kit #7TDVSNORK is required. It allows installation
depth of down to 7” (178 mm) below grade level. The 7”
is measured from the center of the horizontal vent pipe as
it penetrates through the wall.
If venting system is installed below ground,
we recommend a window well with adequate
and proper drainage.
Ensure sidewall venting clearances are observed.
The maximum horizontal run with 24” vertical
rise is 36” (914 mm) from the back of the
replace to the face of the exterior wall. See
vent graph (Page 13) for extended horizontal
run if the vertical rise exceeds 24” (610
mm).
1. Establish vent hole through the wall. (Fig. 17)
2. Remove soil to a depth of approximately 16” (406 mm)
below base of snorkel. Install window well (not supplied).
Rell hole with 12” (305 mm) of coarse gravel leaving a
clearance of approximately 4” (102 mm) below snorkel.
(Fig. 34)
3. Install vent system. See Page 14, Steps 2 through 5.
4. Ensure a watertight seal is made around the vent pipe
coming through the wall.
5. Apply high temperature sealant caulking around the 4”
and 7” snorkel collars.
6. Slide into the vent pipe and secure to the wall.
7. Level the soil to maintain a 4” (102 mm) clearance below
snorkel. (Fig. 34)
BG400
Below grade installation
2/10/99 djt
10/19/99 added standoffs
24" (610mm)
Minimum*
Firestop
7” Pipe
7TDVSNORK
(Snorkel)
4” (102mm)
Clearance
Min.
Window
Well
Gravel
Drain
Foundation Wall
BG400
Fig. 34 Below grade installation.
*A minimum of 24” (608mm) ver-
tical pipe must be installed when
using 7TDVSNORK Kit.

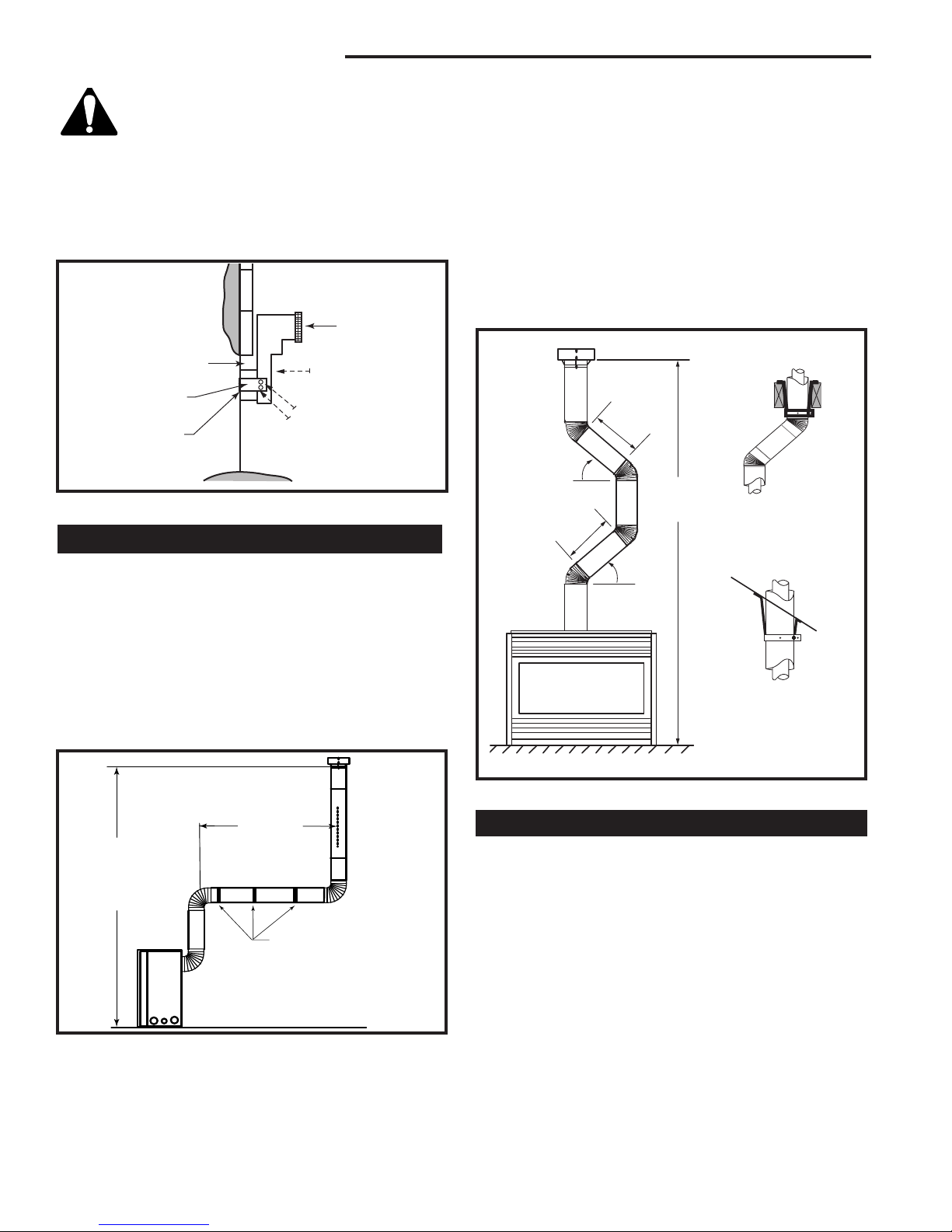

20
CDVZ Series Direct Vent Gas Fireplace
20014621
Do not back ll around snorkel. A clearance
of at least 4” (102 mm) must be maintained
between the snorkel and the soil.
BG401
Snorkel
2/10/99 djt
Foundation Recess
Snorkel
Wall Screws
Recess Brackets
Watertight Seal
Around Pipe Sheet Metal
Screws
BG401
Fig. 35 Snorkel installation, recessed foundation.
If the foundation is recessed, use recess brackets (not
supplied) for securing lower portion of the snorkel. Fasten
brackets to wall rst, then secure to snorkel with self drilling
#8 x 1/2 sheet metal screws. It will be necessary to extend
vent pipes out as far as protruding wall face. (Fig. 35)
Vertical Through-the-Roof Applications
This Gas Fireplace has been approved for:
1. Vertical installations up to 50’ (15 m) in height. Up to
10’ (3 m) horizontal vent run can be installed within the
vent system using a maximum of three 90° elbows.
2. Up to two 45° elbows may be used within the horizontal
run. For each 45° elbow used on the horizontal level
the maximum horizontal length must be reduced by
18” (457 mm).
CFM148
Maximum
10’
(3 m)
Minimum
8’ (2.4 m) /
Maximum
50’ (15 m) Vertical
Rise
CFM148
Pipe Straps Every 3’
(914 mm)
Fig. 36 Support straps for horizontal runs.
Example: Maximum horizontal length
0 x 45° elbows = 10’ (3 m)
1 x 45° elbows = 8¹⁄₂’ (2.6 m)
2 x 45° elbows = 7’ (2.1 m)
3. A minimum of an 8’ vertical rise.
4. Two sets of 45° elbows offsets within these vertical
installations. From 0 to a maximum of 8’ (2.4 m) of vent
pipe can be used between elbows. (Fig. 37)
5. 7DVCS must be used to support offsets. (Fig. 36) This
application will require that you rst determine the roof
pitch and use the appropriate 7DVSKV (A, B or F).
(Refer to Venting Components List, Page 27)
FP1021
Typical vertical
through the roof
application
3/26/00 djt
Max.
8’
(2.4 m)
45°
Max.
8’
(2.4 m)
45°
50’
(15 m)
Typical Ceil-
ing Support
Application
Typical Roof
Support Ap-
plication
FP1021
Typical Offset Installation
Fig. 37 Typical vertical roof applications.
Vertical Through-the-Roof Installation
1. Locate your replace.
2. Plumb to center of the (4”) ue collar from ceiling above
and mark position.
3. Cut opening equal to 9³⁄₈” x 9³⁄₈” (240 x 240 mm). 10³⁄₈”
x 9³⁄₈” (264 x 240 mm) when using 7TCRVT1320.
4. Proceed to plumb for additional openings through the
roof. In all cases, the opening must provide a minimum
of 1 inch clearance to the vent pipe, i.e., the hole must
be at least 9³⁄₈” x 9³⁄₈” (240 x 240 mm).
5. Place replace into position.
6. Place restop(s) #7DVFS or Attic Insulation Shield
#7DVAIS into position and secure. (Fig. 38)
7. Install roof support (Fig. 39) and roof ashing making
sure upper ange is below the shingles. (Fig. 40)
