Vermont Castings WinterWarm Small Insert 2080 User manual

Do Not Discard This Manual: Retain for Future Use
2000888 5/06 Rev. 13
Winter Warm
Small Insert
For Use in North America
0888
WinterWarm
Small Insert
cover
4/01
SAFETY NOTICE: IF THIS APPLIANCE IS NOT PROPERLY INSTALLED, OPERATED AND MAIN-
TAINED, A HOUSE FIRE MAY RESULT.
TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. FAILURE TO
FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN
DEATH. CONTACT LOCAL BUILDING OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION
INSPECTION REQUIREMENTS IN YOUR AREA.
Homeowner’s
Installation
and Operating
Manual

2
WinterWarm Small Insert
2000888
Introduction
Save These Instructions for Future Reference
The WinterWarm Small Insert is designed,
tested and listed for burning wood. Do not
burn other fuels.
The WinterWarm Small Insert is not listed for
mobile home installations.
Failure to follow these instructions may
result in property damage, bodily injury or
even death.
WARNING
This fireplace has not been tested with an
unvented gas log set. To reduce the risk of
fire or injury, do not install an unvented gas
log set into this fireplace.
Specifications ......................................................... 3
Installation .............................................................. 4
Operation ................................................................ 9
Maintenance ......................................................... 14
Catalytic Combustor Appendix ............................. 20
Replacement Parts ............................................... 21
Table of Contents
Proposition 65 Warning: Fuels used in gas, wood-
burning or oil fired appliances, and the products of
combustion of such fuels, contain chemicals known
to the State of California to cause cancer, birth de-
fects and other reproductive harm.
California Health & Safety Code Sec. 25249.6
Thank you for purchasing a Vermont Castings WinterWarm Small Insert, an efficient fireplace carefully engineered
to bring you the latest in wood combustion principles and modern foundry technology.
While it can be used to transform a traditional masonry fireplace into a powerful heater, it is also designed to be
installed into a listed factory-built fireplace where no masonry fireplace and chimney exists.
Whichever installation you have chosen, you can count on years of comfortable heating and pleasurable fire-view-
ing if you operate and maintain it according to the directions in this Owner’s Guide.
The WinterWarm Small Insert has been tested and listed by Inchcape Testing Services / Warnock Hersey Inc. of
Middleton, Wisconsin according to ANSI/UL 1482 for the United States and ULC S628 for Canada. The WinterWarm
Small Insert is listed to, and in compliance with, the standards set forth by the Federal Environmental Protection
Agency, 40 CFR Part 60.532(b), as stated on the permanent label attached to each appliance.
This manual describes the installation and operation of the WinterWarm Small Insert catalytic-equipped wood
heater. This heater meets the U.S. Environmental Protection Agency’s emission limits for wood heaters sold after
July 1, 1990. Under specific test conditions this heater has been shown to deliver heat at a rate ranging from 8,700 to
31,000 Btu/Hr.
For more complete details on WinterWarm Small Insert performance and specifications, please refer to Page 3.
The WinterWarm Small Insert is designed, tested and listed for burning wood. Do not burn other fuels.
We recommend that you hire a professional installer to install your WinterWarm Small Insert, or to advise you on
the installation should you attempt to install it yourself.
Please read the sections of this manual which apply to your installation before you install and use your Winter-
Warm Small Insert.
Failure to follow these instructions may result in property damage, bodily injury or even death.

3
WinterWarm Small Insert
2000888
Specifications
WinterWarm Small Insert
EPA Emissions Rating .......................gph, catalytic 2.1*
Range of heat output* ................. 8,700 - 31,100 Btu/hr
Maximum heat output** ........................... 30,000 Btu/hr
Area heated*** ............................................ 1,000 sq. ft.
Size of wood splits .................................... 18” (460mm)
Fuel Capacity ........................................ 30lbs. (13.5kg)
Loading ..................................................................Front
Flue size ..................................................... 6” (150mm)
Fireplace Insert weight ......................... 285lbs. (130kg)
Primary Air Control ........................Manual/thermostatic
Secondary Air Control ............................Self-regulating
Glass panel ......................... High-temperature ceramic
Flue exit position ..................................................... Top
Blower rating ...............................110cfm. (115V, 60Hz)
*Under specific test conditions used during EPA emis-
sions standard testing.
**This value can vary depending on how the unit is
operated, and the type and moisture content of the fuel
used. Figure shown is based on maximum fuel con-
sumption obtained under laboratory conditions and on
average efficiencies.
***These values are based on operation in building-
code conforming homes under typical winter climate
conditions in New England. If your home is of nonstan-
dard construction (e.g. unusually well insulated, not in-
sulated, built under ground, etc.) or if you live in a more
severe or more temperate climate, these figures amy
not apply. Since so many variables affect performance,
consult your Vermont Castings’ Authorized Dealer to
determine realistic expectations for your home.
26" (660mm)
25" (650mm)
21"
(535mm)
21" (535mm)
13" (330mm)
6"
(160mm)
6"
(165mm)
21"
(535mm)
16" (420mm)
0888
WWsi
specifications
4/01
0888

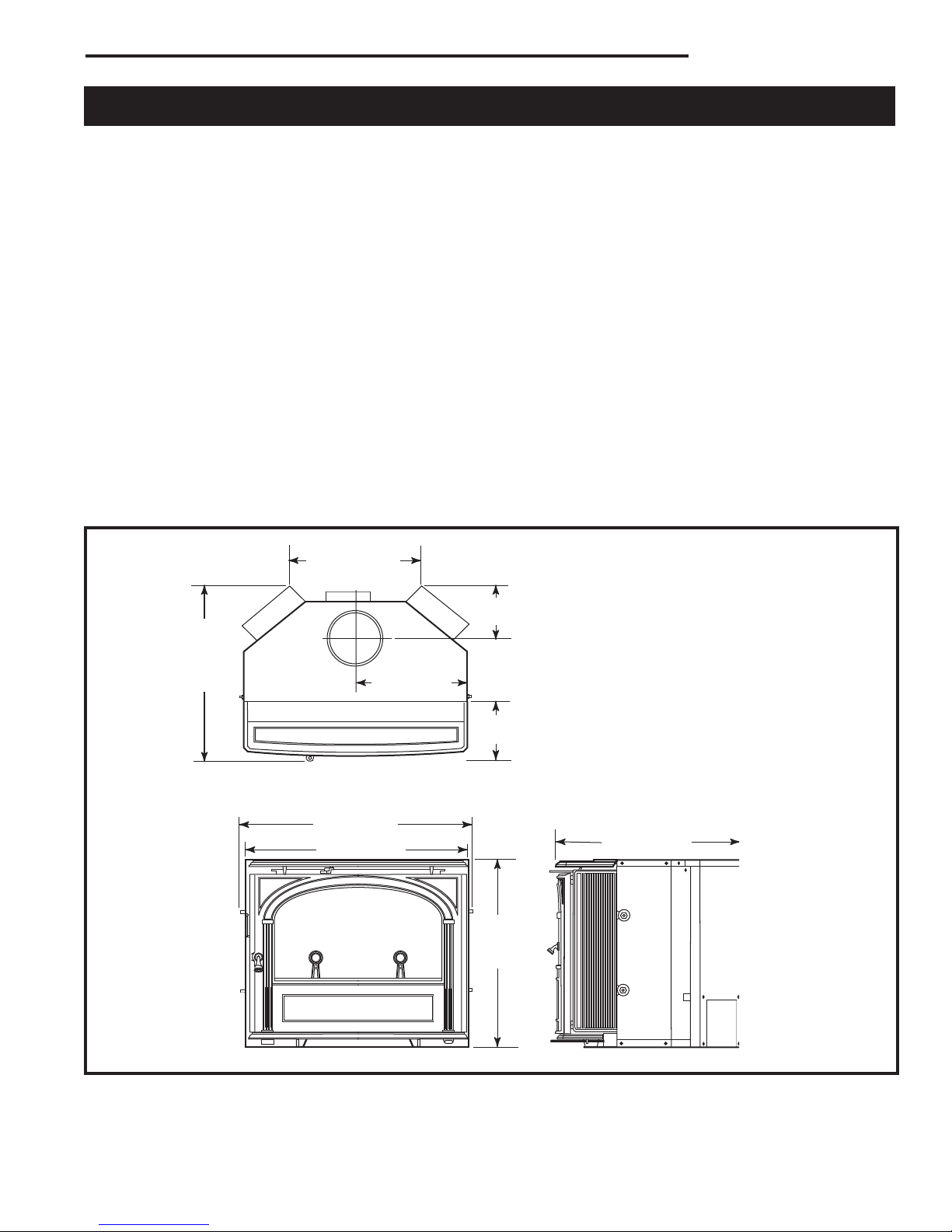

Fig. 1 WinterWarm Small Insert dimensions.

4
WinterWarm Small Insert
2000888
Installing the WinterWarm Small Insert into an existing
masonry or factory-built fireplace is an effective way to
add an efficient heater to your home. The existing fire-
place and chimney must meet certain requirements.
Requirements for Existing Fireplaces
The WinterWarm Small Insert is listed for installation
within a properly built masonry or heat circulating, ma-
sonry-type fireplace that is constructed in accordance
with the requirements of recognized building codes. A
heat-circulating masonry-type fireplace must conform
to building code standards for masonry fireplaces, and
must consist of a factory-built metal firebox with air
circulation pathways that are surrounded by masonry
materials. Air circulation pathways must not be blocked
by the insert or surround panels.
The fireplace and chimney must be clean and structur-
ally sound. Have them inspected by a qualified pro-
fessional chimney sweep, a mason, or your Vermont
Castings’ Authorized Dealer before the WinterWarm
Small Insert is installed. Any deterioration (cracks, loose
mortar or loose bricks) must be repaired.
Codes may permit removal of the damper in order to
make a positive connection for the vent between the
firebox and the chimney. However, the fireplace should
not be modified in any way without first checking with
your local building inspector or fire marshal. Provision
should be made to restore the fireplace to its original
condition if the insert is removed. Do not remove bricks
or mortar that may jeopardize the compliance of the
fireplace with local building codes.
The WinterWarm Small Insert is also listed for installa-
tion in tested and listed factory-built fireplaces. Listings
for factory-built fireplaces include meeting standards
for both the firebox and chimney. Review the owner’s
manual, and inspect the fireplace for metal tags or
labels which give information concerning installation of
inserts into the factory-built fireplace. Codes may permit
removal of the damper in order to install a chimney
liner. Codes may also permit removal of external trim
pieces which do not affect the operation of the unit, as
long as the pieces are stored on or within the fireplace
for re-assembly if the insert is removed. Air flow within
and around the fireplace shall not be altered (louvers
or cooling air inlet or outlet ports may not be blocked).
Louvered surrounds are permitted. Again, check with
local authorities before making any modifications.
Installation
Requirements for Existing Chimneys
Chimney requirements differ for the U.S. and Canada.
Specifications for each are listed below. Connect the
insert to the chimney in accordance with local codes
and the requirements of the listing agency as specified
in this manual.
Chimney Height / U.S. and Canada
Chimney height should be no less than 15’ (4.5m)
above the hearth and no more than 35’ (10.5m).
The chimney should extend at least 3’ (914m) above
the highest point where it passes through a roof, and at
least 2’ (610mm) higher than any portion of a building
within 10’ (3m). (Fig. 2)
Do not connect your WinterWarm small insert to a
chimney flue serving another appliance.
U.S.
In the U.S. (ANSI/NFPA 211, 1988), when
installed in a masonry fireplace:
• A connector must extend from the flue collar
to the flue liner.
• The cross sectional area of the flue must be less
than or equal to three times the area of the flue
collar. If larger, the chimney must be re-lined.
• Means must be provided to prevent room air
passing to the chimney cavity.
• Provision must be made for removal of the
insert to clean the chimney flue.
2' Min.
2' Min.
3'
Min.
0 To 10'
3'
Min.
0 To 10'
AC617
RLTSKC8
2/11/98

AC617
Reference
Point
Fig. 2 The 2’-3’-10’ rule for chimneys.

5
WinterWarm Small Insert
2000888
When the insert is installed in a factory-built fire-
place:
• The factory-built chimney must meet type HT
requirements of UL 103, ULC S629M or UL 127-
1988, or be re-lined from the insert to the
chimney top.
General Considerations / U.S.
• While not required in most jurisdictions in the
U.S., CFM Corporation strongly recommends a
full stainless steel chimney liner be installed for-
mthe insert to the chimney top to increase overall
performance and reduce yearly maintenance.
• A masonry chimney must be well-constructed
and must meet minimum code requirements.
The chimney flue should have a code-approved
liner made of masonry or pre-cast refractory
tiles, straight or flexible stainless steel pipe, or a
poured-in-place liner. An unlined chimney must
be relined professionally.
• The chimney must have a nominal flue size of 6”
(150mm) diameter, but no greater than 3 times
larger. A chimney larger than this must be re-
lined.
Be aware that a chimney originally designed for fire-
place use may perform differently when used to vent
an air-controlled appliance such as your WinterWarm
Small Insert - even if the flue is less than 3 times larger
than the flue collar. For example, a chimney on an
outside wall may not heat up enough to sustain an
adequate draft. Such a flue can often be improved if it
is relined to reduce its size and/or insulated to keep it
warmer.
• A positive flue connection must be made be-
tween the Insert and the first masonry tile or
prefabricated metal chimney section. A positive
flue connection consists of a plate that seals or
replaces the fireplace damper and a section of
chimney connector that passes through the plate
into the chimney. The chimney connector must be
a minimum equivalent to a 6” (150 mm) diameter
opening and must be 24 gauge or heavier stain-
less steel.
Chimney Connection systems are available from a
variety of manufacturers. Your Vermont Castings dealer
can recommend a system that will best meet the re-
quirements of your particular installation.
Sealing Requirements / U.S.
• The chimney must be sealed off from room air,
either by a plate at the damper level or by sealing
the fireplace opening.
• Unused openings to the flue must be sealed with
masonry to the thickness of the chimney wall.
Openings sealed with pie plates or wallpaper are
a hazard. In the event of a chimney fire, flames
and smoke may be forced from the openings.
Canada
In Canada (CAN/CSA-B365-M91, Section 5), wheth-
er installed in a m or factory built fireplace:
• A full chimney liner meeting ULC S635, Class III
(stainless steel) must be installed from the insert
to the chimney top, and securely attached to
both. The damper may be removed to accommo-
date the liner.
• The opening of the fireplace around the insert
must be sealed to prevent room air passing to the
fireplace cavity.
• Existing air-circulation chambers in a fireplace
with a steel liner may not be blocked.
• Provision must be made for removal of the insert
to clean the chimney flue.
• A permanent metal warning label must be affixed
to the back of the fireplace stating the fireplace
may have been altered to accommodate the in-
sert, and may be unsafe to use as a conventional
fireplace. (A Fireplace Modification Tag is includ-
ed in the hardware bag inside the WinterWarm
Small Insert.)
Minimum Fireplace Dimensions
The WinterWarm Small Insert will fit most masonry and
factory-built fireplaces. To confirm that it will fit yours,
measure the lintel depth, plus the height, width, and
depth of your fireplace and hearth. Compare them to
the measurements in the accompanying chart. If you
choose to install a new hearth over an existing fireplace
hearth, be sure to take its thickness into consideration
when measuring both front and back height of the
fireplace.
The unit can be installed virtually flush with the fireplace
opening or it can extend up to 6³⁄₄” (172mm) onto the
hearth. Figure 3 gives minimum and maximum dimen-
sions for fireplaces which will accommodate the Winter-
Warm Small Insert.
NOTE: The clearance between the WinterWarm Small
Insert and the mantel, top trim and side trim cannot be
reduced by installing shields.
Another requirement to consider is the clearance for
movable items such as tables, bookcases, rugs, fur-
nishings, and your woodbox. All combustible materials
of this type should be a minimum of 48” (1220mm) from
the front surface of the WinterWarm Small Insert. Be
sure that family members are aware of this requirement
as well, so they too will keep objects a safe distance
from the WinterWarm Small Insert.

6
WinterWarm Small Insert
2000888
A,I
BC
D,J
E
D,J
H
CE
FP1084
winterwarm
fireplace minimum dimensions
3/01
Fireplace Minimums
A. Width at Face 26¹⁄₂” (673mm)
B. Width at
9” depth 26¹⁄₂” (673mm)
C. Depth1 14¹⁄₂” (370mm)
D. Height at Face 21¹⁄₂” (540mm)
E. Height at
15¹⁄₂” depth 21¹⁄₂” (540mm)
FP1084
Fireplace Maximums
H. Lintel depth 9¹⁄₂” (240mm)
I. Width2 44¹⁄₂” (1130mm)
J. Height2 31” (770mm)
1. The minimum depth must be maintained from the floor of the
fireplace to a height of 21¹⁄₂” (540mm)
2. Though the WinterWarm Small Insert will fit into larger fireplaces,
the decorative optional CFM Corporation Surround Panels will not
completely cover the fireplace opening if these dimensions are
exceeded. Custom made trim pieces may be used.

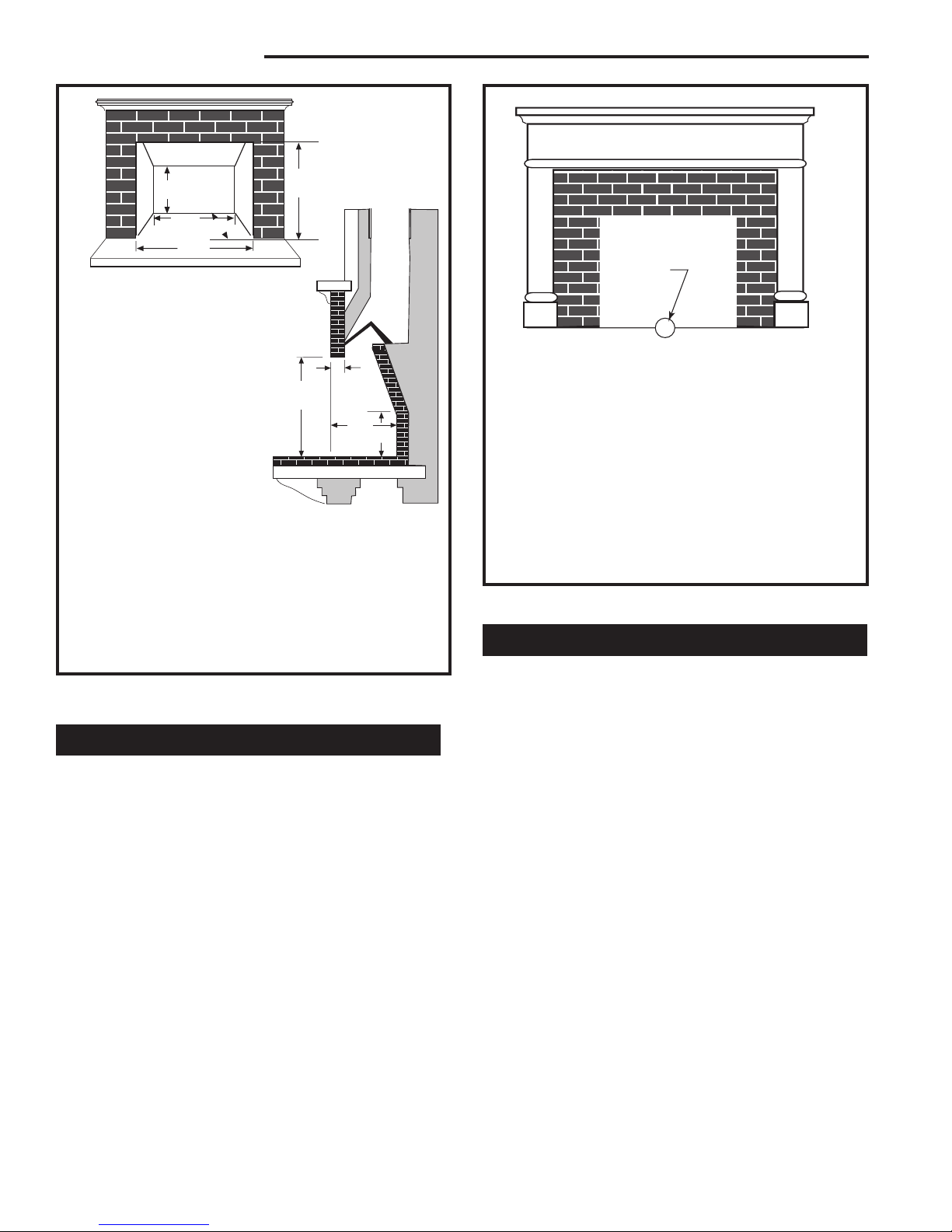

Fig. 3 Use these measurements to confirm that the Winter-
Warm Small Insert will fit into your masonry fireplace.
Clearance Requirements
After confirming that your fireplace is the right size,
check the clearance to combustibles. First mark with
tape the exact center of your fireplace opening on the
hearth. Measure the side clearance from this point.
Measure the top trim and/or mantel clearances from the
finished hearth surface. Measure the front clearance (to
furnishings, etc.) from the fireplace face. (Fig. 4)
X
FP1085
WinterWarm
clearances
3/01
C
A
B
Measure
side trim
clearance
from here
FP1085
Fireplace Clearances
A. Mantel* 34” (865mm)
B. Top Trim* 34” (865mm)
C. Side Trim** 20¹⁄₈” (510mm)
* for more details on mantel and top trim, see Note below.
** Where side trim extends more than 2” (50mm) from the
fireplace facing, the side clearance must be no less than 20⁵⁄₈”
(525mm).
Measure the side clearance (C) from the exact center of your fire-
place opening on the hearth (X). Measure the top trim (B) and/or
mantel clearances (A) from the finished hearth surface. Measure
the front clearance (to furnishings, etc.) from the fireplace face.
Fig. 4 Observe these clearances to combustible trim.
Hearth Requirements
In some fireplaces, the hearth in front of the fireplace
opening is brick, stone, slate, or some other non-com-
bustible material that is in direct contact with concrete
poured over earth. These are the only hearths that are
considered noncombustible. In other fireplaces, the
brick or concrete hearth in front of the fireplace opening
is supported by heavy wooden framing. Because nei-
ther brick nor concrete has good insulating properties,
heat radiated by the fire will pass downward through
the hearth to the wooden framing. Such hearths are
considered combustible.
Unless the fireplace and hearth are constructed over a
completely non-combustible surface (such as unpainted
concrete over dirt), a floor protector must be used
in front of and to the sides of the door as protection
against spilled coals and embers. Floor protectors must
extend at least 8” (203mm) from the side of the door
opening, making the protector 41” (1041mm) wide. In
addition, the floor protector must extend from the front
door opening a minimum of 16” (406mm) in the United
States and 18” (457mm) in Canada. (Fig. 5)

7
WinterWarm Small Insert
2000888
The approved construction of a floor protector calls
for a minimum of 24 gauge galvanized sheet metal or
equivalent such as 7/16” Durock® or Wonderboard® or
other listed floor protector. The floor protector may be
covered with a noncombustible decorative material if
desired.
Custom-made floor protectors may be used if they
offer the same protection as the approved floor protec-
tor described in the preceding paragraph. Durock® or
Wonderboard® have a standard K value of 0.84. Cus-
tom-built floor protectors must have a K value equal to,
or less than 0.84, meaning that heat will transfer at the
same rate or more slowly than the tested standard.
To calculate the thickness required for an alternate
material to result in a K value of 0.84, first determine
the alternate material’s K factor. This information should
be available from your local building supply yard. Then,
use the following formula to calculate the value:
NEW
required
thickness
K of new material (per inch)
K of listed material (per inch)
thickness
of listed
material
= x
IWF291
MBUF
6/19/96
(K factor
of alternate
material)
(0.84)
X (7/16" [11mm]) =
(Required thickness of
alternate material)
(5.0)
(0.84) X (7/16" [11mm]) = 2.6" (65mm)
Let’s use brick as an example, since it is a commonly
used hearth material. Its K factor is 5.0.
That is, when using brick for the hearth extension, the
brick must be a minimum of 2.6” (65mm) thick. Once
you know the K factor of a given material, you can use
this same formula to calculate its required thickness for
approved hearth protection.

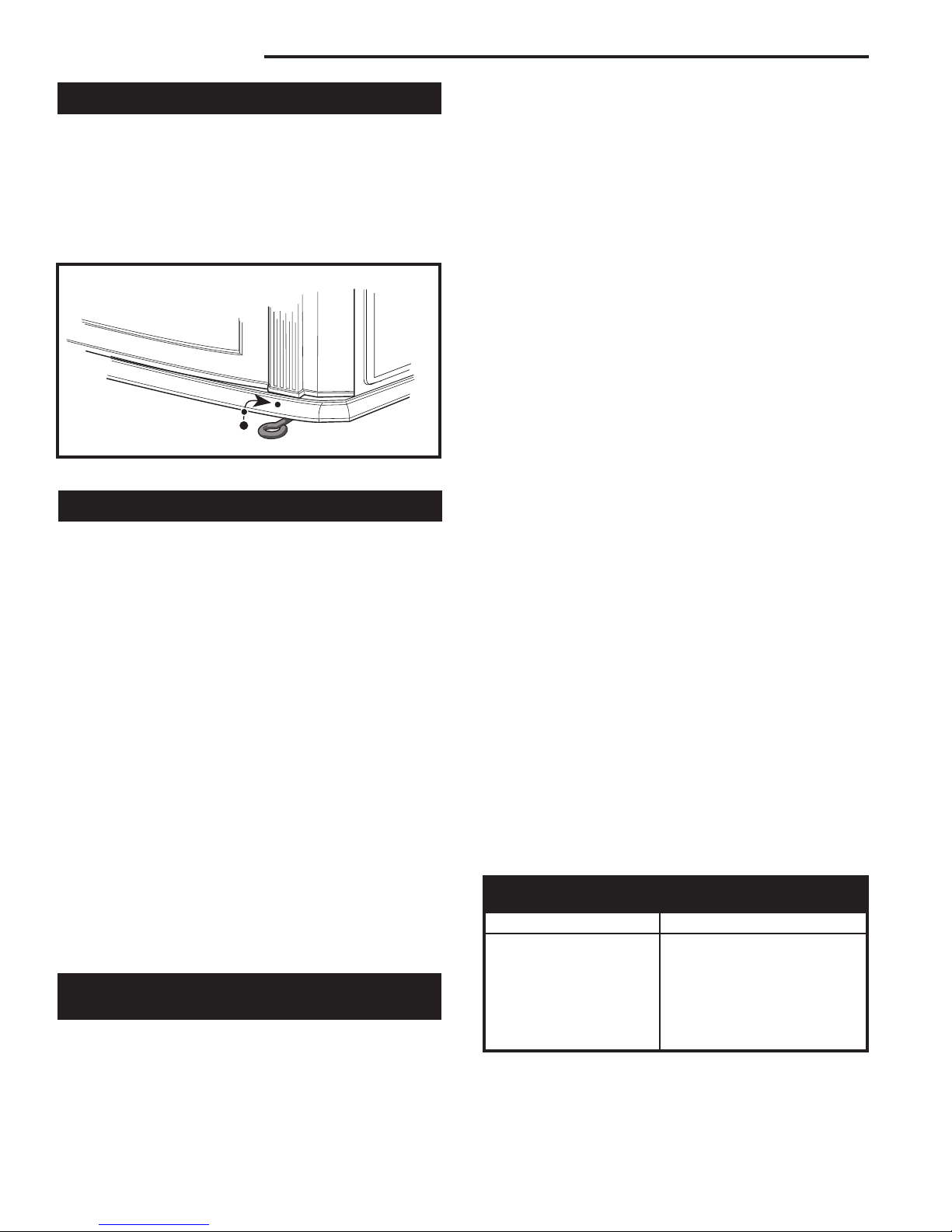

The WinterWarm Small Insert has two leveling screws
at the front to accomodate hearth irregularities.
Optional Surround Packages
Custom-made surround panels may be made from any
noncombustible material.
CFM Corporation offers both steel and cast iron Sur-
round panel kits, each in two sizes.
Enclosure Area
Steel Surround Trim Kits:
6”, #2970 .........................36¹⁄₂” x 27” (927 x 686 mm)
10”, #2971 .....................44¹⁄₂” x 31” (1130 x 787 mm)
Cast Iron Surround Trim Kits:
7”, #2972 ......................40” x 28¹⁄₂” (1016 x 724 mm)
10”, #2973 .......................45” x 31” (1143 x 787 mm)
Installing the WinterWarm Small Insert
The hardware bag included with your WinterWarm
contains the Draw-down assembly components that
provide a means to secure the chimney connector to
the Insert. Be sure you have the following items:
1, 1/4-20 x 6³⁄₄” Threaded Rod (A)
2, 1/4” Washers (B)
2, Hex Head Nuts (C)
1, 1/4-20 x 2” Hook (D)
1, 1” x 6” Steel Bar (E)
1, 1/4-20 Wing Nut (F)
1. Remove or Disable the Fire-
place Damper.
If codes allow, remove the damper. Many dampers can
be removed simply by removing a cotter pin and/or a
set screw.
If it is not permissible or possible to remove the damper,
secure the damper in the fully open position.
~ NOTE: CANADIAN INSTALLATIONS ~
In accordance with CAN/CSA B365-M91, you must
permanently secure the Fireplace Modification Tag
to the rear of the fireplace cavity if you have modi-
fied the fireplace in any way to accommodate instal-
lation of a fireplace insert. This tag is in the hardware
bag included with your Insert.
2. Install the Chimney Connector System. Be sure
any chimney connector or adapter is properly in-
stalled and secured in place.
A
B
C
D
E
F
FP1096
WWsi
pull down parts
4/01
AB
C
FP1095
WWsi
Hearth
4/3/01 djt
B
United States Canada
A. 16“ (410 mm) 18” (460 mm)
B. 8” (203 mm) 8” (203 mm)
C. 41” (1040 mm) 41” (1040 mm) FP1095
Fig. 5 Unless your fireplace and hearth are constructed over
a dirt floor (or unpainted concrete over dirt), you must use a
floor protector that satisfies the above requirements.
Shadow
Tray

8
WinterWarm Small Insert
2000888
3. Install the Chimney Connector Starter Pipe. (Not
supplied)
• Mark and drill two 5/16”, (8mm) holes 1⁵⁄₈”
(41mm) from the lower edge of the pipe. Locate
the holes on an axis that will be perpendicular to
the fireplace opening when the pipe is installed.
(Fig. 6)
• Install the threaded rod (A), into the starter pipe
using washers and hex nuts (B,C),on the outside
of the pipe. Tighten the nuts, but do not distort the
pipe opening. (Fig. 6)
• Secure the starter pipe to the chimney connector.
(Fig. 7)
4. Install the Floor Protector. Make sure the floor pro-
tector satisfies the requirements discussed on Page
6.
5. Install the Optional Outside Air Adapter. Follow
the instructions provided with the kit.
6. Install the Optional Surround Kit. Follow the in-
structions provided with the kit.
7. Slide the Firebox into Position. At least two people
will be needed to move the firebox. Position the
firebox so the flue collar lines up with the connector.
Use the leveling screws at the front of the Insert to
adjust the level. Route the power cord to the side
nearest the power supply and test the fans.
1"
(35mm)
FP1097
WWsi
starter pipe
4/3/01 djt
FP1097
Fireplace
Front
Fig. 8 Install the threaded rod inside the Starter Pipe (not a
supplied item, starter pipe is available from the Chimney Con-
nector manufacturer).
8. Join the Chimney Connector to the Flue Collar.
• Assemble the draw-down hook and bar (D,E,F).
• From inside the firebox, reach up through the flue
collar and engage the hook over the threaded
rod inside the starter pipe. Position the steel bar
behind the two tabs within the flue collar and then
turn the wing nut clockwise to draw the starter
pipe down. (Fig. 7)
9. Connect the Blower power cord to the power
supply.
This completes installation of your WinterWarm Small
Insert.
FP1098
pipes to cabinet
4/01
Seat the Starter
Pipe on the two
tabs inside the flue
collar
Starter Pipe
Draw-down
Bar Assem-
bly
FP1098
Fig. 7 Attach starter pipe to flue collar.

9
WinterWarm Small Insert
2000888

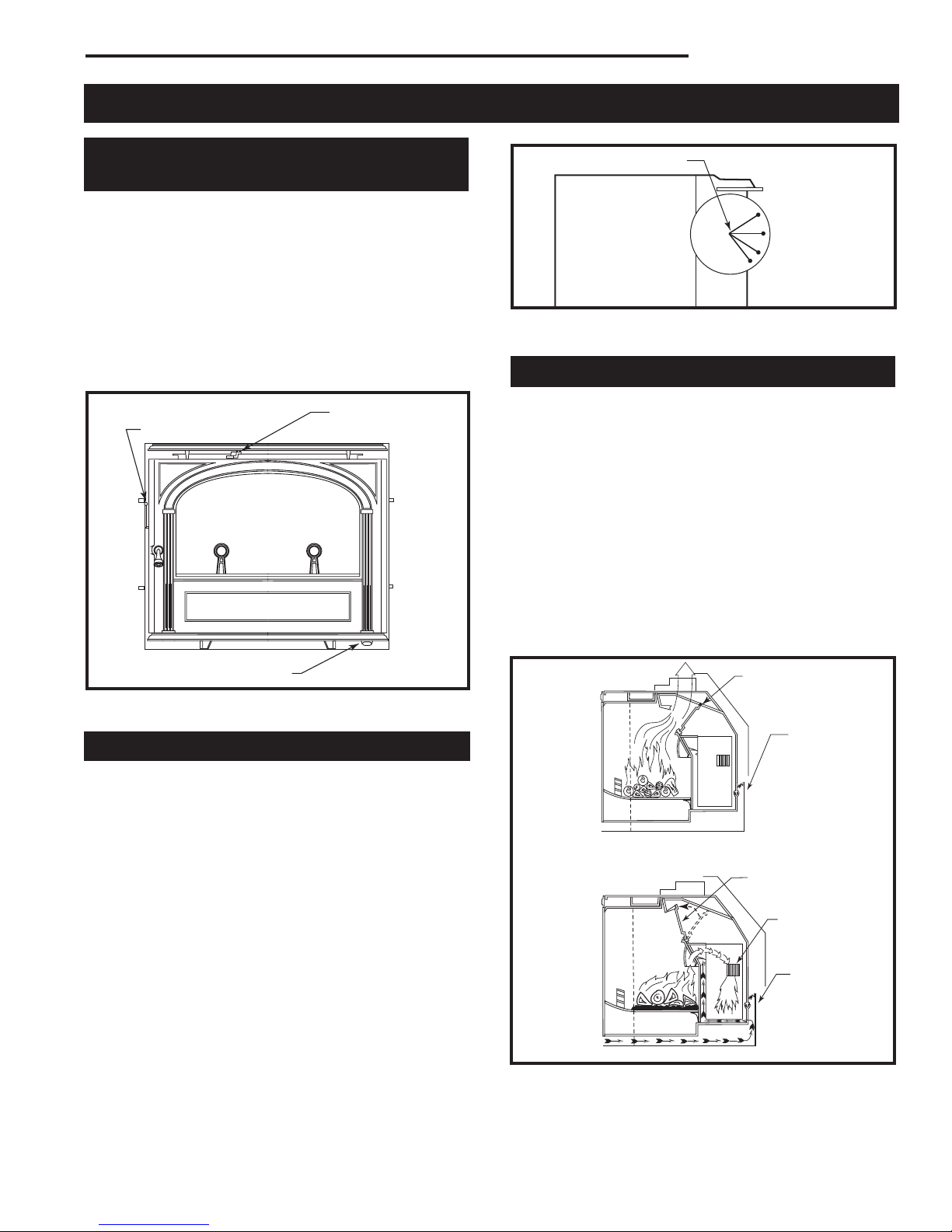

Operation
Your WinterWarm Insert’s
Controls and What They Do
All WinterWarm Small Insert controls are conveniently
located on the front. (Fig. 8)
Three controls regulate the performance of your Winter-
Warm Small Insert:
The primary air control supplies oxygen for the fire.
The damper directs air flow within the fireplace.
The variable-speed fan control, or rheostat, regulates
the warm air flow into the room.
FP1099
WWsi
controls
4/01
Damper Control
Lever
Primary Air
Control Lever
Fan Speed Control FP1099
Fig. 8 WinterWarm Small Insert controls.
Primary Air Control
A single air control regulates the amount of heat the fire
will produce and how long it will burn.
The primary air control lever is located midway up
the left side panel. The lever regulates air for starting,
maintaining, and reviving the fire.
Generally, more air entering the stove makes the fire
burn hotter and faster, while less air prolongs the burn.
The WinterWarm Small Insert’s air supply is increased
when the control lever is moved counterclockwise, and
decreased when moved clockwise. It may be set any-
where between the two extremes, however, depending
on the amount of heat desired. (Fig. 9)
To complement the manual setting of the air control,
the WinterWarm Small Insert has an internal automatic
thermostat that ensures an even delivery of heat at the
manual setting you select.
2:00 High
3:00 Medium
4:00
4:30 Low
FP1100
WWsi
air control settings
4/03/01 djt
Primary Air Control Lever
FP1100
Fig. 9 Settings for the primary air control range from 2:00
(high burn rate) to 4:30 (low burn rate).
The Damper
The damper directs air flow within the fireplace. The
damper is operated by moving the lever located above
the door. It has two positions: Open, to start or revive
the fire; and closed, for normal operation. The damper
is open when the lever is to the far right, and closed
when to the far left. There are no intermediate settings
for damper position. (Fig. 12)
To open the damper, insert the fall-away handle into the
hole in the lever, lift up on the lever and move it to the
far right.
To close the damper, move the lever to the left, continu-
ing past the resistance to lock the damper in position.
FP1072a
WWsi
damper closed
4/3/01
FP1071a
WW si
damper open
4/03/01 djt
Damper
Secondary Air
Inlet
Damper
Catalytic
Combustor
Secondary Air
Inlet
FP1071/2a
Damper Open
Damper Closed
Fig. 10 When the damper is open, smoke is vented directly
to the chimney. When the damper is closed, smoke is chan-
nelled through the catalytic combustor.

10
WinterWarm Small Insert
2000888
The Fans
Two fans deliver a steady stream of warm air into the
room. Use the fall-away handle, (used to operate the
damper), to control fan settings. (Fig. 11)
The fan speed should be set at “low” when operating at
low to medium burn rates. The fan speed may be set
anywhere between “low” and “high” when operating at
high burn rates.
Burn Only High-Quality Wood
The WinterWarm Small Insert is designed to burn
natural wood only; do not burn fuels other than that for
which it was designed.
You’ll enjoy the best results when burning wood that
has been adequately air-dried. Avoid burning “green”
wood that has not been properly seasoned or cordwood
that is more than two years old.
The best hardwood fuels include oak, maple, beech,
ash, and hickory that has been split, stacked, and air-
dried outside under cover for at least one to two years.
For areas that do not have a supply of hardwood, com-
monly burned softwoods include tamarack, yellow pine,
white pine, Eastern red cedar, fir, and redwood. These
too should be properly dried.
Your WinterWarm Small Insert will accept wood up to
18” (460mm). Longer wood pieces work better than
short ones.
Wood should be stored under cover to maintain dry-
ness. Even for short-term storage, however, keep wood
a safe distance from the heater and keep it out of the
areas around the heater used for re-fueling and ash
removal.
Use the Air Control Settings
that Work Best for You
No single air control setting will fit every situation. Each
installation will differ depending on the quality of the
fuel, the amount of heat desired, and how long you wish
the fire to burn.
The control setting also depends on your particular
installation’s “draft,” or the force that moves air from the
stove up through the chimney. Draft is affected by such
things as the length, type, and location of the chimney,
local geography, nearby obstructions, and other factors.
Too much draft may cause excessive temperatures in
the WinterWarm Small Insert, and could even damage
the combustor. On the other hand, too little draft can
cause backpuffing into the room and/or the “plugging”
of the chimney or combustor.
How do you know if your draft is excessively high or
low? Symptoms of too much draft include an uncontrol-
lable burn or glowing-red cast iron. A sign of inadequate
draft is smoke leaking into the room through the stove
or chimney connector joints, low heat, and dirty glass.
In some newer homes that are well-insulated and
weather-tight, poor draft may result from insufficient air
in the house. In such instances, an open window near
the stove on the windward side of the house will provide
the fresh air needed.
Another option for getting more combustion air to the
stove is to duct air directly from the outside to the stove.
In fact, in some areas provisions for outside combustion
air are required in all new construction. To duct outside
air to your WinterWarm Small Insert, use Outside Air
Kit #3252 available from your Vermont Castings dealer.
Follow the installation instructions included with the kit.
When first using the stove, keep track of the settings
of the air controls. You will quickly find that a specific
setting will give you a fixed amount of heat. It may take
a week or two to determine the amount of heat and the
length of burn you should expect from various settings.
Most installations do not require a large amount of
combustion air, especially if adequate draft is available.
Do not for any reason attempt to increase the firing
of your heater by altering the air control adjustment
range outlined in these directions.
Use the following primary air control lever and fan
speed control lever settings as a starting point to help
determine the best settings for your installation.
WinterWarm Small Insert Control Settings
Primary Air Air Circulation
Burn Control Fan Control
Rate Setting Speed Position
High 2:00 High Horizontal
Medium 3:00 - 4:00 Low Turn clockwise
Low 4:30 Off Turn Counterclockwise
OFF
HIGH LOW
FP1101
fan switch position
4/01
FP1101
Fig. 11 Fan speed control settings.

11
WinterWarm Small Insert
2000888
How To Build and Sustain a Wood Fire
A WinterWarm Small Insert leaves the factory with the
combustor installed.
In the United States, it is against the law to operate this
wood heater in a manner inconsistent with operating
instructions in this manual, or if the catalytic combustor
is deactivated or removed.
High-Efficiency Wood Burning with
Catalytic Combustion
The components of the catalytic combustion system in
your WinterWarm Small Insert work together to produce
optimum conditions for secondary combustion.
When the damper is closed, smoke is directed through
the catalytic element, which causes ignition of smoke
at temperatures of 450°-550°F (230°-290°C), half the
temperature normally required for unaided secondary
combustion.
The catalytic element is a ceramic “honeycomb” coated
with the catalytic material. The element is located in
the secondary combustion chamber, molded from a
special high-temperature insulating refractory mate-
rial. The design of the chamber provides the correct
environment necessary for secondary combustion of
the fuel (smoke).
Catalytic combustion is activated by closing the damp-
er, thereby exposing the smoke to the combustor.
Closing the stove damper may also reduce the draft, so
to avoid putting out the fire or deactivating the combus-
tor, close the damper only when a fire is well-estab-
lished. When starting a fire, wait until the fire is well
established and there is an ember bed of at least 3-4”
(76 - 102mm) before closing the damper.
Never kindle a fire with colored paper or paper that
has colored ink or a glossy surface, and never burn
treated wood, garbage, solvents, or trash. All of these
may poison the catalyst and prevent it from operating
properly. Never burn cardboard or loose paper except
for kindling purposes. Never burn coal; doing so can
produce soot or large flakes of char or fly ash that can
coat the combustor and cause smoke to spill into the
room. Coal smoke also can poison the catalyst so that
it won’t operate properly.
In general, the fire must be sufficiently well-established
to ensure that catalytic activity is initiated. When first
starting a fire, a medium- to high- firing rate must be
maintained for at least twenty minutes. This ensures
the stove, catalyst, and fuel are all stabilized at the
proper operating temperatures.
Even though it is possible for the fire to get quite hot
within a few minutes after a fire is started, the combus-
tor may stop working or the fire may go out if the fire
is allowed to die down immediately as a result of the
damper being closed. Once the combustor starts work-
ing, heat generated by burning the smoke will keep it
working.
To determine whether the combustor is operating, com-
pare the amount of smoke leaving the chimney when
the damper is open and when it is closed. This proce-
dure is described on Page 17.
Starting and Maintaining a Wood Fire
Burn solid wood fuel only in the WinterWarm Small
Insert, and burn it directly on the grate. Do not
elevate the fuel. Do not burn coal or other fuels.
Cast iron is a superior material for solid fuel stoves but
it must be treated with respect. It is extremely strong,
but can be broken with a sharp blow from a hammer
or from the thermal shock of rapid and extreme tem-
perature changes. It is important to temper the cast iron
plates with an initial series of 3-4 break-in fires. The
plates expand and contract with changes in tempera-
ture. Minimize thermal stress by allowing the plates to
adjust gradually during the break-in fires by following
Steps 1-3 on the following page.
Always be certain the damper is open when starting a
fire or when re-fueling. To open the damper, lift up on
the lever and move it to the right. (Fig.12)
FP1102
WWsi
damper controls
4/01
Closed Open
FP1102
Damper Control Lever
Fig. 12 Damper control.
WARNING: Operate your WinterWarm Small Insert
only with the door fully closed. If the door is left
partially open, gas and flame may be drawn out of
the fireplace opening, creating risks of both fire and
smoke.

12
WinterWarm Small Insert
2000888
Follow these guidelines as you start and maintain the
fire, and remove the ashes.
1. Open the stove damper, and open the primary air
control fully.
2. Lay some crumpled newspapers on the bottom
grate. Place on the paper six or eight pieces of dry,
finely-split kindling. On the kindling lay two or three
larger sticks of split dry wood approximately 1-2”
(25-50 mm).
Do not use chemicals or fluids to start the fire. Do
not burn garbage or flammable fluids such as gaso-
line, naptha, or engine oil.
Also, never use gasoline-type lantern fuel, kerosene,
charcoal lighter fluid, or similar liquids to start or “fresh-
en up” a fire in this heater. Keep all such liquids well
away from the heater while it is in use.
3. Light the newspaper and close the door. Gradually
build up the fire by adding a few 3-5” (76 -127mm)
diameter splits.
If this is your initial break-in fire, let the fire burn brightly,
but not to excess. Control the fire’s intensity by adjust-
ing the air control lever. After an hour or so stop adding
wood so that the fire dies out gradually.
For ongoing operation after the initial break-in, continue
to add a few sticks at a time of a progressively larger
size. Be sure to keep the fuel load behind the front
grate bar at all times. Continue until you have a live
ember bed at least 3-4” (76 - 102mm) deep. This may
take an hour or longer, particularly when the Winter-
Warm Small Insert is vented to an exterior masonry
chimney or when you are just starting a fire.
You’ll soon find that the WinterWarm is HOT WHILE IN
OPERATION! KEEP CHILDREN, CLOTHING, AND
FURNITURE AWAY. CONTACT MAY CAUSE SKIN
BURNS.
NOTE: Some chimneys need to be “primed,” or
warmed up, before they will draw sufficiently to start
a fire. To correct this situation, roll up a couple pieces
of newspaper, place them on top of the kindling and
toward the back of the stove, light them, and close the
doors. This should heat the chimney enough to initiate
a draft.
Once the draft is established, open the front door and
light the rest of the fuel from the bottom. Do not light the
main bed of fuel until the chimney begins drawing, and
repeat the procedure as often as necessary if the initial
attempt is unsuccessful.
4. Once a good ember bed of at least 3-4” (76 -
102mm) has formed, close the damper to activate
the combustor. To ensure continued operation of the
combustor, let the fire burn hot for an additional ten
to fifteen minutes after the damper is closed.
5. Close the primary air control to a medium-low set-
ting. The fire volume will diminish immediately, but
the WinterWarm Small Insert will continue to heat
up. Maintain control of the fire using the primary air
control, and remember: reduce the setting for less
heat, increase the setting for more heat. Refer back
to the air control settings chart on Page 6 for recom-
mended settings at different burn rates.
Do not over-fire this heater.
Overfiring may cause a house fire, or can result in
permanent damage to the stove and to the catalytic
combustor. If an exterior part of the WinterWarm Small
Insert glows, you are overfiring.
Reloading and Reviving a Wood Fire
Open the stove damper, set the air control on “High,”
and wait at least fifteen seconds for the draft to in-
crease. Open the door slowly.
Check the ash level, and empty the ash pan if neces-
sary. Replace the pan.
Add the fuel, smaller pieces first. If it is necessary to
use wood smaller than the 18” (460mm) optimum size,
be sure to fill the firebox as completely as possible
by loading the wood pieces alternately on the left and
right. Split wood will fill the firebox more completely and
reduce the frequency of reloading.
If you have an ember bed of at least 3-4” (76 - 102mm),
leave the damper open and the thermostat set on “high”
for 10-15 minutes, then close the damper. If the ember
bed is less than 3-4” (76 - 102mm), you may have to let
it burn longer.
Finally, adjust the air control and fan speed for your
desired heat level.
NOTE: If the charcoal bed is relatively thick and your
fuel is well-seasoned, it is possible to add fresh fuel
(smaller pieces first), close the door and damper, and
reset the air control immediately.
Special Tactics for Cold-Climate Heating
The WinterWarm Small Insert is capable of produc-
ing up to 30,000 Btu/hour and heating an area of up
to 1,000 sq. ft. However, many factors affect heating
performance and can influence the extent to which the
WinterWarm Small Insert can heat a given area.
A well-insulated home, located in a moderate climate
and with the WinterWarm Small Insert located centrally
in an open floor plan, will be easier to heat than a drafty
home in the far north in which a WinterWarm Small
Insert is installed on an exterior wall at the end of a long
house.

13
WinterWarm Small Insert
2000888
In Fireplace Insert installations, over-sized chimneys
can produce less effective results than those that are
properly sized, and interior chimneys usually perform
better than those located outside the house.
Different results may be experienced even in the same
installation if you switch from burning good, dry wood to
wood that is partially rotted or inadequately seasoned.
To compensate for these factors in cold climates, it may
be necessary to operate the WinterWarm Small Insert
for longer periods of time than described above before
closing the damper, or to leave the air control set to a
higher level more of the time.
Remove and Store Ash Safely
Check the ash pan before reloading the stove, and
empty if necessary using the following procedure:
• Turn off the fans.
• Open the damper.
• Open the load door.
• Pull open the ash chamber door with the fall-
away handle. (Fig. 13)
• If the ash level is nearing the top, take the pan
outdoors and empty the ash into your ash con-
tainer.
• Ash may contain hot coals and must be treated
with extreme care.
• Before replacing the ash pan, clear away any ash
that has spilled over the sides and back of the
pan.
• Replace the ash pan and close the ash door and
front door.
FP1103
Ash door
4/04/01 djt
Ash Pan
Ash Chamber Door Load Door
FP1103
Fig. 13 Wear heavy stove gloves if it is necessary to handle
the ash when hot coals are present.
Empty the ash pan regularly, typically every one to
three days. The frequency will vary depending on how
you operate your WinterWarm Small Insert; more
wood is consumed at higher heat output settings, and
ash will accumulate faster.
Ash should be removed fre-
quently and placed outdoors
in a metal container with a
tight-fitting lid. The closed
container of ash should
be placed on a non-
combustible floor or
on the ground, well
away from all combus-
tible materials, pending final
disposal. If the ash is disposed of by burial in soil or
otherwise locally dispersed, it should be retained in
the closed container until all cinders have thoroughly
cooled. Wood ash may be used as a garden fertilizer.
CAUTION: Never use your household or shop vacuum
cleaner to remove ash from the fireplace; always re-
move and dispose of the ash properly.
ST438
ash pail
7/6/00 djt

14
WinterWarm Small Insert
2000888
Maintenance
Keep Your WinterWarm Small Insert Look-
ing New and Working Its Best
Care of the Cast Iron Surface
An occasional dusting with a dry rag will keep the
painted cast iron of your WinterWarm Small Insert look-
ing new.
If the paint needs retouching, first allow the surface to
cool completely. Mask glass, trim parts and enamelled
areas. Wire-brush those areas needing to be painted.
Touch-up with high temperature stove paint available
from your local dealer. Apply the paint sparingly. Two
light coats are better than one heavy one.
Care of the Porcelain Enamel Surface
Use a soft brush as necessary. Do not use water or
other liquids on your WinterWarm Small Insert. Finger-
prints usually can be buffed off porcelain enamel with a
dry, soft cloth. If marks remain, allow the WinterWarm
Small Insert to cool completely, then buff with a slightly
damp, soft cloth. Dry completely before starting a fire to
avoid streaking.
Never use abrasives or harsh chemical cleaners on the
porcelain enamel finish; the enamel may scratch and
expose the cast iron, which can then stain or rust. If
you must remove spills or stains from porcelain surfac-
es, make sure the fire is out and the WinterWarm Small
Insert has cooled completely before cleaning. Use a
kitchen appliance cleaner and/or polish specially formu-
lated for enamel surfaces. Apply the cleaner sparingly
with a soft cloth, and buff away all traces.
Cleaning the Glass
The WinterWarm Small Insert glass system requires
a minimum amount of cleaning. Most carbon deposits
that accumulate will burn off during hot fires.
Ash residue that accumulates on the glass should be
removed periodically to prevent etching. To clean the
glass, use the following procedure.
• Be sure the glass is completely cool.
• Cleaning with water will work in most cases. Use
a glass cleaner especially made for this purpose
only if deposits are specially heavy. (If heavy
deposits are a frequent occurrence, however,
evaluate your operating techniques.) Do not use
abrasive cleaners.
• Rinse the glass thoroughly.
• Dry the glass completely.
NOTE: The WinterWarm Small Insert glass is
coated with a special material on one side that
helps reflect heat back into the fire chamber. Do
not attempt to remove this coating.

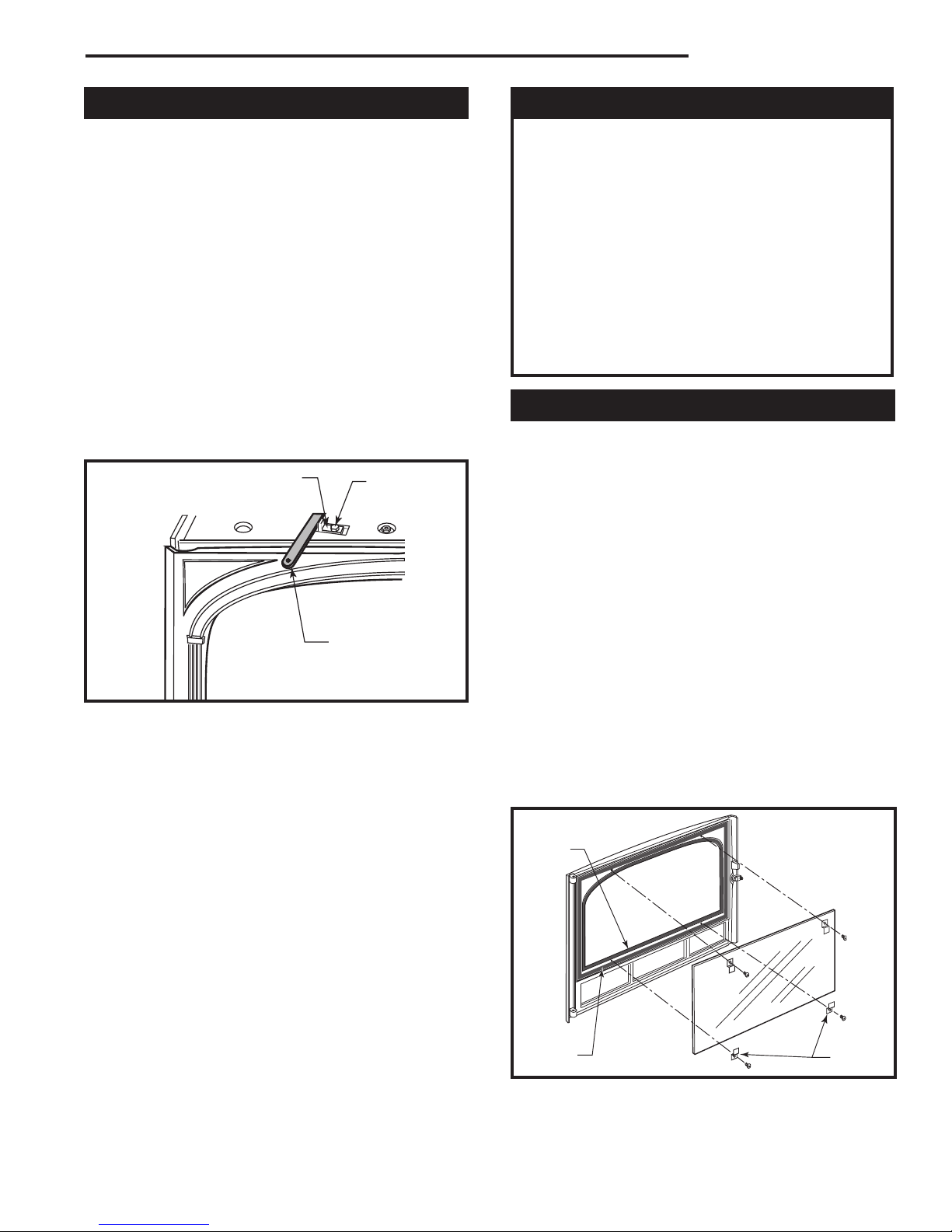

Adjust the Door Latch Periodically
The front door of the WinterWarm Small Insert should
close securely to prevent accidental opening and
should close tightly to prevent air from leaking into the
fire chamber. The door handle will be positioned verti-
cally when the door is closed.
Over a period of time, the gasket around the door will
compress and the latch may need adjustment. To ad-
just the handle, follow this procedure:
1. Loosen the small lock nut with a 7/16” wrench. (Fig.
14)
2. Extend the striker screw one turn by turning it with a
1/8” Allen wrench.
3. Re-tighten the lock nut, while at the same time hold-
ing the striker screw with the Allen wrench to prevent
its turning.
Test the door seal. Close the door on a dollar bill and
attempt to pull it free. If the bill is freed with little re-
sistance, the gasket isn’t snug enough at that spot.
Continue to make small adjustments until the setting is
right.
If additional adjusting of the latch does not enable the
door to seal sufficiently in one area, try “adjusting” the
gasket in that area. Pack more cement or a smaller
diameter gasket into the channel beneath the gasket so
the main gasket is raised and makes contact with the
door frame. If this procedure doesn’t solve the problem,
replace the gasket. Instructions for gasket replacement
are given later in this section.
ST531
Door Pawl
11/00
Pawl
Small
Locking Nut
Large
Locking
Nut
Set Screw
Striker Screw
Handle Stub ST531
Fig. 14 Turn the door latch striker screw in or out to tighten or
loosen the door latch.

15
WinterWarm Small Insert
2000888
Adjust the Damper as Needed
Examine your WinterWarm Small Insert’s damper after
the first 50 hours of use and adjust it if necessary.
Thereafter, check the damper at least once a year and
adjust as needed.
To inspect how well the damper seals, first make sure
the fire is out and the WinterWarm Small Insert is cool.
Open the front door, and close and lock the damper.
Inspect how the damper plate seals against the damper
frame. (Fig. 15)
There should be no gaps in the gasket and the damper
should be tight against the frame. If a section of gasket
is missing, replace the gasket. Instructions for gasket
replacement are given later in this section. If the gasket
appears to be in good condition, continue by pushing
gently on the damper. There should be some give but
no rattle. If adjustment is necessary, proceed as fol-
lows:
FP1104
WWsi
damper adj
4/01
Damper Latch Latch
Retaining
Screw
Damper Control
Rod
FP1105
Fig. 15 With the mantel removed, the damper latch is ex-
posed for adjustment.
1. Remove the Mantel piece.
2. With the Damper Control Lever in the open posi-
tion (to the right), loosen the retaining screw on the
Damper Latch by turning it counterclockwise. (Fig.
15
3. Move the latch approximately 1/16” to the left, and
tighten the screw.
4. Examine the upright tab that holds the damper rod
in place. If the screw is loose, tighten it. If the tab is
bent, replace it.
5. Close and lock the damper, and check for gap and
rattle. Repeat the procedure if necessary.
If the problem is still not solved, replace the damper
gasket. Instructions are on Page 16.
IMPORTANT NOTES
• Do not operate the WinterWarm Small Insert if
the glass is damaged or broken.
• The glass used in your WinterWarm Small Insert
is coated with a special material on one side that
reflects heat back into the fire chamber. To re-
place new glass correctly, look along the edge of
the glass for a printed notice that reads, “THIS
SIDE OUT”. Be sure to install the glass with the
notice side out.
• Replace glass only with CFM Corporation high
temperature ceramic glass, available from your
Vermont Castings’ Authorized Dealer.
Removing and Replacing Door Glass
Follow this procedure to replace glass.
• Open the door and loosen the four retaining clip
screws that hold the glass to the door. Swing the
clips out of the way. Tilt the glass away from the door
frame and lift up. (Fig. 16) Wear gloves and use cau-
tion when handling broken glass.
• Examine the gasket that seals the glass to the door
frame. Replace if necessary with gasket obtained
from your local Vermont Castings’ Authorized Dealer.
Directions for replacing gaskets are given below.
• Check the channel at the bottom of the door frame,
and clear away debris if necessary.
• Carefully place the new glass in the door frame.
• Secure the clips, being careful not to over-tighten.
Be sure the glass is firmly seated against the gasket.
Close the door gently to confirm the clips have been
properly positioned. It is possible for the glass to be
damaged if the clips have been installed incorrectly
and the door is closed with force.
FP1105
WinterWarm
glass install
4/01
Gasket
Door
Gasket Retainer
Clips
Fig. 16 Components fo the front door may be disassembled
to allow replacement of the glass, gaskets or both.

16
WinterWarm Small Insert
2000888
How to Replace Gaskets
Your WinterWarm Small Insert uses rope-type fiber-
glass gaskets to make a tight seal between some parts.
With use, particularly on those parts that move, gaskets
can become brittle and compressed and can begin
to lose their effectiveness. These will need periodic
replacement.
All of the gaskets used are made of fiberglass. The
three sizes of replaceable gasket are listed below,
along with their application.
Replaceable WinterWarm Small Insert
Fiberglass Gaskets
Gasket Size ...................And The Parts It Seals
1/2” (1203564) ...............Door to the front - 5.6’
5/16” (1203591) .............Glass to the door - 5.2’
5/16” (1203588) .............Ash door to the front - 4’
......................................Bypass damper - 2’
......................................Damper housing - 2.5’
......................................Fireback - 3’
3/16” (1203556) .............Thermostat cover to the left
......................................side - 1’
To change a gasket, wait until the fire is out and the
stove has cooled. Wear protective eyewear and a dust
mask. The procedure is the same for all gaskets.
1. Remove the existing fiberglass gasket by grasping
an end and pulling firmly.
2. Use a wire brush or the tip of a screwdriver to clean
the channel of any remaining cement or bits of gas-
ket.
3. Apply a thin bead of stove cement to the newly-
cleaned groove.
4. Place a new gasket into the groove. Wait until you
have placed all but a couple inches from the end
before you trim the end to an exact fit.
Replacing the Insert’s Door Gaskets
• Remove the door by lifting it straight up from its
hinge pins.
• Lay it face down on a padded surface.
• Remove the glass. Follow the instructions for
removing and replacing glass which start on page
15.
• Replace gaskets. Follow steps 1-4, above.
• Replace the glass.
• Replace the door.
Replacing the Damper Gasket
• Lift and remove the left and right burn plates.
• Two wedges hold the fireback in place. Using a
hammer and a block of wood, tap upward on the
wedges and remove them.
• Grasp the fireback by its vertical ribs and remove
it, together with the throat hood.
• Disconnect the damper linkage from the damper
by removing the hex head bolt from the damper
tab.
• Remove the two 1/4-20 screws holding the
damper housing to the back. The damper and
damper housing may now be removed.
• Replace the damper gasket.
NOTE: Check the gaskets on the damper housing and
fireback while these components are out of the stove.
These gaskets seal non-moving parts and are much
less subject to wear than other gaskets, but can be
replaced if necessary.
• Reverse the procedure to replace the damper,
damper housing and fireback.
FP1106
WinterWarm
Small Insert
damper access
4/4/01 djt
Damper Housing
and Bolts
Linkage
Damper
Tab and Bolt
Wedge Wedge
Throat
Hood
Fireback FP1106
Fig. 17 Remove the parts illustrated above to access the
damper.
Burn
Plate Burn
Plate

17
WinterWarm Small Insert
2000888
Care of the Catalytic Combustor
Your wood heater contains a catalytic combustor which
should be inspected regularly and replaced periodically
to ensure proper operation. It is illegal in the United
States to operate this wood heater in a manner
inconsistent with operating instructions in this
manual, or if the catalytic element is deactivated or
removed.
Under normal operating conditions, the catalytic com-
bustor should remain active for two to six years (de-
pending on the amount of wood burned). However, it
is important to monitor the combustor to ensure it is
functioning properly, as well as to determine when it
needs to be replaced. A non-functioning combustor will
result in a loss of heating efficiency, and an increase in
creosote and emissions.
The combustor should be visually inspected “in place”
for fly ash accumulation and physical damage three
times per year. Actual removal of the combustor is not
recommended unless a more detailed inspection is war-
ranted because of diminished performance as outlined
below.
The refractory package that houses the catalytic com-
bustor should be inspected annually for a build-up of fly
ash and cleaned if necessary. This may be done during
examination of the catalytic combustor.
When To Suspect a Combustor Problem
The best way to evaluate the performance of your
WinterWarm Small Insert’s combustor is to observe the
amount of smoke leaving the chimney — both when the
combustor has achieved “light-off” and when it has not.
Follow this simple two-step procedure:
• With a fire going and the combustor properly
activated with the damper closed to route smoke
through it as described in the Operation Section,
go outside and observe the smoke leaving the
chimney.
• Then, open the stove damper and once again
observe the smoke leaving the chimney.
Significantly more smoke should be observed after
the second step when the stove damper is open and
exhaust is not routed through the combustor. Be care-
ful, however, not to confuse smoke with steam from wet
wood.
If this test indicates a problem, consider other
possible factors as well, such as the time of year or a
change in the quality of your fuel. In spring and fall,
draft is weaker than it is in colder winter weather, and
fires can burn sluggishly. Small, hot fires are a good
solution under these conditions.
Burning “green” (insufficiently seasoned) wood will
result in poorer performance than burning properly
seasoned fuel. You may have to run your stove hotter
(more air) to achieve good performance if you are burn-
ing green or wet wood. Also, consider any changes in
your operating routine as well.
Once you have ruled out any other possible causes
for a decline in performance, you may proceed with an
inspection of the combustor.
Removal and Inspection of the Combustor
and Refractory Package
Before you begin, observe the basic safety precautions
for working with dusty materials: always wear protec-
tive eyewear, a recommended dust mask, and gloves.
1. Remove the andirons and burn plates.
2. Two cast iron wedges hold the fireback in place. Us-
ing a block of wood and a hammer, tap the wedges
upward. (Page 16, Fig. 17)
3. Grasp the fireback by its vertical ribs and remove it,
together with the throat hood.
4. Clean the left and right exhaust pockets of the
refractory package. Use a shop vacuum to avoid
damaging the fragile refractory material. (Fig. 18)
5. Inspect the gaskets that seal the fireback to the
damper frame and stove back. Replace if necessary.
6. Carefully remove the refractory plug.
7. Gently slide the catalytic element out of the refrac-
tory chamber. Check the element and the bottom of
the refractory chamber for a build-up of fly ash.
8. If the honeycomb is clogged, take it outside for
cleaning. Blow gently through the honeycomb. A
sizeable quantity of ash may be removed from the
element.
9. Inspect the element. Although small hairline cracks
will not affect performance, the element essentially
should be intact. If the element is broken in pieces
or has sections missing, it should be replaced. Call
your local Vermont Castings Authorized Dealer for a
replacement element, item #160-2521.
FP1107
WWsi
refractory package
4/01
Exhaust
Pockets
Refractory
Plug
FP1107
Fig. 18 The refractory package.

18
WinterWarm Small Insert
2000888
If replacement of the refractory package is required,
proceed to #10.
10. Remove 1/4-20 x 1/2” hex head screw from the
damper tab holding the damper link to the damper and
let the link drop down.
11. Remove the two (2) 1/4-20 x 1¹⁄₂” hex head screws
and washers holding the damper housing to the stove
back and drop the damper housing out of the stove.
12. Carefully slide the refractory package out of the
unit.
13. Install the new refractory package making sure to
pilot a small hole for the secondary probe in the proper
location at the back of the refractory package.
14. Reinstall the damper housing and damper link.
Watch for Better Results
Operate the stove in a typical manner for two weeks,
inspecting the chimney and the chimney connector fre-
quently during this period. If creosote is not building up
as fast, it is likely the performance change was caused
by fly ash deposits on the catalytic element. However,
continue the inspections of the chimney system for a
few weeks to ensure that proper performance contin-
ues.
If you continue to find a significant creosote build-up
or if you continue to see excessive smoke from the
chimney, the catalytic element will need to be replaced.
Contact your nearest Vermont Castings Authorized
Dealer for information about a replacement element.
NOTE: Use only the replacement catalyst #160-2521
supplied by CFM Corporation.
The refractory and the catalytic element are
extremely fragile and must be handled carefully.
The Chimney System
A Clean Chimney System is Safer
and Works Better
Although the catalytic combustion system in your Win-
terWarm Small Insert can reduce creosote formation
dramatically, it is not a substitute for regular inspection
and cleaning of the chimney and chimney connector.
Learn To Recognize —
And Avoid — Creosote
Your WinterWarm Small Insert has been designed to
minimize creosote build-up. Regular chimney inspection
and maintenance, however, must still be performed.
For safety, good stove performance, and to protect your
chimney and chimney connector, inspect your chimney
and chimney connector on a regular schedule. Clean
the system if necessary. Failure to keep the chimney
and connector system clean can result in a serious
chimney fire.
When wood is burned slowly, it produces tar, organic
vapors and moisture which combine to form creosote.
The creosote vapors condense in the relatively cool
chimney flue of a slow-burning fire. As a result, creo-
sote residue accumulates on the flue lining. When
ignited, this creosote makes an extremely hot fire within
the flue system that can damage the chimney and
overheat adjacent combustible material. If a significant
layer of creosote has accumulated —1/8” (3mm) or
more — it should be removed to reduce the risk of a
chimney fire.
If you do experience a chimney fire, act promptly to:
• Close the damper and thermostat lever.
• Get everyone out of the house.
• Call the Fire Department from a nearby house.
You should inspect the system every two weeks during
the heating season as part of a regular maintenance
schedule. To inspect the chimney, let the WinterWarm
Small Insert cool completely. Then, using a strong light,
sight up through the flue collar into the chimney flue. If it
is not possible to inspect the flue system in this fash-
ion, the firechamber must be removed to provide better
viewing access.
If it is necessary to remove the firechamber to inspect
or clean the chimney, this is how to do it:
• Let the WinterWarm Small Insert cool.
• Disconnect the fan power cord.
• You may wish to lighten the firebox by removing
the load door, andirons, grate and ash door.
• Retract the two levelling screws until they bear no
weight.

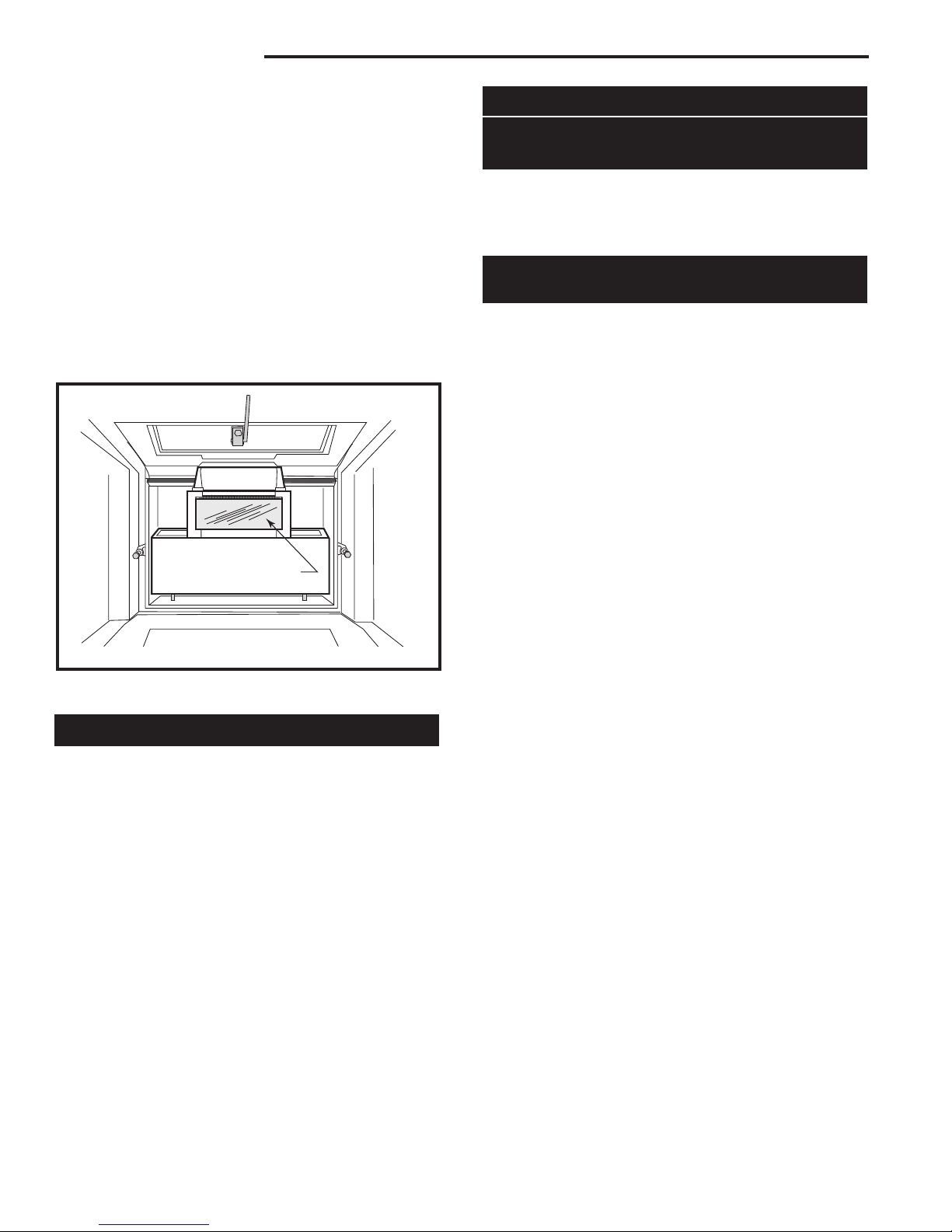

FP1108
WinterWarm
Small Insert
Catalytic element
4/01
Catalytic Element
FP1108
Fig. 19 The refractory plug is removed to access the catalytic
element.

19
WinterWarm Small Insert
2000888
• Disconnect the flue liner or vent connector from
the flue collar of the stove.
• Slide the firechamber forward until you have ac-
cess to the fireplace opening.
• Inspect the flue.
You can now inspect the smoke shelf area and the
chimney. Before replacing the WinterWarm Small In-
sert, this area should be inspected for signs of deterio-
ration and cleaned thoroughly with a chimney brush.
Clean the chimney using a specially designed brush the
same size and shape as the flue liner. Flexible fiber-
glass rods are used to run the brush up and down the
liner, causing any deposits to fall to the bottom of the
chimney where they can be removed through the clean-
out door.
The chimney connector should be cleaned by discon-
necting the sections, taking them outside, and removing
any deposits with a stiff wire brush.
Reinstall the connector sections after cleaning, being
sure to secure the individual sections with sheet metal
screws.
If your WinterWarm Small Insert is installed into a
factory-built fireplace, the chimney should be cleaned
from above using the appropriate size round brush and
enough rods to clean the entire length of the flue.
If you can’t do the chimney inspection yourself, con-
tact your local Vermont Castings’ Authorized Dealer, or
engage a professional chimney sweep to perform the
inspection and cleaning of the chimney.
Reverse the procedure to re-install the firechamber.
Fireplace System Maintenance Schedule
Fireplace:
Daily:
• Ash should be removed before the level reaches
the top of the pan. Check each time you re-load,
or at least once a day.
• Keep the area around the fireplace clear of any
combustible material.
Yearly Spring Cleaning:
• Remove ash from the firebox and replace with a
moisture-absorbing material (such as Kitty Litter)
to keep the interior of the fireplace dry.
• Touch up painted surfaces with black paint.
Flex Connection:
Two Weeks:
• Inspect the chimney and flue connection. Clean
the system if necessary.
Yearly Spring Cleaning:
• Disassemble the flue connection and take it
outdoors for inspection and cleaning. Replace
weak sections of connector.
• Inspect the chimney for signs of deterioration.
Repairs to a masonry chimney should be made
by a professional mason. Replace damaged
sections of prefabricated chimney. Your local
Vermont Castings’ dealer or a chimney sweep
can help determine when replacement is
necessary.
• Thoroughly clean the chimney.

20
WinterWarm Small Insert
2000888
Appendix: Catalytic Combustor
In any chemical reaction, including the combustion
process, there are certain conditions which must be
met before the reaction can take place. For example, a
reaction may require a certain temperature, or a certain
concentration of the reactants (the combustion gases
and oxygen), or a certain amount of time. Catalysts,
though not changed themselves during the reaction,
have the ability to act at a molecular level to change
these requirements. In the secondary combustion
chamber of the WinterWarm Small Insert, the catalyst
reduces the temperature at which secondary combus-
tion can start from the 1000° - 1200°F (540° - 650°C)
range to the 500° - 600°F (260° - 315°C) range, in-
creasing efficiency, and reducing creosote and emis-
sions.
The catalytic reaction, though advantageous, does
have some limitations of its own. Primary among these
is the reactants (the gases) come into close physical
contact with the catalyst itself.
To ensure the necessary contact, the catalytic ele-
ment in your WinterWarm Small Insert is composed
of a ceramic base in the shape of a honeycomb. On
each of the honeycomb’s many surfaces a coating of
the catalyst (usually a noble metal such as platinum or
palladium) is applied. The large surface area exposed
in this configuration ensures that the combustion gases
have the greatest opportunity to come in contact with
the catalyst.
Loss of catalytic activity will be apparent in several
ways. First you may notice an increase in fuel con-
sumption. Second, there will be a visible increase in the
rate at which creosote builds up in your chimney con-
nector system. You may also notice a heavy discharge
of smoke from the chimney. There are a number of
catalytic problems which can cause loss of activity:
Blockage
While the honeycomb pattern ensures good contact, it
also increases the resistance to flow of the combustion
gases, and, because of the many surfaces, provides
more places for creosote and fly ash to deposit. It is
important to follow the operating instructions in order
to minimize these deposits, and to periodically inspect
your catalyst for signs of blockage.
Masking and Poisoning
While the catalyst itself does not enter into the combus-
tion process, it is possible for certain elements, such
as lead and sulfur, to attach to the active sites on the
surface of the honeycomb. Though the catalyst is still
there, it is covered, or masked, by the contaminant, and
cannot function. To avoid this situation, it is important
not to burn anything in your WinterWarm Small Insert
that is a source of these contaminants. Particularly
avoid painted or treated wood, coal, household trash,
colored papers, metal foils, or plastics. Chemical chim-
ney cleaners may also contain harmful elements. The
safest approach is to burn only untreated, natural wood.
Flame Impingement
The catalytic element is not designed for exposure to
direct flame. If you continually over-fire your Winter-
Warm Small Insert the chemistry of the catalyst coating
may be altered, inhibiting the combustion process.
Thermal degradation of the ceramic base may also oc-
cur, causing the element to disintegrate. Stay within the
recommended guidelines of the Operation section.
Mechanical Damage
If the element is mishandled, damage may occur.
Always treat the element carefully. Remember the
catalyst is made of a ceramic material; treat it as you
would fine china. Hairline cracks will not affect the
performance of the catalyst, as long as the steel sleeve
holds the element in the proper position.
Peeling
Peeling of the surface coat may occur if the catalytic
element is frequently subjected to excessive tempera-
tures. Follow the operating instructions carefully to
avoid this type of damage.
Every CFM Corporation product is equipped with a
Corning “Long-Life”® “Honeycomb”®. If for any reason
you must ship your catalytic element, remember its
fragile nature. Place the element in a plastic bag, and
package it with a generous amount of shock absorbing
material.
