Vermont Castings D232 User manual

- 1 -
INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER 10002735
6/00 Rev. 0
DO NOT STORE
OR USE GASOLINE OR OTHER
FLAMMABLE VAPOURS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY
OTHER APPLIANCE.
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS:
* Do not try to light any appliance.
* Do not touch any electric switch
* Do not use any phone in your building.
* Immediately call your gas supplier from
your neighbours phone. Follow the gas
suppliers instructions.
* If you cannot reach your gas supplier call
the fire department.
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
* INSTALLATION AND SERVICE MUST BE
PERFORMED BY A QUALIFIED INSTALLER,
SERVICE AGENCY OR YOUR GAS SUPPLIER.
Free-Standing
Direct Vented
Fireplaces
MODEL D232
Installation Instructions & Homeowner's Manual

- 2 -
TABLE OF CONTENTS
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE.
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these
instructions may result in a possible fire hazard and will void the warranty.
Installation Instructions.................................................................................................. 3
Important Curing/Burn Information ....................................................................... 3
Locating Your Gas Fireplace ................................................................................ 3
Clearance to Combustibles .................................................................................. 3
Fireplace Dimensions ........................................................................................... 4
Gas Specifications................................................................................................ 5
Preparation ........................................................................................................... 5
Gas Line Installation ............................................................................................. 5
Installation of Remote Switch for RN/RP gas valve.............................................. 6
General Venting Information.......................................................................................... 7
Termination Clearances ....................................................................................... 8
General Information on Assembling Vent Pipes................................................... 9
Vertical Sidewall Installations ............................................................................. 10
Vertical Sidewall Applications............................................................................. 10
Sidewall Venting Graph ...................................................................................... 11
Vent Pipe Assembly ........................................................................................... 12
Below Grade Installations (Snorkel) ................................................................... 13
Vertical Through the Roof Applications .............................................................. 14
To Install Vertical Venting................................................................................... 15
Crimped Ends Venting Components........................................................................... 16
Twist Lock Venting Components ................................................................................ 17
Operating Instructions.................................................................................................. 18
General Glass Information.................................................................................. 18
Louvre Removal ................................................................................................. 18
Trim Removal ..................................................................................................... 18
Glass Removal ................................................................................................... 18
Glass Cleaning ................................................................................................... 19
Log Set Installation & Small Lava Rock.............................................................. 19
Ceramic Refractory............................................................................................. 19
Maintenance ....................................................................................................... 20
Cleaning Procedure............................................................................................ 20
Flame Adjustment & Characteristics .................................................................. 20
Lighting and Operating Instructions.................................................................... 21
Troubleshooting Gas Control (Honeywell).......................................................... 22
Troubleshooting Gas Control (SIT Nova 820) .................................................... 23
Replacement Parts List .............................................................................................. 24
Replacement Parts Pictorial ............................................................................... 26
Options ......................................................................................................................... 26

- 3 -
12" (305mm)
12" (305mm)
A
B
C
E
D
This gas fireplace should be installed by a qualified installer in
accordance with local building codes and with current CAN /
CGA-B149(.1or.2)InstallationcodesforGasBurningFireplaces
and Equipment and CAN/CSA Z 240 .4 Canada.
FOR U.S.A Installations follow local codes and/or the current
National Fuel Gas Code. ANSI Z223.1.
FOR SAFE INSTALLATION AND OPERATION PLEASE NOTE
THE FOLLOWING:
1 . This fireplace gives off high temperatures and should
be located out of high traffic areas and away from
furniture and draperies.
2. Children and adults should be alerted to the hazards
of the high surface temperatures of this fireplace and
should stay away to avoid burns or ignition of cloth-
ing.
3. Childrenshouldbecarefullysupervisedwhentheyare
in the same room as your fireplace.
4. Under no circumstances should this fireplace be
modified.Parts removed for servicing should be re-
placed prior to operating the fireplace again.
5. Installation and any repairs to this fireplace should be
carried out by a qualified service person. A profes-
sional service person should be contacted to inspect
thisfireplaceannually.Makeit apracticetohave allof
yourgas fireplaces checked annually. More frequent
cleaning may be required due to excess lint and dust
from carpeting, bedding material, etc.
6. Control compartments, burners and air passages in
this fireplace should be kept clean and free of dust
and lint. Make sure that the gas valve and pilot light
are turned off before you attempt to clean this fire-
place.
7, The venting system(chimney) of this fireplace should
be checked at least once a year and if needed your
venting system should be cleaned.
8. Keep the area around your fireplace clear of combus-
tible materials, gasoline and other flammable vapour
and liquids. This fireplace should not be used as a
drying rack for clothing,nor should Christmas stock-
ings or decorations be hung in the area of it.
9. Under no circumstances should any solid fuels
(wood,coal,paper or cardboard etc.)be used in this
fireplace.
10.Theflowofcombustionandventilationairmustnotbe
obstructed in any way.
11.When the fireplace is installed directly on carpeting,
vinyltileoranycombustiblematerialotherthanwood,
the fireplace must be installed on a metal or wood
panelextendingthefullwidthanddepthofthefireplace.
12.This fireplace requires adequate ventilation and
combustion air to operate properly.
13.This fireplaces must not be connected to a chimney
flue serving a separate solid fuel burning fireplace.
Adequate clearances as listed below must be
maintained for servicing and proper operation:
Back ............................................. 0"
Side ............................................ 12"
Floor ............................................. 0"
Top ............................................. 36"
Corner .................. 0" to Back Edges
Vent Pipe...................................... 1"
CLEARANCE TO COMBUSTIBLES
Fig. 1
IMPORTANT:
PLEASE REVIEW THE FOLLOWING
CAREFULLY
Remove any plastic from trim parts before turning
the fireplace ON.
It is normal for fireplaces fabricated of steel to give
off some expansion and/or contraction noises
during the start up or cool down cycle. Similar
noisesare found with your furnace heatexchanger
or car engine.
It is not unusual for your gas fireplace to give off
someodourthefirsttime it is burned. This is due to
the curing of the paint and any undetected oil from
the manufacturing process.
Please ensure that your room is well
ventilated - open all windows.
It is recommended that you burn your fireplace for
a least six (6) hours the first time you use it. If
optional fan kit has been installed, place fan in the
"OFF" position during this time.
INSTALLATION AND OPERATING INSTRUCTIONS
LOCATING YOUR GAS FIREPLACE
A) *Flat on wall corner B) *Room divider
C) Island D) Cross corner
E) Flat on wall
* A & B must maintain a 12" (305mm) clearance between the wall
and side glass of fireplace.
Thereisaminimumverticalriserequiredfortheventing
which varies depending on the application. The
maximumhorizontalrunalsohasrestrictions. Become
familiar with the venting instructions starting on page
7, before starting the installation.

- 4 -
A
B
CDE
F
G
H
J
I
K
FIREPLACE DIMENSIONS
MODEL D232
A 25" 635mm
B 24 1/8" 613mm
C 16" 406mm
D 20" 508mm
E 19" 483mm
F 21" 533mm
G 31 3/4" 806mm
H 17 3/4" 451mm
I 29 5/8" 752mm
J 9" 229mm
K6
1/2" 165mm
L— —
M— —
N— —
MODEL D232

- 5 -
GAS INLET & MANIFOLD PRESSURES
Input Minimum
Input Maximum
Manifold Pressure
NATURAL LP (Propane)
11" wc
13" wc
10" wc
4.5" wc
7" wc
3.5" wc
Always check for gas leaks with a mild soap
and water solution. Do not use an open
flame for leak testing.
The gas control is equipped with a captured
screw type pressure test point, therefore it is
not necessary to provide a 1/8" test point up
stream of the control.
FOR U.S.A Installations consult the current National
Fuel Gas Code, ANSI Z223.1
GAS LINE INSTALLATION
When purging gas line, the front glass must
be removed.
The gas pipeline can be brought in through the rear of the
fireplaceaswellasthebottom. Knockoutsareprovidedon
the bottom behind the valve to allow for the gas pipe
installation and testing of any gas connection. It is most
convenient to bring the gas line in from the rear right
side of the valve, as this allows fan installation or
removal without disconnecting the gas line.
The gas line connection can be made with
properlytinned3/8"coppertubing,3/8"rigid
pipe or an approved flex connector. Since
some municipalities have some additional
local codes, it is always best to consult your
localauthorityandtheCAN/CGA-B149(.1or
.2) installation code.
The installation of your Fireplace must
conform with local codes, or in the absence
of local codes, with National Fuel Gas Code,
ANSIZ223.1latestedition,orCAN 1B1-149.1
and .2 Installation Code. (EXCEPTION: Do
not derate this appliance for elevations up to
4,500 ft (1,370m). Maintain the manifold
pressure at 3.5 inches W.C. for Natural Gas
and 10 inches W.C. for LP gas.)
ANSI.Z21.88b-1999 / CSA 2.33b - M99
Vented Gas Fireplace Heaters
D232 CERTIFIED TO
PREPARATION
The use of wall paper adjacent to this fire-
place is not recommended, as the high heat
given off by this fireplace may adversely
effect the binders in the adhesive used to
apply the wallpaper.
Beforebeginning,removetheglassdoorfromthefireplace.
Also check to make sure there is no hidden damage to the
fireplace. Take a minute and plan out the gas, vent and
electrical supply. See Glass Removal Section.
This appliance may be installed in an aftermarket
permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a
certified kit is available and used.
GAS SPECIFICATIONS
MAX. MIN.
INPUT INPUT
MODEL FUEL GAS CONTROL B.T.U.H B.T.U.H.
D232RN Natural Gas Millivolt Hi/Lo 30,000 21,000
D232RP Propane Gas Millivolt Hi/Lo 30,000 22,500
Fig. 2
1/2" Gas Supply
1/2" X 3/8" Reducer
3/8" Nipple
3/8" Nipple
3/8" Nipple
3/8" X 3/8" Shut Off Valve
3/8" Uni n
TYPICAL GAS LINE CONNECTION

- 6 -
P
I
L
O
T
TPTH TP TH
ON/OFF SWITCH OR
MILLIVOLT THERMOSTAT
VALVE
THERMOPILE
Fig. 4
DO NOT USE THIS FIREPLACE IF ANY
PART OF THIS FIREPLACE HAS BEEN
UNDER WATER. IMMEDIATELY CALL
A QUALIFIED SERVICE TECHNICIAN
TO INSPECT THE HEATER AND TO
REPLACE ANY PART CONTROL
WHICH HAS BEEN UNDER WATER.
When using copper or flex connector use only approved
fittings. Always provide a union when using back iron
pipesothatgaslinecanbeeasilydisconnectedforburner
or fan servicing. See Fig. 2. See gas specification for
pressure details and ratings.
The fireplace valve must not be subjected to any test
pressures exceeding 1/2 psi. Isolate or disconnect this or
any other gas appliance control from the gas line when
pressure testing.
PILOT
ADJ
TH
TP
TP TH

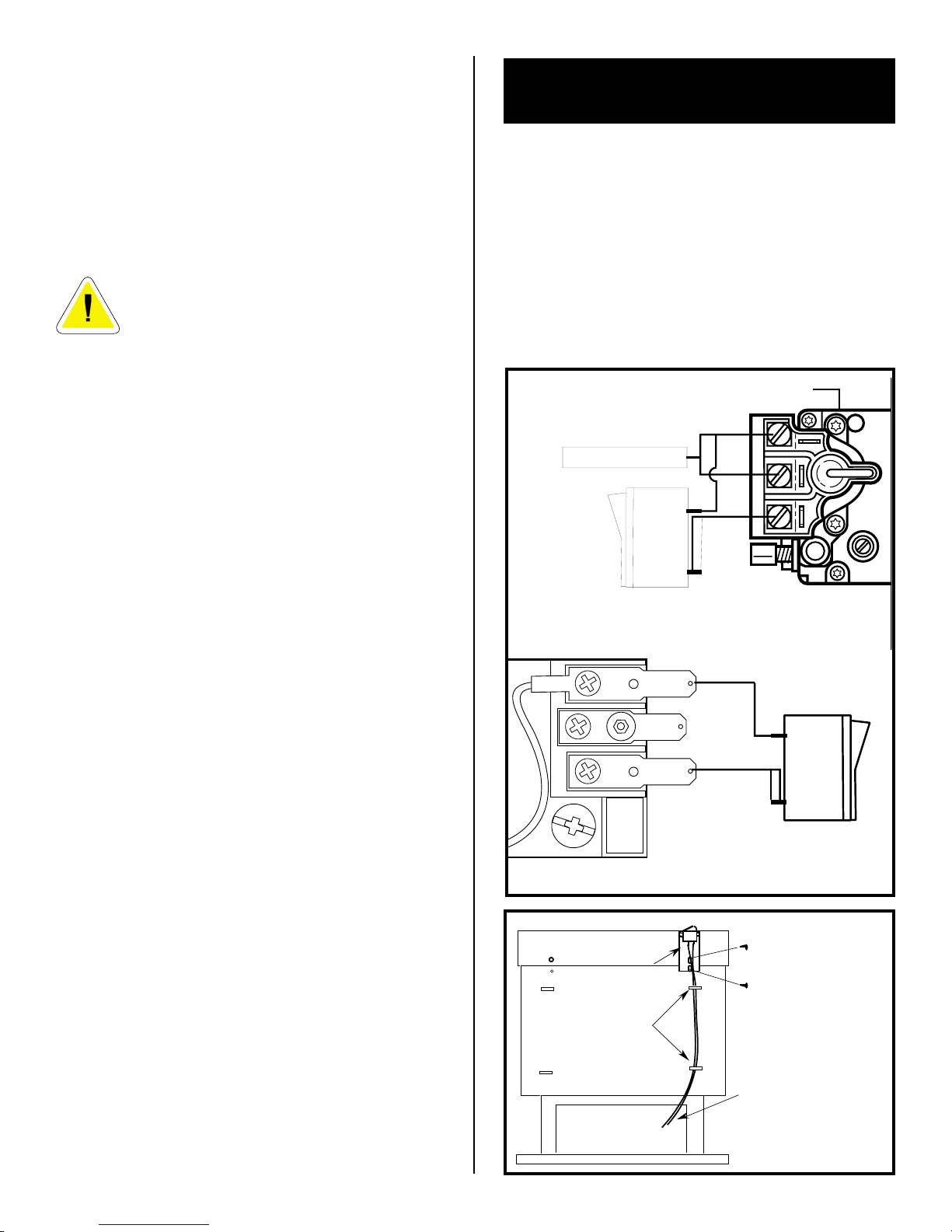

INSTALLATION OF REMOTE
SWITCH FOR RN/RP GAS VALVE
Install on/off switch assembly on either the rear right or left
side of the Fireplace.
1. Removethescrew attheback ofthecabinet topeither
on the left or the right side of the fireplace.
2. Positionswitchassemblyontothebackofthefireplace,
then fasten two screws as shown in Fig. 5.
3. Attachwiringundertheclipsonthe rear casing (Fig.5)
and install wiring through the rear opening of the
fireplace before connecting to the valve as shown in
Fig. 4.
Screw
(through existing hole)
Screw
On/off switch
assembly
Clips
Wiring for milli-volt
gas valves
Fig. 5

- 7 -
;
;
;;
;;
;;
V
V
V
V
V
V
V
V
V
X
X
;;
;;
X
D
E
B
BB
C
BM
B
AJKA
F
L
G
G
;
TERMINATION CAP AIR SUPPLY INLET GAS METER RESTRICTED AREA
(TERMINATION PROHIBITED)
H
I
Fixed
Closed
Fixed
Closed
Openable
Openable Fixed
Closed
G
G
NN
A
A = clearanceabovegrade,veranda,porch,deck,orbal-
cony[*12inches(305mm)minimum]
B = clearancetowindowordoorthatmaybeopened 12"
(306mm).
C = clearancetopermanentlyclosedwindow[minimum12
inches(305mm)recommendedtopreventcondensa-
tiononwindow]
D = verticalclearancetoventilatedsoffitlocatedabovethe
termina/ within a horizontal distance of 24 inches
(610mm)fromthecentre-lineoftheterminal[18inches
(458mm)minimum]
E = clearance to unventilated soffit [12 inches (305mm)
minimum
F = clearancetooutsidecomerseenextpage
G = clearancetoinsidecomerseenextpage
H = *nottobeinstalledaboveameter/regulatorassembly
within36inches(914mm)horizontallyfromthecentre-
lineoftheregulator
† aventshallnotterminatedirectlyaboveaside-walkorpaveddrivewaywhichislocatedbetweentwosinglefamily
dwellingsandservesbothdwellings*
‡ onlypermittedifveranda,porch,deck,isfullyopenonaminimum2sidesbeneaththefloor*
* asspecifiedinCAN/CGAB149(.1or.2)InstallationCodes(1991)forCanadaorforU.S.A.Installationsfollowthe
currentNationalFuelGasCode,ANSIZ223.1.
Note:Localcodesorregulationsmayrequiredifferentclearances.
I = clearancetoserviceregulatorventoutlet[*72inches
(1828mm)minimum]
J = clearancetonon-mechanicalairsupplyinlettobuilding
orthecombustionairinlettoanyotherfireplace[*12
inches(305mm)minimum]
K = clearancetoamechanicalairsupplyinlet[*72inches
(1828mm)minimum]
L = †clearanceabovepavedside-walkorapaveddriveway
locatedonpublicproperty[*84inches(2133mm)mini-
mum]
M = clearance under veranda, porch, deck [*12 inches
(305mm)minimum‡]
N = Clearanceabovearoofshallextendaminimumof24"
(610mm)abovethehighestpointwhenitpassesthrough
the roof surface, and any other obstruciton within a
horizontaldistanceof18"(450mm).
Theremustnotbeanyobstructionsuchasbushes,garden
sheds,fences, decks or utility buildings within 24"from the
front of the termination hood.
Do not locate termination hood where excessive snow or
ice build up may occur. Be sure to check vent termination
area after snow falls, and clear to prevent accidental
blockage of venting system. When using snow blowers,
make sure snow is not directed towards vent termination
area.
Location of Vent Termination
It is imperative that the vent termination be located
observing the minimum clearances as shown on this
page.
*
CheckwithlocalcodesorinabsenceofsamewithCAN/CGA
B149(.1or.2)InstallationCodes(1991)forCanadaorfor
U.S.A.InstallationsfollowthecurrentNationalFuelGasCode,
ANSIZ223.1.
Your fireplace is approved to be vented either through the
side wall, or vertically through the roof.
–Only venting components specifically approved and
labelled for this fireplace may be used.
– Minimumclearancesbetweenventpipesandcom-
bustible materials is one (1") inch (25 mm).
–Venting terminals shall not be recessed into a wall or
siding.
–Horizontal venting must be installed on a level plane
without any incline or decline.
GENERAL VENTING INFORMATION

- 8 -
;;
;;
;;
;
Outside Corner
Inside Corner
Termination Clearances
Termination clearances for buildings with combustible and noncombustible exteriors.
A =
Combustible
6"(152mm)
Noncombustible
2"(50mm)
B =
Combustible
6"(152mm)
Noncombustible
2"(50mm)
;
;;
A
;;
;;
;;
Balcony -
with no side wall
G =
Combustible&
Non-Combustible
12"(305mm)
G
Balcony -
with perpendicular side wall
H = 24"(610mm)
J = 20"(508mm)
H
J
B
Recessed Location
C = Maximum depth of 48"
(1219mm) for recessed
location.
D = Minimum width for back wall
of a recessed location.
Combustible 38"(965mm)
Noncombustible 24"(610mm)
E = Clearance from corner in
recessed location.
Combustible 6"(152mm)
Noncombustible 2"(50mm)
;;;
CDC
E
V
V
Combustible &
Non-Combustible
VV
V

- 9 -
GENERAL INFORMATION ON ASSEMBLING
THE VENT PIPES
Join pipes and secure joints with three (3) sheetmetal
screws. (See Fig. 6) Wipe off excess sealant.
There are polished brass decorative rings
provided to hide the exposed piping
joints. Wrap the brass ring over the joint
fitting the stud into the notch and tighten
down the 3/8" nut
CRIMPED END PIPES
Before joining elbows and pipes apply a bead of high
temperature sealant to crimped end of elbow or pipe.
(Fig. 6).
BEAD LOCATION
1" (25mm) FROM CRIMPED END OF PIPE
1'' (25mm)
Screw Holes
Fig. 6
CANADIAN INSTALLATIONS:
The venting system must be installed in accordance with
the current CAN/CGA-B149 (.1 or .2) installation code.
U.S.A. INSTALLATIONS:
The venting system must conform with local codes and/or
the current National Fuel Gas Code, ANSI Z223.1.
Only venting components manufactured by The CFM
Majestics Products Company may be used.
When using twist lock pipe it is not necessary to use
sealant at the twist lock joints.
The only areas of the venting that need to be sealed with
high temperature silicone sealant are the collars on the
fireplace and termination, and the sliding joint of any
telescopic vent pipes used in the system.
To join the twist lock pipes together, simply align the
beads of the male end with the grooves of the female
end, then while bringing the pipes together, twist the
pipe until the flange on the female end contacts the
external flange on the male end.
TWIST LOCK PIPES
TWIST LOCK PIPE JOINT
Screw Holes
Fig. 7
It is recommended that you secure the joints with 3
sheet metal screws however this is not mandatory with
twist lock pipe.
To make it easier to assemble the joints we suggest
putting a lubricant (Vaseline or similar) on the male end
of the twist lock pipe.

- 10 -

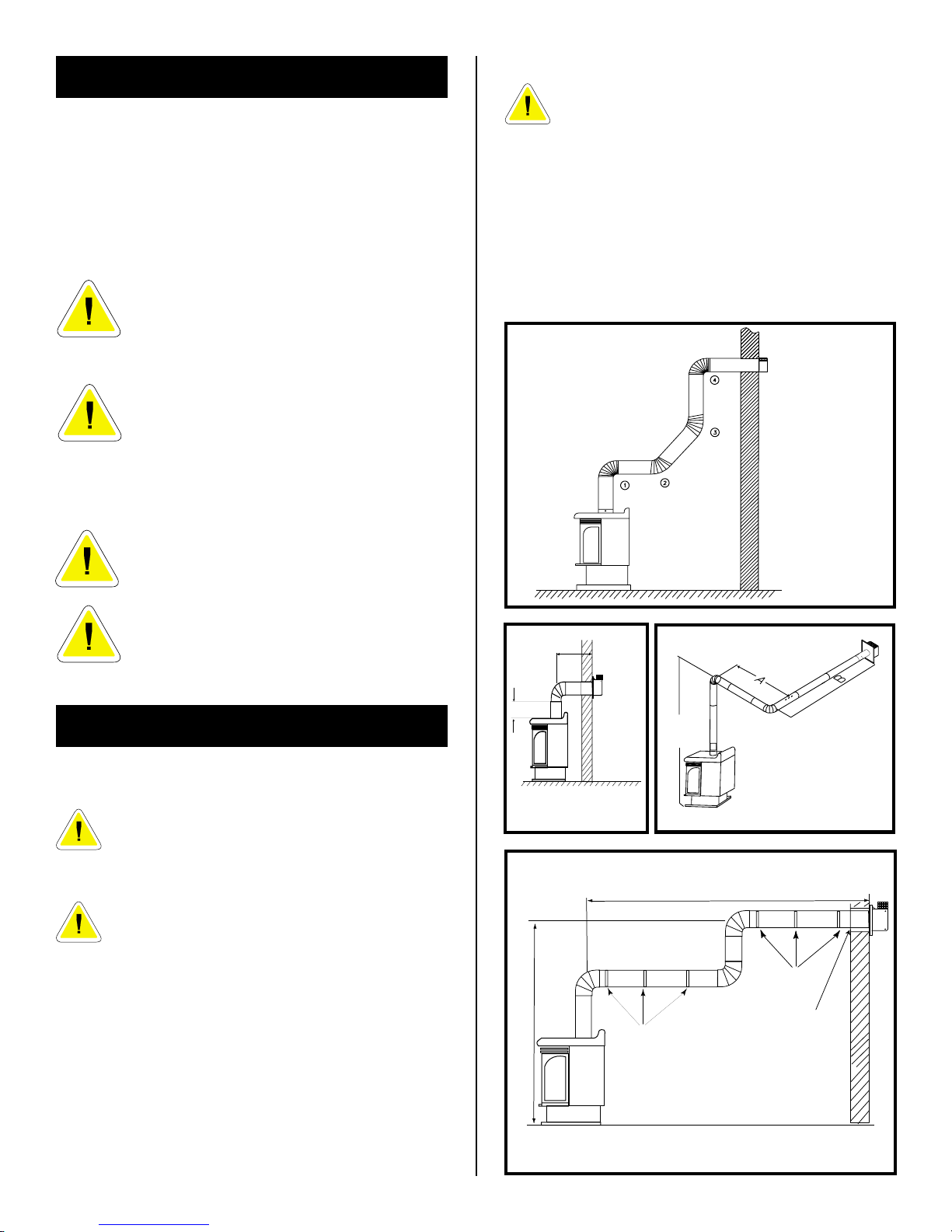

VERTICAL SIDEWALL INSTALLATIONS
Since it is very important that the venting system
maintainitsbalancebetweenthecombustionairintake
and the flue gas exhaust, certain limitations as to vent
configurations apply and must be strictly adhered to.
The graph showing the relationship between vertical and
horizontal side wall venting will help to determine the
various lengths allowable. Fig. 11a or 11b.
Minimum clearance between vent pipes
and combustible materials is one (1")
inch (25mm) on top, bottom and sides
unless otherwise noted.
When vent termination exits through
foundations less than 20" below siding
outcrop, the vent pipe must flush up with
the siding. A 7DVSS must also be used.
It is always best to locate the fireplace in such a way that
minimizesthenumberofoffsetsandhorizontalventlength.
The horizontal vent run refers to the total
length of vent pipe from the flue collar of
the fireplace to the face of the outer wall.
Horizontal plane means no vertical rise
exists on this portion of the vent
assembly.
Fig. 11
20 FT
(610cm)
7.5FT (2286m)
PIPE STRAPS
EVERY 3'
(92cm)
PIPE STRAPS
EVERY 3'
(92cm)
FIRESTOP/ZERO
CLEARANCE SLEEVE
Fig. 9
3 FT
(92cm)
x
Fig. 10
7.5 ft.
2286mm
Fig. 8
For each 45 degree elbow installed in the hori-
zontal run, the length of the horizontal run
MUST be reduced by 18" (45cm). This does not
apply if the 45 degree elbows are installed on
the vertical part of the vent system.
Themaximumnumberofelbowdegreesinasystemis270o
(See Fig. 8).
Sample: 1 - 90o
2-45
o
3-45
o
4-90
o
Total 270o
VERTICAL SIDEWALL APPLICATIONS
The maximum number of 90 degree elbows per side wall
installation is three (3).
For D232 the maximum horizontal run off a
minimum 12" vertical rise is 3'. (See Fig. 9)
If a 90 degree elbow is used in the horizontal
ventrun(levelheightmaintained)themaximum
horizontal vent length is reduced by 36 inches.
Fig. 10. This does not apply if the 90 degree
elbowsareusedtoincreaseorredirectavertical
rise (Fig. 11).
Example: According to the chart the maximum horizontal
ventlengthis20'andifa90degreeelbowisrequiredinthe
horizontal vent it must be reduced to 17'.
(Fig. 10 Dimension A plus B must not be greater than 17').
The maximum number of 45 degree elbows permitted per
side wall installation is two (2). These elbows can be
installed in either the vertical or horizontal run (Fig. 8).
A + B = 17ft.
D232x=12"

- 11 -
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
eg: A
eg: B
VERTICAL DIMENSION FROM THE FLOOR OF THE FIREPLACE
TO THE CENTRE OF THE HORIZONTAL VENT PIPE
SIDEWALL VENTING GRAPH
(Dimensions in Feet)
HORIZONTAL DIMENSION
TO USE THE VENT GRAPH
1. Determine the height of the centre of the horizontal
vent pipe exiting through the outer wall. Using this
dimensionontheSidewallVentGraph(Fig.12),locate
the point it intersects with the slanted graph line.
2. From the point of this intersection, draw a vertical line
to the bottom of the graph.
3. Select the indicated dimension, and position the fire-
place in accordance with same.
EXAMPLE A:
If the vertical dimension from the floor of the fireplace is 11
feet (335cm) the horizontal run to the face of the outer wall
must not exceed 14 feet (427cm).
EXAMPLE B:
If the vertical dimension from the floor of the fireplace is 7
feet(214cm),thehorizontalruntothefaceoftheouterwall
must not exceed 8-1/2 feet (259cm).
Fig. 12
For D232
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
eg: A
eg: C
RFSDV42
ONLY
VERTICAL DIMENSION FROM THE FLOOR OF THE FIREPLACE
TO THE CENTRE OF THE HORIZONTAL VENT PIPE
SIDEWALL VENTING GRAPH
(Dimensions in Feet)
HORIZONTAL DIMENSION
For FSDV42
Fig. 14b
SEE PAGE 14 FOR VENTING
REQUIREMENTS FOR SNORKELS.
SEE PAGE 13 & 14 FOR VENTING
REQUIREMENTS FOR SNORKELS.

- 12 -
STEP 2
Measure wall thickness and cut zero clearance sleeve
parts to proper length (MAXIMUM 12"). Assemble sleeve
and attach to firestop with #8 sheetmetal screws (sup-
plied). Install firestop assembly (Fig. 16)..
Zero clearance sleeve is only required for
combustible walls.
#8
SCREWS(2)
ADJUSTABLE ZERO
CLEARANCE SLEEVE
ADJUSTABLE
ZERO CLEARANCE
SLEEVE
#8
SCREWS(2)
#8
SCREWS(2)
Maximum Length
12" (294mm)
FIRESTOP
Fig. 16
STEP 1
Locateventopeningonthewall. Itmaybenecessarytofirst
position the fireplace and measure to obtain hole location.
Depending on whether the wall is combustible or non-
combustible, cut opening to size. Fig. 13 or 15.
(For combustible walls first frame in opening. Fig. 14).
(240mm)
9-3/8"
9-3/8"
(240mm)
7-1/2"
(190mm)
Vent Opening —
Combustible Wall
Vent Opening —
Noncombustible Wall
(framing detail)
Fig. 13
Fig. 15
VENT PIPE ASSEMBLY
Fig. 14
COMBUSTIBLEWALLS (Fig.13): Cuta9-3/8"Hx9-3/8"W(240
mmx 240mm) holethrough theexterior walland frameas shown
(Fig. 14).
NON-COMBUSTIBLE WALLS (Fig. 14): Hole opening must be
7.5" (190 mm) in diameter.
STEP 3
Placefireplaceintoposition. (Fig.17). Measurethevertical
length (X) required from the base of the flue collars to the
centre of the wall opening.
Fig. 17
;
;
;
;
;
X
STEP 4
Apply a bead of silicone to the inner and outer flue collars
of the fireplace (Fig. 18) and using appropriate length of
pipe section(s) attach to fireplace with three (3) screws.
Follow with the installation of the inner and outer elbow,
again secure joints as described on page 9.
Fig. 18
BEAD OF SEALANT

- 13 -
;
;
;
;
;
STEP 6
Note: If using the charcoal wall plate, Part #52202-CG,
and collar, Part #52203-CG, put them in place before
putting the pipe sections through the wall.
Useappropriatelengthofpipesections-telescopic orfixed
- and install. The sections which go through the wall are
packaged with the starter kit, and can be cut to suit if
necessary. (Fig. 20).
Fig. 20
Sealing vent pipe and firestop gaps with
high temperature sealant will restrict cold
air being drawn in around fireplace.
Support horizontal pipes every 3 feet (91
cm) with metal pipe straps.
Check fireplace to make sure it is levelled
and properly positioned.
STEP 7
Apply high temperature sealant to 4" and 7" collars or the
termination one inch away from crimped end. Guide the
ventterminations4"and7"collarsintotheirrespectivevent
pipes. Doublecheckthattheventpipesoverlapthecollars
by 2". Secure the termination to the wall with screws
provided and caulk around the wall plate to weatherproof.
Fig. 21
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
X
;;
;;
;;
;;
;;
;;
;
;

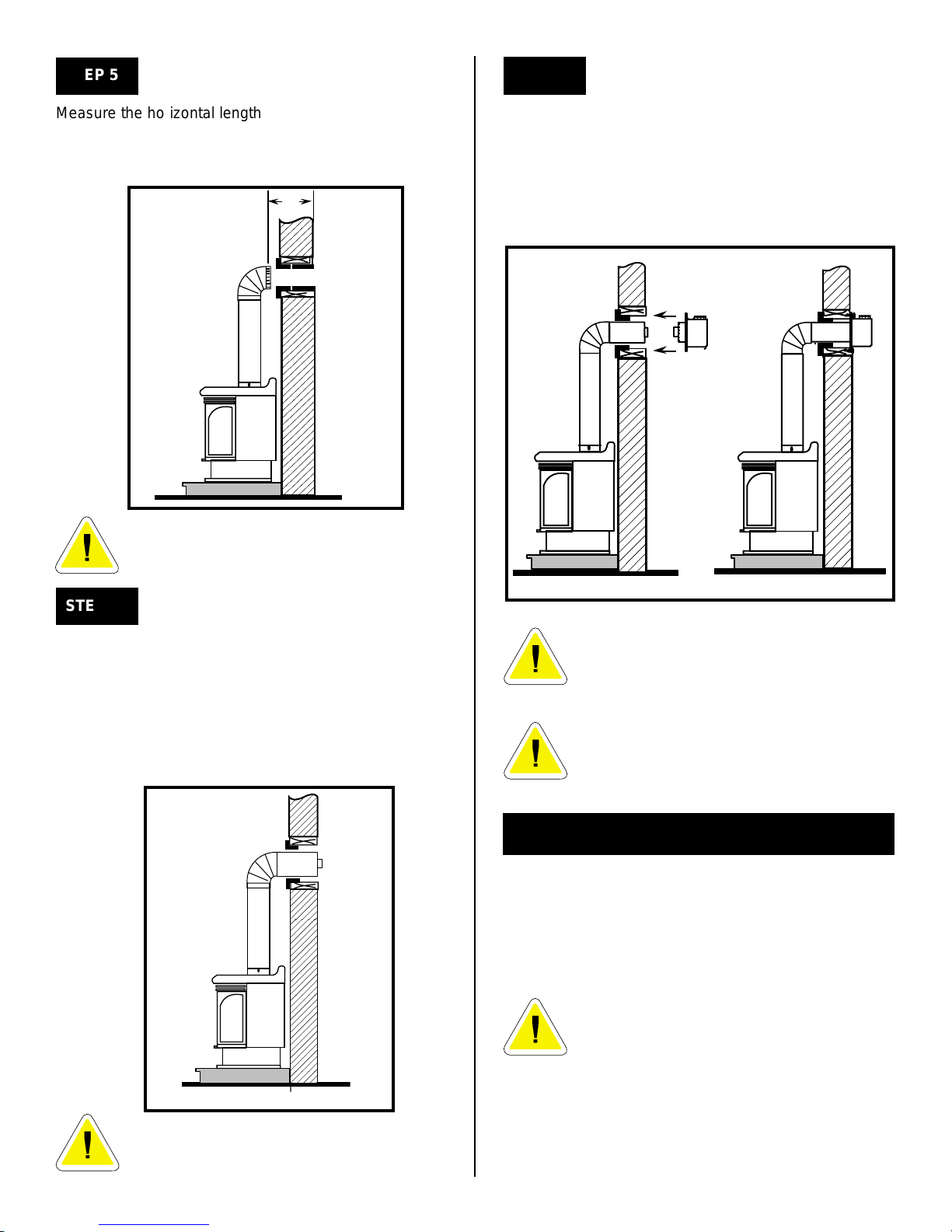

STEP 5
Measure the horizontal length requirement including a 2"
overlap, i.e. from the elbow to the outside wall face plus 2"
(or the distance required if installing a second 90) elbow.
(Fig. 19).
Fig. 19
Always install horizontal venting on a
level plane.
BELOW GRADE INSTALLATIONS
When it is not possible to meet the required vent terminal
clearances of 12 inches (305mm) above grade level a
starterventkitisrecommended. Itallowsinstallationdepth
of down to 7 inches (178mm) below grade level. The 7
inches is measured from the centre of the horizontal vent
pipe as it penetrates through the wall.
If venting system is installed below ground,
werecommendawindowwellwithadequate
and proper drainage.

- 14 -
GRAVEL
DRAIN
FIRESTOP
FOUNDATION WALL
WINDOW WELL
SNORKEL
GROUND
24"/608mm
MINIMUM*
A minimum of 24"/608mm
vertical pipe must be installed
when using the snorkel kit.
The 22" vertical rise (center to
center) of the snorkel may be
included for calculation of max.
horizontal run.
*
7" PIPE SCREWS 4" CLEARANCE
*
Fig. 22

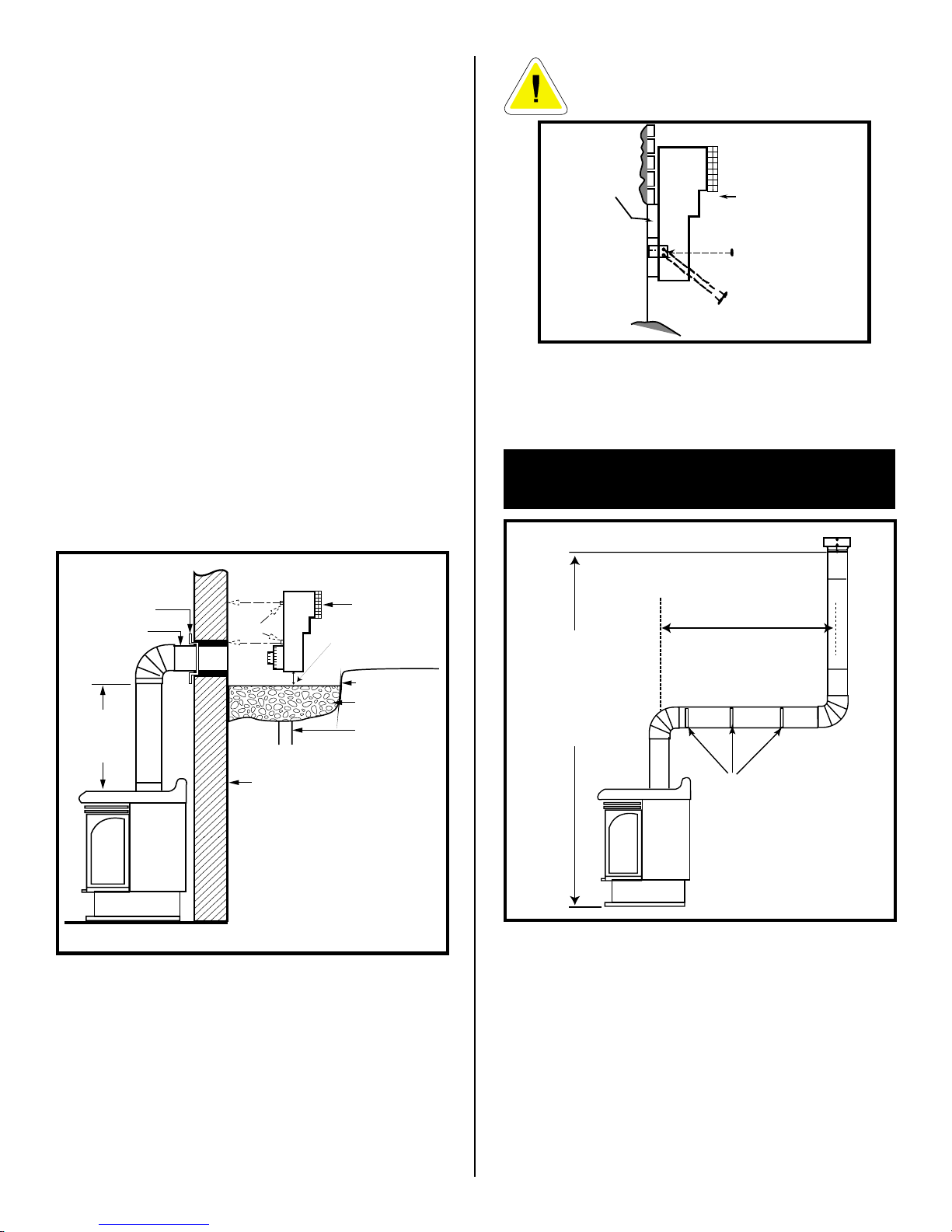

1. Establish vent hole through the wall (Fig. 13,14 & 15).
2. Remove soil to a depth of approximately 16" below
base of snorkel. Install drain pipe. Install window well
(not supplied). Refill hole with 12" of coarse gravel
leavingaclearanceofapproximately4"belowsnorkel.
See Fig. 22.
3. Install vent system.
4. Ensure a watertight seal is made around the vent pipe
coming through the wall.
5. Apply high temperature sealant caulking (supplied)
around the 4 and 7 inch snorkel collars.
6. Slide into vent pipe and secure to the wall.
7. Level the soil so as to maintain a 4" clearance below
snorkel. See Fig. 22.
DO NOT BACK FILL AROUND SNORKEL.
SOIL SHOULD NOT BE LESS THAN 4"
BELOW SNORKEL.
FOUNDATION
RECESS SNORKEL
SCREWS
WALL
SCREWS
SHEET METAL
WATERTIGHT
SEAL
AROUND
PIPE
If the foundation is recessed, use recess brackets (not
supplied) for securing lower portion of the snorkel. Fasten
bracketstowallfirstandthensecuretosnorkelwithselfdrilling
#8x1/2sheetmetalscrews. Itwillbenecessarytoextendthe
vent pipes out as far as the protruding wall face (Fig. 22).
Fig. 23
VERTICAL THROUGH THE ROOF
APPLICATIONS
This Gas Fireplace has been approved for,
a) Verticalinstallationsupto40feet(12 metres)inheight.
Uptoa10 ft. horizontalventruncan be installedwithin
the vent system using a maximum of two 90oelbows.
(Fig. 24)
b) Uptotwo45oelbowsmaybeusedwithinthehorizontal
run. For each 45oelbow used on the horizontal level
themaximumhorizontallengthmustbereducedby 18
inches.
Example: Maximum horizontal length
0- 45
oelbows 10 ft.
1- 45
oelbows 8.5 ft.
2- 45
o elbows 7 ft.
Ensure sidewall venting clearances are observed.
If installing a snorkel a minimum 24" vertical rise is
necessary. The maximum horizontal run with the 24"
vertical pipe is 36" (915mm). This measurement is
taken from the collar of the fireplace to the face of the
exterior wall. See vent graph for extended horizontal
run if the vertical exceeds 24".
Fig. 24
MAXIMUM
10 FT
(305cm)
PIPE STRAPS
EVERY 3’
(92cm)
MINIMUM
8 FT./
MAXIMUM
40 FT.
VERTICAL
RISE

- 15 -

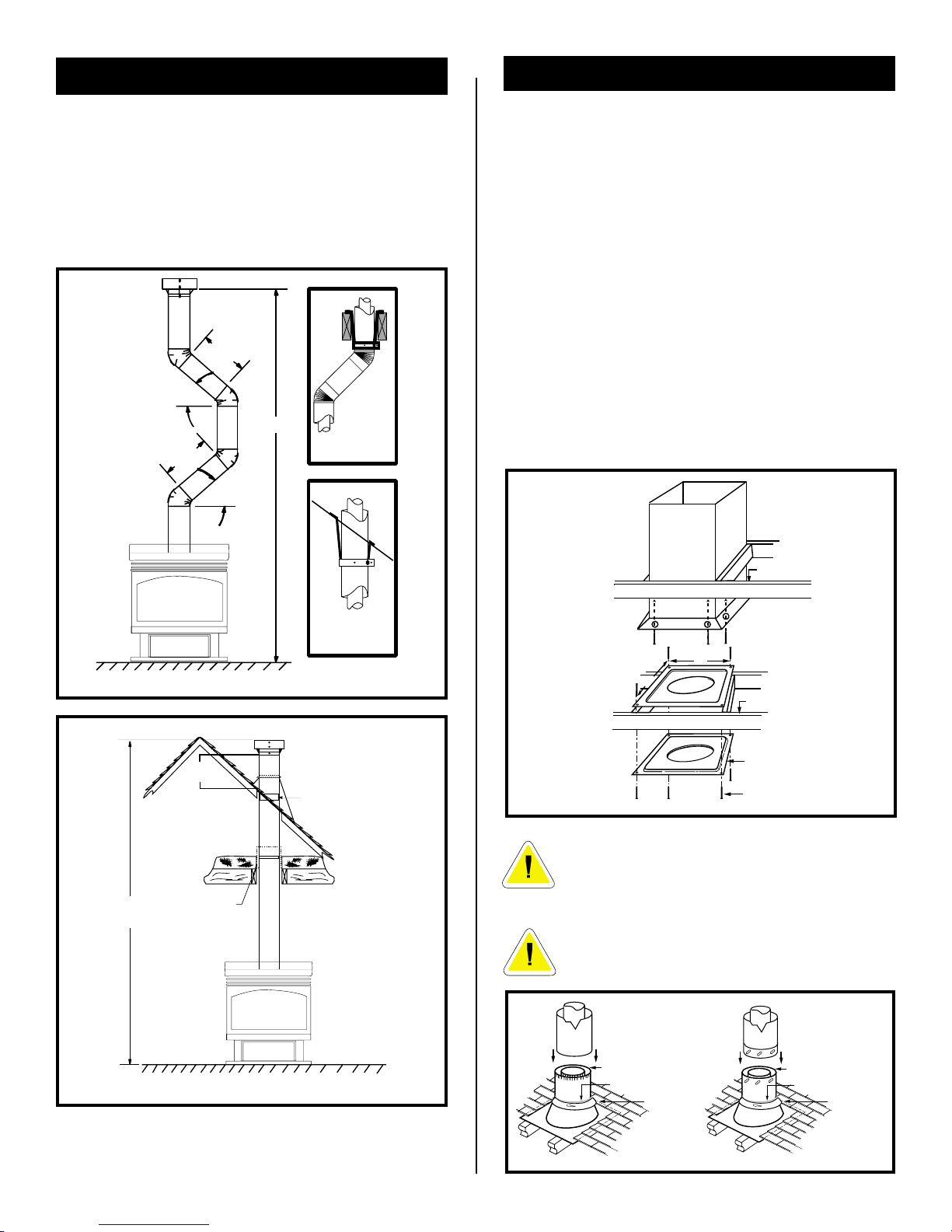

VERTICAL THRU THE ROOF APPLICATIONS
1. Locate your fireplace.
2. Plumb to centre of the (4") flue collar from ceiling
above and mark position.
3. Cutopeningequalto9-3/8"x9-3/8" (240mmx240mm).
4. Proceed to plumb for additional openings through the
roof.Inallcases,theopeningmustprovideaminimum
of 1 inch clearance to the vent pipe, i.e., the hole must
be at least 9-3/8" x 9-3/8" (240 mm x 240 mm).
5. Place fireplace into position.
6. Place firestop(s) #7DVFS or Attic Insulation Shield
#7DVAIS into position and secure. (Fig. 29)
7. Install roof support (Fig. 27) and roof flashing making
sure upper flange of flashing is below the shingles. Fig. 30.
8. Install appropriate pipe sections until above the flash-
ing. (See Fig. 30).
9. Install storm collar and seal around the pipe.
10. Add additional vent lengths for proper height. Fig. 28.
11. Apply high temperature sealant to 4" and 7" collars of
vertical vent termination and install.
TO INSTALL VERTICAL VENTING
Fig. 29 If there is a room above ceiling level,
firestop spacer must be installed on both the
bottomandthetopsideoftheceiling joists. Ifan
attic is above ceiling level a 7DVAIS (Attic
Insulation Shield) must be installed.
Fig. 30 The enlarged ends of the vent section
always face downward.
SEALANT
SHEETMETAL
SCREWS (#5) —
3 PER JOINT
STORM
COLLAR
JOIST
11"
11"
Attic
Insulation
Shield
Ceiling
Installation
JOIST
NAILS (4)
FIRESTOP
SPACER
11"
11"
UPPER FLOOR
Fig. 30
Fig. 29
45°
45°
2.44m
MAX.
8 FEET
2.44m
MAX.
8 FEET
40'(12m)
TYPICAL OFFSET INSTALLATION
TYPICAL 7DVCS
APPLICATION
TYPICAL ROOF
SUPPORT
APPLICATION
TYPICAL STRAIGHT-UP INSTALLATION
40 FEET
(12.2mm)
ATTIC INSULATION
SHIELD
JOISTS CEILING JIOSTS
ROOF
VENT TERMINATION
ATTIC INSULATION
ROOF SUPPORT
STORM COLLAR
ROOF FLASHING
2' Min.
c) A minimum of an 8 ft. vertical rise.
d) Two sets of 45 degree elbow offsets within these
vertical installations. From 0 to a maximum of 8 ft. of
vent pipe can be used between elbows. (Fig. 25)
e) 7DVCS must be used to support offsets. (Fig. 26)
Thisapplicationwillrequirethatyoufirstdeterminethe
roof pitch and use the appropriate starter kit. (See
Venting Components List)
The minimum height of the vent above the highest
point of penetration through the roof is 2 feet. See
Fig. 28.
Fig. 25
Fig. 26
Fig. 27
Fig. 28
SEALANT
SHEETMETAL
SCREWS (#5) —
3 PER JOINT
STORM
COLLAR

- 16 -

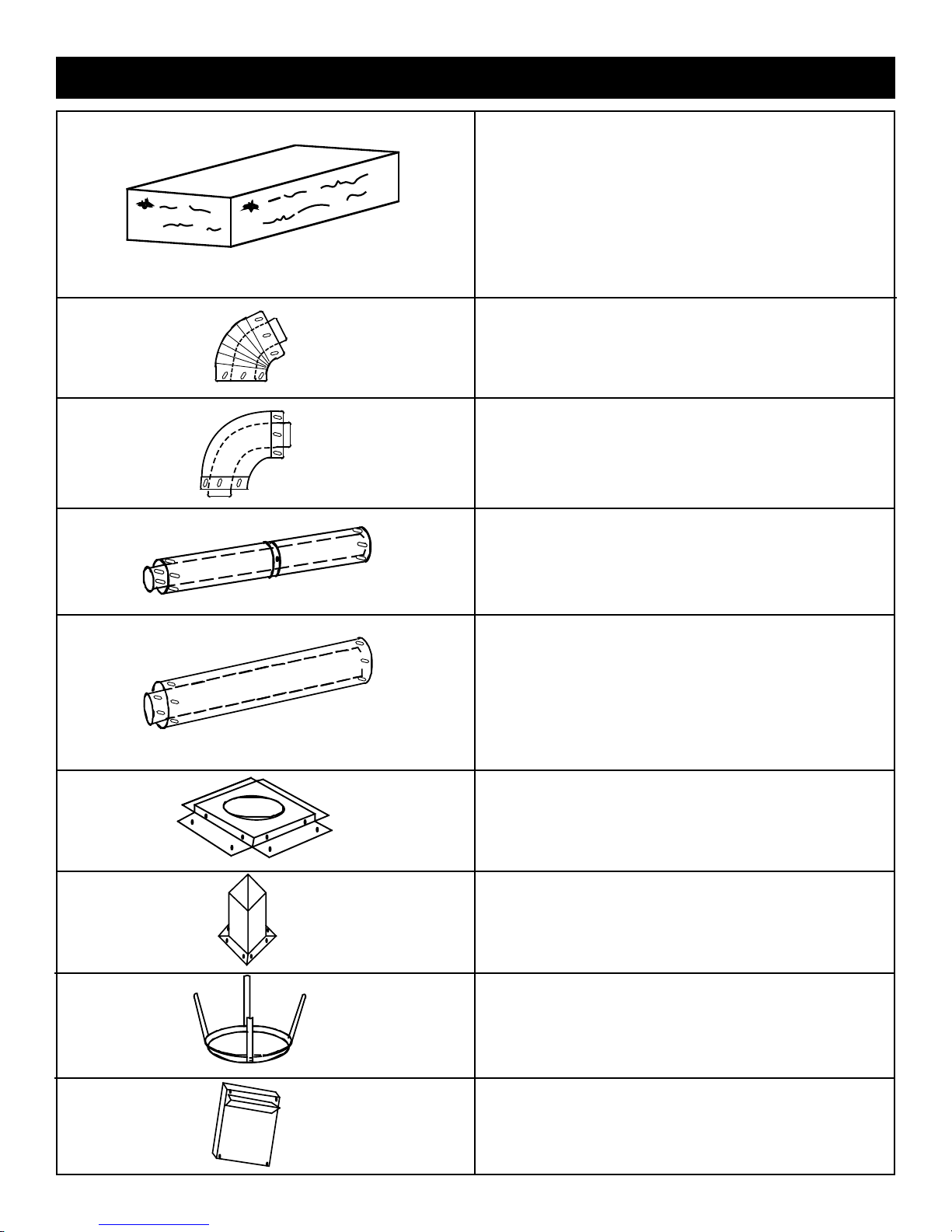

CRIMPED ENDS VENTING COMPONENTS
Starter Kit -Model 7DVSK - Sidewall Venting
Starter Kit - Model 7TDVSKV - Vertical Venting
for 7DVSKV-A order 1/12 to 6/12 roof pitch
for 7DVSKV-B order 7/12 to 12/12 roof pitch
for 7DVSKV-F order flat roof
Starter Kit - Model 7TDVSKS -Snorkel Kit
for Below Grade Installation
45ºelbow kit
7DVT45 for Vertical Installation Offsets
90ºtransition elbow kit
7DVRT90 for Vertical Sidewall Applications
or thru-the-roof.
Telescopic vent sections
7DVP610 - 6" to 10" adjustable length
7DVP1018 - 10" to 18" adjustable length
7DVP1834 - 18" to 34" adjustable length
7DVP3466 - 34" to 66" adjustable length
Pipe sections for vertical or horizontal venting
Model 7DVP8" - 4 per box
Model 7DVP12" - 4 per box
Model 7DVP24" - 4 per box
Model 7DVP36"
Model 7DVP48"
Firestop Spacer
Model 7DVFS
Attic Insulation Shield
Model 7DVAIS
Vertical/Horizontal Combination Offset Support
Model 7DVCS
7DVSS Siding Shield (to protect siding)

- 17 -
TWIST LOCK VENTING COMPONENTS
Starter Kit -Model 7TDVSK - Sidewall Venting
Starter Kit - Model 7TDVSKV - Vertical Venting
for 7TDVSKV-A order 1/12 to 6/12 roof pitch
for 7TDVSKV-B order 7/12 to 12/12 roof pitch
for 7TDVSKV-F order flat roof
Starter Kit - Model 7TDVSKS -Snorkel Kit
for Below Grade Installation
45ºelbow kit
7TDV45 for Vertical Installation Offsets
90ºtransition elbow kit
7TDVRT90 for Vertical Sidewall Applications
or thru-the-roof.
Telescopic vent sections
7TDVP1218 - 12" to 18" adjustable length
7TDVP3566 - 35" to 64" adjustable length
Pipe sections for vertical or horizontal venting
Model 7TDVP8"
Model 7TDVP12"
Model 7TDVP24"
Model 7TDVP36"
Model 7TDVP48"
Firestop Spacer
Model 7DVFS
Attic Insulation Shield
Model 7DVAIS
Vertical/Horizontal Combination Offset Support
Model 7DVCS
7DVSS Siding Shield (to protect siding)

- 18 -
GENERAL GLASS INFORMATION
Only glass approved for use in with this product
may be used for replacement.
1. The use of substitute glass will void all product
warranties.
2. Care must be taken to avoid breakage of the glass.
Under no circumstances should this fireplace
be operated without the front glass or with a
broken glass. Replacement of the glass (with
gasket) as supplied by the manufacturer should
be done by a licenced qualified service person.
OPERATING INSTRUCTIONS
LOUVRE REMOVAL
D232
Toremovelouvresfirstremovethetwo(2)screws(Fig.31)
fastening the louvre assembly to the fireplace. Lift the
louvre assembly straight out sliding the back guides out of
the fireplace body. (To reinstall, reverse).
Fig. 31
D232
1. Remove the two (2) outer 3/8" nuts holding the frame
window brass trim in place. (Fig. 32)
2. Remove the frame window brass trim by moving it
straight forward.
TRIM REMOVAL
OUTER NUTS
DRAWING 1
GLASS
FRAME
DRAWING 2
BOTTOM NUT
GLASS REMOVAL
D232
1 . Remove frame window brasstrim (SeeTrim Removal
section)
2. Removeremainingbottom3/8"nutatthebottomofthe
frame window.
3. Remove 3/8" nut from each side of the frame window
(Fig. 32).
4. Remove frame window by pulling it forward and up.
Fig. 32
Screws
Front View
Side Nuts

- 19 -
Fig. 34
GLASS CLEANING
It will be necessary to clean the glass periodically.
During start-up condensation, which is normal, forms on
the inside of the glass and causes lint, dust and other
airborne particles cling to the glass surface. Also initial
paint curing may deposit a slight film on the glass. It is
therefore recommended that the glass be cleaned two
or three times with a non-ammonia household cleaner
and warm water (we recommend gas fireplace glass
cleaner). After that the glass should be cleaned two or
three times during each heating season depending on
the circumstances present.
Clean glass after first two weeks of
operation.
INSTALLATION OF LOGS &
BURNER LAVA ROCK MATERIAL
1 . Remove front glass. (See "Glass Removal" section)
2. Remove logs from packaging.
3. Place rear log (KR4) on rear bracket (ensure log is
seatedproperly,leveledand centered totheunit), so it
willnotmovefromsidetosideanditisfirmlypositioned
on the bracket.
4. Slip front ember log (KR1) down in the front deflector.
5. Place front left log (KR2) on top burner, left side. Use
log's bottom holes to locate it into the left bracket log
locator studs.
6. Place front right log (KR3) on top of burner, right side.
Uselog'sbottomholestolocateitintotherightbracket
log locator studs.
7. Place small lava rocks and ember material on top of
burner. (See Fig. 34 for proper location).
8. Place top left log (KR5) onto locator notches. Ensure
log is secure.
9. Placetoprightlog(KR6)ontolocatornotches. Ensure
log is secure.
Top logs must be placed properly into
notches
KR2
KR5 KR6
KR4
KR3
KR1
Burner Lava Rock Placement
;;
;;
;;
D232
D232

- 20 -
Fig. 38

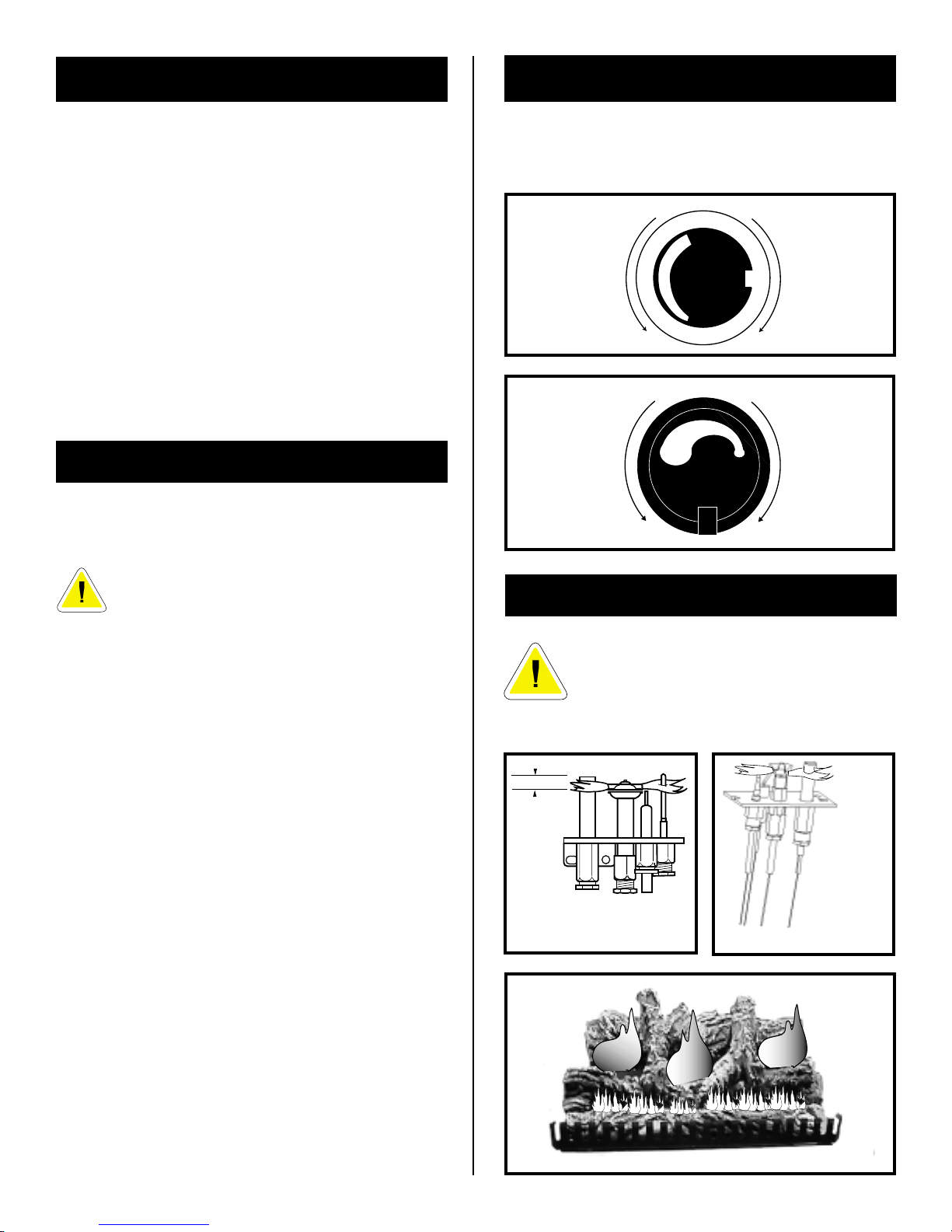

FLAME ADJUSTMENT (RN/RP MODELS)
For units equipped with Hi/Lo valves, flame adjustment
is accomplished by rotating the Hi/Lo adjustment knob
located near the centre of the gas control. (Fig. 38 & 39)
L
O
H
I
Turn
counterclockwise
to increase
flame height.
Turn clockwise
to lower
flame height.
CLEANING PROCEDURE
1. Turn off pilot light at gas valve.
2. Remove front glass.
3. Remove logs.
CAUTION: LOGS MAY BE HOT
4. Vacuum burner compartment especially around
orifice/primary air openings.
5. Reinstall logs.
6. Check pilot and main burner operation.
7. Reinstall glass front.
8. Recheck pilot and main burner operation.
9. Check visually the flame pattern and compare with
Fig. 39, 40a & b or 41.
MAINTENANCE
1. It is important to keep the burner and the burner
compartmentclean.This must bedoneperiodically, at
least once per season. (See Cleaning Procedure).
2. Clean the brass trim using a soft clean cloth, slightly
dampened with lemon oil and buff with a soft clean
cloth. DoNOTusebrasspolishorhouseholdcleaners
as these products will damage the brass trim. Lemon
oil can be obtained at supermarkets or hardware
stores.
3. The optional FK12 and FK24 Fan requires periodic
cleaning. Check the fan and the area around the fan
assemblyand wipe or vacuum at least once per month
during the operating season.
4. Contactyourlocalrepresentativetoarrangeanannual
service program.
Fig. 41
D232
L
O
H
I
Turn
counterclockwise
to decrease
flame height.
Turn clockwise
to increase
flame height.
Fig. 39
Itisimportanttoperiodicallyperformavisual
check of the pilot and the burner flames.
Compare them to the pictorials illustrated
below (Fig. 40a & b, or 41). If any of the
flamesappearabnormalcallaserviceperson.
FLAME CHARACTERISTICS
3/8" - 1/2"
Fig. 40a Fig. 40b
PSE PILOT
SIT PILOT
