Vermont Castings AVFL42NTSC Manual

AVFL Vent Free Fireplace System
Installation & Operating Instructions
Models: AVFL42NTSC & AVFL42PTSC
This is an unvented gas-fired heater. It uses air
(oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventil-
ation air must be provided. Refer to Page 7.
20305467 5/14 Rev. 1
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future
reference.
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS
– Do not try to light any appliance.
– Do not touch any electrical switch; do
not use any phone in your building.
– Leave the buildling immediately.
– Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
– If you cannot reach your gas supplier,
call the fire department.
• Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.

220305467
AVFL Vent Free Fireplace CONTENTS
Thank you and congratulations on your purchase of an
Vermont Castings Group Fireplace.
PLEASE READ THE INSTALLATION AND OPERATION INSTRUCTIONS BEFORE USING THE APPLIANCE!
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible fire hazard and will void the warranty.
Important Safety Information .................................... 3
Building Code Information .........................................4
Product Features.........................................................5
AVFL42 Controls ...................................................... 5
Gas Specifications & Orifice Size............................. 5
Gas Pressures.......................................................... 5
Fireplace and Framing Dimensions.......................... 6
Pre-installation Information........................................7
Getting Started ......................................................... 7
What You Will Need.................................................. 7
Planning the Installation ........................................... 7
Adequate Combustion and Ventilation Air ................ 7
Fireplace Location .................................................... 8
Clearances & Height Requirements ......................... 9
Fireplace Installation.................................................10
Secure Fireplace to Framing .................................. 10
Finishing Material ................................................... 10
Noncombustible Facing Installation...........................................10
Connect the Gas .................................................... 11
Check Gas Pressure .............................................. 12
Electrical Installation.................................................13
Wiring Junction Box ............................................... 13
Signature Command®Wiring Diagram ................... 14
Final Installation........................................................15
Installation of Air Deflection Glass .......................... 15
Glass Only Placement............................................ 15
Glass & Optional Stone Kit Placement................... 15
Placement of Optional Logs ................................... 16
Operating Instructions..............................................17
For Your Safety Read Before Lighting.................... 17
Turning On Unit ...................................................... 18
To Turn Off Gas to Appliance.................................. 18
Signature Command®System Operation................19
Features ................................................................. 19
Battery Installation.................................................. 19
System Configuration/Setup................................... 19
Cold Climate Option ............................................... 19
Functions/Operation ............................................... 21
Touch Screen Remote Control Operation...............22
Troubleshooting...................................................... 27
Maintenance and Cleaning.......................................28
Flame Appearance ................................................. 28
Check the Pilot Flame ............................................ 28
Check Burner Flame Appearance .......................... 28
Cleaning and Servicing .......................................... 29
Operating Information............................................. 29
Troubleshooting ........................................................30
Signature Command®System................................ 31
Replacement Parts....................................................32
Firebox ................................................................... 32
Logs........................................................................ 33
Stones .................................................................... 33
Signature Command®System................................ 34
Optional Accessories................................................35
Limited Lifetime Warranty Policy.............................39

20305467 3
AVFL Vent Free Fireplace
IMPORTANT SAFETY INFORMATION
WARNING
•Any change to this heater or its controls can be dangerous.
•Improper installation or use of the heater can cause serious injury or death from fire, burns,
explosion or carbon monoxide poisoning.
•Do not allow fans to blow directly into the fireplace.Avoid any drafts that alter burner flame
patterns.
•Do not use a blower insert, heat exchanger insert or other accessory, not approved for use
with this heater where applicable.
INSTALLER
Please leave these instructions with the appliance.
OWNER
Please retain these instructions for future reference .
1. Due to high temperatures, the appliance should be
located out of traffic and away from furniture and
draperies.
2. Children and adults should be alerted to the hazard
of high surface temperature and should stay away
to avoid burns or clothing ignition.
3. Young children should be carefully supervised when
they are in the same room with the appliance.
4. Do not place clothing or other flammable material
on or near the appliance.
5. Any safety screen or guard removed for servicing
an appliance, must be replaced prior to operating
the heater.
6. Installation and repair should be done by a quali-
fied service person. To prevent malfunction and/or
sooting, an unvented gas heater should be cleaned
before use and at least annually by a professional
service person. More frequent cleaning may be
required due to excessive lint from carpeting,
bedding materials, etc. It is imperative that control
compartments, burners and circulating air passage-
ways be kept clean.
7. WARNING: Any change to this heater or its controls
can be dangerous.
8. Unvented gas heaters are a supplemental zone
heater. They are not intended to be the primary
heating appliance.
9. CARBON MONOXIDE POISONING: Early signs of
carbon monoxide poisoning are similar to the flu with
headaches, dizziness and/or nausea. If you have these
signs, obtain fresh air immediately. Have the heater
serviced as it may not be operating properly.
10. The installation must conform with local codes or, in
the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.l/NFPA54.
11. This unit complies with ANSI Z21.11.2 Unvented
Heaters, latest edition.
12. Do not install the heaters in a bathroom or bedroom.
13. Correct installation of the ceramic fiber logs, proper
location of the heater, and annual cleaning are neces-
sary to avoid potential problems with sooting. Sooting,
resulting from improper installation or operation, can
settle on surfaces outside the fireplace. Refer to log
placement instructions for proper installation.
14. Avoid any drafts that alter burner flame patterns. Do not
allow fans to blow directly into fireplace. Do not place
a blower inside burn area of firebox. Ceiling fans may
create drafts that alter burner flame patterns. Sooting
and improper burning will occur.
15. Caution: Candles, incense, oil lamps, etc. produce
combustion byproducts including soot. Vent-free
appliances will not filter or clean soot produced by
these types of products. In addition, the smoke and/
or aromatics (scents) may be reburned in the vent-free
appliance which can produce odors. It is recommended
to minimize the use of candles, incense, etc. while the
vent-free appliance is in operation.
16. This is an unvented gas-fired heater. It uses air
(oxygen) from the room in which it is installed. Provi-
sions for adequate combustion and ventilation air must
be provided. Refer to Page 7.
17. This heater shall not be installed in a room or space
unless the required volume of indoor combustion air is
provided by the method described in the NationalFuel
Gas Code, ANSI Z223.1/NFPA 54, the International
Fuel Gas Code or applicable local codes.
18. Keep room area clear and free from combustible mate-
rials, gasoline and other flammable vapors and liquids.
19. Unvented gas heaters emit moisture into the living
area. In most homes of average construction, this
does not pose a problem. In houses of extremely
tight construction, additional mechanical ventilation is
recommended.
20. During manufacturing, fabricating and shipping, various
components of this appliance are treated with certain
oils, films or bonding agents. These chemicals are not

420305467
AVFL Vent Free Fireplace IMPORTANT SAFETY INFORMATION
harmful but may produce annoying smoke and smells
as they are burned off during the initial operation of the
appliance; possibly causing headaches or eye or lung
irritation. This is a normal and temporary occurrence.
The initial break-in operation should last two to three
hours with the burner at the highest setting. Provide
maximum ventilation by opening windows or doors to
allow odors to dissipate. Any odors remaining after this
initial break-in period will be slight and will disappear
with continued use.
21. Input ratings are shown in BTU per hour and are for
elevations up to 2,000 feet. For elevations above 2,000
feet, input ratings should be reduced 4 percent for each
1,000 feet above sea level. Refer to the National Fuel
Gas Code.
22. The appliance and its appliance main gas valve must
be disconnected from the gas supply piping system
during any pressure testing of that system at test
pressures in excess of 1⁄2psig (3.5 kPa).
23. The appliance must be isolated from gas supply piping
system by closing its equipment shutoff valve during
any pressure testing of the gas supply piping system at
test pressures equal to or less than 1⁄2psig (3.5 kPa).
24. Do not use this room heater if any part has been under
water. Immediately call a qualified service technician
to inspect the room heater and to replace any part of
the control system and any gas control which has been
under water.
25. Never burn solid fuels in a fireplace where a unvented
room heater is installed.
BUILDING CODE INFORMATION
Adhere to all local codes or, in their absence, the latest
edition of THE NATIONAL FUEL GAS CODE ANSI Z223.1
or NFPA54 which can be obtained from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
or
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
This appliance may be installed in an after-
market, permanently located, manufactured
(mobile) home, where not prohibited by local
codes.
This appliance is only for use with the type of
gas indicatedon the rating plate.This appliance
is not convertible for use with other gases.

20305467 5
AVFL Vent Free Fireplace
PRODUCT FEATURES
GAS PRESSURES
NOTE: For LP models an external regulator is required
to reduce supply pressure to a maximum of 13" w.c.
GAS SPECIFICATIONS & ORIFICE SIZE
AVFL42 CONTROLS
MODEL FUEL MAX. INPUT (BTU/h) MIN. INPUT (BTU/h) ORIFICE SIZE
AVFL42NTSC NAT. 37,000 24,500 2.20 mm
AVFL42PTSC LP. 36,000 28,500 #55
NATURAL PROPANE (LP)
Inlet Minimum 5.0" w.c. 11.0" w.c.
Inlet Maximum 10.5" w.c. 13.0" w.c.
Regulator Pressure
Setting
3.5" w.c. 10" w.c.
Pilot Regulator 3.5" w.c. —
Control Board FP3020
Thermocouple
Module
Command Center
AC Module

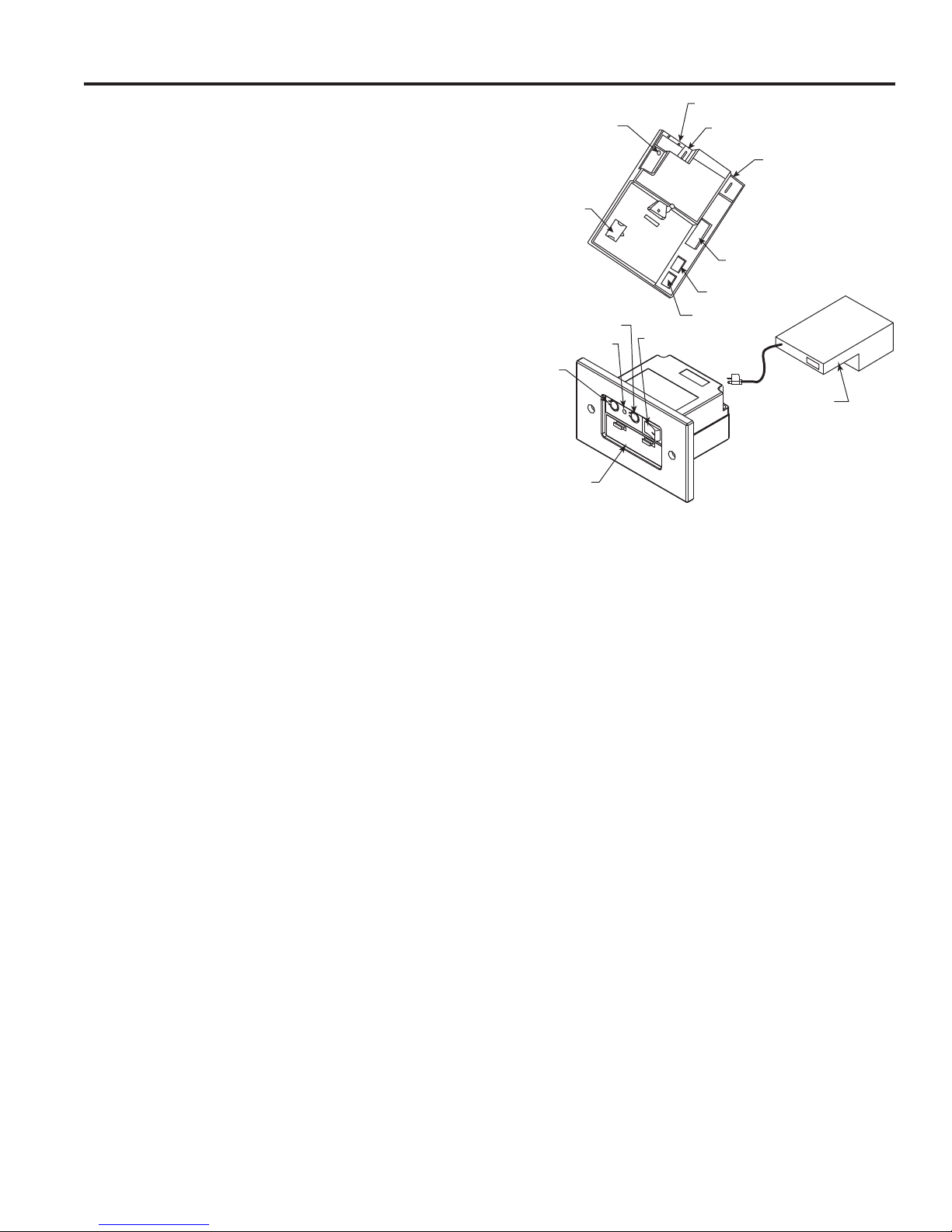

Figure 1 –
AVFL42 Controls (Control Access Door Shown Open)

620305467
AVFL Vent Free Fireplace FIREPLACE AND FRAMING DIMENSIONS
48C\v" (1238 mm)
48C\v" (1238 mm)
34Z\x"
(876 mm)
68ZB\zn" (1751 mm)
13"
(330 mm)13 1/2"
(343 mm)
Minimum
Rough
Depth
44" (1118 mm)
Rough Opening Width
1/2"(13 mm)
or 5/8"(16 mm)
43" (1092 mm)
37 1/2" (953 mm)
32"
(813 mm)
Minimum
Rough
Height
32"
(813 mm)
28"
(711 mm)
15 3/16"
(386 mm)
13 1/4"
(337 mm)
2 1/4"
(57 mm) 4 5/8"
(118 mm)
6 1/16"
(154 mm)
39 3/4" (1010 mm)

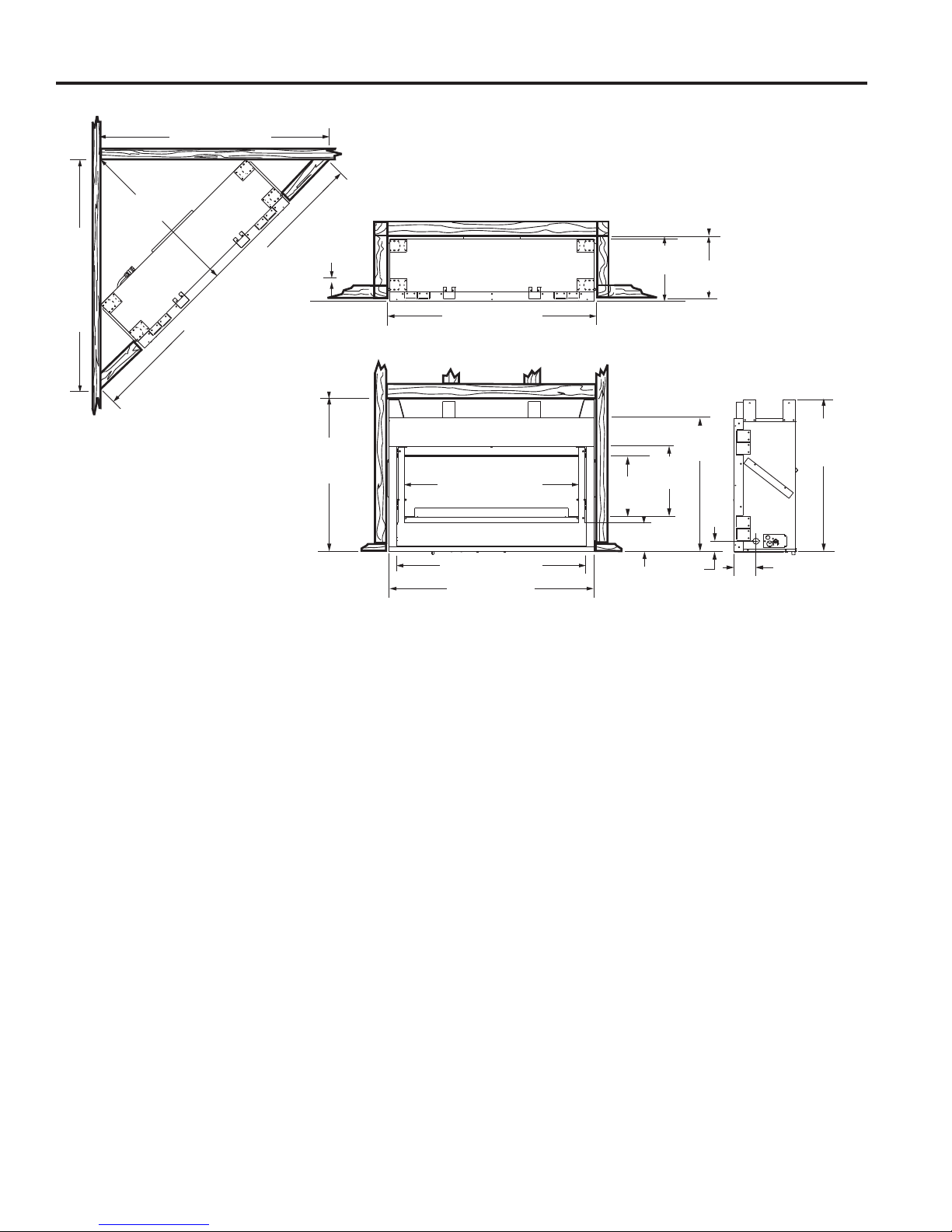

Figure 2 –
Fireplace and Framing Dimensions

20305467 7
AVFL Vent Free Fireplace
GETTING STARTED
Check your packing list to verify that all listed parts have
been received. You should have the following:
• Unvented gas heater
• Two (2) anchoring screws
• Installation/operating instructions
• 5" non-combustible board
• 2" x 32" deflector glass
• Two (2) bags fireglass
• Twelve (12) 20 watt bulbs
• One (1) 100 watt bulb
• TSFSC remote control
Carefully inspect the contents for shipping damage. If any
parts are missing or damaged, immediately inform the
dealer from whom you purchased the appliance. Do not
attempt to install any part of the appliance unless you
have all parts in good condition.
WHAT YOU WILL NEED
You must have the following items available before pro-
ceeding with installation:
• External regulator (for propane/LPG only)
• Manual shutoff valve
• Piping which complies with local codes
• Sediment trap
• Phillips head screwdriver
• Tee joint.
• Pipe sealant approved for use with propane/LPG
(Resistant to sulfur compounds)
• Pipe wrench
PRE-INSTALLATION INFORMATION
WARNING
Gloves are recommended when handling
ceramic fiber logs to prevent skin irritation
fromloose fibers.Logs arefragile — handle
with care.
PLANNING THE INSTALLATION
In planning the installation for the fireplace it is necessary
to determine where the unit is to be installed and whether
optional accessories are desired. Gas supply piping should
also be planned. The following steps represent the normal
sequence of installation. Each installation is unique, how-
ever, and might require a different sequence.
1. Position fireplace in desired location. Refer to the Fire-
place Location (page 8, Figure 3) and Clearances and
HeightRequirements(page9,Figures 4 and 5) sections
and Fireplaceand Framing Dimensions (page6, Figure
2) illustration found in this manual.
NOTE: Be sure all packing material has been removed
from under the unit.
2. Install following the instructions found in this manual.
3. Field wire main power supply to junction box. Refer to
the Electrical Installation section (page 13). (Electrical
connections should only be performed by an experi-
enced, licensed certified service person).
4. Plumb gas line. Refer to the Connect the Gas (page
11, Figure 7) section found in this manual. (Gas
connections should only be performed by an experi-
enced, licensed/certified service person).
5. Complete finish wall material and/or surround.
ADEQUATE COMBUSTION AND VENTILA-
TION AIR
This heater shall not be installed in a confined space or
unusually tight construction unless provisions are provided
for adequate combustion and ventilation air.
The National Fuel Gas Code, (ANSI Z223.1/NFPA54),
defines a confined space as a space whose volume is less
than 50 cubic feet per 1,000 BTU per hour (4.8m3per kw) of
the aggregate input rating of all appliances installed in that
pace, and an unconfined space as a space whose volume
is not less than 50 cubic feet per 1,000 BTU per hour (4.8
m3per kw) of the aggregate input rating of all appliances
installed in that space. Rooms communicating directly with
the space in which the appliances are installed, through
openings not furnished with doors, are considered a part
of a confined space.
Unusually tight construction is defined as construction
where:
a. walls and ceilings exposed to the outside atmosphere
have a continuous water vapor retarder with a rating of
1 perm (6 x 1011 kg per pa/sec-m2) or less with openings
gasketed or sealed, and
b. weather stripping has been added on openable windows
and doors, and
WARNING
Do not install the heater:
•Where curtains, furniture, clothing, or
other flammable objects are less than
36" from the front of the heater.
•In high traffic areas.
•In windy or drafty areas.

820305467
AVFL Vent Free Fireplace PRE-INSTALLATION INFORMATION
FP3029
c. caulking or sealants are applied to areas such as joints
around window and door frames, between sole plates
and floors, between wall-ceiling joints, between wall
panels, at penetrations for plumbing, electrical and gas
lines and other openings.
The following formula can be used to determine the maxi-
mum heater rating per the definition of unconfined space:
BTU/Hr = (L1+ L2) Ft x (W) Ft x (H) Ft
50
Consider two connecting rooms with an open area
between, with the following dimensions:
L1= 151/2Ft., L2= 12 Ft., W = 12 Ft., H = 8 Ft.
BTU/Hr = (151/2 + 12) x (12) x (8)
50
If there were a door between the two rooms the calculation
would be based only on the room with the heater.
BTU/Hr = (151/2) x (12) x (8)
50
FIREPLACE LOCATION
This unvented gas heater requires no outside venting and
burns cleanly and efficiency. As a zero-clearance unvented
gas heater, it can be installed against (or recessed into)
any wall that is accessible to a gas line.
Carefully select the best location for installation of your
unvented fireplace. The following factors should be taken
into consideration.
•Clearance to side wall, ceiling, woodwork and window
or other combustibles. Refer to Clearance and Height
Requirementssection on Page9. Minimum clearances
to combustibles must be maintained.
• Location must not be affected by drafts caused by
kitchen exhaust fans, ceiling fans, return air registers
for forced air furnaces / air conditioners, windows or
doors.
• Installation must provide adequate ventilation and
combustion air.
• DO NOT INSTALL THIS MODEL IN A BEDROOM
OR BATHROOM.
• Location should be out of high traffic areas and
away from furniture and draperies due to heat from
firebox.
• Never obstruct the front opening of the unvented fire-
place or restrict the flow of combustion and ventilation
air.
• Minimize modifications to existing construction. Refer
to Figure 3 below for location suggestions.
• Do not install in the vicinity where gasoline or other
flammable liquids may be stored. The unvented fire-
box must be kept clear and free from the combustible
materials.
WARNING
If the area in which the heater may be
operated does not meet the required volume
for indoor combustion air, combustion and
ventilation air shall be provided by one
of the methods described in the National
Fuel Gas Code, ANSI Z223.1/NFPA 54, the
International Fuel Gas Code or applicable
local codes.
W
H
Counter
Fireplace
Figure 3 –
Possible Fireplace Locations

20305467 9
AVFL Vent Free Fireplace
PRE-INSTALLATION INFORMATION
CLEARANCES AND HEIGHT REQUIREMENTS
Ensure that minimum clearances shown in Figures 4 and
5are maintained. Left and right clearances are determined
when facing the front of the firebox.
Follow these instructions carefully to ensure safe instal-
lation. Failure to follow these requirements may create a
fire hazard.
Sidewall Clearances — The clearance from the inside of
the appliance to any combustible adjacent wall should not
be less than 6". Figure 4
Ceiling Clearance — The ceiling or any other combustible
material must be at least 36" from the firebox opening.
Figure 4
Back Wall Clearance — The appliance may be placed
against a combustible back wall.
WARNING
The dimensions shown in Figures 4 and
5are minimum clearances to maintain
when installing this heater. Left and right
clearances are determined when facing the
front of the heater.
Follow these instructions carefully to
ensure safe installation. Failure to follow
instructions exactly can create a fire
hazard.
Floor Clearance — The fireplace may be installed directly
on a combustible floor or a raised platform of an appropriate
height. Do not place fireplace on carpeting, vinyl, tile or
other soft floor coverings. It may, however, be placed on flat
wood, plywood, particle board or other hard surfaces. Be
sure fireplace rests on a solid continuous floor or platform
with appropriate framing for support so that no cold air can
enter from under the firebox.
Mantel clearances — Must meet the clearance require-
ments detailed in Figures 4 and 5.
36"Minimum
From Opening
12"Max.
Depth
21/2"Max
Depth
18"Min.
From Opening
28"Min.
From Opening
6"Min.

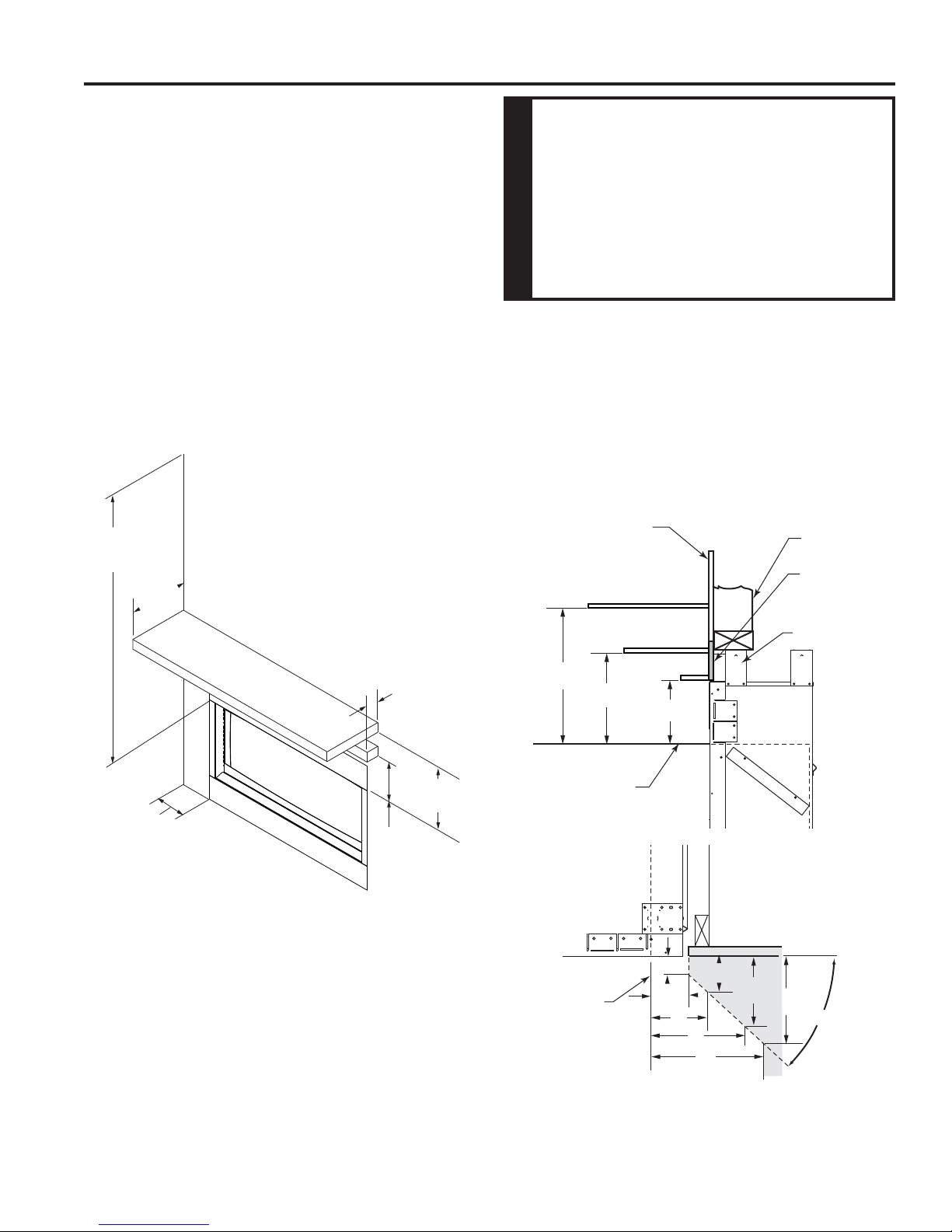

Figure 4 –
Sidewall and Ceiling Clearances
FP3006
Figure 5 –
Mantel Clearances
23"
28"
18"
12"
6"
21/2"
Top of Fireplace
Opening
FP3007
SIDE VIEW
Wall
Insulation
Board
Stud
Standoff
6"
5"
3"456O"45°
1"
356O"
156O"
256O"
Fireplace
Opening
FP3008
TOP VIEW

10 20305467
AVFL Vent Free Fireplace FIREPLACE INSTALLATION
SECURE FIREPLACE TO FRAMING
The fireplace must be secured to the framing studs as
shown in Figure 6. Use four (4) screws to attach fireplace
to framing. The side nailing flanges are 1⁄2" or 5⁄8" to accom-
modate different wall thickness.
NOTE
Never install combustible materials over
front face of fireplace.
FINISHING MATERIAL
NOTE: Any remote wiring (i.e. remote control, wall
switch), must be done prior to final finishing to avoid costly
reconstruction.
Only noncombustible materials (i.e. brick, tile, slate, steel,
or other materials with a UL fire rating of Zero) may be
used to cover the black painted face of the appliance. It is
permissible to bring combustible wall board to the top of
the standoffs on the top and to the wall board stand-offs
on the sides of the unit. A 300°F minimum adhesive may
be used to attach facing materials to the black surface. If
joints between the finished wall and the fireplace surround
are sealed, a 300°F minimum sealant material (General
Electric RTV103 or equivalent) must be used.
NOTE: Fireplace may be installed on top of framing or
platform constructed of combustible materials which do
not protrude beyond the face.
NONCOMBUSTIBLE FACING INSTALLATION
CAUTION: The noncombustible wall board supplied with
this unit can be damaged if dropped or struck. Handle
with care.
1.Using drywall screws secure noncombustible board to
the two brackets on top of unit. IMPORTANT: To avoid
cracking the board, pre-drill holes prior to securing to the
unit/framing.
2.Wipe any debris or dust from the noncombustible board
and drywall.
3.It is highly recommended to prime the facing using a
quality primer prior to taping and mudding. This will
ensure proper adhesion of both the tape and mud. The
supplied board is very porous.
4.Tape the seams using a mesh type tape.
5.Mud seams as normal. We recommend using a product
call Durabond high strength compound for the first coat.
This product can be purchased at any hardware store.
Follow manufacturer's recommendations for curing the
mud. NOTE: Depending upon the final finishing method,
use a minimum rated 300 degree sealant, drywall com-
pound or thin set to seal the side and top joints.
6.Prime wall for a second time for proper adhesion of paint.
5"
43"
44"
32"
MOUNTING POINTS
FP3009
Framing
Members
Nailing
Flange
Screws
Noncombustible Material
5”
Nailing
Flange
Nailing
Flange
Screws
Figure 6 –
Secure Fireplace to Framing Studs
Figure 6A –
Noncombustible facing installation

20305467 11
AVFL Vent Free Fireplace
FIREPLACE INSTALLATION
CONNECT THE GAS
NOTICE: A qualified gas appliance installer must connect
the heater to the gas supply. Consult all local codes.
WARNING
Use new black iron or steel pipe. Internally
tinned copper or copper tubing can be
used per National Fuel Code, section 2.6.3,
providinggas meets hydrogensulfidelimits,
and where permitted by local codes. Gas
piping system must be sized to provide
minimum inlet pressure (Listed on Data
Plate) at the maximum flow rate (BTU/hr).
Undue pressure loss will occur if the pipe
is too small.
A manual shutoff valve must be installed
upstream of the appliance. Union tee
and plugged 1⁄8" NPT pressure tapping
point should be installed upstream of the
appliance. Figure 7
Asedimenttrapshouldbeinstalledupstream
to prevent moisture and contaminants from
passing through the pipe to appliance
controls and burners. Failure to do so
could prevent the appliance from operating
reliable. Figure 7
IMPORTANT: Loosen the pipe adapter on the flex tube
before installing to the system piping.
Always use an external regulator for all propane/LPG heat-
ers only, to reduce the supply tank pressure to a maximum
of 13" w.c. This is in addition to the internal regulator in the
heater valve.
When tightening the joint to the valve, hold the valve
securely to prevent movement.
Test all gas joints from the gas meter to the heater valve for
leaks using a gas analyzer or soap and water solution after
completing connection. DO NOT USEAN OPEN FLAME.
CHECK GAS TYPE: The gas supply must
be the same as stated on the heater’s rating
plate. If the gas supply is different, DO NOT
INSTALL THE HEATER. Contact your dealer
for the correct model.
WARNING
WARNING
Connecting directly to an unregulated
propane/LP tank can cause an
explosion.
3" Min.
To Fireplace
Pipe
Coupling
Stainless
Flexible Tube
Pipe
Locations Pressure Tapping
Point Installation
Manual Shutoff
Valve
Gas Supply
Inlet
FP2447
Tee Joint
Pipe Nipple
Cap
Sediment
Trap
WARNING
DO NOT USE OPEN FLAME TO CHECK
FOR GAS LEAKS.
WARNING
This appliance is equipped for either natural or
propane gas. Field conversion is not permitted.

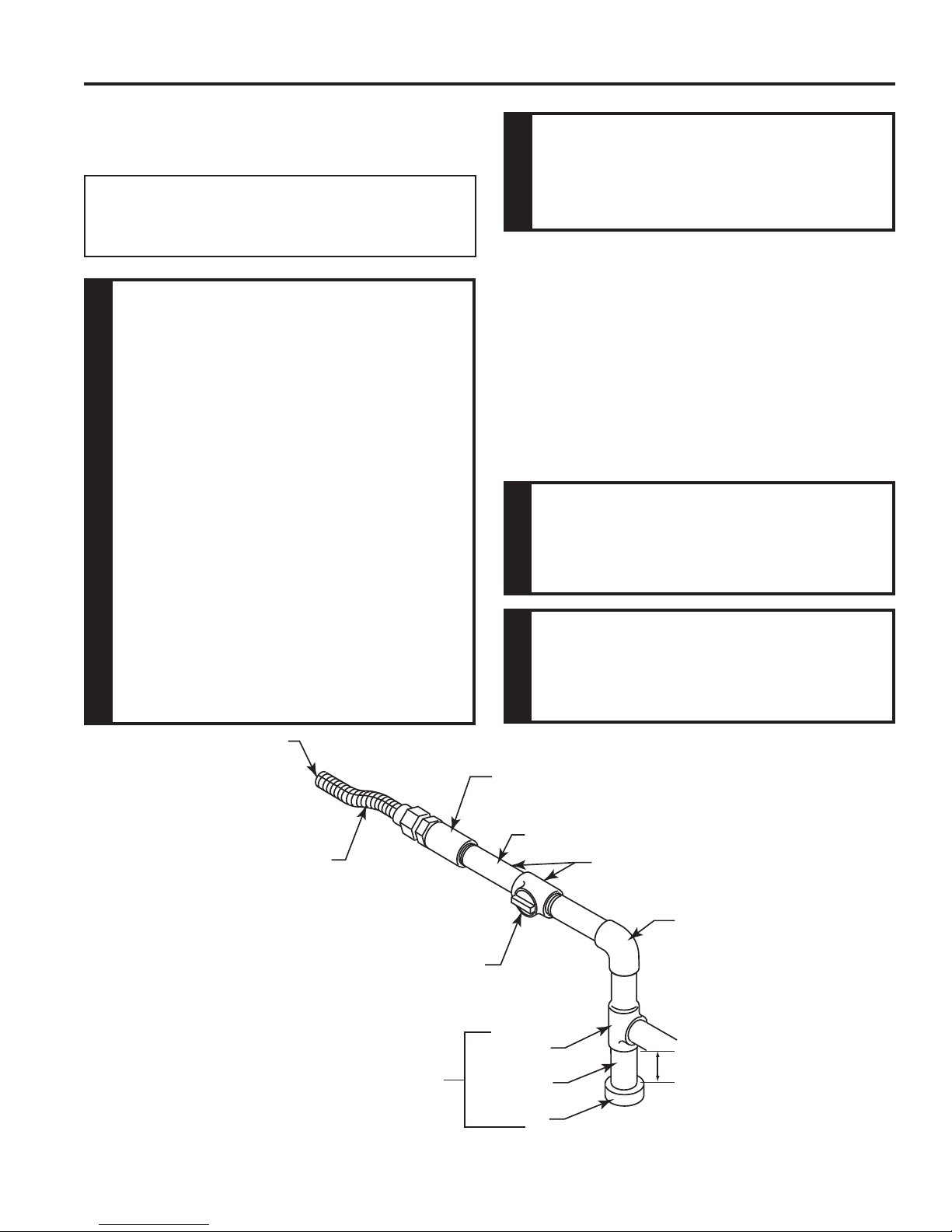

Figure 7 –
Gas Connection

12 20305467
AVFL Vent Free Fireplace FIREPLACE INSTALLATION
CHECK GAS PRESSURE
Figure 8
Check the gas pressure with the appliance burning and
the control set to HIGH.
Open control access door at bottom front of unit to find
valve and regulator referred to below.
The valve regulator controls the burner pressure which
should be checked at the pressure test point.
Turn captured screw counterclockwise two or three turns
and then place tubing to pressure gauge over test point.
Use test point “A” closest to gas inlet. After taking pressure
reading, be sure and turn captured screw clockwise firmly
to reseal. Do not over torque. Check for gas leaks.
Test Port 'A'
FP3036

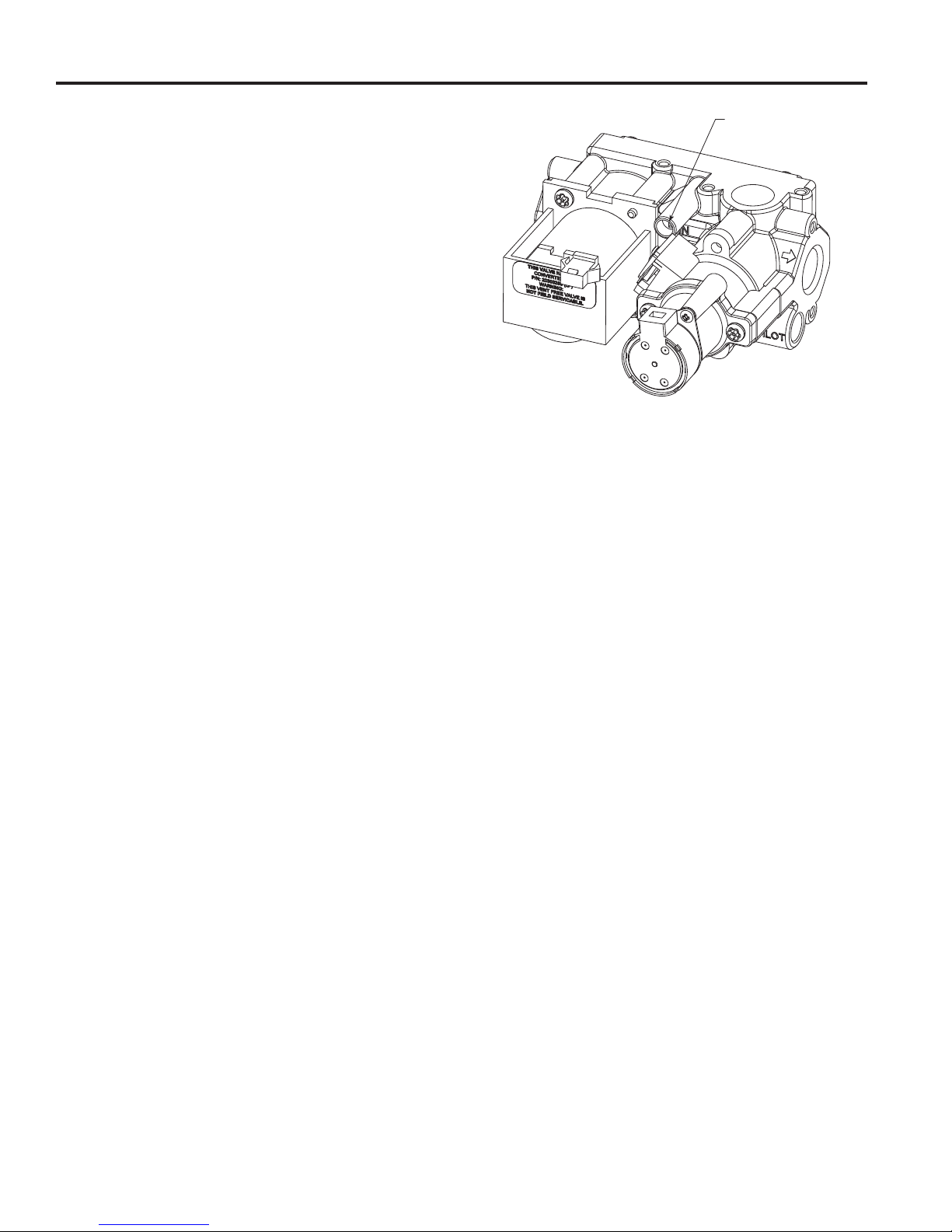

Figure 8 –
Pressure Test Point Location – Signature Command®Valve

20305467 13
AVFL Vent Free Fireplace
ELECTRICAL INSTALLATION
IMPORTANT: Always check local building codes. This in-
stallation must comply with local regulations as well as
the National Electric Code.
WIRING JUNCTION BOX
1. Before installing, wire the receptacle into an electrical
circuit. This should be done before framing the fire-
place. Wire with minimum 60° C wire in accordance
with prevailing codes.
2. Remove the external junction box cover by removing
the screw from the right side of the outside firebox wall.
Junction box was installed at the factory.
3. The junction box cover has a factory installed “romex”
style strain relief connector. After connecting the wires,
route the wire leads through this connector.
CAUTION
Electricalconnectionsshouldonlybeperformed
by a qualified licensed electrician. Main power
supply must be turned off before connecting to
the main electrical power supply or performing
service.
WARNING
Electrical Grounding Instructions:
This appliance is equipped with a three-prong
(grounding) plug for your protection against
shock hazard and should be plugged directly
into a properly grounded three prong recepta-
cle.
WARNING
Label all wiresprior to disconnection when
servicing controls.Wiring errorscan cause
improper and dangerous operation. Verify
proper operation after servicing.
For vent free SC System, the unit will continue to burn
during power loss to AC only with batteries installed.
Without power, the unit will shut down without batteries
installed but can be started with fresh batteries installed
from the Command Center.

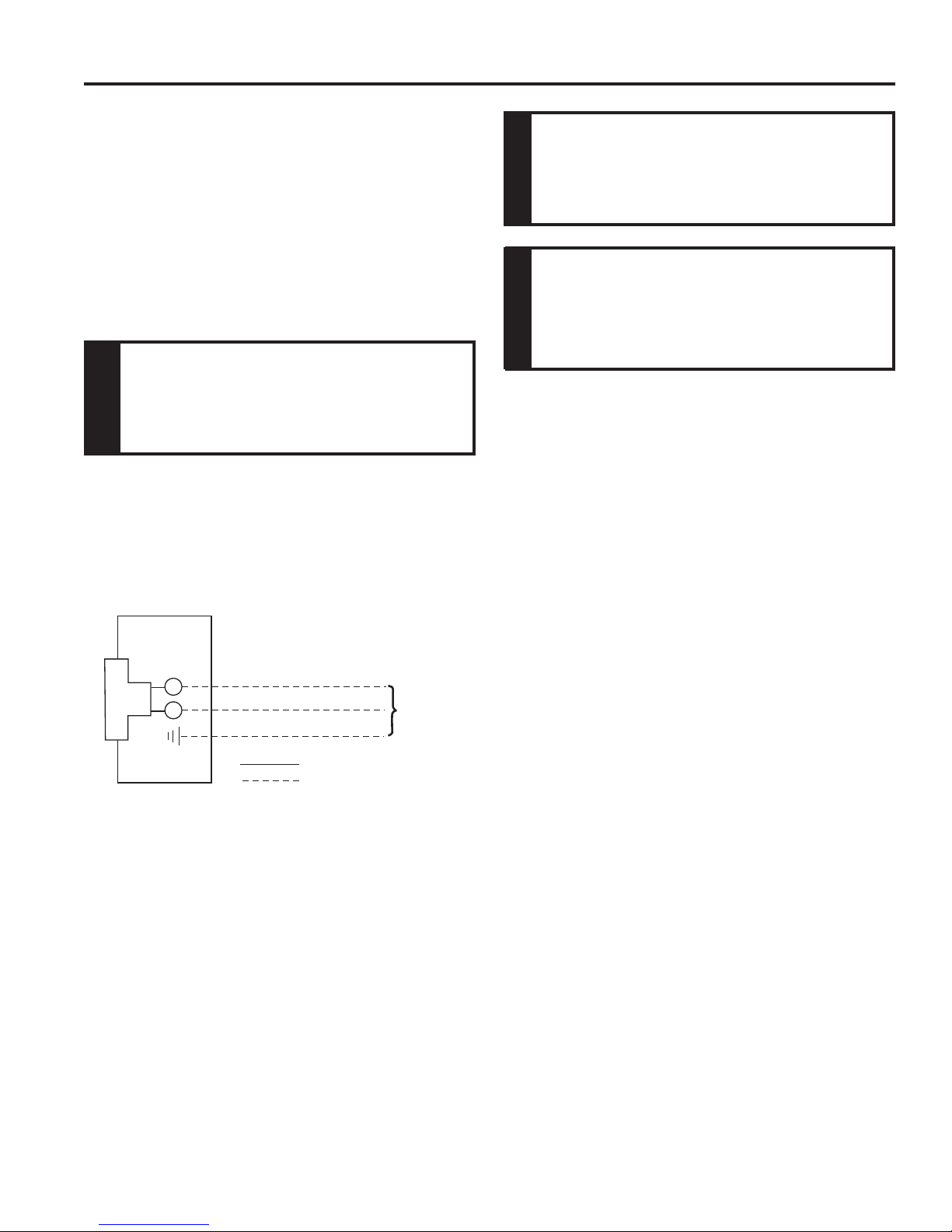

Figure 9 –
Junction Box Wiring Diagram
Junction Box
Factory Supplied
Not Supplied
120V AC
60Hz

14 20305467
AVFL Vent Free Fireplace ELECTRICAL INSTALLATION
NOTE: Wall switch wires must
be connected together if a wall
switch is not being used.
Figure 9 –
Signature Command®Wiring Diagram FP3010
SIGNATURE COMMAND WIRING DIAGRAM
Control Board
RF Receiver
ON/OFF Button
Black / Thermopile
Red / Thermopile
Sensor
Ignitor / Sparker
Plug-in Connector
Control Board to Command Center
OFF/LO LED ON/HI
Master Switc
h
Command Center
Plug-in Connector
Stepper Motor to
Control Board
DC Power/Green
Ground
Plug-in Connector
Control Board to
Solenoid
Gas In Gas Out
Pilot Gas Tubing
Valve
Black
Yellow
Thermocouple Pilot
Thermocouple
Module
Orange
Red
Plug in
Connector
{White
Black
Hearth
Light
White
Black
{
Optional
Blower White
Black
{
Top Light
Green
A/C MODULE
TO JUNCTION BOX
IN FIREPLACE
PLUG-IN
CONNECTOR
WHITE
BLACK
GREEN
WHITE
BLACK
Opt. Blower
WHITE
BLACK
Front Row
20w x 6 Lamps
Back Row
20W x 6 Lamps
Top Lamp
100w

20305467 15
AVFL Vent Free Fireplace
FINAL INSTALLATION
INSTALLATION OF AIR DEFLECTION
GLASS
NOTE: The 32" deflector glass must be installed prior
to placing any fireglass or stone media on the burner.
To install the air deflection glass simply place the tabs
located at the bottom of the glass into the slots at either
end of the burner floor, in front of the burner ports. The
glass should stand upright, neither leaning forward nor
backward.
GLASS ONLY PLACEMENT
NOTE:Two (2) bags of glass are supplied with the fireplace.
Both bags may be used to cover the entire floor and burner.
We advise against using additional glass as too much can
cut off the proper amount of air the burner needs to burn
cleanly. This may cause sooting.
1. Spread glass evenly in one layer over the entire floor
and burner. It is important to not have the glass too thick
on ported area (single layer only).
2. Turn burner on and adjust glass over ported areas to
achieve an even, clean flame.
GLASS AND OPTIONAL STONE KIT PLACEMENT
1. For best results, spread glass evenly over the entire
floor and burner making sure the glass is not too thick
over the burner ports (single layer only). Figure 10A.
2. Place the stones randomly in front of and behind the
burner. CAUTION: Do not allow stones to sit directly
on burner or in flame. Figure 10A and 10B.
3. Turn burner on and adjust glass over the ported area
to achieve an even, clean flame. Page 28, Figure 29
Figure 10A –
Air Deflection Glass and Stone Placement
Rear VentBurner Surface
Examples of
Stone Placement
Air Deflection Glass Placement (before) Air Deflection Glass Placement (after)

16 20305467

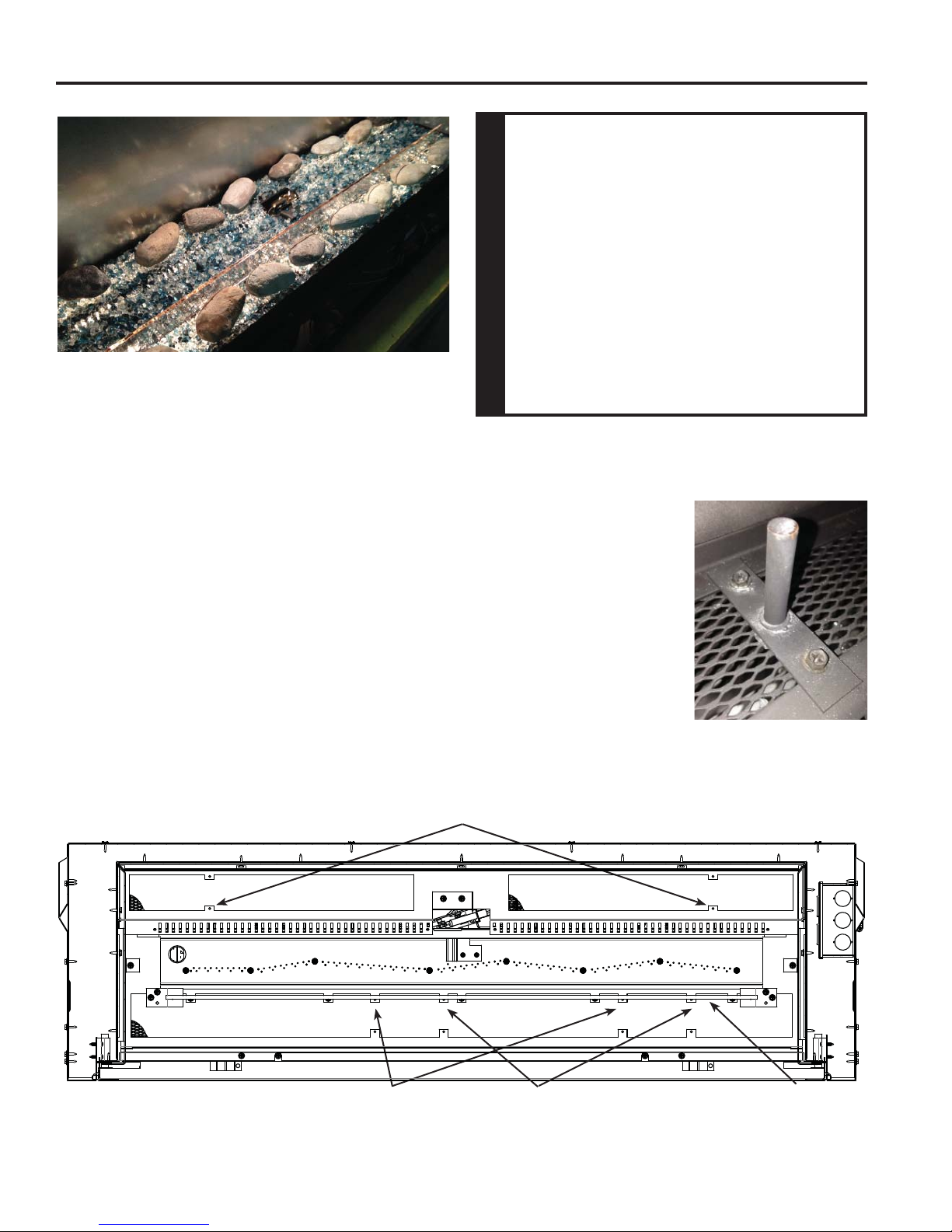

AVFL Vent Free Fireplace FINAL INSTALLATION

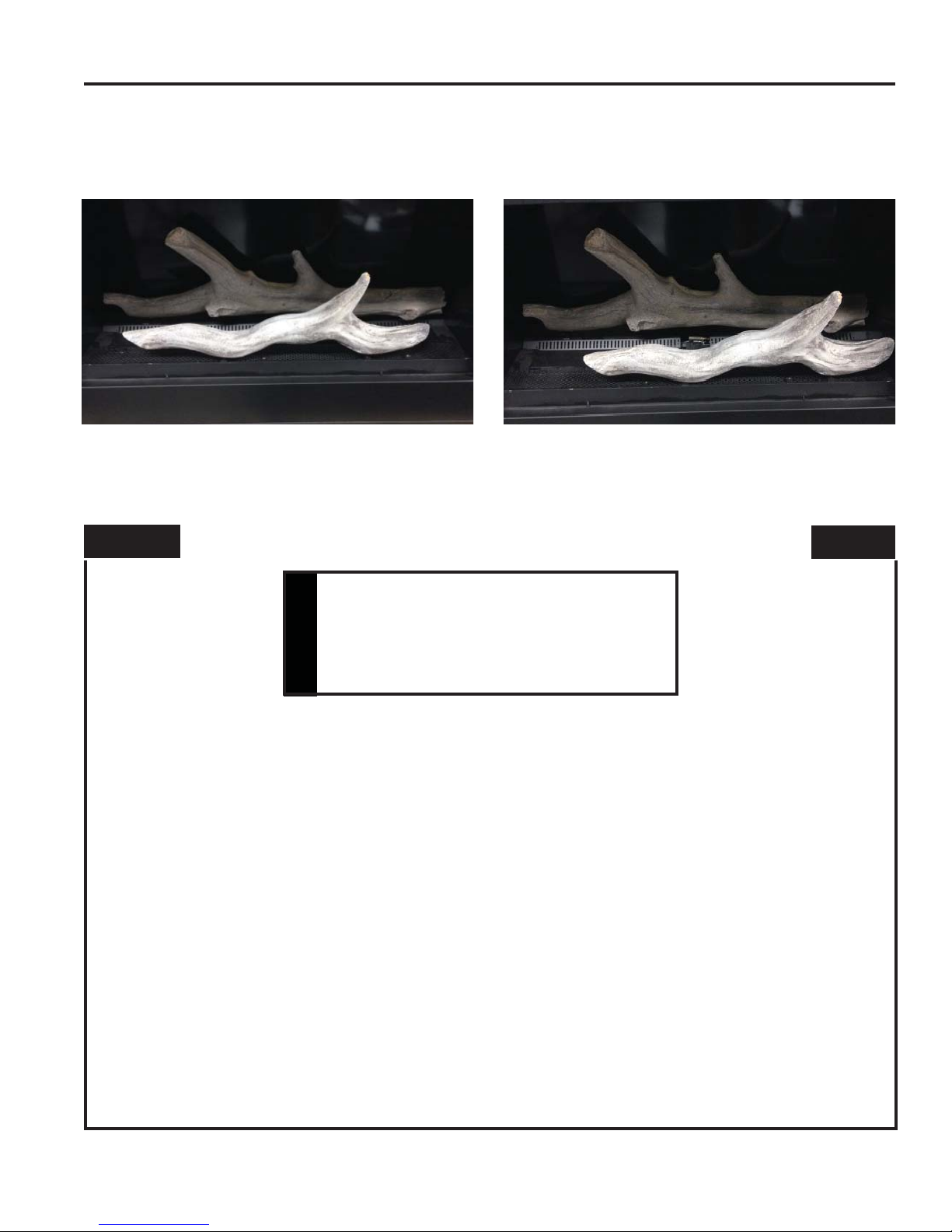

PLACEMENT OF OPTIONAL LOGS
WARNING: Turn off fireplace and allow to cool com-
pletely before beginning installation.
Kit Contents:
• Two (2) ceramic fiber driftwood logs
• Four (4) log support pin brackets
• Eight (8) #8 bracket mounting screws
NOTE — Do not handle logs with your bare hands. Always
wear gloves to prevent skin irritation from ceramic fi-
bers. After handling the logs, wash your hands with soap
and water to remove any traces of fibers.
NOTE: Prior to installing the log set, you must first install the
pin brackets on the burner. Fireglass and the air deflection
glass should only be installed after the pin brackets are in
place. The logs must then be placed in the unit after the
fireglass and air deflection glass. If the optional logs are
added after the air deflection glass and fireglass are in use,
move the fireglass away from the areas in Figure 11 and
WARNING
The positioning of the logs is critical to
the safe and clean operation of this heater.
Sooting and otherproblems may result ifthe
logs are not properly and firmly positioned
in the appliance. Never add additional logs
or embellishments such as pine cones,
vermiculite or rock wool to the heater. Only
use the logs supplied with the optional log
kit (AVFL42DLS).
Failure to position the parts in accordance
with diagrams below or to use only
parts specifically approved for this
heater may result in property damage or
personal injury.
install the support brackets, then arrange fireglass evenly
across burner again.
1. Mount the four log support
pin brackets using mount-
ing holes and screws pro-
vided in locations indicated
in Figure 12. Note that the
front log can be mounted
in two different positions.
The pin brackets can be
moved to accommodate
the preferred log place-
ment.
2. Place the large rear log
(#1) by aligning the holes
in the bottom of the log
with the two pins at the
back of the burner. Figure 13A.
Figure 10B –
Stone Placement
Figure 12 –
Alternative Log Placement
Figure 11 –
Log Pin Assembly
Pin placement
Log #1 (Rear)
Pin placement
Log #2 (Front)
Option 1
Pin placement
Log #2 (Front)
Option 2
Air Deflection
Glass

20305467 17
AVFL Vent Free Fireplace
OPERATING INSTRUCTIONS
A. This appliance is equipped with an ignition device which automatically lights the pilot. Refer
to the instructions.
B. BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to
the floor because some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
• Do not attempt to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your finger to push in the master switch. Never use tools. If the switch will not function
by hand, do not try to repair it. Call a qualified service technician. Force or attempted repair
may result in a fire or explosion.
D. Do not use this appliance if any part of it has been under water. Immediately call a qualified
service technician to inspect the appliance and to replace any part of the control system and
any gas control that has been under water.
WARNING
If you do not follow these instructions
exactly, a fire or explosion may result
causing property damage, personal
injury or loss of life.
FOR YOUR SAFETY READ BEFORE LIGHTING
3. Place the front log (#2) by aligning the holes in the
bottom of the log with the two pins at the front of the
burner. The front log may be placed in one of two po-
sitions on the burner depending on which two pin set
locations are used.
Figure 13A–
Front Log Placement Figure 13B –
Alternative Front Log Placement

18 20305467
AVFL Vent Free Fireplace OPERATING INSTRUCTIONS
TURNING ON UNIT
1. STOP! Read the safety information on Page 17.
2. This appliance is equipped with an ignition device which automatically lights the burner. Do not try
to light the burner by hand.
3. With five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell
gas, STOP! Follow "B" in the safety information on Page 17. If you do not smell gas, go to next
step.
4. Press the master switch to the "ON" (-) position. Within eight (8) seconds it will beep once. This
indicates the system is ready.
5. Press "ON " button. Sparker will spark and pilot flame will light.
6. Once pilot flame is established, the main burner flame will light automatically.
7. If the pilot will not stay lit after several tries, turn the master switch to "OFF" and call your service
technician or gas supplier.
TO TURN OFF GAS TO APPLIANCE
1. Turn master switch to "OFF".
2. Turn off all electrical power to the appliance if service is to be performed.
OFF ON
Command Center
ON
Master
Switch
OFF
Pilot

20305467 19
AVFL Vent Free Fireplace
SIGNATURE COMMAND SYSTEM OPERATION
FEATURES
Command Center
•Easy Access Function Operation and System Con-
figuration
•Operation Confirmation/Fault Diagnostic Indications
(LED/Buzzer)
•ON/OFF/HI/Med/Low Operation
•Optional Wall Mounting
Control Board
•Electronic Ignition
•Pilot Lockout safety feature
•Electric Power Regeneration from Thermopile to save
battery
•6-hour Automatic Shut Down Option
•Standing Pilot/Intermittent pilot Conversion
•Previous settings Restoration Ability (Memory Off)
•Uninterrupted Operation During Power Outage (Auto-
matic Battery Backup)
•ON/OFF RF Remote Receiver
•Optional Transmitter Learn Capability
AC Module (Requires TSFSC Remote)
•Easy Snap-on Design
•Embedded Compact 120 VAC Adapter with Auto Bat-
tery Back up Feature
•Remote Controlled 3-step Blower, Lighting, and On/
Off Auxiliary AC Outputs
Transmitter – TSFSC
•Three Flame Height Settings
•Low battery Indication for Transmitter
•Child Proof Lock-out
•LCD Backlight
•Security Codes 16
•Countdown 6 hr Timer
•Standard Thermostatic Control Mode
•Smart Mode®Thermostat (Auto Flame & Blower
Modulation)
•Three Brightness Settings for Lights
•On/Off Auxiliary
BATTERY INSTALLATION
The Command Center uses four (4) "AA" batteries as
back up for power outages. The system can operate for
approximately six (6) months on battery power.
To Install Batteries (not included):
1. Press down the battery door tabs and pull out to remove
battery door.
2. Install the batteries as indicated on Command Center.
3. Close battery door by snapping in place.
4. When the four (4) batteries are installed the system will
operate without power.
5. The batteries should be replaced when the LED indi-
cates low battery or at least once a year.
SYSTEM CONFIGURATION/SETUP
All System configuration/setup is done on the Command
Center.
NOTE: When using On/Off wall switch, the switch must be
in the ON position to perform all configuration set ups at
the command center.
COLD CLIMATE OPTION
Choose the Mode That Best Suits Your Needs
The Signature Command®System is designed to operate
in either Standing Pilot or Intermittent Pilot mode.
•The Standing Pilot Mode is best for colder climates
when the pilot must remain on continuously to prevent
condensation and ensure reliable operation.
•The Intermittent Pilot Mode is ideal for maximum effi-
ciency, igniting the pilot only when needed to start your
fireplace, lowering fuel consumption and reducing your
carbon footprint.
Either mode benefits from the instantaneous battery back-
up, so you never have to worry about a power outage.
Figure 14 –
Signature Command®System Components
RF Receiver
ON/OFF
NG/LP
Conversion
To Thermopile
To Sensor
To Sparker
To Command Center
To Stepper Motor
To Valve
Battery Door
Master Switch
ON
LED
OFF
CONTROL BOARD
COMMAND CENTER
AC Module
FP1917

20 20305467
AVFL Vent Free Fireplace SIGNATURE COMMAND SYSTEM OPERATION
NOTE:The Signature Command®System comes standard
in the Intermittent Pilot mode, so you must follow the in-
structions below to switch to Standing Pilot Mode if needed.
Intermittent/Standing Pilot Setup (Default intermit-
tent)
1. Holding the ON button on the Command Center while
turning on the master switch will toggle between stand-
ing pilot and intermittent pilot.
2. After the above operation, one beep (for standing pi-
lot) or two beeps (for intermittent pilot) will be given as
confirmation.
Six-hour Safety Shutdown Option (Default ON)
1. The system comes preset from the factory with a six
(6) hour shutdown from its last command of operation.
This is done to prevent the fireplace from continuing to
operate if unattended. You may disable this feature if
you wish.
NOTE: By disabling this feature, your fireplace may con-
tinue to operate unattended.
2. When the master switch is in the ON position (“-”), press-
ing the ON button and the OFF button on the Command
Center simultaneously will toggle between enabling and
disabling the six-hour shutdown option.
3. After the above operation, one beep (for enabling the
six-hour shutdown option) or two beeps (for disabling
the six-hour shutdown option) will be given as confirma-
tion.
Remote Transmitter Learn Function (Default OFF)
1. The RF receiver button located on the Control Board
must be in the on position before the learn function can
begin. Use paper clip to depress button. One beep for
RF receiver ON or two beeps for RF receiver OFF will be
given as confirmation. Refer to Figure 40 for location.
2. After the RF receiver is on, holding the OFF button on
the Command Center while turning on the master switch
will activate the learn function for the transmitter.
3. After the above operation, two beeps will be given and
the green LED on the Command Center will flash for
10 seconds.
4. During the 10 seconds, press the OFF button on a
transmitter to learn. Another two beeps will be given
to confirm a successful learning. Refer to transmitter
instructions for remote operations.
Shutting Off the Standing Pilot (Temporary Shut Off)
To shut off the standing pilot for service or summer shut
down, press and hold the ON button on the Command
Center for 3 seconds when the master switch is in the ON
position (“-”) and the main burner is off.
Note: Pilot will resume the next time system is turned
on.
Key Combinations for System Settings
NOTE: When On/Off wall switch is used, it must be in the
On position to perform all system setups.
FUNCTION OPERATION DEFAULT SETTING
Intermittent/Standing Pilot
Setup
Hold the ON button while turning the master switch
(It will beep once for standing pilot, twice for intermittent pilot.)
INTERMITTENT
PILOT
Standing Pilot
Temperature Shutoff
Hold the ON button for 3 seconds (when the master switch on
the main burner is off.)
RF Remote Receiver
ON/OFF
Push the RF receiver ON/OFF button on the control board.
(It will beep once for On and twice for OFF.)
RF OFF
Learn Remote
Transmitter
Hold the OFF button while turning on the master switch
(Listen for two beeps, then press any button on the remote.)
6-Hour Safety
Shutdown Setup
Press the ON button and OFF button simultaneously
(It will beep once for ON, twice for OFF.)
ON
