Vermont Castings DUZY VDY24/18 User manual
Installation and
Operating Instructions
Approved to ANSI Z21.60 / CSA 2.26
20304949 1/13 Rev. 2
This gas log set is to be installed only in a
solid-fuel burning replace with a working ue
constructed of noncombustible material.
4949
VDY log cover
20304949
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
2
Check for Correct Parts .......................................... 4
Items Required for Installation ................................ 4
Gas Pressures ........................................................ 4
Gas Specications .................................................. 4
Ignition Controls ...................................................... 4
Minimum Hearth Dimensions .................................. 5
Damper Stop Installation ......................................... 5
Place and Secure Appliance ................................... 7
Assembly Procedure ............................................... 7
Gas Line Connection .............................................. 7
Check System Operation ........................................ 8
Glowing Ember Placement ................................... 12
Decorative Volcanic Rock Placement ................... 12
For Your Safety Read Before Lighting ................. 14
Millivolt Control Lighting Instructions .................... 15
To Turn Off Gas to Heater ..................................... 15
Match Lighting Instructions ................................... 15
3
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
20304949
1. The installation, combustion and ventilation air
must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code, ANSI
Z223.1.
2. This unit complies with ANSI Z21.60 • CSA 2.26 Dec-
orative Gas Appliance for Installation in Solid-Fuel
Burning Fireplace.
3. Installation and repair should be done by a qualied
service person. Vermont Castings Group Vented Gas
Logs must be installed only in a solid-fuel (wood) burn-
ing replace which can only be constructed of non-com-
bustible material, with minimum venting requirements,
see installation section.
4. To prevent malfunction, gas log set and ue should
be cleaned at least annually by a professional service
person. More frequent cleaning may be required due
to excessive lint from carpeting, etc. It is imperative
that control compartments, burners and circulating air
passageways be kept clean.
5. Correct installation of the ceramic ber logs, and
annual cleaning are necessary to minimize problems
with sooting. See log placement instructions for proper
installation.
6. A damper clamp must be installed to provide the min-
imum permanent vent opening to vent ue products,
See installation instructions.
7. Never burn solid fuels in a replace where a gas log
set is installed.
8. This appliance must not be used with glass doors
in the closed position. Provisions for adequate com-
bustion air must be provided, adequate combustion air
usually results in all ames curling into the replace
away from screen and up the ue.
9. Keep room area clear and free from combustible
materials, gasoline and other ammable vapors and
liquids.
10. Children and adults should be alerted to the hazard
of high surface temperature and should stay away to
avoid burns or clothing ignition.
11. Young children should be carefully supervised when
they are in the same room with the gas log set in opera-
tion.
12. Do not place clothing or other ammable material near
the replace when the gas logs are in use.
13. Do not use this gas log set if any part has been under-
water. Immediately call a qualied service technician
to inspect the gas logs and replace any part of the
control system and any gas control which has been
under water.
14. The gas log set and its individual shutoff valve must be
disconnected from the gas supply piping system during
any pressure testing of the gas supply piping system
at test pressures in excess of 1/2 psig (3.5kPa).
15. The gas log set must be isolated from the gas supply
piping system by closing its individual manual shutoff
valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than
1/2 psig (3.5kPa).
16. FOR MASSACHUSETTS RESIDENTS ONLY:
Installation of this vented gas log in the Commonwealth
of Massachusetts requires the damper be permanently
removed or welded in the full open position. In addi-
tion, a naturally vented gas log may not be installed
in a bedroom or bathroom in the commonwealth of
Massachusetts.
Please leave these instructions with the appliance.
Please retain these instructions for future reference
.
Nous recommandons que nos
appareils de chauffage au gaz
soient installés et entretenus par
des professionnels qui ont été
accrédités aux È.U. par le National
Fireplace Institute ® (NFI) comme
étant des spécialistes du NFI en
matièred’appareils de chauffage
au gaz.
20304949
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
4
Check your packing list to verify that all listed parts have
been received. You should have the following:
• Burner and Grate Weldment Assembly
• Lava Rocks (2)
• Glowing Embers (Rock Wool)
• Damper Clamp
• Installation /Operating Instructions
• Masonry Screws (2)
• 3/8" Aluminum tube with 3/8" 90° elbow, 1/2" to 3/8"
tube tting
• Individual Logs
• Installation Instructions
Carefully inspect the contents for shipping damage. If any
parts are missing or damaged, immediately inform the
dealer from whom you purchased the appliance.
Ensure that the following items are available before pro-
ceeding with installation:
• External regulator (for propane/L.P.G. only)
• Manual shutoff valve
• Piping which complies with local codes
• Pipe wrench
• Tee joint
• Pipe sealant approved for use with propane/L.P.G.
(Resistant to sulfur compounds)
• Drill with masonry bit (for mounting to the oor)
Natural *Propane (LP)
Inlet Minimum 6.0” w.c. 11.0” w.c.
Inlet Maximum 10.5” w.c. 13.0” w.c.
Regulator Pressure 4.0” w.c. 10.0” w.c.
An external regulator is required to reduce supply pres-
sure to a maximum of 13” w.c.
•
•
VDY24/18NVP Nat. Millivolt (thermopile) 50,000
VDY24/18PVP LP Millivolt (thermopile) 50,000
Piezo ignitor allows ignition of the pilot without the use of
matches or batteries.
- All gas to the gas logs is shut off at the valve.
- Valve position to light/maintain a standing pilot.
- Valve position to light/maintain the gas burner.
5
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
20304949

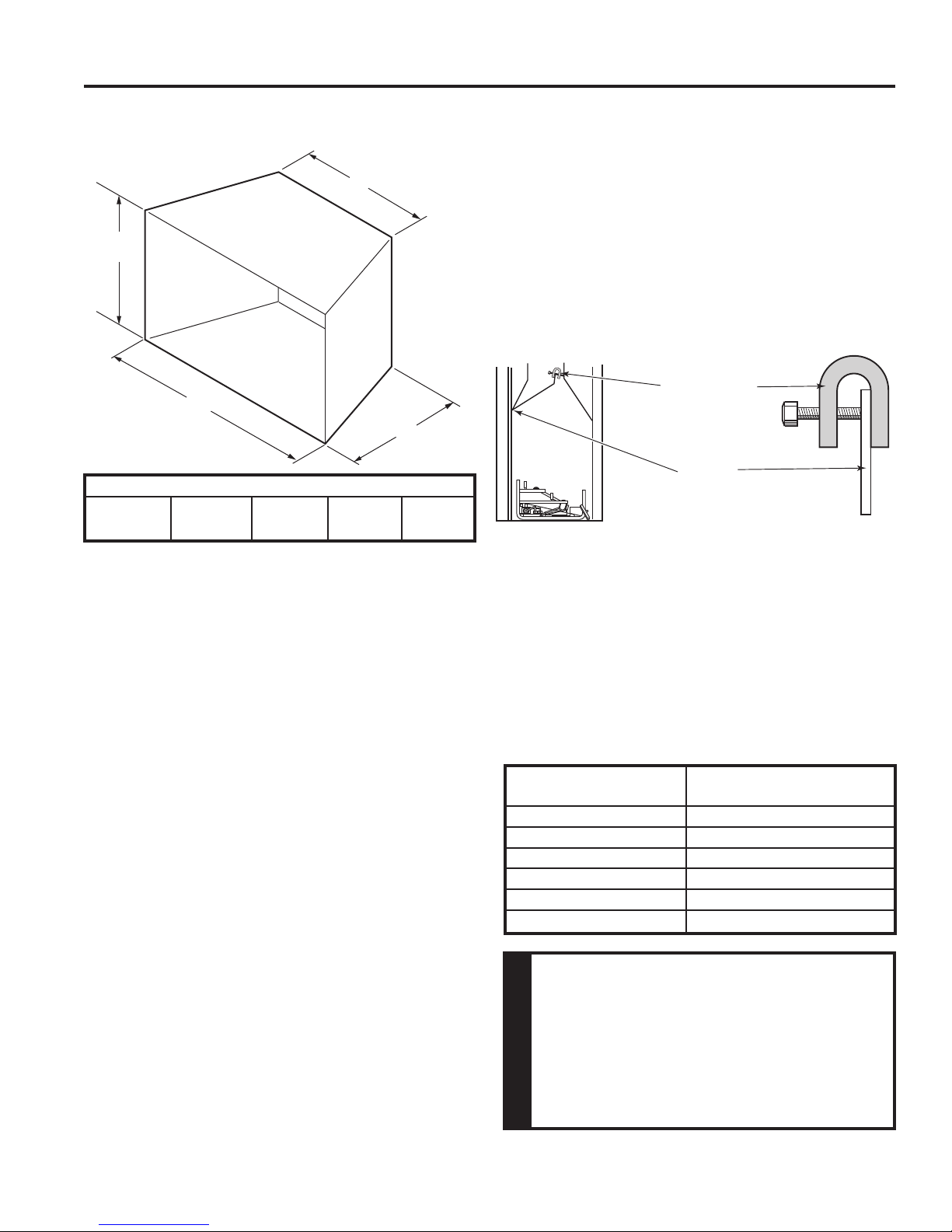

FP2725
min hearth dims
D
A
B
C
VDY24/18 18" 13Z\x" 26" 16"
(457 mm) (343 mm) (660 mm) (406 mm)
Figure 1 -
Minimum Hearth Dimensions
• Turn off gas supply to Masonry fireplace or
manufactured wood burning rebox.
• Have the replace oor and chimney professionally
cleaned to remove ashes, soot, creosote or other
obstructions. Have this cleaning performed annually
after installation.
• Seal any fresh air vents or ash clean-out doors lo-
cated on oor or wall of replace. If not, drafting may
cause pilot outage or sooting. Use a heat-resistant
sealant.
A damper stop is provided with the unit. The damper stop
must be installed as shown in Figure 2 to prevent full clo-
sure of the replace damper blade and provide a minimum
ue opening, per table below.
Should the clamp not t, or provide the required permanent
opening from the table have the damper blade cut to pro-
vide minimum permanent opening or a permanent stop
installed.
FP2727
damper
Damper Stop
Damper
ST2727
Figure 2 -
Damper Stop Installation
Installation of this vented gas log set in the Commonwealth
of Massachusetts requires the damper be permanently
removed or welded in the fully open position. In addition, a
naturally vented gas log may not be installed in a bedroom
or bathroom in the Commonwealth of Massachusetts.
6' 51 sq in
8' 51 sq in
10' 51 sq in
15' 39 sq in
20' 39 sq in
30' 30 sq in
20304949
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
6
The following are guidelines for placing a gas log set
in a replace that has a restrictive barrier along the
bottom front opening of the replace. Some examples
of barriers are glass/screen door frames and sunken/
recessed replaces.
No Restriction 23Z\x”
0 to 3” 15”
Greater than 3” *
*Any barrier greater than 3” placed in front of the gas log
set is not recommended by the manufacturer.
Non combustible material such as refractory brick
may be used to line the oor of the replace in order to raise
the height of the gas log set in relation to a restrictive barrier.
If the unit is raised, the minimum height dimension listed in
the homeowner’s manual must not be exceeded.
If the log set is equipped with a remote receiver, a
restrictive barrier may reduce the battery life by increasing
the ambient temperature inside the replace. Placement
of the receiver outside of the replace will extend the
battery life.
X
FP2854
logs in enclosure
Glass door
frames with
adjustable
louvers
should have
the louvers
fully open
while the unit
is in operation
Height of restrictive
barrier caused by glass
door frames, recessed
replaces, etc. from the
base or bottom surface of
the unit. (Refer to Table)
Refer to
Table
FP2854

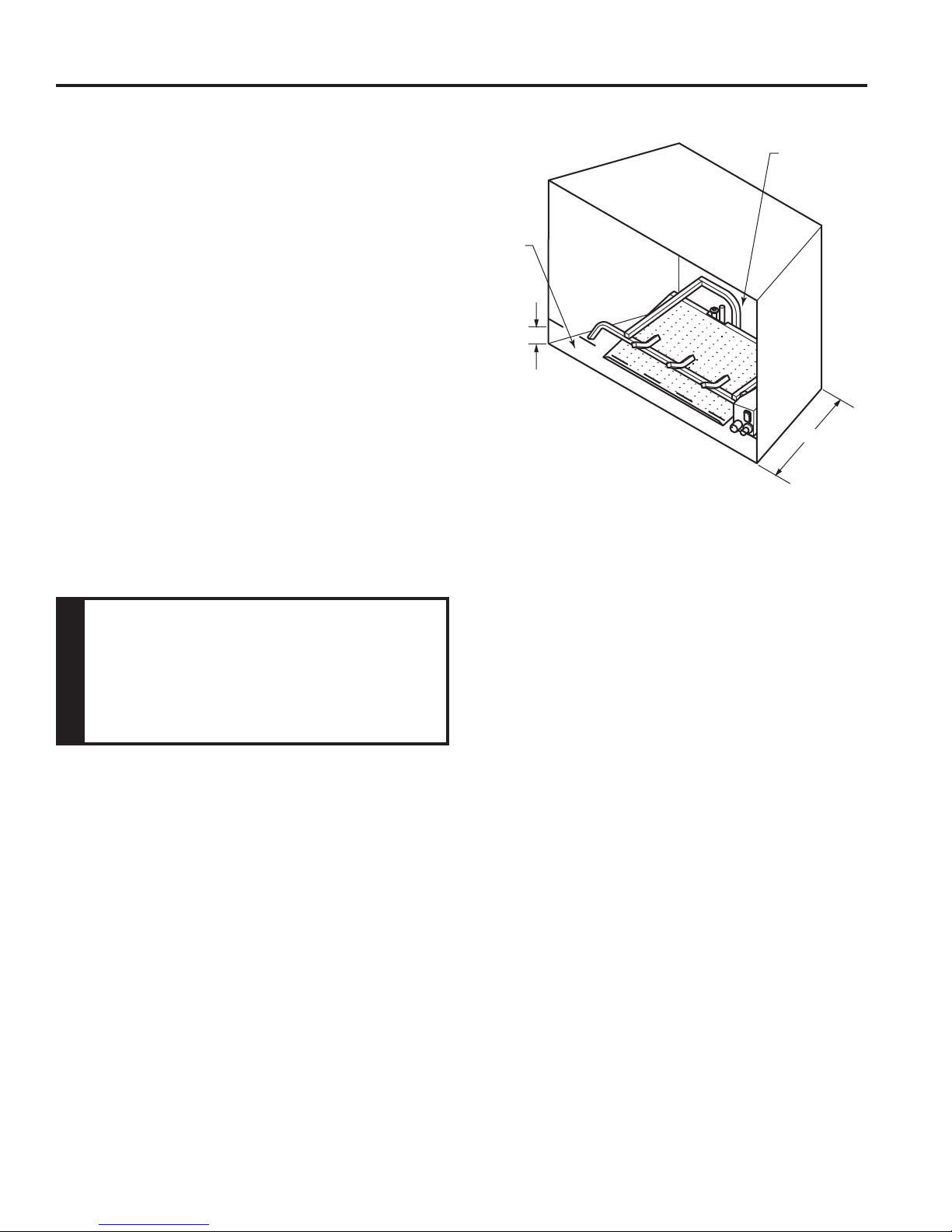

Figure 3 -
Reference Drawing of Log Set in an Enclosure
The log set
should be
placed against
or as near as
possible to the
rear wall of the
replace/rebox.
7
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
20304949

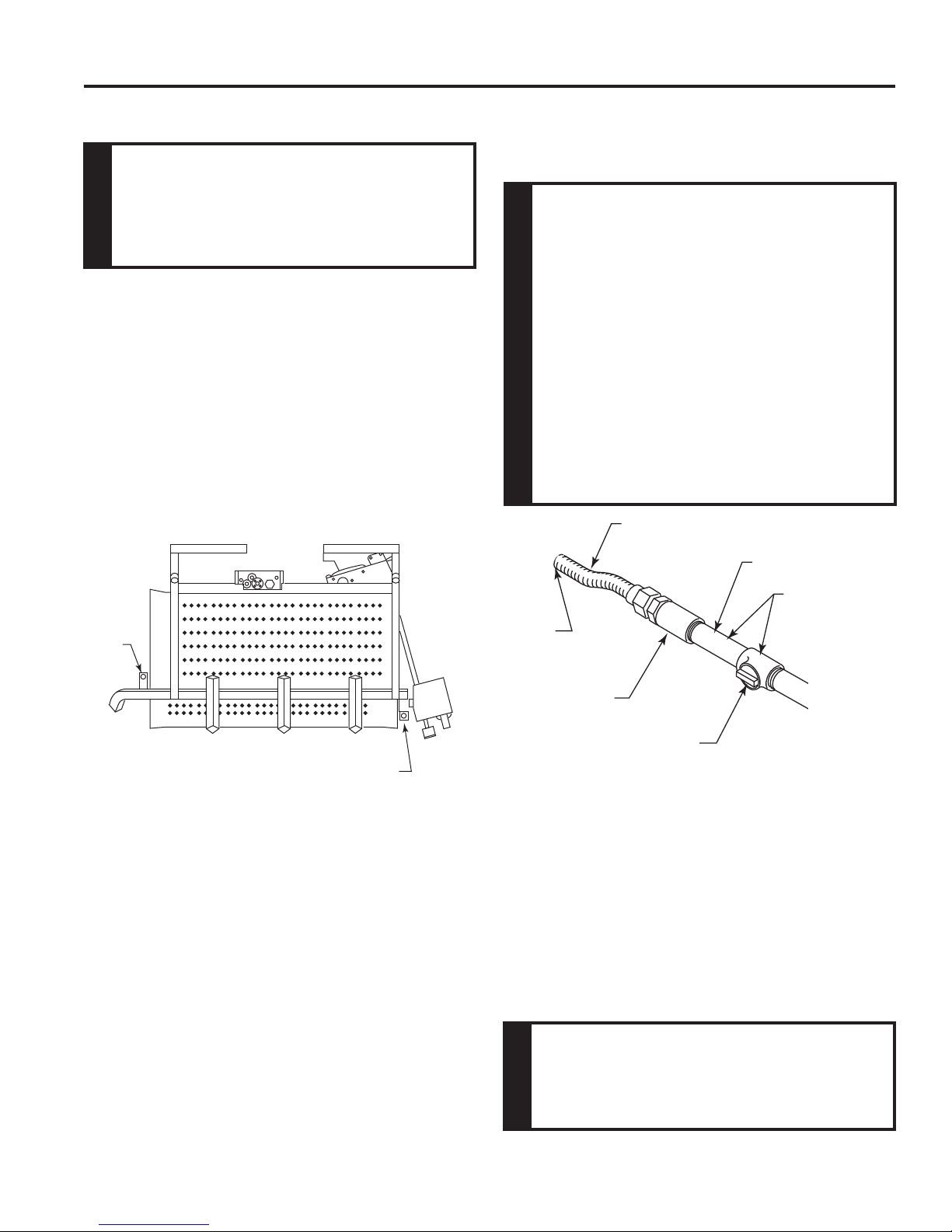

1. Center the gas log unit in the replace or rebox. Make
certain the front feet of the grate sit inside the front edge
of the replace or rebox.
2. Refer to Figure 4 for hole locations. After centering
the grate correctly, mark the hole positions on the re-
place/rebox oor. Drill two (2) 5/32" diameter holes
approximately 1Z\x" deep.
3. Anchor the grate to the replace/rebox oor using the
screws provided. Figure 4
Proper installation of the grate is essential to prevent any
movement of the gas logs and controls during operation.
Figure 4 -
Securing Heater to Floor of
Fireplace/Firebox
Left Side
Mounting
Hole
Right Side Mounting Hole
FP2855
secure burner
FP2855
A qualied gas appliance installer must connect
the heater to the gas supply. Consult all local codes.
Figure 5
FP2371
gas connect
Stainless
Flexible
Tube Pipe
Possible Locations
for Pressure
Tapping Point
To
Heater
Valve
Pipe
Coupling
Manual Shutoff
Valve FP2371
Figure 5 -
Gas Connection
Hold appliance regulator rmly with a wrench
to prevent movement when connecting to inlet piping.
The gas supply must be the same as
stated on the gas logs rating plate. If the gas supply is dif-
ferent, Contact your
dealer for the correct model.
Always use an external regulator for all propane/LPG gas
logs only, to reduce the supply tank pressure to a maximum
of 13" w.c. This is in addition to the regulator tted to the
gas log set. High pressure natural gas systems require a
regulator to reduce supply pressure to 10" w.c.
20304949
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
8
The heater gas inlet connection is 3/8" NPT at the regula-
tor, inlet on the right side facing the gas log. If a left side
connection is required, the connecting pipe may be led
under the rear of the gas logs or behind the grate for con-
nection to the inlet.
Test all gas joints from the gas meter to the appliance
regulator for leaks using a gas analyzer or soap and water
solution after completing connection.
Check the gas pressure with the appliance burning.
Figure 6

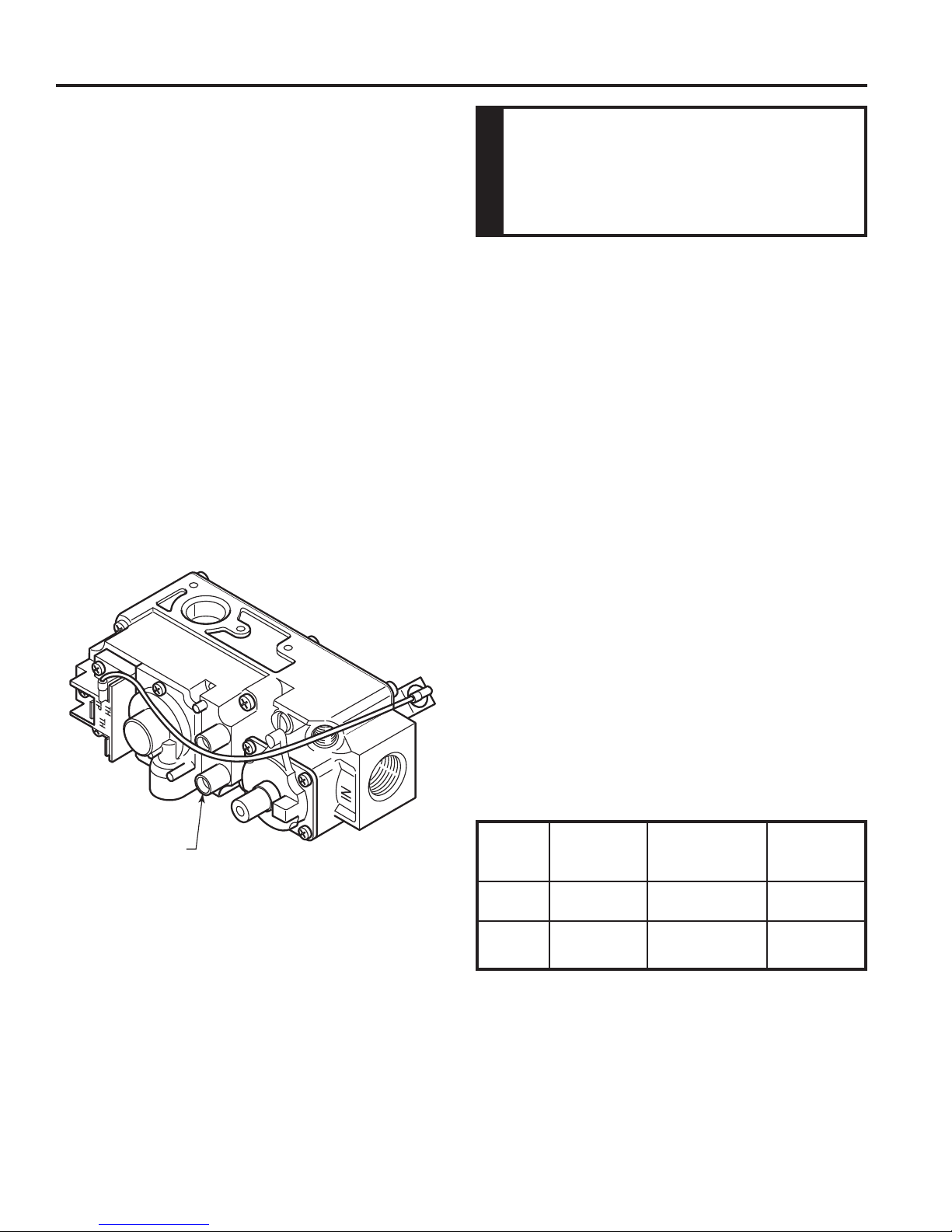

The valve regulator controls the burner pressure which
should be checked at the pressure test point. Turn captured
screw counter clockwise 2 or 3 turns and then place tubing
to pressure gauge over test point (Use test point labeled
“OUT”). After taking pressure reading, be sure and turn
captured screw clockwise rmly to re-seal. Do not over
torque. Check for gas leaks.
FP2856
millivolt valve
Test Port "Out"
FP2856
Figure 6 -
Pressure Test Point Location
The Millivolt (thermopile) is a self powered combination
gas control that does not require 110VAC to operate. See
Figure 7 and installation instructions provided with optional
wall switch or remote control for wiring instructions. A max-
imum length of 15 feet of 18awg two conductor wire is to
be used for wall switch. Note switches must be suitable
for millivolt operation.
The millivolt system and individual components may be
checked with a millivolt meter having a 1-1000 mV range.
Conduct each check shown in chart by connecting meter
test leads to terminals as indicated.
A. Complete Millivolt System Check
(“A” Reading - Contacts CLOSED - Control knob “ON”
- Main burner should turn ON)
1. If reading is more than 100 millivolts and the au-
tomatic valve still does not come on, replace the
control.
2. If the closed circuit reading (“A” reading) is less
than 100 millivolts, determine cause for low read-
ing, proceed to Section B.
B. Thermopile Output Reading Check
(“B” Reading - Contacts OPEN - Main burner OFF
1. 325 millivolts minimum. If the minimum millivolt
reading is not obtainable, readjust pilot for maxi-
mum millivolt output. If millivolt reading is still below
minimum specied, replace thermopile.
A Complete TH & THTP Minimum
System 100mV
B Thermopile TP & THTP Minimum
Output 325mV
9
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
20304949
FP2857
millivolt wiring
Optional Wall Switch
or Remote Receiver
Switch
Millivolt Valve
Pilot
Figure 7 -
Wiring Diagram
FP2857
• The oor of the replace is recessed below the replace
opening. Refer to the Warnings on Page 6.
• The replace has glass doors which when open reduces
the opening width to 1Z\x" or more below the stated mini-
mum dimensions within the homeowner’s manual.
• The oor of the replace is sheet metal without a brick
covering.
• The remote receiver is attached but does not physi-
cally t inside the replace with 2" clearance to the side
wall.
Connect wires according to remote receiver instructions.
The female terminals should be connected to factory
attached male terminals which are located on right hand
side of the burner. Figure 7
Do not let wires touch grate and/or burner.
For more details, see remote receiver instructions.
Battery life decreases as temperature increases.
Keep remote receiver in a low temperature area outside
of replace to prolong battery life.
20304949
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
10
1. Place back log (#1) on back of base aligning two (2)
pins on base with holes in bottom of log. Figures 8 and
9
LG972
VDY24_18D2 base
Locator Pins
Control
Cover
LG972
Figure 8
LG1000
VDY2418D5 BACK LOG
Back Log #1
LG1000
Figure 9
LG1001
VDY2418D5 bottom logs
Bottom Left Log #3 Bottom Right
Log #2
LG1001
Figure 10
2. Placed bottom right log (#2) on right side
of grate. Figure 10
3. Place bottom left log (#3) on left side of
grate. Figure 10
IMPORTANT: Remove logs, handling carefully by holding
gently at each end. Gloves are recommended to prevent
skin irritation from ceramic bers. If skin becomes irritated,
wash gently with soap and water.
11
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
20304949
LG1002
VDY2418D5 top rt lt logs
Middle Left
Log #4
Middle Right
Log #5
LG1002
Figure 11
4. Place one end of middle left log (#4) on
bottom left log. Rest other end of middle
left log (#4) behind middle right log.
Figure 11
5. Place middle right log (#5) on top of
bottom right log. Figure 11
6. Rest top right log (#6) on back log
and bottom right log. Figure 12
7. Place top left log (#7) on bottom left
log. Figure 12
LG1004
VDY2418D5 front mid log
First Grate Prong Second Grate Prong
Front Middle Log #8
LG1004
Figure 13
8. Place front middle log (#8)
between the rst and second
prongs. Figure 13
LG1003
VDY2418D5 top left log
Top Left
Log #7
LG1003
Figure 12
Top Right
Log #6
20304949
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
12
Cover the burner pan with glowing embers (rock wool)
provided. Tear pieces approximately 1/2" in size (roughly
the size of a nickel) and cover the burner evenly.
pile the rock wool too thickly on pan.
place rock wool higher than the top of the front
grate bar.
cover the pilot with rock wool.
Sprinkle volcanic rock on replace oor in front of
front glowing embers on burner pan and to both
sides.
It is critical to verify that your chimney is drafting
properly because the replace and gas logs function
as a system.
Although Vermont Castings Group goes to great
lengths to design vented gas log sets that minimize
sooting, all vented log sets will soot over time. Soot-
ing normally appears as areas of a black powder-like
substance on the logs. It is important to periodically
clean and inspect the logs per the cleaning and ser-
vicing section of the manual.
To determine if your replace is drafting properly, turn the
log set on. After the log set has been burning for about 10
minutes, place a match or smoke stick along the top and
sides of the replace opening. If the ame or smoke is not
pulled into the replace, then the
At this point the damper stop should be adjusted
so that the damper opening is increased. If the problem re-
mains after the open area of the damper is increased, then
the replace system should be professionally inspected to
determine if your rebox/chimney is venting properly.
13
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
20304949

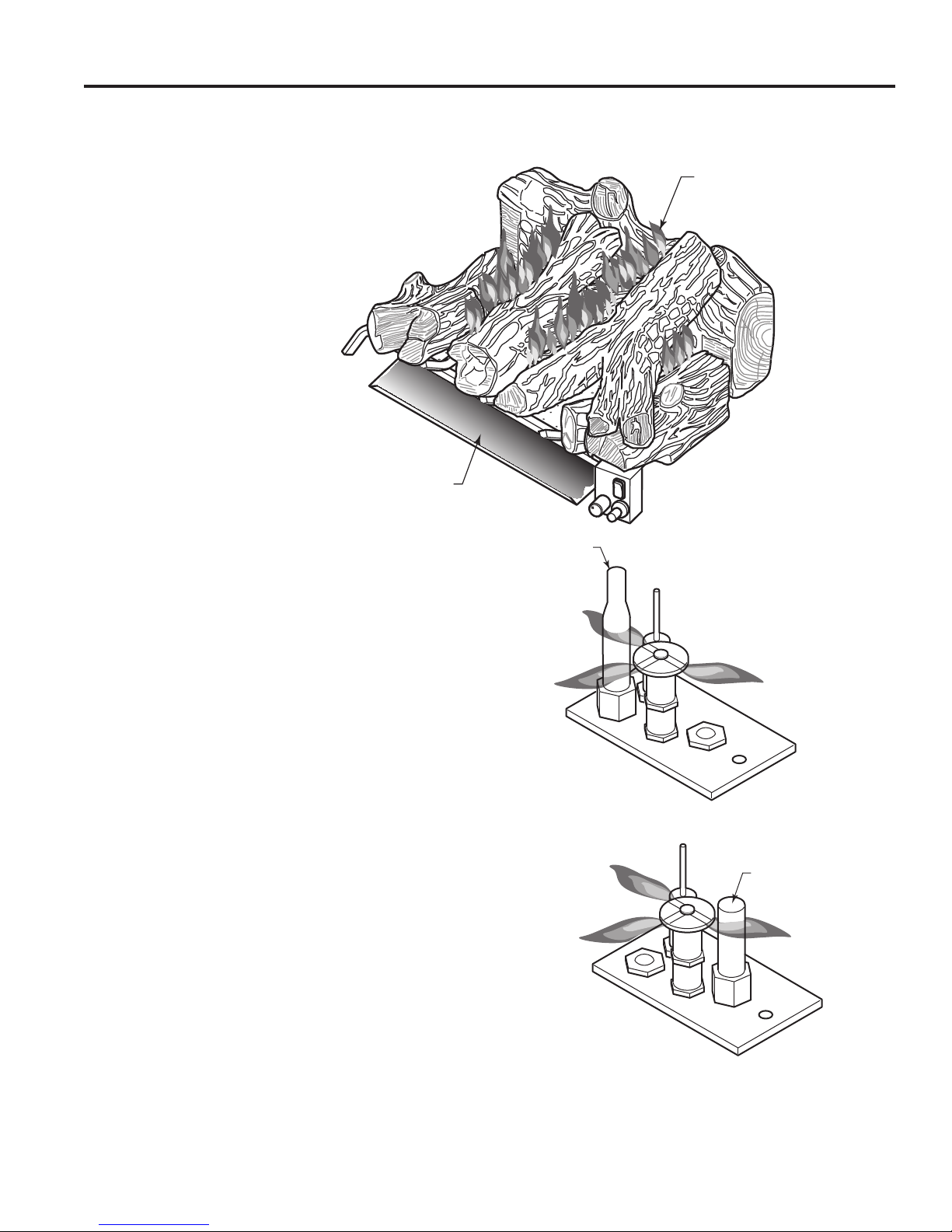

In normal operation at full rate after approximately 15
minutes, the following ame appearance should be ob-
served.
LG1011
VDY burner flame
Rear flame should
be yellow and extend
vertically. Maximize
spacing on top logs.
Ember bed should have
a yellow/orange glow. LG1011
Burner flames should become
yellow as they contact embers on
the face of the log. The log face will
glow a bright reddish orange.
Figure 14 -
Proper Flame Appearance
The pilot ame must always be present when appliance
is in operation. It should touch the thermocouple or ther-
mopile body.
During manufacturing, fabricating and shipping, various
components of this appliance are treated with certain oils,
lms or bonding agents. These chemicals are not harm-
ful, but may produce annoying smoke and smells as they
are burned off during the initial operation of the appliance.
The initial break-in operation should last 2-3 hours with the
burner at the highest setting. The appliance must not be
used with glassed doors in the closed position. This can
result reduced combustion and overheating.
FP2849
manual pilot flame
FP2859
millivolt pilot flame
Thermocouple
FP2858
FP2859
Thermopile
Figure 15 -
Correct Pilot Flame Appearance
20304949
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
14
This appliance is equipped with an ignition device which automatically lights the pilot.
BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the oor
because some gas is heavier than air and will settle on the oor.
• Do not attempt to light any appliance.
• Do not touch any electric switch; do not use any phone
in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the re
department.
Use only your hand to push in, or turn the gas control knob. Never use tools. If the knob will not push
in or turn by hand, don't try to repair it. Call a qualied service technician. Force or attempted repair
may result in a re or explosion.
Do not use this appliance if any part of it has been under water. Immediately call a qualied service
technician to inspect the appliance and to replace any part of the control system and any gas control
that has been under water.
15
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
20304949
1. Turn control knob clockwise to
“OFF”
position to completely shut off the heater.
2. If applicable: Turn ON/OFF switch to “OFF” position.
3. If applicable: Turn off all electric power to the heater.
1. Read the safety information label.
2. Make sure the manual shutoff valve is fully open.
3. This gas log set is equipped with an ignition device (piezo) which automatically lights the pilot. If piezo
ignitor does not light the pilot, see instructions for Match Lighting below.
4. Turn gas control knob clockwise to the “OFF” position, and turn ON/OFF switch to “OFF” position.
5. Wait (5) minutes to clear out any gas. Then smell for gas, including near the oor. If you smell gas,
Follow “B” in the safety information label. If you don't smell gas, go to next step.
6. From
“OFF”
position, turn the gas control knob counterclockwise to “IGN” position. Push in control
knob for 5 seconds.
7. With the control knob pushed in, push in and release the piezo ignitor button to light the pilot.
8. Continue pushing the control knob in for a further 60 seconds to prevent the ame detector from shut-
ting off the gas while the probe is warming up. Release the control knob.
9. Turn gas control knob counterclockwise to the “ON” position.
10.After the pilot has been lit for one minute, the burners can be turned on. Turn the ON/OFF switch to
“ON” position.
11.If the gas logs will not operate, follow the instruc-
tions To Turn Off Gas To Heater and call your
service technician or gas supplier.
1. Remove any items necessary for easy access to the pilot (for example: logs, screens, etc.).
2. Follow appropriate lighting instructions found previously. Instead of pushing and releasing the piezo
button, light a match and hold the ame to the end of the pilot and ignite the pilot.
3. After control knob has been released and pilot stays lit, re-install any items that were removed for
pilot access.
4. Call a qualied service technician for repair or replacement of the piezo ignitor.
FP2859
millivolt pilot flame
FP2861
millivolt control knob
FP2862
on off switch
20304949
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
16
Remove logs, handling carefully by holding gently at each
end. Gloves are recommended to prevent skin irritation
from ceramic bers. If skin becomes irritated, wash gently
with soap and water. See manual for correct log place-
ment.
• Do not use cleaning uid to clean logs or any part of
gas logs.
• Logs - brush with soft bristle brush or vacuum with
brush attachment.
• Vacuum loose particles and dust from the control
and grate weldment.
• Inspect and clean burner air intake holes. Remove
lint or particles with vacuum or brush. Failure to keep
air intake holes clean will result in sooting and poor
combustion.
• If embers (rock wool) have turned a rust color and
become brittle, remove old embers (rock wool) from
log set. Replace with new rock wool. Rock wool can
be purchased from your local dealer. See log place-
ment section for placement of embers.
• Inspect and clean all burner ports.
• Verify burner and pilot ame pattern and log place-
ment for proper operation.
• Verify smooth and responsive ignition of burner.
• Inspect and clean chimney.
• Inspect and clean burner air intake holes. Remove
lint or particles with vacuum or brush. Failure to keep
air intake holes clean will result in sooting and poor
combustion.
17
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
20304949
All troubleshooting items are listed in order of
operation.
When ignitor button is
pressed, there is no spark
at pilot.
Appliance produces un-
wanted odors.
Appliance shuts off during
use.
Gas odor even when
control knob is in OFF
position.
When ignitor button is
pressed, there is spark at
pilot, but no ignition.
1. Ignitor electrode positioned wrong.
2. Ignitor electrode is broken.
3. Ignitor electrode not connected to
ignitor cable.
4. Ignitor cable pinched or wet. Keep
ignitor cable dry.
5. Broken ignitor cable.
6. Bad piezo ignitor.
1. Appliance burning vapors from
paint, hair spray, glues, etc.
2. Gas leak.
3. Fireplace spilling.
1. Low line pressure.
2. Pilot is partially clogged.
3. Defective thermopile.
1. Gas leak.
2. Control valve defective.
1. Gas supply turned off or manual
shutoff valve closed.
2. Control knob not in PILOT position.
3. Control knob not pressed in while in
PILOT position.
4. Air in gas lines when installed.
5. Pilot is clogged.
6. Gas regulator setting is not correct.
1. Replace ignitor.
2. Replace ignitor.
3. Reconnect ignitor cable.
4. Free ignitor cable if pinched by any
metal or tubing.
5. Replace ignitor cable.
6. Replace piezo ignitor.
1. Ventilate room. Stop using odor causing
products while heater is running.
2. Locate and correct leaks.
3. Check replace, adjust damper position
to eliminate spillage (backdraft).
1. Locate and correct all leaks.
2. Replace control valve.
1. Locate and correct all leaks.
2. Replace control valve.
1. Turn on gas supply or open manual
shutoff valve.
2. Turn control knob to PILOT position.
3. Press in control knob while in PILOT
position.
4. Continue holding down control knob.
Repeat igniting operation until air is
removed.
5. Replace pilot assembly or get it serviced
6. Replace gas regulator.
20304949
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
18
Pilot lights, but ame goes
out when control knob is
released.
One or both burners do not
light after pilot is lit.
Burner backres during
combustion.
Slight smoke or odor dur-
ing initial operation.
Logs appear to smoke
after initial operation.
Heater produces a whis-
tling noise when burner is
lit.
No gas to pilot.
1. Control knob not fully pressed in.
2. Control knob not pressed in long
enough.
3. Manual shutoff valve not fully open.
1. Burner orice is clogged or damaged
2. Burner is damaged.
3. Gas regulator defective.
1. Manifold Pressure is too low.
2. Burner orice is clogged.
1. Burner orice is clogged or dam-
aged.
2. Burner is damaged.
3. Gas regulator is defective.
1. Vapors from paint or curing process
of logs.
1. Turning control knob to HIGH posi-
tion when burner is cold.
2. Air in gas line.
3. Dirty or partially clogged burner
orices.
1. LP regulator shut down due to inlet
pressure too high.
1. Press in control knob fully.
2. After ODS/pilot lights, keep control knob
pressed in for 30 seconds.
3. Fully open manual shutoff valve.
1. Clean burner or replace burner orice.
2. Replace burner orice.
3. Contact qualied service person.
1. Contact local gas company.
2. Clean burner or replace burner orice.
1. Clean burner or replace burner orice.
2. Replace burner.
3. Replace gas regulator.
1. Problem will stop after a few hours of
operation.
2. Log heater is intended to be smoke-
less. Turn OFF heater and call qualied
service person.
1. Turn control knob to ON position and let
warm up for a minute.
2. Operate burner until air is removed from
line. Have gas line checked by local gas
company.
3. Clean burner or replace burner orice.
1. Verify LP tank regulator is installed and
set at 11” to 13” w.c.
2. Replace regulator on heater.
19
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
20304949
1
2
3
4
5
4949
VDY parts
1. Main Injector 32D0100 32D0507
2. Control Knob 18D0603 18D0603
3. Millivolt Control Valve w/Pilot 27D8006 27D8005
4. Pilot 27D8974 27D8973
5. Thermocouple/Thermopile 28D0566 28D0566
Flex Connector Flexcon30
Wall Kit Switch w/20' wire MVWS
Remote Receiver Cover - Embers RRCE
Remote Receiver Cover - Metal RRCM
Volcanic Rock VR1000A
Decorative Ceramic Fiber Embers EMBERS
Ceramic Fiber Cinders CINDERS
Rock Wool DV-RWA
20304949
"Duzy" Gas Log Sets – The Look and Feel of a Real Wood Fire
20
1
2
3
45
6
7
8
LG1015
VDY2418D5 logs
1. Back Log 1 32D3121
2. Bottom Right Log 1 32D3122
3. Bottom Left Log 1 32D3123
4. Middle Left Log 1 32D3124
5. Middle Right Log 1 32D3125
6. Top Right Log 1 32D3126
7. Top Left Log 1 32D3127
8. Front Middle Log 1 32D3128
Table of contents
Other Vermont Castings Indoor Fireplace manuals
Vermont Castings
Vermont Castings VFC24C Manual
Vermont Castings
Vermont Castings LX32DV(N/P)SB User manual
Vermont Castings
Vermont Castings BE36 User manual
Vermont Castings
Vermont Castings WinterWarm Mounting instructions
Vermont Castings
Vermont Castings KHLDV400PTSCSB User manual
Vermont Castings
Vermont Castings 33CFDVNV User manual
Vermont Castings
Vermont Castings Winter warm 2100 User manual
Vermont Castings
Vermont Castings DVR28IN Assembly instructions
Vermont Castings
Vermont Castings Royal Collection WMC36 Mounting instructions
Vermont Castings
Vermont Castings Allura-Fire Electric Fireplaces EF26 User manual
Vermont Castings
Vermont Castings MONTPELIER II MONTP-II-CB User manual
Vermont Castings
Vermont Castings 647 BFC User manual
Vermont Castings
Vermont Castings EWF30 Mounting instructions
Vermont Castings
Vermont Castings Stratton User manual
Vermont Castings
Vermont Castings R18CFL User manual
Vermont Castings
Vermont Castings Winter Warm Small Insert Mounting instructions
Vermont Castings
Vermont Castings Chateau DVT38S2 Assembly instructions
Vermont Castings
Vermont Castings Brookhaven 20DVT Assembly instructions
Vermont Castings
Vermont Castings WinterWarm Fireplace Insert or System User manual
Vermont Castings
Vermont Castings GIFFORD-CB User manual
Popular Indoor Fireplace manuals by other brands
Napoleon
Napoleon NEFL42CHD-1 manual
Masport
Masport WOOD FIRE installation guide
JAYLINE
JAYLINE SS280 Installation & operation instructions
Heat-N-Glo
Heat-N-Glo SL-32S Installation
kozy heat
kozy heat Bellingham 52 quick start guide
Paragon Fires
Paragon Fires ROOM SEALED INSET LIVE FUEL EFFECT GAS FIRE owner's manual
Monessen Hearth
Monessen Hearth LCUF32CR-B Installation & owner's manual
PuraFlame
PuraFlame Galena owner's manual
Dimplex
Dimplex Toluca Deluxe instruction manual
SEI
SEI TENNYSON FA8544AO Assembly instructions
Dru
Dru G25 installation manual
Capital fireplaces
Capital fireplaces Designline DL700 Installation and user instructions
IronStrike
IronStrike VINTAGE VINT-DVS-U Installation and operation
ACR Heat
ACR Heat HERITAGE N25 Installation and operating instruction manual
European Home
European Home HVF-42 Installation, operation and owner's manual
Quadra-Fire
Quadra-Fire MTVERNINSAE-MBK Owner's manual operation & care
Harman Home Heating
Harman Home Heating Accentra Insert Installation & operating manual
Trimline Fires
Trimline Fires Zircon 1024 installation instructions
