Resolution Direct Vent Gas Fireplace
High Elevations ...................................................... 5
Gas Pressures ....................................................... 5
Gas Specications & Orice Size .......................... 5
Before You Start ..................................................... 7
Fireplace Framing .................................................. 7
Fireplace Location .................................................. 8
Installation Precautions .........................................11
Installation Clearances ..........................................11
Installation Planning ............................................. 12
Vertical Termination .............................................. 12
Horizontal Termination ......................................... 12
How to Use a Vent Graph .................................... 14
Vertical Sidewall Installation ................................. 15
Vertical/Horizontal Termination Congurations .... 16
Below Grade Installation ...................................... 17
Vertical Through-the-Roof Applications ................ 18
Installation for Vertical Termination ...................... 19
Check Gas Type................................................... 21
Install Gas Piping ................................................ 21
Electrical Wiring ................................................... 23
Junction Box Wiring ............................................. 24
Command Center Wall Installation ....................... 24
Wall Switch Installation ........................................ 24
Signature Command Wiring Diagram .................. 25
Operating Instructions .......................................... 34
To Turn Off Gas .................................................... 34
Operation Instructions .......................................... 35
Touch Screen Remote Transmitter Operation ...... 38
Burner, Pilot and Control Compartment ............... 44
Pilot Flame ........................................................... 44
Burner Flame ....................................................... 44
Venting System .................................................... 45
Glass Door ........................................................... 45
Logs ..................................................................... 45
Rock Wool ........................................................... 45
Firebox Components ............................................ 47
Signature Command System ............................... 48
Logs ..................................................................... 50
Venting Components ............................................ 51
20300293 3
Resolution Direct Vent Gas Fireplace
4. Never install the replace
• in a recreational vehicle
• where curtains, furniture, clothing, or other am-
mable objects are less than 42" from the front, top,
or sides of the replace
• in high trafc areas
• in windy or drafty areas
5. This replace reaches high temperatures. Keep children
and adults away from hot surfaces to avoid burns or
clothing ignition. Fireplace will remain hot for a time after
shutdown. Allow surfaces to cool before touching.
6. Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to acci-
dental contact burns. A physical barrier is recommended
if there are at risk individuals in the house. To restrict
access to a replace or stove, install an adjustable
safety gate to keep toddlers, young children and other
at risk individuals out of the room and away from hot
surfaces.
7. Do not modify replace under any circumstances. Any
parts removed for servicing must be replaced prior to
operating replace.
8. Turn replace off and let cool before servicing, install-
ing, or repairing. Only a qualied service person should
install, service, or repair the replace. Have burner
system inspected annually by a qualified service
person.
9. You must keep control compartments, burners, and
circulating air passages clean. More frequent cleaning
may be needed due to excessive lint and dust. Turn off
the gas valve and pilot light before cleaning replace.
10. Have venting system inspected annually by a qualied
service person. If needed, have venting system cleaned
or repaired. Refer to Cleaning and Maintenance, Page
44.
11. Keep the area around your replace clear of combus-
tible materials, gasoline, and other ammable vapor and
liquids. Do not run replace where these are used or
stored. Do not place items such as clothing or decora-
tions on or around replace.
Please leave these instructions with the appliance.
Please retain these instructions for future reference
.
This replace is a vented product. This replace must be
properly installed by a qualied service person. The glass
door must be properly seated and sealed. If this unit is not
properly installed by a qualied service person with glass
door properly seated and sealed, combustion leakage can
occur.
Early signs of carbon
monoxide poisoning are similar to the u with headaches,
dizziness and/or nausea. If you have these signs, the re-
place may not have been installed properly. Get fresh air
at once! Have the replace inspected and serviced by a
qualied service person. Some people are more affected
by carbon monoxide than others. These include pregnant
women, people with heart or lung disease or anemia,
those under the inuence of alcohol, and those at high
altitudes.
Propane/LP gas and natural gas are both odorless. An
odor-making agent is added to each of these gases. The
odor helps you detect a gas leak. However, the odor added
to these gases can fade. Gas may be present even though
no odor exists.
Make certain you read and understand all warnings. Keep
this manual for reference. It is your guide to safe and proper
operation of this replace.
1. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases unless a certied
kit is used.
2. For propane/LP replace, do not place propane/LP
supply tank(s) inside any structure. Locate propane/LP
supply tank(s) outdoors. To prevent performance prob-
lems, do not use propane/LP fuel tank of less than 100
lbs. capacity.
3. If you smell gas
• shut off gas supply.
• do not try to light any appliance.
• do not touch any electrical switch; do not use any
phone in your building .
• immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
420300293
Resolution Direct Vent Gas Fireplace
Continued from page 3
12. Do not use this replace to cook food or burn paper or
other objects.
13. Never place anything on top of replace.
14. Do not use any solid fuels (wood, coal, paper, card-
board, etc.) in this replace. Use only the gas type
indicated on rating plate.
15. This appliance, when installed, must be electrically
grounded in accordance with local codes or in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical Code,
CSA C22.1.
16. Do not obstruct the ow of combustion and ventilation
air in any way. Provide adequate clearances around
air openings into the combustion chamber along with
adequate accessibility clearance for servicing and
proper operation.
17. When the appliance is installed directly on carpeting,
tile or other combustible material other than wood oor-
ing, you must set appliance on a metal or wood panel
or hearth pad extending the full width and depth of the
appliance.
18. Do not use replace if any part has been exposed to
or has been under water. Immediately call a qualied
service technician to inspect the appliance and replace
any part of the control system and any gas control which
as been submerged in water.
19. Do not operate replace if any log is broken.
20. Do not use a blower insert, heat exchanger insert, or
any other accessory not approved for use with this
replace.
21. Do not operate the replace with glass door removed,
cracked, or broken.
Direct Vent type appliances draw all combustion air from
outside of the dwelling through the vent pipe.
These appliances have been tested by CSA and found to
comply with the established standards for DIRECT VENT
GAS FIREPLACE HEATERS in the USA and Canada as
follows:
TESTED TO:
ANSI Z21.88-2009 / CSA 2.33-2009 STANDARDS
A manufactured home (USA only) or mobile home OEM
installation must conform with the Manufactured Home
Construction and Safety Standard,
or when such a standard is not applicable, the
, or
.
WARNING
!
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
AVERTISSEMENT
!
Un panneau vitré chaud peut
causer des brûlures.
Laissez refroidir le panneau
vitréavant d’y toucher.
Ne laisser jamais les enfants
toucher le panneau vitré.
It is normal for replaces fabricated of steel to give off
some expansion and/or contraction noises during the
start up or cool down cycle. Similar noises are found with
your furnace heat exchanger or car engine.
It is not unusual for gas replaces to give off some odor
the rst time it is burned. This is due to the manufacturing
process.
It is recommended that you burn your replace for at
least ten (10) hours the rst time you use it. Place the
fan switch in the “OFF” position during this time.
20300293 5
Resolution Direct Vent Gas Fireplace
• This appliance has been certied for use with either
natural or propane gas. See appropriate data plates.
• This appliance is not for use with solid fuels.
• The appliance is approved for bedroom or bedsitting
room installations.
• The appliance must be installed in accordance with local
codes if any. If none exist use the current installation
code. ANSI Z223.1/NFPA 54 in the USA, CSA B149 in
Canada.
• This appliance is mobile home approved.
• The appliance must be properly connected to a venting
system.
• The appliance is not approved for closet or recessed
installations.
FP2594
VHLDV controls
Command Center
Figure 1 -
VHLDV Fireplace Controls
Gas Valve
Control Box
Access Panel
FP2594
Input ratings are shown in BTU per hour and are certied
without deration for elevations up to 4,500 feet (1,370
m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1/NFPA 54 and/or local codes having juris-
diction.
In Canada, please consult provincial and/or local authori-
ties having jurisdiction for installations at elevations
above 4,500 feet (1,370 m).
Natural Propane (LP)
Inlet Minimum 4.5” w.c. 11.0” w.c.
Inlet Maximum 10.5” w.c. 13.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.
VHLDV500 Nat. 2.3 mm #30 (.1285)
VHLDV500 LP #50 (.070") #55 (.052")
VHLDV500NTSC Nat. 50,000 35,500 17,500
VHLDV500PTSC LP 50,000 38,500 17,500
620300293
Resolution Direct Vent Gas Fireplace
2456O”

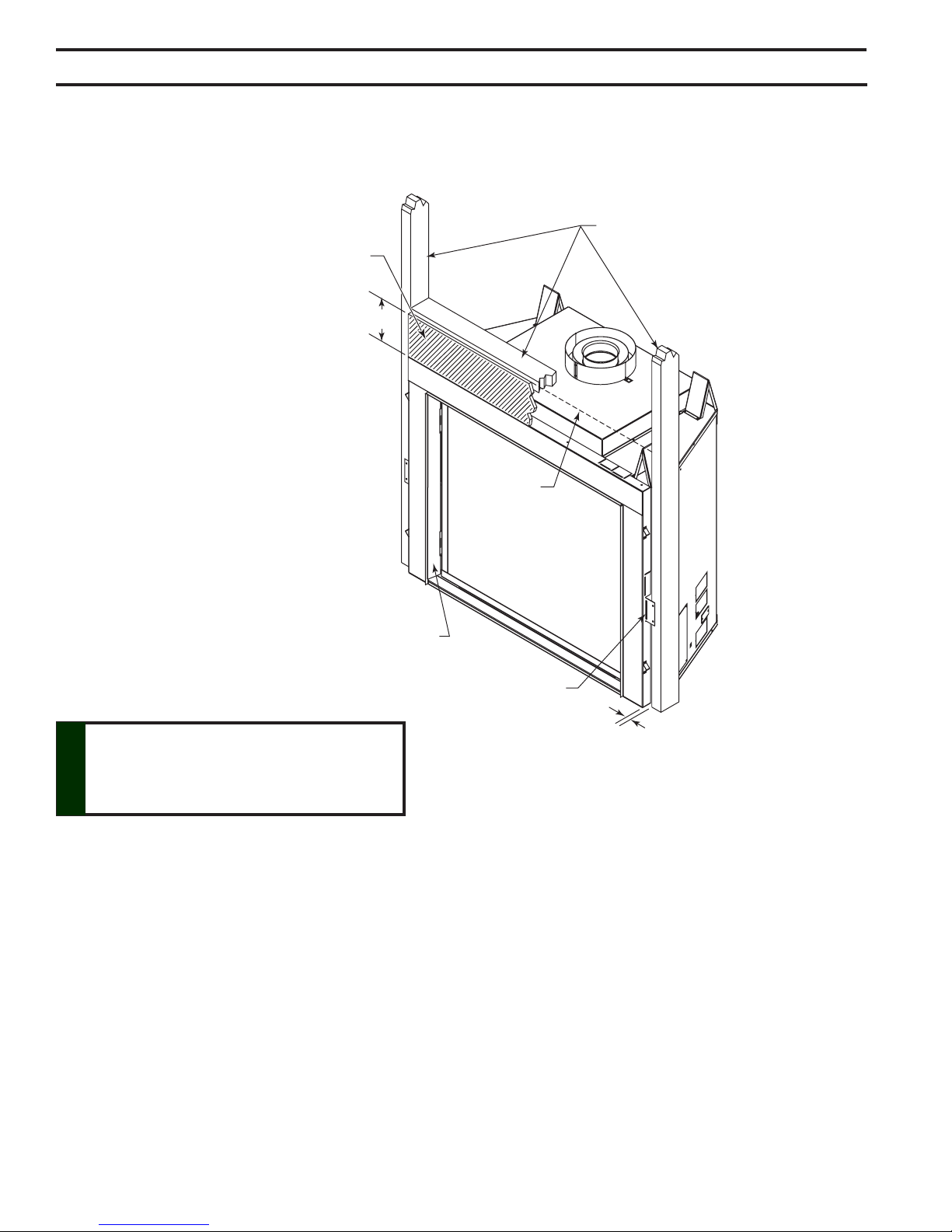

(622 mm)
3256” (816 mm)
86QE” (218 mm)
446M”
(1137 mm)
496QE” (1253 mm)
Min. Rough Opening Width
23(6”
(606 mm)
79(6” (2029 mm)
56(6QE” (1434 mm)
3956QE”
1014 mm)
Min. Rough
Opening
Depth
1/2” or 5/8”
Min. Rough
Opening
Height
730129
DVKHL/KHLDV dims
4856QE” (1243 mm)
3956O” (1003 mm)
36” (914 mm)
4”
(102 mm)
456M”
(108 mm)
30”
(816 mm)
3856QE”
(967 mm)
1”
(25 mm)
446”
(1127 mm) 38(6QE”
(976 mm)
56(6QE” (1434 mm)
23(6”
(606 mm)
Figure 2 -
Fireplace and Framing Dimensions
20300293 7
Resolution Direct Vent Gas Fireplace
Read this homeowner manual thoroughly and follow all
instructions carefully. Inspect all contents for shipping
damage and immediately inform your dealer if any damage
is found. Do not install any unit with damaged, incomplete,
or substitute parts. Check your packing list to verify that
all listed parts have been received. You should have the
following:
• Fireplace (Firebox and Burner System)
• Log Set
• Rock Wool
• Noncombustible Panel
• Phillips Screwdriver • Framing Materials
• Hammer • Wall Finishing Materials
• Saw and/or saber saw • Level
• Measuring Tape • Pliers
• Electric Drill and Bits • Square
• Pipe Wrench • Tee Joint
• Noncombustible nishing material or dura-rock*
• Caulking Material (noncombustible)
• Fireplace Surround Material (noncombustible)
• Piping Complying with Local Codes
• Pipe Sealant Approved for use with Propane/LPG
(Resistant to sulfur compounds)
* Only used if desired to cover painted face other than using tiles
or marble. If tiles or marble are used around the face then the
non-combustible material is not needed.
Firebox framing can be built before or after the appliance
is set in place. Refer to Figure 2 for rebox dimensions
and framing. Construct rebox framing following Figure
2 for your specic installation requirements. The framing
headers may rest on the top of the rebox standoffs. Do
not bring headers below top of standoffs. When
planning your framing and installation, keep in mind that
your gas line will come in on the right side of the box (as
you are facing it) and your electricity will come in on the
left side.
The rebox may be installed directly on a combustible oor
or raised on a platform of an appropriate height. When
the rebox is installed directly on carpeting, tile, or other
combustible material, other than wood ooring, the rebox
shall be installed on a metal or wood panel extending the
full width and depth of the enclosure.
820300293
Resolution Direct Vent Gas Fireplace
Plan for the installation of your appliance. This includes determining where the unit is to be installed,
the vent conguration to be used, framing and nishing details, and whether any optional accessories
(i.e. blower, wall switch, or remote control) are desired. Consult your local building code agency to
ensure compliance with local codes, including permits and inspections.
The following factors should be taken into consideration:
• Clearance to side-wall, ceiling, woodwork, and windows. Minimum clearances to combustibles
• This replace may be installed along a wall, across a corner, or use an exterior chase. Refer to
Figure 3 for suggested locations.
• Location should be out of high trafc areas and away from furniture and draperies due to heat
from appliance.
• Never obstruct the front opening of the replace.
• Do install in the vicinity where gasoline or other ammable liquids may be stored.
• Vent pipe routing. Refer to the Venting section found in this manual for allowable venting con-
gurations.
• These units can be installed in a bedroom. See National Fuel Gas Code ANSI Z233.1/NFPA 54
— (current edition), the Uniform Mechanical Code — (current edition), and Local Building Codes
for specic installation requirements.
• These units can be installed in a bathroom.
Figure 3 -
Locating Gas Fireplace
** Island (C) and room divider (D) installation is possible as long
as the horizontal portion of vent system (X) does not exceed
20'. Refer to Installing Horizontal Termination Conguration
on Page 15.
* When you install your replace in (D) room divider or (E)
at on wall corner positions (Y), a minimum of 6" clearance
must be maintained from perpendicular wall and front of
replace.
Y
EAB
C
D
F
Y
X
FP1948
A Flat on Wall
B Cross Corner
C Island**
D Room Divider*
E Flat on Wall Corner*
F Chase Installation
Y 6" Minimum
20300293 9
Resolution Direct Vent Gas Fireplace
72” Minimum
Ceiling
12” Max.
Depth
21/2” Max Depth
10” min.
From Opening
16” Min.
From Opening
6” Min.
FP2595
mantel clearances
Hearth
8” Min.
Noncombustible
Hearth Minimum
Fireplace Opening
FP2128
12"
16"
10"
12"
6"
21/2"
FP2204
mantel clearances
Wall
Stud
Insulation
Board
Standoff
Top of Fireplace
Opening
FP2235
Figure 4 -
Clearances from the mantel, ceiling, and side wall.
6"
5"
3"
21/2"41/2"
45°
1"
31/2"
FP2129
mantel leg
11/2"
FP2129
Fireplace Opening
Figure 5 -
Mantel clearances
10 20300293
Resolution Direct Vent Gas Fireplace
The replace must be secured to the oor and/or to framing studs as shown in Figure 6. Use two
(2) wood screws or masonry/ concrete screws to secure replace to the oor. Use four (4) screws
to attach replace to framing. The side nailing anges are 1/2" or 5/8" to accommodate different
wall thickness.
FP2130
secure fireplace to floor
6”
Framing Members
Noncombustible Material
Noncombustible
Material Must Rise
at Least to Top of
Stand off
Secure to Floor Behind
Access Panels
All Combustible Materials
Must Keep 3/4" Spacing
Nailing Flange
FP2130
Figure 6 -
Secure Fireplace to Floor and Framing Studs
Any remote wiring (i.e. remote control, wall switch, and optional fan) must be done prior to
nal nishing to avoid costly reconstruction.
Only noncombustible materials (i.e. brick, tile, slate, steel, or other materials with a UL re rating of
Zero) may be used to cover the black painted face of the appliance. It is permissible to bring com-
bustible wall board to the top of the stand-offs on the top and the sides of the unit. A 300°F minimum
adhesive may be used to attach facing materials to the black surface. If joints between the nished
wall and the replace surround are sealed, a 300°F minimum sealant material (General Electric
RTV103 or equivalent) must be used.
20300293 11
Resolution Direct Vent Gas Fireplace
Consult local building codes before beginning the
installation. The installer must make sure to select the
proper vent system for installation. Before installing vent
kit, the installer must read this replace manual and vent
kit instructions.
Only a qualied installer/service person should install vent-
ing system. The installer must follow these safety rules:
• Wear gloves and safety glasses for protection.
• Use extreme caution when using ladders or when
on rooftops.
• Be aware of electrical wiring locations in walls and
ceilings.
The following actions will void the warranty on your vent-
ing system:
• Installation of any damaged venting component.
• Unauthorized modication of the venting system.
• Installation of any component part not manufactured
or approved by MHSC.
• Installation other than permitted by these instruc-
tions.
* A minimum of 3" clearance
to the top is required along
horizontal length until ue pipe
penetrates outside wall.
** A minimum 1" clearance
to combustibles permitted all
around ue at outside wall
*3” **1”
**1”
73”
(1854 mm)
FP2596
venting clearance
24" Vertical Rise
Required Before
Horizontal Run
Figure 7 -
Combustible Clearances for Vent Pipe
FP2596
until the ue penetrates the outside
wall.
Z\x
12 20300293
Resolution Direct Vent Gas Fireplace
Z\x
There are two basic types of direct-vent installation:
• Horizontal Termination
• Vertical Termination
It is important to select the proper length of vent pipe for
the type of termination you choose. It is also important to
note the wall thickness.
Select the amount of vertical rise desired. All horizontal run
of venting must have 1/4" rise for every 12" of run towards
the termination below 7Z\x" of vertical rise from oor of re-
place. With 7Z\x feet or more of vertical rise from the oor
of the replace, the horizontal run may be level. NEVER
run vent piping down.
You may use up to three 90° elbows in this vent congura-
tion. Refer to Vertical/Horizontal Termination Congurations
on Page 16.
Horizontal venting which incorporates the twist lock pipe
must be installed on a level plane without an inclining or
declining slope.
Measure the distance from the replace oor to the ceil-
ing. Add the ceiling thickness, the vertical rise in an attic
or second story, and allow for sufcient vent height above
the roof line.
You may use two 45° elbows in place of a 90° elbow.
You must follow rise to run ratios when using 45° elbows.
The appliance is approved for use with three 90° elbows
maximum or a combination of 90° and 45° elbows up to
a maximum of 270°.
For two-story applications, restops are required at each
oor level. If an offset is needed in the attic, additional pipe
and elbows will be required.
You may use a chase with a vent termination with exposed
pipe on the exterior of the house. See Installing A Vent
System in an Outside Chase below. If pipe is enclosed in
chase, it is not exposed.
It is very important that the venting system maintain its bal-
ance between the combustion air intake and the ue gas
exhaust. Certain limitations apply to vent congurations
and must be strictly followed.
A chase is a vertical boxlike structure built to enclose
venting that runs along the outside of a building. A chase
is required for such venting.
20300293 13
Resolution Direct Vent Gas Fireplace
V
V
V
V
V
V
V
X
X
X
D
E
B
B
B
C
B
M
B
A
J
K
F
L
VENT TERMINATION AIR SUPPLY INLET AREA WHERE TERMINAL IS NOT PERMITTED
H
I
Fixed
Closed
Operable
Operable Fixed
Closed
V
B
CFM145a
DV Termin Location
5/01/01 Rev. 12/05/01
sta
INSIDE
CORNER DETAIL
V
A
G
CFM145a
1 In accordance with the current CSA-B149 Installation Codes
2 In accordance with the current ANSI Z223.1/NFPA 54 National Fuel
Gas Codes
† A vent shall not terminate directly above a sidewalk or paved
driveway which is located between two single family
dwellings and serves both dwellings
only permitted if veranda, porch, deck or balcony is fully open on a
minimum 2 sides beneath the oor:
NOTE: 1. Local codes or regulations may require different
clearances.
2. The special venting system used on Direct Vent Fireplaces
are certied as part of the appliance, with clearances
tested and approved by the listing agency.
3. MHSC assumes no responsibility for the improper
performance of the appliance when the venting system
does not meet these requirements.

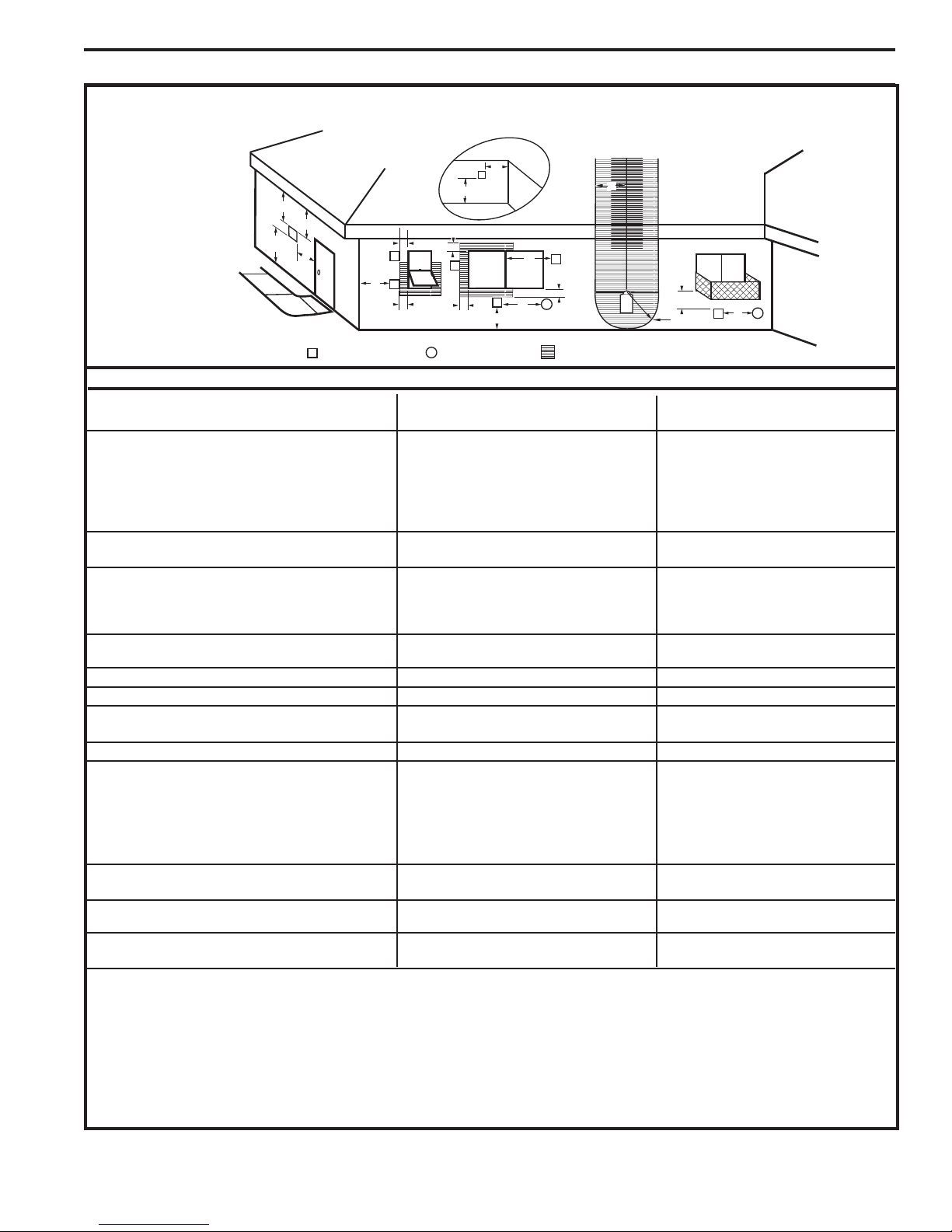

Figure 8 -
Termination Locations
A = Clearance above grade, veranda, porch, 12” (30 cm) 12” (30 cm)
deck, or balcony
B = Clearance to window or door that may be 6” (15 cm) for appliances 6” (15 cm) for appliances
opened < 10,000BTU/h (3kW), 12” (30 cm) < 10,000 BTU/h (3kW), 9”
for appliances > 10,000 Btuh (3kW) and (23 cm) for appliances > 10,000
< 100,000 BTU/h (30kW), 36” (91 cm) Btuh (3kW) and < 50,000 BTU/h
for appliances > 100,000 BTU/h (30kW) (15kW), 12” (30 cm) for
appliances > 50,000 BTU/h(15kW)
C = Clearance to permanently closed window 12” (305 mm) recommended to 12” (305 mm) recommended to
prevent window condensation prevent window condensation
D = Vertical clearance to ventilated soft located
above the terminal within a horizontal 18” (458 mm) 18” (458 mm)
distance of 2’ (610mm) from the center
line of the terminal
E = Clearance to unventilated soft 12” (305 mm); 12" (305 mm);
Clearance to vinyl soft (30" (762 mm) Clearance to vinyl soft (30" (762 mm)
F = Clearance to outside corner see next page see next page
G = Clearance to inside corner (see next page) see next page see next page
H = Clearance to each inside of center line 3’ (91 cm) within a height of 15’ (5 m) 3’ (91 cm) within a height of 15’
extended above meter/regulator assembly above the meter/regulator assembly (5 m) above the meter/regulator assy
I = Clearance to service regulator vent outlet 3’ (91 cm) 3’ (91 cm)
J = Clearance to nonmechanical air supply inlet 6” (15 cm) for appliances < 10,000 6” (15 cm) for appliances
to building or the combustion air inlet to any BTU/h (3kW), 12” (30 cm) for < 10,000 BTU/h (3kW), 9”
other appliances appliances > 10,000 BTU/h (3kW) and (23 cm) for appliances > 10,000
< 100,000 Btuh (30kW), 36” (91 cm) BTU/h (3kW) and < 50,000 BTU/h
for appliances > 100,000 BTU/h (30kW) (15kW), 12” (30 cm) for
appliances > 50,000 BTU/h(15kW)
K = Clearance to a mechanical air supply inlet 6’ (1.83 m) 3’ (91 cm) above if within 10'
(3 m) horizontally
L = Clearance above paved sidewalk or paved 7’ (2.13 m)† 7’ (2.13 m)†
driveway located on public property
M = Clearance under veranda, porch, deck or 12” (30 cm) 12” (30cm)
balcony
14 20300293
Resolution Direct Vent Gas Fireplace
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
2 4 6 8 10 1214 16 1820
eg: A
FP2132
sidewall vent graph
The Vent Graph should be read in conjunction with the
following vent installation instructions to determine the
relationship between the vertical and horizontal dimensions
of the vent system.
1. Determine the height of the center of the horizontal vent
pipe exiting through the outer wall. Using this dimen-
sion on the Sidewall Vent Graph below, locate the point
intersecting with the slanted graph line.
2. From the point of this intersection, draw a vertical line
to the bottom of the graph.
3. Select the indicated dimension, and position the re-
place in accordance with same.
Example: If the vertical dimension from the oor of the
replace is 11' (3.4 m) the horizontal run to the face of
the outer wall must not exceed 16' (4.9 m).
Sidewall Vent Graph showing the relationship between
vertical and horizontal dimensions for a Direct Vent ue
system.
Dimensions in
Feet
Figure 10 -
Rear Wall Venting Graph
Horizontal dimension from the nished outside wall
to the center of the pipe on the replace
Vertical Dimension From the Floor of Unit to the Center of the
Horizontal Vent Pipe
72" From Floor
to Center
Outside Corner
Inside Corner
Termination Clearances
Termination clearances for buildings with combustible and noncombustible exteriors.
G =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
F =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
G
Balcony -
with no side wall
M =
Combustible &
Noncombustible
12" (305 mm)
M
Balcony -
with perpendicular side wall
M = 24" (610 mm)
P = 20” (508 mm)
M
F
Alcove Applications*
C
D
C
E
V
V
Combustible &
Noncombustible
V
V
V
E= Min. 6” (152 mm) for
non-vinyl sidewalls
Min. 12” (305 mm) for
vinyl sidewalls
O= 8’ (2.4 m) Min.
O
P
584-15
No.
of Caps DMin. CMax.
1 3’ (914 mm) 2 x DActual
2 6’ (1.8 m) 1 x DActual
3 9’ (2.7 m) 2/3 x DActual
4 12’ (3.7 m) 1/2 x DActual
DMin. = # of Termination caps x 3
CMax. = (2 / # termination caps) x DActual
Termination in an alcove space (spaces open only on one side and with an overhang) is permitted with the dimensions specied for vinyl or
non-vinyl siding and softs. 1. There must be a 3’ (914 mm) minimum between termination caps. 2. All mechanical air intakes within 10’ (1 m) of a
termination cap must be a minimum of 3’ (914 mm) below the termination cap. 3. All gravity air intakes within 3’ (914 mm) of a termination cap must
be a minimum of 1’ (305 mm) below the termination cap.
Figure 9 -
Termination
Clearances
20300293 15
Resolution Direct Vent Gas Fireplace

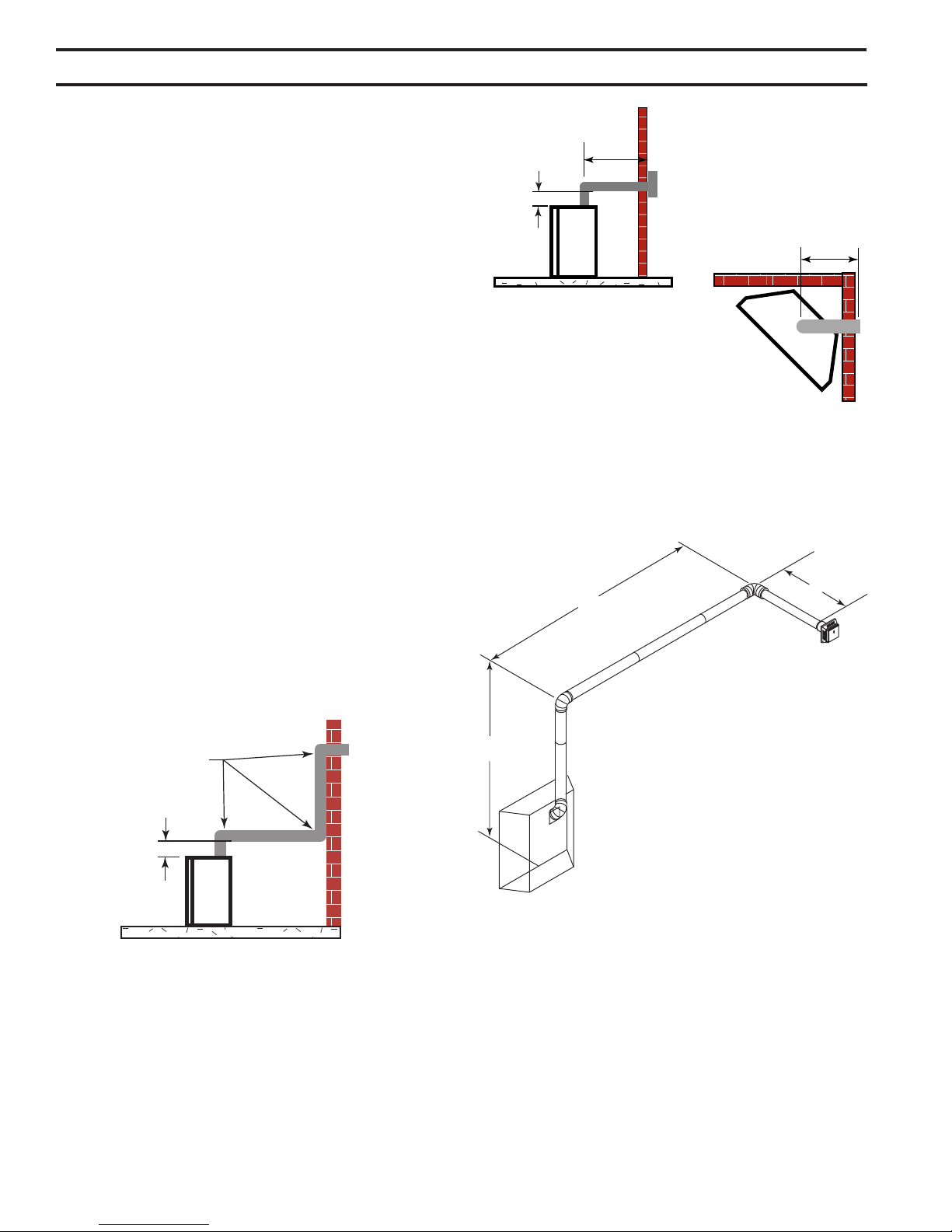

Locate vent opening on the wall. It may be necessary to
rst position the replace and measure to obtain hole lo-
cation. Depending on whether the wall is combustible or
noncombustible, cut opening to size. Figure 11 (For com-
bustible walls rst frame in opening.)
Cut a 10Z\x”H x 10Z\x”W (267 x 267
mm) hole through the exterior wall and frame as shown.
Figure 11
Hole opening must be 8Z\x” (216
mm) in diameter.
VO584-100
Vent Opening
2/99 djt
10Z\x”
(267 mm)
Min.
Fireplace Hearth Framing Detail
8Z\x”
(216 mm)
Fireplace Hearth
FP2293
Figure 11 -
Locate vent opening on wall
10Z\x”
(267 mm) Min.
Secure restop to the inside frame, center in the 10Z\x" x
10Z\x" vent opening.
Place replace into position. Measure the vertical height
(X) required from the base of the ue collars to the center
of the wall opening. Figure 12
Using appropriate length of pipe section(s) attach to re-
place with three (3) screws. Follow with the installation of
the elbow.
Measure the horizontal length requirement guring a 1Z\v”
(32 mm) overlap, i.e. from the elbow to the outside wall
cap. Figure 13
XX
Figure 12 -
Vertical Height
Requirement
FP1181
X
X
Figure 13 -
Horizontal Length
Requirement
FP1182
Use appropriate length of pipe sections - telescopic or
xed - and install.
Guide the vent terminations 5” and 8” collard into their
respective vent pipes. Double check that the vent pipes
overlap the collars by a minimum of 1Z\v" (32 mm). Secure
the termination to the wall with screws provided and caulk
around the wall plate to weatherproof. As an alternative to
screwing the termination directly to the wall, you may also
use expanding plugs or an approved exterior construction
adhesive.
16 20300293
Resolution Direct Vent Gas Fireplace
Max 20"
Max 20"
36"
(914 mm)
Max.
36"
(914 mm)
Max.
FP1177
max horizontal run
24”
(610 mm)
The Vent Graph, showing the relationship between vertical
and horizontal side wall venting, will help to determine the
various dimensions allowable. Figure 10
Z\x
When vent exits through foundations less than 20" below
outcrop, the termination must be ush up with outcropped
wall above.
It is best to locate the replace in such a way that minimizes
the number of offsets and horizontal vent length.
The horizontal vent run refers to the total length of vent
pipe from the ue collar of the replace (or the top of the
Transition Elbow) to the face of the nished outside wall.
• The maximum number of 90° elbows per side wall
installation is three (3). Figure 14
FP1176
max 90 bends
Figure 14 -
Maximum Three (3) 90° Elbows Per Installation
3 x 90°
Elbows
24" Min.
FP1176
FP1177
Figure 15 -
Maximum Horizontal Run with No Rise
• If a 90° elbow is used in the horizontal vent run (level
height maintained) the horizontal vent length is reduced
by 36". Figures 14 and 15. This does not apply if the
90° elbows are used to increase or redirect a vertical
rise. Figure 16
A 10’
B 7’
10’
FP1959
max vent run w/elbows
Figure 16 -
Maximum Vent Run with Elbows
A + B = 17' Maximum
90° Elbow = 3'
FP1959
• A minimum of 24" is required before a 90° elbow. If a 90°
elbow is tted directly after 24" vertical section mounted
to the top of the replace, the maximum horizontal vent
run before the termination or a vertical rise is 36” (914
mm). Figure 15
According to the vent graph (Page 14) the maxi-
mum horizontal vent length in a system with a 10' vertical
rise is 20’ (6 m) and if a 90° elbow is required in the hori-
zontal vent it must be reduced to 17' (5.2 m).
In Figures 16 and 17 dimension A plus B must not be
greater than 17' (5.2 m).
20300293 17
Resolution Direct Vent Gas Fireplace
Example: Elbow 1 = 90°
Elbow 2 = 45°
Elbow 3 = 45°
Elbow 4 = 90°
Total Angular Variation = 270°
Figure 18 -
Maximum Elbow Usage
1
2
3
4
1
2
3
4
FP1180
max bends
24"
Minimum
FP1180
AB
10’
90°
FP2133
Horizontal run
reduction
Figure 17 -
Horizontal Run Reduction
FP2133
• The maximum number of 45° elbows permitted per side
wall installation is two (2). These elbows can be installed
in either the vertical or horizontal run.
• For each 45° elbow installed in the horizontal run, the
length of the horizontal run MUST be reduced by 18" (45
cm). This does not apply if the 45° elbows are installed
on the vertical part of the vent system.
• The maximum number of elbow degrees in a system is
270°. Figure 18
When it is not possible to meet the required vent terminal
clearances of 12" above grade level, a snorkel kit is recom-
mended. It allows installation depth down to 7" (178mm)
below grade level. The 7" (178mm) is measured from the
center of the horizontal vent pipe as it penetrates through
the wall.
If installing a snorkel, a minimum 24" vertical rise is neces-
sary. The maximum horizontal run with the 24” vertical pipe
is 36". This measurement is taken from the collar of the
replace (or transition elbow) to the face of the exterior wall.
See the Sidewall Venting Graph for extended horizontal
run if the vertical exceeds 24".
1. Establish vent hole through the wall.
2. Remove soil to a depth of approximately 16" below base
of snorkel. Install drain pipe. Install window well (not
supplied). Rell hole with 12" of coarse gravel leaving
a clearance of approximately 4" below snorkel. Figure
19
3. Install vent system.
4. Ensure a watertight seal is made around the vent pipe
coming through the wall.
5. Apply high temperature sealant caulking (supplied)
around the 5" and 8" snorkel collars.
6. Slide the snorkel into the vent pipes and secure to the
wall.
7. Level the soil so as to maintain a 4" clearance below
snorkel. Figure 19
FP2134
below grade install
FP2134
Figure 19 -
Below Grade Installation
Screws
Minimum
4" Clearance
Ground
Window
Well
Gravel
Drain
Foundation Wall
Firestop
24"
Minimum
18 20300293
Resolution Direct Vent Gas Fireplace
If the foundation
is recessed, use
recess brackets
(not supplied) for
securing lower
portion of the
snorkel. Fasten
brackets to wall
rst, then secure
to snorkel with
self drilling #8 x
1/2 sheet metal
screws. It will
be necessary to
extend vent pipes
out as far as the
protruding wall
face. Figure 20
FP1966
snorkel
Figure 20 -
Snorkel Installation, Recessed Foundation
Foundation
Recess
Watertight Seal
Around Pipe
Sheet Metal
Screws
Wall Screws
Snorkel
FP1183
max height
40' Maximum Height
12' Minimum Height
10'
Maximum
Support Straps
Every 3'
24" Min.
FP1183
Figure 22 -
Support Straps for Horizontal Runs
Vertical sections of this vent system require a minimum of
1" clearance to combustibles on all sides of the pipe.
• Up to two 45° elbows may be used within the horizontal
run. For each 45° elbow used on the horizontal plane,
the maximum horizontal length must be reduced by 18"
(450 mm).
Example: Maximum horizontal length
No elbows = 10’ (3 m)
1x45° elbows = 8.5’ (2.6 m)
2x45° elbows = 7’ (2.1 m)
• A minimum of an 8' (2.5 m) vertical rise is required.
• Two sets of 45°elbows offsets may be used within the
vertical sections. From 0 to a maximum of 8' (2.5 m)
of vent pipe can be used between elbows. Figure 23
• The maximum angular variation allowed in the system
is 270°. Figure 23
• The minimum height of the vent above the highest point
of penetration through the roof is 2' (610 mm).
Install restrictor disc as shown in Figure 21 for vertically
vented applications.
Up to two (2) restrictor discs may be needed for 40' instal-
lation.
The two (2) restrictor discs suppled will work for most instal-
lations. If a third disc is needed order Part No. 56D3027.
This gas replace has been approved for,
• Vertical installations up to 40' (12 m) in height. Up to
a 10' (3 m) horizontal vent run can be installed within
the vent system using a maximum of two 90° elbows.
Figure 22
Horizontal sections of this vent system require a
minimum of 3" clearances to combustibles at the top of
the ue and 1" clearance at the sides and bottom until the
ue penetrates the outside wall. A minimum 1" clearance
all around the ue is acceptable at this point of penetration.
Unless the vertical run is 7Z\x feet or higher form oor of
replace, the clearance for the horizontal run is 1" on all
sides.
FP2706
FP2706
restrictor disc
Restrictor Disc
Fireplace Collar
Figure 21 -
Install Restrictor Disc
into Fireplace Collar
20300293 19
Resolution Direct Vent Gas Fireplace
Elbow 1 = 90°
Elbow 2 = 45°
Elbow 3 = 45°
Elbow 4 = 90°
Total Angular Variation = 270°
24" Min.
1
2
3
4
1
2
3
4
FP1179
max bends
Figure 23 -
Maximum Elbow
Usage FP1179
1. Determine the route your vertical venting will take. If
ceiling joist, roof rafters or other framing will obstruct
the venting system, consider an offset. Refer to Figure
24 to avoid cutting load bearing members.
FP1969
offset w/ wallstrap
Figure 24 -
Offset with Wall Strap and 45° Elbows
Roof Flashing
Wall Strap
45° Elbows
Ceiling Firstop
FP1669
For optimal ame appearance, a restrictor disc is necessary
on straight vertical runs of 10' of more.
• Runs may not incorporate elbows.
• The disc is part number 56D3027 and is included in
installation manual packet.
• Drop the disc into a 5" inner collar before installing
the rst section of ue or install at the last section
before installing the termination. Or disc may be
installed from inside rebox into the 5" inner collar.
• An additional disc may be installed on runs of 35' or more.
Rotate discs perpendicular to each other.
Pay special attention to these installation instructions
for required clearances (air space) to combustibles when
passing through ceilings, walls, roofs, enclosures, attic
rafters, etc. Do not pack air spaces with insulation. Also
note maximum vertical rise of the venting system and any
maximum horizontal offset limitations. Offsets must fall
within the parameters shown in Figures 23 and 24.
2. Set replace in desired location. Drop a line plumb down
from the ceiling to the position of the ue exit. Mark the
center point where the vent will penetrate the ceiling.
Drill a small locating hole a this point.
Drop a plumb line from the inside of the roof to the ceiling
locating hole in the ceiling. Mark the center point where
the vent will penetrate the roof. Drill a small locating hole
at this point.
1. Cut a 10Z\x" (241 mm) square hole in the ceiling using the
locating hole as a center point The opening should be
framed to 10Z\x"x10Z\x" (241 x 241 mm) inside dimensions
as shown in Figure 26 using framing lumber the same
size as the ceiling joist. If the area above the ceiling is
an insulated ceiling or a room, nail restop from the top
side. This prevents loose insulation from falling into the
required clearance space. Figure 25. Otherwise, install
restop below the framed hole. Figure 26
FP1969
firestop w room above
Figure 25 - If Area Above is a Room, Install Firestop
above Framed Hole as Shown
Firestop
Nails
20 20300293
Resolution Direct Vent Gas Fireplace
1056O"
1056O"
FP1970
firestop no room
Figure 26 - If Area Above is Not a Room, Install
Firestop above Framed Hole as Shown
Nails Firestop
FP1970
2 ft.
Min. 2 ft. Min.
X
12
H*
FP1971
Min chimney clearance
Horizontal Overhang
Termination Vent
Lowest
Discharge
Opening
Storm Collar
Flashing
Concentric
Vent Pipe
1" Minimum
Clearances to
Combustibles
Vertical
Wall
FP1971
Figure 27 -
Minimum Chimney Clearance
Flat to 6/12 1.0
Over 6/12 to 7/12 1.25
Over 7/12 to 8/12 1.5
Over 8/12 to 9/12 2.0
Over 9/12 to 10/12 2.5
Over 10/12 to 11/12 3.25
Over 11/12 to 12/12 4.0
*H - Minimum height from roof to
lowest discharge opening of vent
2. Assemble the desired lengths of pipe and elbows nec-
essary to reach from the burner system ue up through
the restop. Be sure pipe and elbow connections are
fully twist-locked.
3. Cut a hole in the roof using the locating hole as a center
point. (Cover any exposed open vent pipes before cut-
ting hole in roof). The 101/2"x101/2" (241mm x 241mm)
hole must be measured on the horizontal. Actual length
may be larger depending on the pitch of the roof. There
must be a 1" minimum clearance from the vent pipe to
combustible materials. (Insulation should be considered
a combustible material).
4. Connect a section of pipe and extend up through the
hole.
If an offset is needed to avoid obstructions, you
must support the vent pipe every three (3) feet. Use wall
straps for this purpose. Refer to Page 18, Figure 22.
Whenever possible, use 45° elbows instead of 90° elbows.
The 45° elbow offers less restriction to the ow of the ue
gases and intake air.
5. Place the ashing over the pipe section(s) extending
through the roof. Secure the base of the ashing to
the roof and framing with roong nails. Be sure roong
material overlaps the top edge of the ashing. There
must be a 1" clearance from the vent pipe to combustible
materials.
6. Continue to add pipe sections until the height of the vent
cap meets the minimum building code requirements.
You must increase vent height for steep roof
pitches. Nearby trees, adjoining roof lines, steep pitched
roofs, and other similar factors may cause poor draft or
down-drafting in high winds. Increasing the vent height
may solve this problem.
If the vent pipe passes through any occupied areas
above the rst oor, including storage spaces and closets,
you must enclose pipe. You may frame and sheetrock the
enclosure with standard construction material. Make sure
to meet the minimum allowable clearances to combustibles.
Do not ll any of the required clearance spaces with
insulation.
Other manuals for Resolution VHLDV500
1
Table of contents
Other Vermont Castings Indoor Fireplace manuals
Vermont Castings
Vermont Castings WinterWarm Small Insert 2080 User manual
Vermont Castings
Vermont Castings International Collection ICVCEFP01 User manual
Vermont Castings
Vermont Castings Bay Front Kits DV36/39 User manual
Vermont Castings
Vermont Castings 380IDVNV User manual
Vermont Castings
Vermont Castings BC36MH Installation instructions
Vermont Castings
Vermont Castings BE36 User manual
Vermont Castings
Vermont Castings WDV500NTSC User manual
Vermont Castings
Vermont Castings Encore 2547CE User manual
Vermont Castings
Vermont Castings SA36C User manual
Vermont Castings
Vermont Castings 0044 User manual
Vermont Castings
Vermont Castings Montpelier User manual
Vermont Castings
Vermont Castings VWDVP70NTSC User manual
Vermont Castings
Vermont Castings VC41LDVINTSC User manual
Vermont Castings
Vermont Castings SB60 User manual
Vermont Castings
Vermont Castings 2050 Instruction Manual
Vermont Castings
Vermont Castings WEF33 Mounting instructions
Vermont Castings
Vermont Castings Royal Collection WMC36 Mounting instructions
Vermont Castings
Vermont Castings Merrimack Large Mounting instructions
Vermont Castings
Vermont Castings Resolution VHLDV500 User manual
Vermont Castings
Vermont Castings Intrepid II 1308 User manual
Popular Indoor Fireplace manuals by other brands
EmberGlow
EmberGlow VFF26NLMA OWNER'S OPERATION AND INSTALLATION MANUAL
Kingsman
Kingsman MCVP42NH installation instructions
FireplaceXtrordinair
FireplaceXtrordinair 36DV-A/R owner's manual
Flavel
Flavel Castelle Installation, maintenance and user instructions
Dimplex
Dimplex DF2608 owner's manual
Regency
Regency HZ33CE-NG10 Owners & installation manual
pleasant hearth
pleasant hearth 23-700-712 Important instructions
CAMBRIDGE
CAMBRIDGE Olde English reference guide
Nordpeis
Nordpeis Skagen Kitchen installation manual
Regency
Regency bellavista B36XTCE Owners & installation manual
FMI
FMI GL36PN OWNER'S OPERATION AND INSTALLATION MANUAL
Dimplex
Dimplex MULTI-FIRE SL PLF3614-XS Installation and user guide
Modern Flames
Modern Flames AL45CLX Installation & service instructions
Quadra-Fire
Quadra-Fire Quadra-Fire VOYAGEUR-MBK owner's manual
Lennox Hearth Products
Lennox Hearth Products CANYON C310 Installation and operation manual
Stûv
Stûv B.60 Installation, servicing and user instructions
Baxi
Baxi 939 Installation and owner's guide
Superior
Superior DRT2000 Installation and operation instructions for
