Vermont Castings MONTPELIER II MONTP-II-CB User manual

107/207101-802G
MONTPELIER II WOOD INSERT
MODEL NUMBER:
MONTP-II-CB
MONTP-II-BM
Installation Manual
Installation & Appliance Set-Up
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT DISCARD THIS MANUAL
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
NOTE: To obtain a French translation of this manual, please
contact your dealer or visit www.vermontcastings.com
REMARQUE : Pour obtenir une traduction française de
ce manuel, s’il vous plaît contacter votre revendeur ou
visitez www.vermontcastings.com
If the information in these instructions is not
followed exactly, a re may result causing
property damage, personal injury, or death.
• Do not store or use gasoline or other ammable vapors
and liquids in the vicinity of this or any other appliance.
• Do not over re - If heater or chimney connector glows,
you are over ring. Over ring will void your warranty.
• Comply with all minimum clearances to combustibles
as specied.
• Failure to comply may cause house re.
WARNING
!
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass and appliance will cause burns.
• Do not touch glass until it is cooled
• Use leather gloves when reloading fuel
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room
as appliance.
• Alert children and adults to hazards of high temperatures
• High temperatures may ignite clothing or other
ammable materials.
• Keep clothing, furniture, draperies and other ammable
materials away.
WARNING
!
Fire Risk.
For use with solid wood fuel only.
Other fuels may over re and generate
poisonous gases (i.e. carbon monoxide).
WARNING
!

207/207101-802G
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.
Vermont Castings is a registered trademark of Hearth & Home Technologies.
1 Important Safety Information
A. Insert Safety Certication......................3
B. Insert Emissions Certication...................3
C. BTU & E󰀩ciency Specications.................3
D. Mobile Home Approved (USA only) ..............4
E. Electrical Rating .............................4
F Glass Specications ..........................4
G. Non-Combustible Materials ....................4
H. Combustible Materials ........................4
I. Sleeping Room ..............................4
J. California - Prop65 ...........................4
2 Getting Started
A
. Design and Installation Considerations ............. 5
B. Draft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
C. Negative Pressure ...........................5
D. Tools And Supplies Needed....................6
E. Inspect Appliance and Components..............6
F. Install Checklist..............................7
3 Dimensions and Clearances

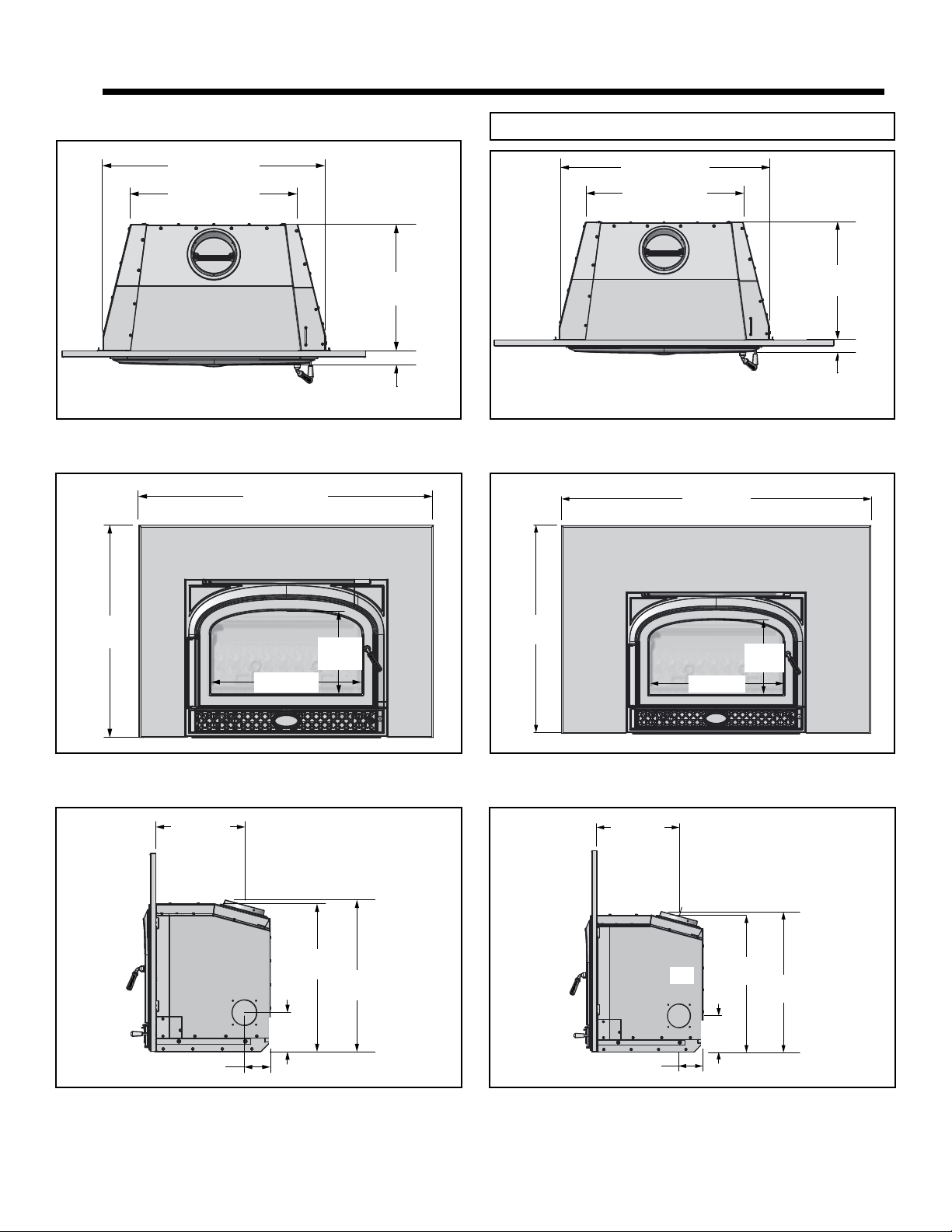

A. Dimensions ................................8

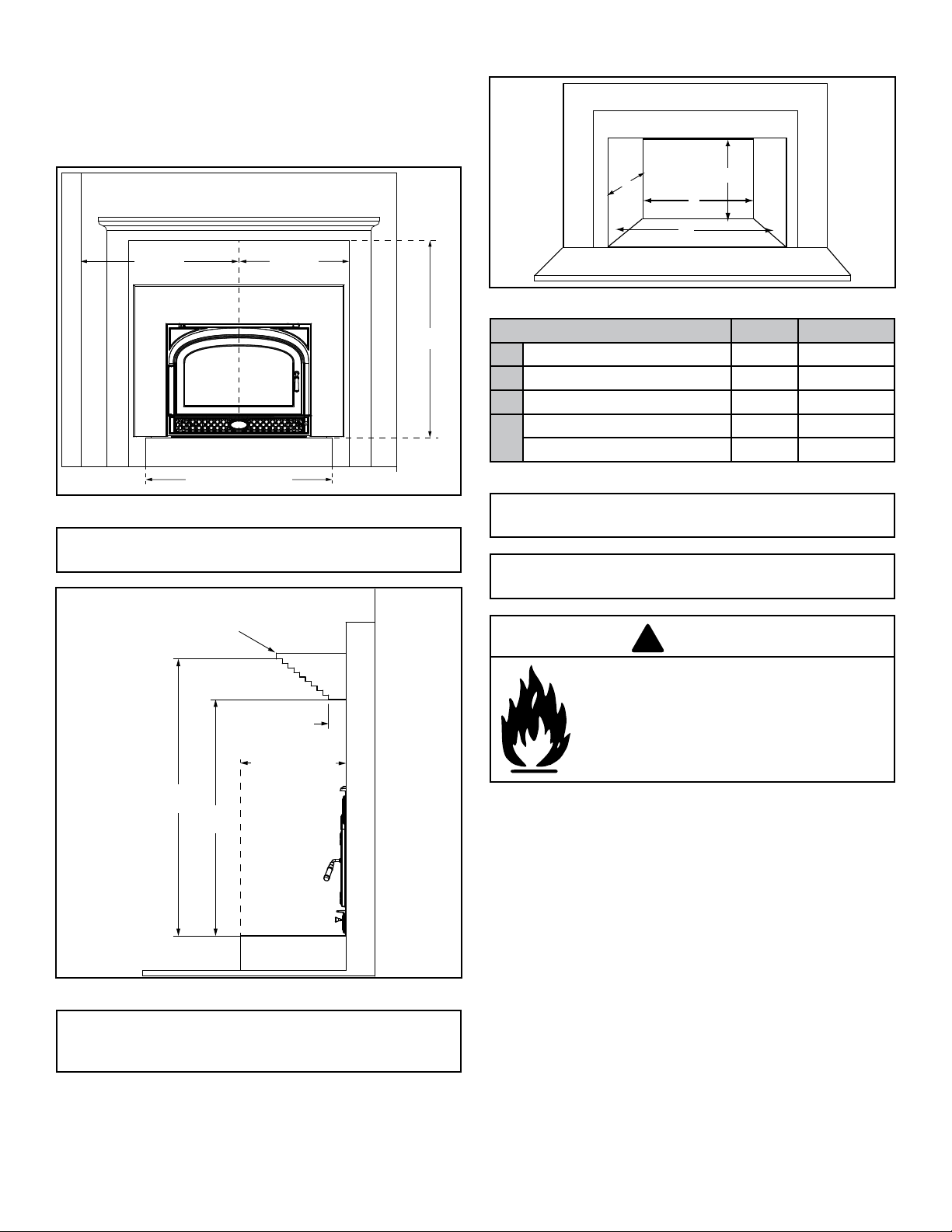

B. Clearances to Combustibles ..................10
4 Chimney Systems
A. Locating Your Stove & Chimney................12

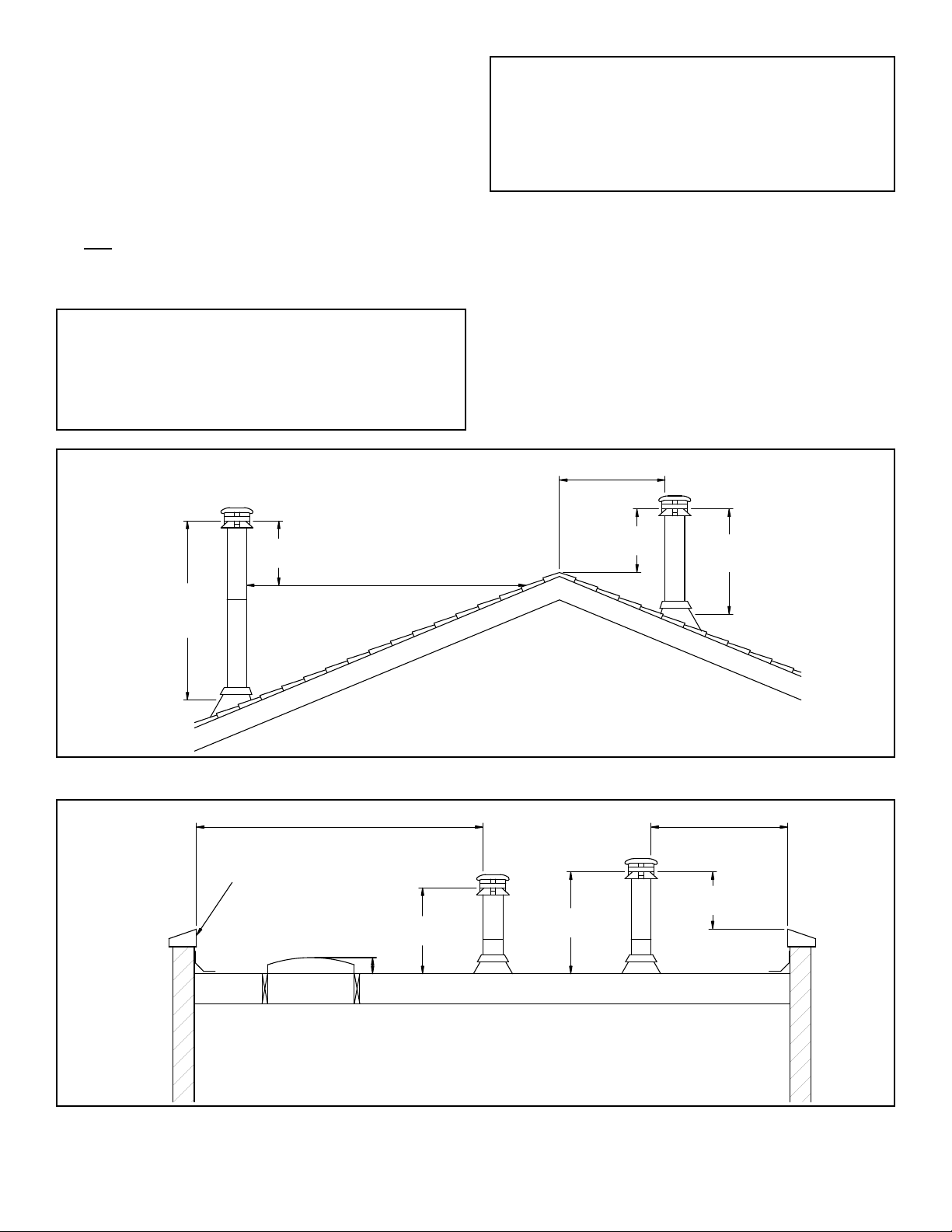

B. Chimney Termination Requirements ............13
C. 2-10-3 Rule ...............................13
D. Venting Systems ...........................14
E. Inspections................................14
F. Chimney Height / Rise and Run ................14
G. Securing Chimney Components ...............14
H. Larger Chimneys . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

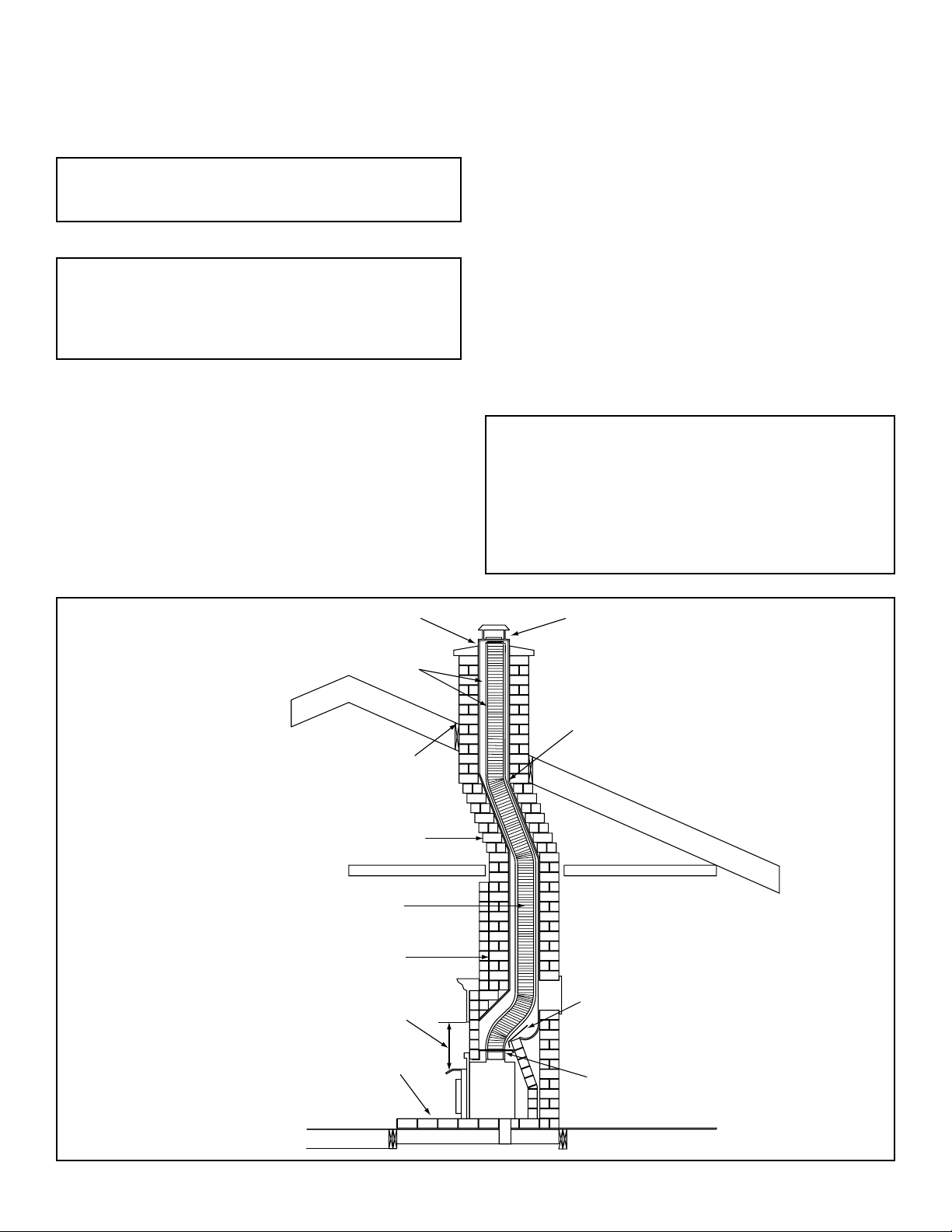

I. Masonry Chimney . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
J. Metal Heat Circulating Masonry . . . . . . . . . . . . . . . . 16
K. Prefabricated Metal Chimney..................16
L. Ovalizing Round Stainless Steel Liners . . . . . . . . . . 17
M. Altering the Fireplace........................17
N. Zero-Clearance Fireplace ....................17
!
5 Appliance Set-Up

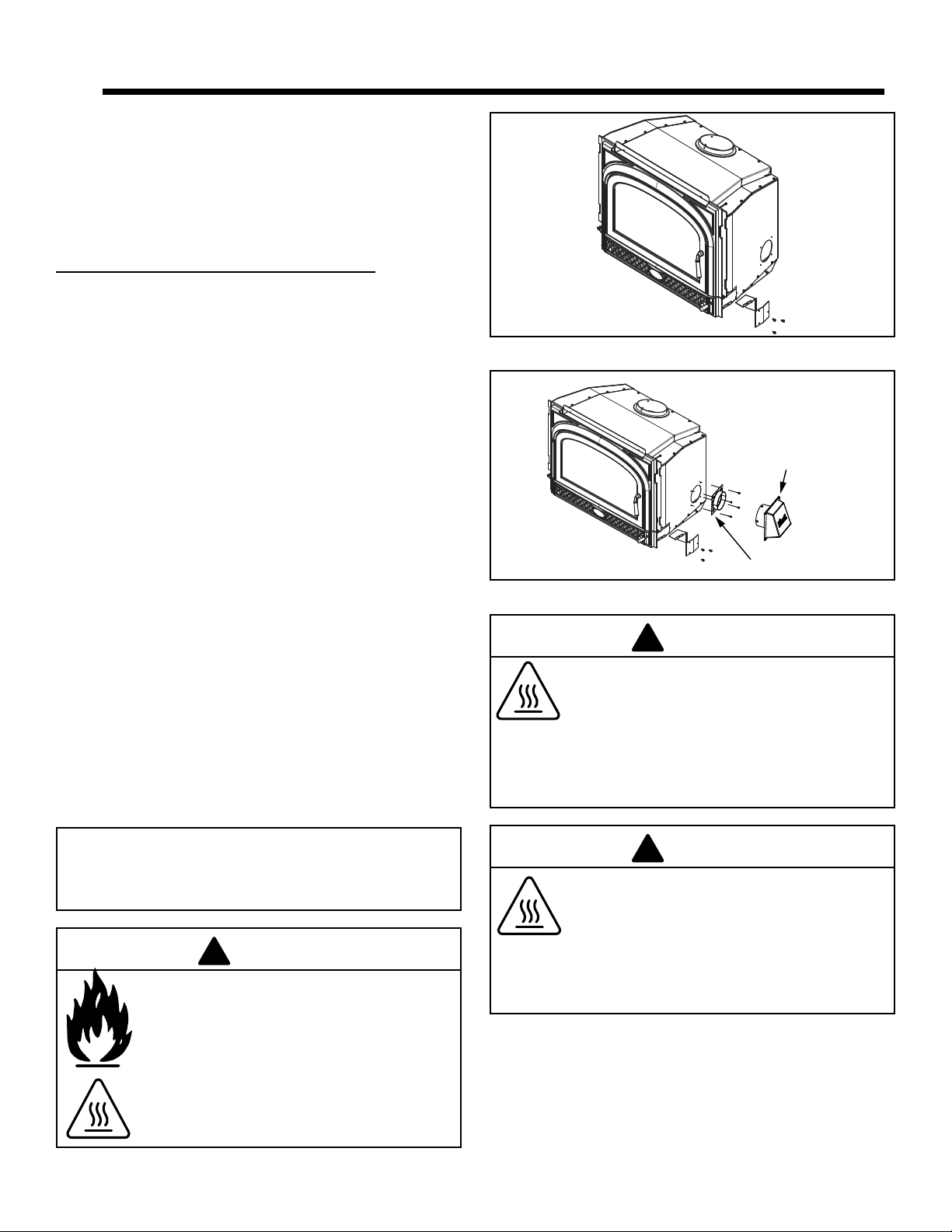

A. Outside Air Kit .............................18
B. Securing Stove Pipe/Liner to Flue Collar .........19
C. Optional O󰀨set Adapter ......................19
D. Securing Appliance to Stove Pipe/Liner..........19
E. Flat Surround ..............................20
F. Cast Surround Assembly .....................21
G. Surround Panel Extension....................21
H. Power Cord ...............................22
6 Mobile Home Installation ....................23
7 Reference Materials
A. Service and Maintenance Log . . . . . . . . . . . . . . . . . 24
B. Accessory List .............................26
= Contains updated information

307/207101-802G
Model Number: MONTP-II-CB & MONTP-II-BM
Laboratory: OMNI Test Laboratories, Inc.
Report Number: 0061WN100S
Type: Solid Fuel Type, Listed Room Heater
Standard: UL1482-2011 and ULC S628-93
and (UM) 84-HUD.
EPA Certication
Number: Number: 199-19
EPA Certied Emissions: 1.9 grams per hour
*LHV Tested E󰀩ciency: 77.0%
**HHV Tested E󰀩ciency: 71.3%
***EPA BTU Output: 24,700 to 26,800 / hr
****Peak BTU/Hour
Output: 56,000
Vent Size: 6 inches
Firebox Size: 2.37 cubic feet
Recommended Wood
Length: 20 inches
Fuel Seasoned Cord Wood
* Weighted average LHV (Low Heating Value) e󰀩ciency
using Douglas Fir dimensional lumber and data collected
during EPA emission tests in accordance with the
requirements of CSA B415.1. LHV assumes the moisture
is already in a vapor state so there is no loss in energy
to vaporize.
** Weighted average HHV (High Heating Value) e󰀩ciency
using Douglas Fir dimensional lumber and data collected
during EPA emission tests in accordance with the
requirements of CSA B415.1. HHV includes the energy
required to vaporize the water in the fuel.
*** A range of BTU outputs calculated using HHV E󰀩ciency
and the burn rates from the EPA tests, using Douglas Fir
dimensional lumber.
**** A peak BTU out of the appliance calculated using
the maximum rst hour burn rate from the High EPA Test
and BTU content of seasoned cordwood (8600) times
the e󰀩ciency.
Approved for ZC reboxes.
A. Insert Safety Certication C. BTU & E󰀩ciency Specications
NOTE: This installation must conform with local codes.
In the absence of local codes you must comply with the
UL1482-2011, (UM) 84-HUD and NPFA211 in the U.S.A.
and the ULC S628-93 and CAN/CSA-B365 Installation
Codes in Canada.NOT APPROVED FOR MOBILE
HOME INSTALLATIONS IN CANADA!
This wood appliance needs periodic inspection and repair
for proper operation. Consult the owner’s manual for further
information. It is against federal regulations to operate this
wood appliance in a manner inconsistent with the operating
instructions in the owner’s manual.
The MONTP-II-CB & MONTP-II-BM is
Certied to comply with 2020 crib wood
particulate emission standards.
Model Number: MONTP-II-CB & MONTP-II-BM
Laboratory: OMNI Test Laboratories, Inc.
Report Number: 0061WN100E
Standard: UL1482-2011
Can be found at:
www.vermontcastings.com/about-us/epa-certication
B. Insert Emissions Certication
11 Important Safety Information

407/207101-802G
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualied
installer, service agency or your dealer.
Hearth & Home Technologies WILL NOT warranty stoves
that exhibit evidence of over-ring. Evidence of over-
ring includes, but is not limited to:
• Warped air tube
• Deteriorated refractory brick retainers
• Deteriorated ba󰀪e and other interior components
D. Mobile Home Approved (USA only)
• WARNING: DO NOT INSTALL IN A SLEEPING ROOM.
• CAUTION: THE STRUCTURE INTEGRITY OF THE
MOBILE HOME FLOOR, WALL, AND CEILING/ROOF
MUST BE MAINTAINED.
• The appliance must be properly grounded to the frame
of the mobile home with #8 copper ground wire, and
chimney must be listed to UL103 HT or a listed UL-1777
full length six inch (152mm) diameter liner must be used.
• Outside Air Kit, part OAK-ACC must be installed in a
mobile home installation.
E. Electrical Rating
Maximum 1.5 Amps (blower).
F Glass Specications
This stove is equipped with 5mm ceramic glass. Replace
glass only with 5mm ceramic glass. Please contact your
dealer for replacement glass.
G. Non-Combustible Materials
Material which will not ignite and burn, composed of any
combination of the following:
• Steel
• Plaster
• Brick
• Iron
• Concrete
• Tile
• Glass
• Slate
Materials reported as passing ASTM E 136, Standard Test
Method for Behavior of Metals, in a Vertical Tube Furnace
of 750° C.
H. Combustible Materials
Material made of/or surfaced with any of the
following materials:
• Wood
• Compressed Paper
• Plant Fibers
• Plastic
• Plywood/OSB
• Sheet Rock (drywall)
Any material that can ignite and burn: ame proofed or not,
plastered or non-plastered.
I. Sleeping Room
When an appliance is installed in a sleeping room an outside
air kit is required and it is recommended that a smoke and/
or CO alarm be installed in the bedroom. The size of the
room must be at least 50ft³ per 1,000 Btu/hr stove input
NOTE: Hearth & Home Technologies, manufacturer of
this appliance, reserves the right to alter its products,
their specications and/or price without notice.
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling
all components.
• Operating appliance without legs attached (if supplied
with unit).
• Do NOT Over re - If appliance or chimney connector
glows, you are over ring.
Any such action that may cause a re hazard.
Fire Risk.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
J. California - Prop65
WARNING
This product and the fuels used to operate this product (wood), and
the products of combustion of such fuels, can expose you to
chemicals including carbon black, which is known to the State of
California to cause cancer, and carbon monoxide, which is known to
the State of California to cause birth defects or other reproductive
harm. For more information go to: WWW.P65Warnings.ca.gov
WARNING
!

507/207101-802G
A . Design and Installation Considerations
Before installing, determine the following:
• Type of chimney connector to be used
- Single wall, 6 inch (152mm) diameter, stainless steel,
or
- Double wall, 6 inch (152mm) diameter, tainless steel
• Consult page 28 for clearances to combustibles
• Power outlet located close by for optional blower
NOTICE: Hearth & Home Technologies assumes no
responsibility for the improper performance of the
appliance system caused by:
• Inadequate draft due to environmental conditions
• Down drafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
• Over drafting caused by excessive chimney heights
• Ideal performance is with height of chimney between
14-16 feet (4.26-4.88m) measured from the base of
the appliance.
B. Draft
Draft is the pressure di󰀨erence needed to vent appliances
successfully. When a appliance is drafting successfully,
all combustion byproducts are exiting the home through
the chimney.
Considerations for successful draft include:
• Preventing negative pressure
• Location of appliance and chimney
To be sure that your appliance burns properly:
• During the burn, the chimney draft (static pressure)
should be approximately -0.07 inch water column (W.C.)
• Measure the W.C at 6 inches (152mm) above the top
of the appliance after one hour of operation at each
burn setting.
22 Getting Started
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult insurance carrier, local building, re o󰀩cials
or authorities having jurisdiction about restrictions,
installation inspection, and permits.
CAUTION
!
Asphyxiation Risk.
• Do NOT connect this unit to a chimney
ue servicing another appliance.
• Do NOT connect to any air distribution
duct or system.
May allow ue gases to enter the house.
WARNING
!
C. Negative Pressure
Negative pressure results from the imbalance of air available
for the appliance to operate properly. It can be strongest in
lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water heaters
and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
To minimize the e󰀨ects of negative air pressure:
• Install the outside air kit with the intake facing prevailing
winds during the heating season
• Ensure adequate outdoor air for all combustion
appliances and exhaust equipment
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and seams
taped or sealed
• Basement installations should be avoided
Asphyxiation Risk.
• Negative pressure can cause spillage
of combustion fumes, soot and
carbon monoxide.
• Appliance needs to draft properly for safety.
WARNING
!

607/207101-802G
D. Tools And Supplies Needed
Before beginning the installation be sure the following tools
and building supplies are available:
• Reciprocating saw
• Framing material
• Pliers
• High temp caulking material
• Hammer
• Gloves
• Phillips screwdriver
• Framing square
• Flat blade screwdriver
• Electric drill and bits
• Plumb line
• Safety glasses
• Level
• Tape measure
• Misc. screws and nails
• 7/16 socket or wrench
• 1/2-3/4 in. length, #6 or #8 self-drilling screws
E. Inspect Appliance and Components
• Remove appliance and components from packaging
and inspect for damage.
• Vent system components and doors are shipped in
separate packages.
• Report to your dealer any parts damaged in shipment.
• Read all the instructions before starting the installation.
Follow these instructions carefully during the installation
to ensure maximum safety and benet.
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling
all components.
• Operating appliance without legs attached (if supplied
with unit).
• Do NOT Over re - If appliance or chimney connector
glows, you are over ring.
Any such action that may cause a re hazard.
Fire Risk.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
WARNING
!
Fire Risk.
Inspect appliance and components for damage.
Damaged parts may impair safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
WARNING
!

707/207101-802G
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjuction with, not instead of, the instructions contained in this installation manual.
Customer:
Date Installed:
Lot / Address:
Location of Appliance:
Installer:
Dealer / Distributor Phone #:
Serial #:
Model:
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions can lead to a fire or explosion.
Appliance Install
Verified clearances to combustibles.
Appliance is leveled and connector is secured to appliance.
Hearth extension size/height decided.
Outside air kit installed.
Floor protection requirements have been met.
If appliance is connected to a masonry chimney, it should be cleaned and
inspected by a professional. If installed to a factory built metal chimney, the
chimney must be installed according to the manufacturer’s instructions and
clearances.
Chimney
Chimney configuration complies with diagrams.
Chimney installed, locked and secured in place with proper clearance.
Chimney meets recommended height requirements (14-16 feet).
Roof flashing installed and sealed.
Terminations installed and sealed.
Clearances
Combustible materials not installed in non-combustible areas.
Verified all clearances meet installation manual requirements.
Mantels and wall projections comply with installation manual requirements.
Protective hearth strips and hearth extension installed per manual requirements.
Appliance Setup
All packaging and protective materials removed.
Firebrick, baffle and ceramic blanket installed correctly.
All labels have been removed from the door.
All packaging materials are removed from inside/under the appliance.
Manual bag and all of its contents are removed from inside/under the appliance
and given to the party responsible for use and operation.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your file.
• That this checklist remain visible at all times on the appliance until the installation is complete.
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed:
Comments communicated to party responsible ____________________________ by _____________________ on ___________
(Builder / Gen. Contractor) (Installer) (Date)
_________________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
________________________________________________________________________
___________________________________________________________________________________
___________________________________________________________________
___________________________________________________________________________________
____________________________________________________________________________________
YES IF NO, WHY?
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
F. Install Checklist

807/207101-802G
Figure 3.1 - Top View with Small Surround (SPVC-4331)
31-1/2 in (801mm)
23-5/8 in (602mm)
17-7/8 in
(455mm)
2 in
(50mm)
Figure 3.4 - Top View with Large Surround (SPVC-5134)
31-1/2 in (800mm)
23-5/8 in (602mm)
17-7/8 in
(455mm)
2 in
(50mm)
A. Dimensions NOTE: Flue Collar size is 6 inch (152mm) diameter (ID)
12-1/8 in
(309mm)
31-1/8 in
(789mm)
43 in (1092mm)
22 in (560mm)
Figure 3.2 - Front View with Small Surround (SPVC-4331)
12-1/8 in
(309mm)
22 in (560mm)
51 in (1295mm)
34 in
(863mm)
Figure 3.5 - Front View with large Surround (SPVC-5134)
Figure 3.3 - Side View with Small Flat Surround (SPVC-4331)
14 in
(354mm)
23-3/4 in
(604mm)
23-1/8 in
(589mm)
6-1/8 in
(156mm)
4 in
(102mm)
Figure 3.6 - Side View with Large Surround (SPVC-5134)
14 in
(354mm)
23-1/8 in
(589mm) 23-3/4 in
(604mm)
15°
6-1/8 in
(156mm)
4 in
(102mm)
33 Dimensions and Clearances

907/207101-802G
23-5/8 in (602mm)
31-1/2 in (800mm)
17-5/8 in
(448mm)
2-1/4 in
(58mm)
Figure 3.7 - Top View with Cast Surround (MED-CB or MED-BN)
12-1/8 in
(309mm)
22 in (560mm)
44 in (1118mm)
30-1/4 in
(768mm)
Figure 3.8 - Front View with Cast Surround (MED-CB or MED-BN)
Figure 3.9 - Side View with Cast Surround (MED-CB or MED-BN)
13-5/8 in
(347mm)
23-1/8 in
(589mm) 23-3/4 in
(604mm)
6-1/8 in
(156mm)
4 in
(102mm)
13-3/4 in
(349mm)
25-3/8 in
(645mm)
Figure 3.11 - Side View with Cast Surround (MED-CB or MED-BN)
and Optional 15 Degree Adapter (DV-6DLR-E15ADSS)
Figure 3.10 - Side View with Small or Large Surround
(SPVC-4331 or SPVC-5134) and Optional 15 Degree Adapter
(DV-6DLR-E15ADSS)
25-3/8 in
(645mm)
14 in
(357mm)
14-3/4 in
(375mm)
26-5/8 in
(676mm)
Figure 3.13 - Side View with Cast Surround (MED-CB or MED-BN)
and Optional 15 Degree Adapter set at 30° (DV-6DLR-E15ADSS)
Figure 3.12 - Side View with Small or Large Surround
(SPVC-4331 or SPVC-5134) and Optional 15 Degree Adapter set
at 30° (DV-6DLR-E15ADSS)
26-5/8
(676mm)
15-1/8 in
(383mm)

10 07/207101-802G
HEARTH EXTENSION
(MINIMUM EMBER PROTECTION)
SIDE TRIM (3” max depth)
SIDE WALL
TOP TRIM (3/4” max depth)
24-1/4 in
(616mm)
23-3/4 in
(603mm)
34-3/4 in
(883mm)
USA 38-1/4
CANADA 46-1/4 (1175mm)
Figure 3.14
HEARTH EXTENSION
(EMBER PROTECTION)
FIREPLACE FRONT SURFACE
MANTEL
(12” max depth)
3 in
(76mm)
3 in
(76mm)
47-3/4 in
(1213mm)
47-3/4 in
(1213mm)
USA 17-1/2
CANADA 19-1/2
(495mm)
40-3/4 in
(1035mm)
40-3/4 in
(1035mm)
Figure 3.15
Figure 3.16
C
DA
B
Table 3.1
Minimum Opening Dimensions Inches Millimeters
AHeight 23 3/8 594
BFront Width 32 813
CBack Width 24-1/8 613
DDepth (Steel Surround) 18-1/8 460
Depth (Cast Surround) 17-7/8 454
NOTE: Clearances may only be reduced by means
approved by the regulatory authority having jurisdiction
NOTE: If trim measurement is over 3/4 in (19mm) in
depth use mantle or side clearances to combustibles.
NOTE: Minimum opening dimensions include a 1/4 inch
(6mm) clearance around unit.
B. Clearances to Combustibles
In Canada a full length 6 inch (152mm) S635 ue liner
required as per ULC S628.
In USA a minimum 5 ft length (1.82m), 6 inch (152mm)
diameter ue liner is required as per UL 1482.
United States and Canada (UL and ULC)
To calculate mantel height requirement, multiply the
depth of the mantel by 0.78 inches then add 38.375
inches to the total.
Fire Risk.
• Comply with all minimum clearances to
combustibles as specied.
• Failure to comply may cause house re.
WARNING
!

11 07/207101-802G
NOTE: Clearances may only be reduced by means
approved by the regulatory authority having jurisdiction
NOTE: Hearth Rug may be used in Suggested Area
0 to 4.5 inches from bottom of unit,
thermal protection required. R
value of 2.9.
4.5 inches or more from bottom of
unit, ember protection only
required

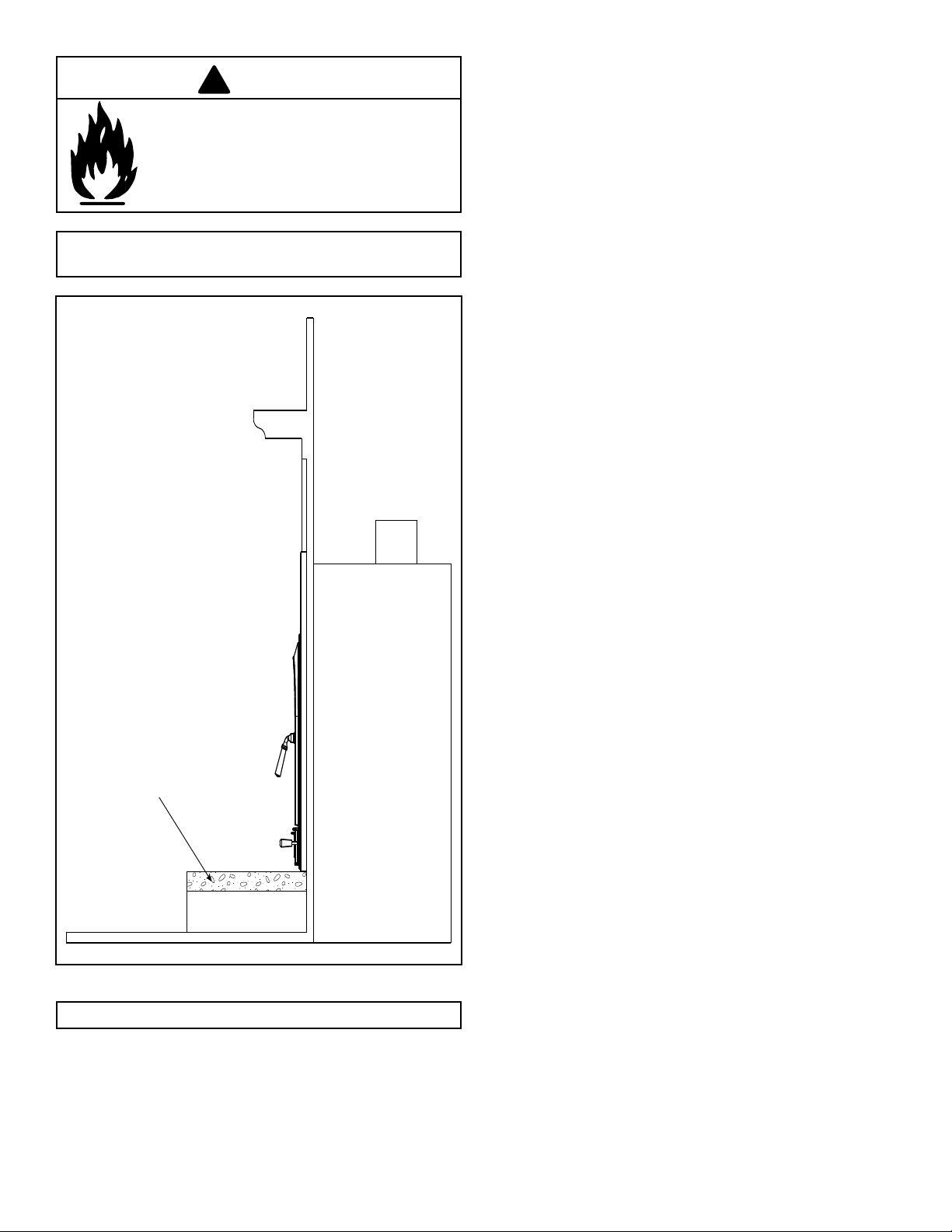

Figure 3.17
Material
Thermal Resistance: R value
The R value is a measure of a material’s resistance to
heat transfer.
R value is convenient when more than one material is used
since you can add the R values together, whereas you can
not do this for k value.
The HIGHER the R factor means less heat is being
conducted through the non-combustible material to the
combustible material beneath it.
The R value of a material must be equal or larger then the
required R value to be acceptable.
Fire Risk.
• Comply with all minimum clearances to
combustibles as specied.
• Failure to comply may cause house re.
WARNING
!

12 07/207101-802G
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Location NOT
Recommended
Multi-level Roofs
Windward
Leeward
Outside Air Kit Termination Cap
Figure 4.1
A. Locating Your Stove & Chimney
Location of the appliance and chimney will a󰀨ect performance. As shown in Figure 4.1 the chimney should:
• Install through the warm space enclosed by the building envelope. This helps to produce more draft, especially during
lighting and die down of the re.
• Penetrate the highest part of the roof. This minimizes the a󰀨ects of wind turbulence and down drafts.
• Consider the appliance location in order to avoid oor and ceiling attic joists and rafters.
• Locate termination cap away from trees, adjacent structures, uneven roof lines and other obstructions.
Your local dealer is the expert in your geographic area and can usually make suggestions or discover solutions that will
easily correct your ue problem.
44 Chimney Systems

13 07/207101-802G
B. Chimney Termination Requirements
Follow manufacturer’s instructions for clearance, securing
ashing and terminating the chimney (Figure 13.1 &
Figure 13.2).
• Must have an approved and Listed cap.
• Must not be located where it will become plugged by
snow or other material.
• Must terminate at least 3 feet (91cm) above the roof
and at least 2 feet (61cm) above any portion of the
roof within 10 feet (305cm).
• Must be located away from trees or other structures.
NOTICE:
• Chimney performance may vary.
• Trees, buildings, roof lines and wind conditions
a󰀨ect performance.
• Chimney height may need adjustment if smoking or
overdraft occurs.
NOTICE: Locating the appliance in a basement or in
a location of considerable air movement can cause
intermittent smoke spillage from appliance. Do not locate
appliance near.
• Frequently open doors.
• Central heat outlets or returns.
C. 2-10-3 Rule
These are safety requirements and are not meant to
assure proper ue draft.
This appliance is made with a 6 inch (152mm) diameter
chimney connector as the ue collar on the unit.
• Changing the diameter of the chimney can a󰀨ect draft
and cause poor performance.
• It is not recommended to use o󰀨sets and elbows at
altitudes above 4000 feet above sea level and or when
there are other factors that a󰀨ect ue draft.
Figure 4.2
3 ft (91 cm)
Minimum
Less than 10 ft (305 cm)
2 ft (61 cm) 3 ft (91 cm)
Minimum
10 ft (305 cm) To Nearest Roofline
2 ft (61 cm)
Pitched Roof
10 ft. (305cm) or more
3 ft. (91cm) Minimum
Less than 10 ft. (305cm)
2 ft. (61cm) Minimum
3 ft. (91cm) Minimum
Wall or Parapet
Figure 4.3
Flat Roof

14 07/207101-802G
D. Venting Systems
Chimney Connector:
It is also known as ue pipe or stove pipe. It must be 6 inches
(152mm) minimum diameter stainless steel connector pipe.
Chimney:
The chimney can be new or existing, masonry or
prefabricated and must meet the following minimum
requirements as specied below.
In Canada a full length 6 inch (152mm) S635 ue liner
required as per ULC S628.
In USA a minimum 5 ft length (1.82m), 6 inch (152mm)
diameter ue liner is required as per UL 1482.
E. Inspections
Existing chimneys should be inspected and cleaned by a
qualied professional prior to installation. The chimney must
not have cracks, loose mortar or other signs of deterioration
and blockage. Hearth & Home recommends a NFI or CSIA
certied professional or a technician, under the direction of
a certied professional, conduct a Level II inspection per
NFPA 211.
F. Chimney Height / Rise and Run
This product was designed for and tested on a 6 inch
(152mm) chimney, 14 to 16 feet (4.27-4.87m) high, (includes
appliance height) measured from the base of the appliance.
The further your stack height or diameter varies from
this conguration, the greater the likelihood it may a󰀨ect
performance.
Chimney height may need to be increased by 2 - 3% per
each 1000 feet above sea level. It is not recommended to
use o󰀨sets or elbows at altitudes above 4000 feet above sea
level or when there are other factors that a󰀨ect ue draft.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer to
the owner’s information manual provided with this appliance.
For assistance or additional information consult a qualied
installer, service agency or your dealer.
G. Securing Chimney Components
All joints should be secured with 3 sheet metal screws or
rivets per pipe manufacturers instructions. The sections
must be attached to the insert and to each other with the
crimped (male) end pointing toward the insert (Figure 4.4).
LINER CONNECTOR
FLUE
GAS
DIRECTION
CRIMPED
END
TOWARDS
STOVE
Figure 4.4
Fire Risk.
Follow venting manufacturer’s clearances and
instructions when installing venting system
WARNING
!
Fire Risk
Inspection of Chimney:
• Chimney must be in good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be 6 inch
(152mm)
WARNING
!
Asphyxiation Risk.
• DO NOT CONNECT THIS Appliance
TO A CHIMNEY FLUE SERVICING
ANOTHER APPLIANCE.
• DO NOT CONNECT TO ANY AIR
DISTRIBUTION DUCT OR SYSTEM.
May allow ue gases to enter the house.
WARNING
!
Fire Risk.
Follow venting manufacturer’s clearances
and instructions when installing venting
system.
WARNING
!

15 07/207101-802G
I. Masonry Chimney
• Must meet minimum standards of NFPA 211.
• Must have at least 5/8 inch (16mm) re clay lining joined
with refractory cement (Installations into a clay ue
without a stainless steel liner may reduce draw which
a󰀨ects performance, will cause the glass to darken and
produce excessive creosote).
• The masonry wall of the chimney, if brick or modular
block, must be a minimum of 4 inches (102mm) nominal
thickness.
• A chimney of rubble stone must be at least 12 inches
(305mm) thick.
This insert conforms with the UL 1482 and ULC S628
(Canada) in all respects, and is approved to UL &
ULC safety standards for installation and use within
a replace with a masonry chimney in accordance with
NFPA 211 and CAN/CSA-B365-01.
NOTE: In Canada, this replace insert must be installed
with a continuous chimney liner of a 6 inch (152mm)
diameter extending from the replace insert to the top of
the chimney. The chimney liner must conform to the
Class 3 requirements of CAN/ULC-S635, Standard for
Lining Systems for Existing Masonry or Factory-Built
Chimneys and Vents, or CAN/ULC-S640, Standard for
Lining Systems for New Masonry Chimneys.
UL 1777 Insulated Stainless Steel
Liner or Other Approved Lining System
Follow Manufacturer’s Instructions
on Insulation and Support
For Zero or Other Non-Code Clearances,
Follow Approved Liner Manufacturer’s Specific
Insulation Requirements: Different Clearances
May Require Different Specifications
Masonry Chimney Must
Have Structural Integrity
UL 1777 Insulated Stainless Steel
Liner or Other Approved Lining System
Minimum 8 in. (203mm) Masonry
Thickness in Front of Smoke Chamber
Damper Plate Removed or
Fastened in Open Position
Seal with Non-Combustible Material
Minimum Clearance in Accordance
with Insert Listing
Floor Protection in
Accordance with Insert
Listing
Follow Manufacturer’s
Instructions for Maximum
Liner Extension Above
Chimney
Maximum 30 Degrees
Offset in Chimney
Combustible Floor
Figure 4.5 - Generic Insert Model Shown in Illustration
H. Larger Chimneys
It is recommended that chimneys with larger diameters than
6 inches (152mm) be relined. An oversized ue can a󰀨ect
draft and impair performance and will allow increased build-
up of creosote.
NOTICE: Check with your local building authorities and/
or consult the National Fire Protection Association
(NFPA 211).
• Cross-sectional area shall conform to NFPA 211-2006
Section 12.4.5.1.
• Should be lined with a 6 inch (152mm) stainless steel ue
liner to improve performance and reduce creosote build-
up.
• An equivalent liner must be a listed chimney liner system
or other approved material.
• No dilution air is allowed to enter the chimney.
a. Secure the replace damper in the open position. If
this cannot be accomplished, it will be necessary to
remove the damper
b. Seal damper area of chimney around chimney
connector with a high temperature sealant or seal
insert against the face of the replace.
c. Both methods must be removable and replaceable
for cleaning and re-installation.
• When possible, install an airtight clean-out door to the
rear of the smoke shelf.

16 07/207101-802G
Minimum 8” (203mm) Masonry Thickness
in Front of Smoke Chamber
Damper Plate Removed or
Fastened in Open Position
Seal with Non-
Combustible Material
Minimum Clearance in Accordance with
Insert Listing
Floor Protection in
Accordance with Insert
Listing
Combustible Floor
Airtight Insulated Clean-Out
Stainless Steel Chimney Connector
Must Extend to Flue Liner
Flue Liner with Required Air Space

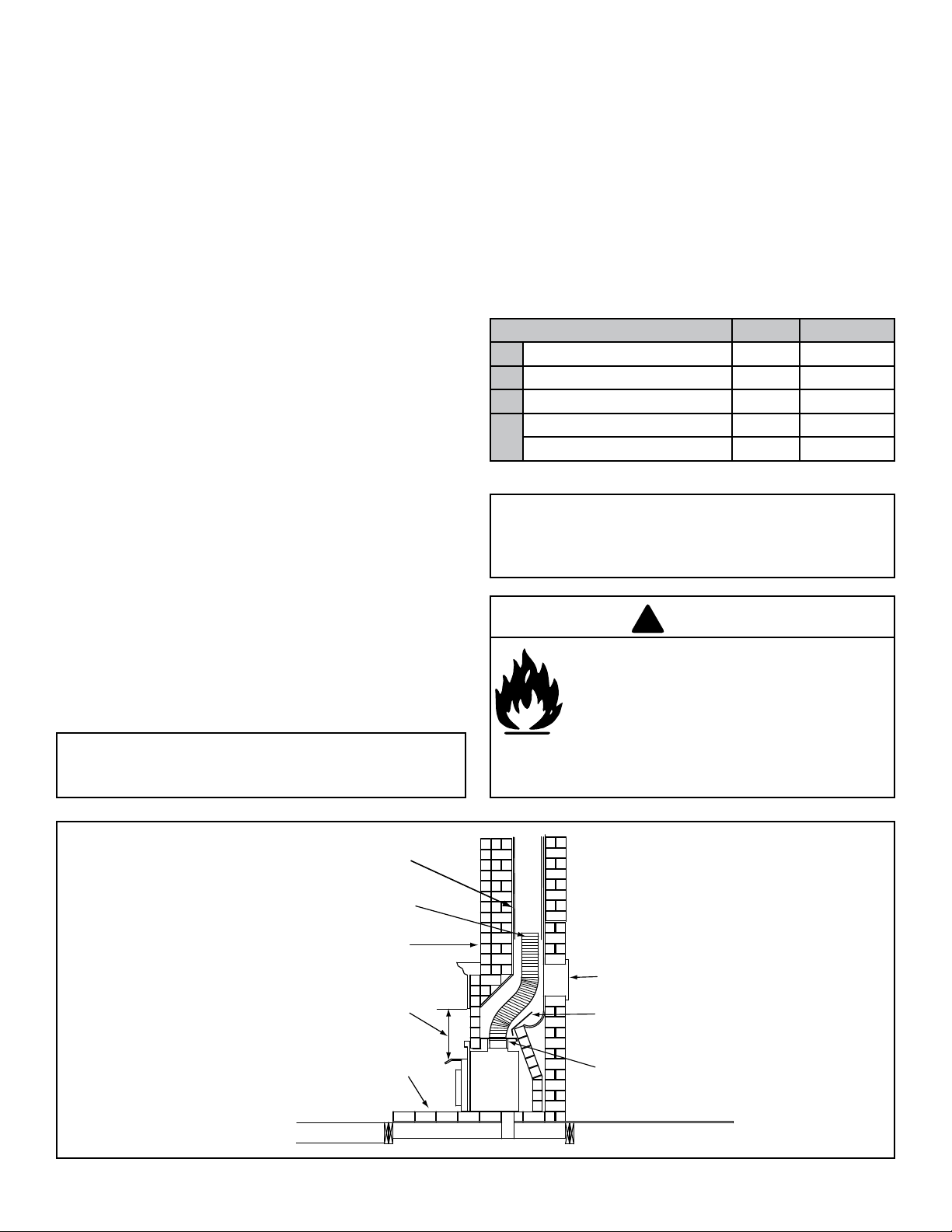

Figure 4.6 - Generic Insert Model Shown in Illustration
J. Metal Heat Circulating Masonry
This insert conforms with the safety standard UL-1482 and
ULC S628 (Canada) in all respects and is approved to UL
& ULC safety standards for installation and use within a
replace with masonry chimney, in accordance with NFPA
211, with a direct ue collar connection.
K. Prefabricated Metal Chimney
Thechimneycanbeneworexisting, masonry or prefabricated
and must meet the following minimum requirements:
• Must be minimum 6 inch (152mm) inside diameter of
high temperature chimney listed to UL 103 HT (2100°F)
or ULC S628.
• Must use components required by the manufacturer
for installation.
• Must maintain clearances required by the manufacturer
for installation.
• Refer to manufacturers instructions for installation
• This insert is listed to UL 1482 Standard and is approved
for installation into listed factory-built zero clearance
replaces listed to UL 127 conforming to the following
specications and instructions:
• The original factory-built clearance replace chimney
cap must be re-installed after installing the approved
chimney liner meeting type UL 103 HT requirements
(2100°F) per UL 1777.
• If the chimney is not listed as meeting HT requirements,
or if the factory built replace was tested prior to 1998, a
full height listed chimney liner must be installed from the
appliance ue collar to the chimney top.
• The liner must be securely attached to the insert ue
collar and the chimney top.
NOTICE: In Canada when using a factory-built chimney it
must be safety listed, Type UL103 HT (2100°F) [1149°C]
CLASS “A” or conforming to CAN/ULC-S629M,
STANDARD FOR 650°C FACTORY-BUILT CHIMNEYS.
NOTE: Refer to chimney liner manufacturer for
recommendations on supporting the liner. Installation into
replaces without a permit will void the listing.
Minimum Opening Dimensions Inches Millimeters
AHeight 23 3/8 594
BFront Width 32 813
CBack Width 24-1/8 613
DDepth (Steel Surround) 18-1/8 460
Depth (Cast Surround) 17-7/8 454
Table 4.1
• The air ow of the factory-built zero-clearance replace
system must not be altered. The ue liner top support
attachment must not reduce the air ow for the existing
air-cooled chimney system.
• No dilution air is allowed to enter the chimney.
a. Secure the replace damper in the open position. If
this cannot be accomplished, it will be necessary to
remove the damper
b. Seal damper area of chimney around chimney
connector with a high temperature sealant or seal
insert against the face of the replace.
c. Both methods must be removable and replaceable
for cleaning and re-installation.
WARNING
!
Fire Risk.
When lining air-cooled factory-built chimneys:
• Run chimney liner approved to UL 1777
Type HT requirements (2100°F)
• Re-install original factory built chimney
cap ONLY
• DO NOT block cooling air openings in chimney
• Blocking cooling air will overheat the chimney

17 07/207101-802G
L. Ovalizing Round Stainless Steel Liners
Ovalizing round stainless steel liners to accommodate the
liner passing through the damper region of a replace is an
allowable and acceptable practice.
Ensure that the ovalization is minimized to the extent
required to t through the damper.
M. Altering the Fireplace
The following modications of factory-built replaces
are permissible:
• The replace must not be altered. Cutting any sheet
metal parts of the replace in which the replace insert is
to be installed is prohibited per ANSI Z21.88 except that
the damper may be removed to accommodate a direct-
connect starter pipe or chimney liner,
• External trim pieces which do not a󰀨ect the operation
of the replace may be removed providing they can be
stored on or within the replace for reassembly if the
insert is removed.
• The permanent metal warning label provided in the
component pack must be attached to the back of the
replace, with screws or nails, stating that the replace
may have been altered to accommodate the insert,
and must be returned to original condition for use as a
conventional replace (Figure 4.7).
• If the hearth extension is lower than the replace opening,
the portion of the insert extending onto the hearth must
be supported.
• Manufacturer designed adjustable support kit can be
ordered from your dealer.
• Final approval of this installation type is contingent upon
the authority having jurisdiction.
WARNING
THIS FIREPLACE MAY HAVE BEEN ALTERED
TO ACCOMMODATE AN INSERT. IT MUST BE
RETURNED TO ITS ORIGINAL CONDITION
BEFORE USE AS A SOLID FUEL BURNING
FIREPLACE. 250-2061
Figure 4.7
N. Zero-Clearance Fireplace
A permit may be required for installations, nal approval is
contingent of the authority having local jurisdiction. Consult
insurance carrier, local building, re o󰀩cials or authorities
having jurisdiction about restrictions, installation inspection,
and permits.
Inspect the existing replace and chimney for any damage
or aws such as burnouts, metal or refectory warping.
Inspection to a minimum of NFPA 211 Level II is
recommended. All repairs must be made prior to installing
an insert. The replace must be structurally sound and be
able to support the weight of the solid-fuel insert
The factory-built chimney must be listed per UL 127 or ULC
610-M87 for all installations. Install thermal protection per
this appliance listing requirements.
A full height 6 inch diameter stainless steel full height listed
chimney liner must be installed meeting type HT (2100°F)
requirements per UL 1777 (USA) or ULC S635 with “0”
clearance to masonry (Canada). The full liner must be
attached to the insert ue collar and to the top of the existing
chimney.
The ue liner top support attachment must not reduce the
air ow for the existing air-cooled chimney system. Re-
install original factory-built chimney cap only; see section
on Prefabricated Metal Chimney on page 16.
To prevent room air passage to the chimney cavity of the
replace, seal either the damper area around the chimney
liner or the insert surround. Circulating air chamber (i.e. in a
steel replace liner or metal hearth circulatory) may not be
blocked. The air ow within and around the replace shall
not be altered, blocked by the installation of the insert. (i.e.
no louvers or cooling air inlet or outlet ports may be blocked
by the insert or the insert surround.
See Altering the Fireplace for modications allowed for
factory-built replaces.
The following parts may be removed:
Damper Smoke Shelf or Ba󰀪e
Ember Catches Fire Grate
Viewing Screen/Curtain Doors
Table 4.2
Asphyxiation Risk.
DO NOT connect this appliance to a chimney
ue servicing another appliance or to any air
distribution duct or system.
This may allow ue gases to enter the house.
WARNING
!

18 07/207101-802G
Figure 5.1
Figure 5.2
Termination
cap
Flex Adapter
A. Outside Air Kit
A source of air (oxygen) is necessary in order for combustion
to take place. Whatever combustion air is consumed by the
re must be replaced. Air is replaced via air leakage around
windows and under doors. In homes that have tightly sealed
doors and windows, an outside air source is needed. An
optional Outside Air Kit is available.
Items Needed for Installation (not supplied)
• Needed for option two:
- 4 inch ex aluminum pipe, or if using alternate
material, then it shall be made from durable, non-
combustible, heat resistant material up to 350°F.
- Cut the pipe to the required length for your installation.
• Needed for both options:
- Phillips head screw driver
- 5/32 Allen Wrench
- Silicone sealant
Option One - Installation Instructions
1. Ensure existing access hole in replace will not be
covered by the outer can. Existing outside air intake hole
may be under at the rear or side of outer can. Outside
air may also enter down existing chimney chase in some
situations.
2. Level outer can and install appliance. After installing the
appliance in the outer can, seal the replace opening
and trim package with insulation to prevent air leakage
into the room.
Option Two - Installation Instructions
3. Ensure existing access hole in replace is su󰀩cient to
feed the 4 inch ex.
4. After sliding can into replace, feed ex into cut opening
to obtain outside combustion air.
5. Level outer can and install appliance.
NOTE: Do not use plastic wire ties that come with the kit
as they will melt. You may need to install the ex pipe into
the rebox rst depending on installation. Attach ex to
adapter with at least 2 screws.
55 Appliance Set-Up
Fire Risk. Asphyxiation Risk.
Do not draw outside combustion air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an attic or garage
• Close proximity to exhaust vents
or chimneys
Fumes or odor may result
WARNING
!
WARNING
!
Asphyxiation Risk.
Length of outside air supply duct shall NOT
exceed the length of the vertical height of the
exhaust ue.
• Fire will not burn properly
• Smoke spillage occurs when door is opened due to
air starvation.
WARNING
!
Asphyxiation Risk.
Outside air inlet must be located to prevent
blockage from:
• Leaves • Snow or ice • Other debris
Block may cause combustion air starvation
Smoke spillage may set o󰀨 alarms or irritate sensitive
individuals.

19 07/207101-802G
Flue Collar Stove Pipe/Liner
Gasket
Figure 5.3
B. Securing Stove Pipe/Liner to Flue Collar
1. There are 4 already drilled holes in the ue collar 90
degrees apart. Attach the ue collar to the stove pipe/
liner. If the seal is questionable use high temperature
sealant such as stove mastic (Figure 5.3).
2. Attach gasket to bottom side of ue collar with a thin coat
of silicone.
C. Optional O󰀨set Adapter
Optional use of a Simpson Duravent 15° Universal Elbow
Part Number 4615 may be purchased directly through your
local Simpson Duravent Pipe Distributor or from your local
Vermont Castings dealer, Part Number DV-6DLR-E15ADSS.
Figure 5.4 shows a vertical installation and also how to
create an optional 30° elbow installation.
The 15° elbow may be secured directly to the ue collar.
Follow the pipe manufacturer’s instructions for using
screws or rivets for attachment. Most pipe manufacturer’s
6 inch (152mm) diameter ue liners may be attached directly
to the top of the 15° elbow.
30 degree
30°
Vertical
Figure 5.4
5/16 Nuts
Attachment
Bar
5/16 Bolts
Figure 5.5
D. Securing Appliance to Stove Pipe/Liner
1. Once you have the appliance in place and secured, reach
up through the ue opening and grab the attachment bar
and pull down inside ue opening (Figure 5.5).
2. Insert the 5/16 bolts inside the cast ue and through
the chimney mounting bar. Securely tighten the nuts.
Fasteners are provided.
3. Re-install the tube channel assembly, ba󰀪e board,
ceramic blanket and ba󰀪e protection channel.
NOTE: These are generic drawings and may not represent
your specic model.

20 07/207101-802G
E. Flat Surround
1. Lift surround to front of appliance (Figure 5.6)
Figure 5.6
Top: over lip on top of
Sides: through
cut outs on
sides and
then down
appliance
Figure 5.8
Trim Kit
Option
Flat
Surround
Figure 5.9
Figure 5.10
NOTE: May need to pull appliance away from replace to
clear mantle as you slide the trim over the at surround.
Figure 5.7
Corner Brackets
Overall Dimensions Part Number
Standard Size 43” x 31” SPVC-4331
Large Size 51” x 34” SPVC-5134
Table 5.1
6. If needed push appliance back into replace.
5. Install two steel springs on each side of the at surround
towards the bottom and the assembled trim kit (Figure
5.10).
4. Install two steel springs at the top on each side and
between the at surround and the assembled trim kit as
shown in Figure 5.9.
3. Slide trim over at surround as shown in Figure 5.8.
2. Assemble trim as shown in Figure 5.7.
