Versapers EMOTION 5G User manual

INSTRUCTION MANUAL
Precautions for safe use
Terms of Parts
How to Disassemble : Chamber
How to Prepare Ingredients / Use by Strainer Types
How to assemble : For juicing
How to assemble : For making Ice cream
How to assemble the chamber set and body
Cautions during Operation
How to use : For juicing / Ice cream
How to use control lever by mode
How to use control lever by ingredients (Juicing)
When squeezing screw stops during operation
Assembling and cleaning for squeezer
Using the squeezer
How to Clean / How to Clean : Silicones
Before Requesting for Repair
Product Specifications / Warranty
02
04
06
07
08
10
12
13
14
15
16
17
18
19
20
22
24
Read ‘Precautions for safe use’ (Page 2) and use the appliance properly.
Do not use it abroad which has different power supply and voltage.
Any quality improvements are subject to change without notice.
After finish reading the manual, keep it in a convenient location for future reference.
1.
2.
3.
4.
Versapers 5G ( For Household Use Only / Warranty Included )
CONTENTS
ENG

You should read <Precautions for safe use>
You should follow <Precautions for safe use>
Precautions are classified as follows.03
01
02 When violating the labeling requirement, it may cause
serious injury or death.
Warning
abnormal performance. If the voltage is different, it may shorten the life of the motor
WHEN DETECTING A GAS LEAK, DO NOT INSERT THE POWER CORD INTO ITS SLOT.
OPEN THE WINDOW TO VENTILATE FULLY AND IMMEDIATELY. It may cause injury or
failure.
PLUG THE POWER CORD CORRECTLY AND PUSH IT TIGHT IN A WALL SOCKET.
NEVER ALTER THE APPLIANCE. ALSO, DO NOT DISASSEMBLE NOR REPAIR BY
YOURSELF. DO NOT INSERT FINGERS, FOREIGN SUBSTANCES OR OBJECTS SUCH
AS PINS INTO GAPS OR HOLES IN THE BASE. It may cause a fire, electric shock or
failure. For any technical support, contact the authorized local Customer Care Center.
NEVER DISASSEMBLE THE CHAMBER SET DURING OPERATION NOR INSERT
FINGERS, FOREIGN OBJECTS SUCH AS FORKS, SPOONS, ETC. INTO THE HOPPER
CHUTE OR JUICE OUTLET. It may cause injury, accident or failure.
DO NOT PLUG IN NOR UNPLUG WITH WET HANDS. It may cause electric shock or
injury.
or cause a failure.
It may cause an electric shock or a fire.
WHEN THE POWER CORD, WIRE IS BROKEN OR DAMAGED OR THE PLUG-IN PART
BECOMES LOOSE, DO NOT OPERATE IT. It may cause electric shock, fire or injury.
FOR SAFETY, MUST DO GROUNDING CONNECTION. ALSO, DO NOT DO GROUNDING
ON GAS PIPE, PLASTIC WATER PIPE, TELEPHONE WIRE, ETC. It could cause electric
shock, fire, malfunction or explosion. Be sure to use the electrical outlet with ground
connection.
DO NOT USE OTHER THAN 230 V - 240 V AC. It may cause electric shock, fire or
IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE
MANUFACTURER’S ITS SERVICE OR SIMILARLY QUALIFIED PERSONS IN ORDER TO
AVOID A HAZARD. If the power cord is damaged, it may cause electric shock or fire.
DO NOT MOISTEN THE BASE OR SPLASH WATER ON THE BASE. Be careful not to let
any liquids or other substances get into the switch on the appliance.
DO NOT OPERATE THE SWITCH WITH WET HANDS. It may cause an electric shock or
fire.
APPLIANCES CAN BE USED BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR
MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE
BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE
APPLIANCE IN A SAFE WAY AND IF THEY UNDERSTAND THE HAZARDS INVOLVED.
CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND USER
MAINTENANCE SHALL NOT BE MADE BY CHILDREN. THIS APPLIANCE SHALL NOT
BE USED BY CHILDREN. KEEP THE APPLIANCE OUT OF REACH OF CHILDREN.
DO NOT OPERATE WITHOUT LOCKING THE HOPPER PROPERLY. It may cause an
injury or a failure.
Precautions for safe use
02

When violating the labeling
requirement, it may cause serious
injury or damage to the appliance.
Warning
NEVER PUT A FINGER, FORK OR SPOON, ETC. INTO THE JUICE OUTLET. It may
cause injury or failure.
DURING THE OPERATION, DO NOT ATTEMPT TO MOVE THE BASE, DISASSEMBLE
THE CHAMBER SET OR PARTS, AND TRY TO LOCK THEM. It may cause an injury or a
failure. Any act of event needed, switch off first and unplug the power cord.
WHEN USING THE APPLIANCE, BE CAREFUL FOR A NECKTIE, LONG NECKLACE,
SCARF, ETC. NOT TO BE ENTANGLED INTO THE HOPPER CHUTE. It may cause injury,
failure or breakage.
IF THE SQUEEZING SCREW ROTATION IS STOPPED FROM NORMAL OPERATION,
PRESS [REV] BUTTON AND HOLD FOR 3~5 SECONDS AND THEN AFTER REVERSE
OPERATION IS COMPLETELY STOPPED, PRESS [ON] BUTTON AGAIN. If such a stop
event continues during the operation, the parts may be damaged and performance may
be deteriorated due to overheating in a motor. When the problem continues, immediately
stop the appliance and contact the local Customer Care Center.
PLACE THE APPLIANCE ON A FLAT AND STABLE SURFACE. It may cause injury or
failure.
DO NOT OPERATE THE APPLIANCE FOR MORE THAN 30 MINUTES AT A TIME. It may
cause a motor failure due to overheating. Cool it down sufficiently about 5 minutes and
operate it again.
WHEN PLACING INGREDIENTS INTO THE HOPPER CHUTE, ONLY USE THE PUSHER
PROVIDED. It may cause injury or failure.
DO NOT ALLOW A SEVERE SHOCK TO THE APPLIANCE NOR DROP IT. It may cause
electric shock, fire or damage.
THE APPLIANCE WEIGHS ABOUT 6.3kg. WHEN MOVING THE APPLIANCE, ENSURE
CORD, MAKE SURE TO HOLD THE POWER CORD. Pulling on the wire to unplug may
cause electric shock or fire.
SMOKE, STOP USING IMMEDIATELY AND CONTACT THE LOCAL CUSTOMER CARE
CENTER. When using a new appliance, it gives off a smell and the smell disappears
naturally over time.
DO NOT USE HOUSEHOLD PRODUCTS FOR COMMERCIAL PURPOSES. Forcing a large
amount of ingredients to be extracted may damage the parts. Please contact the
Customer Service Center for information on how to use the product for commercial
purposes.
IF THE APPLIANCE GIVES OFF AN UNPLEASANT SMELL OR EXCESSIVE HEATING,
DO NOT WASH AT HIGH TEMPERATURES OF 80°C OR HIGHER. DO NOT PUT THE
APPLIANCE IN A DISHWASHER, A DRYER OR A MICROWAVE ETC. It may cause a
failure or parts deformation.
ALWAYS UNPLUG THE APPLIANCE AFTER USE. ALWAYS DISCONNECT THE
APPLIANCE FROM THE SUPPLY IF IT IS LEFT UNATTENDED AND BEFORE
ASSEMBLING, DISASSEMBLING OR CLEANING. WHEN UNPLUGGING THE POWER
TO MOVE IT HOLDING GRIPS TIGHTLY AT THE BASE BOTTOM WITH BOTH HANDS. If
attempting to hold chamber or the edge of the base, the base falls causing an injury or
failure.
03
ENG

Hopper Chute
Safety
Sensor
Screw Axis
Strainer
Bump Ice Cream Outlet
Side
Hopper
Chute
Silicon Brush
Brush Holder
Juice Cap
Packing
Juice Outlet
Mid Gear
Pulp
Outlet
Lever
Juice Cap
01 Hopper 02 Spinning Brush
03 Squeezing Screw
05 Pusher
06 Fine Strainer 07 Ice cream Strainer
08 Juice Container 09 Pulp Container
04 Chamber
Terms of Parts
04

Body
Bump
Motor
Spin
Operating
Switch
Cone
Squeezer Body
Juice Outlet
*Chamber Rack can not be separated
after assembling
Safety Sensor
Safety Sensor
10 Base
11 Cleaning Brush
13 Chamber Rack
12 Squeezer Set
Terms of Parts
How to use
05
ENG

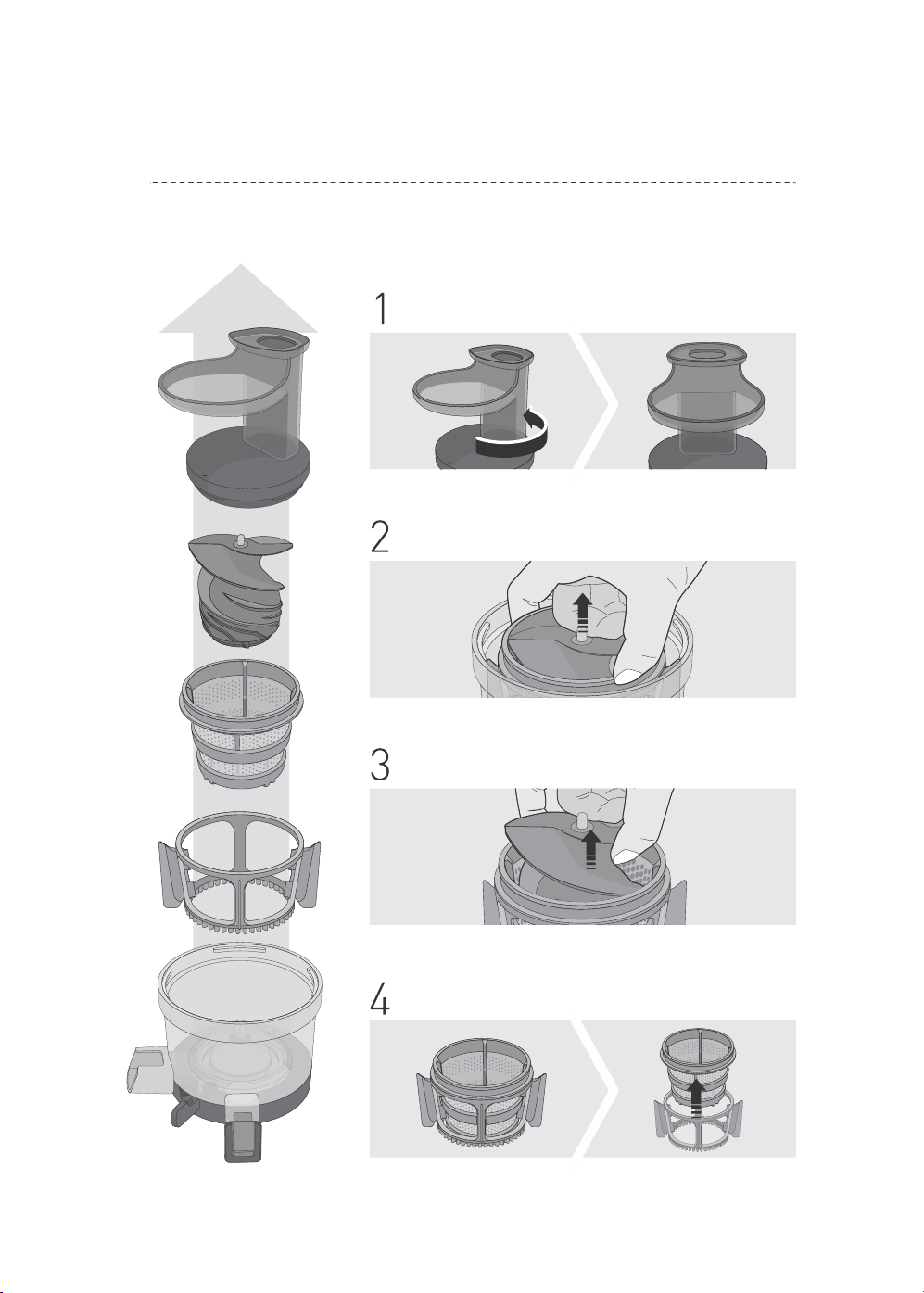

How to Disassemble : Chamber
06
Turn the hopper counterclockwise and pull it up.
Disassemble by lifting the strainer and spinning
brush from the chamber.
Pull out the squeezing screw holding both sides
of wing.
Disassemble the spinning brush and strainer.
NOTE: It is most convenient to first remove the whole chamber
set, by lifting it vertical off the base and then follow step 1 to 4.

►
►
How to Prepare Ingredients / Use by Strainer Types
07
How to trim the ingredients For juicing
How to prepare ingredients
Use by strainer types
NOTE
For making ice cream
Fruits and vegetables like Aple, pear, kiwi, cucumber etc. can be juiced with seeds and peels if
desired.
Apple · pear · kiwi ·
cucumber
Separate each grape from the cluster. Peel the pomegranate and use flesh only. Be carefull
not to use too much grapes/berries with seeds and clean the machine before it becomes
clogged.
Pomegranate ·
grapes · berries
Peel off the skin of watermelon, melon, orange, grapefruit, lemon and cut them into right size.
grapefruit · lemon
Watermelon ·
melon · orange ·
Fruits like mango, cherry, peach, lemon or plum, etc. have hard seeds which are hard to
swallow. Those seeds might cause stoppage or parts damage, so they must be removed
before using it.
Mango · cherry ·
peach · lemon
Dice frozen fruits in small 1cm slices to make ice cream. Remove hard seeds before freezing.
Please use seedless grapes. Take note that the product must be soft enough to chew before
putting it in the icecream strainer. Some fruits require slight defrosting before they can be
inserted.
The fine strainer has tiny and fine holes good to make clean juice.
Do not extract large amount of ingredients at once or put in large chunks of the
ingredients. Some juice can come out of the pulp outlet or outside of the strainer
when using slightly defrosted fruits. This is normal phenomenon and not a product
failure. Do not use frozen water or ice cubes.
This is for making Smoothies, slush and ice cream with frozen fruits.
This ice cream strainer is only for soft frozen fruits.
Do not use for crushing ice or grinding seeds or coffee beans.
Hard deep frozen items may damage the ice-cream strainer. Slightly defrost before use.
Overfeeding frozen ingredients may damage the product. Please feed carefully in small portions and watch the
operation of the juicer.
Frozen fruit
Fine
Strainer
Ice Cream
Strainer
Cut fibrous ingredients into small sized less than 3~4 cm. Ideally chop it to pieces of just 1 cm
long. Put in small portions at a time. Ideally mix with carrot or beetroot for better troughput.
Wheatgrass ·
chives · parsley ·
dill · celery · kale
When extracting juice from ingredients with many fibers, including ginger, slice thinly and insert
slowly. When extracting juice from root vegetables, including ginger (carrot, dandelion, potato,
beetroot, etc.), non-food materials such as dirt on the surface may damage the parts. Clean
this thoroughly. When extractinga large amount of juice, repeat the process of "disassembling
and cleaning after extracting juice from 1kg of ingredients”.
Ginger · Garlic ·
Carrot · Beetroot
ENG

2
STEP
1
STEP

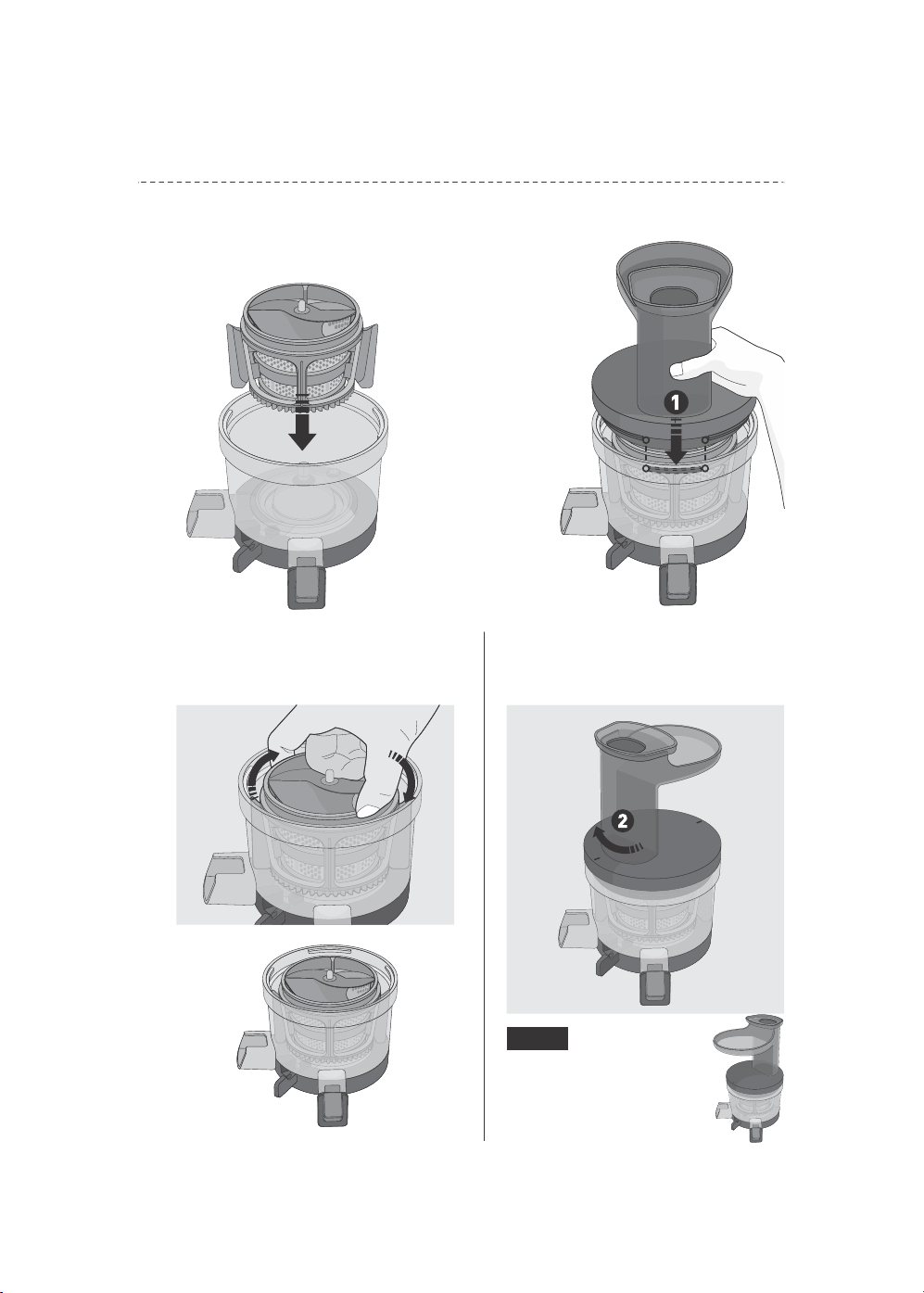

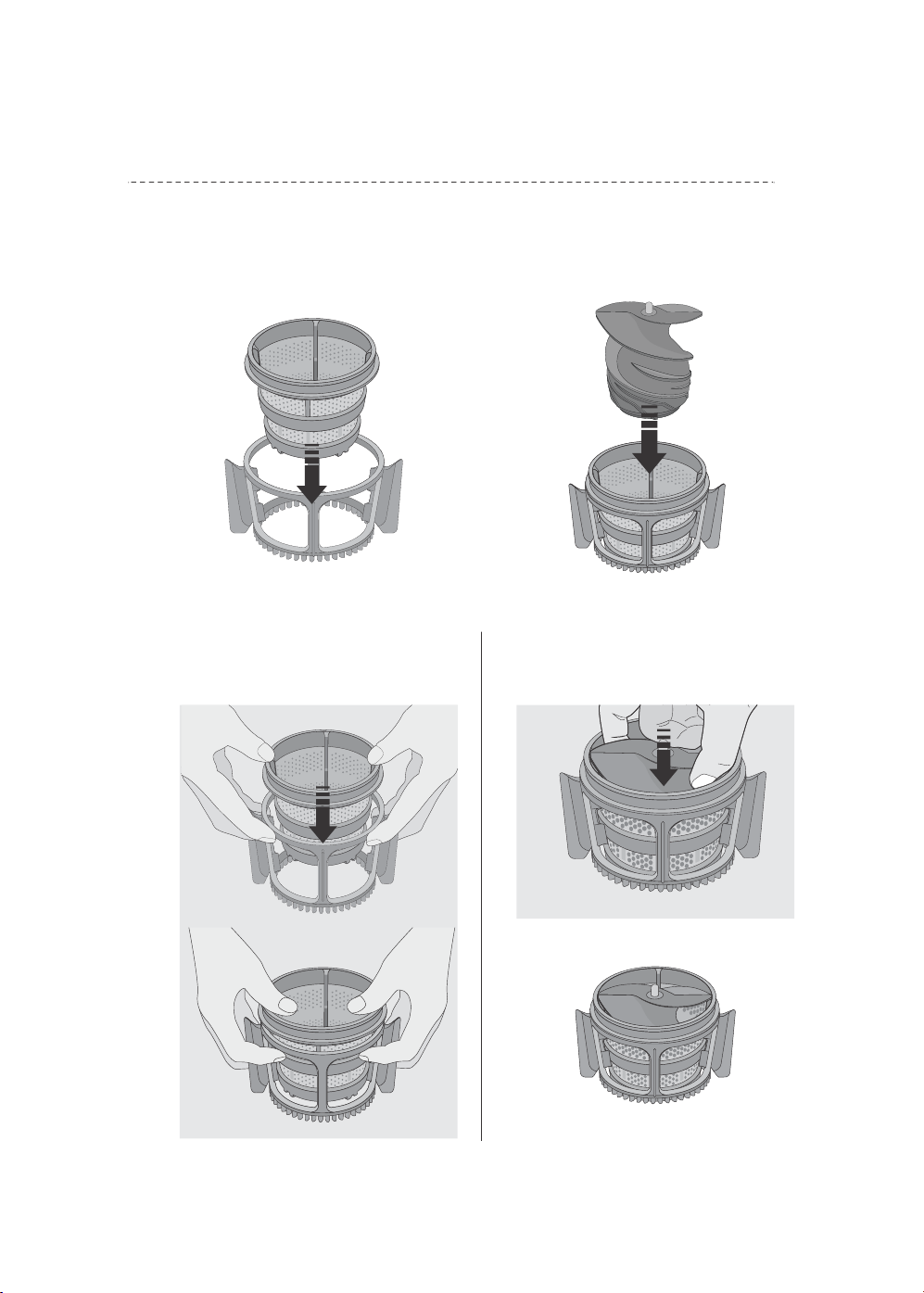

How to assemble : For juicing
08
Assemble the strainer and spinning
brush as shown in the picture. [STEP1].
Assemble the squeezing screw into

3
STEP 4
STEP
How to assemble : For juicing
09
Place the assembled parts from [STEP 2]
into the chamber by turning the strainer
from side to side to fit the groove in the
bottom bump of the chamber.
After putting the hopper on the chamber,
turn it clockwise until it is locked
completely.
The hopper can be operated
when assembled in either
direction.
NOTE
ENG

2
STEP
1
STEP
How to assemble : For making Ice cream
10
Assemble the chamber and ice cream
strainer. Place the ice cream outlet
align with juice outlet.
Press the squeezing screw into
the assembled parts from [STEP 1]
until the screw fits perfectly.
The spinning brush
isn't needed for ice
cream making.
NOTE
ICE CREAM
OUTLET
JUICE
OUTLET
ICE CREAM
OUTLET
JUICE
OUTLET

3
STEP
How to assemble : For making Ice cream
11
completely.
After putting the hopper on the chamber,
turn it clockwise until it is locked
The hopper can be
operated when assembled
in either direction.
NOTE
ENG

How to assemble the chamber set and body
12
The assembling method is same regardless of strainer type.
NOTE
NOTE
Place the control lever of the chamber set to
[ CLOSE] as image
the chamber set and body will not fit completely.
Assemble the bottom of the chamber to bump of the
body. If the control lever is not placed at [ CLOSE]
If the sign [ ]on the body and the sign < >behind
of the chamber set are aligned well, it is perfectly
assembled.
If the hopper is assembled according
to the safety sensor on the main body,
the appliance works even the hopper
is assembled in the opposite direction
as the picture below.
The appliance will not work if the chamber set isn’t
The main body itself will not work.
assembled correctly even though it is on the body.
OPEN CLOSE

Cautions during Operation
13
NOTE
impossible to make juice. If the unit is not cleaned immediately after use, a residue may dry
and stick to the unit. This will make assembling and cleaning difficult as well as lead to
performance degradation.
Withered ingredients because of refrigerated for long term may make small amount of juice or
- Do not put in sesame seeds, coffee beans, bark of the tree, pepper, etc. which cannot be
extracted.
Never insert chopsticks or a spoon into Pulp outlet during the operation.
hard to chew with our teeth. Seeds should be taken out before extraction.
- It may cause damage or failure.
Ingredients which needs caution and may cause damage or failure.
- Do not insert ingredients that cannot be juiced due to their characteristics, such as figs, aloe and
sea weed (Please contact the Customer Service Center for more information on which ingredients
can be juiced).
- When using continuously, stop it and give it 5 minutes of interval and then you may use it again.
Do not press the ingredients with anything except the pusher.
When you extract over 400ml at once, please open the control lever every 400ml to emit the
pulp.
- It may cause a failure due to overheating of the motor.
Do not operate the switch with wet hands.
Do not use for grinding grains.
Do not operate the appliance before putting in the ingredients.
- Extracting the juice from a large amount of root vegetables, including ginger, may cause damage
rather than keeping them for long time.
sizes about 3~4cm or smaller before putting into the hopper chute.
- For stalk vegetables with strong fiber such as parsley, dill, celery etc. should be cut into small
- Do not put in fruits preserved in alcohol, sugar, honey, etc. (grapes, apricot, berries, etc.).
We recommend you to drink green vegetable juice and fruit juice immediately after extraction
- It may cause electric shock or fire. Do not put foreign objects near the switch.
or failure. Please repeat the process of "juicing 1kg, disassembling and cleaning".
- Fruits with hard seeds such as persimmon, apricot, lemon, plum, peach, cherry etc. that are
Do not use the appliance for more than 30 minutes continuously.
Do not re-squeeze residues expelled through the pulp outlet.
- Soft fruits can be re-squeezed.
- Inserting such as chopsticks etc. into Pulp outlet during operation may cause them to get stuck
into the spinning brush and cause damage to the parts.
- It may stick to the screw and cause injury and failure.
- The hopper can’t be opened or it may cause damage when the pressure in the chamber
increases.
Please use only the ice cream strainer when you put frozen fruits.
Do not put ice cubes, other ingredients and for grinding.
- It may cause damage or failure.
ENG

1
3
5
2
4
2
How to use : For juicing / Ice cream
14
OPEN
ON [ON]
REV [REV]
ON [ON]
REV [REV]
CLOSE
OPEN CLOSE
Side
Hopper
Chute
Upper
Hopper
Chute
Pusher
Place the lever [ CLOSE] position before
operating.
The chamber will not be assembled with body if
the control lever is not into CLOSE [ CLOSE]
position.
Press [ON] button to start.
After extraction is completed, place the
switch in the [REV] position.
For your safety, this appliance only works when
it's correctly assembled with chamber set.
Stop the machine slowly after press the button
for safety and product performance.
When using [ON] or [REV] button, make sure that the
squeezing screw stops completely.
chute and press with the pusher.
Put ingredients gradually in the hopper
Do not press the ingredients with anything
except the pusher provided. Please put the
ingredients as 3~4cm sizes.
When you use the ice cream strainer, the juice
can be out through outlet and it is normal
operation.
When you extract over 400ml at once, please
open the control lever every 400ml to emit the
pulp.
[ ] position before putting the last
ingredients.
Ice cream : Close [ CLOSE] the control
Juice : Put the lever in half-closed
lever to use.
The hopper will be opened easily as long as the
residues in the strainer are released.
NOTE

How to use the control lever by mode
[ CLOSE ] Preparation·Juice Extraction Mode
[ CLOSE ] Ice cream Mode
[ ] Completion, Simple Cleaning Mode
[OPEN ] Cleaning Mode
15
OPEN CLOSE
OPEN CLOSE
OPEN CLOSE
OPEN CLOSE
For juicing fruits or berries with seeds, such as grapes,
[ ]position when juice begins to come out.
For general ingredients, the extraction rate is good when
you close [ CLOSE] he lever during operation.
control lever every 400ml to emit the pulp.
lever into close [ CLOSE] and switch into half-closed
When you extract over 400ml at once, please open the
Red berries, and pomegranates, place the control
Close [ CLOSE] the control lever to use since the pulp is
not released separately.
For Simple Cleaning Mode, put the lever in half closed
Place the control lever into half-closed [ ] the control
position when putting in the last ingredients and release
the residues. The hopper will open easily when the
residues in the strainer are released.
[ ] position and release the residues.
When detaching and cleaning the chamber, put the lever
completely in [OPEN ] position. You can easily and
conveniently clean the chamber.
The control lever can not move to the [OPEN ] position
when the chamber is placed on the main body.
When it is hard to open Hopper after operation. Put the lever in half-closed [ ] position and
press [REV] button for 3~5 seconds. Repeat this for 2~3 time and the hopper will be opened easily.
The control lever has various functions and can help to facilitate the juicing and cleaning
process.
The control lever is between the juice cap and pulp outlet.
NOTE
ENG

How to use the control lever by ingredients (Juicing)
16
OPEN CLOSE OPEN CLOSE
OPEN CLOSE OPEN CLOSE
OPEN CLOSE
NOTE
Ingredients
Ingredients with seed
Mix with (nut)milk
Use the control lever by the properties of each ingredients, you can make a more
delicious juice. When you extract over 400ml at once, please open the control
lever every 400ml to emit the pulp. The hopper can’t be opened or it may cause
damage when the pressure in the chamber increases.
Apple, pear, melon, watermelon, strawberry, blueberry, orange, grapefruits, lemon, mango, plum,
peach, cherry, persimmon, pineapple, wheat-grass, parsley, celery, dandelion, carrot, ginger, potato,
beet, tomato, paprika, broccoli, cauliflower, cabbage, kale, spinach (Cooked) sweet potato,
pumpkin, corn.
Grapes, pomegranate, kiwi, tomato, blackberry, raspberry, mulberry, etc.
Banana, strawberry, blueberry, etc.
Start from control lever in [ CLOSE]
position. control lever into [ ] half-opened position.
When extraction is almost finished, place the
Start from control lever in [ CLOSE]
position. When juice starts to come out, place the
control [ ] half-opened position.

1
2
When the squeezing screw stops during operation
17
NOTE
NOTE
[ON]
[ON]
[REV]
[REV]
[REV]
Caution when using operation button
The appliance may stop if ingredients are overloaded or inserted quickly.
Gradually insert ingredients, since the product squeezes them instead of grinding.
direction you want.
appliance, then you press [REV] button for operation. From the feature of the
In case of reversing during operation, press [REV] button shortly to stop the
slowly then stops. If the rotation stops completely, you may press the button to any
product, even though you stop the operation, it doesn’t stop right away. It rotates
Even after following the directions above and this
still doesn’t work, please unplug the power cord
and disassemble chamber set, and clean it. And
try it again.
Press [REV] button on the operating
switch for about 3~5 seconds and stop
it. Repeat this 2~3 times.
reverse operation is completely
stopped.
Press [ON] button to operate after
Reverse rotation operates only while
holding the switch in [REV] position, and
shuts off when switch is released.
operates) the screw (motor) in the opposite
direction.
"Reverse" is a function that rotates (or
When using [ON] or [REV] button, make
sure that the squeezing screw stops
completely.
ENG

1
Assembling and cleaning for squeezer
18
How to assemble the squeezer set and body
Cleaning
Mount the serving spout on the body.
Align the grooves of the serving spout
bottom with the bumps of the body.
NOTE
Remove the cone and serving spout from the body and clean the parts under running water.
Rinse or wash all squeezer parts immediately after use. Dried citrus pulp is difficult to clean.
Turn off and the remove the plug from the power outlet before cleaning.
3.
2.
1.
DO NOT WASH AT HIGH TEMPERATURES OF 80° OR HIGHER.
DO NOT PUT THE APPLIANCE AND PARTS IN A DISHWASHER, DRYER OR A MICROWAVE ETC.
It may cause a failure or parts deformation.
Safety
Sensor
Safety
Sensor

1
2
Using the squeezer
19
ON
REV
How to use the squeezer
How to use squeezer
Press the [ON] button to turn on.
Prepare the juice cup under the serving
spout.
Cut the citrus fruit in half. Place a
push down gently.
citrus fruit half onto the cone and
If you extract an excessive amount of
ingredients, it may overflow.
Please use fruit at room temperature than the cold fruit from the fridge in order to obtain a large
amount. Please select fruits of smooth and bright colors and avoid fruits that have a damaged or
dried out peel. We recommend you drink juice immediately after extraction rather than storing it for
long time.
If you want clear juice, use the Versapers chamber for juicing.
Please wash the fruits before using them on the squeezer.
Remove seeds before extract. If not removed, it may contain the seeds in juice.
ENG

01
02
03
04
05
06
07
How to Clean
20
NOTE
If you try to disassemble the chamber packing,
it might be damaged.
The chamber packing can't be disassembled.
Do not disassemble the chamber packing.
When you clean the chamber set, wash the
under running water.
residue inside and bottom of the chamber
Unplug the power cord with dry hands after the unit
has been completely stopped.
Wipe the main body with a damp towel or a soft cloth.
washed. (Including juice cap packing, silicone brush)
The silicone packing can be disassembled and
You can clean the product by soaking it in water with
diluted baking soda or vinegar for about 30 minutes.
Open the control lever [OPEN ] and juice cap to
wash the chamber.
Use a cleaning brush and wash the chamber set
under running water.
Remove the chamber set from the main body. Twist
the chamber cover to open and lift up the parts in
order to disassemble the unit.
Chamber
Packing
If the unit is not cleaned immediately after use, a residue may dry and stick to the unit. This
will make disassembling and cleaning difficult as well as lead to performance degradation.
Do not wash with hot or boiling water, an iron scrubber, abrasive material, sink solvents, or
sharp cleaning tools. Do not put it in a dishwasher or dish dryer. After washing, thoroughly
and naturally dry, and store in a clean area.
Cleaning for parts
