Vertu Constellation V User manual

C O N S T E L L AT I O N V
U S E R G U I D E V E R S I O N 1. 0

Contents
Introduction 5
Your Constellation V phone 5
Help and support 5
Safety 6
Safety 6
Your phone 7
Package contents 7
Features and keys 8
Back, home and recent apps 9
Antenna locations 10
Headset 10
Change the volume 11
Getting started 12
Insert the SIM card 12
Charge the phone 13
Switch the phone on or off 14
Touch screen actions 15
Start-up process 16
Use your phone when it is locked 17
Explore 18
About the home screen 18
Status and notification bar 18
Status and notification icons 19
Clock widget 20
Add widgets to the home screen 20
Favourites tray 20
Aeroplane mode 21
Apps 22
About apps 22
Recommended apps 22
Apps precautionary advice 22
Baidu App Search 22
Manage and restore apps 23
Close apps 23
Uninstall apps 23
Vertu Services 24
About Vertu Services 24
Text entry 25
Keyboard entry 25
Chinese text entry 25
Predictive text 25
Dictionaries 26
Change the keyboard language 26
Calls 27
About calls 27
Make and answer calls 27
Call the last number dialled 28
Quickly call your favourites 28
Listen to your voicemail 28
Divert calls to another number 29
Make a conference call 29
Contacts 30
About contacts 30
Call, text or email contacts 30
Add contacts 31
Join contacts 31
Edit or delete a contact 31
Save a number from a call or message 31
Mark contacts as favourites 32
Personalise contacts 32
Transfer contacts 32
Messaging and email 33
About messaging 33
Send and read messages 33
Send a message to a group 33
Manage messages 34
Corporate email setup 34
Personal email setup 34
Music 35
About music 35
Get music 35
Set up music 35
Play music 36
Maps and navigation 38
AutoNavi™ Maps 38
Personalising your phone 39
Contents
© 2013 Vertu Corporation Limited. All rights reserved. 2

Widgets 39
Shortcuts 39
Ringtones 39
Wallpapers 40
Assign sounds to actions 40
Display settings 40
Auto-rotate 41
Screen lock 41
Date and time settings 41
Language and region settings 41
Social networks 42
Add an account 42
Delete an account 42
Synchronise contacts 42
Managing accounts 43
Configure sync options 43
Add and delete accounts 43
Browser 44
About the web browser 44
Browse the web 44
Connect to the internet 45
Add a bookmark 45
Widget feeds 45
Privacy and security 45
Downloads 46
Camera 47
About camera 47
Take and share photos 47
Camera settings 49
Record and share a video 49
Video settings 50
Gallery 51
About gallery 51
View and edit photos and videos 51
Share photos and videos 51
View an album 51
Create a folder 52
Assign contact images and wallpaper 52
Take a screen shot 52
Office tools 53
Clock 53
Calculator 53
Calendar 53
Connectivity 55
WLAN 55
Bluetooth 55
Set your phone to sync with your
computer 56
Copy between the phone and a PC 57
Tethering and portable hotspot 57
NFC 58
Phone management 59
System update 59
Free up phone memory 59
Optimise data usage 59
Data roaming settings 60
Back up and restore your phone 60
Set your phone to lock automatically 60
Change your PIN code 60
Access codes 60
Master reset 61
Tips and tricks 62
General tips 62
Extend battery life 63
FAQs 64
Questions 64
How can I extend the battery life of my
phone? 64
How can I reduce my data costs,
especially when abroad? 65
How do I transfer music from my
computer to my phone? 66
How do I setup an email account on my
phone? 66
How do I transfer contacts to my phone? 66
How do I transfer photos from my phone
to my computer? 66
How do I set my music as ringtone? 67
Contents
© 2013 Vertu Corporation Limited. All rights reserved. 3

How do I change the font size on my
phone? 67
How do I check if I have the latest
software updates on my phone? 67
Why have I got no connectivity? 67
Why is my internal storage less than
advertised? 67
How do I protect my phone from
unauthorised use? 67
How do I find the IMEI number of my
phone? 68
How can I clear the log of my calls or the
list of people I have contacted
frequently? 68
Why does my phone get warm? 68
How do I know how much storage I have
on my phone? 68
How do I set a photo as my wallpaper? 68
Accessories 69
Battery charger 69
Data cable 69
Wired stereo headset 70
Specifications 71
Specifications 71
Care of your phone 74
General care 74
Embroidery 74
Exotic leathers 75
Leather 75
Non-precious metals 75
Precious metals 76
Precious stones 76
Sapphire and ceramics 76
Safety and warranty 77
Safety text 77
Additional care and maintenance 81
Manufacturer's Limited Warranty 82
Software application notices for the
phone 85
Environmental 87
Export and controls 89
Copyright and trademark notices 89
SAR (Specific Absorption Rate) notice -
RM-851V 89
Declaration of Conformity 91
Contents
© 2013 Vertu Corporation Limited. All rights reserved. 4

Introduction
Your Constellation V phone
This user guide is intended to provide you with details on how to use the prominent features on your
Constellation V.
To access the exclusive privileges and benefits such as Vertu Life and Vertu Certainty, you must register
your phone.
The pictures used in this user guide are provided for illustration purposes only. They may differ from the
exact appearance of your Constellation V.
Help and support
To find out more about using your phone:
lContact Vertu Customer Service by either pressing the Vertu key or through the Vertu Certainty app.
lRefer to the user guide on your phone from the Vertu Certainty app, or on the Vertu website at
http://www.vertu.com/help-and-support/user-guides-and-downloads.aspx.
lUse the setup wizards available on the phone to help you with registration to create an email
account.
Compliance information
You can find compliance information on a retractable metal flap that is located in the SIM compartment. For
instructions on accessing the SIM compartment, see "Insert the SIM card" on page 12. The information
displayed includes the IMEI number, serial number, product name and 2D barcode.
Introduction
© 2013 Vertu Corporation Limited. All rights reserved. 5

Safety
Safety
Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user
guide for further information.
Switch off in restricted areas
Switch the device off when mobile phone use is not allowed or when it may cause
interference or danger, for example, in aircraft, in hospitals or near medical
equipment, fuel, chemicals, or blasting areas. Obey all instructions in restricted
areas.
Road safety comes first
Obey all local laws. Always keep your hands free to operate the vehicle while
driving. Your first consideration while driving should be road safety.
Interference
All wireless devices may be susceptible to interference, which could affect
performance.
Qualified service
Only qualified personnel may install or repair this product.
Keep your device dry
Your device is not water-resistant. Keep it dry.
Protect your hearing
To prevent possible hearing damage, do not listen at high volume levels for long
periods. Exercise caution when holding your device near your ear while the
loudspeaker is in use.
Safety
© 2013 Vertu Corporation Limited. All rights reserved. 6

Your phone
Package contents
lConstellation V phone
lLeather phone slip case
lTwo wall chargers (AC-31), each with a Chinese-style plug
lTwo microUSB cables 1200mm (CA-209DV)
lMicroUSB cable 250mm (CA-210DV)
lWired stereo headset
lPolishing cloth
lSIM-eject tool
lCollateral pack, including Quick Start Guide, Warranty Booklet, Authenticity Card and Website
Information Card
The package contents may vary slightly in accordance with the materials used in your particular phone and
with regional regulations.
Your phone
© 2013 Vertu Corporation Limited. All rights reserved. 7

Features and keys
Front
1
3
2
4
5
6
7
8
1
Earpiece speaker
2
Front camera
3
Vertu key
4
SIM drawer
5
Ambient light sensor
6
Notification light
7
Navigation icons: Back, Home, and Recent apps
8
Microphone
Back
1
2
3
4
5
6
7
1
LED flash
2
Volume up key
3
Volume down key
4
Power key/screen lock
5
Noise-cancelling microphone
6
Loudspeaker
7
Main camera
Your phone
© 2013 Vertu Corporation Limited. All rights reserved. 8

Top
1
2
1
MicroUSB connector
2
Headset connector
Back, home and recent apps
Three icons on the front of your phone become touch-sensitive when you switch on. You can use these
icons to navigate between screens and apps.
1 32
1
Back
2
Home
3
Recent apps
Touch Back to go back to your previous screen.
Touch Home to move an app to the background and return to the home screen. Touch and hold Home to
go to the search screen.
Touch Recent apps to view a list of the apps you have used most recently.
Your phone
© 2013 Vertu Corporation Limited. All rights reserved. 9

Antenna locations
Avoid touching the antenna areas while the antennas are in use. Contact with antennas affects the
communication quality and may reduce battery life due to higher power levels during operation.
Headset
Use the headset provided to connect to your phone. Alternatively, you can connect any compatible
headsets.
Your phone
© 2013 Vertu Corporation Limited. All rights reserved. 10

Change the volume
Press the volume keys to change the volume of your ringtone or adjust the volume during a call.
Also use the volume keys to adjust the media volume while listening to music or watching videos.
Your phone
© 2013 Vertu Corporation Limited. All rights reserved. 11

Getting started
Insert the SIM card
Your Constellation V phone is designed to be used with a nanoSIM card. However, a microSIMdrawer is
available from Vertu retail stores if you wish to use a microSIM card.
!
Important: Use of an incompatible nanoSIM card (or microSIM card in the optional drawer) may
damage the card or your phone and may corrupt data stored on the card.
To avoid damaging the SIM card or your phone, follow these steps carefully:

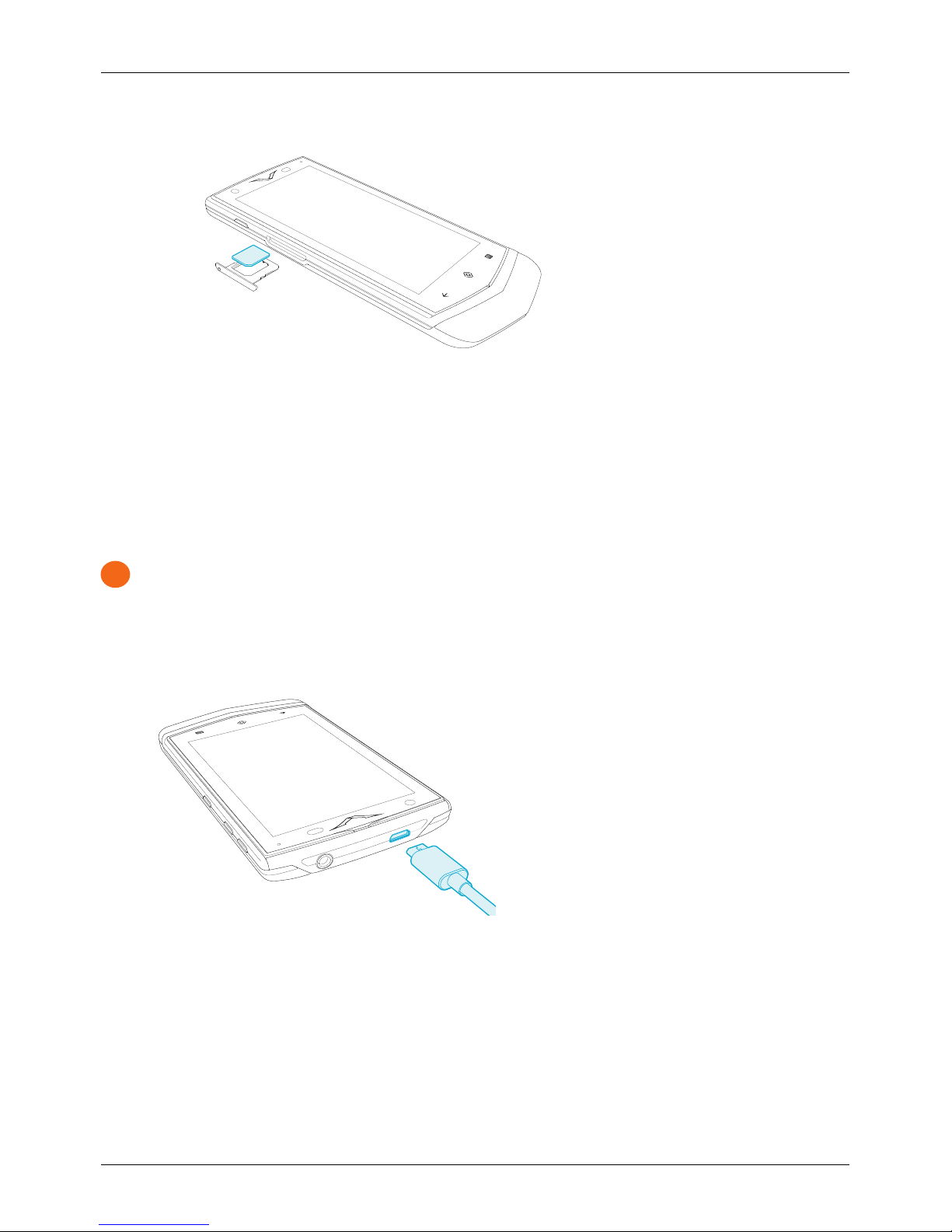

1. Take the SIMejector tool supplied in the sales pack, and insert the pointed end in the hole in the
outer edge of the SIMdrawer.
2. Push gently until the drawer pops out, and then pull out the drawer fully out from the drawer slot.
Getting started
© 2013 Vertu Corporation Limited. All rights reserved. 12

3. Place the SIMcard, with the contacts face down, into the drawer.
4. Push the drawer gently back into the drawer slot until it clicks into place.
Charge the phone
The internal battery needs activating prior to first use, and it is recommended to charge the battery at this
point as it may not have been supplied with a full charge. Connect the supplied USB data cable into the
charging port on the side of the phone. Then connect the other end of the cable to the USB port on your
Vertu mains charger.
!
Important: Use only chargers, cables and accessories supplied by Vertu.
If the phone indicates a low charge, do the following:
1. Connect the supplied wall charger to the wall outlet and then insert the micro-USB connector into
your phone.
2. When the battery is fully charged, disconnect the charger from the phone and then from the wall
outlet.
Note:
lYou can use the phone while it is charging.
lIf the battery is completely discharged, it may take several minutes before the charging indicator is
displayed or before you can make any calls.
Getting started
© 2013 Vertu Corporation Limited. All rights reserved. 13

Charge the battery over USB
You can also charge your phone by connecting it to your computer using the USB cable.
Note: Your phone charges quicker when connected to the wall charger.
Extend battery life
For tips on how to extend battery life, see "Extend battery life" on page 63.
Switch the phone on or off
Switch on: Press and hold the Power key until the phone vibrates.
Switch off: Press and hold the Power key, and then touch Power off.
In the unlikely event that your phone stops responding, reboot it. To reboot, press and hold the Power and
Volume Down keys, at the same time, until the phone vibrates. This takes approximately 10 seconds.
Note: Always remember to power off your phone before removing and inserting a SIM card. This action will
ensure that your network connectivity is restored.
Getting started
© 2013 Vertu Corporation Limited. All rights reserved. 14

Touch screen actions
!
Important: Avoid scratching the touch screen. Never use a pen, pencil, or other sharp object on the
touch screen.
Touch
To select an item on the screen, touch it.
Touch and hold
To select an item and the actions associated with it, touch and hold.
Drag
Touch and hold the item, and then slide your finger across the screen.
Getting started
© 2013 Vertu Corporation Limited. All rights reserved. 15

Flick
Scroll quickly between views or through lists.
Pinch or double-touch
Place two fingers on an item, such as a photo or web page, and then slide your fingers apart to zoom in or
together to zoom out.
Or, simply double touch the item to zoom in or out.
Start-up process
1 Vertu registration
If you are a new Vertu customer you will be asked to create a Vertu account. If you already own a Vertu
phone you can simply log in to your existing account with your Vertu username and password.
Completing Vertu registration will give you access to unique privileges and benefits relevant to you.
Tip: For quick access to the range of exclusive services, press the Vertu key.
2 Recommended apps
For more on the apps that Vertu recommend, see "Recommended apps" on page22.
3 Transfer contacts
Transfer contacts to your phone with your SIM card.
For information on transferring contacts, see "Transfer contacts" on page32.
Getting started
© 2013 Vertu Corporation Limited. All rights reserved. 16

Use your phone when it is locked
To unlock the screen, touch Home or press the Power key and then touch and drag to .
You can lock the screen either by pressing the Power key or by simply leaving the screen to time out.
For more information on different screen lock types, see "Screen lock" on page41.
Getting started
© 2013 Vertu Corporation Limited. All rights reserved. 17

Explore
About the home screen
The home screen acts as a gateway to the functions on your phone while also providing you with all the
latest information:
1
3
2
4
1
Status and notification bar
2
Widget
3
Apps menu
4
Favourites tray
Status and notification bar
Status information, such as time, network signal strength and battery level indicator, is displayed at the top
right of the screen.
Any notifications, such as new messages or calendar appointments, are displayed in the top left of the
screen. To see your notifications, touch the bar and drag down. Touch a notification to open it.
You can also quickly control your WLAN, Bluetooth, GPS, mobile data, USB connectivity and display
options from the status and notification bar.
Touch Home to close the status notification bar.
Tip: Flick the notification left or right to clear it from the list.
Explore
© 2013 Vertu Corporation Limited. All rights reserved. 18

Status and notification icons
Network (full signal) WLAN connected
No network WLAN available
G
GPRS data connection Bluetooth™ connected
Warning Bluetoothconnected to an aptX®compatible accessory
H
H+ (fastest data) Bluetoothon
Battery (full charge) GPS (location found)
Battery (charging) GPS (searching)
Battery (empty) USB connected
Active call Downloading
Missed call Uploading
New voicemail Preparing SD card
Calendar reminder Background data sync
New SMS Alarm set
New MMS Silent
New chat Vibrate
New email Aeroplane mode on
Explore
© 2013 Vertu Corporation Limited. All rights reserved. 19

Clock widget
The clock widget on the home screen displays the following information:
lAnalogue clock with a digital date indicator
lAlarms set for the next 12 hours
lFree and busy periods, taken from the calendar, around the clock bezel
lLocal time. If you are roaming, the clock displays both the local time and the time at your home
location.
To set an alarm, touch the centre of the clock.
To display an appointment, touch the appropriate quadrant of the clock, and then touch the pop-up to
open the appointment. To clear the appointment, touch the screen.
Add widgets to the home screen
Widgets are apps that provide live content such as news, weather forecasts and messages.
To add widgets to the home screen:
1. Touch Apps and touch WIDGETS at the top of the screen.
2. Flick left to view all widgets.
3. To select a widget, touch and hold it, and then drag it to the home screen.
To see the widget menu options, open the widget and touch .
To resize certain widgets, such as Calendar, touch and hold the widget and then release it. The widget is
then highlighted and you can drag it to the size required.
Note: Downloaded apps from Baidu may automatically download other associated widgets. To check
your widgets, touch Apps and then touch WIDGETS.
Favourites tray
The favourites tray appears at the bottom of the home screen. Use it to access your favourite apps quickly.
To remove an app from the favourites tray, touch and hold the app then drag to Remove at the top of the
screen.
Note: You cannot remove the Apps shortcut from the favourites tray.
To add an app to the favourites tray, touch Apps. Touch and hold the app, and drag it to the favourites
tray.
Explore
© 2013 Vertu Corporation Limited. All rights reserved. 20
