For Safe Use
1
Thank you very much for having purchased the "VESSEL Air Impact
Wrench / Driver GT-W100PⅡ/ GT-P10SⅡ."
Please read this manual carefully and understand its contents for the safe
and correct use of the air tool.
Description
The air impact wrench is a hand-held pneumatic tool that is driven by
compressed air. It incorporates in itself the impact-driven rotation
mechanism for tightening/loosening screws, bolts, nuts, and other
fastening devices.
Warning: Read these instructions carefully before operating,
maintaining or servicing this tool.
■The following icons represent the degree of danger that can be induced by
user’s action or environment. Please observe all the instructions presented
in this manual as they are important for personal and public safety.
Warning Indicates possibility of serious or
fatal injuries when
instructions are not followed.
Caution
Indicates possibility of injuries or property damage when
instructions are not followed.
※Depending on circumstances, failure to follow the
instructions
given in the "Caution" section could lead to
serious
consequences.
■Please keep this manual for your ready reference.
■In case this manual or any of the warning labels attached to the unit
are lost
or damaged, contact us or the local distributor for replacement.
■Please make sure this manual be kept with the unit when it is handed over
or lent out to a third party.
If you have any inquiries about this product or manual, please contact us or
your local distributor.
Warning Please read this manual carefully and understand
the
contents fully before use.
Warning
■Compressed air management
●Specified air pressure should be applied.

For Safe Use
2
Excessive air pressure may
lead to serious accidents or
property damages. Install proper equipment including a
pressure gauge and a reduction
valve in order to keep the
dynamic pressure at the tool end within the specified range.
●Only compressed air should be applied.
The air impact wrench is a tool driven by normal
compressed air. There will be a risk of explosion if other
high-
pressure gases like oxygen, acetylene, and propane
are used for the tool.
●Choose the appropriate air hose.
Use oil- and abrasion-resistant air hoses for the required
air
pressure and of the recommended inner diameter. Avoid
using deteriorated or excessively long hoses.
●Prevent air leakage.
Make su
re that air plugs be firmly attached to the air hose. If
the air hose comes off due to loose connection, it will
bounce around by the force of compressed
air and may
cause personal injuries or property damages.
Warning
■Work environment
●Keep the work area clean and bright.
Dark or cluttered work environment leads to accidents.
Keep the area tidy and well-lit.
●Do not use the air tool in explosive atmosphere.
This unit may create sparks, which may cause explosion.
Warning
■Work clothes
●Wear appropriate work clothes.
Do not wear baggy clothes, accessories, etc, which might
be caught in revolving parts. Long hair should be tucked
under a cap to keep it away from the tool.
●Wear protective gears.
Wear protective gears suitable for the task,
including a
helmet, protective goggles, earplugs, a dust mask,
anti-vibration gloves and safety shoes, etc.
Warning
■General precautions
●Beware of moving parts.
Keep your hands and cloth away from the moving parts as

For Safe Use
3
they may be caught in them.
●Keep a good posture while working.
Keep a good posture and hold the tool firmly in case of an
unexpected situation.
●Avoid accidental start-up.
Make sure the trigger is released before connecting the air
hose to the unit. Be careful not to press the trigger
when
carrying the air tool.
●Hang the tool securely.
If the tool is suspended by a balancer,
etc. check whether
the equipment is securely installed.
Conduct a regular
maintenance on the suspending equipment as well.
●Keep the tool away from electricity.
The air tool is not insulated against electricity.
●Stop using the tool if you notice any abnormalities.
If you notice any abnormalities, stop using the tool
immediately and contact us or your local distributor for
maintenance, inspection, and repair.
Warning
■Miscellaneous
●Use the tool only for its intended applications.
It may lead to an unexpected accident if the tool is used for
purposes other than those specified in the manual.
●Do not attempt any modification.
Do not
modify the unit. Any modification will void the
warranty and may cause a hazardous situation.
●Do not remove any parts.
Also, do not use the tool if any of its parts or screws has
been removed or missing. It may result in a hazardous
situation.
●Shut off the air supply and detach
the air hose from
the tool;
・ when the tool is not in use
・ when the tool is kept in storage
・ when maintenance is performed
・ when the tool tip (bits / sockets) is replaced
・ when there is any sign of danger or malfunction

For Safe Use
4
Caution
■Basic precautions for operating air tools
●Pay attention.
Stay alert while using the air tool and do not act
thoughtlessly. Also, avoid using the tool when you are tired
or under the influence of drug, alcohol, or medication.
●Keep bystanders away.
Do not let bystanders get close to your operation.
Especially, children should be kept away.
●Do not overload the air tool.
If the tool is operated beyond the specified output range, it
will damage the tool and lead to malfunction.
●Beware of the exhaust port.
Direct the exhaust air away from your eyes and ears.
Otherwise, it can cause accidents or diseases as it contains
oil and it may blow grit or other debris in your face.
●Handle the tool with care.
Do not throw or drop the tool. It may lead to damage or
malfunction if it is handled roughly or forcefully.
●Do not abuse the air hose.
Do not carry, raise or lower the tool by the air hose
.
Damaged hoses increase the risk of accidents.
●Do not drop the tool from a high place.
Equipment like a safety strap should be used
to prevent the
tool from falling when working at high places.
●Store the tool in a safe place.
If the tool is not to be used for a
period of time, conduct
maintenance and keep it in a safe, dry place
. It should be
kept out of the reach of children.
●Be aware of laws.
There are laws and regulations
that may regulate or limit the
use of this product.
Please make sure that the use of this
product does not violate any laws and regulations.
●Take breaks.
Continuous work with
out taking appropriate breaks could
lead to illness, take breaks as required.
If you feel
abnormalities, such as pain,
immediately stop using the tool

For Safe Use
5
and consult a physician.
Caution ■Maintenance, inspections and repairs
●Check before use.
Make s
ure the unit has no loose screws/bolts and fittings
and no damaged parts. If the unit is operated despite such
problems, it could lead to a hazardous situation as well as
decrease the performance.
●Conduct inspection and maintenance regularly.
Regular in
spection and maintenance are necessary for safe
and efficient performance of the tool.
●
Please contact us or the local distributor for repair or
parts replacement.
Never disassemble the unit or replace parts
by yourself.
Warranty on any of our products
shall be void if defect is
caused by abuse, neglect, improper repair, improper fit, or
any use unintended by the manufacturer.
・Open the package and check if all the parts are inside without shortage
and damage.
・Be sure to read and understand this manual thoroughly before handling
this product.
・Keep the instruction manual in hand and refer to it whenever needed.
・Store the instruction manual in a safe place. If the manual is lost or
damaged, contact us or your local distributor for a new copy.

Applications
6
・This product is an air tool that uses compressed air as its power source
and has been designed and developed for tightening and loosening
bolts/nuts.
This air tool should not be operated;
* if the application is outside the specified operating range.
* if any part of it has been modified or altered.
* if normal compressed air is not available. Never use other power
sources, such as oxygen, acetylene, and propane, etc.
* near water or in ignitable environments.
* in any way unintended by the manufacturer.

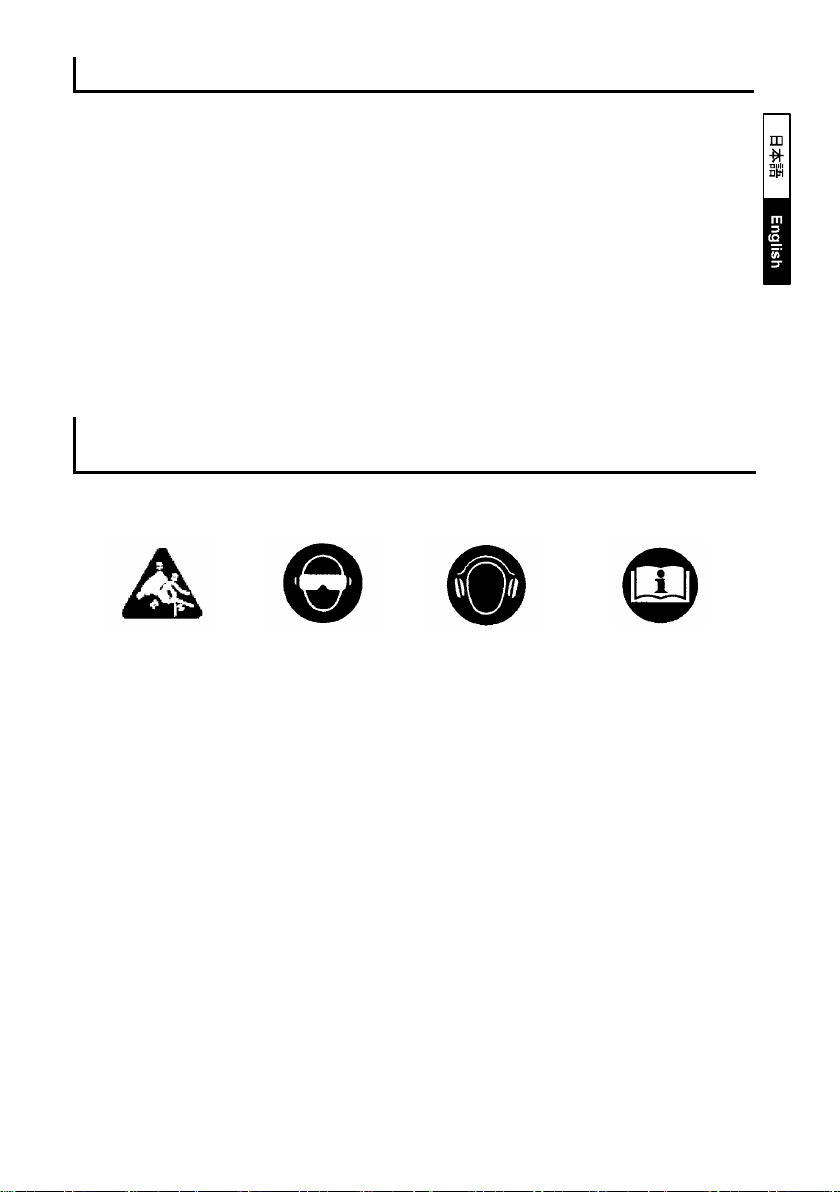

Icons for safety instructions
This unit may
cause vibration.
Wear
protective
goggles.
Wear earplugs. Read the manual
before use.

How to use
7
PIPING MODEL
SPECIFICATIONS
GT-W100PⅡGT-P10SⅡ
Sound Level
PA
L〔dB〕
92.5 91.4
WA
L〔dB〕
103.5 102.4
Vibrations Level 〔m/s²〕 34.86 5.96
Uncertainty K 〔m/s²〕 8.33 0.84
CE DECLARATION OF CONFORMITY
VESSEL CO.,INC. FUKAEKITA2-17-25,HIGASINARIKU,OSAKA,
JAPAN
PRODUCT: AIR IMPACT WRENCH / DRIVER
MODEL: GT-W100PⅡ/ GT-P10SⅡ
DIRECTIVE: 2006/42/EC(98/37/EC) , EN 792
STANDARDS: ISO 20643(ISO 8662-1),ISO 28927-2(ISO 8662-7)
ISO 15744
declared vibration value in accordance with EN 12096
DATE: Dec/10/2008
APPROVED BY Yasushi Shiomi
Air Tool
Oiler Filter
Air Compressor
Regulator
Drain Tap

How to use
8
・For operating the tool, make sure to follow the procedures described
in this instruction manual.
・Do not use the tool:
* if the socket/bit is not properly mounted or not compatible in size.
* if the work environment does not allow you to keep a stable posture,
secure a firm grip on the tool or to operate the tool properly.
* if the floor is slippery or not level.
* if it is used for other purposes than tightening or loosening screws.
* if it has been modified or has any parts missing or lost.
* if the input air pressure is higher than the specified value.
* if more than the specified working torque is required.
・When the tool is not in use or left unattended, shut off the air supply
and detach the air hose from it.
Preparations before use
●Check the air pressure
The specified air pressure for this air tool is 0.6 MPa. Do not apply air
pressure outside this specified range as it influences performance,
lifespan and safety.
●Remove the drain
When moisture or impurities like rust in the pipe get into the mechanism,
it may cause malfunction. Remove accumulated drain in the compressor
before use. To secure dry air supply, install an air filter in order to prevent
moisture and any impurities.
●Use an appropriate air hoses
Please refer to Specifications for choosing an air hose of the appropriate
size for the applied air supply. If the internal diameter of the air hose is
too small, sufficient power may not be obtained as air pressure cannot
increase efficiently. It also happens when the hose is too long.
●Install the plug
Use a spanner of No.19 to hold Air Inlet Bushing
and fasten the plug.

How to use
9
●Air coupling
When using the air coupling included in the package, purchase a
compatible connector. When connecting a hose directly to this product,
purchase a hose connection coupling. In both cases, check the size of
the connected hoses.
●Before the first operation after purchase
When this air tool has been newly installed or the air hose has been
replaced, blow and clean the inside of the hose and piping. Then, idle the
device for a few seconds because lubricant within the mechanism has to
be blasted out with exhaust air.
●Lubrication
Lubricate the unit regularly for smooth operation of the motor part and to
remove impurities. If you install a lubricator, it will lubricate the tool
automatically. Or, you can lubricate manually from the air supply port
before or after use. (ISO VG10 or equivalent hydraulic oil.)
●Idle the unit after lubrication
Please idle the unit for several seconds after lubrication has been
conducted because oil will be discharged with exhaust air. Do not idle
the unit while a tip tool is attached.
●Tool tips (sockets / bits / extension bars, etc.)
Do not install a tip for hand tools. There will be a risk of accident as the tip
may be destroyed. Be sure to use a tip for power tools.
●Tightening bolts/nuts
To tighten bolts/nuts, first tighten bolts/nuts by hand for a couple of thread
pitches. After tightening is complete, immediately release the lever and
stop the tool. Excessive tightening will cause bolts to be broken and life
of the hammer parts to wear/tear quickly.
●When bolts/nuts cannot be loosened
When bolts/nuts cannot be loosened or tightened as expected, an impact
wrench with greater power is needed.
●Keep the tool away from organic solvents
Be aware that dipping the tool in the organic solvents will deform the tool.
●In cold areas
Moisture inside the tool may freeze in winter. Be sure to lubricate the tool
to remove the moisture after use.

How to use the tool
10
How to use the tool

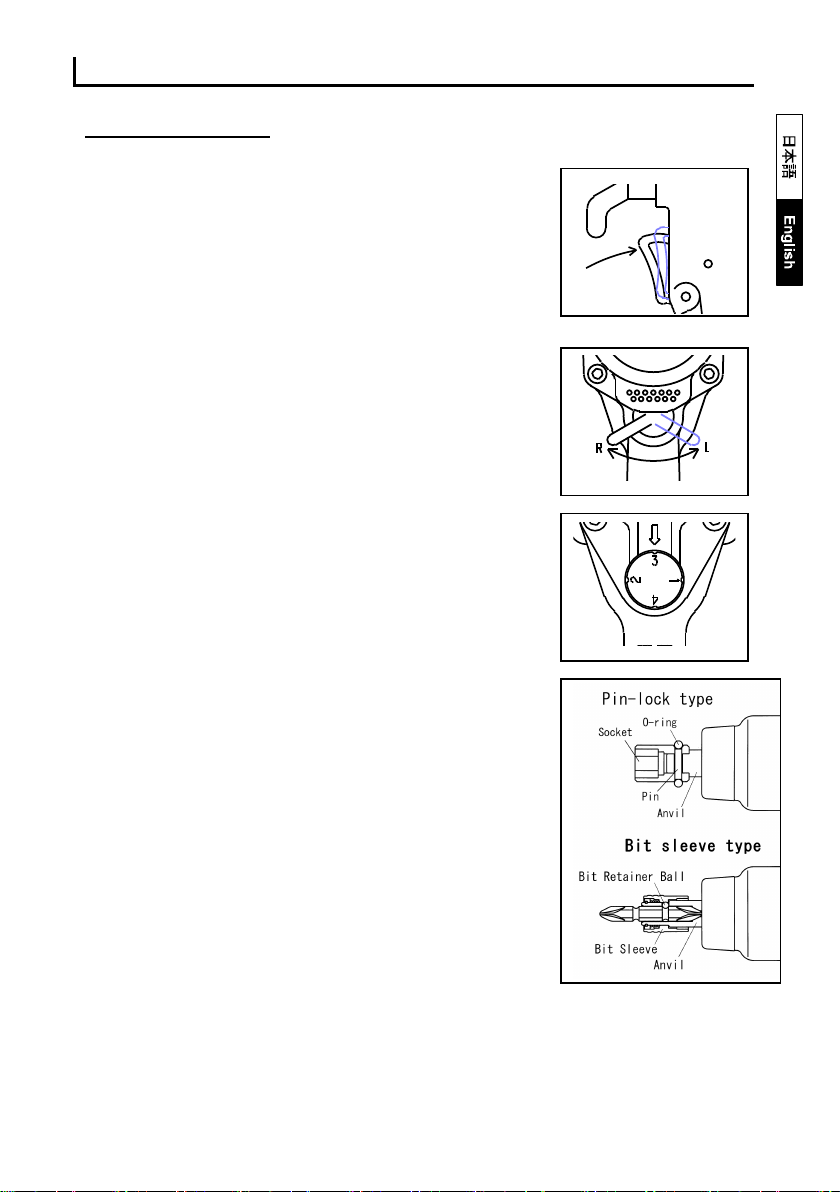

●Starting and stopping
１．Connecting the air coupling.
２．Supply air with a compressor.
３．Press the throttle lever to start the unit.
４．Release the throttle lever to stop the unit.
５． Rotation speed can be controlled by the
throttle lever.
●Changing the direction of rotation.
When the Reverse Lever is set to "R"
it rotates clockwise.
When it is set to "L," it rotates counter
clockwise.
Do not operate the Reverse Lever while
pressing the throttle lever.
●Adjusting the torque.
Torque can be adjusted by the Air Regulator.
"1" is the minimum and "4" is the maximum.
●Installing sockets and bits.
Air impact wrenches with Pin-lock anvil
(W100PⅡ) have a hole on the anvil
(Square-head drive). This is for installing
a socket securely on it with a Pin and an
O-ring as in the diagram.
For air screwdrivers with bit sleeve system like
P10SⅡ, slide the sleeve forward and insert the bit
to the end.
Then release the bit sleeve. Please check to see
if the bit is properly locked-in by pulling it before
operating the unit.
If it is not securely attached, the socket or bit may detach and fly off.
Do not attach the socket or bit when the tool is idling.

How to use the tool
11
About handling
* Do not touch any rotating parts. It is very dangerous and could lead to
injury.
* Do not idle the tool without load.
* Confirm the rotation direction before starting the unit.
* Be sure to turn off the air, when work is finished as well as when
bits/sockets and the parts are to be changed.
* Do not direct the exhaust towards people or fire. The exhaust is
dangerous since it contains oil.
* Do not touch the tip tool and screws immediately after the work because
they became hot from friction during work.
* When you notice any abnormalities, stop working and turn off the air
supply.
Maintenance / Repairs
・We recommend periodic inspections for safe, worry-free use. If
inspections are neglected, it may affect the performance, lifespan and
safety of the product.
・Inspection (maintenance) should be conducted only by those who
carefully read and fully understood the instruction manual for this
product.
・Contact the local distributor for repairs. Do not repair the unit by yourself.
Points of regular maintenance
When conducting maintenance, be sure to remove the hose coupling and
do not supply any air.
The durability of parts depends on how frequently the unit is used.
Please apply for inspection / repairing in case you notice any abnormality in
impact and revolving sounds. (eg. in case of any abnormalities in the
rhythm of hammering, deterioration in efficiency, and working torque
degradation).

Maintenance
/
Repairs
12
●Anvil ( drive part on the tip)
Worn out …It will deteriorate the performance and decrease efficiency.
Early replacement of parts is recommended.
Cracks …..Stop using and seek professional help for repair.
●Socket
Worn out square and hexagonal heads
………..…It may deteriorate the performance and the socket may detach
from the anvil.
Cracks …..Stop using and replace it with a new one.
●Hose couplings
Loose screws …..Tighten them since it is dangerous if the hose comes off.
Worn out ……Replace with new parts since the coupling may come off
if the connection is loose.
●Throttle lever
Return condition …Confirm whether the lever returns properly. It is very
dangerous to use the tool continuously if the lever
does not return properly because the tool will start
suddenly after connected. If the lever does not
return, please request repairs.
●Bolts for each part
Loose bolts ………. It may lead to air leaks and malfunctions. Please
re-tighten the bolts.
●Surface damage
Cracks ……………. Stop using and request repairs.

Troubleshooting
13
Troubleshooting
Trouble
Cause
Action
1. No rotation
Air is not provided. Turn on the air.
The hose is twisted. Straighten the hose.
Air pressure is low. Adjust the air
pressure.
Parts are rusted due to a lack
of lubrication. Lubricate the unit.
Dirt contamination. Request overhaul
Malfunction (worn out /
damaged, etc.) on motor
and hammer.
Request for parts
replacement
2. Rotation is
uneven.
Rate of air flow is
inadequate. Confirm air flow rate.
Air pressure is low. Adjust air pressure.
Parts are rusted due to a lack
of lubrication. Lubricate the unit.
3．Rotation does
not stop.
Change of shape of the
Throttle Pin.
Request for parts
replacement
Change of shape of the
Throttle Valve.
Request for parts
replacement
Breakage of throttle valve.
Request for parts
replacement
Contamination by a foreign
substance in the throttle. Request overhaul
4．Reverse Lever /
Air Regulator is
loose.
Stop spring is worn out,
damaged or rusted. Request overhaul
5. Reverse Lever /
Air Regulator
does not work.
Rust and dirt contamination. Request overhaul
6.Socket is loose. Breakage of socket pin. Request for parts
replacement
7. Air leakage
Trouble with the valve (O-
ring
damage, ball rust, or
worn-out, damaged and
rusted springs etc).
Re
quest for parts
replacement

Troubleshooting
14
8.Abnormal noise
Spare parts came loose. Request overhaul
Worn out and damaged
bearings.
Request for parts
replacement
Damage to the hammer case
and impact part.
Request for parts
replacement
Worn out and damaged rot
or
blade.
Request for parts
replacement
The rotor blade does not
come out at rotating.
Request for parts
replacement
Run out of lubrication and oil. Lubricate the unit.
9.
It rotates without a
load but with a load
it does not rotate
and the power
decreases.
Parts of the hammer are
damaged.
Request for parts
replacement
10.Water comes
out. The drain is clogged. Clean the drain.
Request repairs immediately when the tool is in a defective and abnormal
condition, etc., since it could lead to a product malfunction and accident.
Please contact our distributor for repairs.
Storage
Please store the air tool in a safe location and be aware of dust, humidity,
dew and freezing.

Exploded diagram drawing & Parts list
15
Specification
Unit GT-P10SⅡ GT-W100PⅡ
Square Drive Size mm (Bit Sleeve) HEX 8 12.7
Capacity（Bolt Dia.）mm 8～10 (Std. Screw Dia.) 10～12(Std. Bolt Dia.)
Working Torque Range Nm 75.0～147.0 49.0～323.6
Weight kg 2.46 2.42
Overall Length mm 208 196
Free Load rpm 6200 6200
WorkingAir Pressure MPa 0.6 0.6
Air Consumption ㎥/min 0.39 0.39
Air Compressor kw 0.75 or bigger 0.75 or bigger
Air Hose Inner Dia. mm 6.35 6.35
Hose Coupling Rc 1/4 1/4
Accessories
Accessories
GT-P10SⅡ
● Double End Bit（A15㊉2×65G）
● Double End Bit（A15㊉3×65E）
● VESSELAir Coupling （BPB-2）
● “L” Wrench（A/F 4mm）
1 pc
1 pc
1 pc
1 pc
GT-W100PⅡ ● VESSELAir Coupling （BPB-2）
● “L” Wrench（A/F 4mm）
1 pc
1 pc
Description

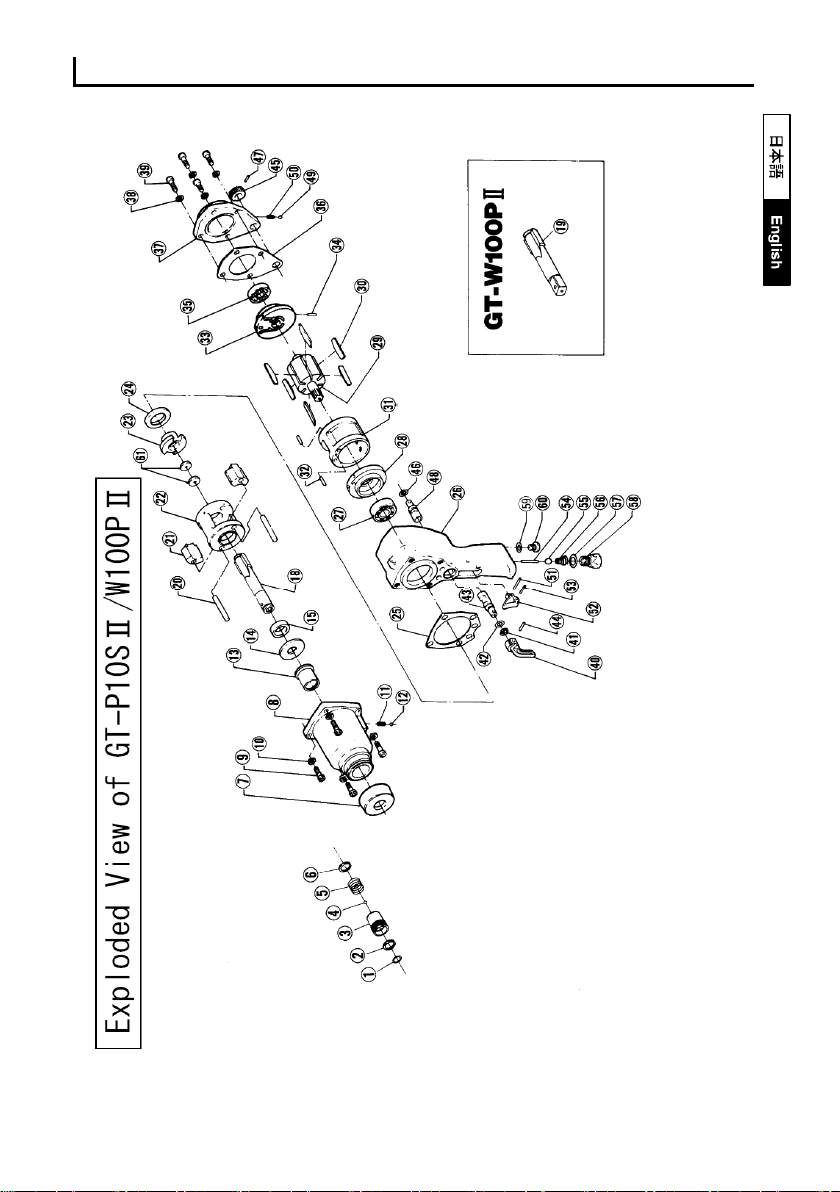

Exploded diagram drawing & Parts list
16

Exploded diagram drawing & Parts list
17
Index
No.
EDP
No. Description Size
Number
Required
per unit
〈1〉 826601 C-Pin. Sleeve Ring Retainer
(P10S
Ⅱ) （Installed No. 18） 1
〈2〉 826602 Ring. Bit Sleeve (Front)
(P10S
Ⅱ) （Installed No. 18） 1
〈3〉 826603 Sleeve Bit
(P10S
Ⅱ) （Installed No. 18） 1
〈4〉 826604 Ball., Bit Retainer
(P10S
Ⅱ) ※4.5mm（Installed No. 18） 1
〈5〉 826605 Spring. Bit Sleeve
(P10S
Ⅱ) （Installed No. 18） 1
〈6〉 826606 Ring. Bit Sleeve (Rear)
(P10S
Ⅱ) （Installed No. 18） 1
7 826607 Cover Seal 1
8 826608 Hammer Housing Complete 1
9 826609 Hex Cap Bolt ※M5×20 4
10 826610 Washer, Spring ※M5 4
〈11〉 826611 Spring S3.8×7×0.5 （Installed No. 8） 1
〈12〉 826612 Ball ※4mm （Installed No. 8） 1
〈13〉 826613 Bushing, Pressed （Installed No. 8） 1
14 826614 Washer, Thrust 1
15 826615 Bushing, Anvil 1
18 826618 Anvil Complete (P10SⅡ) 1
19 826719 Anvil (W100PⅡ) 1
20 826620 Pin, Hammer 2
21 826621 Hammer 2
22 826622 Frame, Hammer 1
23 826623 Driver 1
24 826624 Shim 1
25 826625 Front Gasket, Motor Housing 1
26 826626 Motor Housing. Complete 1
〈27〉 826627 Bearing ※6202 （Installed No. 28） 1
〈28〉 826628 Endplate Complete, Front (Installed No. 26) 1
29 826629 Rotor 1
30 826630 Blade, Rotor 6
〈31〉 826631 Cylinder Complete （Installed No. 26） 1
〈32〉 826632 Pin, Cylinder ※SP3×10 （Installed No. 31） 2
33 826633 Endplate Complete., Rear 1

Exploded diagram drawing & Parts list
18
〈34〉 826634 Pin, Rear Endplate ※SP3×8 （Installed No. 33） 1
〈35〉 826635 Bearing ※6201 （Installed No. 33） 1
36 826636 Rear Gasket, Motor Housing 1
37 826637 Backplate Complete 1
38 826638 Washer, Spring ※M5 4
39 826639 Hex Cap Bolt ※M5×20 4
40 826640 Lever, Reverse 1
41 826641 Ring, Stop ※R15 1
42 826642 O-ring, Reverse Valve ※P10 1
43 826643 Valve, Reverse 1
44 826644 Pin, Reverse Lever ※SP3×16 1
45 826645 Air Regulator 1
46 826646 O-ring, Adjustment Valve ※P10 1
47 826647 Pin, Air Regulator ※SP3×16 1
48 826648 Valve, Adjustment 1
〈49〉 826649 Ball, Air Regulator Retainer ※4mm（Installed No. 37） 1
〈50〉 826650 Spring S3.8×7×0.5（Installed No. 37） 1
51 826651 Pin, Throttle Lever Retainer ※SP3×20 1
52 826652 Lever, Throttle 1
53 826653 Pin, Throttle Lever ※SP3×16 1
54 826654 Pin, Throttle 1
55 826655 Ball, Valve ※3/8 1
56 826656 Spring, Throttle Pin 1
57 826657 O-ring, Air Inlet Bushing ※P12 1
58 826658 Bushing, Air Inlet Rc1/4 1
59 826659 O-ring, Lubrication Inlet Screw ※P9 1
60 826660 Screw, Lubrication Inlet Special M10×10 1
61 826661 Thrust Metal (P10SⅡ) 2
Parts with < > marked shall not be supplied individually even if ordered since it is an integrated
component.
●The contents of this manual are subject to be changed without notice.

Exploded diagram drawing & Parts list
19
GT-P10SⅡ/W100PⅡ
