VESTEL 1530 User manual

OPERATING INSTRUCTIONS
15” LCD TV + DVD
1530
All manuals and user guides at all-guides.com
all-guides.com

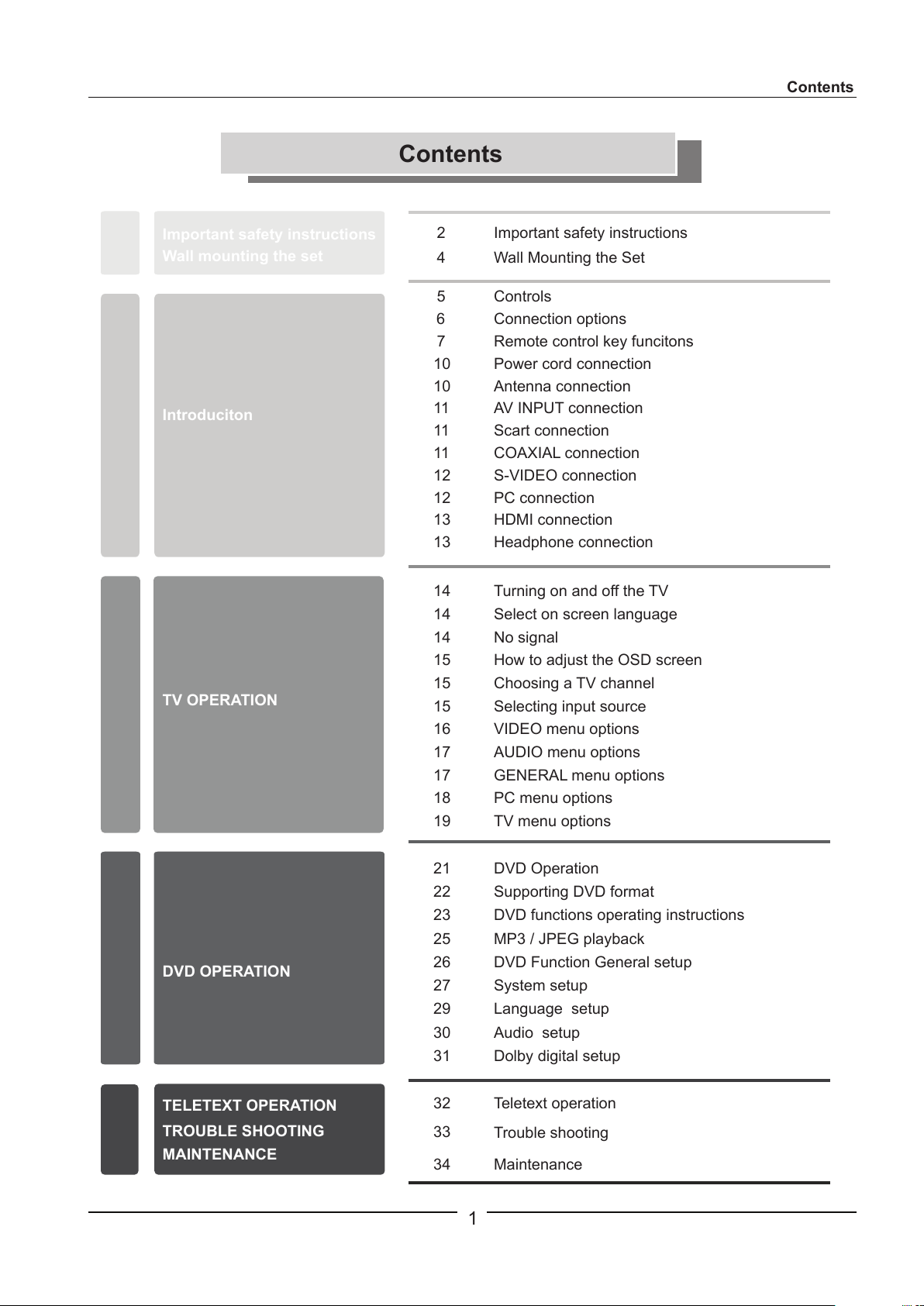

Contents
Contents
1
2
4
6
5
7
10
11
11
11
12
12
13
13
14
14
14
15
15
15
16
17
17
18
19
21
22
23
25
26
27
10
Important safety instructions
Wall Mounting the Set
Important safety instructions
Wall mounting the set
Introduciton
TV OPERATION
DVD OPERATION
Connection options
Controls
Remote control key funcitons
Power cord connection
Antenna connection
AV INPUT connection
Scart connection
COAXIAL connection
S-VIDEO connection
PC connection

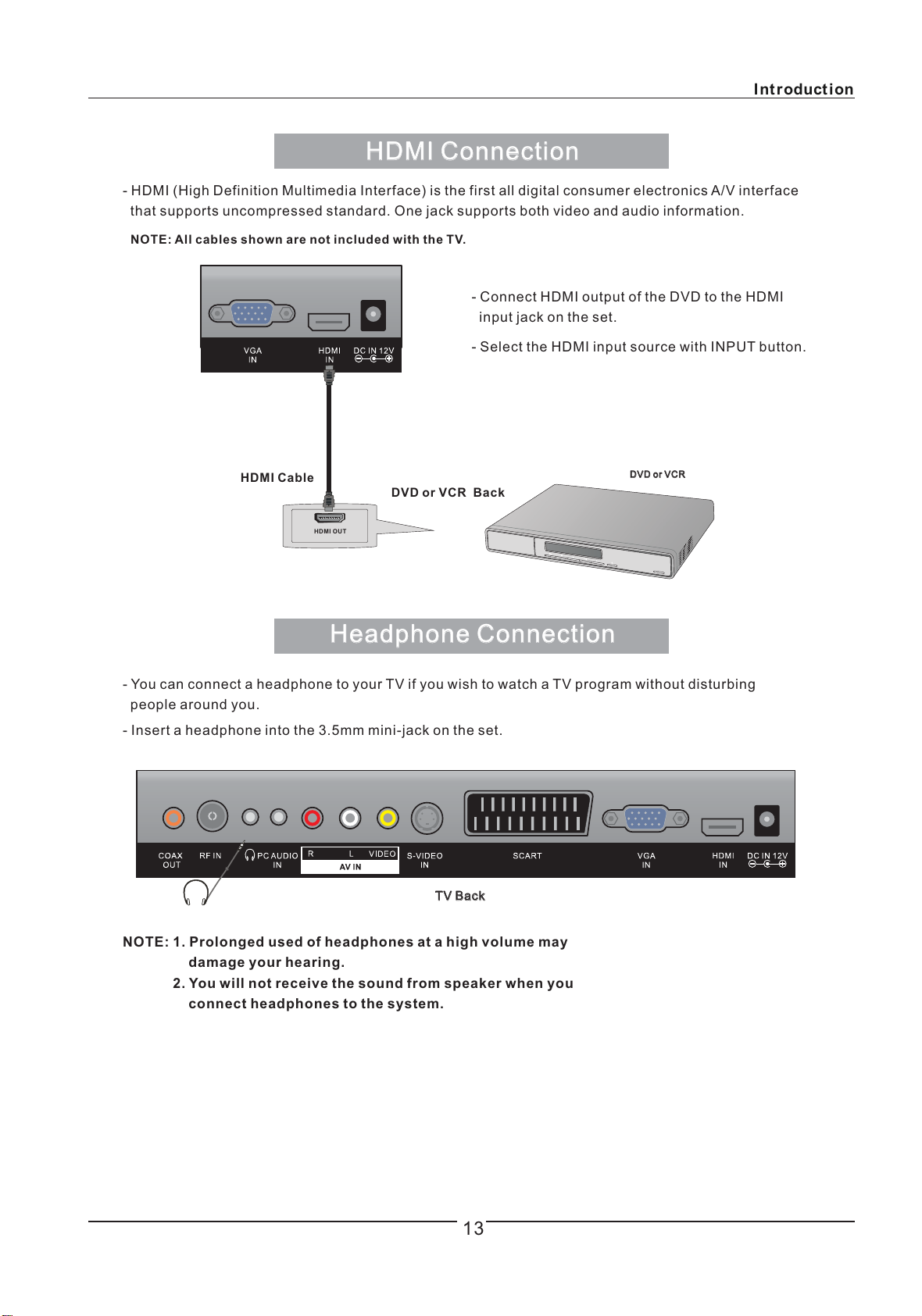

HDMI connection
Headphone connection
Turning on and off the TV
Select on screen language
No signal

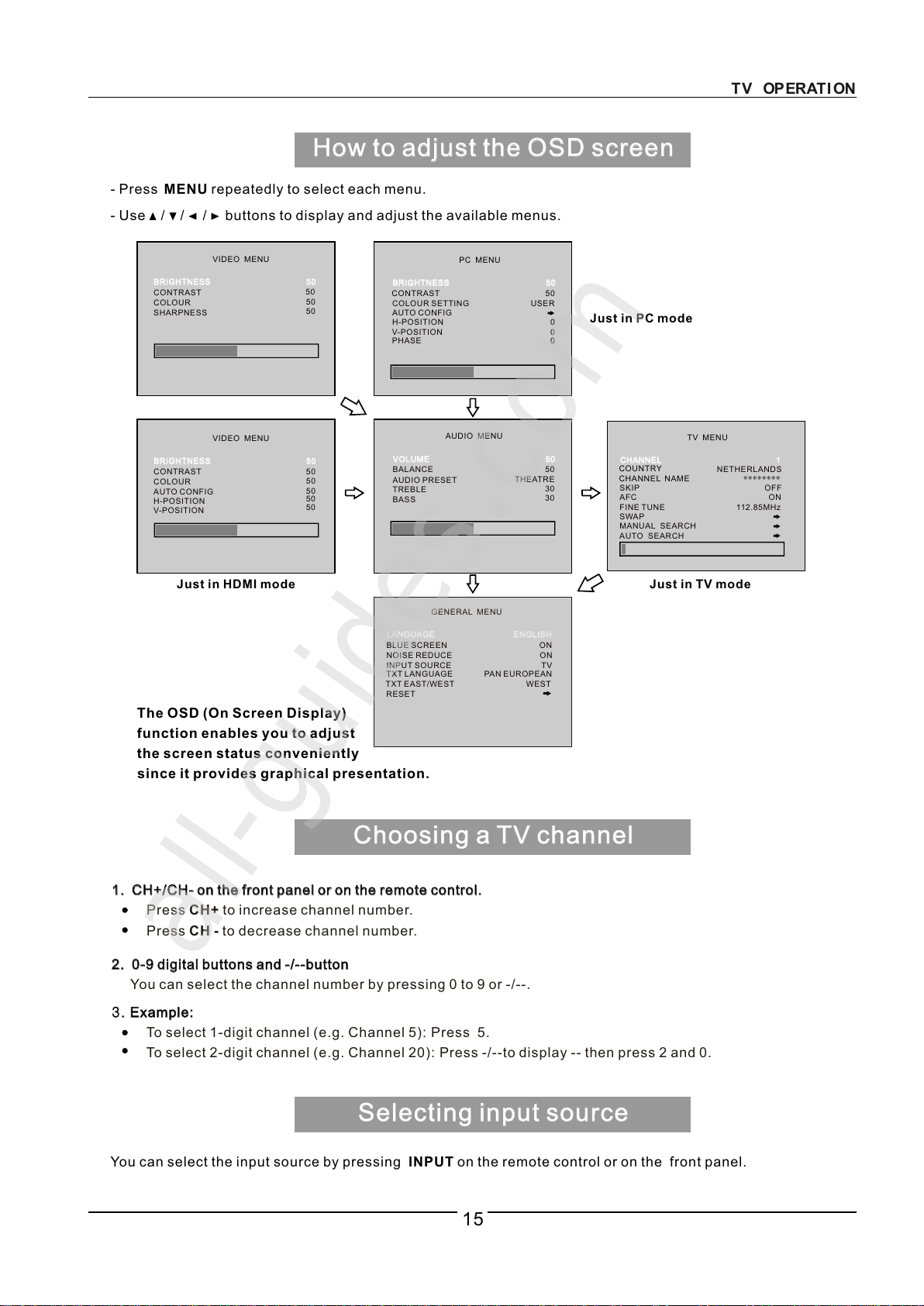

How to adjust the OSD screen
VIDEO menu options
AUDIO menu options
GENERAL menu options
PC menu options

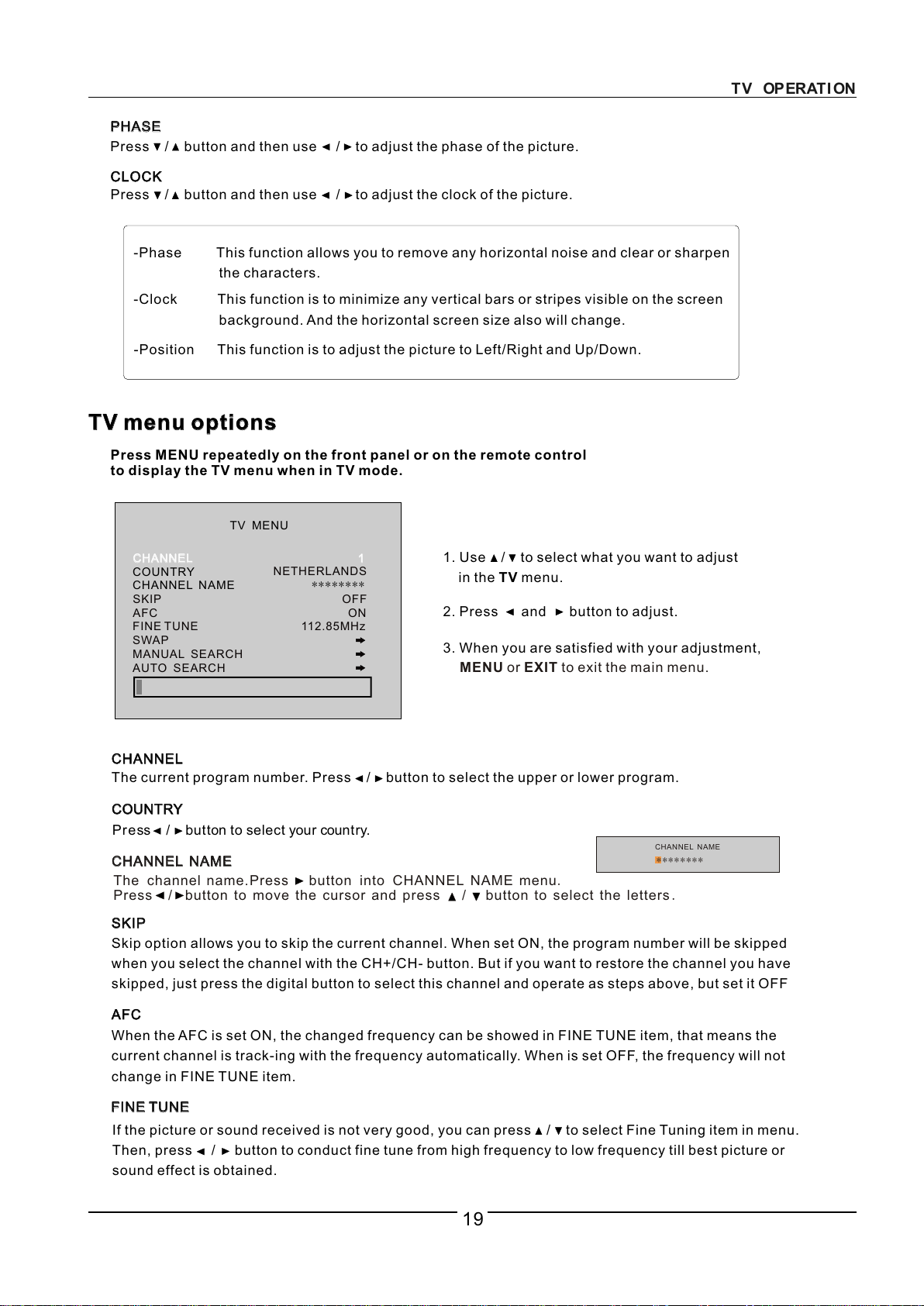

TV menu options
DVD Operation
Choosing a TV channel
Selecting input source
System setup
DVD functions operating instructions
MP3 / JPEG playback
DVD Function General setup
Supporting DVD format
29
30
31
32
33
34
Language setup
Audio setup
Dolby digital setup
Teletext operation
TROUBLE SHOOTING
MAINTENANCE
TELETEXT OPERATION
Trouble shooting
Maintenance
All manuals and user guides at all-guides.com

2
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. If the plug is not suitable or does not fit the socket in your home consult a qualified
service agent.
CAU TION: TO RED UCE THE RI SK OF ELECT RI C
SHOC K.
DO NOT REMOV E COVE R (OR BACK) .
NO USE R SERVI CEA BLE PARTS INSI DE.
REF ER SE RVI CI NG TO QUAL IFI ED SERVI CE
PERSON NEL .
Risk of electronic shock
Do not open
Caution
The lig htn in g fla sh with arrowhead symbol with in an equila teral tr ia ngle is inte nded
to alert the presence of unin sulated "dangerous volta ge" with in th e product's
enclo sure th at may be of a suff icient magnitu de to constit ute a risk of electric shock.
The excla matio n point with in an equila teral tr iangle is inte nded to alert
the user to th e presence of im portant operatin g and mainte nance (s ervic ing)
instructio ns in th e lite ratu re accompanyin g the applia nce.
Caution
Important Safety Instructions
All manuals and user guides at all-guides.com

3
。 。
10. Protect the power cord from being walked on or pinched particularly at plugs,
AC power outlets, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightening storms or when unused for long period
of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped.
15.Use this product within 5 C - 40 C , and relative humidity 20-80%.
16. Unit should not be exposed to liquids of any kind.
17. when leaving unattended for
a long period
18. Contact service center if the picture displayed by the unit is getting dimmer.
19. Do not place the unit on an uneven surface. Make sure it is at least 6 inches
from the wall.
20. Keep unit away from direct sunlight.
21. Do not put heavy materials on top of the unit.
22. Do not place unit in confined spaces such as a book case.
23. The rating plate is at the center of the back cover of the apparatus. It will
not be seen when the apparatus is mounted on the wall.
24. Keep away from naked flames !
25. When using this product as a Computer monitor, health and safety experts
recommend short frequent breaks rather than occasional longer breaks.
For example a 5 - 10 minute break after an hour of continuous use is likely to
be better than a 15 minute every 2 hours.
26. This product is designed for domestic use only and is therefore NOT suitable for
commercial use.
27. Do not expose this television to dripping or splashing or place any object filled
with liquids, such as vases on the television.
28. Do not use chemical solvents or strong detergents when cleaning this appliance
as these cleaners may damage the cabinet.
Unplug the power supply unit from the mains
such as a holiday.
Important Safety Instructions
Important Safety Instructions
All manuals and user guides at all-guides.com

4
The wall mount set (Optional)
Caution:
Contact a professional installer if you are unsure about wall mount installation.
Improper installation may cause injury and damage the display unit.
When removing unit stand, place the display panel face down on a
soft fabric to avoid damaging the unit.
Wall Mount Procedures
This product requires a 100mm VESA wall mounting kit to mount it
on a wall (not supplied).
3. Detach TV from the stand.
4. Wall mount the set. Refer to installation instructions supplied
with the VESA mounting kit.
Please mount this product solidly on the wall or pole.
Wall Mounting the Set
Wall Mounting the Set
Warning:
To prevent injury, this apparatus must be securely
attached to the wall in accordance with the installation
instructions supplied with the mounting kit.
The holes for VESA plate mounting (Total 4 holes)
(Screws and vesa plate)
1. Loosen screws on stand.
2. Loosen screws on bottom.
USB
MEMORY CA RD
USB
MEMORY CA RD
USB
MEMORY CA RD
All manuals and user guides at all-guides.com

IntroductionIntroduction

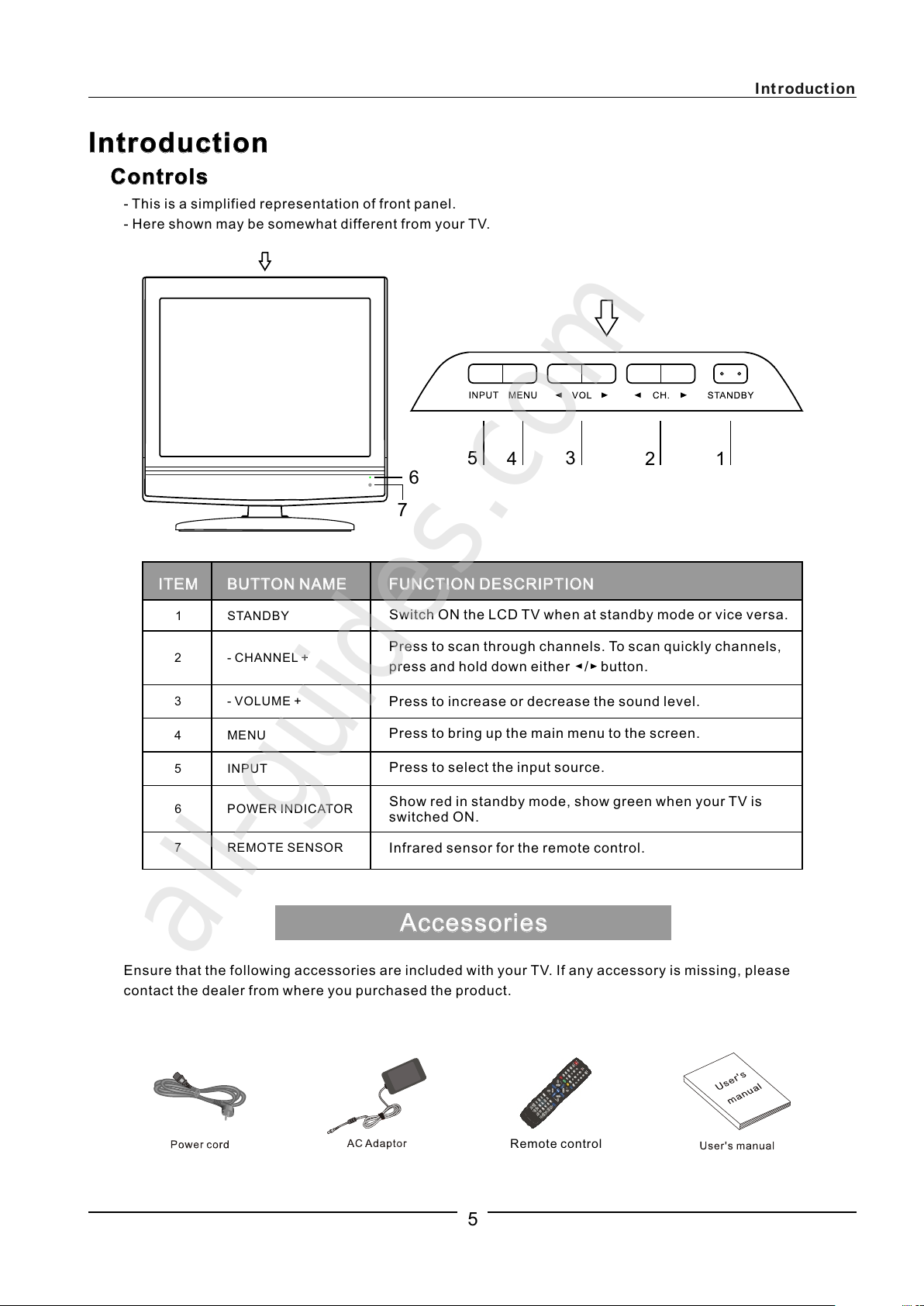

ControlsControls
- This is a simplified representation of front panel.
- Here shown may be somewhat different from your TV.
Ensure that the following accessories are included with your TV. If any accessory is missing, please
contact the dealer from where you purchased the product.
6
7
Introduction
5
12
53
4
AccessoriesAccessories
FUNCTION DESCRIPTIONFUNCTION DESCRIPTIONBUTTON NAME BUTTON NAME
ITEMITEM
1
Press to increase or decrease the sound level.
- VOLUME +
2- CHANNEL + Press to scan through channels. To scan quickly channels,
press and hold down eithe / button.
3
Press to bring up the main menu to the screen.
MENU
4
Press to select the input source.
INPUT
6Show red in standby mode, show green when your TV is
switched ON.
POWER INDICATOR
7Infrared sensor for the remote control.
REMOTE SENSOR
Switch ON the LCD TV when at standby mode or vice versa.
STANDBY
5
Remote control
r
All manuals and user guides at all-guides.com
all-guides.com

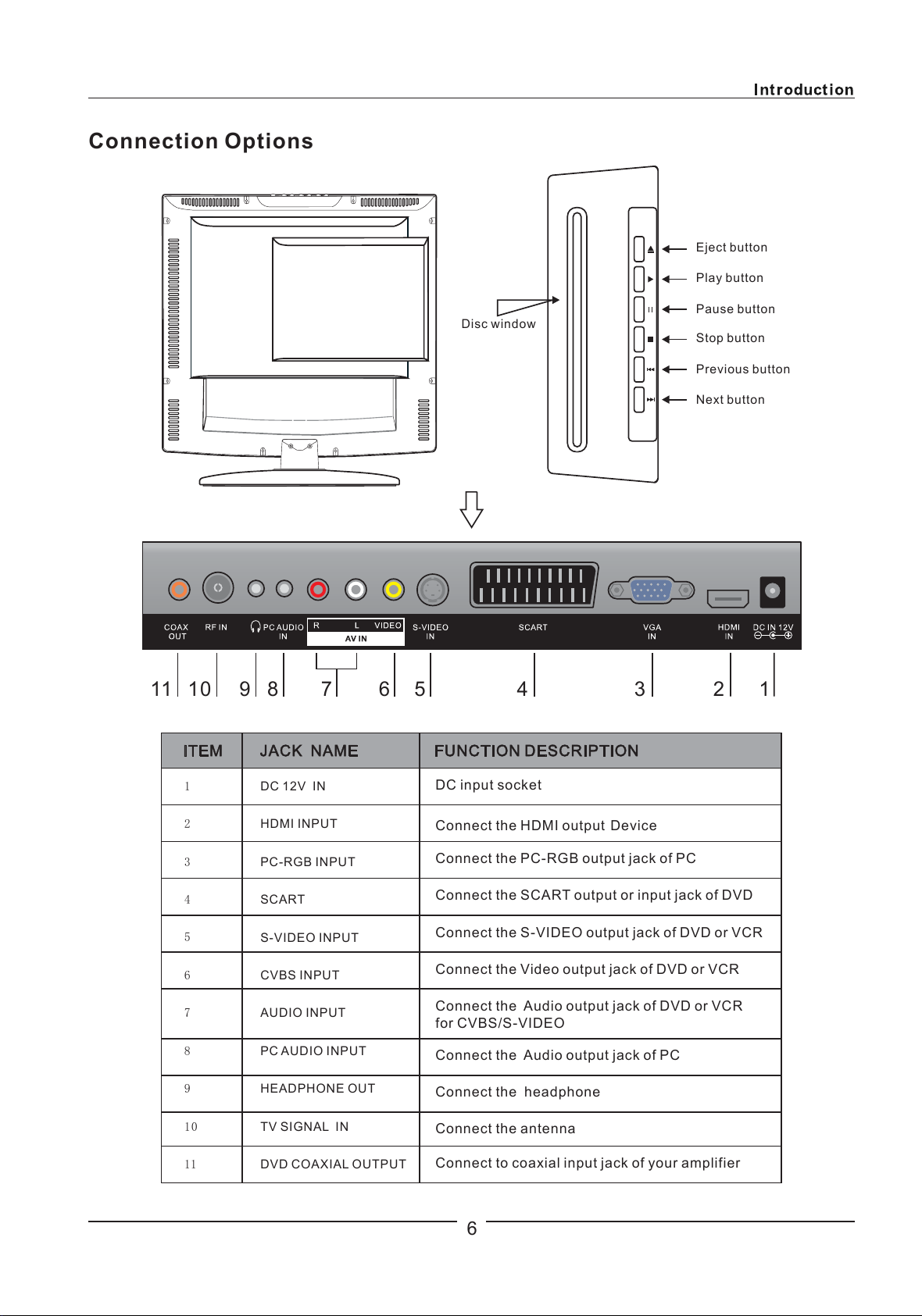

Connection Options
Disc window
Eject button
Play button
Stop button
Previous button
Next button
Pause button
12
3
4
56
7
89
10
11
1
5
7
8
9
CVBS INPUT
S-VIDEO INPUT
PC-RGB INPUT
PC AUDIO INPUT
DC 12V IN
2
TV SIGNAL IN
3
4
6
10
DVD COAXIAL OUTPUT
AUDIO INPUT
HEADPHONE OUT
11
SCART
HDMI INPUT
Connect the Audio output jack of DVD or VCR
for CVBS/S-VIDEO
Connect the S-VIDEO output jack of DVD or VCR
Connect the PC-RGB output jack of PC
Connect the Audio output jack of PC
DC input socket
Connect the antenna
Connect the Video output jack of DVD or VCR
Connect to coaxial input jack of your amplifier
Connect the headphone
Connect the SCART output or input jack of DVD
Connect the HDMI output Device
6
All manuals and user guides at all-guides.com

Remote Control Key FunctionsRemote Control Key Functions
7
Introduction
POWERPOWER
Switch ON LCD TV when at standby mode or vice
versa.
Press to mute the sound and press again to restore.
MUTEMUTE
EJECTEJECT
Eject the DVD in DVD mode.
NUMBER BUTTONSNUMBER BUTTONS
Press 0-9 to select a TV channel directly when you
are watching TV. The channel change after
2 seconds. To enter page number in teletext mode.
-/--
Press this button to enter a program number for
multiple digit channel such as 2-1,etc.
DISPLAYDISPLAY
To display the source and channel’s information.
Return to the previous channel viewed.
TEXT ON/OFFTEXT ON/OFF
Switch ON or OFF the teletext mode.
Switch to the teletext with mix mode.
MIXMIX
Hold ON or OFF for current page display.
HOLDHOLD
!INDEXINDEX
Request the index page in teletext mode.
All manuals and user guides at all-guides.com

or 16:9/4:3 on Video mode.
All manuals and user guides at all-guides.com

9
Introduction
Installing BatteriesInstalling Batteries
1Open the battery compartment cover
on the back side of Remote Cortrol.
2
Insert two 1.5V AAA size batteries in
correct polarity. Don’t mix old or used
batteries with new ones.
3Close the cover.
--++
++--
Point the remote towards
the remote control sensor
of the wireless TV and
use it within 7 meters.
Put the used batteries into
the recycling bin since it
can negatively affect the
environment.
Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat such as sunshine,fire or the like.
PLAY/PAUSEPLAY/PAUSE
Press to play or pause the DVD playing.
STOPSTOP
Press to stop the DVD playing.
SLOW/STEPSLOW/STEP
Press to slow / step the speed of DVD playing.
FAST FORWARDFAST FORWARD
Press to play a DVD program in fast forward mode.
FAST REVERSEFAST REVERSE
Press to play a DVD program in fast rewind mode.
NEXTNEXT
Press to advance forward to the next chapter.
Press to replay the current program from the previous
chapter.
THUMBSTICK( / / / / ENTER )THUMBSTICK( / / / / ENTER )
Allows you to navigate the on-screen menus and
adjust the system settings to your preference.
SLEEPSLEEP
SETUP SETUP
To display the setup menu of DVD on the screen.
AUDIO AUDIO
To select the sound channels of DVD.
GOTO GOTO
To do go to function of DVD.
SUBTITLESUBTITLE
To display subtitle in DVD mode.
ANGLEANGLE
Press to select different angle.
ZOOMZOOM
Press to select zoom of picture displaying.
PROGRAMPROGRAM
To select the DVD program playback.
REPEATREPEAT
Repeat playback .
PREVIEWPREVIEW
Intro/ Scan/9 picture display .
ABAB
Press to AB playback.
PREVPREV
Press to select sleep timer.
D.DISP
D.DISP
ress o activate the on screen roll-down menu for th
urrent Title, Chapter, time and other information of DVD.
tP e
c
All manuals and user guides at all-guides.com

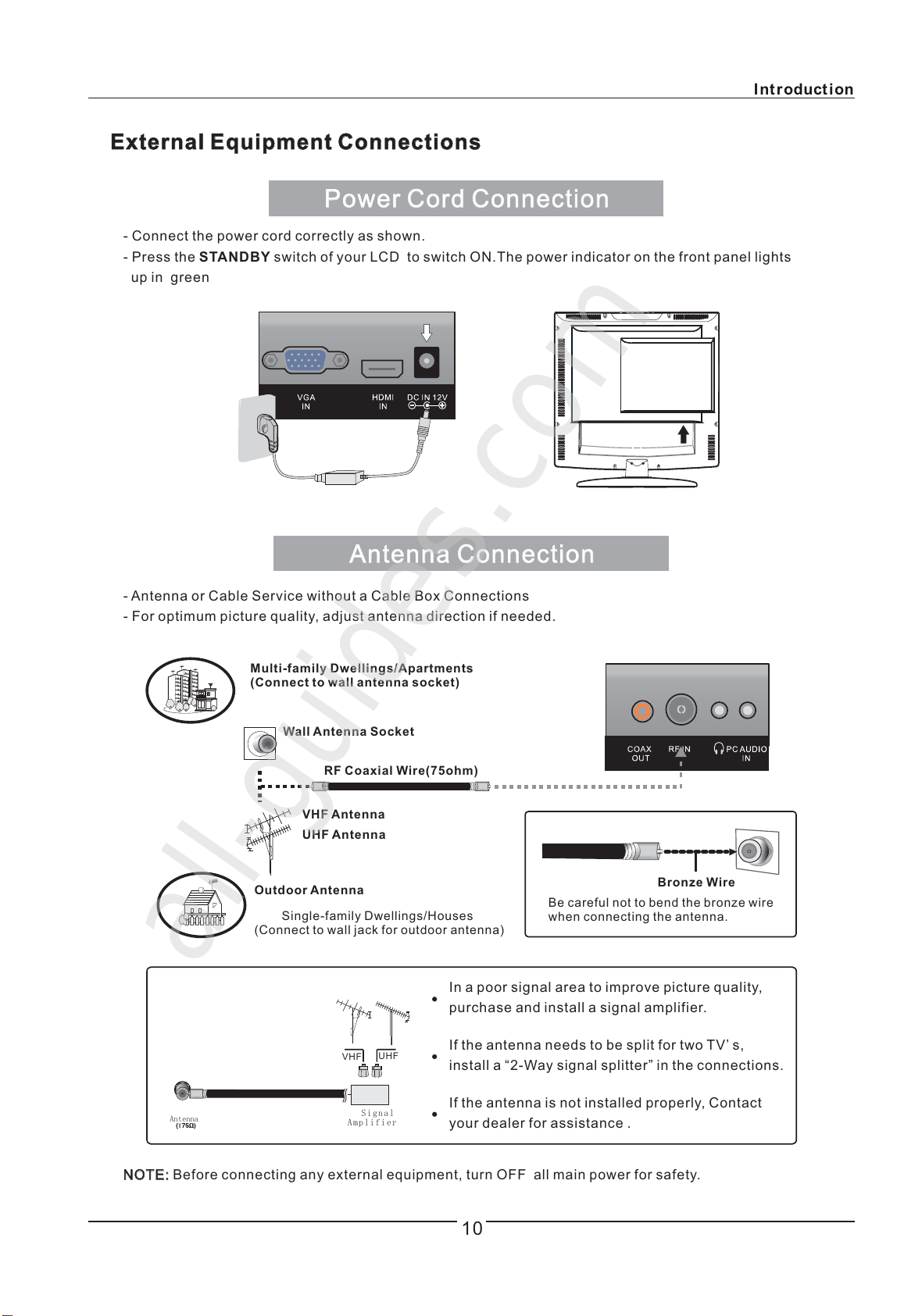

External Equipment ConnectionsExternal Equipment Connections
Power Cord ConnectionPower Cord Connection
Antenna ConnectionAntenna Connection
- Connect the power cord correctly as shown.
- Press the switch of your LCD to switch ON.The power indicator on the front panel lights
up in green
STANDBY
- Antenna or Cable Service without a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
NOTE: Before connecting any external equipment, turn OFF all main power for safety.
NOTE:
In a poor signal area to improve picture quality,
purchase and install a signal amplifier.
If the antenna needs to be split for two TV’ s,
install a “2-Way signal splitter” in the connections.
If the antenna is not installed properly, Contact
your dealer for assistance .
VHF UHF
Signal
Amplifier
Antenna
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Wall Antenna Socket
RF Coaxial Wire(75ohm)
VHF Antenna
UHF Antenna
Outdoor Antenna
Single-family Dwellings/Houses
(Connect to wall jack for outdoor antenna)
Be careful not to bend the bronze wire
when connecting the antenna.
Bronze Wire
10
Introduction
All manuals and user guides at all-guides.com
all-guides.com

DVD or VCRDVD or VCR
DVD BackDVD Back
1
NOTE: All cables shown are not included with the TV.
- Match the jacks colors: Video=yellow,
Audio left=white, and Audio right=red.
- Select the AV input source with INPUT button.
RCA
Audio Cable
RCA
Audio Cable
RCA
Video Cable
RCA
Video Cable
TV BackTV Back
- Connect the VIDEO and AUDIO output jack
of the DVD or VCR to the AV IN jacks on the
set with RCA cable.
NOTE: All cables shown are not included with the TV.
1. Connect the scart connector on the external
video device to the scart connector on the
LCD TV using a scart cable.
- SCART connector supports full scart functions
( CVBS, RGB input / output, TV out ).
2. Press INPUT button on the remote control to
select SCART which corresponds with your
connection.
Input / Output specification
DVDorVCRDVD or VCR
Scart cableScart cable
DVD
VCR Back
/
DVD
VCR Back
/
TV BackTV Back
Scart ConnectionScart Connection
AV INPUT ConnectionAV INPUT Connection
AUDIO
(L/R)
RGBCVBS CVBS TV AUDIO
(L/R)
Connector
SCART
INPUT OUTPUT
COAXIAL Connection
TV BackTV Back
Audio cable
Coaxial input
jack of amplifier
11
Introduction
All manuals and user guides at all-guides.com

NOTE: All cables shown are not included with the TV.
- Connect the S-VIDEO output of the DVD or VCR to the
S-VIDEO input on the set. The picture quality is improved
compared to connecting a regular VCR to the video input.
- Connect the Audio output of the DVD or VCR to the Audio
input jacks on the set using the RCA cable.
- Connect the Audio output of the DVD or VCR to the Audio
input jacks on the set using the RCA cable.
- Insert a DVD or video tape into the DVD or VCR and press
play. (Refer to the DVD or VCR owner’s manual.)
- Select S-VIDEO input source with INPUT button.
This TV has got Plug and Play capability. The TV sends configuration information (EDID) to the PC using the Video
Electronics Standard Association (VESA) Display Data Channel (DDC) protocol.
2
VGA Cable
Stereo
Audio Cable
Stereo
Audio Cable
TV BackTV Back - Connect the RGB output of the PC to the VGA IN
jack on the set.
- Connect the PC AUDIO output of the PC to the
PCAUDIOINjackontheset.
- Turn on the PC and set.
- Select the VGA input source with INPUT button.
RGB-PC OUTPUTRGB-PC OUTPUT
AUDIO
Do not connect both VIDEO and S-VIDEO
at the same time.
S-VIDEO ConnectionS-VIDEO Connection
DVDorVCRDVD or VCR
DVD
VCR Back
/
RL
AUDIO
TV Back
S-VIDEO
Cable Audio Cable
PC ConnectionPC Connection
PC INPUT1
1. To get the best picture quality, adjust the PC graphics card to 1024 x 768@60Hz.
2. If using a sound card, adjust the PC sound as required.
3.Check the image on your TV, there may be noise because of the resolution, vertical pattern,
contrast or brightness in PC mode. If noise is present, change the PC mode to another resolution,
change the refresh rate to another rate or adjust the brightness and contrast on the menu until the
picture is clear. If the refresh rate of the PC graphic card can not be changed, the PC video
graphic card or consult the manufacturer of the PC.
replae
12
Introduction
All manuals and user guides at all-guides.com

- HDMI (High Definition Multimedia Interface) is the first all digital consumer electronics A/V interface
that supports uncompressed standard. One jack supports both video and audio information.
DVD or VCRDVD or VCR
DVD or VCR Back
NOTE: All cables shown are not included with the TV.
TV Back
TV Back
- Connect HDMI output of the DVD to the HDMI
input jack on the set.
- Select the HDMI input source with INPUT button.
HDMI Cable
- You can connect a headphone to your TV if you wish to watch a TV program without disturbing
people around you.
- Insert a headphone into the 3.5mm mini-jack on the set.
NOTE: 1. Prolonged used of headphones at a high volume may
damage your hearing.
2. You will not receive the sound from speaker when you
connect headphones to the system.
TV BackTV Back
HDMI OUT
HDMI ConnectionHDMI Connection
Headphone ConnectionHeadphone Connection
13
Introduction
All manuals and user guides at all-guides.com

TV Operation TV Operation
Basic operationBasic operation
TURN ON LCD TV
1. Connect the AC input cable to TV, then press the main power switch to switch ON LCD TV. At this time the
TV will enter into standby mode and indicator shows red.
2. Using buttons can turn ON LCD TV from standby mode as follows:
POWER key.
TURN OFF LCD TV
STANDBY on 1. Press button the TV set or button on the remote control to enter standby mode. At
this time indicator is red.
2. Using main power switch turns OFF LCD TV completely.
TURN OFF LCD TV
STANDBY
NOTE: If you use your LCD TV for the first time, you should select the language which will be used
for displaying menus and indications.
- There is No Signal menu on screen when there is no input signal.
No Signal
TV 1
NO INPUT
GENERAL MENU
LANGUAGE ENGLISHLANGUAGE ENGLISH
BLUE SCREEN ON
NOISE REDUCE ON
INPUT SOURCE TV
RESET
Turning on and off the TVTurning on and off the TV
TV OPERATION
Select on screen languageSelect on screen language
No signalNo signal
14
Press MENU to display the main menu.
Press MENU repeatedly to select the GENERAL MENU.
Use / to select LANGUAGE.
Press and button to select your language.
When you are satisfied with your choice, press MENU
or EXIT to exit.
All manuals and user guides at all-guides.com

You can select the input source by pressing INPUT on the remote control or on the front panel.
The OSD (On Screen Display)
function enables you to adjust
the screen status conveniently
since it provides graphical presentation.
- Press MENU repeatedly to select each menu.
- Use / / / buttons to display and adjust the available menus.
How to adjust the OSD screenHow to adjust the OSD screen
AUDIO MENU
5050VOLUMEVOLUME
BALANCE
AUDIO PRESET
TREBLE
50
THEATRE
30
BASS 30
VIDEO MENU
5050BRIGHTNESSBRIGHTNESS
CONTRAST
COLOUR
SHARPNESS
50
50
50 Just in PC mode
VIDEO MENU
5050BRIGHTNESSBRIGHTNESS
CONTRAST
COLOUR
AUTO CONFIG
50
50
50
V-POSITION
H-POSITION 50
50
Just in HDMI mode Just in TV mode
Choosing a TV channelChoosing a TV channel
Selecting input sourceSelecting input source
PC MENU
BRIGHTNESSBRIGHTNESS 5050
CONTRAST
COLOUR SETTING
AUTO CONFIG
50
USER
H-POSITION 0
V-POSITION
PHASE
0
0
15
1. CH+/CH- on the front panel or on the remote control.
Press CH+ to increase channel number.
Press CH - to decrease channel number.
1. CH+/CH- on the front panel or on the remote control.
2. 0-9 digital buttons and -/--button
You can select the channel number by pressing 0 to 9 or -/--.
2. 0-9 digital buttons and -/--button
3. Example:
To select 1-digit channel (e.g. Channel 5): Press 5.
To select 2-digit channel (e.g. Channel 20): Press -/--to display -- then press 2 and 0.
3. Example:
GENERAL MENU
LANGUAGE ENGLISHLANGUAGE ENGLISH
BLUE SCREEN ON
NOISE REDUCE ON
INPUT SOURCE TV
RESET
TXT LANGUAGE PAN EUROPEAN
TXT EAST/WEST WEST
TV MENU
CHANNEL 1CHANNEL 1
SKIP
AFC
********
OFF
NETHERLANDS
FINE TUNE
112.85MHz
SWAP
MANUAL SEARCH
AUTO SEARCH
ON
COUNTRY
CHANNEL NAME
TV OPERATION
All manuals and user guides at all-guides.com
all-guides.com

VIDEO menu optionsVIDEO menu options
Press th ENU on the front panel or on the remote control to display the VIDEO menu.
COLOURCOLOUR
Press / button and then use / to adjust the color saturation.
SHARPNESSSHARPNESS
Press / button and then use / to adjust the sharpness level of picture.
CONTRASTCONTRAST
Press / button and then use / to adjust the contrast of the picture.
BRIGHTNESSBRIGHTNESS
Press / button and then use / to adjust the brightness of the picture.
3. When you are satisfied with your adjustment,
press MENU to exit the main menu.
1. Use / to select what you want to adjust in
the VIDEO menu.
2. Press and button to adjust.
In this manual, the OSD ( On Screen Display) may be different from your TV’ s because it is just example
to help the user with the TV operation.
1. Press VOL+/- to adjust the volume.
3. You can cancel this function by pressing MUTE or VOL+/-.
VOLUME 50
Volume adjustmentVolume adjustment
2. If you want to switch the sound OFF , press MUTE
TV SCART AV S-VIDEO
PC-RGB
HDMI
DVD
16
Me
or EXIT
VIDEO MENU
BRIGHTNESS 50BRIGHTNESS 50
CONTRAST
COLOR
SHARPNESS
50
50
50
TV OPERATION
All manuals and user guides at all-guides.com

17
AUDIO menu optionsAUDIO menu options
AUDIO MENU
VOLUME 50VOLUME 50
BALANCE
AUDIO PRESET
TREBLE
50
THEATRE
30
BASS 30
3. When you are satisfied with your adjustment, press
MENU or EXIT to exit the main menu.
2. Press and button to adjust.
1. Use / to select what you want to adjust in the
AUDIO menu.
You can select the type of sounds by selecting AUDIO PRESET in AUDIO menu. The following sound effects
are available: THEATRE/ PERSONAL/ VOICE/ MUSIC.
VOLUMEVOLUME
AUDIO PRESETAUDIO PRESET
BASSBASS
TREBLETREBLE
BALANCEBALANCE
Press / button and then use / to adjust the sound level.
Press / button and then use / to adjust the audio output between left and right speakers.
Press / button and then use / to increase or decrease the level of the lower-pitched sounds.
Press / button and then use / to increase or decrease the level of the higher-pitched sounds.
GENERAL menu optionsGENERAL menu options
3. When you are satisfied with your adjustment, press
MENU or EXIT to exit the main menu.
2. Press and button to adjust.
1. Use / to select what you want to adjust in the
GENERAL menu.
LANGUAGELANGUAGE
Press / button and then use / to select the language of OSD (On Screen Display).
Press th ENU on the front panel or on the remote control to display the AUDIO menu.
Me
Press th ENU on the front panel or on the remote control to display th ENE enu.
Me RAL me G
GENERAL MENU
LANGUAGE ENGLISHLANGUAGE ENGLISH
BLUE SCREEN ON
NOISE REDUCE ON
INPUT SOURCE TV
RESET
TXT LANGUAGE PAN EUROPEAN
TXT EAST/WEST WEST
BLUE SCREENBLUE SCREEN
Press / button and then use / to select ON or OFF to display the blue screen when no signal.
TV OPERATION
All manuals and user guides at all-guides.com

PC menu optionsPC menu options
Press LCD MENU on the front panel or on the remote control to display the PC menu.
USER COLOR SETTING
RED 171
GREEN 171
BLUE 171
AUTO CONFIGAUTO CONFIG
Press / button and then use to do auto config that automatically adjusts the available options for
the best viewing configuration.
H-POSITIONH-POSITION
Press / button and then use / to adjust the horizontal position of the picture.
V-POSITIONV-POSITION
Press / button and then use / to adjust the vertical position of the picture.
BRIGHTNESSBRIGHTNESS
Press / button and then use / to adjust the brightness of the picture.
CONTRASTCONTRAST
Press / button and then use / to adjust the contrast of the picture.
COLOR SETTINGCOLOR SETTING
- Choose one of three automatic color adjustments. Set to 6500K to enhance hotter colors such as red,
or set to 9300K to see less intense colors with more blue.
-Press / button and then use / to select one of USER/9300K/6500K.
-When you select USER, a sub-menu will display, then you can use / / / to select and adjust each item.
NOISE REDUCENOISE REDUCE
Press / button and then use / to select ON or OFF to reduce the noise of the picture and
provide clearer picture .
INPUT SOURCEINPUT SOURCE
Press / button and then use / to select the input source.
RESETRESET
Press / button and then use to reset settings to the factory default.
PC MENU
BRIGHTNESSBRIGHTNESS 5050
CONTRAST
COLOUR SETTING
AUTO CONFIG
50
USER
H-POSITION 0
V-POSITION
PHASE
0
0
18
3. When you are satisfied with your adjustment, press
MENU or EXIT to exit the main menu.
2. Press and button to adjust.
1. Use / to select what you want to adjust in the
PC menu.
TXT LANGUAGETXT LANGUAGE
Press / button and then use / to select the language of teletext as following
GREEN.
TXT EAST/WESTTXT EAST/WEST
Press / button and then use / to select the area of teletext between EAST and WEST.
:
AN EUROPEAN/ CYRILLIC/ and P
TV OPERATION
All manuals and user guides at all-guides.com

TV menu optionsTV menu options
Pres ENU repeatedly on the front panel or on the remote control
to display the TV menu when in TV mode.
3. When you are satisfied with your adjustment,
1. Use / to select what you want to adjust
in the TV menu.
2. Press and button to adjust.
CLOCKCLOCK
Press / button and then use / to adjust the clock of the picture.
PHASEPHASE
Press / button and then use / to adjust the phase of the picture.
-Phase This function allows you to remove any horizontal noise and clear or sharpen
the characters.
-Clock This function is to minimize any vertical bars or stripes visible on the screen
background. And the horizontal screen size also will change.
-Position This function is to adjust the picture to Left/Right and Up/Down.
19
s M
MENU or EXIT to exit the main menu.
CHANNELCHANNEL
The current program number. Press / button to select the upper or lower program.
SKIPSKIP
Skip option allows you to skip the current channel. When set ON, the program number will be skipped
when you select the channel with the CH+/CH- button. But if you want to restore the channel you have
skipped, just press the digital button to select this channel and operate as steps above, but set it OFF
AFC AFC
When the AFC is set ON, the changed frequency can be showed in FINE TUNE item, that means the
current channel is track-ing with the frequency automatically. When is set OFF, the frequency will not
change in FINE TUNE item.
FINE TUNEFINE TUNE
If the picture or sound received is not very good, you can press / to select Fine Tuning item in menu.
Then, press / button to conduct fine tune from high frequency to low frequency till best picture or
sound effect is obtained.
CHANNEL NAMECHANNEL NAME
The channel name. Press button into CHANNEL NAME menu.
Press / button to move the cursor and press / button to select the letters .
CHANNEL NAME
********
TV MENU
CHANNEL 1CHANNEL 1
SKIP
AFC
********
OFF
NETHERLANDS
FINE TUNE
112.85MHz
SWAP
MANUAL SEARCH
AUTO SEARCH
ON
COUNTRY
CHANNEL NAME
COUNTRYCOUNTRY
Press / button to select your country.
TV OPERATION
All manuals and user guides at all-guides.com
