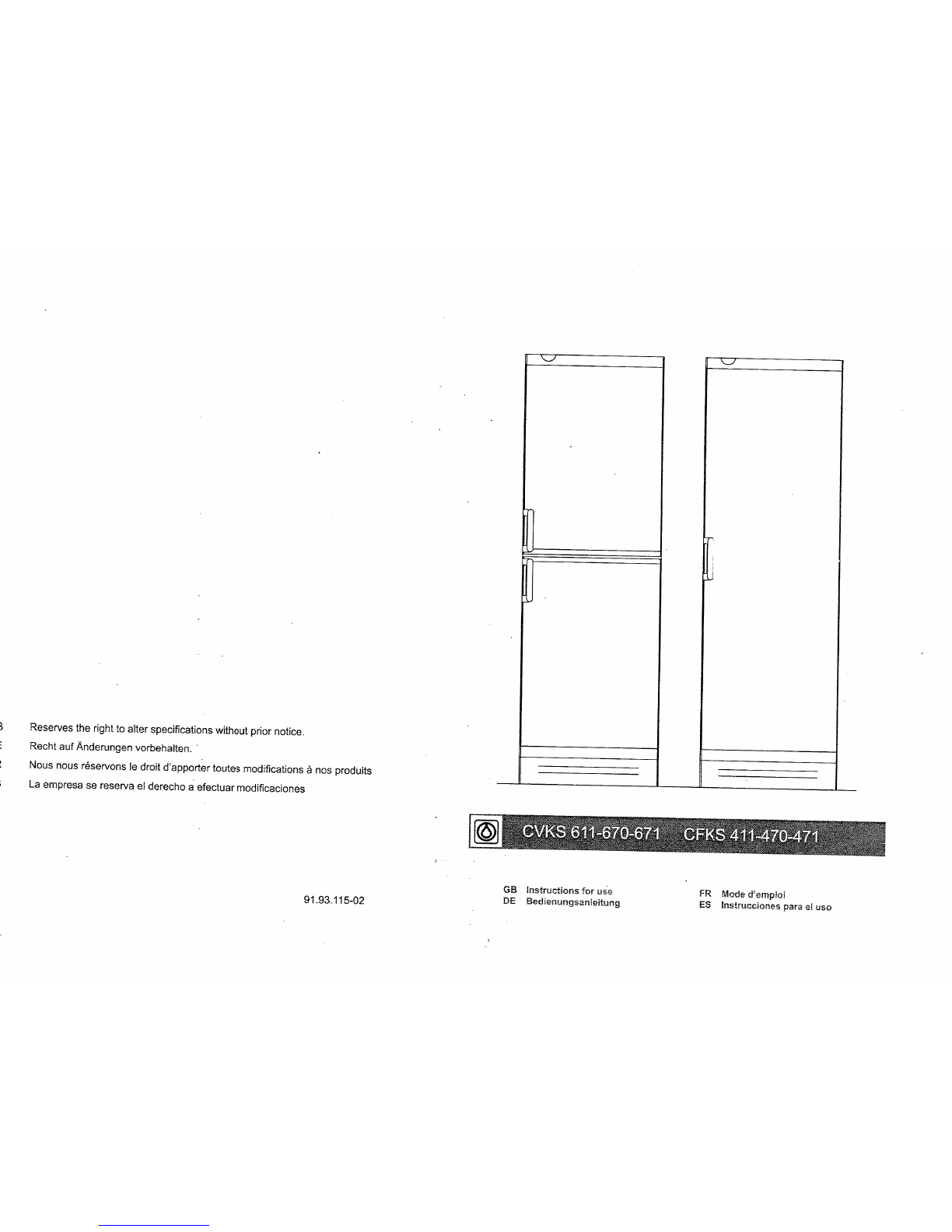

Vestfrost CVKS 611 User manual

l
:
I
Reserves the right to alter specifications without prior notice.
Recht auf Änderungen vorbehalten. .
Nous nous réservons le droit d'apporter toutes modifìcations à nos produits
La empresa se reserva el derecho a efectuar modificaciones
91 .93.1 1 5-02 GE
ntr Instructíons for us*
Bed Íenu n gsan ie itun g FR
ES Mode d'empioi
lnstrucciones para el uso

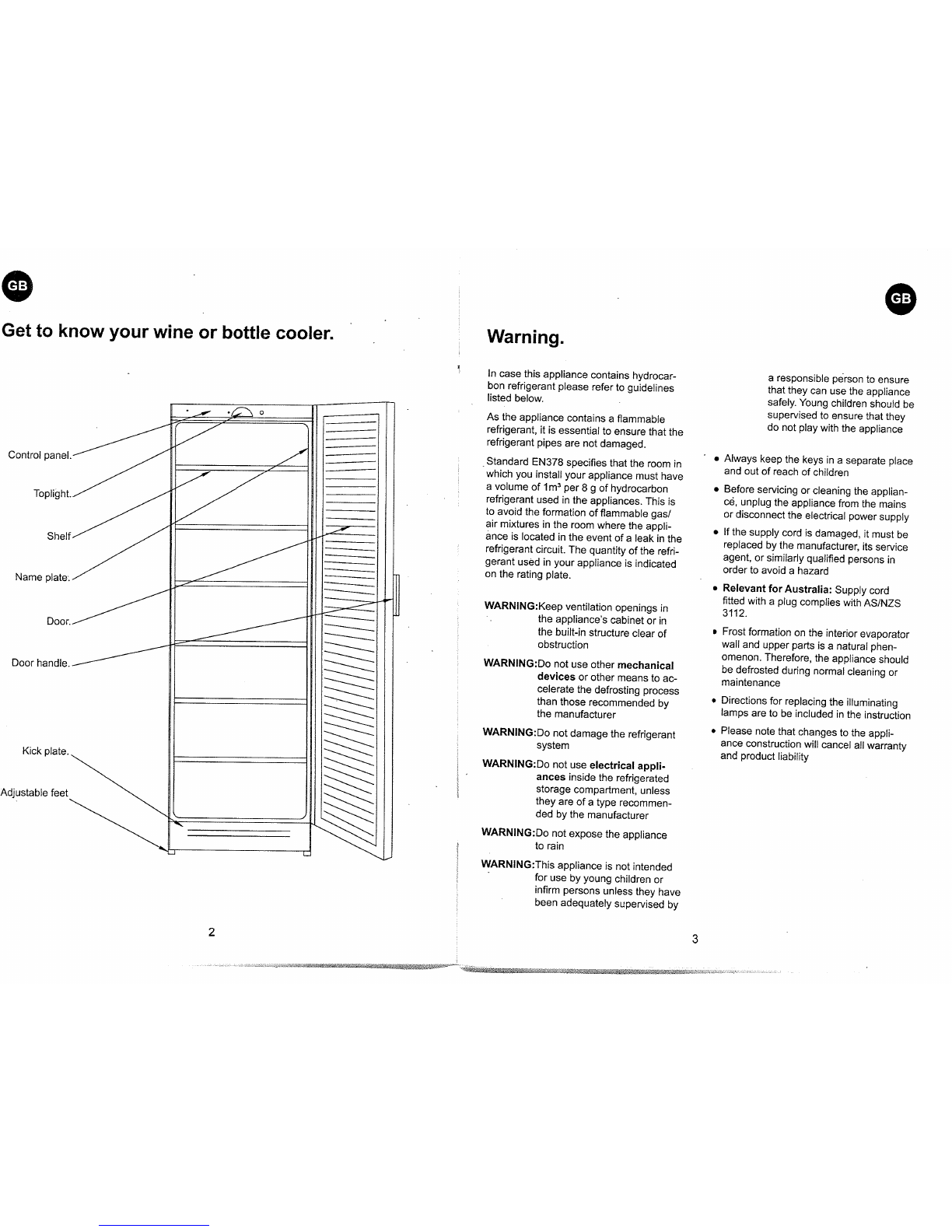

Get to know your wine or bottle cooler.
Control panel.
Toplight.
Name plate.
Door handle.
Kick plate.
Adjustable feet
Warning.
ln case this appliance contains hydrocar_
bon refrigerant please refer to guidelines
listed below.
As the appliance contains a flammable
refrigerant, it is essential to ensure that the
refrigerant pipes are not damaged.
. Standard EN378 specifies that the room in
which you install your appliance must have
a volume of 1m3 per 8 g of hydrocarbon
refrigerant used in the appliances. This is
to avoid the formation of flammable gas/
air mixtures in the room where the appli-
ance is located in the event of a leak in the
refrigerant circuit. The quantity of the refri-
gerant used in your appliance is indicated
on the rating plate.
WARNING:Keep ventilation openings in
, the appliance's cabinet or in
the built-in structure clear of
obstruction
WARNING:Do not use other mechanical
devices or other means to ac_
celerate the defrosting process
than those recommended by
the manufacturer
WARNING:Do not damage the refrigerant
system
WARNING:Do not use electrical appli-
ances inside the refrigerated
storage compartment, unless
they are of a type recommen_
ded by the manufacturer
WARNING:Do not expose the appliance
to rain
WARNING:This appliance is not intended
' for use by young children or
infirm persons unless they have
been adequately supervised by
_---.-
-----___
=
SS
a responsible person to ensure
that they can use the appliance
safely. Young children should be
supervised to ensure that they
do not play with the appliance
o Always keep the keys in a separate place
and out of reach of children
¡ Before servicing or cleaning the applian_
cci, unplug the appliance from the mains
or disconnect the electrical power supply
¡ lf the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent, or similarly qualified persons in
order to avoid a hazard
o Relevant for Australia: Supply cord
fitted with a plug complies with AS/NZS
3112.
o Frost formation on the interior evaporator
wall and upper parts is a natural phen_
omenon. Therefore, the appliance should
be defrosted during normal cleaning or
maintenance
¡ Directions for replacing the illuminating
lamps are to be included in the instruction
o Please note that changes to the appli-
ance construction will cancel all warranty
and product liability

Contents
Get to know .
Warning
Before starting the appliance
Maintenance
lnstallation
Technical data.
General advice
Control panel ..
Has the appliance stopped working?......6
Before starting the
appdiance
Check that the cabinet is undamaged.
Please report any damage immediately to
your dealer. Wash the cabinet and inner
lining with a mild unscented detergent and
wipe it dry. Do not use abrasive scouring
powder, steel wool or similar.
Maintenance
Switch off the appliance and pull out the
plug when cleaning the cabinet.
Only use an unscented detergent when
cleaning the cabinet inside.
You may remove the top panel and wash it
when cleaning the cabinet inside.
The skirting board can be removed to faci-
liate a vaccuum-cleaning of the floor.
To make the cooling system work at its
optimum it is necessary from time to time
to clean the wire condensator and the com-
pressor at the back of the cabinet by means
of a brush or a vaccuum cleaner. Remem-
ber to clean the drain.
Defrosting
The evaporator is automatically defrosted.
The defrosted water is led to atray on top of
the compressor where it evaporates.
Change of hinge side
Lock
Spare parts.
......................... 5
Disposal
..b
lnstallation.
See drawings - page A and B.
lnstall the cabinet in a dry place and so that
it is not exposed to direct sunlight or any
other source of heat.
Place the cabinet in a level position. This is
easily achieved by adjusting the adjustable
feet at the front edge ofthe base.
The cabinet may not rest against a wall on
its hinged side. When placing the cabinet
on a carpet or on a wooden floor you should
adjust it once more after some time as the
cabinet might settle in soft foundations.
lf you want to build the appliance into a
cupboard you must consider 3 factors:
1. There must be space above the appli-
ance in order to make the cool¡ng system
work satisfactorily.
2. When the door is opened the appliance
.takes up more room in the width and
therefore the door must either be placed
outside the cupboard or there must be
a space of at least 1,S cm at the hinge
side.
3. The distance to the wall at the hinge side
must be of a sufficient size.
Furthermore it is possible to build together
two appeliancê. lf one of these is a wine
cabinet please observe a min. distance of
25mm between the cabinet in order to keep
cooling performance intact.
It is safest to place the earthed wall socket
above the appliance and at least 2.0 m
above the floor. Any local installation rules
for appliances of this kind must be obser_
ved.
Technical data.
This device complies with rêlevant EU
directives including Low Voltage Directive
2006/95 EEC. and Electromagnetic Com-
patibility Directive 20041 1 }gt EC
The rating plate provides various techni-
cal information as well as type and serial
number.
General advice.
lf the unit is not used for more than two
days it should be switched off and the doors
should be left open for ventilation to prevent
a bad smell in the unit.
The appliance is equipped with a highqua-
lity skin condenser. Therefore, a slight
heating of the sidewalls is quite normal.
Lighting
This appliance is equipped with a device
which causes the f ight to switch off if the
door is open i left on for abnormally long
time.
When the door has been closed for a ouple
of minutes, the device is cut off and the light
switches back on.

Control panel.
1. Lamp.
2. Thermostat knob.
3. lndicator for the connection to the electri_
city supply (green).
Has the appliance stopped working?
Before calling a repairman, check that
o The plug is properly plugged into the wall
socket.
¡ The fuse is intact.
¡ The power has not been cut off.
r All controls are correctly set.
o Switch off the cabinet for 15 minutes (for
instance at the thermostat). Switch it òn
again and after 5 minutes check whether
frost has formed on the evaporator.
¡ Do not open the cabinet unnecessaryly.
The thermostat knob is adjustable from 0' .
(stop) to 7 (coldest). Find the position of the
thermostat which gives you the desiredtem_
perature. Start at position 4.
Ghange of hinge side.
used later as top hinge at the r\
¡osite side. Lift off the door.. ! \
=ã
-ït
ilt
hinge. Lift off the bottom door. _ I ll
Mount the hinge screws
asain. \¡¡$rï
or
door closer on the upper door, this d
e
closer should be
remóved and remounted
on the opþosite side.
screws in the bottom hinge and push
e bottom hínge to the required side.
the screws and mount the kick
4) (For too doors
the middle of the
side. Mount the t
and screw on thr
middle hinge.
: Loosen
The kick plaie.
rrs) Dismantle the screws in
re new hinge r r r
: bottom door ll-(
,he rlN^
Kemove tne l(ick plate. The bottom hingt
dismounted at the 3 screws. The hingeìs
med '180' and mounted on the opposite
"¿
7) Ajustment ot tne topìõãï
loosen the screws in the hinge -/
above the door, loosen then\nge f --
abovethedoorandtum - 5
hinge to the wanted
. 1ìghten the screws.

Mounting of lock.
{for appliance with 1 door)
(Optional extra.)
ilt
il>il
\WW
IA
Mounting of lock.
(for appliance with 2 doors)
(Optional extra.)
stantiate are caused by reasons other than
manufacturing or material faults are not
covered by the warranty.
Please note that changes to the construc-
tion of the appliance or changes to the
component equipment of the appliance will
invalidate warranty and product liability, and
the appliance cannot be used lawfully. The
approval stated on rat¡ng plate will also be
invalidated.
Transport damage discovered by the buyer
is primarily a matter to be setiled between
the buyer and the distributor, i.e. the distri-
butor must ensure that such complaints are
resolved to the buyer's satisfaction.
Before calling for technical assistance,
please check whether you are able to rectify
the fault yourself. lf your request for as-
sistance is unwarranted, e.g. if the appli-
ance has failed as a result of a blown fuse
or incorrect operation, you will be charged
the costs incurred by your call for technical
assistance.
Warranty, spare parts
and service.
Warranty disclaimer
Faults and damage caused directly or
indirectly by incorrect operation, misuse,
insuffi cient maintenance, incorrect building,
installation or mains connect¡on. Fire, ac-
cident, lightening, voltage variation or other
electrical interference, including defective
fuses or faults in mains installations.
Repairs performed by others than approved
servlce centres and any other faults and
damage that the manufacturer can sub-
Disposal
lnformation for Users on Collection and
ment and used Batteries
XThese symbols on the products,
packaging, and/or accompanying
documents mean that qsed electrical
and electronic products and batter-
ies should not be mixed with general
household waste. For proper treat-
ment, recovery and recycling of old
products and used batteries, please
take them to applicable collection
points, in accordance with your
national legislation and the Directives
2002196 IEC and 2006/66iEC.
'By disposing of these products and
batteries correctly, you will help to
save valuable resources and prevent
any potential negative effects on
human health and the environment
which could otherwise arise from
inappropriate waste handling.
For more information about collec-
tion and recycling of old products and
batteries, please contact your local
munieipality, your waste disposal
service or the point of sale where you
purchased the items.
Penalties may be applicable for
incorrect disposal of this waste, in ac-
cordance with national legislation.
Type.,. xxxx $r¡ot No.,-.suxs
Spare parts
When ordering spare parts, please state the
type, serial and production numbers of your
appliance.This information is given on the
ratingplate. The ratingplate contains various
technical information, including type and
serial numbers.v
Disposal of Old Equlp-
EU
XFor business users in the Euro-
pean Union.
lf you wish to discard electrical and
electronic equipment, please contacl
your dealer or supplier for further
information.
flnformation on Disposal in other
Countries outside the European
Unionl
These symbols are only valid in the
European Union. lf you wish to dis-
card this product, please contact you
local authorities or dealer and ask for
the correct method of disposal.
F
Note for the battery symbol (bot-
. Eg . tom two symbol examples):
V fn¡" symbol might be used in combi-
/S nation with a chemical symbol. ln thir
case it complies with the requiremen
set by the Directive for the chemical
involved.
