Vestil S SERIES User manual

1
OPERATION & SERVICE MANUAL

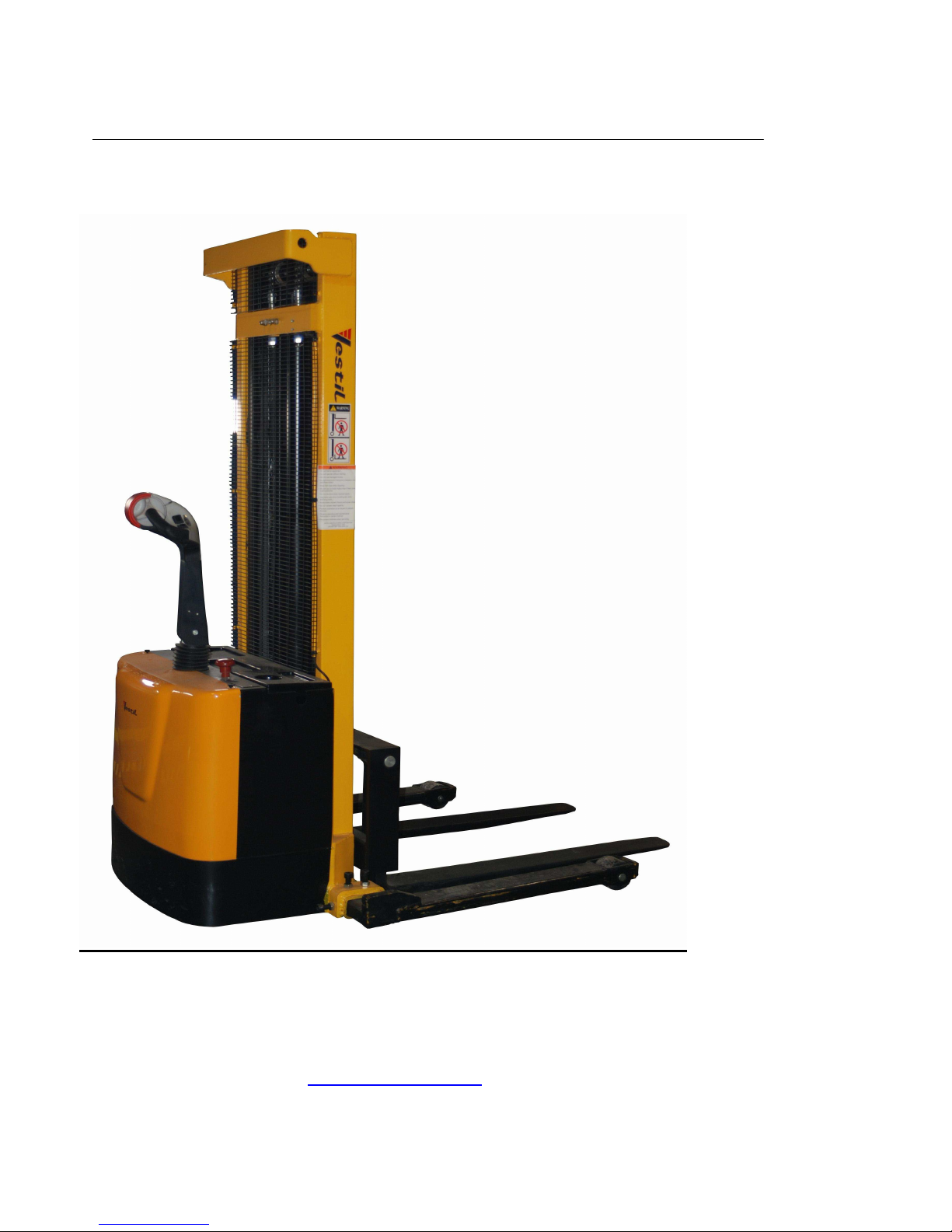

S SERIES STACKER WITH POWER DRIVE & POWER LIFT
Vestil Manufacturing Corp.
2999 North Wayne St., Angola, IN 46703
Ph: 260-665-7586 . Fax: [phone]
E-mail: S[email protected]
Website: www.vestil.com

2
C
CO ON NT TE EN NT TS S
General ………………………………………………………………………………………………... 3
Specification …………………………………………………………………………………………
4
Receiving instructions …………………………………………………………………………... 5
Safety Notes ……….…………………………………………………………………………………
6
Product description ……………………………………………………………………………….
Designated use …. … …... … …………………………………………………………………..
Signs on the Stacker ……………………………………………………………………………
7
7
8
Removing From the Pallet …………………………………………………………………….
9
Operation ……………………………………………………………………………………………...
10
Operation ……………………………………………………………………………………………...
Operating elements ………………………………………………………………………………
Safety elements …………………………………………………………………………………..
Driving, braking and horn………………………………………………………………………...
Lifting and lowering ………… ……………………………………………………………………
Traveling …………………………………………………………………………………………..
Lifting the load…………………………………………………………………………………
11
11
12
13
14
15
16
Maintenance and repair …………………………………………………………………………..
Trouble shooting ………………………………………………………………………………….
Changing batteries ……………………………………………………………………………….
Changing motor controller ……………………………………………………………………….
Belly switch trouble shoot ………………………………………………………………………..
Maintenance daily/before use, monthly, annually …………….……………………………….
Maintenance and care of the load chains ……………………………………………………...
Chain inspections ………………………………………………………………………………...
Temporary lay-up …………………………………………………………………………………
17
17-21
22-23
24-30
31-48
49
50
51
52
Warranty ...............................................................................................................
53
Parts List ………………………………………………………………………………………………
54-60

3
Introduction
Read and follow the instructions contained in this operating
manual.
Only trained, well-informed personnel, who have been instructed in accordance with this operation manual, may
use or work on the stacker.
Liability or guarantee is waived if:
The instructions in this operating manual are not observed.
The high-lift stacking truck is operated, cleaned or maintained incorrectly.
Alterations to the functions are carried out without the consent of manufacturer.
Original spare parts are not used.
Safety instructions
This chapter informs the user about residual dangers relating to the correct use of the products. It contains
generally valid safety instructions which must be observed.
Safety instructions relating to specific actions or situations are listed prior to the respective action and/or
description of the situation in the chapter.
Principles
This product complies with state-of-the –art technical standards and recognized safety regulations, but there are
still dangers which may occur which must be considered.
Only operate the product in a perfect condition and observing the information contained in the operating manual.
The operator is responsible for integrating the product with as little risk as possible into his working environment.
This obligation continues through every phase of the products lifespan, beginning at the planning stage. Residual
dangers are to be minimized.
Only trained, competent personnel who have been instructed using the operating manual and the product are
permitted to work with the truck.
The operating manual must be understood (responsibility, checking)
Declaration:
I have read this manual and, in particular, have taken note of the caution.
Name Date Signature

4
Stacker, Motorized, Electric, Cap 2000 Lbs
Powered drive / powered lift pallet stacker truck. Raise, lower and maneuver loads quickly and easily. An
easy-to-operate thumb-wheel allows infinite forward and reverse travel speeds of 3. mph unloaded / 3.1 mph
loaded. Fingertip raise and lower buttons, horn and a safety-reverse control-button are conveniently located.
An electromagnetic disc brake with automatic dead-man feature activates when the user releases the handle.
Two, 12 volt, 70 amp-hour batteries, integral charger, charge-level indicator and emergency disconnect are
included. Features 24 volt DC 0.7 KW drive and 2.0 KW lift motors. Out-rigger wheels keep the stacker stable
when turning. The rigid frame features perimeter toe-skirting. Protective mesh on the operator side of mast is
powder-coated black allowing see-through visibility. A proprietary DC motor controller prevents unsafe starts
when the safety-reverse button is inadvertently struck. Adjustable forks are forged-metal, fixed forks are
formed-metal, all have a 55” turning radius. Rolls smoothly on polyurethane steer and load wheels. Deep cycle
batteries typically provide eight ( ) hours of service on one full charge.
S-62-FF S-62-AA S-62-FA S-118-FF S-118-AA
Capacity 2000 lbs. 2000 lbs. 2000 lbs. 2000 lbs. 2000 lbs.
Fork Lift eight 62" 62" 62" 11 " 11 "
Fork Dimension 42x5.9x2 3/ " 42x4x1-1/4"" 42x5.9x2 3/ " 42x5.9x2 3/ " 42x5.9x2 3/ "
Overall fork width 26-3/4" 26-3/4" 26-3/4" 26-3/4" 26-3/4"
Ground Clearance 1" 1" 1" 1" 1"
Lowered Fork . 3-3/ " 2-1/ " 2-9/16" 3-3/ " 2-1/ "
. Overall Extended 1-7/ " 2-11/16" 1-7/ " 1-7/ " 2-11/16"
ead Dimension 26-1/2x30x29-3/4" 26-1/2x30x29-3/4" 26-1/2x30x29-3/4" 26-1/2x30x29-3/4" 26-1/2x30x29-3/4"
Loading Center 23-5/ " 23-5/ " 23-5/ " 23-5/ " 23-5/ "
Wheel Base 44-11/16" 45-7/16" 44-11/16" 44-11/16" 45-7/16"
Turning Radius 55" 55" 55" 55" 55"
Support Wheel Φ4x2" Φ4x2" Φ4x2" Φ4x2" Φ4x2"
Front Wheel Φ3-1/ x3-3/ " Φ2.9x4" Φ3-1/ x3-3/ " Φ3-1/ x3-3/ " Φ2.9x4"
Drive Wheel Φ10x3-1/ " Φ10x3-1/ " Φ10x3-1/ " Φ10x3-1/ " Φ10x3-1/ "
Overall Size 6 x30x 2 69x46-3/16x 2-11/16” 6 x46x 2 6 x30x 2 69x46-3/16x 2-11/16”
Lift Load 3.23"/s 3.23"/s 2.95"/s 5.9"/s 5.9"/s
Speed Unload 5.46"/s 5.46"/s 5.9"/s 7. 6"/s 7. 6"/s
Load 2.4"/s 2.4"/s 4"/s 3.93"/s 3.93"/s
Lower
Speed Unload 2"/s 2.4 "/s 2"/s 3.57"/s 3.57"/s
Load 3.1 m/h 3.1 m/h 3.1 m/h 3.1 m/h 3.1 m/h
Travel
Speed Unload 3. m/h 3. m/h 3. m/h 3. m/h 3. m/h
Drive Motor 24V/700W 24V/700W 24V/700W 24V/700W 24V/700W
Lift Motor 24V/2.0KW 24V/2.0KW 24V/2.0KW 24V/2.0KW 24V/2.0KW
Controller 1207A-4102 1207A-4102 1207A-4102 1207A-4102 1207A-4102
Battery 2x12V/70Ah 2x12V/70Ah 2x12V/70Ah 2x12V/70Ah 2x12V/70Ah
Battery Charger DC 24V/6A DC 24V/6Al DC 24V/6A DC 24V/6A DC 24V/6A
Weight 950 lbs. 990 lbs. 970 lbs. 1091 lbs. 1131 lbs.
Min Width of Aisle 35-1/2" 52" 52" 52" 52"
Note: The load capacity is based on the situation when the center of the gravity is located at the center of
length of forks. When the center of gravity of goods is out of the center of forks, the load capacity will be
lessened compared to the center.

5
Receiving Instructions
Every unit is thoroughly tested and inspected prior to shipment. However, it is possible
that the unit may incur damage during transit. If you see damage when unloading, make a
note of it on the SHIPPER RECEIVER.
Remove all packing & strapping material, inspect for damage. IF DAMGE IS EVIDENT, FILE A CLAIM WITH
THE CARRIER IMMEDIATELY! Also, check fork size, type of power unit, etc., to see that the unit is correct for
the intended application.
Warnings & Safety Instructions
Insure that all employees understand and follow the following instructions
•Read and understand the owner’s manual before using or servicing the stacker.
•Do not use the stacker if any damage or unusual noise is observed.
•Improper use of this lift truck could result in injury and damage to load or equipment.
•Always watch the stacker and any load on it carefully when it is being used or moved.
•DO NOT load beyond rated capacity.
•DISTRIBUTE load evenly.
•Avoid sudden stops or quick turns to prevent accidental tipping of the load.
•Load must be centered and evenly distributed on the forks.
•Park the truck on level surfaces and not in the way of other products
•When parked, lower the load fork completely.
•When parked, push E-switch push-button down.
•Do not perform any modifications to the stacker without the manufacturer’s approval. Failure to receive
authorization for changes to the equipment could void the warranty.
•Do not use brake fluid or jack oil in the hydraulic system. If oil is needed, use an anti-wear hydraulic oil
with a viscosity grade of 150 SUS at 100°F, (ISO 32 @ 40°C), or a non-synthetic transmission fluid.
•Use only replacement parts either supplied or approved by the manufacturer.

6
Safety notes
Symbols and pictures
In addition to the text and illustrations, this operating manual contains various symbols which should draw
attention to the safety requirements.
They generally have the following appearance:
Signal wording Explanation
DANGER
Warning of an imminent danger!
Non-observance cause death or serious injury
WARNING Warning of a possibly incoming dangerous situation.
Non-observance may cause death or serious injury.
CAUTION Warning of a possibly incoming dangerous situation.
May also be used for warnings of major damage to property.
Other definitions:
DIRECTION Marks recommendations for use and other useful information.
Does not warn of dangerous situations.
IMPORTANT Warns of a harmful situation.
Non-observance may cause damage to material.
USE SYMBOLS & PICTURES
Possible danger to
file and limb or
machine!
Do not step onto when
load is raised!
Danger of crushing!
It is forbidden to ride
on the truck!
Do not reach into
running motor!
Suspension points for
transport of truck!
Wear safety shoes Important
Wear helmet
Suspended load
warning!

7
Product description
Designated use
The stacker is designated for lifting, lowering and transportation of loads according to the specifications of
the identification plate.
The stacker is to be used on hard level surfaces.
To move the stacker between buildings, warehouses etc
 The gradient of the slope must not be more than 10%
 Make sure load is not loose or unstable.
 Do not pick up loads on tips or forks or edge of platform.
 Do not overload.
 The road surfacing must be solid and have a good grip.
Travel routes must offer sufficient load-bearing capacity for the loaded truck.
The stacker is not suitable for continuous use in cool-houses!
Ambient conditions
Temperature From
To 14 113 °F
°F
Degree of humidity ≤70 %
Permitted floor
incline
Loaded
Unloaded ¹
Max. 0.5
Max. 2.0
%
%
Dimensions and weights
Mass (dead weight) m 1058/1653 lbs
WARNING!
The user is responsible for determining the actual load bearing capacity of a high-lift stacking truck. This can
depend on the user, the condition of both the floor and the high-lift stacking truck and the regularity of the
maintenance intervals.

8
Product description

9
Removing from the pallet
CAREFUL
To pick up the unit only use overhead hoist, or forklift with sufficient carrying
capacity & take into consideration the center of gravity of the unit. Use top crossmember to
lift the equipment. Be careful of the stacker swinging once fully lifted off the pallet or skid.
Remove the pallet or skid from below the lift & lower the stacker on the ground.
Refer to the identification plate for the weight of stacker.
Lifting belt specification— Use polyester lifting sling or nylon sling and hoist with a
minimum of 2,000 lb. capacity.
DANGER
When unloading the truck, all personnel should be cleared from the area.

10
OPERATION
Visually inspect stacker for damaged and worn parts, before stacker is taken into
operation. Authorized person should read and understand all instructions
The lifting truck is ready for immediate use once the packaging has been removed.
The battery is full and charged.
The hydraulic tank is full.
The driving gear is filled with oil filling for approx. 200 operation hours.
The steering roller and the running rollers are equipped with bearings which do not require maintenance;
all mast rollers are also free from maintenance.
Caution!
Pedestrian controlled industrial trucks may only be operated by persons who have been satisfactorily
instructed in operating the truck and have proved their ability to operate the truck to the responsible
representative of the operating company.
The first driving attempts should take place on level and spacious surfaces.
Recommendation:
The operator who is to maneuver the truck and is to control the lifting mechanism should be allowed
to practice, when unloaded, until they can safely operate these functions.
Only then should they undertake the loading, transporting and unloading of load.
