SBGD SERIES
SPEED BUMP WITH GLUE-DOWN ANCHOR KIT
INSTRUCTION MANUAL
VESTIL MANUFACTURING CORP.
2999 NORTH WAYNE STREET
P.O. BOX 507, ANGOLA,IN 46703
TELEPHONE:[phone] -OR-TOLL FREE [phone]
FAX:[phone]
URL:WWW.VESTILMFG.COM EMAIL:[e-mail]
NOTE:Compliance with regulations, codes, and/or statutory (non-voluntary) standards enforced in the
location where the speed bump is installed is exclusively the responsibility of the end-user.
Table of Contents Table of Figures
Product Introduction………………………... 2 Installation diagram……………...…….………… …………3
Safety Principles…………………….............2
Installation Instructions………….…............ 3
Inspections & Maintenance…………………3
1 of 3
Copyright 2011 Vestil Manufacturing Corp.

6/2/2011 SBGD installation instructions.doc
Dimensions and other product specifications appear in the following table:
Model Overall width in
inches (~cm) Overall length in inches (~cm) Overall height in inches (~cm) Net weight in pounds (~kg)
SBGD-48 9-3/4 (~24.8cm) 47-5/8 (~121cm) 2 (~5.1cm) 22.7 (~10.3kg)
SBGD-36 9-3/4 (~24.8cm) 70-3/4 (~180cm) 2 (~5.1cm) 34.6 (~15.7kg)
SBGD-108 9-5/8 (~24.4cm) 105-3/4 (~269cm) 3-1/8 (~7.9cm) 75.7 (~34.4kg)
SBGD-D-48 11-5/8 (~29.5cm) 46-15/16 (~119cm) 2-1/2 (~6.4cm) 36.8 (~16.7kg)
SBGD-D-72 11-5/8 (~29.5cm) 70-3/8 (~179cm) 2-1/2 (~6.4cm) 55.8 (~25.4kg)
Vestil Manufacturing Corp. created this manual to acquaint owners and end-users of our speed bumps with safe
installation and maintenance procedures. Employers are responsible for instructing employees to install and
maintain the product properly. Employees and any other person, who might install this speed bump, must
read and understand every instruction BEFOREHAND. Users should have access to the manual at all times
and should review the directions before each use.
Although Vestil diligently strives to identify foreseeable, hazardous situations, this manual cannot address every
conceivable danger. The end-user is ultimately responsible for exercising sound judgment at all times.
SAFETY PRINCIPLES Vestil manufactures several distinct models of glue-down speed bump. Each speed
bump conforms to the generalized specifications disclosed in this manual and fulfills our demanding standards for
quality, safety and durability.
Vestil Manufacturing Corp. recognizes the critical importance of workplace safety. Each person who might
participate in the assembly, installation, use or maintenance of the product must read this manual and fully
understand the directions BEFORE installing the product and before performing maintenance on it. Failure to
adhere to the directions in this manual might lead to serious personal injury.
Vestil is not liable for any injury or property damage that occurs as a consequence of failing to heed the instructions
in this manual. Furthermore, failure to exercise good judgment and common sense may result in either property
damage or serious personal injury or both. Such failure is solely the fault of the person(s) who acted without good
judgment; it is not yet another liability of Vestil.
This manual uses SIGNAL WORDS to classify personal injury risks or situations that might lead to property damage,
as well as to draw attention to safety message(s). The reader must understand that each signal word indicates the
seriousness of the described hazard.
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or SERIOUS
INJURY. Use of this signal word is limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or SERIOUS
INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or MODERATE
injury.
Identifies practices likely to result in product/property damage, such as operation that might damage
the speed bump.
PRODUCT INTRODUCTION
Thank you for purchasing a series SBGD speed bump. Our speed bumps are durable, high-
quality products rigorously engineered for dependability and simplicity. Although installation and
maintenance procedures are intuitively obvious, any person who might install or maintain this
product must be familiar with the instructions provided in this manual.
Failure to read and understand the instructions included in this manual before installing or maintaining the
speed bump constitutes misuse of the product.Study the entire manual before you use the product for the first
time and before each subsequent use.Read the manual to refresh, as necessary, your understanding of the safe
installation and inspection and maintenance procedures explained on p. 3. DO NOT attempt to resolve any problems with
the product unless you are authorized to do so and are certain that it will be safe to use afterwards.
2 of 3
Copyright 2011 Vestil Manufacturing Corp.

6/2/2011 SBGD installation instructions.doc
3 of 3
Copyright 2011 Vestil Manufacturing Corp.
Improper or careless installation might result in serious personal injuries sustained by motorists and/or
bystanders.
Immediately replace any speed bump that becomes structurally compromised. DO NOT keep a damaged speed bump
in service. Follow the inspection recommendations presented below to determine whether a speed bump should be
replaced.
Post signs visible to and readable by motorists to warn them about the location of the speed bump and to recommend
an appropriate reduction of speed.
DO NOT modify the speed bump or the mounting hardware in any way UNLESS you first obtain express, written
approval from Vestil. Unauthorized modifications might make the product unsafe to use, and could result in operator
and/or bystander injury.
Installation

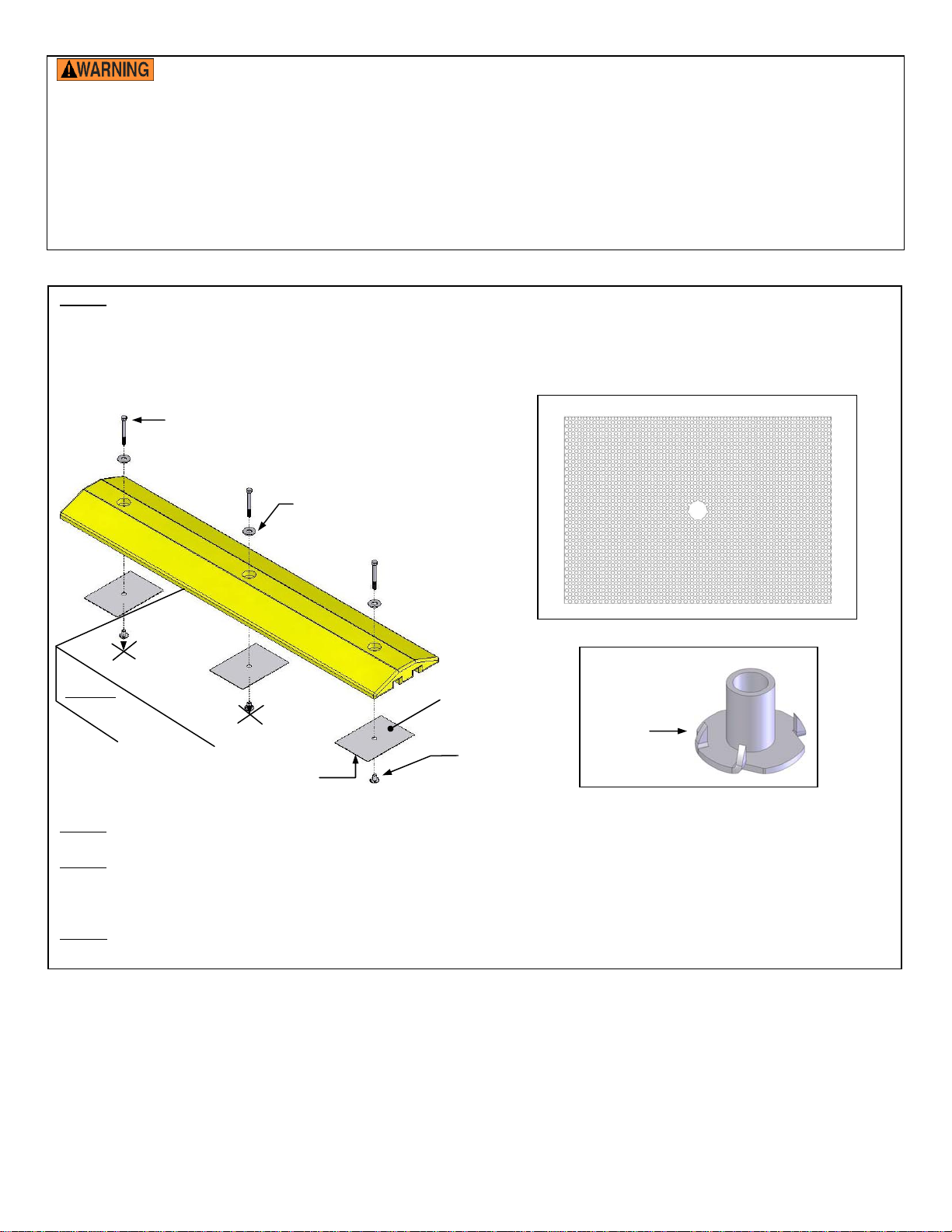

Step 1: Fasten the anchor plates to the speed bump as shown in the diagram below. Press the T-nuts into the anchor
plate holes and tighten bolts. After tightening bolts a hammer may be necessary to completely drive the T-nut serrations
through the anchor plates and into the bottom of the speed bump.
[NOTE: The number of anchor plates and fasteners is different for each model; therefore, the hardware package
included with your product might contain more than 3 anchor plates and 3 sets of corresponding fasteners.]
Step 2: Prepare the surface (road) where the speed bump will be installed. Thoroughly sweep the surface/road where
the speed bump will be installed. Allow the surface to dry completely, if applicable.
Step 3: Apply an even layer (2-3 ounces) of either 2-part epoxy or heavy duty construction adhesive to the bottom of
each anchor plate. Follow the directions included with the adhesive, and pay particularly close attention to the amount of
time required for the epoxy/adhesive to set. All anchor plates must be coated and the bump must be set in place before
the epoxy/adhesive sets.
Step 4: Place the speed bump in the selected location. Firmly press down on the speed bump to facilitate contact
between the adhesive and the surface/road. Follow the instructions about drying time included with the adhesive.
Apply
epoxy to
bottom
surface
Concrete
Close-up view of T-nut
Serration
Anchor plate (apply epoxy/adhesive to entire surface)
T-nut
Anchor
plate
Zinc-plated USS
flat washer
3/8 in. zinc-plated hex
head bolt
Inspections & Maintenance
At least once per month:
Try to wiggle the speed bump to determine the soundness of the connections between the anchor plates and the
road, as well as between the bolts and nuts. If the speed bump can wobble, i.e. separating from road surface,
determine which connection is loose, and then tighten the bolt-to-nut connection(s) and apply more adhesive to the
bottom of the loose anchor plate(s).
Closely inspect the speed bump for damage (cracks, deformation, etc.). If the speed bump is cracked or splitting,
replace it.
Wipe dirt and other filth from the surface of the speed bump. The speed bump is yellow to provide a sharp contrast
with the surface/road.
