Thank you for purchasing this VEVOR Belt and Disk Sander designed for
hobby/ DIY, indoor use, and for sanding wood or wood products only.
Before attempting to use the sander, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to the sander giving you
long and satisfactory service.
These instructions should be retained and used for reference by all those who use
the equipment.
VEVOR GUARANTEE
This VEVOR product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission.
This guarantee does not effect your statutory rights.
SPECIFICATIONS
Motor ................................................ 120V, 60Hz,
Motor Power .................................... 2.5Amp
Motor Speed .................................... 2800RPM
Sand Disk Size .................................. 5 inch (127mm)
Belt Disk Size ..................................... 1 inch (25mm)
Belt Speed ........................................ 13.5M/s
Dust Extraction Port OD .................. 17/8 ” (47mm)
Net Weight ....................................... 8kg
Dimensions (LxWxH) ........................ 360x280x390mm
Insulation Class ................................ B
Part No: ............................................ 6500403

- 3 -
SAFETY PRECAUTIONS
As with all machinery, there are certain hazards involved with their operation
and use. Exercising respect and caution will considerably lessen the risk of
personal injury. However, if normal safety precautions are overlooked or
ignored, personal injury to the operator or damage to property, may result.
1. ALWAYS Learn the machines applications, limitations and the specific potential
hazards peculiar to it. Read and become familiar with the entire operating manual.
2. ALWAYS use a face or dust mask if operation is particularly dusty.
3. ALWAYS check for damage. Before using the machine, any damaged part,
should be checked to ensure that it will operate
properly and perform its intended function. Check for alignment
of moving parts, breakage of parts, mountings and any other
condition that may affect the machines operation. Any damage should be properly
repaired or the part replaced. If in doubt, DO NOT use the machine. Consult your
local dealer.
4. ALWAYS disconnect the machine from the power supply before servicing and
when changing accessories.
5. ALWAYS wear safety goggles, manufactured to the latest European Safety
Standards. Everyday eyeglasses do not have impact resistant lenses, they are not
safety glasses.
6. ALWAYS keep work area clean. Cluttered areas and benches invite accidents.
7. ALWAYS ensure that adequate lighting is available. A minimum intensity of
300 lux should be provided. Ensure that lighting is placed so that you will not be
working in your own shadow.
8. ALWAYS keep children away. All visitors should be kept a safe distance from
the work area, especially whilst operating the machine.
9. ALWAYS maintain machine in top condition. Keep tools/machines clean for the
best and safest performance. Follow maintenance instructions.
10. ALWAYS handle with extreme care do not carry the tool/machine by its’
electric cable, or yank the cable to disconnect it from the power supply.

- 4 -
11. ALWAYS ensure the switch is off before plugging in to mains. Avoid accidental
starting.
12. ALWAYS concentrate on the job in hand, no matter how trivial it may seem. Be
aware that accidents are caused by carelessness due to familiarity.
13. ALWAYS keep your proper footing and balance at all times - don’t overreach.
For best footing, wear rubber soled footwear. keep floor clear of oil, scrap wood,
etc.
14. ALWAYS wear proper apparel. Loose clothing or jewellery may get caught in
moving parts. Wear protective hair covering to contain long hair.
15. ALWAYS guard against electric shock. Avoid contact with earthed
surfaces..pipes, radiators etc.
16. NEVER operate machine while under the influence of drugs, alcohol or any
medication.
17. NEVER leave machine running unattended. Turn power off. Do not leave the
machine until it comes to a complete stop.
18. NEVER force the machine, it will do a better and safer job at the rate for which
it was designed.
19. NEVER use power tools in damp or wet locations or expose them to rain.
Keep your work area well illuminated. Do not use in an explosive atmosphere
(around paint, flammable liquids etc.). Avoid dangerous environments.
ADDITIONAL PRECAUTIONS FOR BELT AND DISK SANDERS
1. ALWAYS wear ear protectors/defenders when using this machine.
2. ALWAYS wear a dust mask when using this machine. Be aware of harmful or
toxic dusts produced when sanding some woods, lead paint etc.
3. ALWAYS use the sandbelt support or table to support the workpiece.
4. ALWAYS check to ensure the table, sand belt support and attachments are
secure before starting.
5. ALWAYS maintain a clearance of 1.5 - 2 mm between table and sanding belt or
disc.

- 5 -
6. ALWAYS hold the workpiece firmly so that it cannot be ripped from your hands
7. ALWAYS feed the workpiece against the direction of rotation of the disc. i.e the
LEFT side of the disk
8. ALWAYS keep the mains cable well away from the machine and ensure an
adequate electrical supply is close at hand so that the operation is not
restricted by the length of the cable.
9. ALWAYS use a dust extraction device, properly connected to the dust
extraction port
10. ALWAYS ensure that nails or any foreign objects have been removed from a
workpiece beforehand. Nails etc., will destroy the belt or disk.
11. NEVER allow the ventilation slots in the motor to become blocked.
12. NEVER sand pieces which cannot be held firmly by hand.
WARNING! Use ONLY for sanding WOOD. DO NOT DO NOT USE for sanding
asbestos, or materials containing asbestos, painted surfaces, or materials
which produce toxic.
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in the mains lead are coloured in accordance with the
following code:
IMPORTANT NOTICE
If this appliance is fitted with a plug which is moulded on to the electric
cable (i.e. non rewireable) please note:
1. This plug must be thrown away if it is cut from the electric cable. There
is a danger of electric shock if it is subsequently inserted in a socket outlet.
2. Never use the plug without the fuse cover fitted.
3. Should you wish to replace a detachable fuse carrier, ensure that the
correct replacement is used (as indicated by marking or colour code).
4. Replacement fuse covers can be obtained from your local dealer, or an
electrical stockist.

- 6 -
Pre-Assembly Check
Unpack the Sander and lay out the components, checking to ensure that
no damage was suffered during transit. Any damage should be reported to
your VEVOR dealer immediately.
Loose items are as follows, referring to the illustration above:
A: 1 x Disk Sanding Table
B: 1 x Belt Sanding Table
C: 1 x Mitre Gauge
D: 1 x Sand Disk Cover/Dust Extraction Port
E: 2 x Disk Sanding Table Locking Levers
F: 1 x Vertical Sanding Table Locking Lever
G: 3 x Flat Washers (for use with Locking Levers)
H: 4 x Rubber Feet
J: 2 x Allen Keys

- 7 -

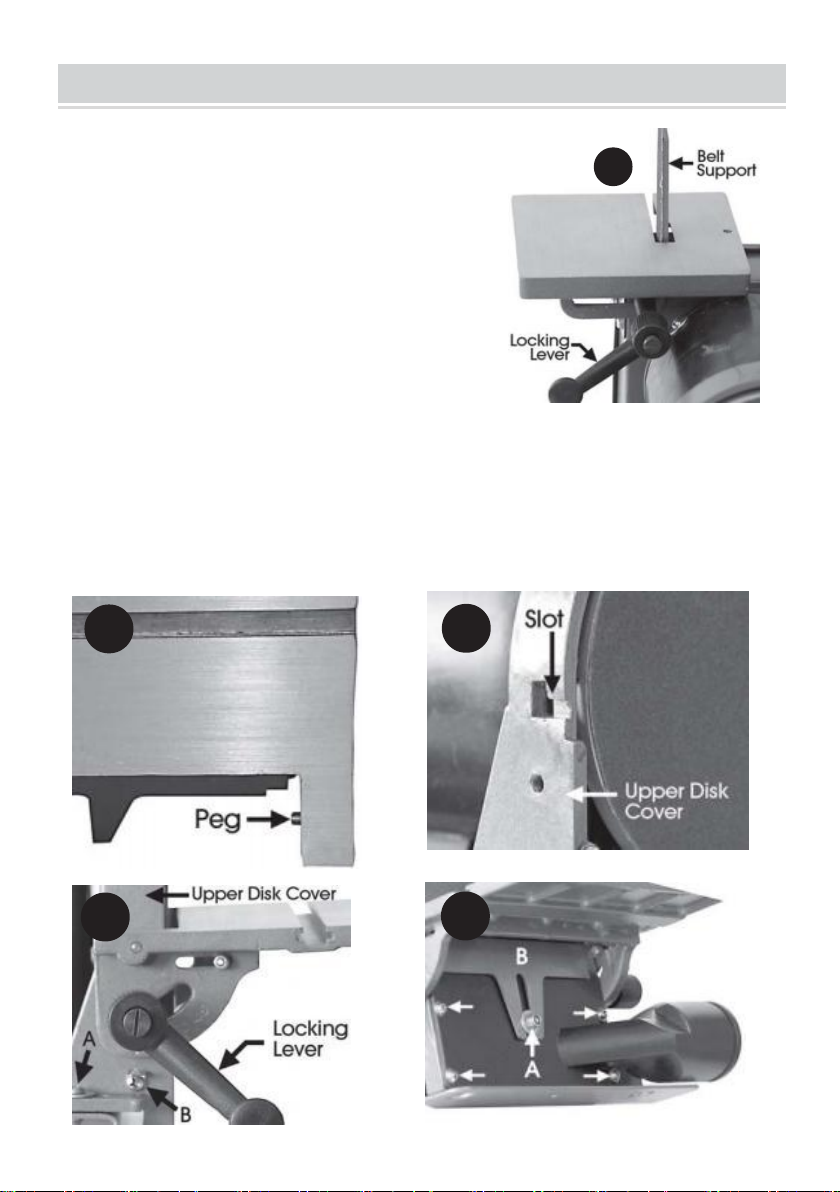

ASSEMBLY
1. Belt Table
•Gently ease the table into place with the belt
support entering the slot in the table.
•Screw the Table Locking Lever into place,
ensuring a flat washer is used on the levers ’
threads noting that the locking lever has a LEFT
HAND thread, i.e. turn anticlockwise to tighten.
2. Disk Table
•Slide the table pegs (Fig 2) into the slots in the Upper Disk Cover (Fig . 3) to the
extent that the Locking Levers can be screwed in as shown in Fig . 4, ensuring flat
washers are used on the locking lever threads
1
3
2
4
5

- 8 -
3. Feet
The four feet may be very gently eased into the holes at the base of the machine.
Alternatively, the machine may be mounted on a workbench or a wooden base,
using the four holes in the base as mounting holes. In order to maintain complete
stability when in use, the wooden base should be secured to a workbench using
‘G’clamps.
IMPORTANT ADJUSTMENTS - BEFORE USE

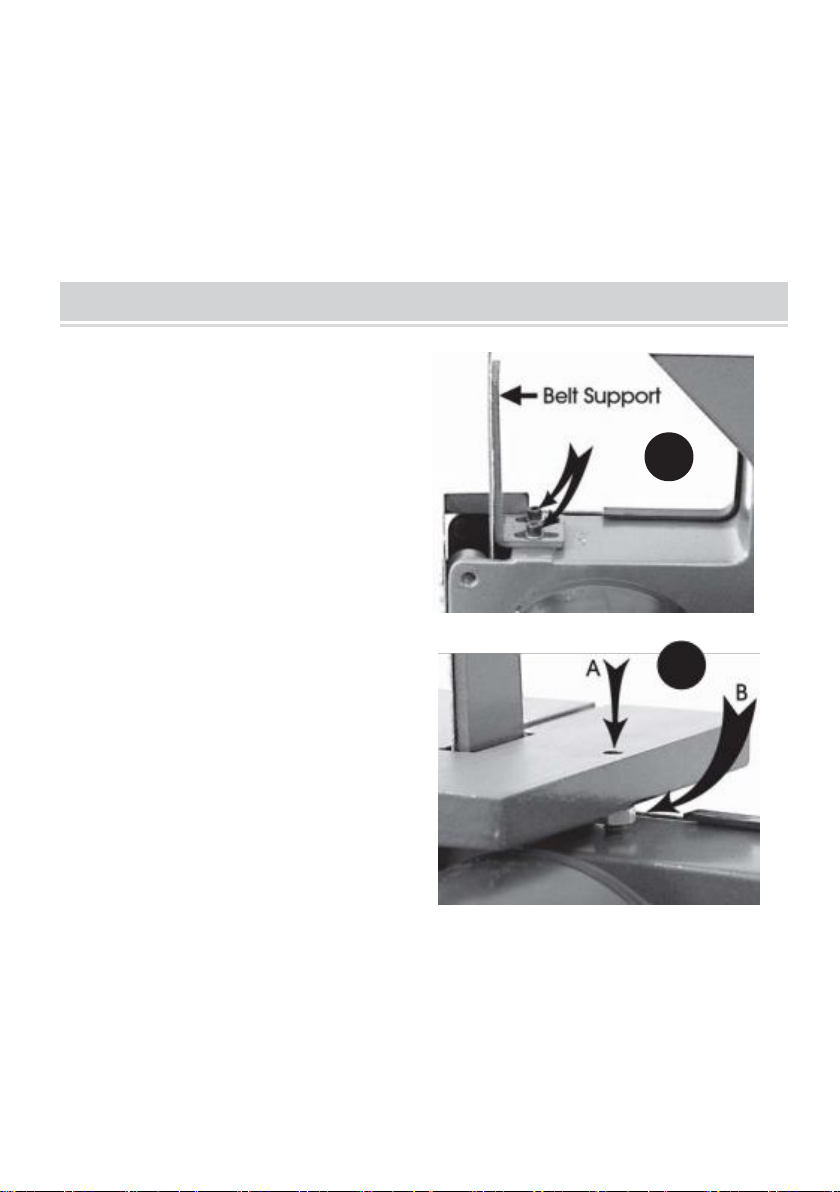

1. Belt Table Adjustment
•With the belt correctly tensioned (see
Maintenance), adjust the Belt Support
so that it is square and bears very lightly
on the back of the Sanding Belt. Ensure
the two hex socket head securing
screws (arrowed) are tight. A hex. socket
wrench is provided.
•Slacken the Table Locking Lever and
position the table so that a gap of 1.5 - 2
mm exists between the slot in the table
and the belt, then lightly secure the table
using the locking lever.
•Place an engineers square on the
table so that it butts up against the belt,
then unlock the adjuster by unscrewing
the lock nut at 7B. Screw the adjuster 7A,
clockwise or anticlockwise whilst bearing
down on the table at a point adjacent to screw 7A, until the square indicates that
the table is at right angles.
•Lock the adjuster, ensuring the nut is tight, then, maintaining pressure on the
table, finally secure the table using the locking lever. by turning anticlockwise.
• Finally, check to ensure the gap between the table and belt is between 1.5 - 2 mm.
•It is possible to set the table to any angle up to 45 degrees, simply by slackening
6
7

- 9 -
the locking lever and positioning the table using a protractor or angle setter, then
retightening the locking lever.
2. Disk Table Adjustment
•Place an engineers square on the table
and slacken the locking levers slightly.
•Adjust the table so it is at right angles to
the Disc, using the square, then tighten
the locking levers.
•If necessary, adjust the pointer, adjacent
to the angle indicator beneath the table, (B
Fig.4), so that it registers zero.
• Slacken the upper disc cover securing screws (A Fig.4) using the wrench
supplied, and adjust so that a gap of 2-3mm exists between the disc and table, and
the table is square. Tighten the securing screws.
• It is possible to set the table to any angle up to 45 degrees, simply by slackening
the locking levers and positioning the table using the angle indicator, then
retightening the locking levers. If the angle is critical, a protractor or angle setter
should be used.

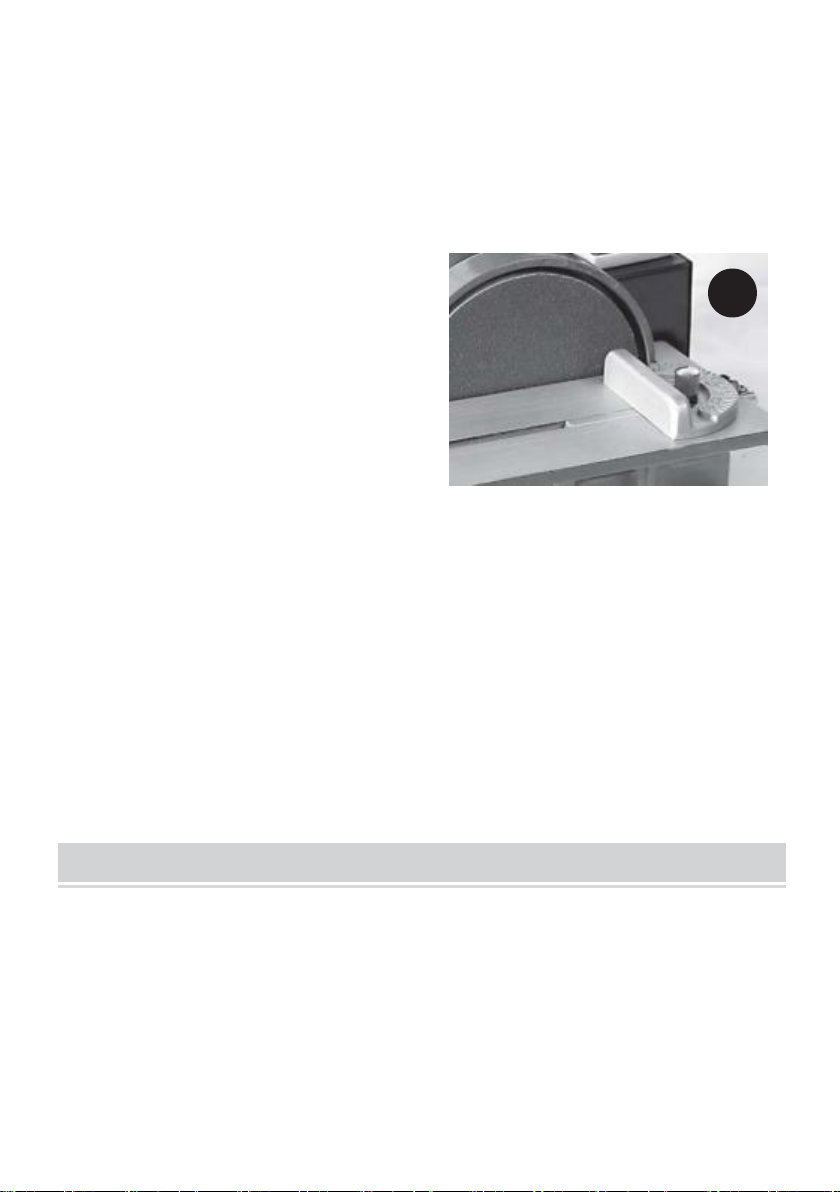

• If required, slide the Quadrant into its groove in the table .
NOTE: The quadrant may be used to hold a workpiece at any desired angle for
sanding that angle with accuracy.
OPERATION
IMPORTANT!
Ensure that ALL components are secure, ALL correct adjustments have been
carried out, and ALL safety precautions have been observed BEFORE plugging
the machine into the mains supply, and switching ON.
1. Attach a vacuum cleaner or other dust extraction device to the relevant
extraction port (depending upon the medium to be used), and switch it ON.
8

- 10 -
2. Switch the machine ON by pressing the Green ON button.
3. If using the belt, check to ensure it is tracking properly adjust if necessary.
4. Holding the workpiece firmly, place it on the table and gently slide it into contact
with the belt or disk. DO NOT force it, a light force only is necessary.
IMPORTANT!
When using the sanding disk, ALWAYS use the
left half of the disk ONLY, i.e. that , side where
the direction of rotation of the disk is down
towards the table.
MAINTENANCE
IMPORTANT!
Whenever making adjustments or carrying out maintenance tasks, ALWAYS
switch OFF the machine and disconnect from the power supply.
1. Changing the Sanding Belt
1. 1 Remove the belt table completely by
unscrewing and removing the table locking
lever.
1.2 Remove the two side cover securing
screws (9A), followed by the upper roller pivot
screw (9B), then pull off the side cover.
1.3 Turn Adjuster (10C) anticlockwise sufficiently for the sanding belt to be
slipped off the rollers.
1.4 Replace the sanding belt ensuring it is central about the rollers, and the
arrow (10D) is pointing down towards he table.
1.5 Turn the belt by hand and observe how it moves on the rollers, indicated by
its position on the support. This will determine whether not it is
9

- 11 -
tracking correctly. If it moves sideways,
turn the adjuster - 10C, so that it
stabilises over the middle of the support.
At this point the belt is tracking properly .
The belt is tensisioned automatically and
cannot be adjusted .
NOTE: Turning the adjuster clockwise
will cause the belt to move one
way...turning it anticlockwise and it will have the opposite effect.
2. Changing the Disk
2. 1 Remove the disk table and lower cover/dust extraction port (see fig.5)
2.2 Slacken the two screws securing the upper disk cover and slide it backwards.
2.3 Using a sharp instrument, tease off a portion of the sanding disk, sufficient for
it to be grasped by hand and peeled off.
Remove all residual adhesive, and finally clean the disk with a solvent.
2.4 Peel the backing from the replacement sanding disk and fix to the disk
ensuring it is centralised. Press it firmly to ensure it is secure.
2.5 Replace the table and lower disk cover, and adjust gap between table and
disk, by positioning abd securing the upper disk cover.
PARTS LIST & DIAGRAMS
WARNING: The use of spare parts, other that those supplied by VEVOR
International or one of its recognised dealers, may be hazardous and could
invalidate the guarantee.
10

- 12 -
PARTS DIAGRAM

- 13 -
PARTS LIST
Item
Description
Qty
Part No
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Knob
Cover
Label
Warning Label
Belt
Retaining Ring
Bearing
Driven Wheel
Shaft
Plastic Belt Guard
Washer
Screw
Screw
Pulley
Body
Adjustable Shaft
Spring
Washer
Retaining Ring
Elastic Pin
Adjustable Plate
Spring
Spring
Knob
Washer
Bolt
Screw
Washer
Support Bracket
Nut
Screw
1
1
1
1
1
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
HTCBS1501
HTCBS1502
HTCBS1503
HTCBS1504
HTCBS1505
HTCBS1506
HTCBS1507
HTCBS1508
HTCBS1509
HTCBS1110
HTCBS1111
HTCBS1112
HTCBS1113
HTCBS1514
HTCBS1515
HTCBS1516
HTCBS1517
HTCBS1518
HTCBS1519
HTCBS1520
HTCBS1521
HTCBS1522
HTCBS1523
HTCBS1524
HTCBS1525
HTCBS1526
HTCBS1527
HTCBS1528
HTCBS1529
HTCBS1530
HTCBS1531

- 14 -
Item
Description
Qty
Part No
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
Elastic Washer
Washer
Wheel
Insert
Bolt
Screw
Table
Nut
Washer
Bolt
Lever
Spring
Screw
SCrew
Motor
Screw
Washer
Screw
Washer
Pointer
Cover
Screw
Disk
Sanding disk
Knob
Washer
Mitre Gauge
Screw
Washer
Pointer
Sliding Bar
Table
Pin
1
1
1
1
1
1
1
1
1
1
1
1
1
3
1
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
HTCBS1532
HTCBS1533
HTCBS1534
HTCBS1535
HTCBS1536
HTCBS1537
HTCBS1538
HTCBS1539
HTCBS1540
HTCBS1541
HTCBS1542
HTCBS1543
HTCBS1544
HTCBS1545
HTCBS1546
HTCBS1547
HTCBS1548
HTCBS1549
HTCBS1550
HTCBS1551
HTCBS1552
HTCBS1553
HTCBS1554
HTCBS1555
HTCBS1556
HTCBS1557
HTCBS1558
HTCBS1559
HTCBS1560
HTCBS1561
HTCBS1562
HTCBS1563
HTCBS1564

- 15 -
Item
Description
Qty
Part No
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
Screw
Spring
Lever
Bolt
Washer
Lower Disk Cover
Washer
Screw
Screw
Rubber Pad
Base
Washer
Elastic Washer
Bolt
Rubber Pad
Side Cover
Washer
Elastic Washer
Screw
2
2
2
2
2
1
4
4
1
1
1
2
2
2
4
1
2
2
2
HTCBS1565
HTCBS1566
HTCBS1567
HTCBS1568
HTCBS1569
HTCBS1570
HTCBS1571
HTCBS1572
HTCBS1573
HTCBS1574
HTCBS1575
HTCBS1576
HTCBS1577
HTCBS1578
HTCBS1579
HTCBS1580
HTCBS1581
HTCBS1582
HTCBS1583

Technical Support and E-Warranty Certificate
www.vevor.com/support
Made In China
