OPERATING MANUAL OF DISTILLED
WATER MACHINE
MODEL:YMK40202
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
MODEL:YMK40202
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
DISTILLED WATER
MACHIN

- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:(1)This device may
not cause harmful interference, and (2)this device must accept
any interference received, including interference that may
cause undesired operation.
This product is subject to the provision of European Directive
2012/19/EC. The symbol showing a wheelie bin crossed
through indicates that the product requires separate refuse
collection in the European Union. This applies to the product
and all accessories marked with this symbol. Products marked
as such may not be discarded with normal domestic waste, but
must be taken to a collection point for recycling electrical and
electronic devices
PARAMETER
Model
YMK40202
Material
304 Stainless Steel,
Polypropylene
Input Power
AC 220-240V，50-60Hz
RatedPower
750W

- 3 -
DistillerVolume
Bottle Volume
4 . 2 Q t 1 . 1 g a l 4L
Processing Rate
1.1 qt./hr.
0.26 gph
1 L / H
Safety Cutoff Temperature
300°F
150°C
Thank you for purchasing VEVOR water distiller. Before using our distiller,
please confirm all parts are in good condition and read the instruction
carefully.
SAFETY INSTRUCTIONS - Read Before Operating SCALDING
DANGER!
IMPORTANT SAFETY INSTRUCTIONS
( WARNING: To reduce the risk of burns, electrocution, fire or injury to
persons! )
Do not immerse the head and base in water or other liquid, nor flush with
faucet.
After the water in the distillation barrel is dried and automatically protected
by the anti-dry protection system, the machine assembly shall be opened
after an interval of about 15 minutes to avoid possible hurt caused by the
steam in the barrel.
Before the product is connected to the power supply, confirm whether the
marked voltage is consistent with the local used voltage.
If the plug, socket or product is damaged, do not remove the machine for
repair without permission, to avoid the wrong connection of the internal
circuit, resulting in power short circuit and other dangers.
This appliance can be used by children aged from 8 years and above if

- 4 -
they have been given supervision or instruction concerning use of the
appliance in a safe way and if they understand the hazards involved.
Cleaning and user maintenance shall not be made by children unless they
are older than 8 and supervised. Keep the appliance and its cord out of
reach of children aged less than 8 years. This product is not suitable for
people with physical or mental disorders, to avoid harm caused by wrong
use.
Do not touch hot surface without any protection
ELECTRICAL PRECAUTIONS
Do not disassemble the unit excep for the authorized serviceman. Unplug
the unit before filling it Do not exceed the MAX mark.
Do not touch the socket with a wet hand to reduce the risk of electrocution.
If the plug, socket, or product is damaged, do not remove the machine for
repair without permission, to avoid the wrong connection of the internal
circuit, resulting in a power short circuit and other dangers.
When taking the head components or cleaning products, press the OFF
switch first, and unplug the power plug of the head components and the
host power plug.
Do not share the same outlet with other high-wattage appliances while
operating in order to prevent overloading
Always unplug the Main Power Cord before filling or cleaning the unit or
whenever not in use
INSTRUCTIONS BEFORE FIRST USE
Due to the brand-new stainless steel in the still tank, you may perceive a
very slight “new smell”or faint taste from the first couple of cycles or so.
However, the water is completely pure and safe to consume. Any residual

- 5 -
scent or taste dissipates with each use until the water becomes completely
odorless and tasteless. After the first few cycles, there should be hardly
any taste at all and in fact, it will “taste”better than any other filtered or
bottled water.
Remove the head of the stiller or clean the stiller, press the OFF switch first,
and unplug the power cord
For the first time, add 1.0L of water and 2 tablespoons of citric acid into the
tank of the main engine, boil water for about 20 minutes, after pouring out
the water, rinse the tank and the distillation cover with clean water (the
distilled water made for the first time cannot be drunk).
When cleaning the interior, it is forbidden to use steel wire brush (velvet)
and other hard articles to scrub the inner tank of the main engine and the
inner tank of the machine head, so as to avoid scratches formed on the
surface of the inner tank, which will cause dirt accumulation in the gap with
fine scratches.
When it is necessary to stop the production, you can press the OFF switch.
There is no need to wait for the water in the tank of the host machine to dry
up completely.
This product can continuously produce distilled water, press the OFF
switch and turn on the head component after an interval of about 15
minutes. Add the water with the largest scale into the inner tank of the main
machine, and press the ON switch to restart the distilling.
PRODUCT FEATURES

- 6 -
VEVOR Water Distiller Boils the water to kill Bacteria and Parasites,
collects the purified steam, and leaves behind impurities. Cools and
condenses the steam into pure distilled water.
VEVOR still tank and nozzle are made of 304 stainless steel, equipped
with a food-grade silicone tube and high-quality Carafe. At no point does
the water touch plastic. 100% boiled and sterilized, pure, and safe.
Drinking distilled water on a daily basis can keep you hydrated and healthy
Advanced silent fan + Super cooling technology: Steam supercooling.
ON/OFF switch: Start or stop condensate production at any time.
Anti-dry protection function: When the water in the still tank completely
evaporates, the temperature control will automatically turn off the power to
protect the machine.

- 7 -

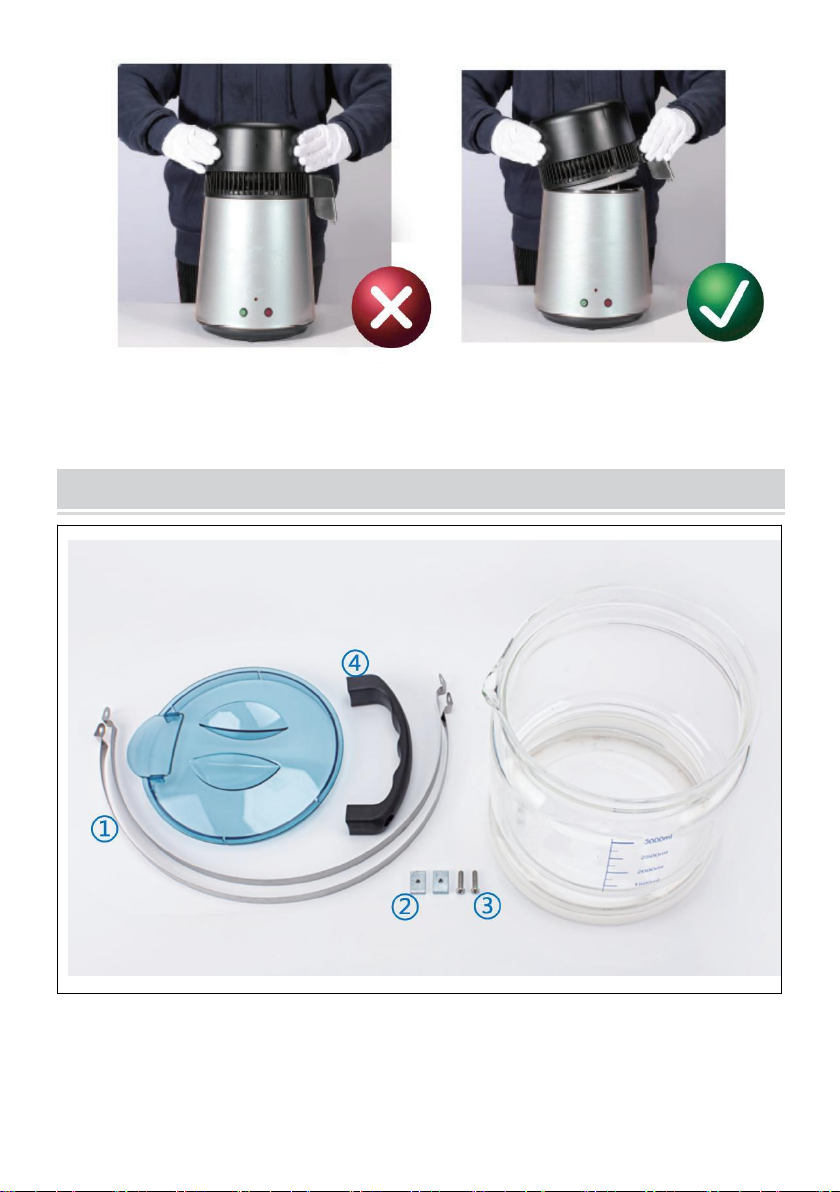

PACKAGE CONTENT
No.
Name
Qty.
No.
Name
Qty.
A
Water Distiller
1
G
Bolts
2
B
Collection Cap
1
H
Square Nuts
2
C
Carafe Lid
1
I
Activated Charcoal
Sachet
（The one in the
Nozzle）
4
D
Stainless Steel
Straps
2
J
Power Cord
1
E
Carafe
1
K
Citric Acid
1
F
Handle
1
L
Silicone Tube
1

- 8 -
OPERATING INSTRUCTIONS
Install water storage
tank
Placing activated
carbon
Installing silicone
tubing
Put citric acid cleaning
agent into the bucket
and clean the inner
bucket
Fill water into the
distiller tank, do not
exceed the water level
Insert the head
power cord into the
head power cord
socket
Connect the
powercord of the body
to the main body
Connect the power
cord plug of the body to
the wall socket hole or
a suitable cable tray
Place the water
storage tank properly

- 9 -
Press the ON switch to start the
distillation. (the green one)
Press the OFF switch to stop the
distillation. (the red one)
Do not share the same outlet with other high-wattage appliances while
operating in order to prevent overloading, and make sure the surface is dry
and the unit is completely assembled
1.Fill water into the distiller tank, do not exceed the water
max level
※Using hot or boiled water can reduce the distillation time
2.Place the top of the distiller tank back, Position the collection jar under
the distilled water outlet
※Check whether the sealing ring of the machine head is properly installed
or leaking
3.Connect the power cords with the socket and distiller machine
※Please make sure power cords are properly connected and fastened
4.Press the GREEN switch on the distiller machine. The indicator of the
start button lights up, the head fan starts to turn, and the distiller machine
starts to heat up.
5.The distiller machine is heated for about 30 minutes, and the distilled
water starts to drip out slowly from the distiller to the Carafe

- 10 -
6.Stop the distillation by pressing the RED switch or disconnecting the
main power cord from the socket
※VEVOR distiller is specially equipped with anti-dry protection system.
automatically stops when the still tank is dry to ensure safety
CLEANING INSTRUCTION
※When using it for the first time, please boil it with citric acid and water,

- 11 -
and then clean it.
1.Add 1.0L of water and 2 tablespoons of citric acid into the still tank, put
the top back on, and boil water for about 20 minutes.
2.After pouring out the water, wash the distiller’s tank and cap with a soft
cloth (the distilled water made for the first time cannot be drunk).
3.Rinse these parts with clean water while not allowing any electrical
components to become wet.
WARM TIPS:
Clean the inside of the boiling tank after each cycle has ended and the unit
has cooled for at least 30 minutes. Disconnect the distiller from power and
allow time for it to fully cool before any cleaning, maintenance, or repair.
Never use caustic chemicals or harsh abrasives, which might damage the
steel lining.
Rinse and wipe the distiller’s tank daily using clean water and a soft cloth.
Clean the distiller’s tank and cap at least monthly to remove mineral
deposits and other buildup from the stainless steel lining.
Clean the collection bottle at least monthly with warm soapy water and
rinse it thoroughly afterward to remove any soap residue. Never alternate
between hot and cold water quickly as this may damage the bottle.
If this device will not be used for an extended period of time, remove the
collection cap from the lid, install the storage cap in its place, and store the
distiller in a cool dry location out of direct sunlight and inaccessible to
children.
※This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1)This device may not cause
harmful interference, and (2)this device must accept any interference
received, including interference that may cause undesired operation.

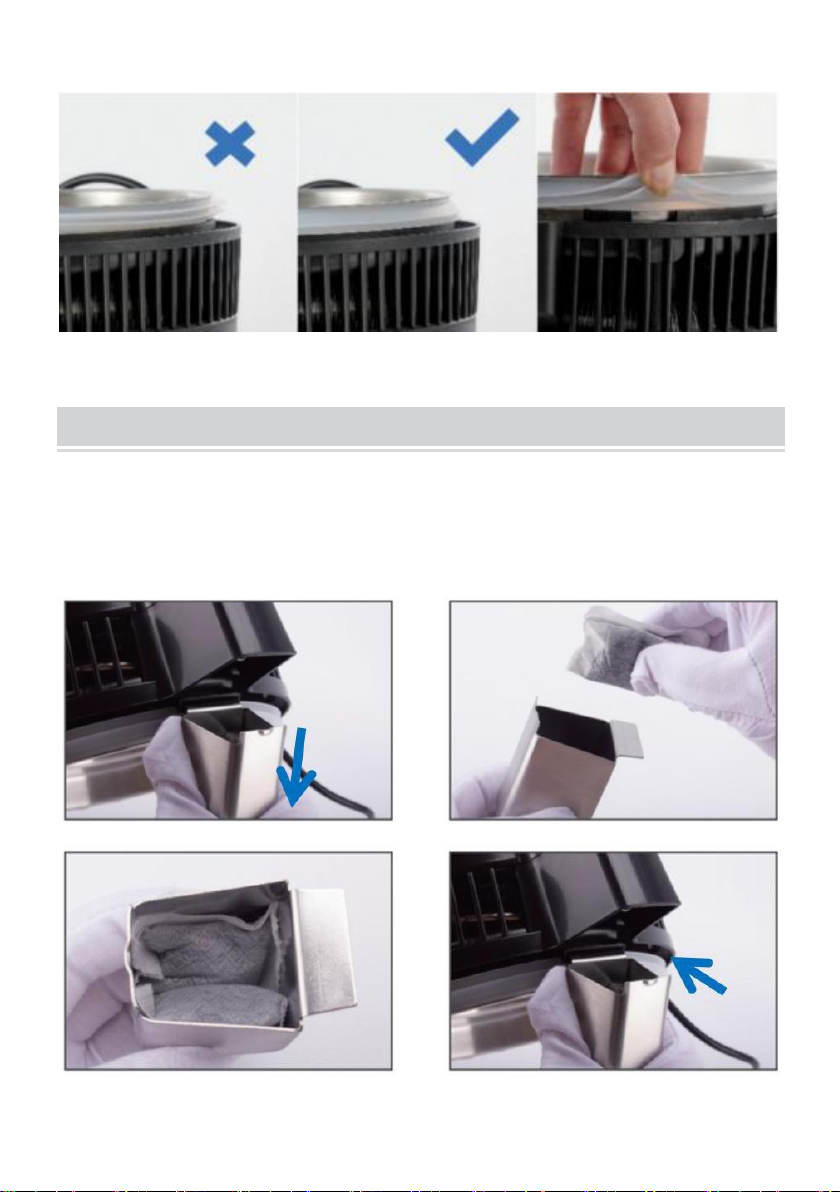

SILICONE SEAL ASSEMBLY
The silicone seal prevents water from escaping the distiller. When placing

- 12 -
or replacing it, ensure that the rounded side is facing up.

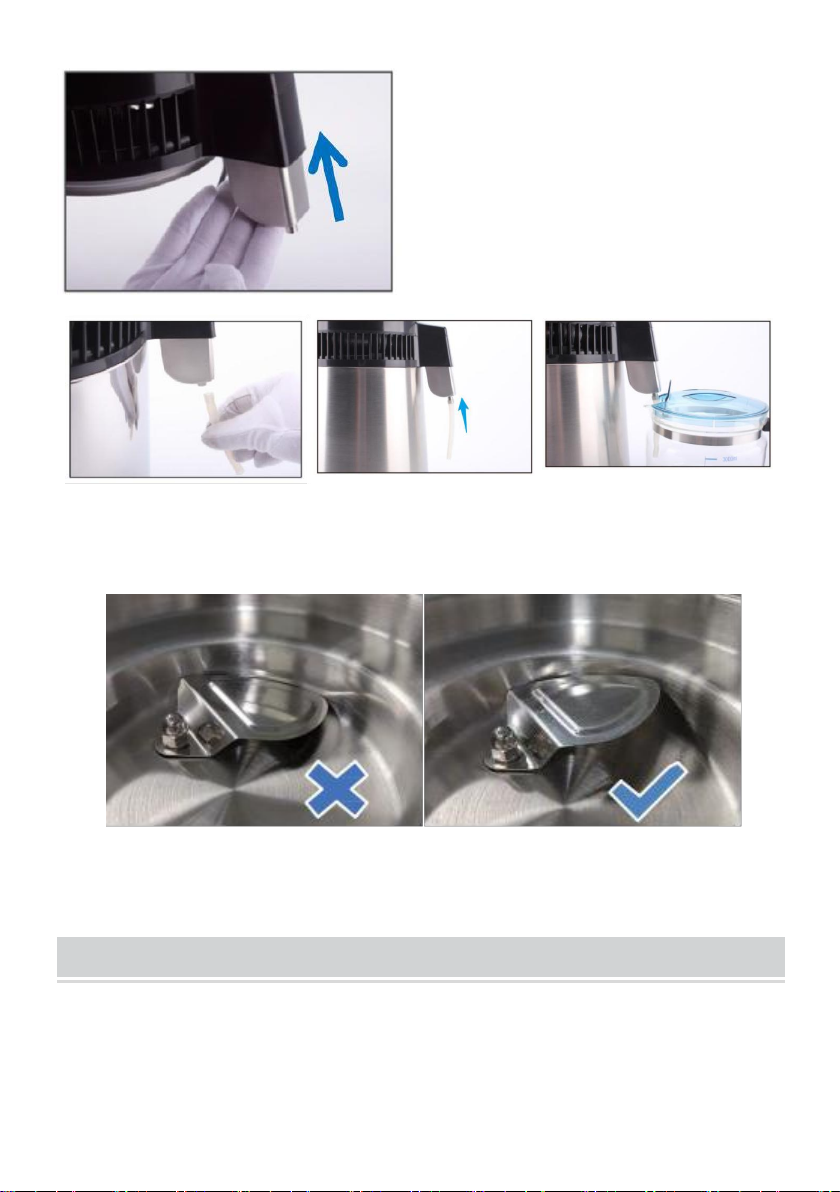

ACTIVATED CHARCOAL & NOZZLE ASSEMBLY
Installation and disassembly of outlet nozzle are shown in the diagram on
the right. Before the water outlet nozzle is installed into the machine head,
the activated carbon shall be installed into the stainless steel water outlet
nozzle first. Check that the seal remains in place.

- 13 -
※If the steam baffle is deformed, please correct it manually,
otherwise it will affect the water outlet efficiency.
DISTILLER LID OPEN INSTRUCTION
Wait 15 minutes after stop the distillation before removing the lid. Carefully
open the lid from the side to avoid scald

- 14 -
※Remove the upper lid 15 minutes after stop distillation
THE CARAFE ASSEMBLY

- 15 -
Put the stainless steel
straps ①into the slot
of the Carafe；
Insert the square nut ②
into the stainless steel
strap groove①
Fit the concave part
of the handle ④with
the convex part
of the stainless steel
straps①
Tighten the upper
screw and lower
screw ③. with a cross
screwdriver
The same applies to
the other side of the
handle
Place the lid on the
Carafe with the
opening facing the
Carafe spout.
ACTIVATED CHARCOAL SACHET
Activated charcoal ingredients: Natural coconut shell. Functions: Removes
odors and improves taste.
Validity date: Each activated charcoal sachet should be replaced within a
period of 25 days.If a strange taste or odor is discovered in the distilled
water, please replace the activated charcoal sachet immediately
Water will be tastier if you use 2 sachets at a time.
Please do not place an unused or currently used activated charcoal sachet
in the refrigerator to avoid odor absorption that would result in poor
water taste.
Used activated charcoal sachet can be re-used for odor removal by placing

- 16 -
it in shoes or refrigerator. New activated charcoal sachets can release a
small trace of black powder, which is completely harmless to human
body. It is just powdered charcoal. Please use at ease.
New activated charcoal sachets are sealed in sealed plastic bags and
should be kept in a cool place.
The stored lifespan of a new activated charcoal sachet is 2 years
DISTILLER CLEANERS
Cleaner ingredients: Food-grade citric acid (made of natural crops such as
potatoes and corn). Functions: Can dissolve dirt and hard residues, and
inhibit the growth of bacteria.
Objective: Cleaning the remaining residue after a distillation process
TROUBLE SHOOTING
Problems
Causes
Solutions
1. Weird
noise
occurs in
the top
(1)Too much dirt on
the Motor that cause
this part to become
defective or weird noise
clean motor and reassemble the
top
2. Top has no
function
(1)Motor shaft is stuck
Seeking customer service
assistance
(2)Motor wire connection
error
Check the motor wire
connection
(3)Motor fuse malfunction
Replace motor and reassembly
(4)Power disconnected
from the
body
Distiller body reexamination
3.Water
leakage
(1)Top has bad heat
dissipation
problem
Be sure the main power cord
plug into the wall
outlet

- 17 -
from the
top during
the
distillation
process
(2) Fan stops running or
excessive
dust
Re-examine the top's function
and clean dust
(3)Cushion rubber ring
has
hardened
Replace the cushion rubber ring
(4)Cushion rubber ring
has
incorrectly installed
Please recheck cushion rubber
ring
(5)Cooling duct is
clogged or the distilled
water doesn't drips
smoothly
Re-examine the cooling duct
and remove foreign
matter.Check the distilled water
flow back
(6)The nozzle has
incorrectly installed
and causing
distilled
water leak
Please install correctly after
confirmation
(7)Other Water leakage
The nozzle and the spout of
wate container did not
align properly
Problems
Causes
Solutions
4. Body heating
problem
(1)No power
supply to the
body,power cords
and sockets have
connection
problem.
Check 2 sides of power cords
and sockets having any bad
connection problem or not.
Check the function of wall outlet
is
normal or not.Check the Main
power switch is
in“ON” position or not.

- 18 -
(2)Blown fuse( It
sometimes
happens in the
middle of the
distillation process)
Replace fuse
(3)Main Power cord
malfunction
Replace the main power cord
5.Burnt sockets
The power cords
were not properly
plugged in that
results in
a poor connection and
it's melted
Replace sockets
6.Burnt main
power cord
Power cord is deformed
due to
improper operation
Replace main power cord
7.Water leakage
from the
body
(1)The stainless steel
tank is broken
Replace the stainless steel
tank
(2)Water drips from Top
to thebottom
Check the Top during the
distillation
8.Collecte
d distilled
waterless
than 4
liters
(1)Poured less than 4
liters of water
Pour the water till the “FULL line
(2)The fan stops
running that
causes to lose the
steam
Check the function of fan and
power is normal or
not
9.Main power
switch is
malfunctioned
Unable to switch
Replace Main power switch
