INSTALLATION GUIDE
VIA Mobile360 Forkli
Safety System
1.00-12072021

Copyright
Copyright © 2021 VIA Technologies Incorporated. All rights reserved.
No part of this document may be reproduced, transmied, transcribed, stored in a retrieval system, or translated into any language, in any
form or by any means, electronic, mechanical, magnec, opcal, chemical, manual or otherwise without the prior wrien permission of
VIA Technologies, Incorporated.
Trademarks
All brands, product names, company names, trademarks and service marks are the property of their respecve holders.
Disclaimer
VIA Technologies makes no warranes, implied or otherwise, in regard to this document and to the products described in this document.
The informaon provided in this document is believed to be accurate and reliable as of the publicaon date of this document. However,
VIA Technologies assumes no responsibility for the use or misuse of the informaon (including use or connecon of extra device/
equipment/add-on card) in this document and for any patent infringements that may arise from the use of this document. The informaon
and product specicaons within this document are subject to change at any me, without noce and without obligaon to nofy any
person of such change.
TO THE FULL EXTENT PERMISSIBLE BY LAW, VIA DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. UNLESS EXPRESSLY PROVIDED OTHERWISE,
VIA DOES NOT WARRANT VIA SERVICE(S), INFORMATION, CONTENT, MATERIAL(S), PRODUCT(S) (INCLUDING SOFTWARE) OR OTHER
SERVICE(S) INCLUDED ON OR OTHERWISE MADE AVAILABLE TO YOU THROUGH VIA REGARDING ITS ACCURACY, COMPLETENESS, OR NON-
INFRINGEMENT OF INTELLECTUAL PROPERTY.
TO THE FULL EXTENT PERMISSIBLE BY LAW, VIA WILL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND ARISING FROM THE USE OF VIA
SERVICE(S), INFORMATION, CONTENT, MATERIAL(S), PRODUCT(S) (INCLUDING SOFTWARE) OR OTHER SERVICE(S) INCLUDED ON OR
OTHERWISE MADE AVAILABLE TO YOU THROUGH VIA, INCLUDING, BUT NOT LIMITED TO DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, AND
CONSEQUENTIAL DAMAGES, UNLESS OTHERWISE SPECIFIED IN WRITING.
VIA Technologies, Inc. reserves the right the make changes to the products described in this manual at any me without prior noce.
Regulatory Compliance
FCC-A Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residenal area is likely to
cause harmful interference, in which case the user will be required to correct the interference at his personal expense.
Noce 1
The changes or modicaons not expressly approved by the party responsible for compliance could void the user's authority to operate
the equipment.
Noce 2
Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.
Noce 3
The product described in this document is designed for general use, VIA Technologies assumes no responsibility for the conicts or
damages arising from incompability of the product. Check compability issue with your local sales representaves before placing an
order.
ii

VIA Mobile360 Forkli Safety System Installaon Guide
iii
Important Safety Instrucons
Before installing and using this product, please carefully read all the safety instrucons and warnings in this
user manual. Installing this product means that you have fully understood, conrmed and agreed to operate
this product in accordance with the safety instrucons and warnings stated in this manual. If you do not agree
to these terms, please return this product to your dealer in its original packaging.
Cauon:
This product cannot replace the driver to perform any operaons, and the use of this product does not mean that
any safe driving responsibility of the driver can be reduced. In any case, drivers should strictly observe safe driving
laws and regulaons and drive carefully.
• Please understand that the VIA Mobile360 Forkli Safety System is an intelligent video surveillance
assistance system that can provide the driver with warnings in certain potenally dangerous
situaons, rather than an automated driving system. The driver cannot use it as a substute for driving
a motor vehicle or construcon vehicle. For any operaon that is usually performed at the me, the
driver should remain vigilant under any driving condions to ensure compliance with all safe driving
standards and regulaons; and abide by all safety rules.
• Please understand that although this product uses machine vision soware and other top innovave
technologies, it sll cannot guarantee 100% accurate detecon of vehicles, pedestrians, obstacles, or
lanes. The road surface, weather and other condions will also aect the detecon accuracy of this
product. The ability to recognize and react has a great impact, and we cannot guarantee to provide
all corresponding audible or visual warnings. Therefore, we warn drivers not to rely too much on
this product and lose their self-judgment or negligence when driving. Drivers should not rely on this
product for their driving safety but should strictly abide by the safe driving regulaons.
• Please understand that before the driver is familiar with the funcons of the system operaon of this
product, please do not change any sengs for the system. During driving, please do not try to change
the system sengs of this product or change the posion of the sensor. Drivers should always abide
by safe driving regulaons when using the VIA Mobile360 7" display (upgrade opon), and should
always pay aenon to the operang environment, even when viewing the display.
Magnets Warning
• This system contains powerful magnets, use cauon when handling to avoid pinching.
• This magnets are fragile, avoid dropping or banging them.
• Do not approach magnec, electrical materials, electrical appliances, including heart rate regulators,
etc., to avoid degaussing, device failure, or even destrucon due to strong magnesm.
• Do not use in environments exceeding the operang temperature of the system specicaon to avoid
magnet demagnezaon.
• If a person is sensive to metal objects approaches the magnet, the skin will become rough and red. If
this reacon occurs, please do not handle the strong magnets.
Pre-Installaon and Use
• Please familiarize yourself with this user manual before installing this product. If you need a dealer/
third-party to install the system, contact VIA for further informaon."
• The working voltage of this product is 9VDC-36VDC.
• Do not cover or block the VIA Mobile360 camera or VIA Mobile360 7"display or controls.
• Except for the purposes stated in this user manual, this product may not be used for any other
purpose.
• If a certain funcon/accessory is marked as "oponal", it means that the funcon/accessory is not
applicable to all vehicle types and models, and addional fees may be required. Before purchasing this
product, please conrm with VIA about the suitability of this product in advance.

VIA Mobile360 Forkli Safety System Installaon Guide
iv
• It may not be possible to install this product on every type or model of forkli. Before purchasing this
product, please conrm with the VIA whether this product is suitable for the type or model of the
forkli you intend to install it on.
• Before use, please conrm that the driver is familiar with the system operaon of this product and
ensure that the operaon of this product does not aect driving safety.
System Limitaons
1. This product is more suitable for brightly lit factories or outdoors.
2. This product is not a substute for the driver to "observe" the surrounding environment. The driver
should always remain alert during driving and operate according to the condions they observe or hear.
3. The people detecon funcon of this product can only detect people that are fully visible and cannot
detect people that are blocked or other unusual acons except standing, walking, running, squang,
lying down or lying on the ground.
4. This product cannot guarantee 100% accuracy when detecng people or warning drivers of potenal
unsafe driving condions/behaviors. In addion, light, working environment, weather and other
condions will greatly aect the recognion and response capabilies of this product. If the view of the
camera is parally or completely blocked, the funcon of this product will be lost or impaired. Please
make sure that the camera has a clear view!
License and Guarantee
Limited Use License
All intellectual property rights of this product belong to VIA. VIA only grants the purchaser of this product
a non-exclusive license to use the soware. The purchaser shall not: (a) modify, change or convert the
soware used in the product or provided with the product; (b) reverse assemble, decompile, disassemble
or other aempts to obtain the source code of the soware; (c) copying, selling, transferring, sub-licensing,
leasing, renng, lending, transferring, distribung, or otherwise transferring or disclosing the soware; or (d)
remove, cover up, or change the property rights, trademarks or other rights statements on the product or
corresponding documents.
Limited Guarantee
The limited warranty for this product (hereinaer referred to as the "limited warranty") is non-transferable. VIA
promises to provide the original purchaser of this product with a one-year free warranty service from the date
of shipment.
VIA is not responsible for any problems caused by installaon. At the same me, the following condions are
not covered by the warranty: (a) damage caused by incorrect use, negligence, incorrect installaon or accident;
(b) installing this product on an inappropriate vehicle; (c) except for VIA, any third-party repairs or changes to
the product; (d) due to accidental damage or due to factors other than the product, including but not limited
to the use of the environment does not meet the requirements or exceed the protecon standards, power
outages, current surges, voltage instability, excessive damage caused by voltage, overload, short circuit, high
temperature, high humidity, outdoor wind and rain, natural disasters or force majeure.
Disclaimer
This limited warranty is the only and exclusive warranty for this product. To the extent permied by applicable
laws, VIA does not assume any express or implied warranes or guarantees regarding product marketability or
suitability for specic purposes. No representaves, distributors or agents are authorized to make statements,
claims, or guarantees regarding this product on behalf of VIA. Except for the content clearly stated here, VIA
will not make any other declaraons or guarantees. Under no circumstances will VIA be liable for any special,
incidental, direct, indirect, punive, incidental, ancillary or punive damages related to this product or caused
by the use of this product.

VIA Mobile360 Forkli Safety System Installaon Guide
v
Warranty Process
During the warranty period, if this product breaks down and needs to be repaired, please follow the process
below:
1. If you purchased this product from a distributor, please contact them.
2. If you purchased this product directly from VIA, please contact VIA. All products returned to VIA
must be shipped prepaid. Please contact the VIA Customer Service Department to ask for the return
authorizaon number, which must be provided when returning the goods, otherwise VIA has the right
to refuse to accept it.

VIA Mobile360 Forkli Safety System Installaon Guide
vi
Revision History
Version Date Remarks
1.00 07/12/2021 Inial Release

VIA Mobile360 Forkli Safety System Installaon Guide
7
Table of Contents
1. Product Overview........................................................................................................................................... 1
1.1 Packing Contents................................................................................................................................... 1
1.2 System Layout ....................................................................................................................................... 2
1.3 System Dimensions ............................................................................................................................... 2
2. Installaon...................................................................................................................................................... 4
2.1 System Preparaon ............................................................................................................................... 4
2.1.1 Inserng a MicroSD Card ............................................................................................................... 4
2.1.2 Securing the Waterproof Cover ..................................................................................................... 5
2.1.3 Aaching the I/O covers ................................................................................................................ 5
2.1.4 Aaching the Vibraon Dampening Strips..................................................................................... 6

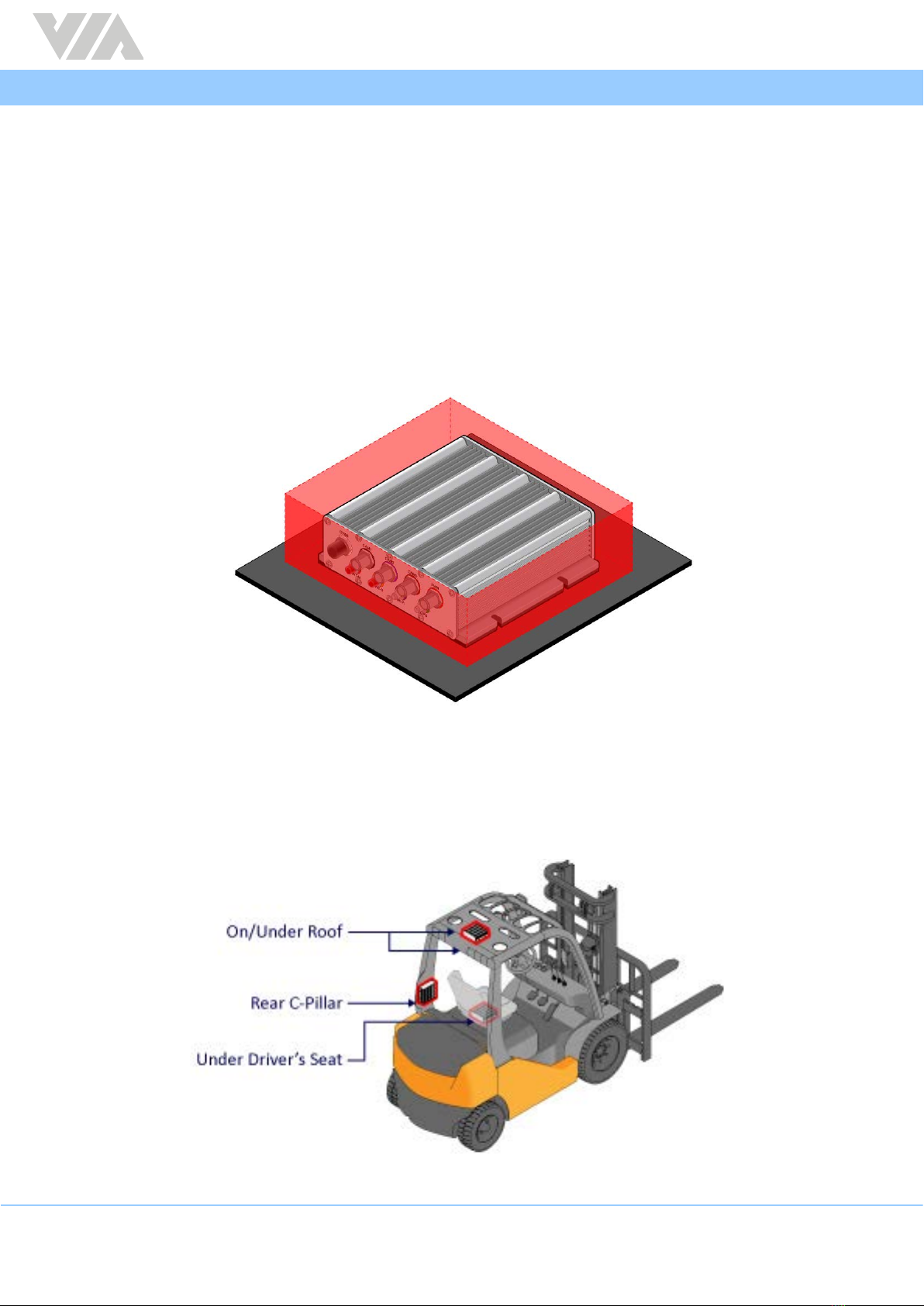

2.2 VIA Mobile360 M500 System Installaon............................................................................................. 7
2.3 Camera Installaon ............................................................................................................................... 8
2.3.1 Front and Rear Camera Installaon ............................................................................................... 8
2.3.2 Driver Camera Installaon ........................................................................................................... 10
2.4 Speaker Installaon............................................................................................................................. 12
2.5 Wi-Fi/GPS Antenna Installaon........................................................................................................... 12
2.6 Peripheral Cabling and Connecon..................................................................................................... 13
2.6.1 Connecng Power, ACC and Ground............................................................................................ 14
2.7 Turning System On/O........................................................................................................................ 18
2.7.1 System Reset................................................................................................................................ 18
3. Safety Alerts & Camera Calibraon .............................................................................................................. 19
3.1 Front & Rear Camera Alerts ................................................................................................................ 19
3.1.1 Front & Rear Camera Calibraon................................................................................................. 20
3.1.1.1 Express Mode Calibraon ..................................................................................................... 21
3.1.1.2 Custom Mode Calibraon ..................................................................................................... 24
3.2 Driver Camera Alerts........................................................................................................................... 27
3.2.1 Driver Camera Calibraon............................................................................................................ 28
4. VIA Mobile360 WorkX App........................................................................................................................... 30
4.1 Connecng the VIA Mobile360 WorkX App ........................................................................................ 30
4.2 Upgrading System Firmware............................................................................................................... 31
4.3 App Menu ........................................................................................................................................... 32
4.4 Camera Calibraon ............................................................................................................................. 32
4.5 Sengs ............................................................................................................................................... 33
4.6 Album.................................................................................................................................................. 34
Appendix A Oponal Accessories .................................................................................................................... 35
A.1 7" CVBS Panel...................................................................................................................................... 35
A.1.1 Package Contents......................................................................................................................... 35
A.1.2 Installaon ................................................................................................................................... 35
A.1.3 Display Interface .......................................................................................................................... 38
A.1.4 Display Buons ............................................................................................................................ 39

VIA Mobile360 Forkli Safety System Installaon Guide
8
List of Figures
Figure 01: Front panel I/O layout ......................................................................................................................... 2
Figure 02: Rear panel I/O layout .......................................................................................................................... 2
Figure 03: Front view system dimensions ............................................................................................................ 2
Figure 04: Side view system dimensions .............................................................................................................. 3
Figure 05: Boom view system dimensions - removable panel........................................................................... 3
Figure 06: Securing the waterproof cover............................................................................................................ 5
Figure 07: Covering unused front panel ports...................................................................................................... 5
Figure 08: Covering unused rear panel ports ....................................................................................................... 6
Figure 09: Vibraon dampening strip installaon ................................................................................................ 6
Figure 10: Recommend installaon space requirements..................................................................................... 7
Figure 11: Recommended installaon locaons .................................................................................................. 7
Figure 12: Camera installaon locaons .............................................................................................................. 8
Figure 13: Aaching magnets and 3M tape to front & rear cameras................................................................... 8
Figure 14: Front & rear camera installaon locaons .......................................................................................... 9
Figure 15: Marking installaon locaon and drilling............................................................................................ 9
Figure 16: Installing front & rear cameras with Molly bolts ............................................................................... 10
Figure 17: Driver camera installaon requirements........................................................................................... 10
Figure 18: Driver camera magnet assembly....................................................................................................... 11
Figure 19: Speaker installaon ........................................................................................................................... 12
Figure 20: Wi-Fi/GPS antenna installaon ......................................................................................................... 13
Figure 21: Applying LOCTITE 243 Threadlocker to I/O ports .............................................................................. 13
Figure 22: Front I/O cable connecons .............................................................................................................. 14
Figure 23: Rear I/O cable connecons ............................................................................................................... 14
Figure 24: M12 power cable............................................................................................................................... 15
Figure 25: Blade fuse holder cables ................................................................................................................... 15
Figure 26: System reset ...................................................................................................................................... 18
Figure 27: People detecon zone coverage ....................................................................................................... 19
Figure 28: Front/rear calibraon paern placement ......................................................................................... 21
Figure 29: Front/rear camera angle adjustment ................................................................................................ 23
Figure 30: Custom front/rear camera calibraon setup..................................................................................... 25
Figure 31: Custom front/rear calibraon paern placement............................................................................. 25
Figure 32: Front/rear camera angle adjustment ................................................................................................ 26
Figure 33: Driver camera angle adjustment ....................................................................................................... 28
Figure 34: 7" CVBS display mount assembly ...................................................................................................... 36
Figure 35: 7" CVBS display mount installaon with magnets and 3M tape ....................................................... 36
Figure 36: 7" CVBS display mount installaon with drilling ............................................................................... 37
Figure 37: 7" CVBS display installaon............................................................................................................... 37
Figure 38: 7" CVBS cable connecon ................................................................................................................. 38
Figure 39: 7" CVBS display interface .................................................................................................................. 38
Figure 40: 7" CVBS display buons .................................................................................................................... 39

VIA Mobile360 Forkli Safety System Installaon Guide
9
List of Tables
Table 01: MicroSD card recording mes ............................................................................................................. 4
Table 02: Driver camera installaon parameters.............................................................................................. 10
Table 03: System LED status.............................................................................................................................. 18
Table 04: People detecon audio alerts ........................................................................................................... 20
Table 05: Driver audio alerts............................................................................................................................. 27
Table 06: 7" CVBS panel specicaons ............................................................................................................. 35
Table 07: 7" CVBS panel alert icons .................................................................................................................. 38

VIA Mobile360 Forkli Safety System Installaon Guide
1
1. Product Overview
Prevent accidents and injuries in busy warehouse and industrial environments with the VIA Mobile360 Forkli
Safety System. Combining smart people detecon with advanced driver monitoring, this rugged and reliable
system alerts the driver whenever someone steps within a hazardous range of their vehicle and warns the
driver when it sees that they are red or distracted.
Simple to install and maintain, the VIA Mobile360 Forkli Safety System comes with front, rear, and driver
cameras, a high-quality speaker, and an oponal 7” CVBS display to provide a complete out-of-the-box soluon
for a wide range of forklis. By eliminang blind spots and giving early warning signals of people moving
around the vehicle, the system provides an essenal tool not just for averng forkli accidents but enhancing
overall worksite health and safety standards.
1.1 Packing Contents
• 1 x VIA Mobile360 M500 system
• 2 x Vibraon dampening strips
• 2 x IP67 FOV-190° front/rear cameras with mounng bracket (3M cable)
• 1 x IP67 FOV-92° driver camera with mounng bracket (3M cable)
• 3 x Strong magnets with 6 x M5*12mm bolts
• 3 x 3M VHB GPH-160GF series tape
• 10 x M5*25mm Molly bolts for camera and system installaon
• 1 x Speaker with 3M VHB GPH-160GF series tape (3M cable)
• 1 x Wi-Fi/GPS antenna module (3M cable)
• 1 x Power, ACC/IGN & ground cable (3M cable)
• Red blade fuse holder cable and fuse pack. (Includes Standard, Micro, Low-Prole and Mini sizes)
• Yellow blade fuse holder cable and fuse pack. (Includes Standard, Micro, Low-Prole and Mini sizes)
• 2 x SMA caps 4G antenna ports
• 4 x M12 caps for DIO 1, DIO 2, CAN Bus, and CVBS ports
• 1 x 32GB MicroSD card

VIA Mobile360 Forkli Safety System Installaon Guide
2
1.2 System Layout
Power LED
Reset Buon
MicroSD Card Slot
Speaker DIO 1
Micro SIM Card Slot
DIO 2CAN/COM
Figure 01: Front panel I/O layout
Antenna Connectors
Driver Camera
Rear DMOD Camera
Front DMOD Camera
CVBS Connector
Power/ACC/GND
Figure 02: Rear panel I/O layout
1.3 System Dimensions
178mm
56.8mm
Figure 03: Front view system dimensions

VIA Mobile360 Forkli Safety System Installaon Guide
3
167mm
194.6mm
Figure 04: Side view system dimensions
Removable boom
panel for 4G module
167mm 194.6mm
178mm
Figure 05: Boom view system dimensions - removable panel

VIA Mobile360 Forkli Safety System Installaon Guide
4
2. Installaon
The following items are suggested to have on hand to assist in the installaon of the VIA Mobile360 Forkli
Safety System.
Required Items
• LOCTITE 243 Threadlocker
• 3M VHB GPH-160GF series tape
• Tape measure
• Bubble level
• Phillips head screwdriver
• No. 8 pliers or wrench
• Drill (oponal)
• Zip/cable es
• Marker
2.1 System Preparaon
Before installing the VIA Mobile360 M500 system in the target forkli, it is recommended to insert a MicroSD
Card (if video recording is required), secure the waterproof cover for the MicroSD and Micro SIM card slots,
aach the I/O covers for unused ports as well as to secure the vibraon dampening strips to the boom of the
system.
2.1.1 Inserng a MicroSD Card
The VIA Mobile360 M500 system requires a MicroSD card to be installed in order to record video in real me. A
32GB MicroSD card is provided in the system package.
Note:
Failure to install a MicroSD card will not aect the operaon of the system, but video will not be saved.
If a MicroSD card is inserted, the video of the three cameras will be saved locally and looped. Meaning, when
the MicroSD card storage is full, the oldest saved les will be deleted and replaced with the new footage. See
the table below for an esmaon of the hours of video which can be saved from the three cameras based on
varying MicroSD card sizes.
MicroSD Card Size Recording Time
32GB 5.5 hours
64GB 11.2 hours
128GB 22.0 hours
256GB 44.4 hours
400GB 68.9 hours
512GB 88.2 hours
Table 01: MicroSD card recording mes
Follow the steps below to insert the MicroSD card into the VIA Mobile360 M500 system:
1. Prepare a MicroSD card with the appropriate storage and ensure it is formaed with either a FAT32 or
exFAT le system. If the MicroSD Card needs to be formaed, see secon 4.5 for details.
2. To insert the card into the VIA Mobile360 M500 system, ensure the card is face up, then gently push the
card into the MicroSD card slot located on the front panel and ensure it has been fully inserted.
Note:
To remove the MicroSD card, push gently and the card will eject.

VIA Mobile360 Forkli Safety System Installaon Guide
5
2.1.2 Securing the Waterproof Cover
To secure the waterproof cover for the MicroSD and SIM card slots located on the front panel, follow the steps
below:
1. Insert the at side of the rubber seal into the groove of the clear plasc cover.
2. Place the cover over the MicroSD and SIM card slots by aligning the screw holes and ensuring the rubber
plugs t securely into the MicroSD and SIM card slots.
3. Secure the cover to the system by ghtening the 6 screws with the tool provided.
Figure 06: Securing the waterproof cover
2.1.3 Aaching the I/O covers
The VIA Mobile360 M500 system comes with addional I/O ports for connecng oponal accessories. It is
recommended to cover the unused ports with the provided caps to ensure the system is waterght. To cover
the unused ports, follow the instrucons below:
1. On the front I/O panel of the VIA Mobile360 M500 system, the DIO 1, DIO 2 and the CAN/COM ports are
not required for the standard setup.
−Use three of the provided M12 caps to cover the DIO 1, DIO 2 and CAN/COM ports. Ensure the caps
are ghtened securely.
Figure 07: Covering unused front panel ports

VIA Mobile360 Forkli Safety System Installaon Guide
6
2. On the rear I/O panel of the VIA Mobile360 M500 system, the CVBS port (display) and the ANT-M and
ANT-D (for 4G) antenna ports are not required for the standard setup.
−Use one of the provided M12 caps to cover the CVBS port. Ensure the cap is ghtened securely.
−Use the two provided SMA caps to cover the ANT-M and ANT-D antenna ports. Ensure the caps are
ghtened securely.
Figure 08: Covering unused rear panel ports
2.1.4 Aaching the Vibraon Dampening Strips
Two vibraon dampening strips are included to help protect the system against vibraon caused during
operaon of the forkli. To aach the two vibraon dampening strips, follow the instrucons below:
1. Place the VIA Mobile360 M500 system top-down on a at surface and clean the boom of the system of
any dust or debris.
2. Remove the 3M double coated ssue tape from the back of one of the vibraon dampening pads and
place it along the side of the system so the screw hole cutouts align with the system.
3. Repeat the process for the other vibraon dampening strip on the opposite side of the system.
4. Ensure the strips adhere ghtly to the system.
Figure 09: Vibraon dampening strip installaon

VIA Mobile360 Forkli Safety System Installaon Guide
7
2.2 VIA Mobile360 M500 System Installaon
Before Installing the VIA Mobile360 M500 system on a forkli, a suitable locaon should be determined based
on the following criteria:
• A at surface with enough spacing to accommodate the system chassis and room for aaching the
cables. The recommended spacing is 218mm(W) x 70mm(H) x 327mm(D) (7.87" x 2.76" x 13.78")
• The locaon should allow for airow around the system to ensure proper operaon.
• The surface which the system will be aached to should be able to be either drilled into to support the
included four M5*25mm Molly bolts or provide proper adhesion for double-sided 3M VHB tape GPH-
160GF (not included) to secure the system such that it will not fall or shi due to vibraon or sudden
stops or starts, under normal operang condions.
Figure 10: Recommend installaon space requirements
VIA recommends the follow locaons to install the system:
• Under the driver's seat
• On the rear C-pillar
• On or under the forkli roof
Figure 11: Recommended installaon locaons

VIA Mobile360 Forkli Safety System Installaon Guide
8
2.3 Camera Installaon
The VIA Mobile360 Forkli Safety System includes three cameras to be installed on the target forkli including
a driver camera for driver monitoring, and front and rear cameras for people detecon.
Figure 12: Camera installaon locaons
2.3.1 Front and Rear Camera Installaon
The front and rear cameras come in labeled boxes within the VIA Mobile360 Forkli Safety System package
and include color-coded cables (brown for front and purple for rear) for easy idencaon. Also included for
each camera are a strong magnet with two M5*12mm bolts, one piece of double-sided 3M tape, and two
M5*25mm Molly bolts. Follow the steps below to install the camera:
1. Camera and mount assembly: There are two methods to x the camera to the forkli:
−Magnet and 3M Tape - Before installing the camera to the forkli, assemble the camera and mount
by aaching the included magnet to the boom of the camera bracket with two M5*12mm bolts
(use a No. 8 wrench), then ax the 3M tape to the boom of the magnet.
Figure 13: Aaching magnets and 3M tape to front & rear cameras
Note:
This requires a magnec surface to aach the camera to. Solely using the 3M tape is not recommended for a
permanent installaon.
−Drilling - Two 25mm Molly bolts can be used to x the camera to the forkli. If drilling will be done,
then the use of the magnet and 3M tape are not required.

VIA Mobile360 Forkli Safety System Installaon Guide
9
Note:
Ensure the surface has enough depth to insert the provided Molly bolts into.
2. The camera should be installed in the center of the front/rear roof bracket at a height between 1.6m
~2.7m o the ground and should have an unobstructed view (as best as possible for the front camera)
looking forward.
Figure 14: Front & rear camera installaon locaons
3. Once a suitable locaon is idened, mark the locaon with a line parallel to the ground (It is
recommended to use a bubble level). If drilling will be used, mark the locaon of the screw holes on the
boom of the camera bracket and drill the holes.
Figure 15: Marking installaon locaon and drilling
4. Next, aach the cameras by:
−Clean the surface of any dirt or debris with alcohol. Remove the 3M double coated ssue tape and
carefully place the camera along the marked line. Press rmly to ensure a solid connecon is made.
Note:
Take care when aaching as the magnets will provide a strong force.
−If the drilling opon is to be used, insert the M5*25 Molly bolts into the drilled holes and ghten.

VIA Mobile360 Forkli Safety System Installaon Guide
10
Figure 16: Installing front & rear cameras with Molly bolts
2.3.2 Driver Camera Installaon
The driver camera comes in a labeled box within the VIA Mobile360 M500 Forkli Safety System and includes
a color-coded cable, black, for easy idencaon. It comes pre-assembled with the L-shaped mounng bracket
and includes a strong magnet with two M5*12mm bolts, a piece of double-sided 3M tape and two M5*25mm
Molly bolts to secure the camera to the forkli.
The driver camera should be installed such that:
• The camera is between 60cm ~ 100cm from the driver's face.
• The camera is within 10cm above or below the middle of the driver's face.
• The camera is no further than 46cm to the le or right of the driver's head (measured from the
center of the face.) See the table below for a quick reference for opmal results based on dierent
installaon locaons:
Distance to Driver 60cm 70cm 80cm 90cm 100cm
Max Oset from Driver 27cm 32cm 37cm 41cm 46cm
Table 02: Driver camera installaon parameters
Note:
If the above criteria cannot be met, make sure the driver's head is within the bounding box during the calibraon
process to ensure reliable detecon. See secon 3.2.1 for more details.
Figure 17: Driver camera installaon requirements

VIA Mobile360 Forkli Safety System Installaon Guide
11
Follow the steps below to install the driver camera:
1. Camera and mount assembly: There are two methods to x the camera to the forkli:
−Magnet and 3M Tape - Before installing the camera to the forkli, assemble the camera and
mount by aaching the included magnet to the boom of the camera bracket with the two
M5*12mm bolts (use a No. 8 wrench) and ax the piece of 3M tape to the boom of the magnet.
Figure 18: Driver camera magnet assembly
Note:
This requires a magnec surface to aach the camera to. Solely using the 3M tape is not recommended for a
permanent installaon. Take care when aaching as the magnets will provide a strong force.
−Drilling - Two M5*25mm Molly bolts are included which can be used to ax the camera to the
forkli. If drilling will be done, then the use of the magnet and 3M tape are not required.
2. Next, Find a suitable locaon to ax the camera mount, (along the A-pillar is recommended) and aach
the camera by:
−Clean the surface of any dirt or debris with alcohol. Remove the 3M double coated ssue tape and
carefully place the camera. Press rmly to ensure a solid connecon is made.
Note:
Take care when aaching as the magnets will provide a strong force.
−If the drilling opon will be used, place the mount and mark where the screw holes are. Drill the
holes then insert the M5*25 Molly bolts into the drilled holes and ghten.
Note:
Ensure the surface has enough depth to insert the provided M5*25mm Molly bolts into.
