Viatek LL03-SHIM-R User manual
LL03-SHIM-R
(Red/Green Shimmering Laser)
IMPORTANT SAFEGUARDS
To reduce the risk of re, electric shock, or injury when using any electric appliance,
precautions should be made. These precautions include but are not limited to:
Read all instructions.
CAUTION! — Use only as directed. Improper use may result in damage to the eyes due to
direct exposure to laser radiation.
This product has a polarized plug to reduce the risk of electric shock. It will therefore only
t into a polarized outlet one way. If the plug does not t, reverse the plug. If it still does not
t, contact a qualied electrician. Do not use with an extension cord unless the plug can be
fully inserted. Do not alter the plug.
This unit is certied as a Class IIIa laser product by the US Federal Laser Product
Performance Standard (FLPPS) according to regulations in 21 CFR Subchapter J. Class IIIa
laser products can be hazardous when directly viewed.
Avoid looking directly into Class IIIa lasers. This product, as well as other demonstration
laser products like some laser pointers, are classied as Class IIIa laser energy levels. This
product uses diractive optics to scatter the beam of energy. This scattering eect causes
the energy concentration to drop below the exposure limits for momentary or accidental
viewing at a relatively short distance from the laser aperture. As with all bright light sources,
when you operate this device in public areas it is recommended that up-close access to
the light be restricted.
While the Class IIIa laser in this device may be hazardous on its own, it is encased in a
protective housing and uses diractive holographic optics, therefore users are not directly
exposed to laser radiation during operation or maintenance. Each individual laser beam is
less than 5mW, which is about the same as an average laser pointer.
DO NOT attempt to open the protective housing or operate the device if the aperture
windows are damaged. If the unit requires service that involves removing the protective
housing, contact the manufacturer. Opening the protective housing voids the warranty.
Use only three-wire outdoor extension cords that have three-prong grounding plugs,
plugged into grounded outlets. Acceptable extension cord types:
SW, SW-A, SOW, SOW-A, STW, STW-A, STOW, STOW-A, SJW, SJW-A, SJOW,
SJOW-A, SJTW, SJTW-A, SJTOW, SJTOW-A
Ground Fault Circuit Interrupter (GFCI) protection is to be provided on the circuit(s) or
outlet(s) to be used while operating portable laser light in a wet location. Receptacles with
built-in GFCI protection are available for this purpose.
SAVE THESE INSTRUCTIONS

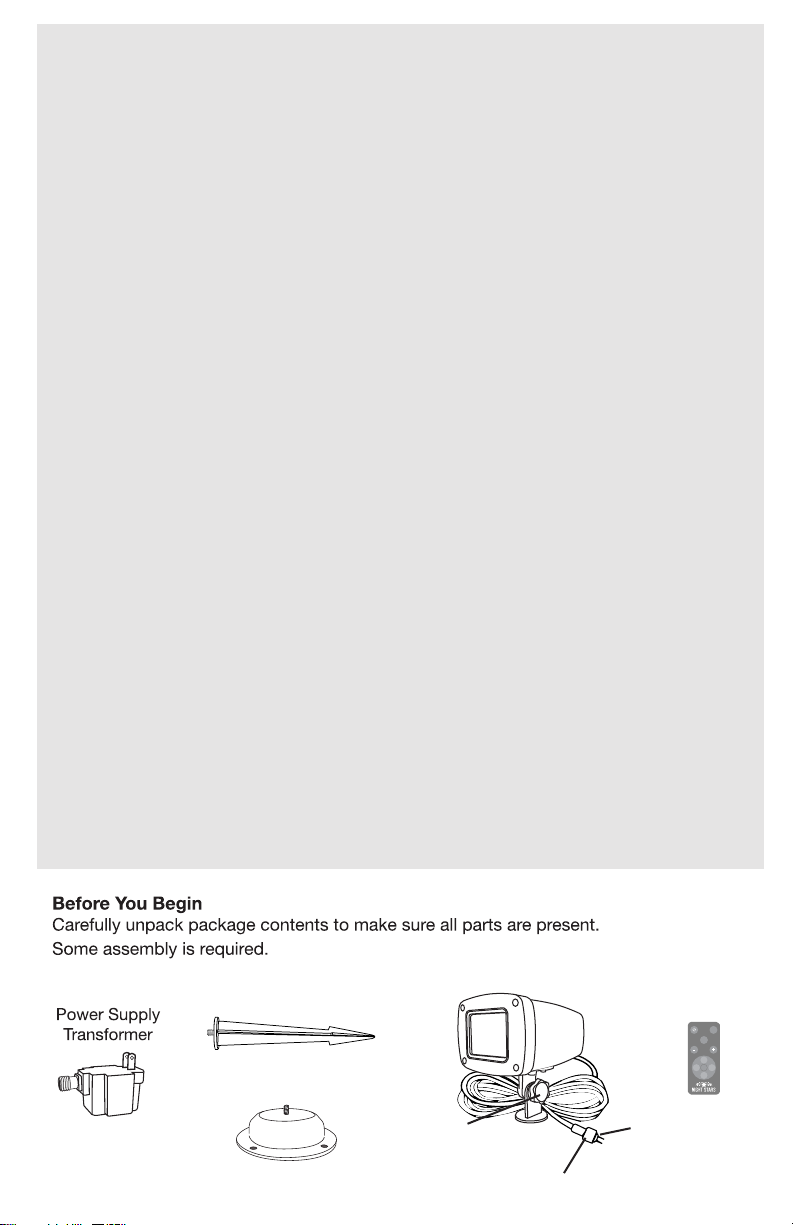

Ground Stake Remote
COLOR
FLASH
2H
8H6H
4H
RESET
Light Projector
2-Prong
Adapter
Weather-Resistant Cap
Pivot Clamp
Screw
Mounting Plate
Activating Remote
Pull the strip from the battery compartment on the back of the remote. To test
the remote’s battery connection, press any button and the LED will illuminate
for 1 second. If the LED does not illuminate, open the battery compartment to
make sure battery is properly installed.
Assembly
Screw the ground stake or mounting plate into the bottom of the light projector
clockwise until tight (g. 1). To adjust the angle of the light projector, loosen the
pivot clamp screw by turning it counterclockwise. Once the angle adjustment
is made, twist the pivot clamp screw clockwise until tight to secure (g. 2).
Plug the 2-prong adapter into the power supply transformer. Screw on the
weather-resistant cap tightly to help protect the connection from weather.
The mounting plate can be attached to a wooden structure such as a deck
using 4 screws (not included). The unit
can be detached from the mounting plate
without removing the entire assembly simply
by unscrewing the unit counterclockwise.
IMPORTANT: Point Night Stars directly at your home and never point
Night Stars directly into the sky. Do not project Night Stars at or within
the ight path of an aircraft within 10 nautical miles of an airport. If the
surface at which you intend to point the Night Stars laser is within 10
nautical miles of an airport, lower the angle so that it does not point into
the sky. Do not point laser light toward oncoming pedestrians, vehicles, or
trafc routes on land, sea, or air.
Operation
Press the button on the back of the laser unit to set shimmer speed or
turn o. Settings are fast, medium, slow, still, and o. Pressing this button clears ash settings. See the
below chart for remote operations. The remote can be used hand-held or mounted to a surface.
COLOR
FLASH
2H
8H6H
4H
RESET
Shimmer Speed
4 settings: still, slow, medium, fast
Change Light Color
Choose red, green, or dual-colored light
(Clears ash setting)
Reset
Cancels timer settings
6-Hour Timer
Sets the unit on a 6-hour on,
18-hour o daily cycle
8-Hour Timer
Sets the unit on an 8-hour on,
16-hour o daily cycle
2-Hour Timer
Sets the unit on a 2-hour on,
22-hour o daily cycle
4-Hour Timer
Sets the unit on a 4-hour on,
20-hour o daily cycle
Light On/O
Press On/O while unit is plugged in and
remote will connect to unit in 5 seconds
Flash Setting
Toggle between ashing
or steady light
IF REMOTE IS NOT CONTROLLING THE LASER while you are within remote control
range, and if the remote LED comes on when you press the buttons, your remote may not be synced
with the laser light. In this case, follow these syncing instructions:
Syncing the Remote:
Be sure you are within 5 ft. of laser to sync. Do not use an extension cord during syncing process.
1. Remove the battery from the remote, then reinstall battery. This resets the remote.
2. Unplug the laser from the power source and wait 1 minute. This resets the laser.
3. With remote in hand, plug laser into wall outlet. QUICKLY, BEFORE 3 SECONDS PASS, press
the ON/OFF button on remote AFTER plugging the laser in. DO NOT press the ON/OFF button at
the same time you plug in, it must be done within 3 seconds AFTER plugging in. DO NOT hold the
button down.
Do not use an extension cord during syncing process. Once the laser is synced, it may be unplugged
and used with an extension cord. Occasionally, re-syncing the remote with the laser may be necessary.
In this case, repeat the steps above. To sync two or more lights to the same remote, unplug them all,
then plug them back in at the same time. AFTER plugging them in, press the ON/OFF button within 3
seconds. Remove remote battery before long-term storage.
Range: Up to 11 yards
Fig. 1
Fig. 2
Read Instructions
Before Operating MADE IN
CHINA
© 2016 VIATEK CONSUMER PRODUCTS GROUP, INC. All specifications are subject to change without notice. All rights reserved.
For customer service call 888.7.VIATEK (+1.423.402.9010 for outside the United States) or visit us online at viatekproducts.com
Pour le service a la clientele appelez le 888.7.VIATEK (+1.423.402.9010 a l'extérieur des États-Unis) ou visitez viatekproducts.com
Para servicio al consumidor llame al 888.7.VIATEK (fuera de Estados Unidos marque +1.423.402.9010) o visite viatekproducts.com
PATENT PENDING
REV-Model No.
DO NOT DISPOSE OF BATTERIES IN FIRE. ALWAYS DISPOSE OF BATTERIES PER LOCAL & FEDERAL GUIDELINES
Follow Us
Like Us
Viatek Site
Viatek Consumer Products Group, Inc. 6011 Century Oaks Dr. Chattanooga, TN 37416
011116LL03-SHIM-R
Product Specications
Laser Classication
Maximum Laser Power
Laser Wavelength
Laser MTBF
Power Consumption
Power Input
Operation
Operating Temperature
Maintenance
Remote Battery
Warranty
Class IIIa
(Single beam) Less than 5mW
Green: 532nm / Red: 660nm
More than 5000 hours
Up to 5 watts
120VAC (when used with supplied transformer)
Indoor / Outdoor
-4˚F to 86˚F
Maintenance free — no user serviceable parts
23A (L1028), included
Limited 1-year warranty
Notes:
� Only use supplied transformer connected to a properly grounded outdoor
outlet.
� Do not use with dimmers.
� Operate in temperatures of -4˚F to 86˚F. There may be a slight delay if operating
below 55˚F. Please allow up to 10 minutes for light to warm up and reach its full
projection. Green laser startup time may take up to 30 minutes in temperatures
below 14˚F.
� When hanging the laser light with equipment other than what is included, for
safety purposes it is recommended to mount using a sturdy hanging clamp
and safety cable.
