Vicko 840-7410 User manual

7
INSTRUCTIONS MANUAL
Model No: SB-102
Ref. No: 840-7410
COFFEE MIXER

8
IMPORTANT SAFEGUARDS
1. This appliance is designed for domestic use only.
No responsibility is accepted for damage resulting from use non-compatible
with the instructions.
2. The device is used only for coffee, various cocktails, sauce vinaigrette, baby
food, and milk shakes etc.
3. Do not operate the appliance if the power cord shows any signs of damage.
If the supply cord is damaged, it must be repaired by a qualified person in
order to avoid a hazard. Improper repairs may place the user at serious risk.
4. Always handle the power cord with care. Do not pull or strain the power cord.
The power cord may never be folded or pinched. Always pull the plug to
disconnect the power cord, never pull on the cord to disconnect it
5. Do not let the cable resting against a hot surface or hanging on the edge of
the table.
6. Do not operate the appliance with wet hands.
7. Do not immerse the appliance in water or any other liquids.
8. Do not use any accessories not recommended by the manufacturer. It may
cause injury and device destruction.
9. The device should always be disconnected from the mains when not in use.
Always switch OFF (‘0’ position) and unplug the appliance if it is not in use
and before moving, cleaning and/or assembling or disassembling it.
10. Before disconnecting the device from the socket, press the power button in
position OFF.
11. Never insert your fingers or any other objects ( hair, clothes, cooking
utensils, knives, screw drivers etc.) near the axle when the appliance is in
use.
12. Children should be supervised to ensure that they do not play with the
appliance.
13. Read all the instructions carefully before you use the appliance and keep
them for future use.

9
ATTENTION !
Do not place the appliance on, near or in microwave oven, electric oven or
gas oven. Keep the appliance away from flammable objects or other heat
source.
The device should be used only by adults.
Always supervise the device when it is in use.
Always leave enough space around the device when it is in use, among other
items. Do not place the device near flammable materials such as furniture,
pillows, fabrics, curtains, etc.
Never blend hot oil or any other hot liquid.
Never blend fat.
Do not add ingredients in the cup while the appliance is operating.
Do not move the appliance while it is operating.
BEFORE USE
1. Ensure the packaging of this appliance is disposed of properly. Keep plastic
bags away from babies and children.
2. After you remove the device from its packing, clean it with a damp cloth.
3. Never immerse the appliance in water, in order to clean it.
4. Ensure that the main voltage rating of your power supply corresponds to the
voltage requirements of the appliance
5. Place the device on a flat and dry surface.
6. Make sure that all parts of the device are properly mounted before using the
appliance.
7. Do not switch the appliance on without the cup in place.
8. Before using the device, please unfold the cord completely and make sure that
it does not show any sign of damage.
9. Do not use the device for more than 1 minute continuously. Be sure to always
do a pause of 10 minutes between each use.

10
INSTRUCTIONS
The device is perfect for preparing coffee, various cocktails, sauce vinaigrette,
baby food, milk shakes etc. and has a 2 speed strong motor.
1. Make sure the power switch (1) is at "0" position.
2. Pour water along with coffee and sugar or any other ingredients that you want
to mix, in the container (2) or in another glass of same shape, and then bring
the glass close to the axle (3).
3. The device is equipped with special Interlocking Switch (4). The motor can’t
work unless this interlocking switch is pressed. The safety switch prevents
possible accidents that can be caused by activation of the motor without your
will. In order to press the interlocking safety switch (4) and activate the motor
you must ensure the top of the cup or glass you are using is located behind
the top support as shown in Figure A. Or if you want to avoid this process you
can put the cap (5) on the top support of the safety switch (4) as shown in
Figure B. In this way the interlocking switch is always activated.

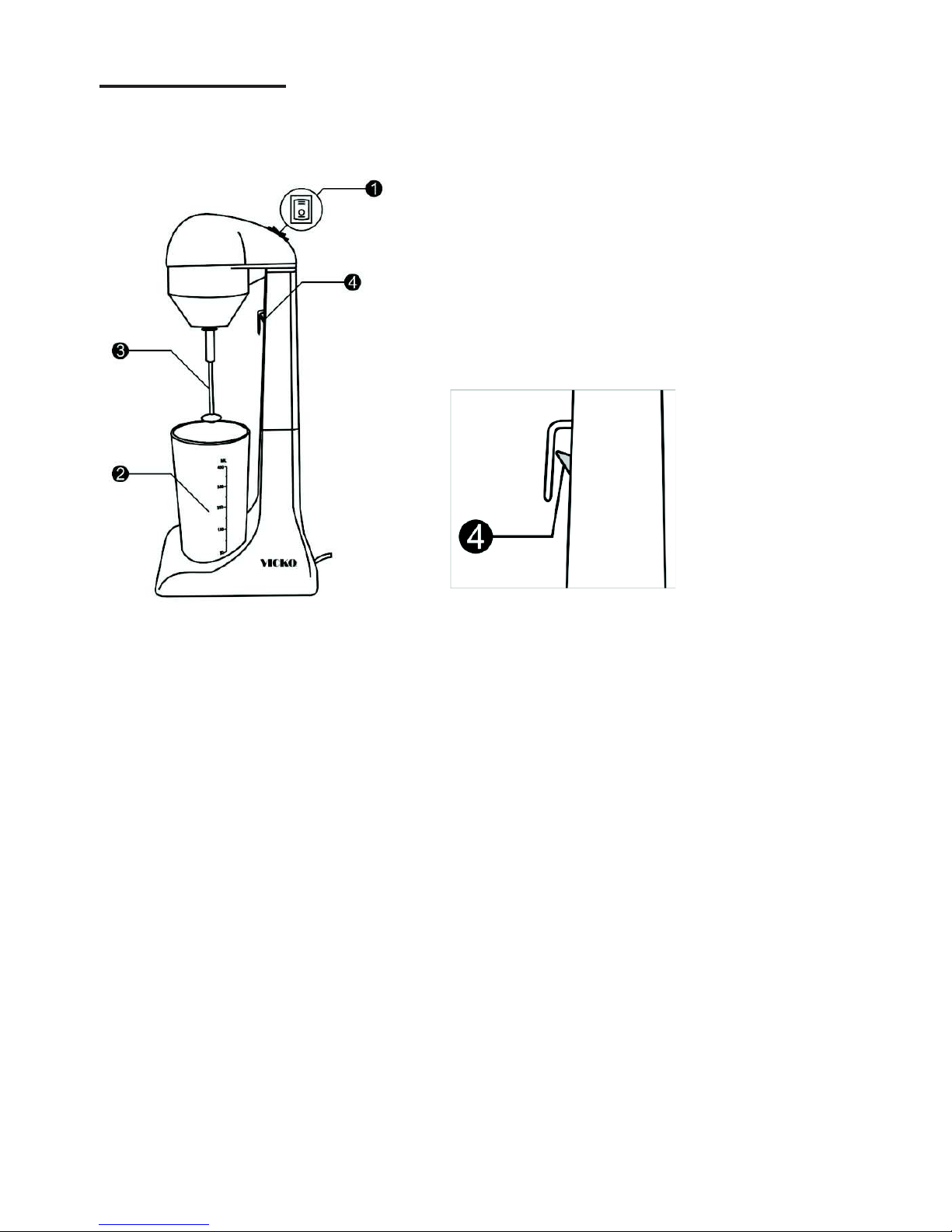

1.
Power switch
2. Container
3. Axle
4. Interlocking Switch
5. Cap for Interlocking Switch

11
Figure AFigure B
4. Turn on the power switch (1) and mix the ingredients according to your
demands.
Note: If the ingredients splash out of the cup lower the speed or reduce the
amount of ingredients.
5. After the mixture is over place the power switch (1) at "0" position
6. Remove the cup by lowering it down and out of the appliance and serve your
coffee.
7. Disconnect the mixer from electric supply and then you can clean it
8. The axle (3) is made of stainless steel and the plastic parts are not toxic, so
you can clean the unit easily with a wet towel.
CLEANNING
Unplug the appliance and let it cool before you clean it.
Clean the external surface of the appliance with a damp cloth.
Do not use sharp objects, hard brushes or oven cleaners to clean the
device.

12
Note:
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Note:
The appliances are not intended to be operated by means of an external timer or
separate remote-control system.
RECYCLING OF USED ELECTRICAL OR ELECTRONIC APPLIANCES
This marking indicates that this product should not be disposed with
other household wastes throughout EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
PROTECT THE ENVIRONMENT
The product COMPLIES with EU directives WEEE (about recycling) and ROHS
(Restriction of the use of Certain Hazardous Substance).
TECHNICAL SPECIFICATIONS
Model: SB-102
Ref. No: 840-7410
Power: 100W
Rating: 220-240V
Frequency: 50Hz
ALL PRODUCTS ARE GUARANTEED FOR THEIR QUALITY
