Vicon Aurora 99 V800KBD User manual

X939
V800KBD Remote Keyboard and Optional
V800MIU Multi-Output Interface
TM
VI C ON
Instruction Manual
VICON INDUSTRIES INC. 89 ARKAY DRIVE, HAUPPAUGE, NY 11788

V800KBD Instruction Manual
TM
V800KBD Remote Keyboard and
Optional V800MIU Multi-Output Interface
Warning: To reduce a risk of fire or electric shock, do not expose this product to rain or moisture.
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been
designed to be used in life-critical situations and must not be used for this purpose.
Copyright © 1998 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
Vicon Part No. 8006-8939-02-00 Section 5 Rev 1298

This page intentionally left blank.

This page intentionally left blank.

FCC Notice
Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a
Class A digital device.
WARNING
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in
strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.
It has been type tested and found to comply with the limits for a Class A computing device in accordance with
the specification in subpart B of part 15 of the FCC rules, which are designed to provide reasonable protection
against such interference in a commercial installation. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause interference to radio and television reception,
which can be determined by turning equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
• Reorient the receiving antenna.
• Relocate the equipment with respect to the receiver.
• Relocated the equipment away from the receiver.
• Plug the equipment into a different electrical outlet so that the equipment and receiver
are on different branch circuits.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional
suggestions.
The user may find the following booklet prepared by the Federal Communications Commission helpful:
“Interference Handbook, Bulletin CIB-2”
This booklet is available from the U.S. Government Printing Office, Superintendent of Documents, Mailstop
SSOP, Washington, D.C. 20402-9328, ISBN 0-16-045542-1.
Warning: Power must be removed from this unit before removing circuit modules or ribbon cables.
Caution: This unit contains circuit cards with integrated circuit devices that can be damaged by static
discharge. Take all necessary precautions to prevent static discharge.

This page intentionally left blank.

X939 Rev 1298 Remote Keyboard Contents •i
Contents
INTRODUCTION.................................................................................................................. 1
V800KBD Remote Keyboard......................................................................................................................... 1
Standalone and Multi-Unit Modes................................................................................................................ 1
Applicable Devices ........................................................................................................................................ 2
INSTALLATION ................................................................................................................... 3
Cable Recommendations.............................................................................................................................. 3
Standalone Mode........................................................................................................................................... 3
Multi-Unit Mode.............................................................................................................................................. 7
Connecting the VCRs and Multiplexers........................................................................................................ 8
Connecting the Keyboards and Interface Units.......................................................................................... 10
Configuring the Keyboards......................................................................................................................... 11
Configuring the Multi-Output Interface Units.............................................................................................. 12
Connecting Power...................................................................................................................................... 14
OPERATION......................................................................................................................15
AurorA99 Digital Multiplexer Controls....................................................................................................... 15
VCR Controls................................................................................................................................................ 16
AurorA99 Digital Multiplexer Selection...................................................................................................... 16
Notes about AurorA99’s Receiver Mode ................................................................................................... 16
VCR Selection .............................................................................................................................................. 16
SHIPPING INSTRUCTIONS .............................................................................................. 17
INDEX ................................................................................................................................ 19

ii •List of Tables X939 Rev 1298 Remote Keyboard
List of Tables
Table 1
Multiplexer Connections in Standalone Mode...............................................................................................5
Table 2
VCR Connections in Standalone Mode............................................................................................................5
Table 3
DIP Switch Settings Used to Define VCR ........................................................................................................6
Table 4
Multiplexer Connections to the Multi-Output Interface Unit..........................................................................9
Table 5
VCR Connections to the Multi-Output Interface Unit.....................................................................................9
Table 6
Master Keyboard to Multi-Output Interface Unit Connections....................................................................10
Table 7
Keyboard DIP Switch Settings for Poles 1-3.................................................................................................11
Table 8
Keyboard DIP Switch Settings for Poles 4-6.................................................................................................12
Table 9
4-Pole DIP Switch Settings..............................................................................................................................13
Table 10
Address Settings..............................................................................................................................................13
Table 11
Device Specification Settings.........................................................................................................................14

X939 Rev 1298 Remote Keyboard List of Figures •iii
List of Figures

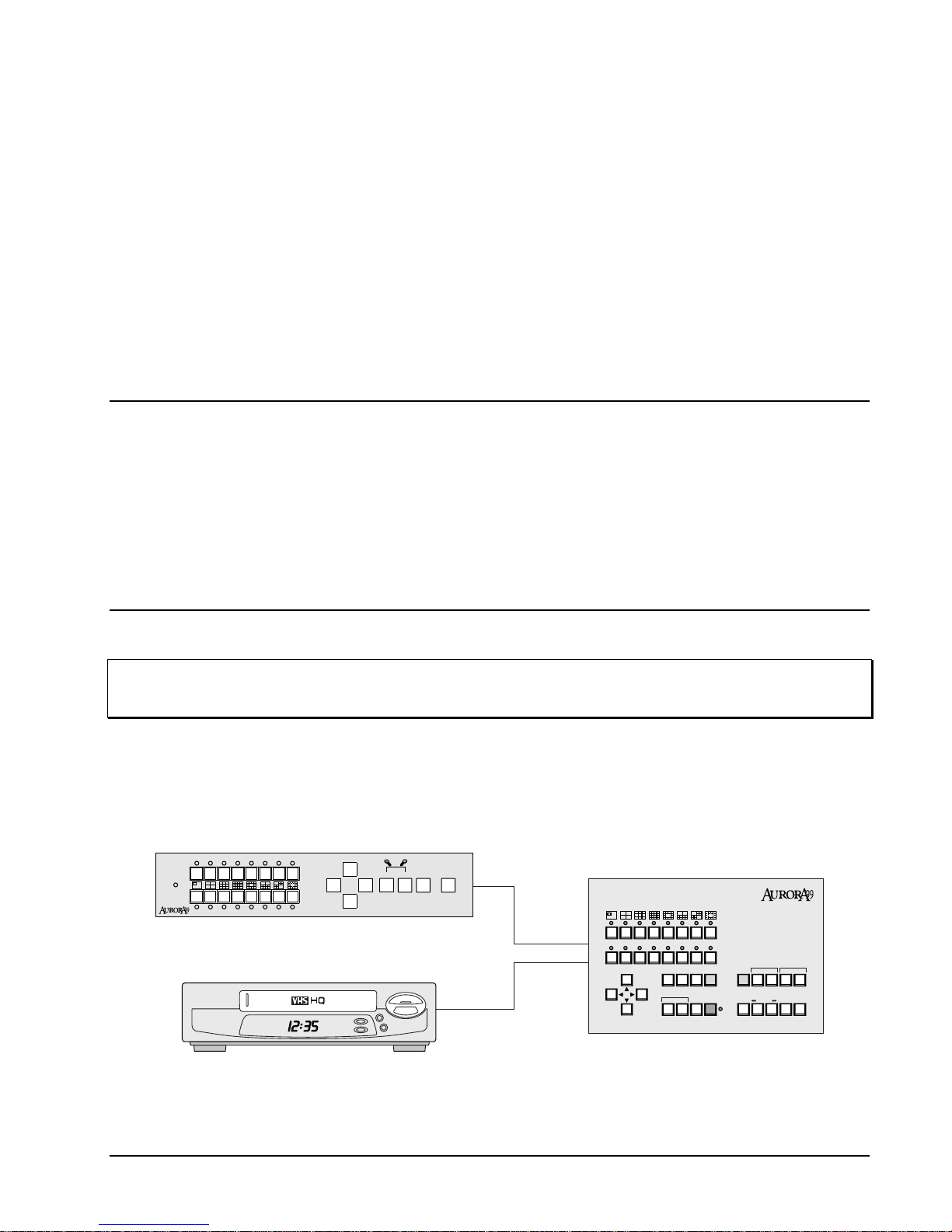

Figure 1
Standalone Mode............................................................................................................................................... 3

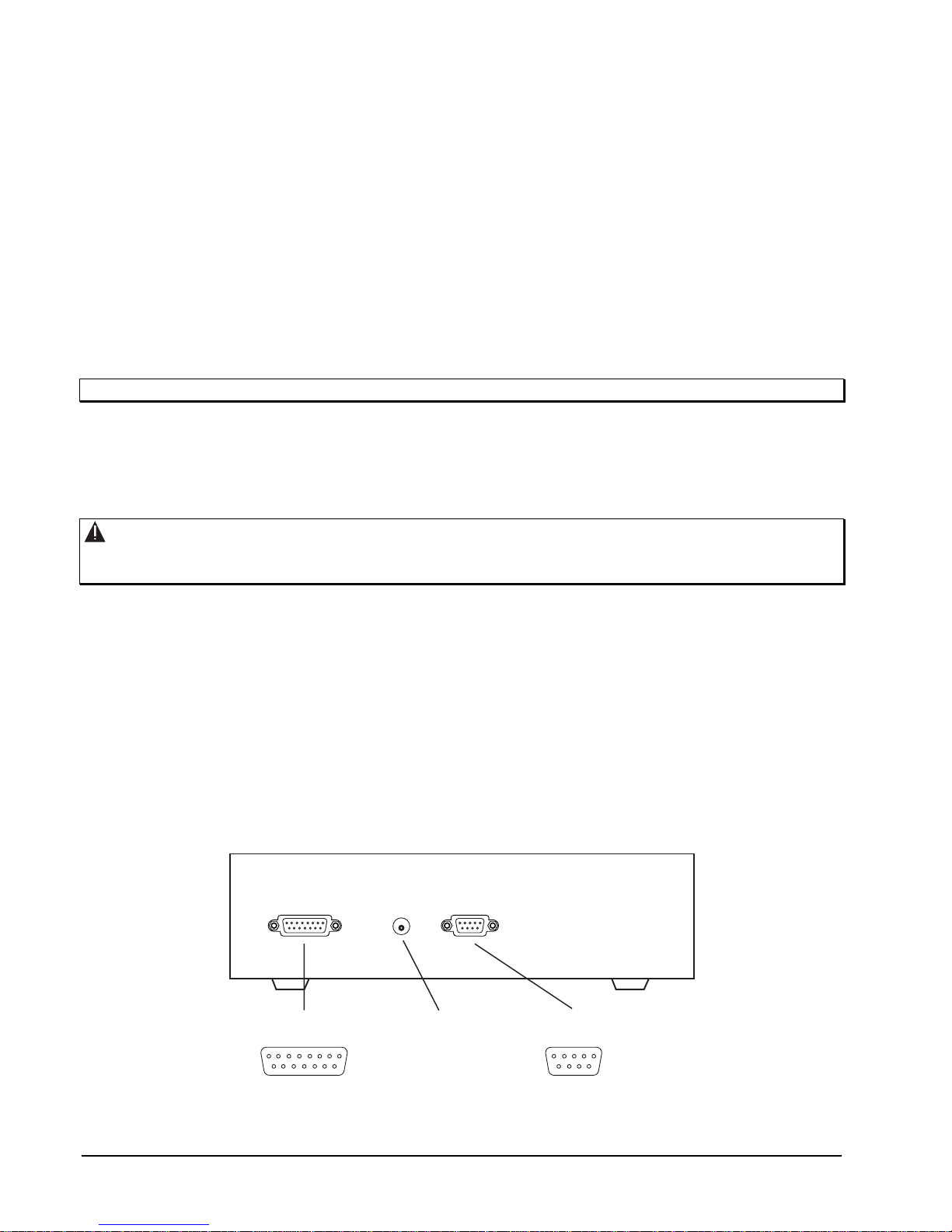

Figure 2
Keyboard Rear Panel......................................................................................................................................... 4

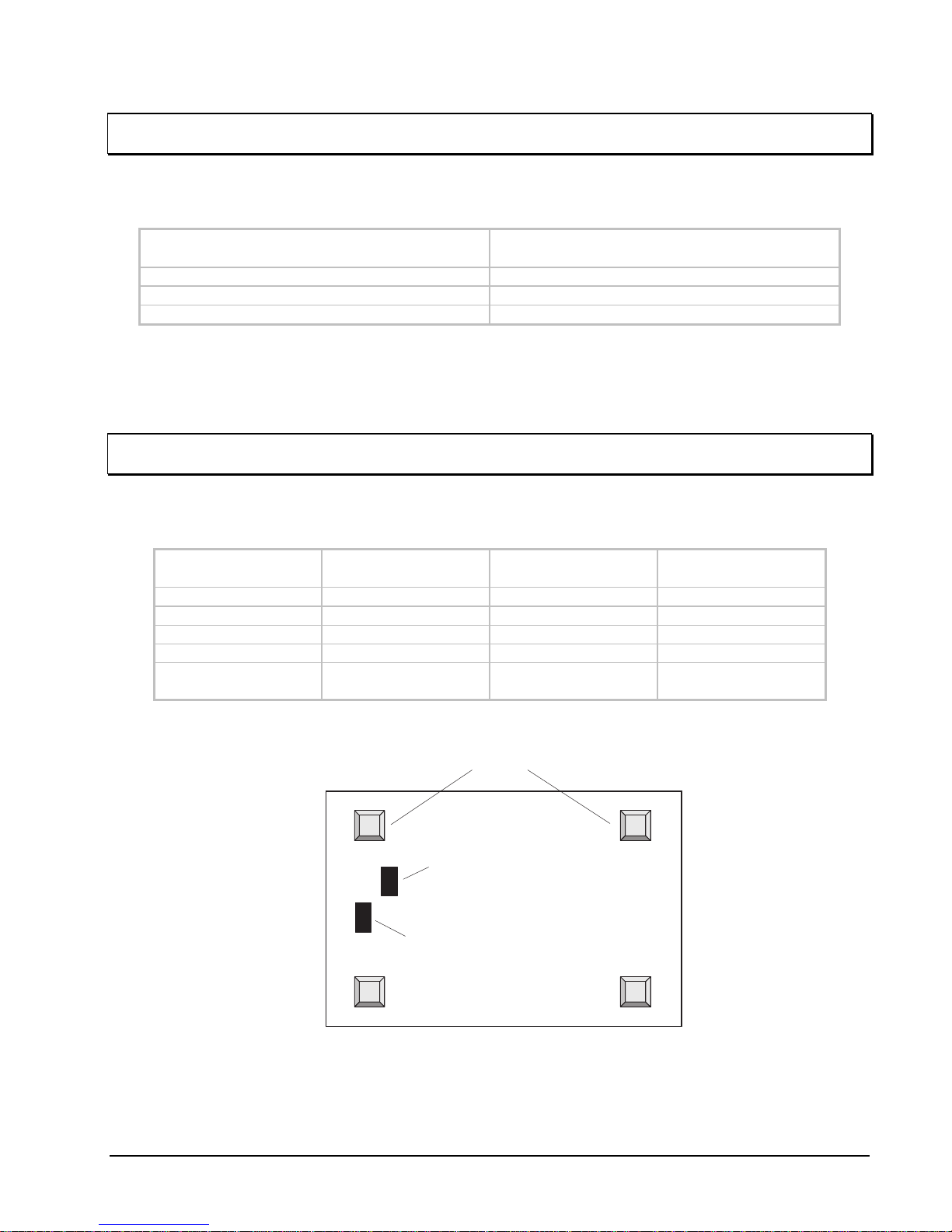

Figure 3
Keyboard Bottom Panel.................................................................................................................................... 5

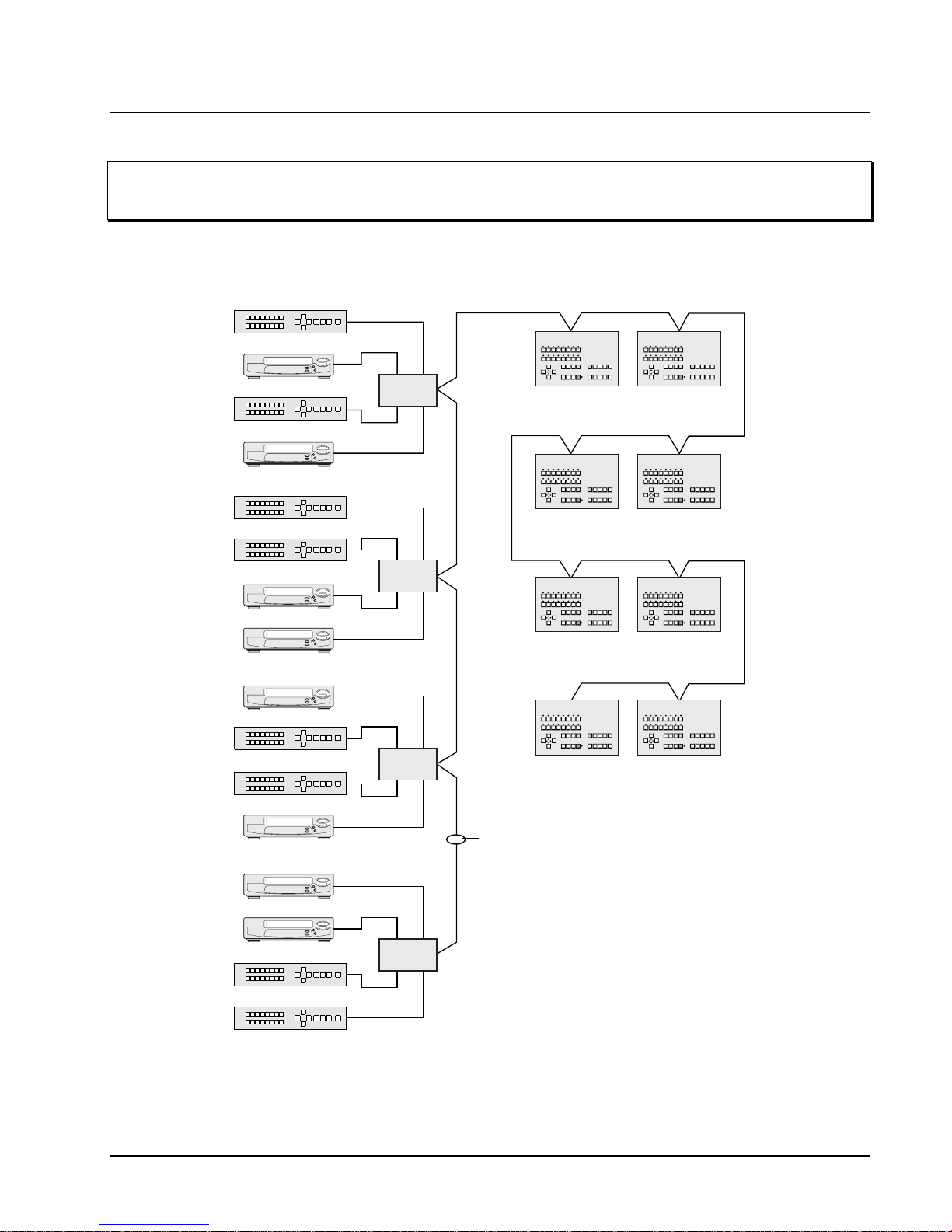

Figure 4
Multi-Unit System with Maximum Number of Components.......................................................................... 7
Figure 5
RS-232 Block Diagram ...................................................................................................................................... 8
Figure 6
Multi-Output Interface Unit Circuit Board....................................................................................................... 9
Figure 7
Interface Unit-to-Interface Unit Connections................................................................................................ 10
Figure 8
V800KBD Bottom Panel .................................................................................................................................. 11
Figure 9
Multi-Output Interface Unit Circuit Board..................................................................................................... 12
Figure 10
Remote Keyboard Front Panel....................................................................................................................... 15

iv •List of Figures X939 Rev 1298 Remote Keyboard
This page intentionally left blank.

X939 Rev 1298 Remote Keyboard Important Safeguards •v
Important
Safeguards
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
CAUTION:
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the unit.
1. Read Instructions - All the safety and operating
instructions should be read before the video product is
operated.
2. Retain Instructions - All the safety and operating
instructions should be retained for future reference.
3. Heed Warnings - All warnings on the video product
and in the operating instructions should be adhered to.
4. Follow Instructions - All operating and use
instructions should be followed.
5. Cleaning - Step aapplies to equipment that can be
disconnected from the CCTV system without seriously
jeopardizing security. Step b applies to equipment that
must operate continuously such as video switching
equipment at military installations.
a. Disconnect this video product from its power
source before cleaning. Do not use caustic,
abrasive, or aerosol cleaners. Use a damp cloth for
cleaning.
b. Use a damp cloth to clean the equipment. Do not
allow moisture or liquids to enter any vents. Do not
use caustic, abrasive, or aerosol cleaners.
6. Attachments - Do not use attachments not
recommended by Vicon as they may cause hazards.
7. Water and Moisture - Do not use this video product
in any location where it may be exposed to water or
moisture. This does not apply to outdoor camera
housings, outdoor pan-and-tilt drives, and other
equipment designed for direct exposure to outdoor
environments.
8. Accessories - Do not place this video product on
any unstable surface or table. The video product may
fall, causing serious injury to a person and serious
damage to the video product. Use only with a mounting
accessory recommended by Vicon, or sold with the video
product. Any mounting of the video product should
follow Vicon’s instructions, and a mounting accessory
recommended by Vicon should be used.
9. Ventilation - Slots and openings in the cabinet are
provided for ventilation and to ensure reliable operation
of the video product and to protect it from overheating,
and these openings must not be blocked or covered.
The openings should never be blocked by placing the
video product on a rug or other similar surface. This
video product should never be placed near or over a
radiator or heat register. This video product should not
be placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided or Vicon’s
instructions have been adhered to.
10. Power Sources - This video product should be
operated only from the type of power source indicated
on the marking label. If you are not sure of the type of
power supplied to your installation site, consult your
Vicon dealer or local power company. For video
products intended to operate from battery power, or
other sources, refer to the operating instructions.

vi •Important Safeguards X939 Rev 1298 Remote Keyboard
11. Grounding - This applies to video products
equipped with a 3-wire grounding-type plug, a plug
having a third (grounding) pin. This plug only fits into a
grounding-type power outlet. This is a safety feature. If
you are unable to insert the plug into the outlet, contact
your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the grounding-type plug.
12. Power-Cord Protection - Power supply cords
should be routed so that they are not likely to be walked
on or pinched by items placed upon or against them,
paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit
from the video product.
13. Outdoor Cable Grounding - If an outside cable
system is connected to the video product, be sure the
cable system is grounded so as to provide some
protection against voltage surges and built-up static
charges. Section 810 of the National Electrical Code,
ANSI/NFPA 70-1984, provides information with respect
to proper grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding
electrodes, and requirements for the grounding
electrode.
14. Lightning - For added protection for this video
product when it is not used for long periods of time,
disconnect it from its power source and from the cable
system. This prevents damage to the video product due
to lightning and power-line surges.
15. Power Lines - An outside cable system should not
be located in the vicinity of overhead power lines or
other electric light or power circuits, or where it can fall
into such power lines or circuits. When installing an
outside cable system, extreme care should be taken to
keep from touching such power lines or circuits as
contact with them might be fatal.
16. Overloading - Do not overload wall outlets and
extension cords as this can result in a risk of fire or
electric shock.
17. Object and Liquid Entry - Never push objects of
any kind into this video product through openings as
they may touch dangerous voltage points or short out
parts that could result in a fire or electric shock. Never
spill liquid of any kind on the video product.
18. Servicing - Do not attempt to service this video
product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.
19. Damage Requiring Service - Disconnect this video
product from its power source and refer servicing to
qualified service personnel under the following
conditions. Note that step cdoes not apply to outdoor
camera housings, outdoor pan-and-tilt drives and other
equipment specifically designed for direct exposure to
outdoor environments.
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into
the video product.
c. If the video product has been exposed to rain or
water.
d. If the video product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions, as an improper adjustment of other
controls may result in damage and will often require
extensive work by a qualified technician to restore
the video product to its normal operation.
e. If the video product has been dropped or the cabinet
has been damaged.
f. When the video product exhibits a distinct change in
performance - this indicates a need for service.
20. Replacement Parts - When replacement parts are
required, be sure the service technician has used
replacement parts specified by Vicon or that have the
same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other
hazards.
21. Safety Check - Upon completion of any service or
repairs to this video product, ask the service technician
to perform safety checks to determine that the video
product is in proper operating condition.

X939 Rev 1298 Remote Keyboard Introduction •1
Introduction
V800KBD Remote Keyboard
The information in this manual covers the installation and operation of the Vicon V800KBD Remote Keyboard.
The installation procedures should only be performed by a qualified technician using approved materials in
accordance with national, state and local wiring codes. Read these instructions completely before attempting
installation. The keyboard complies with FCC standards for a Class A device and with European Community
EMC Directive 89/336. The product was subjected to the testing outlined in European Normalization Standard
EN 50081-1 (Electromagnetic Compatibility - General Emissions Standard Part 1: Residential, Commercial
and Light Industry), and EN 50082-1 (Electromagnetic Compatibility - Generic Immunity Standard Part 1:
Residential, Commercial, and Light Industry).
The remote keyboard provides convenient control of AurorA/AurorA99 digital multiplexers and VCRs. The
keys on the left side of the keyboard are designed to duplicate the multiplexer front panel; the right side is
used to control VCRs. The remote keyboard may be connected to one multiplexer and one VCR.
In addition to the remote keyboard, this manual also covers the installation of the V800MIU Multi-Output
Interface Unit. The interface unit is optional and purchased separately. Each interface unit is connected to up
to 4 devices (2 multiplexers and 2 VCRs), with a maximum of 4 interface units in a system. This gives you the
ability to control up to 8 multiplexers and 8 VCRs from your remote keyboard(s). Eight remote keyboards may
be used. The interface units communicate with the keyboards using RS-485 communications while using RS-
232 to communicate with the VCRs and multiplexers.
The keyboard is available in two versions, Model V800KBD (120 VAC) and Model V800KBD-230 (230 VAC).
The keyboard models are identical in all other respects and this manual may be used for either model.
Standalone and Multi-Unit Modes
Standalone mode is defined as the system configuration using 1 remote keyboard to control 1 AurorA99 (or
AurorA) digital multiplexer and 1 VCR. The interface unit is not required. If one or more interface unit is
connected, this will be referred to in this documentation as multi-unit mode. In multi-unit mode, your maximum
system size is 8 keyboards, 8 multiplexers and 8 VCRs. The system maximum requires 4 interface units.

2 •Introduction X939 Rev 1298 Remote Keyboard
Applicable Devices
You may only use the V800KBD Remote Keyboard and V800MIU Multi-Output Interface Unit with Vicon’s
AurorA99 (or AurorA) Digital Multiplexer. Refer to Vicon Instruction Manual X873 for information on the
AurorA99 multiplexer.
You may use any of the following VCRs with the remote keyboard and interface unit:
• Mitsubishi VCR with RS-232 capability
• JVC Model BR-S925
• Sanyo VCR with RS-232 capability.

X939 Rev 1298 Remote Keyboard Installation •3
Installation
Cable Recommendations
You must supply 22 AWG, 2-conductor (twisted pair) shielded copper wire with which to make the
connections. In standalone mode, since the communication from the keyboard to the multiplexer and VCR is
RS-232 data, the maximum length of cable must not exceed 500 ft (150 m). In multi-unit mode, the
communication from the keyboards to the multi-output interface units is RS-485 and the combined length of
cable must not exceed 3280 ft (1 km). The communication from the interface unit to the multiplexer and VCR
is still RS-232, even in multi-unit mode, and should not exceed 500 ft (150 m).
Standalone Mode
Note: Perform the procedures in this section if you will use the keyboard to control one VCR and one
AurorA99 (or AurorA) digital multiplexer only; i.e., if you have not purchased the V800MIU Multi-Output
Interface.
In standalone mode, the keyboard is used to control one VCR and one AurorA99 (or AurorA) digital
multiplexer. The V800MIU interface is not required. Figure 1 illustrates the components in a standalone
system.
ZOOM
POWER
MENU
ZOOM
FREEZE RESTORE MODE
SETUP FORMAT ENTER SHIFT
▲
▲
▲
▲
V816DB-C
USER
ZOOMZOOM
12345678
9 10111213141516
AurorA99 Digital Multiplexer
AurorA99 Keyboard
VCR
USER
1
FREEZE RESTORE SELECT
SHIFTENTERFORMATSETUP
MODEMENU
+ ZOOM –
2345678
9 10111213141516 +–+–REC
PLAY /REW FF/ PAUSE/ STILL STOP
REC/PLAY MODE FRAME SHIFT
TM
TM
Figure 1
Standalone Mode

4 •Installation X939 Rev 1298 Remote Keyboard
Perform the following procedure to make connections, define software communication parameters and set
switches in a standalone system.
1. At the multiplexer, press the 6 key and then the 3 key from the Main Menu to access the
Serial Port Setup
Sub Menu.
Then press the 2 key to access the
Serial 2 Setup Sub Menu
. Refer to
AurorA99 Digital
Multiplexer Instruction Manual X873
if you are unfamiliar with the AurorA99’s programming menus. Use
the following settings:
• Mode: Host
• Baud Rate: 9600
• Parity: None
• Stop: 1
Note: The multiplexer uses 8 data bits by default.
2. Set your VCR as follows, referring to your VCR documentation if necessary:
• Mode: RS-232 • Stop Bits: 1
• Baud Rate: 2400 • Data Bits: 8
• Parity: None
Warning: After performing the steps above, disconnect power from the VCR and multiplexer, referring to
the appropriate instruction manuals. There should be no power connected to the keyboard, VCR
or multiplexer.
3. Locate the accessory kit supplied with the keyboard. It should contain the following:
• 9-pin D-shell connector
• 15-pin D-shell connector
• strain relief for each connector
4. Make connections between the digital multiplexer and the keyboard as shown in Table 1. The rear panel
of the keyboard is shown in Figure 2. Assemble the 15-pin connector using the recommended cable and
the strain relief. The multiplexer 9-pin connector is located in the multiplexer accessory kit. If you have not
already done so, assemble the multiplexer connector as well.
AurorA99 Digital Multiplexer Instruction
Manual X873
contains details and a figure to help you assemble the connectors if needed.
15-PIN CONNECTOR
FOR MULTIPLEXER AC POWER
87654321
15 14 13 12 11 10 9
9-PIN CONNECTOR
FOR VCR
54321
9876
Figure 2
Keyboard Rear Panel
View of wiring side

X939 Rev 1298 Remote Keyboard Installation •5
Note: Only the 9-pin connector labeled “RS-232/RS-422” on the AurorA99 digital multiplexer’s rear panel may
be used for the connections in Table 1.
Table 1
Multiplexer Connections in Standalone Mode
Keyboard 15-Pin Connector Pin # Multiplexer “RS-232/RS-422” 9-Pin
Connector Pin #
23
32
5 (ground) 5 (ground and drain wire)
5. Assemble the 9-pin connector using the recommended cable and the strain relief. You must refer to the
VCR instructions for the other end of the cable. Make connections between the keyboard and the VCR as
shown in Table 2.
Note: You must refer to your VCR documentation to locate the appropriate RS-232 connector. The Sanyo
VCR uses a 9-pin D-shell connector and the other two VCRs will have a 25-pin D-shell connector.
Table 2
VCR Connections in Standalone Mode
Keyboard 9-Pin
Connector Pin # Mitsubishi VCR Pin # JVC VCR Pin # Sanyo VCR Pin #
N/A 1 to drain wire 1 to drain wire N/A
2329
3231
5 5 7 4 to drain wire
N/A connect pins 4, 6 and
8 together connect pins 5, 6 and 20 together N/A
6. Turn the keyboard over so that the bottom side is up. Refer to Figure 3 and locate the 3-pin connector.
RUBBER
FEET
RECESSED
3-PIN CONNECTOR
RECESSED
DIP SWITCH
Figure 3
Keyboard Bottom Panel

6 •Installation X939 Rev 1298 Remote Keyboard
7. The jumper must be connected across the left and center pins (RS-232) for standalone mode. If this is not
the case, move the jumper now.
8. Referring to Figure 2, locate the DIP switch on the bottom panel of the keyboard. This switch defines the
type of VCR that you are using. Use Table 3 to set the DIP switch, noting the ON/OFF orientation of the
switch poles (labeled on the DIP switch).
Note: The DIP switch has six poles. Make sure that poles 3 through 6 are OFF, regardless of the VCR that
you are using.
Table 3
DIP Switch Settings Used to Define VCR
VCR Pole 1 Pole 2 Pole 3 Pole 4 Pole 5 Pole 6
Mitsubishi (PAL) OFF OFF OFF OFF OFF OFF
Mitsubishi (NTSC) ON ON OFF OFF OFF OFF
JVC ON OFF OFF OFF OFF OFF
Sanyo OFF ON OFF OFF OFF OFF
9. Locate the power supply included with the keyboard. The actual (on load) voltage is between 8 and 14
VAC. Connect the power supply to the keyboard rear panel shown in Figure 2 and to the appropriate
power source. Connect the multiplexer and the VCR to the appropriate power sources, referring to their
respective instruction manuals.

X939 Rev 1298 Remote Keyboard Installation •7
Multi-Unit Mode
Note: Perform the procedures in this section if you will use keyboard(s) to control more than one VCR and
more than one AurorA99 (or AurorA) digital multiplexer; i.e., if you have purchased V800MIU Multi-
Output Interface Unit(s).
A multi-unit system may contain up to 8 keyboards, 8 multiplexers, 4 multi-output interface units, and 8 VCRs.
For each multi-output interface unit, 2 VCRs and 2 multiplexers may be connected. Figure 4 illustrates a multi-
unit system which contains the maximum number of system components.
▲
▲
▲
▲
Multiplexer
VCR
▲
▲
▲
▲
Multiplexer
VCR
Master Keyboard Keyboard 1
Keyboard 3 Keyboard 2
Keyboard 4 Keyboard 5
Keyboard 7 Keyboard 6
V800MIU
▲
▲
▲
▲
Multiplexer
VCR
▲
▲
▲
▲
Multiplexer
VCR
V800MIU
▲
▲
▲
▲
Multiplexer
VCR
▲
▲
▲
▲
Multiplexer
VCR
V800MIU
▲
▲
▲
▲
Multiplexer
VCR
▲
▲
▲
▲
Multiplexer
VCR V800MIU
Figure 4
Multi-Unit System with Maximum Number of Components
Note: The maximum combined length of cable i
n
multi-unit mode must not exceed 3280 ft (1 km
)
for the RS-485 communications.
