Installation Guide for Jace2 Wireless Communication Card
( Issue Date: April 23, 2009 – 028-0219 R0 )

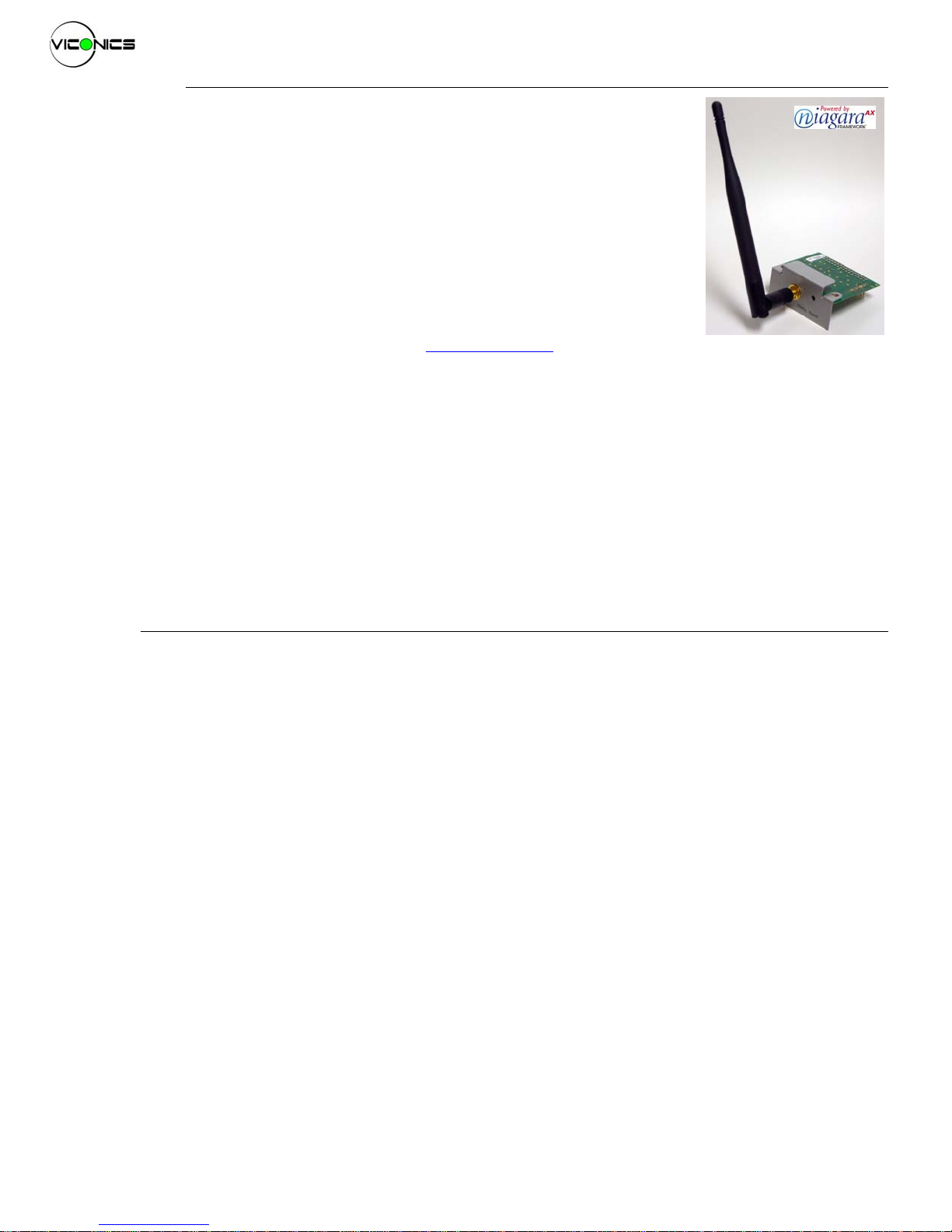

Product Overview
The Jace2 wireless communication card and related WirelessStatNetwork driver
file have been specifically designed to be used by the Niagara AX® powered
JACE2 controllers. When utilized in conjunction with the VT7xxxXxxxxW series
wireless thermostats it offers the integrator simple Niaraga AX® to integrate using
the familiar Workbench tool set.
The wireless thermostats are targeted to retrofit applications where the addition of
communicating field bus wiring within the building space is prohibitive.
This document covers the mounting of the wireless communication card in a JACE2
series controller.
The following additional documentation is available on www.viconics.com
• Information on the Jace2 / VWG hardware installation is available in document LIT-VWG-40-INSTALL-Exx
• Integration information is available in document ITG-VWG-40-BAC-Exx
• Information on design consideration of wireless mesh networks and Jace2 VWG set-up / diagnostics is available in
document LIT-VWG-40-SETUP-Exx
Included in this package you should find the following items:
• The card itself assembled with a mounting metal bracket
• A local antenna
The following tools and supplies may be required for installation:
• #2 phillips screwdriver: used to install the card
Disclaimers
NO WARRANTY. Viconics, Inc. ( herein after referred to as “Viconics” ) makes no warranty as to the accuracy of or use of this
technical documentation. Any use of the technical documentation or the information contained therein is solely at the risk of the
user.
Documentation may include technical or other inaccuracies or typographical errors. Viconics reserves the right to make
changes to this document without prior notice, and the reader should in all cases consult Viconics to determine whether any
such changes have been made. The information in this publication does not represent a commitment on the part of Viconics.
Viconics shall not be liable for incidental or consequential damages resulting from the furnishing, performance, or use of this
material.
Electronic controls are static sensitive devices. Discharge yourself properly before manipulation and installing the Viconics
wireless gateway.
Viconics Inc. may not be held liable for continued reliable, or robust operation of any and all wireless based devices. Although
Viconics has taken many precautions in assuring the robustness of the VT7000 series wireless thermostat product line and
associated network access point. Please note; future application of additional wireless devices utilizing the same or similar
channels and / or frequencies may degrade performance of overall system and / or reliability.
Non-approved modifications or changes made to the Wireless Communication Card VWG or wireless thermostats may void the
FCC compliance of the VWG and wireless thermostats.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT
ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S
AUTHORITY TO OPERATE THE EQUIPMENT 028-0219_R0_Jace2 Wireless Com Card Installation-E01.doc

2
Card Mounting and Assembly
• Power to the JACE2 must be OFF when installing or removing the wireless communication card, or
damage will occur! Also, you must be very careful to plug any option card into its connector properly
(pins aligned).
• Only one card can be installed in a JACE2. Always use Com1 location for installation.
Procedure, mounting the wireless communication card on a JACE2.
1. Remove power from the JACE2—see the previous Warning.
2. Remove the JACE2 cover.
To do this, press in the four tabs on both ends of the unit, and lift the cover off.
Note, if other expansion accessory modules are plugged into the JACE2, you may need to slide them away
from the unit to get to the cover tabs.
3. Remove the battery and bracket assembly by taking out
the four screws holding it in place, setting the screws
aside for later.
4. Unplug the battery from the connector on the JACE2.
5. Remove screws and battery assembly.
6. Remove the front blanking end plate for Com1 slot
7. Insert the wireless communication card asembly.
Carefully insert the pins of the wireless communication
card into the socket of Com1. The mounting holes on the
option board should line up with the standoffs on the base
board. If they do not, the connector is not properly
aligned. Press until the option card is completely seated.
8. Plug the battery cable back into the battery
connector on the JACE2
9. Set the battery and bracket assembly back over the
option card slots, with the mounting holes aligned
with the standoffs.
10. Re-fasten screws through battery bracket the four
holding screws through. DO NOT over tighten.
11. Replace the JACE2 cover.
12. Screw in antenna
Physical Mounting of the JACE2 with Wireless Communication Card
Please refer to the Viconics Jace2 / VWG hardware installation. Document: LIT-VWG-40-INSTALL-Exx. This manual
covers the physical installation of the Jace2 / Viconics Wireless Gateway.
The main topics are: Preparation, Precautions, Mounting, Wiring Details, Power Up and Initial Checkout
Also covered by this document are several appendixes, as follows: Status LEDs, Replacement and accessory,
Certifications and Declaration of Conformity
Trademarks
Niagara, Niagara AX is a registered trademark of Tridium, Inc.
Front blanking
end plate
Retaining nut with
lock washer
