Victory HURRICANE 30 Assembly instructions

Professional Wall-Mount Range Hood
Model Name:
Available Sizes:
HURRICANE
30”, 36”, 42”, 48”, 60”
NOTICE: For residential use only.
Installer: Leave this guide with the homeowner.
Homeowner: Keep this guide for future reference.
www.victoryrangehoods.com Rev.20221018
INSTALLATION GUIDE
AND USERS MANUAL

Important Safety Notice................................................................... 3
Electrical Requirements.................................................................. 5
Venting Requiremens...................................................................... 6
Calculating Duct System Length.................................................... 7
Specications................................................................................... 7
Required Tools.................................................................................. 8
PartsSupplied................................................................................... 8
Dimensions........................................................................................ 10
Preparation........................................................................................ 13
Installation Options.......................................................................... 13
Option 1: Free Standing................................................................... 14
Option 2: Under Cabinet.................................................................. 18
Venting Methods............................................................................... 22
Wiring Diagram................................................................................. 25
Range Hood Operations................................................................... 25
Troubleshooting................................................................................ 26
Do’s and Don’ts for Duct Venting.................................................... 27
Use and Care Information................................................................ 27
Maintenance...................................................................................... 28
Bulb Replacement............................................................................ 29
Warranty............................................................................................. 31
Disclaimer.......................................................................................... 32
Contact Us........................................................................................ 32
VICTORY range hoods
| HURRICANE
2VICTORY range hoods HURRICANE | 3
TABLE OF CONTENTS

• The installation in this manual is intended for qualied installers, service technicians or
persons with similar qualied background. Installation and electrical wiring must be done by
qualied professionals and in accordance with all applicable codes and standards, including
re-rated construction.
• DO NOT attempt to install this appliance yourself. Injury could result from installing the unit
due to lack of appropriate electrical and technical background.
• Range hood may have very sharp edges; please wear protective gloves if it is necessary to
remove any parts for installing, cleaning or servicing.
• Activating any switch ON before completing installation may cause ignition or an explosion.
• Due to the size and weight of this range hood, two-person installation is recommended.
To reduce the risk of re, electric shock, or injury to persons:
• For general ventilating use only. DO NOT use to exhaust hazardous or explosive materials
and vapors.
• The combustion air ow needed for safe operation of fuel-burning equipment may be a󰀨ected
by this unit’s operation. Follow the heating equipment manufacturer’s guideline and safety
standards such as those published by the National Fire Protection Association (NFPA), and
the American Society of Heating, Refrigeration and Air Conditioning Engineers (ASHRAE),
and the local code authorities.
• Before servicing or cleaning unit, switch power OFF at service panel and lock service panel
to prevent power from being switched ON accidentally.
• Clean grease laden surfaces frequently. To reduce the risk of re and to disperse air properly,
make sure to vent air outside. DO NOT vent exhaust into spaces between walls, crawl
spaces, ceiling, attics and/or garages.
• Ducted fans MUST always be vented to the outdoors.
• Use only metal ductwork and this unit MUST be grounded.
• Su󰀩cient air is needed for proper combustion and exhausting of gases through the duct to
prevent back drafting.
• When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other
hidden utilities.
• All electrical wiring must be properly installed, insulated and grounded.
• Old duct work should be cleaned or replaced if necessary to avoid the possibility of a grease
re.
• Check all joints on duct work to insure proper connection and all joints should be properly
taped.
• Use this unit only in the manner intended by the manufacturer. If you have questions, contact
the vendor.
To reduce the risk of a stove top grease re:
• Keep all fans, spacers, lters, grease tunnels, oil containers and grease-laden surfaces
clean. Grease should not be allowed to accumulate on fan, ba󰀪e, spaces, lter, grease
tunnel and oil container.
• Always turn range hood ON when cooking at high heat or when cooking foods that produce
ames.
• Use high settings on cooking range only when necessary.
• Never leave surface units unattended at high settings. Boil overs cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or medium settings.
VICTORY range hoods
| HURRICANE
2VICTORY range hoods HURRICANE | 3
IMPORTANT SAFETY NOTICE
Read all instructions before installing and operating this appliance

• Clean ventilating fan frequently.
• Always use appropriate cookware and utensils size.
• Always use cookware appropriate for the size of the surface element.
To reduce the risk of injury to persons in the event of a stove top grease re:
• Smother ames with a close-tting lid, cookie sheet, or metal tray, then turn OFF the burner.
Be careful to PREVENT BURNS. Never pick up a pan that has ames—you may be burned.
Keep ammable and/or combustible material away from ames. If the ames DO NOT go out
immediately, EVACUATE and CALL the FIRE DEPARTMENT or dial your local emergency
service immediately.
• DO NOT use WATER, including wet dishcloths or towels — it will result in a violent steam
explosion
• Use an extinguisher ONLY if:
• You know you have a Class A, B, C extinguisher, and you already know how to operate it.
• The re is small and contained in the area where it has started.
• The re department is on the way.
• You can ght the re while having access to a safe exit.
To reduce the risk of injury to persons in the event of a gas leaks:
• Extinguish any open ame.
• DO NOT turn on the range hood fan or any type of ventilator.
• DO NOT turn on the lights or any type of appliance.
• Open all doors and windows to disperse the gas. If you still smell gas, call the gas company
and re department or dial your local emergency service immediately.
Your safety and the safety of others is very important. We have provided many important safety
messages in this manual and on your appliance. Always read and obey all safety messages. All
safety messages will tell you what the potential hazard is, tell you how to reduce the chance of
injury, and tell you what can happen if the instructions are not followed.
This is the safety alert symbol. This symbol alerts you to potential hazards that can hurt you
and others. All safety messages will follow the safety alert symbol and the word “WARNING”.
The manufacturer and/or distributor/reseller declines all responsibility in the event of failure to
observe the instructions given here for installation, maintenance and suitable use of the product.
The manufacturer and/or distributor/reseller further declines all responsibility for injury due to
negligence and the warranty of the unit automatically expires due to improper maintenance.
The manufacturer and/or distributor/reseller will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused directly or indirectly by
the range hood.
VICTORY range hoods
| HURRICANE
4VICTORY range hoods HURRICANE | 5
IMPORTANT SAFETY NOTICE
Read all instructions before installing and operating this appliance

IMPORTANT: Observe all governing codes and ordinances.
It is the customer’s responsibility:
• To contact a qualied electrician
• To assure that the electrical installation is adequate and in conformance with National
Electrical Code, ANSI/NFPA 70 — latest edition*, or CSA Standards C22. 1-94, Canadian
Electrical Code, Part 1 and C22. 2 No. 0-M91 - latest edition** and all local codes and
ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualied electrician
determine that the ground path is adequate.
A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit.
DO NOT ground to a gas pipe.
Check with a qualied electrician if you are not sure that the range hood is properly grounded.
DO NOT have a fuse in the neutral or ground circuit.
IMPORTANT: Save this Installation Guide for electrical inspector’s use.
The range hood must be connected with copper wire/plug only.
The range hood should be connected directly to the fused disconnect (or circuit breaker) box
through exible armored or non-metallic sheathed copper cable. A U.L. - or C.S.A. - listed strain
relief must be provided at each end of the power supply cable.
Wire sizes (copper wire only) and connections must conform with the rating of the appliance
as specied on the model/serial rating label. Wire sizes must conform to the requirements
of the National Electrical Code ANSI/NFPA 70 — latest edition*, or CSA Standards C22.
1-94, Canadian Electrical Code Part 1 and C22. 2 No. 0-M91 - latest edition** and all
local codes and ordinances. A U.L. - or C.S.A. - listed conduit connector must be provided
at each end of the power supply cable (at the range hood and at the junction box).
Copies of the standards listed may be obtained from:
* National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
** CSA International
8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575
VICTORY range hoods
| HURRICANE
4VICTORY range hoods HURRICANE | 5
ELECTRICAL REQUIREMENTS

• Duct system must terminate to the outside (roof or side wall).
• DO NOT terminate the duct system in an attic or other enclosed area.
• DO NOT use 4” (10.2 cm) laundry-type wall caps.
• Use metal/aluminum duct only. Rigid metal/aluminum vent is recommended.
• DO NOT use plastic duct.
• Always keep the duct clean to ensure proper airow.
• Calculate the following gures before installation:
1. Distance from the oor to the ceiling.
2. Distance from countertop/stove to range hood (recommend* 28” to 36”).
3. Height of hood and duct cover.
For the most e󰀩cient & quiet operation:
• A distance of 28” to 36” is recommended* between stove top and the bottom of range hood.
• It is recommended that the range hood be vented vertically through the roof through 8” or bigger
round metal/aluminum duct work.
• The size of the duct should be uniform.
• Use no more than three 90° elbows.
• Make sure there is a minimum of 24” (61 cm) of straight duct between the elbows if more than one
elbow is used.
• DO NOT install two elbows together.
• The length of duct system and number of elbows should be kept to a minimum to provide e󰀩cient
performance.
• The duct system must have a damper. If roof or wall cap has a damper, DO NOT use damper (if
supplied) on top of the range hood.
• Use aluminum foil tape to seal all joints in the duct system.
• Use caulking to seal exterior wall or roof opening around the cap. USE 8” ROOF OR WALL VENT
CAP MINIMUM.
IMPORTANT:
• A minimum of a 8” round duct (standard for this range hood) must be used to maintain maximum
airow e󰀩ciency. There is also an option to use a 10” round duct size for this unit.
• Always use rigid type metal/aluminum ducts if available to maximize airow when connecting to
provided duct.
• Please use Duct Run Calculation below to compute total available duct run when using elbows,
transitions and caps.
• ALWAYS, when possible, reduce the number or transitions and turns in the duct run. If a long duct
run is required, increase the duct size from 8” to 10”. If a reducer is used, install a long reducer
instead of a pancake reducer. Reducing the duct size will restrict airow and decrease e󰀩ciency.
• If turns or transitions are required: Install as far away from opening and as far apart, between 2, as
possible.
• Minimum mount height between stove top to hood bottom should be no less than 28-inch*.
• Maximum mount height between stove top to hood bottom should be no higher than 36-inch*.
• It is important to install the hood at the proper mounting height. Hoods mounted too low could
result in heat damage and re hazard; while hoods mounted too high will be hard to reach and will
loose its performance and e󰀩ciency.
• If available, also refer to stove top manufacturer’s height clearance requirements and
recommended hood mounting height above range.
Minimum Duct Size:
• Round - 8” minimum
• Round - 10” recommended/optional
* Due to different ceiling height congurations, recommended height may not be applicable.
VICTORY range hoods
| HURRICANE
6VICTORY range hoods HURRICANE | 7
VENTING REQUIREMENTS

To calculate the length of the duct system you require, subtract the equivalent feet for each
“Duct piece” (Table Below) used in the system from the “Recommended maximum run” (Table
Below). The longest duct run that is acceptable (if completely straight) is 50 feet. The number of
duct pieces (elbow, transition, etc.) installed in your duct run will determine the maximum length
the duct run can be. Please refer to the example below:
Duct Run Calculation:
Recommended maximum run
8” round duct 50 ft
Duct piece deduction
Each 90º elbow used 9 ft
Each 45º elbow used 5 ft
Each round to rectangle transition
used
7 ft
Side wall cap with damper 7 ft
Roof cap 7 ft
Duct Run Calcuation example:
One roof cap, two 90º elbows, and one 45º elbow
used:
7ft + 9ft + 9ft + 5ft = 30ft used.
The above duct pieces used are equivalent to
30ft of a straight duct run. Subtract 30ft from the
allowable 50ft. The remaining distance of 20ft is
the longest that the straight ducting (in addition to
the vent pieces) can be.
Body Stainless Steel (19 gauge)
Power Rating 120V/60Hz (USA & Canada standard)
General Input Power 440 W (300W + 4x35W) or 510W (300W + 6x35W)
Motor Input Power 300 W
Motor Revolution 800 RPM (±10%) to 1300 RPM (±10%)
Levels Of Speed Control 4 Levels
Maximum Airow 1000 CFM/ 1200 CFM (when 10” duct is used)
Air Pressure 150 Pa (200 Pa Maximum)
Noise Level (sone) Approximately 1.2 to 6.6 (Lowest to Highest Speed)
Motor Type Double Chamber Ultra Quiet ( Metal blades)
Fan Type Centrifugal
Control Type Mechanical, Rotary Switches
Filtration Type Stainless Steel Ba󰀪e Filters and Grease Tunnel
Illumination 4 x 35W or 6 x 35w GU10, 120V Dimmable (LED Optional)
Venting Size Top or Back, 8 Inches Round or 10” (Optional)
Warranty 5 YEARS ( parts warranty )
* Subject to change without notice, please contact Victory Range Hoods for details.
VICTORY range hoods
| HURRICANE
6VICTORY range hoods HURRICANE | 7
CALCULATING DUCT SYSTEM LENGTH
SPECIFICATIONS*

Putty Knife
Marker
or Pencil
Tape
Measure
Level
Phillips and Flathead
Screwdriver
Aluminum
Tape
Power
Drill
Utility
Knife
Drywall
Knife
Pliers
M5 - 5mm
Big Head
(x10 for 8” Transition)
(x7for 10” Transition)
M4 - 4mm
Big Head
(x15)
M4 - 4mm
Bullet Head
(x12 for Models 30, 36)
(x16 for Models 42, 48)
Mounting Brackets
(x2 for Models 30, 36, 42, 48)
(x3 for Model 60)
NOTE:
Where necessary, additional screws will be
needed for installation and added support,
but are NOT included. Please review contents
before installation.
VICTORY range hoods
| HURRICANE
8VICTORY range hoods HURRICANE | 9
REQUIRED TOOLS
PARTS SUPPLIED

Ø - 10” Transition
(Requested option)
Ø - 8” Transition
Baffle Filters
(x2 for Models 30,36)
(x3 for Models 42,48)
(x4 for Model 60)
Filter Handles
(x4 for Models 30,36)
(x6 for Models 42,48)
(x8 for Model 60)
HURRICANE
RangeHood
Grease Tunnel
VICTORY range hoods
| HURRICANE
8VICTORY range hoods HURRICANE | 9
PARTS SUPPLIED (Continued)

Ø 10”
Optional
Transition
BOTTOM
VIEW
SIDE
VIEW
FRONT
VIEW
TOP VIEW
6”
12”
18”
29
¾”
24”
Ø 8”
Hood shown: Model-30
Please refer to next pages for available
models and their respective dimensions
VICTORY range hoods
| HURRICANE
10 VICTORY range hoods HURRICANE | 11

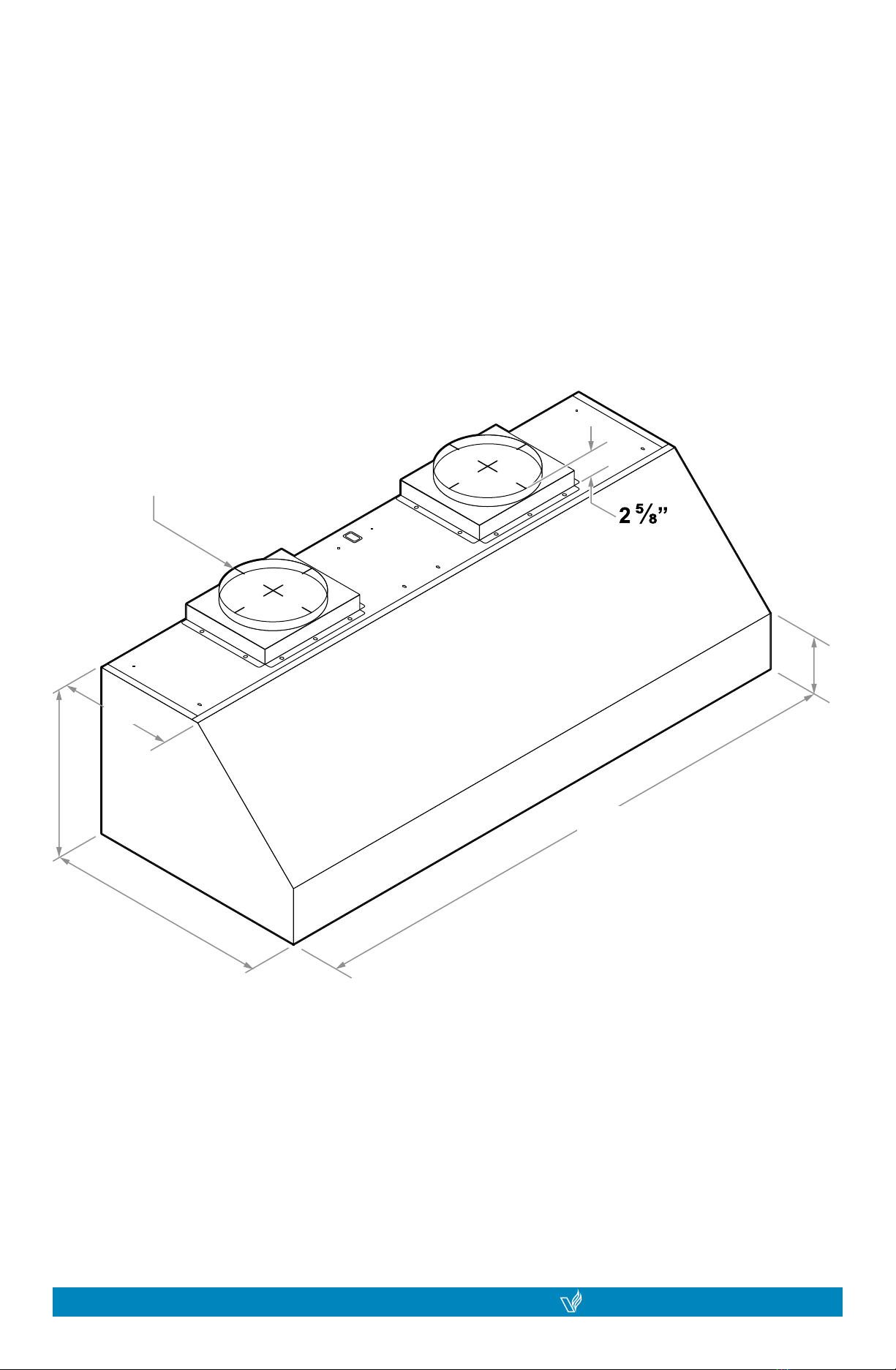

DIMENSIONS

18”
24”
8”- Ø Transition 4”
6”
12”
29 ¾”
10”
Optional
Vent Size
18”
24”
8”- Ø Transition
4”
6”
12”
Model 30
Model 36
Model 42
Model 48
Available in 35 ¾”, 41 ¾”, and 47 ¾”
VICTORY range hoods
| HURRICANE
10 VICTORY range hoods HURRICANE | 11
DIMENSIONS (continued)

18”
24”
10”- Ø
Transition
6”
12”
59
¾
”
Model 60
VICTORY range hoods
| HURRICANE
12 VICTORY range hoods HURRICANE | 13
DIMENSIONS (continued)

Counter
Top
Ceiling
Wall
Cabinets
Counter
Top
Ceiling
Wall
Cabinets
BEFORE INSTALLING THE RANGE HOOD, CHECK FOR PHYSICAL DAMAGES.
THIS RANGE HOODS COMES WITH A WIRE AND PLUG.
TEST THE HOOD BEFORE INSTALLATION.
If there is a grinding noise coming from the motor, DO NOT INSTALL IT, contact us as soon as possible.
Advanced Preparations:
1. Read the entire installation guide and users manual thoroughly, understand instructions and
warnings.
2. Be familiar with the controls of the range hood.
3. Place the range hood on a at, stable surface. Connect the range hood to a designated standard
outlet (please refer the product label for the suitable voltage of this unit) and verify no debris has
entered the duct openings, then turn on the range hood.
4. Place all supplied parts and required hardware on a at, stable surface and verify the existence of
all supplied parts.
5. Carefully remove the white/blue plastic protective coat from the chimney covers and range hood if
any.
Preparations:
NOTE: To avoid damage to your hood, preduct debris from entering the duct opening.
1. Disconnect power cord, remove the stainless steel ba󰀪e lter and grease tunnel.
2. Set aside the stainless steel ba󰀪e lters and grease tunnel until the range hood is properly installed.

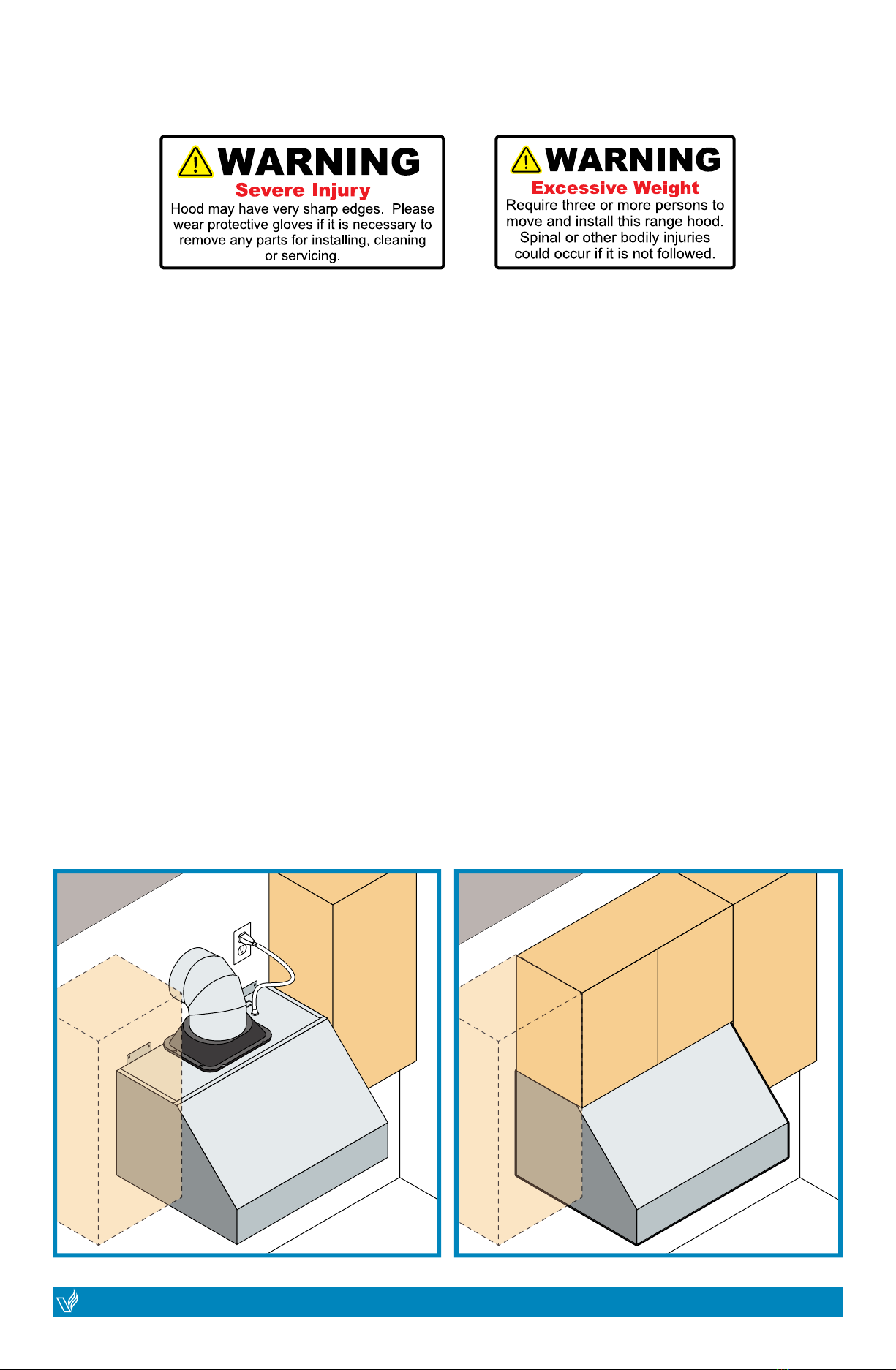

OPTION 1: Free Standing OPTION 2: Under Cabinet
VICTORY range hoods
| HURRICANE
12 VICTORY range hoods HURRICANE | 13
PREPARATION
INSTALLATION OPTIONS

FRONT VIEW
Centerline
Min: 28”
Max: 36”
30”, 36”, 42”, 48”, 60”
8”- Ø Transition shown
(10”- Ø optional)
HURRICANE Range Hood
120v Outlet
location
Side Cabinet
Side Cabinet
Cooking Surface
Ceiling

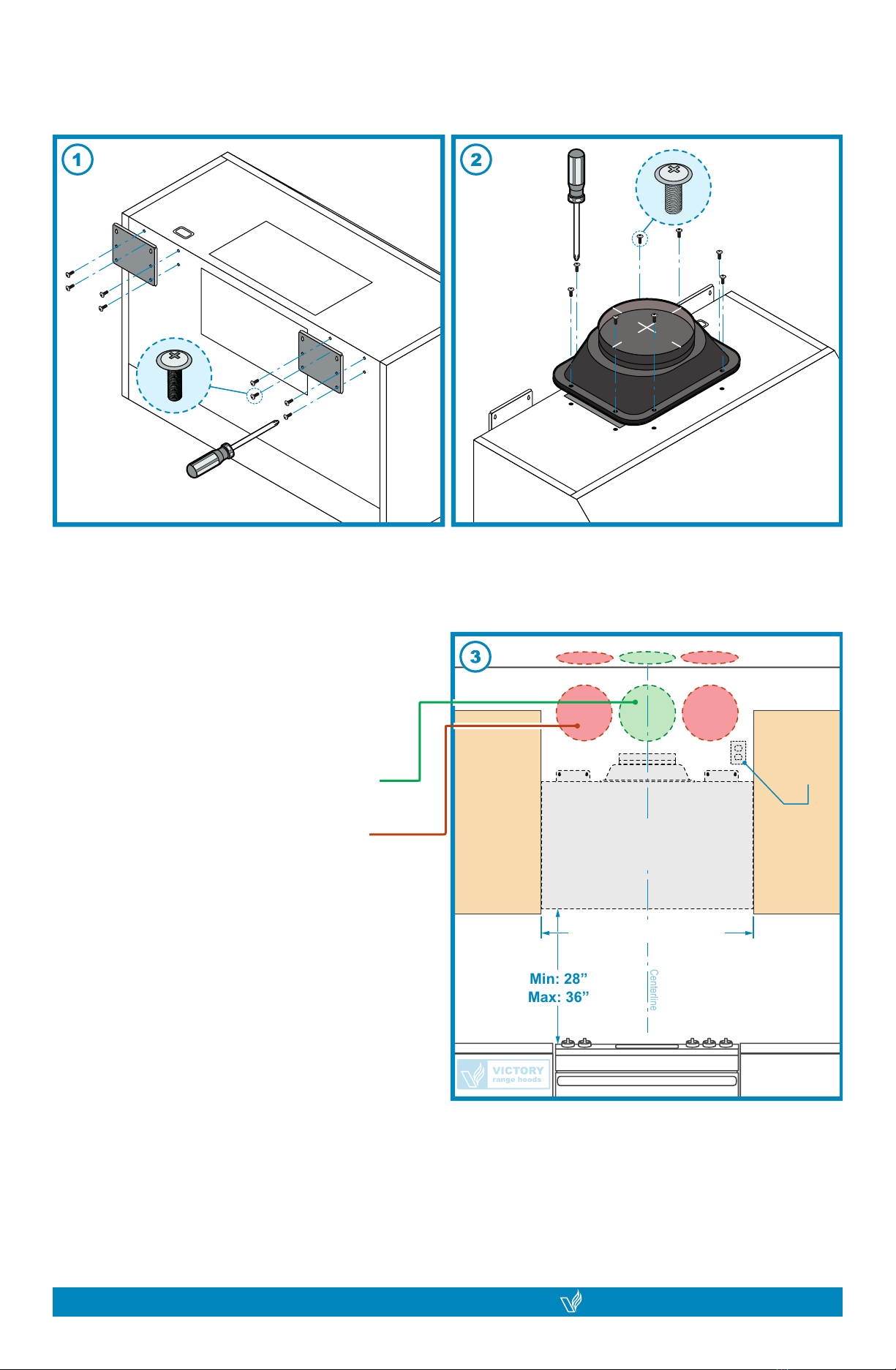

(1) Fasten installation plates using M4-4mm
screws on to the back of the range hood.
(2) Fasten on 8” - Ø Transition on to the top
exhaust of range hood using M5-5mm screws
(10” Optional).
(3) Measure the distance between the stove top
and the bottom of range hood. A distance of 28”
to 36” is recommended*.
*Due to dierent ceiling height congurations,
recommended height may not be applicable.
Wall or roof vent may be installed in
these areas but not recommended.
Preferred areas to install wall or roof
vent ducting.
VICTORY range hoods
| HURRICANE
14 VICTORY range hoods HURRICANE | 15
OPTION 1: FREE STANDING

FRONT VIEW
Centerline
Cut out drywall for
plywood brace
Determine spacing
between studs
Stud behind
the wall
8”- Ø Transition
(10”- Ø optional)
HURRICANE
Range Hood
Ceiling
Wall
Dry wall cut out
Studs behind the wall
Placement of
Range Hood
Centerline
Ceiling
Wall
Placement of
Range Hood
Centerline
Pilot holes to screw brace onto studs.
Drill holes at the rear panel of the
range hood in order to mount wood
screws (not included) in to the studs for
additional support.
(5) Use knife and saw to cut out drywall to
accommodate plywood brace support.
(6) Screw on plywood to the exposed studs
(woodscrews not included). The inserted plywood
should be the same depth as the drywall slab it is
replacing.
NOTE: DO NOT USE threaded drywall anchors to support the hood when mounting the hood on
sheetrock. Mounting the hood on wall studs or lumbars is highly recommended.
CAUTION: Make certain the range hood is secure before releasing!
For safety purpose, pre-drilled mounting holes are provided through the back of the hood. For a more
secure installation, use as many mounting holes as needed to secure from the inside of hood.
VICTORY range hoods
| HURRICANE
14 VICTORY range hoods HURRICANE | 15
OPTION 1 (continued)

Counter
Top
Ceiling
Wall
Cabinet
Centerline
Placement of
Range Hood
Ceiling
Wall
Cabinet
Centerline
Ceiling
Wall
Cabinet
Centerline
(7) Apply spackle in between spaces of the
plywood and drywall seamlessly. Sand down
any rough spackle to smooth out. Paint area if
required.
(8) Use woodscrews (not included) to screw onto
the area of the plywood brace based on your
measurements already established.
SAFETY WARNING: Risk of electrical shock. this range hood must be properly grounded. Make sure
this is done by qualied electrician in accordance with all applicable national and local electrical codes.
Before connecting wires, switch power o󰀨 at service panel and lock service panel to prevent power from
being switched on accidentally.
(9) From the inside rear panel of the range
hood, use woodscrews (not included) to mount
into the studs based on your measurements
already established. Connect the range hood to
a designated standard outlet and check the fan
motor and lights are functioning. Be alert of any
electrical hazards and refer to the product
label for the suitable voltage of this unit.
VICTORY range hoods
| HURRICANE
16 VICTORY range hoods HURRICANE | 17
OPTION 1 (continued)

*8” - Ø Elbow Duct
(10” optional)
*8” - Ø Transition
(10” optional)
Cut out hole
in wall to
accommodate
elbow duct.
*Distance from
wall to transition
circumference
edge: 1 ¼”
WALL VENT
Counter
Top
Ceiling
Wall
*8” - Ø
Elbow Duct
inserted into
wall cut out
(10” optional)
Use aluminum
foil tape to make
all joints secure
and air tight
Use aluminum
foil tape to make
all joints secure
and air tight
*Distance from
wall to transition
circumference
edge: 1 ¼”
Centerline
*8”- Ø Duct
(10” optional)
*8”- Ø Transition
(10” optional)
Cut out hole
in ceiling for
exhaust duct
ROOF VENT
Counter
Top
Ceiling
Wall
Fasten screws to
mount cover on to
the range hood.
**Optional Cover
(requested order)
**Optional Cover
(requested order)
*Distance from wall to transition circumference edge for 8” - Ø Transition will be 1¼”. Distance from
wall to transition circumference edge for 10” - Ø Transition will be ½”. Use aluminum foil tape to make
all joints secure and air tight.
Use 8” round steel pipe to connect the exhaust on
the hood to the ductwork above. Use aluminum
foil tape to make all joints secure and air tight.
Use 10” round steel pipe when using 10” - Ø
Transition.
**Optional cover must be pre-ordered respective
to model width, and comes in di󰀨erent heights
(12”, 24”, 36”). Use M4-4mm screws to fasten
cover to range hood.
VICTORY range hoods
| HURRICANE
16 VICTORY range hoods HURRICANE | 17
OPTION 1 (continued)

Centerline
Min: 28”
Max: 36”
30”, 36”, 42”, 48”
8”- Ø Transition shown
(10”- Ø optional)
HURRICANE Range Hood
120v Outlet
location
Side Cabinet
Side Cabinet
Cooking Surface
Ceiling
FRONT VIEW
NOTE: To install directly under the cabinet, there
is no need to install the screw plates at the back of
the range hood.
(1) Fasten on 8” - Ø Transition on to the top
exhaust of range hood using M5-5mm screws
(10” Optional).
(2) Measure the distance between the stove top
and the bottom of range hood. A distance of 27”
to 30” is recommended*.
*Due to dierent ceiling height congurations,
recommended height may not be applicable.
Preferred areas to install wall or roof
vent ducting.
Wall or roof vent may be installed in these
areas but not recommended.
VICTORY range hoods
| HURRICANE
18 VICTORY range hoods HURRICANE | 19
OPTION 2: UNDER CABINET

Back Wall
TOP VIEW
Bottom panel of the top cabinet
Top view of range hood
***Cut separate openings underneathe
the cabinet to accommodate the
size of the transition and power outlet
Back Wall
TOP VIEW
Drill pilot holes underneathe
the cabinet that line up with
the installation holes on top
panel of range hood.
Bottom panel of the top cabinet
Top view of range hood
Ceiling
Cabinet
Wall
Centerline
Ceiling
Cabinet
Wall
Centerline
***Shown with 8” - Ø Transition. 10” - Ø Transition is optional. Ensure you cut the opening to the
correct measurement of transition.
(5) Screw in woodscrews (not included) from
inside the top panel of the range hood mounting
to the bottom panel of the existing wall-mounted
cabinet.
(6) From the inside rear panel of the range hood,
use woodscrews (not included) to mount into
the studs based on your measurements already
established in the pre-install.
Connect the range hood to a designated standard outlet and check the fan motor and lights are
functioning. Be alert of any electrical hazards and refer to the product label for the suitable
voltage of this unit.
VICTORY range hoods
| HURRICANE
18 VICTORY range hoods HURRICANE | 19
OPTION 2 (continued)

*8” - Ø Elbow Duct
(10” optional)
*8” - Ø Transition
(10” optional)
Cut out hole
in wall to
accommodate
elbow duct.
*Distance from
wall to transition
circumference
edge: 1 ¼”
WALL VENT
Counter
Top
Ceiling
Wall
Cabinets
*8” - Ø
Elbow Duct
inserted into
wall cut out
(10” optional)
*8” - Ø
Elbow Duct
inserted into
wall cut out
(10” optional)
Use aluminum
foil tape to make
all joints secure
and air tight
Use aluminum
foil tape to make
all joints secure
and air tight
*Distance from
wall to transition
circumference
edge: 1 ¼”
Centerline
*8”- Ø Duct
(10” optional)
*8”- Ø Transition
(10” optional)
Cut out hole
on the top panel
of cabinet, and
in ceiling for
exhaust duct
ROOF VENT
Counter
Top
Ceiling
Wall
Cabinets
ROOF VENT
ROOF VENT
*Distance from wall to transition circumference edge for 8” - Ø Transition will be 1¼”. Distance from
wall to transition circumference edge for 10” - Ø Transition will be ½”. Use aluminum foil tape to make
all joints secure and air tight.
Use 8” round steel pipe to connect the exhaust
on the hood to the ductwork above. Use
aluminum foil tape to make all joints secure and
air tight. Use 10” round steel pipe when using
10” - Ø Transition.
Ensure the cylinder duct passes through, leading
to the roof cut out for exhaust connecting duct.
VICTORY range hoods
| HURRICANE
20 VICTORY range hoods HURRICANE | 21
OPTION 2 (continued)
