Victron energy BlueSolar Pro User manual

Manual
EN
BlueSolar
Pro
R
emote
P
anel
For BlueSolar PWM-Pro charge controllers 12/24V 5, 10, 20, 30A
Article number SCC900300000

1
EN
Contents
1.Important safety instructions ………............ 2
2. Installation ..................................................... 2
3.Product features............................................. 3
3.1 General.................................................... 3
3.2 Display .................................................... 5
3.3 Buttons.................................................... 6
4. Monitoring...................................................... 6
5. Full setup details........................................... 8
5.1 Main menu .............................................. 8
5.2 Device Information................................. 8
5.3 Test Operation........................................ 8
5.4 Control Parameters................................ 9
5.5 Load Settings ....................................... 10
5.6 Device Parameters............................... 12
5.7 Device Password ................................. 12
5.8 Charge mode ........................................ 12
5.9 Factory reset......................................... 12
5.10 Failure Information ............................ 13
5.11 Meter parameters ............................... 13
6. Technical Specifications ............................ 13
7. RS485 connector pinout............................. 13
8. Dimensions.................................................. 14

2
1. Important safety instructions
Read all instructions before starting the installation.
Keep the controller away from rain, exposure, severe dust, vibration,
corrosive gas and intense electromagnetic interference.
2. Installation
Please see section 8 for mounting dimensions
Connection to the BlueSolar PWM-Pro charge controller:
The panel must be connected to the controller with a standard RJ45
UTP cable.

3
EN
3. Product features
3.1. General
Warning LED Audible Alarm Communication LED
Display
LCD screen
Buttons

4
RS485 communication and power interface
Warning LED
The warning indicator LED flashes in case of failure of the connected
charge controller.
Audible alarm
The audible failure alarm can be activated or deactivated.
Communication LED
Indicates communication status when the display is connected with
the charge controller.

5
EN
3.2. Display
After connecting the remote panel, the default monitoring display will
be shown:
Charge current icon Battery status icons Load status icon
Day/night. Battery icon Load current icon
PV- V & A. Battery-V&A Load-V&A
Day and night icons
- Night ， - day. If the voltage of the solar array is above 1V, the
daytime icon is shown.
Battery icon
The battery icon shows the state of charge of the battery. For this
function the correct battery capacity must be set (see section 5.4) and
all loads must connected to the load output (i.e. not directly to the
battery).
Note: When the battery is fully discharged, the icon displayed is .

6
Battery status icons
- Normal voltage. - Under voltage ， - Over discharge
Load status icon
-Load output “on” - load output “off”
3.3. Buttons

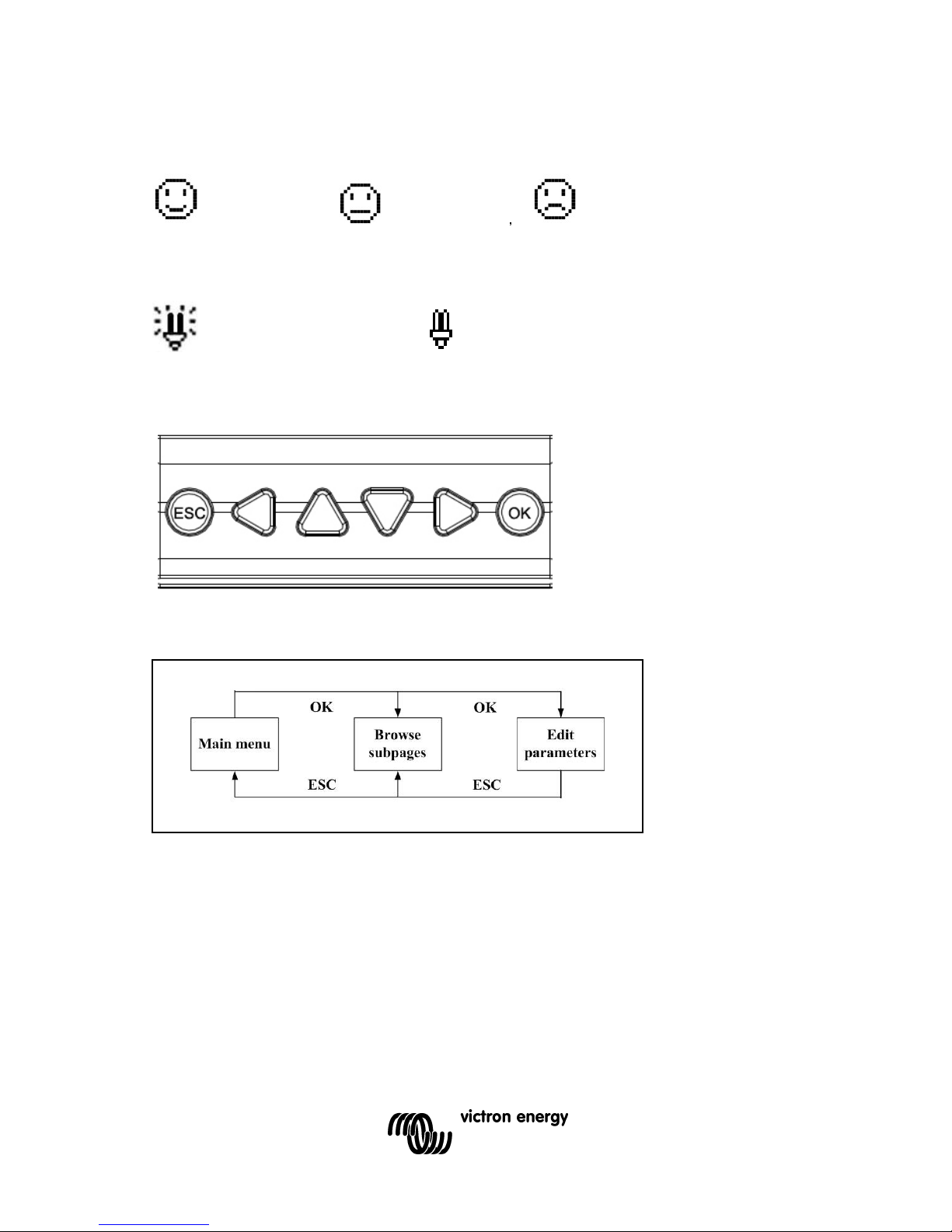

Operation is visualized in the schematic diagram below:
4. Monitoring

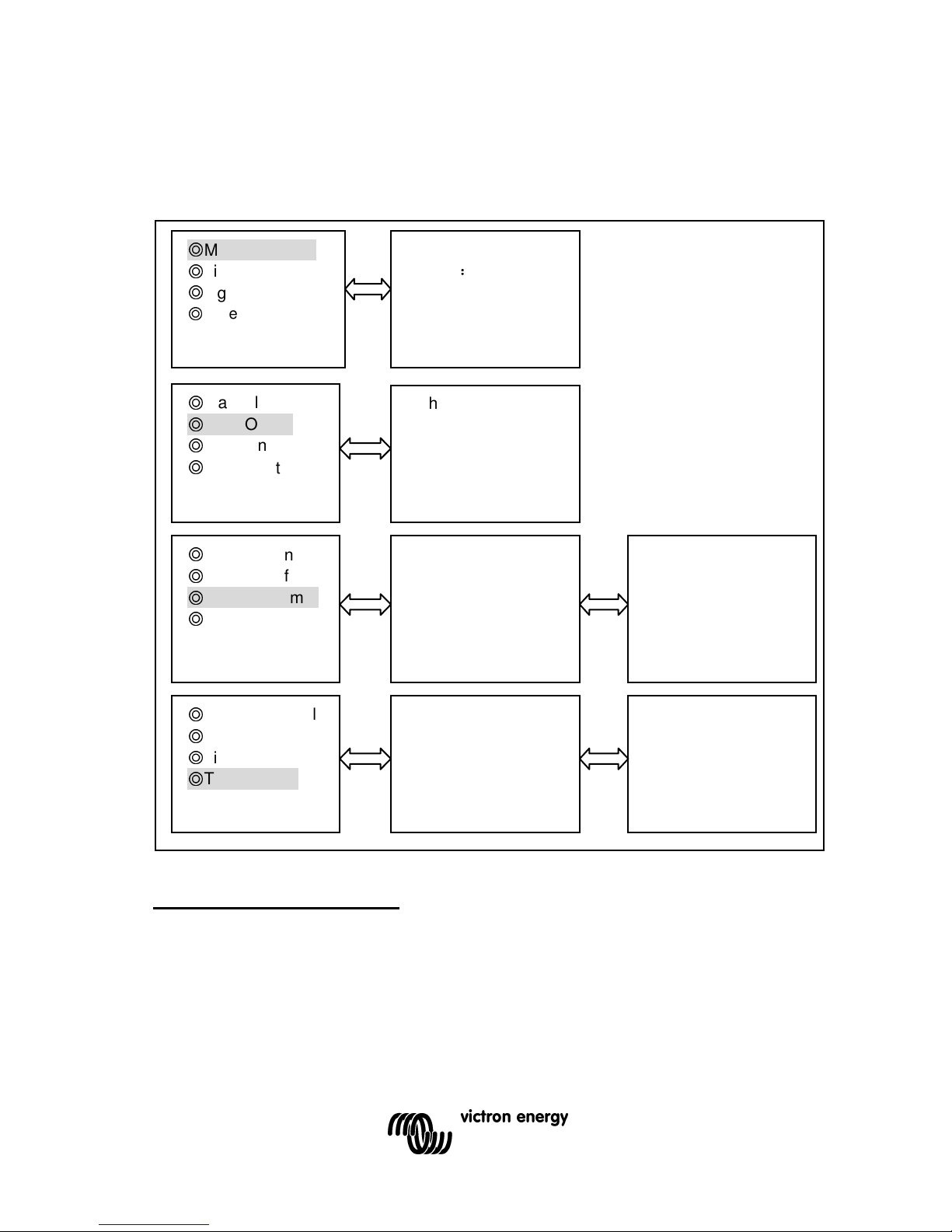

The default monitoring display and monitoring subpages can be
accessed with the UP/DOWN and LEFT/RIGHT buttons. See the
diagram on the next page.

7
EN

8
5. Full setup details
5.1. Main menu
When in monitoring mode, the main menu is accessed by pressing the
ESC button.
The UP and DOWN buttons are used to browse through the main
menu:
1 Monitoring
2 Device information
3 Test operation
4 Control parameters
5 Load set
6 Device parameters
7 Device password
8 Charge mode
9 Factory reset
10 Failure information
11 Meter parameters
The OK and ESC buttons are respectively used to enter or exit the
corresponding pages of the menu items.
A password must be entered to change settings.
When on a settings page, press OK to access the password page and
fill in the password to enable changing of settings.
The default password is 000000
5.2 Device information
The charge controller model, ratings and serial number are displayed
(press the DOWN button to display the serial number).
5.3 Test Operation
When the load output is set on manual control (default setting, see
section 5,5), the output can be switched ON or OFF with the orange
switch button on the Charge Controller. The low voltage cut-off is also
operational.

9
EN
The manual control function is disabled when other load output
settings are chosen (see section 5.5).
However, when other load output settings have been chosen, the
load output can be tested (i.e. switched ON and OFF) after switching
back to Manual Control.
5.4 Control Parameters
The table below shows the list of battery related parameters that can
be modified.
(press the DOWN or UP button to scroll through the parameters)
Parameter
Default
setting
Battery type Gel Sealed
(AGM)
Flooded User
defined
Battery capacity (Ah) 200Ah 1~9999
Temperature compensation coefficient -3mV/°C per 2V cell 0~9
Rated voltage (system voltage) Auto 12V/24V
Over voltage load disconnect 16.0V 9~17V
Charge limit (highest charge voltage
including temp. compensation)
15.0V 9~17V
Over voltage load reconnect 15.0V 9~17V
Equalize charge —— 14.6V 14.8V 9~17V
Boost charge (absorption charge) 14.2V 14.4V 14.6V 9~17V
Float charge 13.8V 13.8V 13.8V 9~17V
Boost trigger voltage (starts new
charge cycle)
13.2V 9~17V
Low voltage load reconnect 12.6V 9~17V
Under voltage warning reset 12.2V 9~17V
Under voltage warning 12.0V 9~17V
Low voltage load disconnect
(nominal value at 25°C)
11.1V 9~17V
Discharge limit (lowest low voltage
load disconnect including temp.
compensation)
10.6V 9~17V
Equalize duration —— 2 hrs. 2 hrs. 0~3 hrs.
Boost/absorption duration 2 hrs. 2 hrs. 2 hrs. 0~3 hrs.
Multiply voltages by 2 for a 24V system

10
5.5 Load output setting
The load output setting options are shown below:
Option 1: Manual Control
When the load output is set on Manual Control (default setting), the
output can be switched ON or OFF with the orange switch button on
the Charge Controller. The low voltage cut-off is also operational.
◎ Manual Control
◎ Light On/Off
◎ Light On+Timer
◎ Time Control
Manual Control
Default ： ON
◎ Manual Control
◎ Light On/Off
◎ Light On+Timer
◎ Time Control
◎ Manual Control
◎ Light On/Off
◎ Light On+Timer
◎ Time Control
◎ Manual Control
◎ Light On/Off
◎ Light On+Timer
◎ Time Control
Light On/Off
On: 0.5V DeT: 10M
Off: 0.4V DeT: 10M
Light On+Timer
On: 0.5V DeT: 10M
Off: 0.6V DeT: 10M
NightTime: 12H:00M
Light On+Timer
OnTime1 01H:00M
OnTime2 01H:00M
Time Control
■Time1
OnTime H : M : S
OffTime H : M : S
Time Control
□Time2
OnTime H : M : S
OffTime H : M : S

11
EN
Option 2: Light On/Off
This is a simple load output On/Off option, based on the solar input
voltage of the Controller (= output voltage of the solar panel).
•When, at dusk, the input voltage of the Controller becomes
lower than the light On voltage (default 0.50V), the load output
is switched on.
•When, at dawn, the input voltage of the Controller becomes
higher than the light Off voltage (default 0.40V), the load
output is switched off.
•In order to prevent unwanted switching a confirmation time
(DeT) can be set: default 10 minutes, range 0 – 99 minutes.

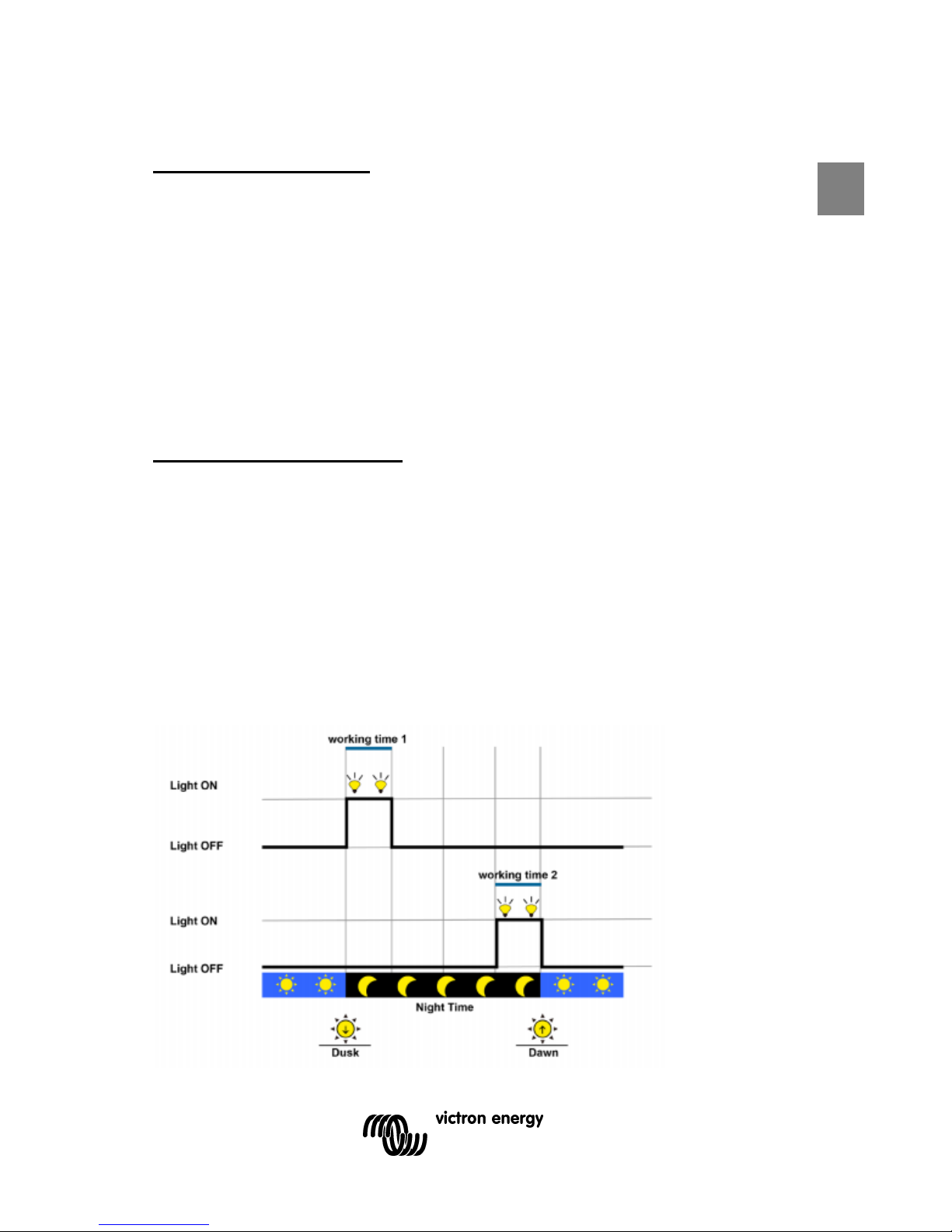

Option 3: Light On+Timer
This option allows for a pre-set On-time after dusk and a pre-set
Off-time before dawn.
The dusk and dawn switching moments and confirmation time are set
as under option 2.
The remaining parameters are set as follows:
•NightTime: initial setting of the night duration, the controller
will subsequently adjust NightTime to the actual duration of
the night.
•On Time 1: On period after dusk.
•On Time 2: On period before dawn.

12
Option 4: Time control
This option uses the internal clock (see section 5.6) to set one (Time1
only) or two on-time periods.
5.6 Device Parameters
The first screen displays the software version
and communication ID number of the Charge
Controller.
The second screen allows setting of the
backlight timer, and local date & time (use
the DOWN button to go to the second
screen).
The above data are stored in the Charge
Controller.
5.7 Device Password
The password is needed to change settings of the charge controller.
The default password is “000000”. The password is stored in the
Charge Controller
5.8 Charge mode
This page is intended for future applications. Please do not change.
5.9 Factory reset
Allows reset of the charge controller to the default settings.
Device Parameter
Ver: VX.XX
ID : XXX
Device Parameter
Bklight: 60S
Month-Day-Year
H : M : S

13
EN
5.10 Failure Information
Displays failures such as Over Voltage, Over Load or Short Circuit.
(automatic reset when the fault is corrected).
5.11 Parameters
The first screen displays the type, software version and serial number
of the remote meter.
The second screen allows modification of
•Switch-Pages (refresh time interval of the monitoring pages,
default 0 seconds)
•Backlight duration (default 20 seconds).
•Audible alarm ON/OFF (default OFF).
6 Technical Specifications
Self-consumption
backlight and acoustic alarm on max. 65mA
Backlight on max. 23mA
Backlight off max. 15mA
Faceplate dimensions
98
×
98 mm / 3.86
×
3.86 in
ch
Frame dimensions
114
×
114 mm / 4.49
×
4.49 in
ch
Connector type
RJ45
C
able
length
Max.
20
m
W
ei
ght
0.2
Kg
Ambient Temperature
-
20°C~+70
°C
/
-
4
°F
~158
°F

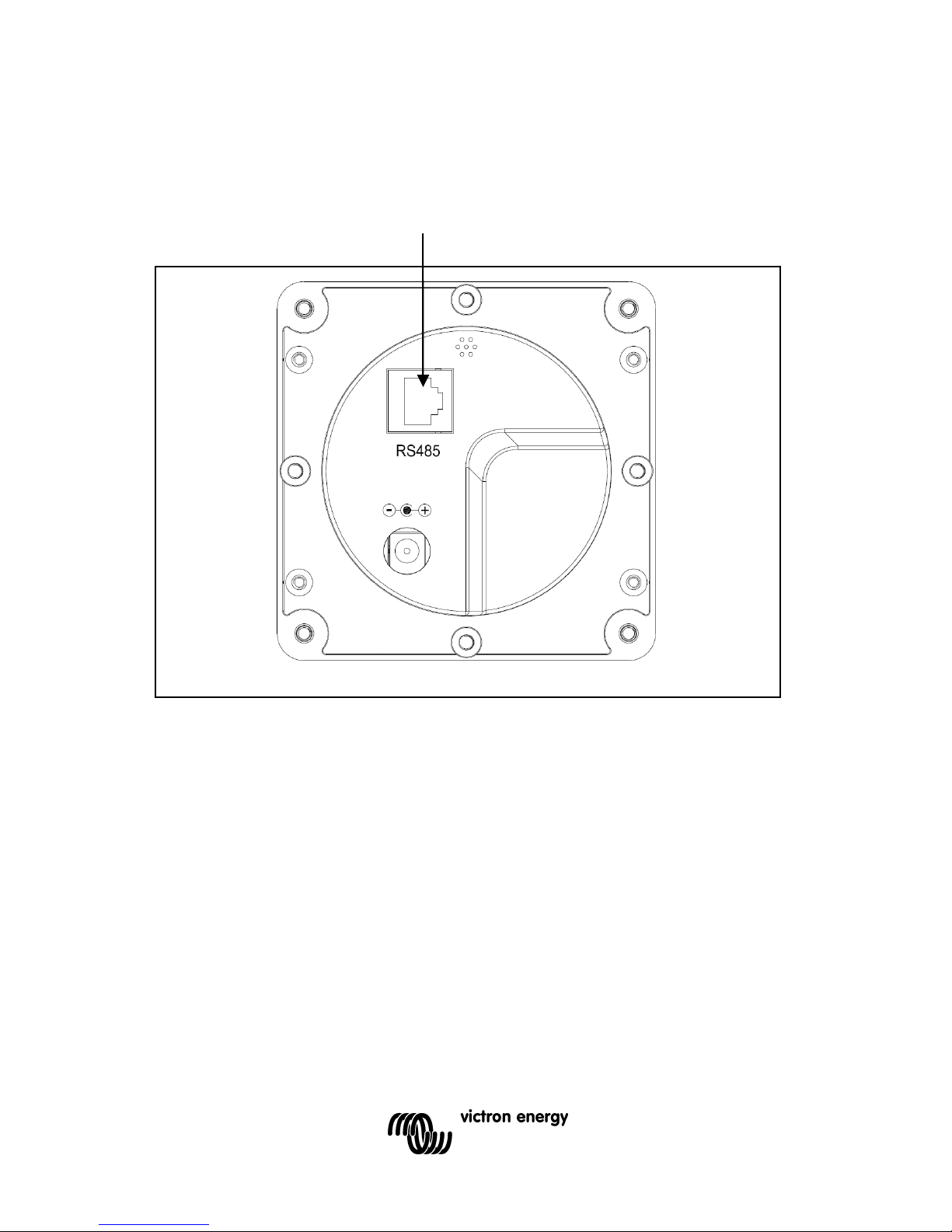

7 RS-485 connector pinout:
Pin No.
1
Power
: +12V
2
RS485 B
3
RS485 A
4
GND
5
GND
6
RS485 A
7
RS485 B
8
Power
: +12V

14

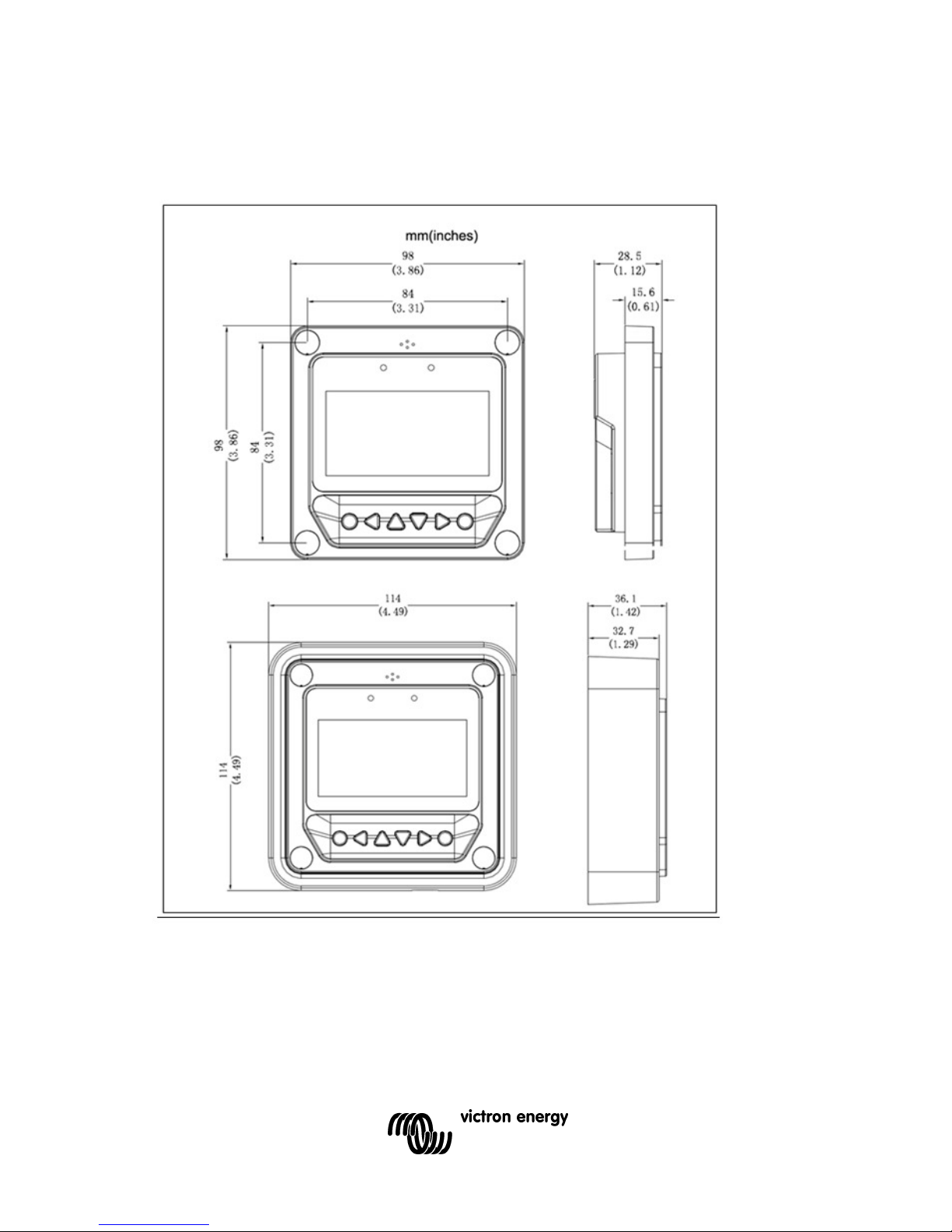

8 Dimensions:
