Victron energy EasySolar 24 1600 User manual

Manual
EN
Handleiding
NL
Manue
l
FR
Anleitung
DE
Manual
ES
Användarhandbok
SE
Appendix
Phoenix Inverter Smart
12 | 1600 230V 12 | 2000 230V 12 | 3000 230V
24 | 1600 230V 24 | 2000 230V 24 | 3000 230V
48 | 1600 230V 48 | 2000 230V 48 | 3000 230V

1
EN NL FR DE ES SE Appendix
1. SAFETY INSTRUCTIONS
General
Please familiarize yourself with the safety features and instructions by first reading the
documentation supplied with this product before using the equipment. This product has
been designed and tested in accordance with international standards. The equipment
must be used exclusively for the purpose for which it was designed.
WARNING: ELECTRIC SHOCK HAZARD.
The product is used in combination with a permanent energy source (battery). Even if the
equipment is switched off, a dangerous electrical voltage can occur at the input and/or
output terminals. Always disconnect the battery before performing maintenance.
The product has no internal user-serviceable components. Do not remove the front plate
or operate the product if any panels have been removed. All servicing must be
undertaken by qualified personnel.
Never use the product where there is a risk of gas or dust explosions. Consult the battery
manufacturer's information to ascertain that the product is intended for use in conjunction
with the battery. Always comply with the battery manufacturer's safety instructions.
WARNING: Do not lift heavy loads without assistance.
Installation
Read the installation instructions in the installation manual before installing the
equipment.
This is a Safety Class I product (supplied with a protective grounding terminal). The chassis
must be grounded. A grounding point is located on the outside of the product. Whenever it is
likely that the grounding protection has been damaged, the product must be turned off and
secured against unintended operation; please contact qualified service staff.
Ensure that the DC and AC input cables are fused and fitted with circuit breakers. There is no
internal fuse inside this product.Never replace a safety component with a different type.
Consult the manual to determine the correct component.
During installation ensure that the remote connector with wire bridge is removed (or swtich off
the remote on/off switch if installed) to be sure that the inverter cannot be switched on
unexpectedly.
Before applying power, ensure that the available power source matches the configuration
settings of the product as described in the manual.
Ensure that the equipment is used under the correct ambient conditions. Never operate the
product in a wet or dusty environment. Ensure there is adequate free space for ventilation
around the product and check that the ventilation vents are not blocked.
Ensure that the required system voltage does not exceed the product's capacity.

2
Transport and Storage
Ensure that the mains power and battery leads have been disconnected before storing or
transporting the product.
No liability can be accepted for any transport damage if the equipment is shipped in non-
original packaging.
Store the product in a dry environment; the storage temperature must be between -20°C and
60°C.
Consult the battery manufacturer's manual in respect of transport, storage, charging,
recharging and disposal of the battery.

3
EN NL FR DE ES SE Appendix
2. DESCRIPTION
2.1 General
Bluetooth built-in: fully configurable with a tablet or smartphone
•Low battery voltage alarm trip and reset levels
•Low battery voltage cut-off and restart levels
•Dynamic cut-off: load dependent cut-off level
•Output voltage: 210 - 245V
•Frequency: 50 Hz or 60 Hz
•ECO mode on/off and ECO mode sense level
•Alarm relay
Monitoring:
•In- and output voltage, % load and alarms
For more information, refer to the VictronConnect manual.
VE.Direct communication port
The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable
needed) to configure and monitor the same parameters.
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many
years.
The inverters are short circuit proof and protected against overheating, whether due to
overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric
tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a
preset value (min load turn on level: 10VA; and min load turn off level: 0VA). Once in standby
the inverter will switch on for a short period (adjustable, default: every 3 seconds). If the load
exceeds a preset level, the inverter will remain on.
Remote on/off
A remote on/off switch can be connected to a two pole connector, between battery plus and
the left hand contact of the two pole connector or between battery minus and the right hand
contact of the two pole connector
LED diagnosis
See section 3.3
To transfer the load to another AC source: the automatic transfer switch
For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax
features a very short switchover time (less than 20 milliseconds) so that computers and other
electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus
with built-in transfer switch.

4
3. OPERATION
3.1 On/Off Switch
When switched to "on" with the push button, the product is fully functional. The inverter will
come into operation and the LED "inverter" will light up. By pushing the push button
subsequently, within a short period of time, the inverter toggles between “on”, “ECO” and “off”.
Apart from the pushbutton; the inverter can also be switched on (normal or ECO) and off with
Bluetooth on a mobile device running iOS or Android and the Victron Connect app. However
when switched off via Bluetooth or the push button; the unit cannot be switched on and off
again via the wired VE.Direct port.
3.2 Remote control
Remote control is possible with a simple on/off switch or with a Phoenix Inverter Control

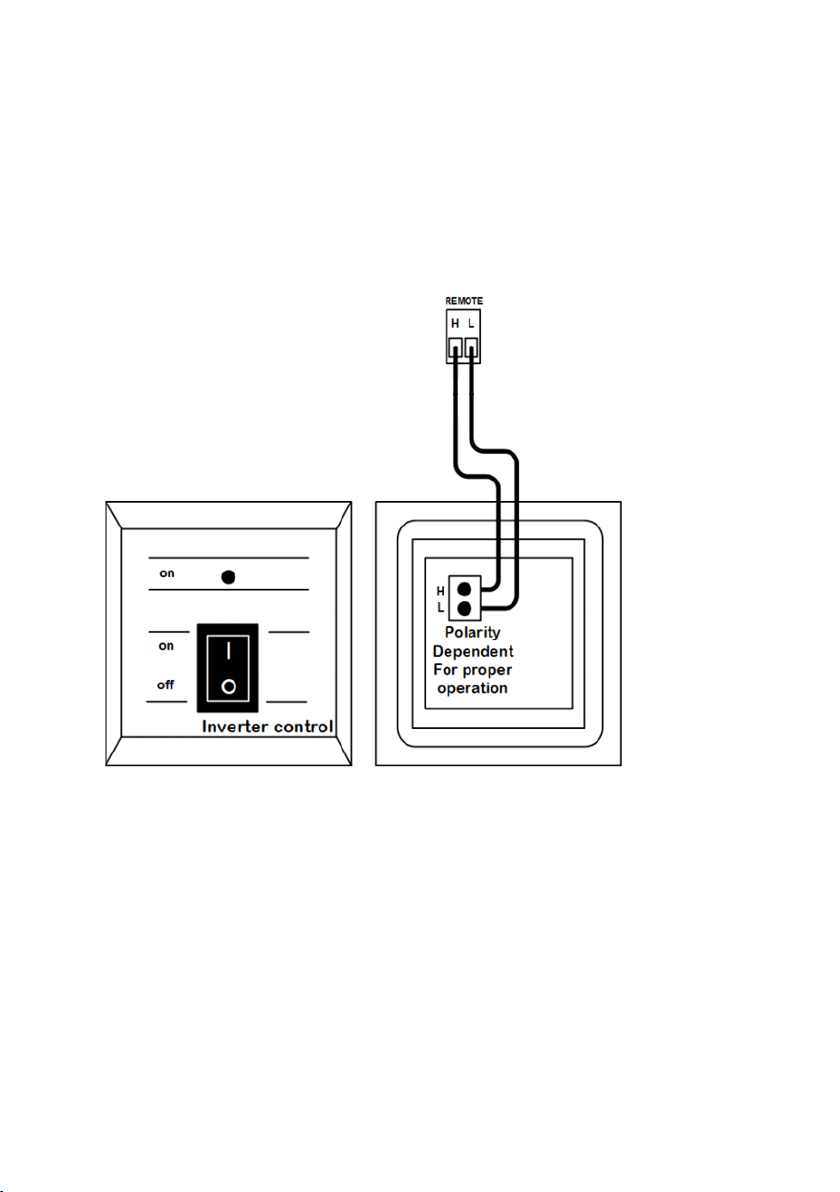

panel. A switch for remote control (on/off) can be connected to a two pole connector. The
switch can also be connected between battery plus and the left hand contact of the two pole
connector (marked “H”; see appendix A) or between battery minus and the right hand contact
of the two pole connector (marked “L”; see appendix A).
For safety purposes, this product can be turned off completely (i.e. the inverter
cannot be switched on via the push button or Bluetooth) by removing the remote
connector and its default installed wire bridge (or swtich off the remote on/off
switch if installed). The user can then be certain that the inverter cannot be
switched on accidently via Bluetooth by an unexpected other user.
3.3 LED definitions
Green LED
Status
Trouble shooting
●●●●●●●●
Solid on
Inverter on
Red LED Off
status OK
Red LED On or blinking:
The Inverter is still on, but will shut down when the
condition gets worse. See red LED table for warning
reason
●●------ Slow
single pulse
ECO mode
If the inverter keeps switching on and off while there is a
load connected, the load may be too small compared to the
actual ECO mode settings. Increase the load or change
ECO mode settings. (minimum ECO mode setting: 15W)
●-●-----
Fast
double pulse
Off and waiting
Inverter did shut down because of a protection. The
inverter will restart automatically as soon as all alarm
conditions are cleared. See red LED state for the shutdown
reason.
-------- Off
Inverter off
Red LED Off
Check Remote on/off connector.
Check DC cable connections and fuses.
Check operational mode by pushing push button one time.
Red LED On or blinking
The inverter did shut down because of a protection. It will
no longer automatically restart. The red LED indicates the
reason for shutdown. Remove the cause and then restart
the inverter by switching it Off, and then back On.
●-●-●-●- Fast
Off and
Red LED Blinking (-●-●-●-●)

5
EN NL FR DE ES SE Appendix
blink
frirmware
update in
progress or
failed
Firmware update in progress or firmware update failed.
When failed; retry firmware update.
Yellow LED
Status
Trouble shooting
●●●●●●●●
Solid on
ECO mode
Red LED Off
status OK
Red LED On or blinking:
The Inverter is still on, but will shut down when the
condition gets worse. See red LED table for warning
reason
-------- Off
ECO mode off
Red LED Off
Check operational mode by pushing push button one time.
Check Remote on/off connector.
Check DC cable connections and fuses.
Red LED On or blinking
The inverter did shut down because of a protection. It will
no longer automatically restart. The red LED indicates the
reason for shutdown. Remove the cause and then restart
the inverter by switching it Off, and then back On.
Red LED
Definition
Trouble shooting
●●●●●●●● Solid on
Overload
Reduce load
●●●●---- Slow
blink
Low batt.
Recharge or replace battery
Check DC cable connections
Check cable cross section as it may be insufficient.
See section 4.2 Protections and automatic restarts for
manual and automatic restart behavior.
●-●-●-●-
Fast
blink
High batt.
Reduce DC input voltage, check for faulty charger
●-●-----
Double
pulse
High temp.
Reduce load and/or move inverter to better ventilated area
●---●--- Fast
single pulse
High DC ripple
Check DC cable connections and cable cross section.
3.4 Protections and automatic restarts
Overload
Some loads like motors or pumps draw large inrush currents in a start-up situation. In such
circumstances, it is possible that the start-up current exceeds the over current trip level of the
inverter. In this case the output voltage will quickly decrease to limit the output current of the
inverter. If the over current trip level is continuously exceeded, the inverter will shut down: wait
30 seconds and then restart.
After three restarts followed by another overload within 30 seconds of restarting, the inverter
will shutdown and remain off. The LEDs will signal shutdown due to overload. To restart the
inverter, switch it Off, then On.
Low battery voltage (adjustable)
The inverter will shut down when the DC input voltage drops below the low battery shutdown
level. After a minimum delay of 30 seconds, the inverter will restart if the voltages rise above
the low battery restart level.

6
After three restarts followed by a low battery shutdown within 30 seconds of restarting, the
inverter will shutdown and stop retrying. The LEDs will signal low battery shutdown. To restart
the inverter, switch it Off, and then On, or recharge the battery: as soon as the battery has
risen and then stays above the Charge detect level for 30 seconds, it will switch on.
See the Technical Data table for default low battery shutdown and restart levels. They can be
changed with the VictronConnect App.
High battery voltage
Reduce DC input voltage and/or check for a faulty battery- or solar-charger in the system.
After shutting down due to a high battery voltage, the inverter will first wait 30 seconds and
then retry operation as soon as the battery voltage has dropped to acceptable level. The
inverter will not stay off after multiple retries.
High temperature
A high ambient temperature or enduring high load may result in shut down to over
temperature. The inverter will restart after 30 seconds. The inverter will not stay off after
multiple retries. Reduce load and/or move inverter to better ventilated area.
High DC ripple
High DC ripple is usually caused by loose DC cable connections and/or too thin DC wiring.
After the inverter has switched off due to high DC ripple voltage, it waits 30 seconds and then
restarts.
After three restarts followed by a shutdown due to high DC ripple within 30 seconds of
restarting, the inverter will shutdown and stops retrying. To restart the inverter, switch it Off
and then On.
Continuous high DC ripple reduces the inverter life expectancy.

7
EN NL FR DE ES SE Appendix
4. INSTALLATION
4.1 Location
The product must be installed in a dry and well-ventilated area, as close as possible to
the batteries. There should be a clear space of at least 10cm around the appliance for
cooling.
Excessively high ambient temperature will result in the following:
Reduced service life.
Reduced charging current.
Reduced peak capacity, or shutdown of the inverter.
Never mount the appliance directly above the batteries.
The product is suitable for wall mounting. For mounting see appendix A.
The appliance can be mounted horizontally as well as vertically; vertical mounting is
preferable. The vertical position offers optimum cooling.
Try and keep the distance between the product and the battery to a minimum in order to
minimize cable voltage losses.
For safety purposes, this product should be installed in a heat-resistant
environment if it is used with equipment where a substantial amount of
power is to be converted. You should prevent the presence of e.g.
chemicals, synthetic components, curtains or other textiles, etc., in the
immediate vicinity.
This product should be installed by a qualified electrician.
During installation ensure that the remote connector with wire bridge is removed
(or swtich off the remote on/off switch if installed) to be sure that the inverter
cannot be switched on unexpectedly.
The interior of the product must remain accessible after installation.

8
4.2 Connection of Battery cables
In order to fully utilize the full capacity of the product, batteries with sufficient capacity and
battery cables with sufficient cross section should be used. See table.
12/1600
24/1600
48/1600
12/2000
24/2000
48/2000
Recommended
cross section (mm
2
)
length up to 6 m
50
25
25
70
35
25
12/3000
24/3000
48/3000
Recommended
cross section (mm
2
)
0 – 5 m
95
50
35
5 -10 m
120
95
70
12/1600
24/1600
48/1600
12/2000
24/2000
48/2000
Recommended
battery capacity
(Ah)
300 - 800 150 - 400 75 - 200 350 - 1000 200 - 500 100 - 250
12/3000
24/3000
48/3000
Recommended
battery capacity
(Ah)
400 - 1200 200 - 700 100 - 400
Remark: Internal resistance is the important factor when working with low capacity batteries.
Please consult your supplier or the relevant sections of our book “electricity on board”,
downloadable from our website.
Procedure
Proceed as follows to connect the battery cables:
Use an insulated box spanner in order to avoid shorting the battery.
Avoid shorting the battery cables.
Connect the battery cables: the + (red) and the - (black), to the battery see appendix A.
Reverse polarity connection (+ to – and – to +) will cause damage to the product.
Secure the nuts tightly in order to reduce the contact resistance as much as possible.

9
EN NL FR DE ES SE Appendix
4.3 DC safety fuse
There is no safety fuse inside the inverter; this should be installed externally. The
recommended safety fuses can be found in the table below
12/1600
24/1600
48/1600
12/2000
24/2000
48/2000
Recommended
DC fuse
250A 125A 60A 300A 150A 80A
12/3000
24/3000
48/3000
Recommended
DC fuse
400A 250A 125A

10
4.4 Connection of the AC cabling
This is a Safety Class I product (supplied with a protective grounding
terminal).
The neutral wire of the AC output of this inverter is connected to the
chassis (see appendix B for 1600VA/2000VA and appendix C for
3000VA).
This is to ensure proper functioning of a GFCI (or RCCB) to be installed in the
AC output of the Inverter.
The chassis of the product must be connected to ground, to the frame (of a
vehicle) or the ground plate or hull (of a boat).
Procedure
The terminal points are indicated clearly. From left to right: “L” (phase), “N” (neutral) and “PE”
(earth).
4.5 Optional Connections
A number of optional connections are possible:
4.5.1 Remote on/off switch & remote Control panel
The product can be remotely controlled in three ways.
- With a smart phone (iOS or Android) and the Victron Connect app.
- With an external switch (connected to the two pole remote connector). Operates only if
the switch on the Inverter is set to “on”.
- With a Phoenix Inverter Control VE.Direct panel (connected to the two pole remote
connector; see appendix A). Operates only if the switch on the inverter is set to “on”.
4.5.2. Programmable relay
The inverters are equipped with a multi-functional relay that by default is programmed in the
normal operation mode. (VictronConnect software needed to change relay functionality). The
different relay modes can be summerized as follows:
- Normal operation (“inverter” in VictronConnect app) – default
Relay closed during normal operation, and open when the inverter has switched off itself
in alarm, has been switched off by a user and also open (of course) when there is no
power available on the terminals, ie. battery disconnected. In ECO mode, the relay will
be closed both when searching for a load and when fully on, ie. load detected.
Use this option when you want the relay to signal that there is power available on the
output of the inverter.
- Warnings and alarms (“alarm” in VictronConnect app)
Similar to above, but then the relay will also open when there is a warning. For example
because the battery voltage dropped to the cut-off value, or when loaded to the point
where it will almost shut down due to overload. In ECO mode, the relay will be closed
both when searching (no load) and when fully on (load detected), except when there is a
warning.
Use this option when you want the relay to signal that it is time to do something (charge
the battery, reduce the load, and-so-forth), in order to prevent a power outage.
- Low battery (“Low battery” in VictronConnect app)

11
EN NL FR DE ES SE Appendix
Relay on during normal operation. The relay will switch off once there is a low
battery warning. It will remain off in case the inverter shuts down due to low voltage,
and will only switch back on again once the inverter is operational and the battery
voltage is above the pre-alarm reset level. Use this option for load shedding, or to
automatically start a generator. Note that this can only be considered a poor-mans
generator start/stop. For more and better options, see here.
- External fan (“fan” in VictronConnect app)
Relay is off, unless the fan inside the inverter is running. Use this option to switch an
external fan, for situations when the inverter is in a small enclosed space.
- Disabled relay (“off” in VictronConnect app)
This option sets the relay in the OPEN position. Use this option if you do not plan to
use the relay function.

12
5. CONFIGURATION
5.1 Standard settings: ready for use
On delivery, the Phoenix inverter is set to standard factory values. In general, these settings
are suitable for stand-alone operation.
Standard factory settings
Inverter frequency 50 Hz
Inverter voltage 230 VAC
Search mode off
Programmable relay alarm function
Dynamic cut-off off
5.2 Explanation of settings
Inverter frequency
Output frequency
Adjustability: 50Hz; 60Hz
Inverter voltage
Adjustability: 210 – 245V
ECO Mode
If ECO mode is ‘on’, the power consumption in no-load operation is decreased by approx.
80…90%. In this mode the Phoenix Inverter Smart, when operating in inverter mode, is
switched off in case of no load or very low load, and switches on every two and a half seconds
for a short period (adjustable). If the output current exceeds a set level, the inverter will
continue to operate. If not, the inverter will shut down again.
The ECO Mode can be set with the push button on the front of the inverter.
The ECO Mode “shut down” and “remain on” load levels can be set with Victron Connect .
The factory settings are:
Shut down: 50 Watt (linear load).
Turn on: 100 Watt (linear load).
Programmable relay
By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in
the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too
high, battery voltage almost too low).
Settings may only be changed by a qualified engineer.
Carefully read the instructions before changes are made.
Batteries should be placed in a dry and well-ventilated area during charging.

13
EN NL FR DE ES SE Appendix
Dynamic Cut-off
Use VictronConnect to enable and configure Dynamic Cut-off (see
https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff for details).
Do not use Dynamic Cut-off in an installation that also has other loads connected to the
same battery: the battery voltage will drop because of the extra load, but the Dynamic
Cut-off algorithm in the Inverter is not aware of that load: hence the Inverter will shut
down too early with an under voltage alarm.
5.3 Configuration by computer
All settings can be changed by means of a smartphone, tablet or computer
For changing settings with a smartphone or tablet, the following is required:
- VictronConnect software: can be downloaded free of charge at www.victronenergy.com.
For changing settings with the computer, the following is required:
- VictronConnect software: can be downloaded free of charge at www.victronenergy.com.
- A VE.Direct to USB interface.
6. MAINTENANCE
The Phoenix Inverter Smart does not require specific maintenance. It will suffice to check
all connections once a year. Avoid moisture and oil/soot/vapours, and keep the device
clean.

14
7. Technical data
Phoenix Inverter Smart
12 Volt
24 Volt
48 Volt
12/1600
24/1600
48/1600
12/2000
24/2000
48/2000
12/3000
24/3000
48/3000
Parallel and 3-phase operation
No
INVERTER
Input voltage range (1)
9,3 – 17V 18,6 – 34V 37,2 – 68V
Output
Output voltage: 230VAC ±2% 50 Hz or 60Hz ± 0,1% (1)
Cont. output power at 25ºC (2)
1600VA
2000VA
3000VA
Cont. output power at 25ºC
1300W
1600W
2400W
Cont. output power at 40ºC
1200W
1450W
2200W
Cont. output power at 65ºC
800W
1000W
1700W
Peak power
3000VA
4000VA
6000VA
Dynamic (load dependent) DC low shut down
(fully configurable)
Dynamic cut-off, see
https://www.victronenergy.com/live/ve.direct:phoenix-inverters-
dynamic-cutoff
Max. efficiency 12/ 24 /48 V
92/94/94 %
92/94/94 %
93/94/95%
Zero load power 12 / 24 / 48 V
8/9/11 W
8/9/11 W
12/13/15 W
Zero load power in ECO mode
0,6/1,3/2,1 W 0,6/1,3/2,1 W 1,5/1,9/2,8 W
GENERAL
Programmable relay (2)
Yes
Stop & start power ECO-mode
adjustable
Protection (3)
a - g
Bluetooth wireless communication
For remote monitoring and system integration
VE.Direct communication port
For remote monitoring and system integration
Remote on-off
Yes
Common Characteristics
Operating temperature range: -40 to +65ºC (fan assisted cooling)
Humidity (non-condensing): max 95%
ENCLOSURE
Common Characteristics
Material & Colour: steel (blue RAL 5012; and black RAL 9017)
Protection category: IP 21
Battery-connection
M8 bolts
M8 bolts
2+2 M8 bolts
230 V AC-connection Screw terminals
Weight
12kg
13kg
19kg
Dimensions (hxwhd) 485 x 219 x 125mm 485 x 219 x 125mm
533x285x150mm (12V)
485x285x150mm (24/28V)
STANDARDS
Safety
EN-IEC 60335-1
Emission Immunity
EN 55014-1 / EN 55014-2 / EN-IEC 61000-6-1
EN-IEC 61000-6-2 / EN-IEC 61000-6-3
Automotive Directive
ECE R10-5
1) Non-linear load, crest factor 3:1
2) Programmable relay that can a.o. be set for general
alarm, DC under voltage or genset start/stop function.
AC rating: 230 V / 3 A
DC rating: 3 A up to 30 VDC, 0.2A up to 70 VDC
3) Protection key:
a) output short circuit
b) overload
c) battery voltage too high
d) battery voltage too low
e) temperature too high
f) 230 V AC on inverter output
g) input voltage ripple too high

EN Appendix A: Inverter control
NL Bijlage A: Besturing van de omvormer
FR Annexe A : Contrôle du convertisseur
DE Anhang A: Wechselrichtersteuerung
ES Apéndice A: Control del inversor
SV Bilaga A: Växelriktarkontroll

3
www.victronenergy.com

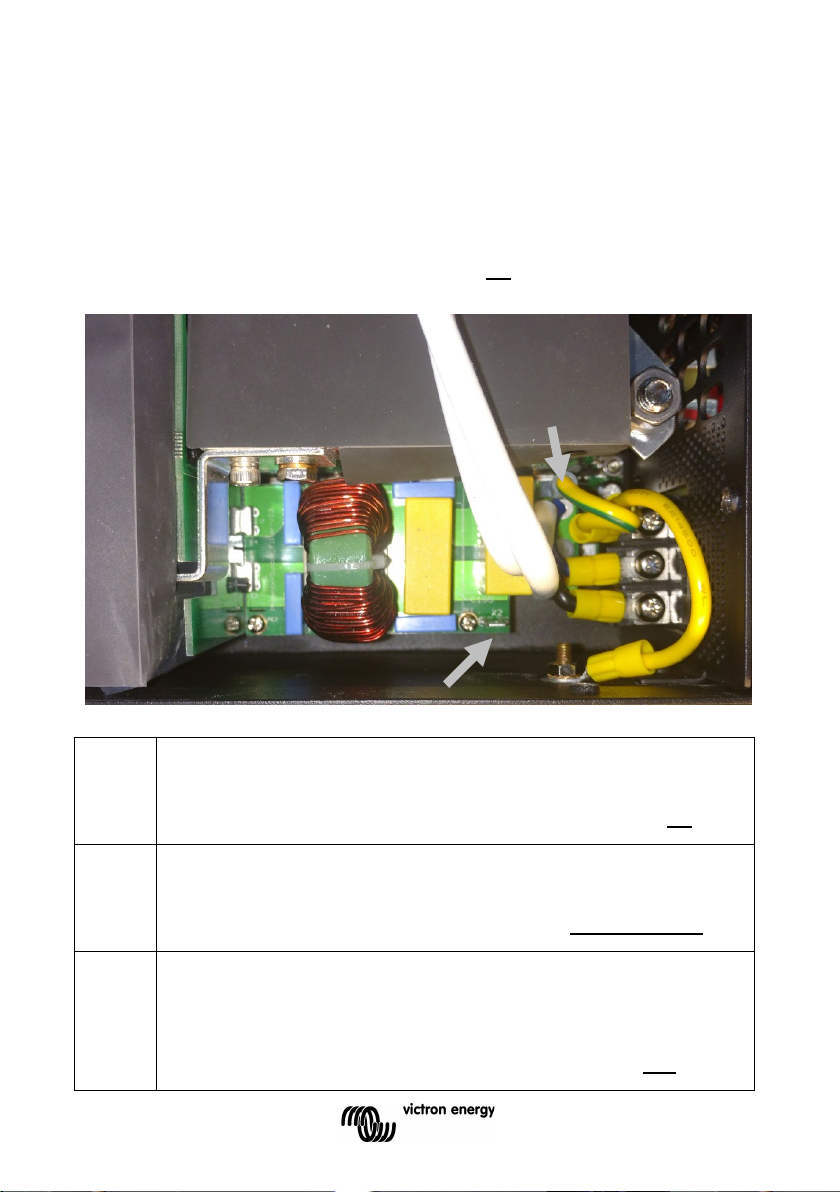

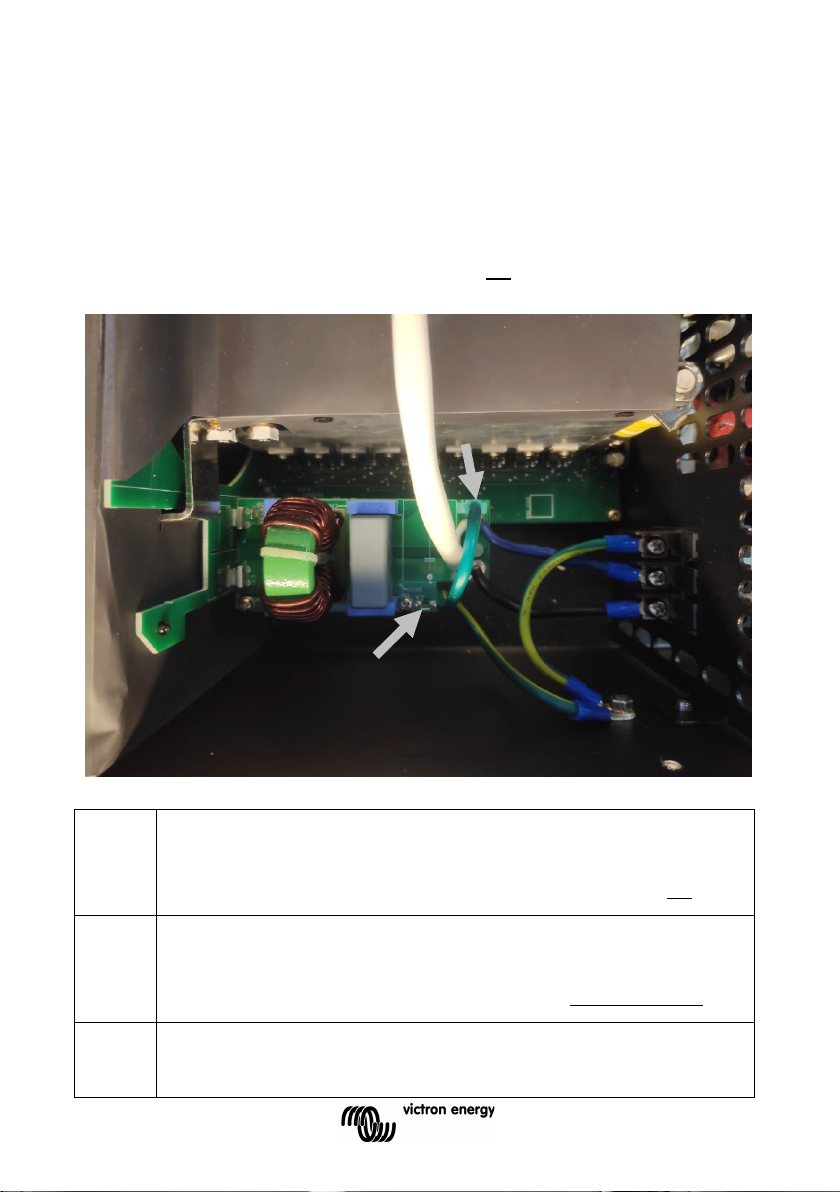

Appendix B: Installation information 1600VA/2000VA
This ground wire “G“ connects the output neutral to ground. It must be repositioned to a
‘dummy’ terminal if a floating output is required.
When a floating output is obtained the current reading at no load can show an offset of around
100…150mA. Also beware that the GFCI (or RCCB) will not function properly.
NL
Bijlage B: Installatie-informatie
Deze aardingsdraad "G" verbindt de uitgangsneutraal met aarde. Het moet worden
verplaatst naar een 'dummy' terminal als een zwevende uitgang vereist is.
Wanneer een zwevende uitvoer wordt verkregen, kan de huidige waarde bij nullast een
offset van ongeveer 100...150mA laten zien. Pas ook op dat de GFCI (of RCCB) niet goed
zal werken.
FR
Annexe B : Information relative à l’installation
Ce câble de mise à la terre « G » raccorde le neutre de la sortie à la terre. Il doit être
repositionné à une borne « fictive » si une sortie flottante est nécessaire.
Si une sortie flottante est obtenue, la lecture de courant Pas-de-charge peut afficher un
décalage d'environ 100...150 mA. Attention : le GFCI (ou RCCB) ne fonctionnera pas
correctement.
DE
Anhang B: Information zur Installation
Dieser Erdungsdraht "G" verbindet den Nullleiter des Ausgangs mit der Erde. Wenn ein
"floating" (potentialfreier) Ausgang gewünscht wird, muss er an eine "Dummy"-
Anschlussklemme neu angeschlossen werden.
Wenn der „Floating“ Ausgang eingerichtet ist, kann es beim ermittelten Stromwert ohne
angeschlossene Lasten eine Verschiebung von ca. 100...150 mA geben. Bedenken Sie
außerdem, dass der FI-Schutzschalter (bzw. der Fehlerstromschutzschalter) nicht
ordnungsgemäß funktionieren wird.
G
dummy

ES
Apéndice B: Instrucciones de instalación
Este cable de puesta a tierra “G“ conecta la salida neutra a tierra. Debe reposicionarse en
una conexión ficticia si se necesita una salida flotante.
Cuando se obtiene una salida flotante, la lectura de corriente sin carga puede mostrar una
descompensación de entorno a 100…150 mA. Tenga también en cuenta que el GFCI (o
RCCB) no funcionará correctamente.
SV
Bilaga B: Installationsinformation
Den jordade kabeln “G” kopplar den neutrala utgången till jord. Den måste flyttas till en falsk
(dummy) terminal om en flytande utgång krävs.
När en flytande utgång är tillgänglig kan strömavläsningen utan belastning visa en avvikelse
på ca 100… 150 mA. Tänk också på att GFCI (eller RCCB) inte kommer att fungera korrekt.

5
www.victronenergy.com
Appendix C: Installation information 3000VA
This ground wire “G“ connects the output neutral to ground. It must be repositioned to a
‘dummy’ terminal if a floating output is required.
When a floating output is obtained the current reading at no load can show an offset of around
100…150mA. Also beware that the GFCI (or RCCB) will not function properly.
NL
Bijlage C: Installatie-informatie
Deze aardingsdraad "G" verbindt de uitgangsneutraal met aarde. Het moet worden
verplaatst naar een 'dummy' terminal als een zwevende uitgang vereist is.
Wanneer een zwevende uitvoer wordt verkregen, kan de huidige waarde bij nullast een
offset van ongeveer 100...150mA laten zien. Pas ook op dat de GFCI (of RCCB) niet goed
zal werken.
FR
Annexe C : Information relative à l’installation
Ce câble de mise à la terre « G » raccorde le neutre de la sortie à la terre. Il doit être
repositionné à une borne « fictive » si une sortie flottante est nécessaire.
Si une sortie flottante est obtenue, la lecture de courant Pas-de-charge peut afficher un
décalage d'environ 100...150 mA. Attention : le GFCI (ou RCCB) ne fonctionnera pas
correctement.
DE
Anhang C: Information zur Installation
Dieser Erdungsdraht "G" verbindet den Nullleiter des Ausgangs mit der Erde. Wenn ein
"floating" (potentialfreier) Ausgang gewünscht wird, muss er an eine "Dummy"-
Anschlussklemme neu angeschlossen werden.
G
dummy
