SAFETY RULES
General
Please familiarize yourself with the safety features and instructions by first reading the documentation supplied with this
product before using the equipment. This product has been designed and tested in accordance with international standards.
The equipment must be used exclusively for the purpose for which it was designed.
WARNING: ELECTRIC SHOCK HAZARD.
The product is used in conjunction with a permanent energy source (battery). Input and/or output terminals may still be
dangerously energized, even when the equipment is switched off. Always switch off the AC supply and the battery before
carrying out maintenance or servicing the product.
The product has no internal user-serviceable components. Do not remove the front plate or operate the product if any panels
have been removed. All servicing must be undertaken by qualified personnel.
Never use the product where there is a risk of gas or dust explosions. Consult the battery manufacturer's information to
ascertain that the product is intended for use in conjunction with the battery. Always comply with the battery manufacturer's
safety instructions.
WARNING:Do not lift heavy loads without assistance.
Installation
Read the installation instructions in the installation manual before installing the equipment.
This is a Safety Class I product (supplied with a protective grounding terminal). Uninterruptible protective grounding must
be provided at the AC input and/or output terminals. Alternatively the grounding point located externally on the
product may be used. Whenever it is likely that the grounding protection has been damaged, the product must be turned off
and secured against unintended operation; please contact qualified service staff.
Ensure that the DC and AC input cables are fused and fitted with circuit breakers. Never replace a safety component with a
different Typ. Consult the manual to determine the correct component.
Before applying power, ensure that the available power source matches the configuration settings of the product as
described in the manual.
Ensure that the equipment is used under the correct ambient conditions. Never operate the product in a wet or dusty
environment. Ensure there is adequate free space for ventilation around the product and check that the ventilation vents are
not blocked.
Ensure that the required system voltage does not exceed the product's capacity.
Transport and Storage
Ensure that the mains power and battery leads have been disconnected before storing or transporting the product.
No liability can be accepted for any transport damage if the equipment is shipped in non-original packaging.
Store the product in a dry environment; the storage temperature must be between -20°C and 60°C.
Consult the battery manufacturer's manual in respect of transport, storage, charging, recharging and disposal of the battery.

2
1 DESCRIPTION
1.1 General
Multi Compact -functional (Multi Compact / MultiPlus Compact only)
The Multi Compact gets its name from the multiple functions it can perform. It is a powerful
true sine wave inverter, a sophisticated battery charger that features adaptive charge
technology and a high-speed AC transfer switch in a single compact enclosure. Beside these
primary functions, however, the Multi Compact has several advanced features that provide a
range of new applications as outlined below.
Uninterrupted AC power (Multi Compact / MultiPlus Compact only)
In the event of a grid failure, or shore or generator power being disconnected, the inverter
within the Multi Compact is automatically activated and takes over supply to the connected
loads. This happens so fast (less than 20 milliseconds) that computers and other electronic
equipment will continue to operate without disruption.
PowerControl – Dealing with limited generator or shore side power (Multi Compact/
MultiPlus Compact only)
The Multi Compact is a very powerful battery charger. It will therefore draw a lot of current
from the generator or shore side supply (nearly 5 A per Multi Compact at 230 VAC). With the
Phoenix Multi Control (PMV) a maximum generator or shore current can be set. The Multi
Compact will then take account of other AC loads and use whatever is extra for charging,
thus preventing the generator or shore supply from being overloaded.
PowerAssist – Boosting the capacity of shore or generator power
The feature that distinguishes the Phoenix MultiPlus Compact from the standard Multi
Compact is PowerAssist. This feature takes the principle of PowerControl to a further
dimension allowing the MultiPlus Compact to supplement the capacity of the alternative
source. Where peak power is so often required only for a limited period, it is possible to
reduce the size of generator needed or conversely enable more to be achieved from the
typically limited shore connection. When the load reduces, the spare power is used to
recharge the battery.
Note 1: The rating of the generator should be 75% or higher compared to the VA rating of the
MultiPlus Compact. (for ex: a genset of at least 900 VA will be required to operate in parallel
with a Multi Compact 12/1200/50.
Note 2: The output waveform of a generator can be heavily distorted. In that case the “AC
waveform check” should be disabled. See page 20.

3
GB NL F D Appendix
1.2 Battery Charger (Multi Compact / MultiPlus Compact only)
Adaptive 4-stage charge characteristic: bulk – absorption – float – storage
The Phoenix Multi Compact / MultiPlus Compact features a microprocessor controlled
‘adaptive’ battery management system that can be preset to suit different Typs of batteries.
The ‘adaptive’ feature will automatically optimize the process relative to the way the battery is
being used.
The right amount of charge: variable absorption time
When only shallow discharges occur (a yacht connected to shore power for example) the
absorption time is kept short in order to prevent overcharging of the battery. After a deep
discharge the absorption time is automatically increased to make sure that the battery is
completely recharged.
Preventing damage due to excessive gassing: the BatterySafe mode
If, in order to quickly charge a battery, a high charge current in combination with a high
absorption voltage has been chosen, the Multi Compact / MultiPlus Compact will prevent
damage due to excessive gassing by automatically limiting the rate of voltage increase once
the gassing voltage has been reached.
Less maintenance and aging when the battery is not in use: the Storage mode
The storage mode kicks in whenever the battery has not been subjected to discharge during
24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery)
to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised
back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the
electrolyte and sulphation, a major cause of early battery failure.
Two outputs to charge 2 battery banks
The Multi Compact / MultiPlus Compact features 2 outputs, of which 1 can carry the full
output current. The second output, limited to approximately 4A and with a slightly lower
output voltage, is intended to top up a starter battery.
To increase battery life: temperature compensation
Every Multi Compact / MultiPlus Compact comes with a battery temperature sensor. When
connected, charge voltage will automatically decrease with increasing battery temperature.
This feature is especially recommended for sealed batteries and/or when important
fluctuations of battery temperature are expected.
Learn more about batteries and battery charging
To learn more about batteries and charging batteries, please refer to our book ‘Electricity on
Board’ (available free of charge from Victron Energy and downloadable from
www.victronenergy.com) For more information about adaptive charging please look under
Technical Briefs on our website.

4
1.3 List of Article Numbers for Accessories
Phoenix Multi control REC020002000
Phoenix Inverter control REC030001000
Temperature sensor TI ASS000001000
UTP Patch lead 5 m ASS030065000
UTP Patch lead 10 m ASS030065010
UTP Patch lead 15 m ASS030065020
PC interface MK1.b ASS0301B0000
USB adapter ASS030200000
VEConfigure software Can be downloaded from our website

5
GB NL F D Appendix
2 OPERATION
2.1 On/Off/Charger Only Switch
When the front switched to "on", the product is fully functional. The inverter will come into
operation and the LED "inverter on" will light up.
Multi Compact/ MultiPlus Compact only:
An AC voltage connected to the "AC in" connector will be switched through to the "AC out"
connector, if within specifications. The inverter will switch off, the "charger" LED will light up
and the charger commences charging. The "charger" LED will light up depending on the
charger mode (on=bulk, absorption) or (blinks=float).
If the voltage of the "AC-in" terminal is too high or too low, the AC input voltage will switch off
and the inverter will be starting.
When the front switch is switched to "charger only", only the battery charger of the Phoenix
Multi Compact will operate (if mains voltage is present). In this mode input voltage also is
switched through to the "AC out" terminal.
NOTE: When only the charger function is required, ensure that the switch is switched to
"charger only". This prevents the inverter from being switched on if the mains voltage is lost,
thus preventing your batteries from running flat.
2.2 Remote Operation
The Phoenix Multi Compact can be operated with the Phoenix Multi control panel. The
remote control has an on-off switch and more indication.
The charger of the Phoenix Multi Compact can be turned off. This can be done by changing
the set up configuration by connecting the Phoenix Inverter remote control (set the AC input
current to 0) or by connecting a computer to the Phoenix Multi Compact (use MK.1 with
VEConfigure).
For remote control of the Phoenix Inverter Compact the Phoenix Inverter control panel
should be used.
2.3 Special Charger Modes Equalizing
Some batteries may need a regular equalizing charge. To perform an equalizing charge the
Phoenix Multi Compact can charge at a higher voltage (1V above the absorption voltage for a
12V battery, 2V for a 24V battery) for a period of one hour. The charger current is then limited
to 1/4 of the specified value.
The "bulk" and "absorption" LEDs will flash alternately during this cycle (only on Phoenix Multi
Control).
The equalizing mode results in a charging voltage that may exceed the
maximum voltage of DC consumers. These should be disconnected when
performing an equalizing charge.

6
Forced Absorption
In some cases it may be necessary to charge the battery at the absorption voltage for a
specific period of time. In the Forced Absorption mode, the Phoenix Multi Compact will
charge at the normal absorption voltage during the preset maximum absorption period.
The "absorption" LED will light up (only on Phoenix Multi Control).
The Phoenix Multi Compact can be switched to one of these modes from the remote control
as well as with the aid of the front switch. A prerequisite is that all switches (front, remote,
remote Control) are switched to "on", and that none are switched to the "charger only"
position.

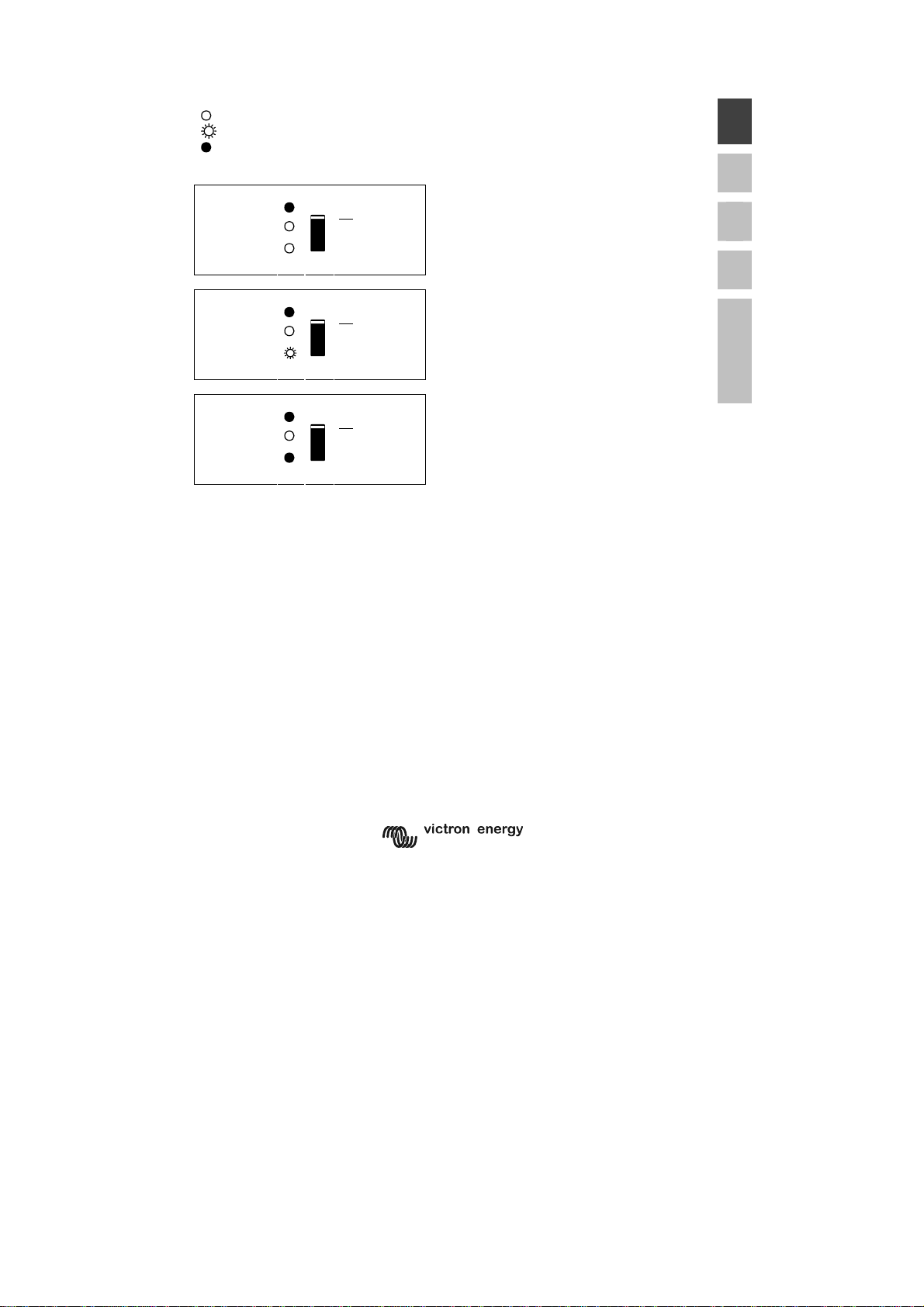

Proceed is as follows to switch the Phoenix Multi Compact to either the equalizing mode or
Forced Absorption mode:
REMARK: switch quickly from "on" to "charger only" and back. The switch must be switched
in such a way that the intermediate position is, as it were, "skipped". If the relevant switch
remains in the "off" position for any length of time, you may run the risk that the appliance will
be switched off. In that case you will need to start again. Use a remote control for best
results.
1. Ensure that all switches (i.e., front switch, remote or remote control switch if
present are switched to the "on" position).
2. Ensure that the Phoenix Multi Compact is charging (an AC input voltage must be
present; check that the "charger" LED is one (only remote control: "mains", of
either the "bulk", "absorption" or "float" LEDs is illuminated).
3. Switch the switch successively to "charger only", "on" and "charger only". NOTE:
the switching itself should be done quickly but the interval between switching
should be from 1/2 to two seconds.
4. The "green front-led =bulk", "yellow front-led=absorption" and "red-front
led=float" LEDs will flash five times (only remote control the "bulk", "absorption" and
"float" LEDs will flash five times.
•Subsequently, the "green front led=bulk", "yellow front led=absorption" and
"red front led=float" LEDs will each light up for a period of two seconds.
•If the switch is switched to "on" while the "green front led=bulk" LED
illuminates, the charger switches to the equalizing mode.
•If the switch is switched to "on" while the "yellow led=absorption" LED
illuminates, the charger switches to 'Forced Absorption'
If the switch is not in the required position after these steps, it can be simply switched one
more time. This will not change the charging status.

7
GB NL F D Appendix
2.4 LED Indications
LED off
LED flashes
LED illuminated
Inverter
inverter on
charger off
alarm
charger only
The inverter is switched on and supplies
power to the load. Battery operation.
inverter on
charger off
alarm
charger only
The inverter is switched on and supplies
power to the load.
Pre alarm: overload, or
battery voltage low, or
inverter temperature high
inverter on
charger off
alarm
charger only
The inverter is switched off.
Alarm: overload, or
battery voltage low, or
inverter temperature hig, or
DC ripple voltage on battery
terminal was too high

8
Charger
inverter on
charger off
alarm
charger only
The AC input voltage is switched through
and the charger operates in bulk or
absorption mode.
inverter on
charger off
alarm
charger only
The AC input voltage is switched through
and the charger is switched off.
The battery charger can not reach battery
end voltage (bulk protection mode).
inverter on
charger off
alarm
charger only
The AC input voltage is switched through
and the charger operates in bulk or
absorption mode.
inverter on
charger off
alarm
charger only
The AC input voltage is switched through
and the charger operates in float mode.

9
GB NL F D Appendix
Phoenix Remote Control panel (optional)
PowerControl
inverter on mains on
overload bulk
low battery absorption
temperature float
on
charger only
off
Note: When the LED’s “overload” and “low battery” are on simultaneously, the Multi(Plus) or
Inverter Compact has switched off due to excessive DC ripple voltage.

10
3 INSTALLATION
This product should be installed by a qualified electrician.
3.1 Box Contents
Phoenix Multi Compact, MultiPlus Compact, or Inverter Compact
User manual/ Installation manual.
Bag containing connection items, i.e.:
Mounting plate
Screws (5)
Temperature sensor.
Charging current warning sticker.
3.2 Location
The product must be installed in a dry and well-ventilated area, as close as possible to the
batteries. There should be a clear space of at least 10 cm around the appliance for cooling.
Excessively high ambient temperature will result in the following:
Reduced service life.
Reduced charging current.
Reduced peak capacity, or shutdown of the inverter.
Never mount the appliance directly above the batteries.
The product is suitable for wall mounting. For mounting see Anhang A.
The appliance can be mounted horizontally as well as vertically; vertical mounting is
preferable. The vertical position offers optimum cooling.
The interior of the product must remain accessible after installation.
Ensure that the AC and DC input cables are fitted with fuses and circuit breakers. Try and
keep the distance between the product and the battery to a minimum in order to minimize
cable voltage losses.
For safety purposes, this product should be installed in a heat-resistant
environment if it is used with equipment where a substantial amount of power is
to be converted. You should prevent the presence of e.g. chemicals, synthetic
components, curtains or other textiles, etc., in the immediate vicinity.

11
GB NL F D Appendix
3.3 Requirements
Philips screwdriver (PH2) for removing the front.
Flat screwdriver (0.6x3.5) for connecting the AC leads.
Three-wire cable.
3.4 Connection of Battery cables
In order to fully utilize the full capacity of the product, batteries with sufficient capacity and
battery cables with sufficient cross section should be used. See table.
24/800 24/1200 12/800 12/1200 12/1600
48/1600 24/1600
48/1200
Recommended
cross section (mm2)
1,5 1Æ5 m 16 25 35 50 70
5 Æ10 m 35 50 70 100 140
1) preassembled cable length: 1.5 m
24/800 24/1200 12/800 12/1200 12/1600
48/1600 24/1600
48/1200
Recommended
battery capacity (Ah) 40 – 200 40 – 400 100 – 400 150 – 700 200 – 700
Remark: Internal resistance is the important factor when working with low capacity batteries.
Please consult your supplier or the relevant sections of our book “electricity on board”,
downloadable from our website.
Procedure
Proceed as follows to connect the battery cables:
Use an insulated box spanner in order to avoid shorting the battery.
Avoid shorting the battery cables.
Connect the battery cables: the + (red) on the left and the - (black) on the right, to the battery
see Anhang A.
Reverse polarity connection (+ to – and – to +) will cause damage to the Phoenix Multi
Compact.(Safety fuse inside the Multi Compact can be damaged)
Secure the nuts tightly in order to reduce the contact resistance as much as possible.

12
3.5 Connection of the AC cabling
This is a Safety Class I product (supplied with a protective grounding terminal).
Uninterruptible protective grounding must be provided at the AC input
and/or output terminals and/or chassis grounding point located externally
on the product. See the following instructions:
a) The Phoenix Inverter Compact has a free floating AC output. The grounding
point located externally on the product must be used to ground the chassis.
The neutral output wire must be connected to ground to ensure proper
functioning of a GFCI (Ground Fault Circuit Interrupter).
b) Phoenix Multi / MultiPlus Compact : the output neutral wire will
automatically be bonded to the chassis (with the output ground relay, see
appendix 2) when no external AC source is available (backfeed / safety relay
open and product running in inverter mode, see appendix 2).When an external
AC source is provided, the ground relay opens before closure of the backfeed /
safety relay. Once closed, the backfeed / safety relay ensures that the neutral to
ground bond is provided by the external AC source. This is to ensure proper
functioning of a GFCI to be installed in the AC output of the Multi/MultiPlus.
- In a fixed (for example terrestrial) installation an uninterrupted chassis ground
may be provided by the AC input ground wire.
- In case of a mobile installation (connection to input AC with a shore power
cord), the ground connection is lost when the shore power cord is unplugged. In
this case the chassis of the product or the on - board section of the input ground
wire must be connected to the frame (of the vehicle) or the ground plate or hull
(of a boat).
- Marine applications: due to the potential for galvanic corrosion it is in general
not acceptable to connect the shore side ground to the ground plate or hull of
the boat. The proper and safe solution is to install an isolation transformer.
The mains -input & output terminal connector G-ST18i can be found on the bottom of the
Multi Compact, see appendix 1. The shore or mains cable must be connected to the G-ST18i
connector with a three-wire cable. Use a three-wire cable with a flexible core and a cross
section of 1.5 mm² (800VA) to 2.5 mm² (1600VA).
Procedure
Proceed as follows to connect the AC cables:
The AC output cable can be connected directly to the G-ST18i male-connector. (the
connector pulls out!)
The terminal points are indicated clearly. From left to right: “N” (neutral), earth, and “L1”
(phase).
The AC input cable can be connected directly to the G-ST18I female-connector. (the
connector pulls out!)
The terminal points are indicated clearly. From left to right: “L1” (phase). earth, and “N”
(neutral),
Push the G-ST18i "input" connector into terminal connector (near to rear-side).
Push the G-ST18i "output" connector into terminal connector (near to front-side).

13
GB NL F D Appendix
3.6 Optional Connections
A number of optional connections are possible:
Undo the four screws at the front of the enclosure and remove the front panel.
3.6.1 Second Battery
The Phoenix Multi Compact / MultiPlus Compact has a connection for charging a starter
battery. For connection see appendix 1

14
3.6.2 Temperature Sensor (Multi Compact / MultiPlus Compact)
The temperature sensor supplied with the product may be used for temperature-
compensated charging. The sensor is insulated and must be mounted on the batteries minus
pole. Default output voltages for Float and Absorption are at 25°C. In adjust mode
temperature compensation is disabled.
10.0
10.5
11.0
11.5
12.0
12.5
13.0
13.5
14.0
14.5
15.0
0 5 10 15 20 25 30 35 40 45 50 55 60
Battery temperature
Volts
20
21
22
23
24
25
26
27
28
29
30
Volts
3.6.3 Remote Control panel & remote on/off switch
The product can be operated remotely in two ways.
Use of only an external switch.
With the aid of a remote control panel.
Observe the following when using only an external switch:
Only functions if the switch on the product is switched to the "on" position.
Not to be connected if a remote control is connected.
Observe the following when using a remote control:
Only functions if the switch on the product is switched to the "on" position.
3.6.4 External Alarm Relay and Virtual Switch
An open collector output is available to connect a relay that can be used for remote alarm and
other purposes (a. o. generator start signal).The maximum voltage/current that can be
switched (open collector transistor): 66V 40mA.
The open collector output can be programmed with VEConfigure.

15
GB NL F D Appendix
4 SETTINGS
Settings may only be changed by a qualified engineer
Carefully read the instructions before changes are made.
Batteries should be placed in a dry and well-ventilated area during charging.
4.1 Default Settings
Inverter Voltage 230 Vac
Charger on/ off on
Charge curve Adaptive charging, gel cell
Charging Current 75% of maximum charging current
Absorption Voltage 14.4V / 28.8V / 57.6 Vdc
Absorption Time/ Maximum Absorption Time 4 hours
Float Voltage 13.8V / 27.6V / 55.2 Vdc
Repeated Absorption Time 1 hour
Repeated Absorption Interval 7 days
Bulk Protection on
AC Waveform Check on
PowerAssist (MultiPlus only) on
Generator/ Shore Current 12A
System frequency - Multi Compact/ MultiPlus Compact = Automatic
- Inverter Compact = 50 Hz
AES (automatic economy switch) off
4.2 Settings which can be changed with the dipswitches
Type Battery Type Absorption voltage Float voltage Maximum
absorption
time
1
(default) Sonnenschein Dryfit A200 Gel 14.4 V 28.8 V 57.6V 13.8 V/ 13.2V 27.6 V/ 26.4V 55.2V 52.8V 4 hours
2 Traction
(tubular cell) 15.0 V 30.0 V 60.0V 13.8 V/ 13.2V 27.6 V/ 26.4V 55.4V 52.8V 6 hours
3 Semi Traction
1
(flat plate) 14.4 V 28.8 V 57.6V 14.0 V/ 13.2V 28.0 V/ 26.4V 56V 52.8V 5 hours
4 Low antimony
114.8 V 29.6 V 59.2V 14.0 V/
13.2V 28.0 V/ 26.4V 56V 52.8V 5 hours
1The optimal absorption voltage for flat plate lead acid batteries is subject to mechanical and chemical
properties. Batteries with high antimony content can typically be charged with a lower absorption voltage
than batteries with low antimony content. (Please refer to our book “Electricity on Board” downloadable
from our website www. victronenergy.com for details and suggestions about charging batteries). Contact
your battery supplier for the correct charge voltages and change (with VE-configure) the voltage settings if
required. The default charge current setting is 75% of the maximum charge current. This current will be too
high for most applications. For most battery Types the optimal charge current is 0.1-0.2x the battery
capacity.

16

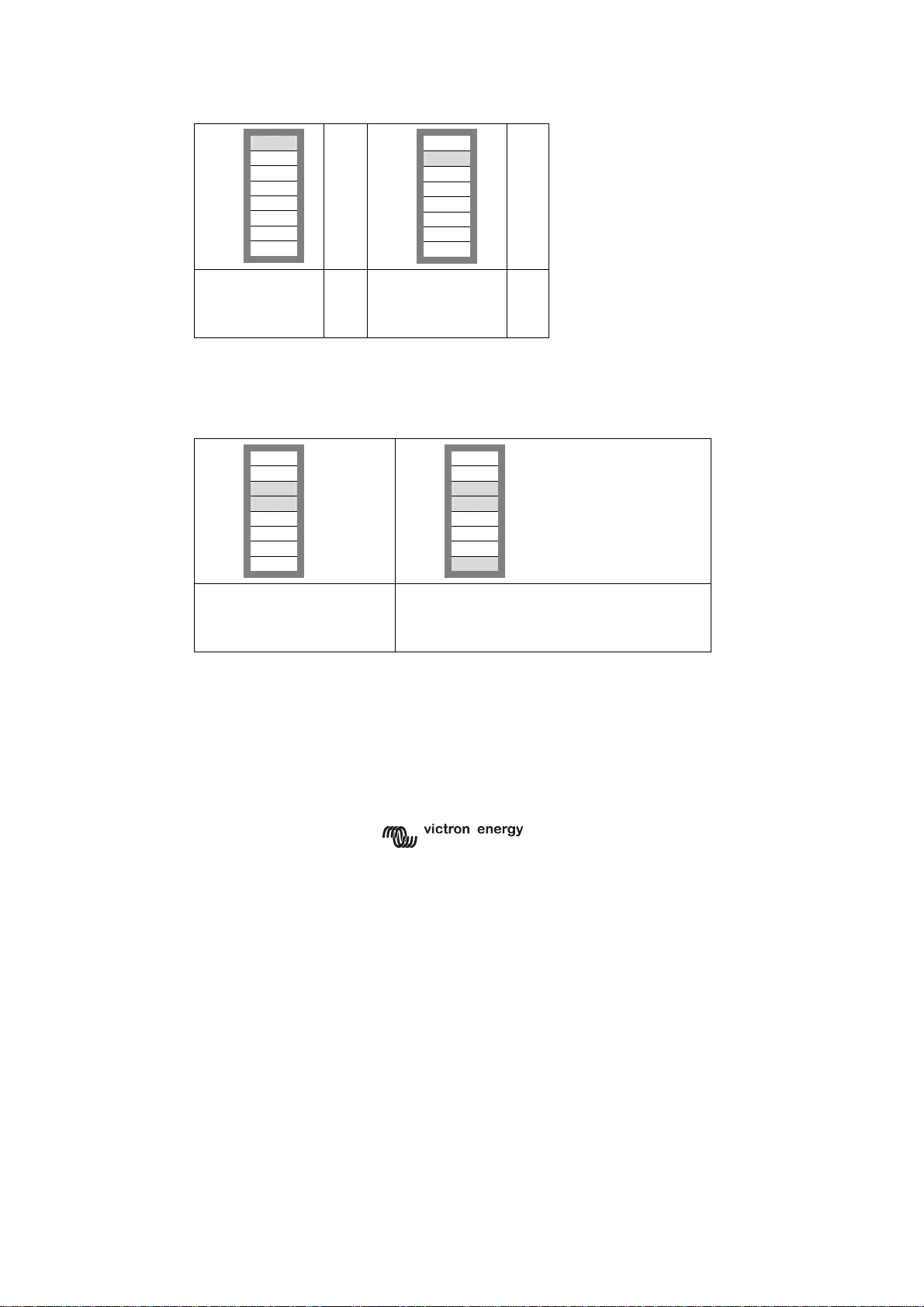

Using the dipswitches
Set-up
DS-1 off
DS-2
DS-3
DS-4
DS-5
DS-6
DS-7
DS-8
DS-1 off
DS-2 ←on
DS-3
DS-4
DS-5
DS-6
DS-7
DS-8
DS1=off
See note
DS-1 not used and must be switched to Off.
Note about DS-2: DS-2 should be switched “on” (default setting) when no remote panel or
remote on-off switch is used. activate the setting switches DS-3 to DS-8.
DS-2 should also be switched off to use a remote control panel or remote on-off switch.
Battery charge Type
DS-1 off
DS-2 on
DS-3 off
DS-4 off
DS-5
DS-6
DS-7
DS-8
DS-1 off
DS-2 on
DS-3 x x
DS-4 x x
DS-5
DS-6
DS-7
DS-8 
DS3=off,DS4=off = Type 1 (gel)
DS3=on,DS4=off = Type 2
DS3=off,DS4=on = Type 3
DS3=on,DS4=on = Type 4
Store the settings (DS3-DS4) by changing the DS8
switch position off to on, and then back to off

17
GB NL F D Appendix
Inverter frequency
DS-1 off
DS-2 on
DS-3
DS-4
DS-5 off
DS-6
DS-7
DS-8
DS-1 off
DS-2 on
DS-3
DS-4
DS-5 x x
DS-6
DS-7
DS-8 
DS5=off = 50Hz
DS5=on = 60Hz Store the settings (DS5) by changing the DS8 switch position off to on, and then back to off
Economy
DS-1 off
DS-2 on
DS-3
DS-4
DS-5
DS-6 off
DS-7
DS-8
DS-1 off
DS-2 on
DS-3
DS-4
DS-5
DS-6 x x
DS-7
DS-8 
DS6=off = normal
DS6=on = economy Store the settings (DS6) by changing the DS8 switch position off to on, and then back to off
AC input current limit
DS-1 off
DS-2 on
DS-3
DS-4
DS-5
DS-6
DS-7 off
DS-8
DS-1 off
DS-2 on
DS-3
DS-4
DS-5
DS-6
DS-7 x x
DS-8 
DS7=off = AC limit 16 Amp
DS7=on = AC limit 6 Amp Store the settings (DS7) by changing the DS8 switch position off to on, and then back to off
