Vidia SJ-002 User manual

juicer
SJ-002

1. You should read <Precautions for safe use>
2. You should follow <Precautions for safe use>
3. Precautions are classified as follows.
Warning When violating the labeling requirement, it may cause serious injury or death.
DO NOT PLUG IN NOR UNPLUG WITH WET HANDS. It may cause electric shock or injury.
DO NOT USE OTHER THAN 230 V AC. It may cause electric shock, fire or abnormal performance. If the voltage is
different, it may shorten the life of the motor or cause a failure.
PLUG THE POWER CORD CORRECTLY AND PUSH IT TIGHT IN A WALL SOCKET.
It may cause an electric shock or a fire.
IF UNUSUAL SOUND, SMELL, SMOKE, EXCESSIVE HEAT AND OTHER ABNORMAL SITUATION OC-
CURS WHILE OPERATING, PLEASE TURN OFF THE POWER IMMEDIATELY AND CONTACT THE LOCAL
CUSTOMER CARE CENTER. It may cause an injury or a failure.
NEVER ALTER THE APPLIANCE. ALSO, DO NOT DISASSEMBLE OR REPAIR BY YOURSELF. DO NOT
INSERT FINGERS, FOREIGN SUBSTANCES OR OBJECTS SUCH AS PINS INTO GAPS OR HOLES IN THE
BODY. It may cause a fire, electric shock or failure. For any technical support, contact the authorized local Customer
Care Center.
WHEN THE POWER CORD AND WIRE ARE BROKEN OR DAMAGED AND THE PLUG-IN PART BECOMES
LOOSE, DO NOT OPERATE THE MACHINE. It may cause electric shock, fire or injury.
DO NOT MOISTEN THE BODY OR SPLASH WATER ON THE BODY.
Be careful not to let any liquids or other substances get into the switch on the appliance.
DO NOT OPERATE THE SWITCH WITH WET HANDS. It may cause an electric shock or fire.
FOR SAFETY, MUST DO GROUNDING CONNECTION. ALSO, DO NOT DO GROUNDING ON GAS PIPE,
PLASTIC WATER PIPE, TELEPHONE WIRE, ETC. It could cause electric shock, fire, malfunction or explosion.
Be sure to use the electrical outlet with ground connection.
NEVER DISASSEMBLE THE DRUM SET DURING OPERATION NOR INSERT FINGERS, FOREIGN OB-
JECTS SUCH AS FORKS, SPOONS, ETC. INTO HOPPER CHUTE OR JUICE OUTLET. It may cause injury,
accident or failure.
KEEP THE APPLIANCE OUT OF REACH OF CHILDREN. APPLIANCES CAN BE USED BY PERSONS WITH
REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWL-
EDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLI-
ANCE IN A SAFE WAY AND IF THEY UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT
PLAY WITH THE APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHIL-
DREN. THIS APPLIANCE SHALL NOT BE USED BY CHILDREN. KEEP THE APPLIANCE AND ITS CORD
AWAY FROM CHILDREN. This appliance is not intended for use by persons lack of experience and knowledge
including children. Use of the appliance by the children concerning cause of injury, accident or failure.
IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER ITS SERVICE
OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.
NEVER ALTER THE APPLIANCE. ALSO, DO NOT DISASSEMBLE OR REPAIR BY YOURSELF.
Precautions for safe use
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 2 2015-11-18 오전 9:06:14

Warning When violating the labeling requirement, it may cause serious injury or death.
Caution When violating the labeling requirement, it may cause serious injury or damage to the appliance.
DO NOT INSERT FINGERS, FOREIGN SUBSTANCES OR OBJECTS SUCH AS PINS INTO GAPS OR HOLES
IN THE BODY. If using other object, it may cause a part damage, an injury, or a failure
WHEN DETECTING A GAS LEAK, DO NOT INSERT THE POWER CORD INTO ITS SLOT. OPEN THE WIN-
DOW TO VENTILATE FULLY AND IMMEDIATELY. It may cause injury or failure. It may cause an injury or a failure.
IF ROTATION OF AUGER IS STOPPED FROM NORMAL OPERATION, PRESS [REV] BUTTON AND HOLD
FOR 2~3 SECONDS AND THEN AFTER REVERSE OPERATION IS COMPLETELY STOPPED, PRESS [ON]
BUTTON AGAIN. If such a stop event continues during the operation, the parts may be damaged and performance
may be deteriorated due to overheating in a motor. When the problem continues, immediately stop the appliance and
contact the local Customer Care Center,.
IF THE INGREDIENTS ARE STUCK IN THE DRUM IN NORMAL OPERATION, PLEASE STOP RUNNING
AND PUSH THEM DOWN WITH THE PUSHER PROVIDED 3~4 TIMES TO AVOID PART BREAKAGE. It may
cause a part damage or slow down the performance of juicing.
DURING THE OPERATION, DO NOT ATTEMPT TO DISASSEMBLE OR ASSEMBLE THE DRUM SET OR
OTHER ATTACHMENTS. It may cause an injury or a failure. Make sure to disassemble or assemble parts under stop
mode after unplugging the power cord. Any act of event needed, switch off the power first and unplug the power cord.
DO NOT WEAR NECKTIES, LONG NECKLACES, SCARVES, ETC WHILE USING YOUR JUICER. They may
get caught in the hopper and cause injury and/or failure.
PLACE THE APPLIANCE ON A FLAT AND STABLE SURFACE TO AVOID PART BREAKAGE OR APPLI-
ANCE DAMAGE. Otherwise, it may cause an injury or a failure.
DO NOT OPERATE THE APPLIANCE FOR MORE THAN 30 MINUTES AT A TIME.
It may cause a motor failure due to overheating. Cool it down sufficiently about 5 minutes and operate it again.
DO NOT USE YOUR FINGER, KNIFE, FORK OR OTHER OBJECT TO PUSH THE INGREDIENTS DOWN.
ONLY USE THE PUSHER PROVIDED. It may cause serious injury for user or damage and a failure to the product.
DO NOT ALLOW A SEVERE SHOCK TO THE APPLIANCE OR DROP IT. It may cause an electric shock, a fire or
damage.
ALWAYS UNPLUG THE APPLIANCE AFTER EACH USE. WHEN UNPLUGGING THE POWER CORD, MAKE
SURE TO HOLD THE POWER PLUG. If holding the wire to unplug, it may cause an electric shock or a fire.
DO NOT WASH AT HIGH TEMPERATURE OF 800C(1760F) OR HIGHER. DO NOT PUT THE APPLIANCE IN
A DISHWASHER, A DRYER OR A MICROWAVE ETC. It may cause damage or a failure of parts.
THE APPLIANCE WEIGHS ABOUT 6kg. WHEN MOVING THE APPLIANCE, MAKE SURE NOT TO DROP
IT. If attempting to hold drum or the edge of the base, the base falls causing an injury, malfunction or a failure.
WHEN THE POWER CORD, WIRE WAS BROKEN OR DAMAGED OR THE PLUG-IN PART BECAME
LOOSE, DO NOT OPERATE IT.
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 3 2015-11-18 오전 9:06:14

04 |
Locking Clip
Operating
Switch
Main Body
Pulp Container
Juice
Container
Pusher
Cleaning
Brush
Terms of parts / Parts for Processor
Adjustable
Pressure Cap
Drum
Cap
Juicing Strainer
Food
Processing
Strainer
Auger
Drum
Hopper
Round
Noodle
Nozzle
Udon
Noodle
Nozzle
Flat
Noodle
Nozzle
Bread
Noodle
Nozzle
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 4 2015-11-18 오전 9:06:15

| 05
Drum
Cap
Adjustable
Pressure
Cap
Juicing
Strainer
Food
Processing
Strainer
Drum CapNozzle
Drum
Drum
Hopper
Hopper
Auger
Auger
For Juicing
For Food Processing
Round
Noodle
Nozzle
Udon
Noodle
Nozzle
Flat
Noodle
Nozzle
Bread
Noodle
Nozzle
Terms of parts / Parts for Food Processing
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 5 2015-11-18 오전 9:06:15

06 |
Use Food processing stem for grinding/noddle making and use Juicing stem for juicing of fruit and vegetable
!
Connect drum with main body by
turning locking clip clockwise
(about 60°).
1
2
How to Assembly
1
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 6 2015-11-18 오전 9:06:16

| 07
Use Food processing stem for grinding/noddle making and use Juicing stem for juicing of fruit and vegetable
2-A
Assemble as 1,
then assemble auger > strainer > drum cap > Adjustable Pressure Cap .
Place the drum cap onto the drum end and turn it
counter-clockwise until it clicks firmly into place.
Attach adjustable pressure cap to the drum cap end.
Turn to “1” or “2” for soft fruits like orange, strawberry etc.
Turn to “5” on the adjustable pressure cap for maximum pressure. This is best for
carrot, beetroot and the leafygreens. <See p19>
For juicing function
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 7 2015-11-18 오전 9:06:16

08 |
Assemble as 1, then assemble auger > food processing strainer > drum cap > nozzle
Place the auger into the drum.
Insert the processing strainer into the drum.
Place the drum cap onto the drum end and turn it counter-clockwise until it clicks firmly into
place. (Change the nozzle depends on the type of noddle.)
When grinding food materials such as grains, do not insert the nozzle.
1) Place juice and pulp container under the drum.
Juice cup does not need for food processor function.
2) Plug the power cord.
For Food Processor Function
2-B
3
Food
Processing
Strainer
Drum Cap
Nozzle
Auger
Pulp container
Juice
Outlet
Juice container
Use Food processing stem for grinding/noddle making and use Juicing stem for juicing of fruit and vegetable
!
How to Assembly
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 8 2015-11-18 오전 9:06:16

| 09
Ingredients and Food Strainer
Fruits like apple, orange, pear, grapes, strawberry, kiwi, etc.
Vegetables like tomato, avocado, aloe, kale, spinach, carrot,
sweet porato, wheatgrass, etc.
Red/green pepper, garlic, ginger, herbs, soaked rice and
beans, etc.
Pasta, Udon, Noodle Breadstick, Ice crean, Nut butter, etc.
Juicing Strainer
Choosing the Right Strainer by ingredients and Food
Food Processing Strainer
Food Processing Strainer
Drum
Hopper
1
2
Use Food processing stem for grinding/noddle making and use Juicing stem for juicing of fruit and vegetable
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 9 2015-11-18 오전 9:06:17

10 |
Making juice of fruit and vegetable
Auger-> Juicing stem->Drum cap-> Adjustable pressure cap
1) When assembling Drum cap, turn Drum cap counter-clockwise direction to tighten up on
right position
2) Assemble Adjustable pressure cap with Drum cap
1
0
1
2
34
5
Only use Juicing stem
!
Only use Juicing stem
!
As for mild and soft fruit like orange
and strawberry, turn Adjustable
pressure cap to "1" or "2" position
As for root type ingredients like
beet and carrot, turn Adjustable
pressure cap to "5" position (Refer
to Page19)
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 10 2015-11-18 오전 9:06:17

| 11
Put ingredients gradually into hopper chute
and press with the pusher.
If you put ingredients too much or thick
ingredients, the operation may be stopped .
1) Press [ON] button to operate.
2) Wash the ingredients and cut them into
proper size to fit into feeding chute
3) Push them down with the pusher provide
2
3
<REV> <ON>
Only use Juicing stem
!In case of reversing during operaon, press [REV] buon short, then press [REV] buon for operaon.
With the feature of the product, even though you stop the operaon, it doesn’t stop right away. It rotates
slowly then stops. If the rotaon stops completely, you may press the buon to any direcon you want.
(Same as when pressing [on] during reverse operaon)
Pulp
container Juice container
Juice outlet
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 11 2015-11-18 오전 9:06:17

12 |
Assemble auger> food processing strainer >drum cap > nozzle on main body.
Place the auger into the drum.
Insert the processing strainer into the drum.
Place the drum cap onto the drum end and turn it counter-clockwise until it clicks
firmly into place. Change the nozzle depends on the type of noddle.
Making Pasta, U-dong, Noodle, Breadstick
1
nozzle
Only use Food processing stem
!
nozzle
Round Noodle
Nozzle
Udon Noodle
Nozzle
Flat Noodle
Nozzle
Bread Noodle
Nozzle
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 12 2015-11-18 오전 9:06:18

| 13
If noodles come out, cut them with scissors to the length size you want.
2Sprinkle a small amount of wheat flour on the holding dish placed under the spout.
Press [ON] button to start making noodles.
Push down the dough with the pusher provided.
3
4After making the noodles, stop the appliance and then separated the drum and rinse the
parts in cold water.
Only use Food processing stem
!
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 13 2015-11-18 오전 9:06:19

14 |
Unplug the appliance before disassemble.
(Please do not touch the power code with your
wet hands for your safety)

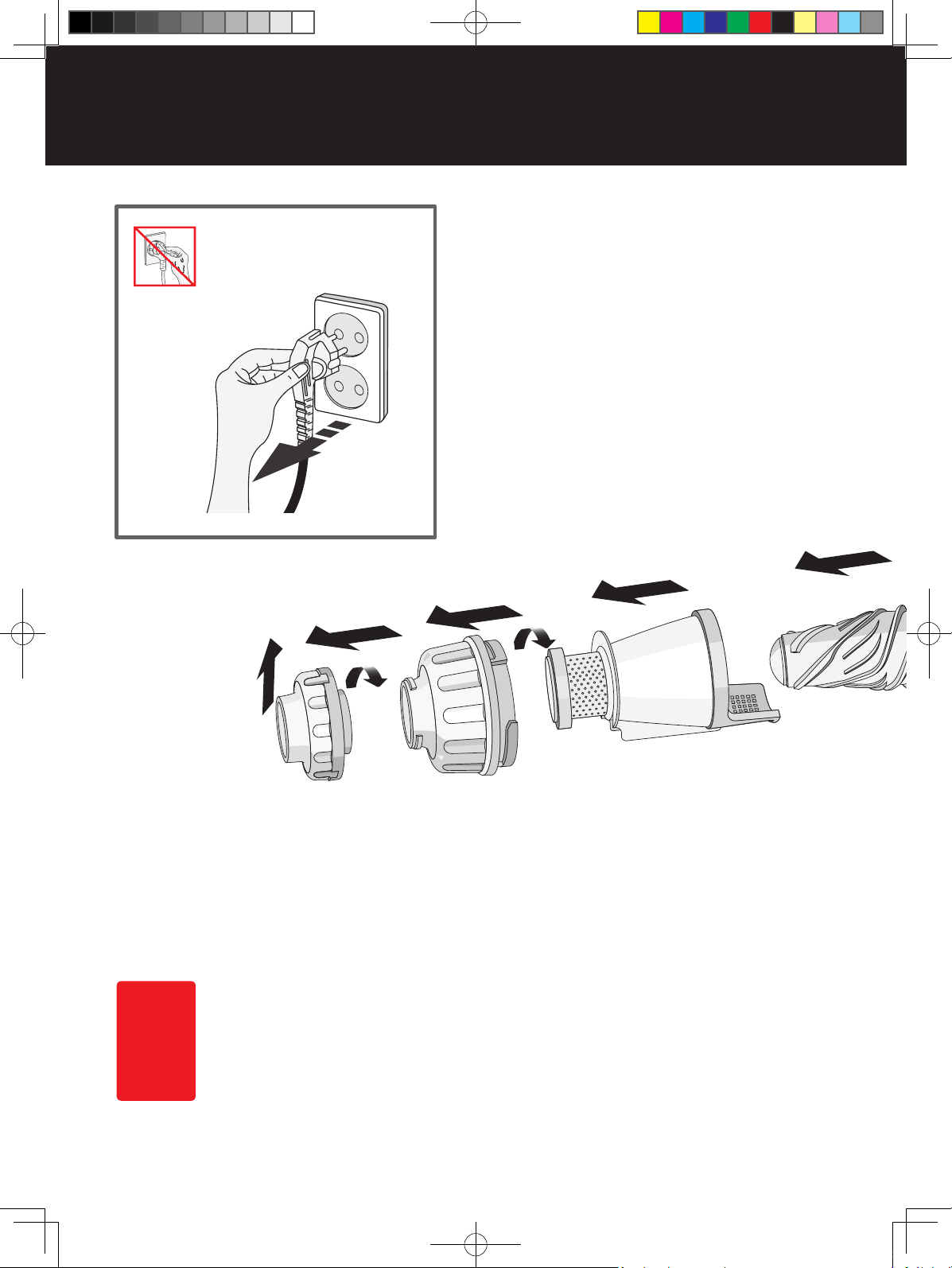

Please disassemble the main body and drum set as shown in the picture above.
Clean the drum set with a cleaning brush under running water.
The assembly is reverse order of disassemble.
In case of nozzle set and food processing stem, the way of disassemble is same as above.
Disassemble and cleaning
1
2
1. If the unit is not cleaned immediately aer use, a residue may dry and sck to the unit. This
will make disassembling and cleaning dicult as well as lead to performance degradaon.
2. Do not wash with hot or boiling water, an iron scrubber, abrasive material, sink solvents,
or sharp cleaning tools. Do not put it in a dishwasher or dish dryer. Aer washing, thoroughly
and naturally dry, and store in a clean area.
NOTE
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 14 2015-11-18 오전 9:06:19

| 15
3Please clean the main body with
soft material such as a dry towel.
(Please do not use hard tool to
prevent unexpected damage
while cleaning.)
1
2
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 15 2015-11-18 오전 9:06:19

16 |
Cautions during operation
Use fresh fruits and vegetables for juicing as they contain more juice
themselves like kale, wheatgrass, cabbage, etc.
Ingredients stored in the refrigerator for a long time should be soaked in cold water for around
10 minutes before use.
Pine needles should be soaked in cold water for an hour before use.
When juicing kudzu, please cut kudzu roots into small pieces and put them into the hopper little
by little.
Drink the fruit juice or green vegetable juice immediately after you have extracted.
If it is exposed to air sometime, the juice will lose its taste and natural value.
Unrecommended ingredients
- Seasoning, black pepper, cinnamon sticks
- Grains such as various cereals, non-soaked rice, barley, beans, and others.
- Non-dried kelp, dried ginseng, dried mushrooms, dried Chinese herbal medicines, shells,
chestnut shells, etc.
- Fruits with pits, hard seeds
It may cause an injury or a failure of drum, auger, stem.
Do not use it for more than 30 minutes continuously.
It may cause a failure due to overheating in a motor.
But, when using continuously, stop and cool it down about 5 minutes for each use.
Do not put excessive amount of ingredients at a time.
Excessive amount with pusher usage does not operate fast juicing
Check whether pulps come out well from the outlet and put small amount for use
Excessive amount of use will cause a part damage, an injury, or a failure.
Only use the pusher to press down the ingredients.
If using other object, it will get stuck in the drum and will cause a part damage, an injury, or a
failure.
Turn off the switch while changing nozzle.
It may cause abnormal performances or a failure.
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 16 2015-11-18 오전 9:06:19

| 17
Please check the details below
Before contacting Technical Support for repair.
It makes noise while operating.
-While processing hard ingredients, it could make a sound.
It is normal when the auger is rotating. Please note that it is not malfunction.
-Please place the appliance on a stable surface.
Extracted juice amount is less than before.
-Check if stem net of the juice stem is blocked. If using withered and chilled ingredients, it may cause
blocking the stem net.
If the materials stuck on the stem net, please clean first and then use again.
Frozen or refrigerated ingredients for long time are extracted into less amount of juice.
It stops during normal operation.
-Have you put heavy loads of ingredient or thick/big ingredient?
Press reverse button for 3~5 seconds and release it. Repeat this process 2~3 times.
*Read the manual Page 11 and follow [REV] button guideline.
If the auger does not work even after the above process, unplug the power cord from the socket,
disassemble the drum set, wash and use it again.
A large amount of juice residue in squeezing screw does not discharge.
-Large amount of soft ingredients such as tomatoes, kiwis, strawberries, etc. can be accumulated
around the auger or feeding chute and cause a difficulty to be discharged.
At this time, place some of fiber ingredients and push them down with pusher for 3~4 times.
Still the problem has not been solved, unplug the power cord from the socket and disassemble the
drum set, wash and use it again.
* Regarding the Disassembly, cleaning and care, please refer to Page 14 or contact the local Customer
Care Center.
Check the details below before contacng Technical Support for repair or service.
When applying for aer sales service, check the manufacturer’s serial number or bar code.
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 17 2015-11-18 오전 9:06:19

18 |
Product Specifications
Product Name
Model Name
Rated Voltage
Rated Frequency
Rated Power
Consumpon
RPM
Juice extractor
Vidia SJ-002
230 V
50 Hz
200 W
70 RPM
Memo
Cord Length
Motor
Fuse
Weight
Outward
Dimension
Rated
Operang Hour
1.4 m
Single-phase inducon motor
250 V 5 A
6 kg
Width 420 mm
Length 167 mm
Height 320 mm
Less than 30 minutes
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 18 2015-11-18 오전 9:06:19

| 19
Tomato
Kiwi
Grapes
Apple
Orange(Mandarin)
Watermelon
Cucmber
Carrot
Kale
Celery
Angelica Utilis Makino
Cabbage
Water parsley
Wheatgrass
Pine needles
Juicing process steps by ingredients
Ingredient
12345
This table is recommeneded Juicing process step.
Use nozzle by ingrednets and by amount of pulp produce.
(ex. When there is too much juice comes out with pulp move the number of adjustable nozzle cap to higher
number, when pulp does not comes out easily move the number of adjustable nozzle cap to lower number.
Soft Ingredients Hard Ingredients and Leafy greens
4EB010 사용설명서 Oscar DA-1200 (GG Series185x255)_V.00.indd 19 2015-11-18 오전 9:06:19

Read “Precauons for safe use”(P2) carefully and use the appliance properly.
Save the manual and keep it in a convenient locaon for future reference.
Check if the voltage indicated on the base of the appliance corresponds to the
localvoltage before you connect the appliance.
Any quality improvements are subject to change without noce.
1)
2)
3)
4)
Precauons for safe use Terms of parts / Parts
for Processor
Before contacng
technical support for
repair
Specificaons Juicing process steps by
ingredients
02 04
Terms of parts / Parts f
or Food Processing
How to Assemble
05 06
Making juice of fruit
and vegetable
10
Making Pasta, U-dong,
Noodle, Breadsck
12
Disassemble and
cleaning
14
Cauons during
operaon
16
17 18 19
juicer
www.vidiaproducts.com
