Vitocell 100-B
Type CVBA
Vitocell 100-W
Type CVBA
Dual mode DHW cylinder with Solar-Divicon
VITOCELL 100-B
VITOCELL 100-W
5838641 GB 2/2019 Dispose after installation.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for quali-
fied contractors.
■Work on electrical equipment may only be carried
out by a qualified electrician.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention of accidents
■Statutory regulations for environmental protection
■Codes of practice of the relevant trade associations
■Relevant country-specific safety regulations
Working on the system
■Isolate the system from the power supply (e.g. by
removing the separate fuse or by means of a mains
isolator) and check that it is no longer live.
■Safeguard the system against reconnection.
■Wear protective clothing.
!Please note
Electronic assemblies can be damaged by elec-
trostatic discharge.
Prior to commencing any work, touch earthed
objects such as heating or water pipes to dis-
charge static loads.
Danger
Hot surfaces can cause burns.
■Before maintenance and service work, switch
OFF the appliance and let it cool down.
■Never touch the hot surfaces of uninsulated
pipes and fittings.
Danger
Floors which are wet, damp or covered in fluids
containing glycol present a risk of injury through
slipping and falling.
■When carrying out installation and mainte-
nance work, ensure that the floor is kept clean
and dry.
■Wear non-slip shoes.
Danger
Breathing in or swallowing broken-off fragments
of insulating material may result in death by
asphyxiation.
■Do not allow children to play in the installation
room.
■Clean the installation room after installation
and maintenance work.
Repair work
!Please note
Repairing components that fulfil a safety func-
tion can compromise the safe operation of the
system.
Replace faulty components only with genuine
Viessmann spare parts.
Safety instructions
5838641

3
1. Information Disposal of packaging ............................................................................ 4
Symbols ................................................................................................. 4
Intended use .......................................................................................... 4
Product information ................................................................................ 5
■Vitocell 100-B and Vitocell 100-W, type CVBA ............................... 5
2. Installation information Preparing for installation ........................................................................ 6
■Connections with Vitosolic 100 ........................................................... 6
■Connections with electronics module SDIO/SM1A ............................. 7
■Before installation ............................................................................... 7
3. Installation sequence Siting the DHW cylinder ......................................................................... 9
■Siting a DHW cylinder with an immersion heater EHE ....................... 9
Installing the immersion heater EHE (if available) ................................. 9
Testing the anode connection ................................................................ 10
Fitting the cover ..................................................................................... 10
Fitting the solar expansion vessel .......................................................... 11
■Fitting the expansion vessel to the DHW cylinder .............................. 11
■Wall mounting ..................................................................................... 14
Installing the cylinder temperature sensors ........................................... 14
Connecting the solar control unit ........................................................... 15
Connecting the immersion heater EHE ................................................. 16
Connecting the heating water side and solar side ................................. 16
■System scheme with solar collectors and boiler ................................. 16
Connections on the DHW side ............................................................... 18
■Safety valve ........................................................................................ 19
Installing the high limit safety cut-out (STB) .......................................... 20
■Electrical connections ......................................................................... 20
■Setting the response temperature ...................................................... 21
■Resetting the high limit safety cut-out (STB) ...................................... 21
Connecting the equipotential bonding ................................................... 21
Commissioning ...................................................................................... 21
4. Specification ................................................................................................................ 22
Index
5838641

4
Please dispose of packaging waste in line with statu-
tory regulations.
Symbols
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
Intended use
The appliance is only intended to be installed and
operated in sealed unvented systems that comply with
EN 12828 / DIN 1988, or solar thermal systems that
comply with EN 12977, with due attention paid to the
associated installation, service and operating instruc-
tions. DHW cylinders are only designed to store and
heat water of potable water quality. Heating water buf-
fer cylinders are only designed to hold fill water of pot-
able water quality. Only operate solar collectors with
the heat transfer medium approved by the manufac-
turer.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for a purpose other
than heating the building or DHW shall be deemed
inappropriate.
Any usage beyond this must be approved by the man-
ufacturer for the individual case.
Disposal of packaging
5838641

5
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and results in an exclusion of liability.
Incorrect usage also occurs if the components in the
system are modified from their intended use (e.g.
through direct DHW heating in the collector).
Adhere to statutory regulations, especially concerning
the hygiene of potable water.
Product information
Vitocell 100-B and Vitocell 100-W, type CVBA
Enamelled DHW cylinder with internal indirect coil for
DHW heating in conjunction with solar thermal sys-
tems, as well as floorstanding and wall mounted boil-
ers in dual mode operation.
■DHW cylinder fully equipped with the following:
–Solar-Divicon
–Vitosolic 100, type SD1 or electronics module
SDIO/SM1A
■Capacity: 250 l and 300 l
■Suitable for systems conforming to DIN 1988,
EN 12828 and DIN 4753
■DIN registration number: 0266/07-13MC/E
■ – Vitocell 100-B: Finished in silver
–Vitocell 100-W: Finished in white
Intended use (cont.)
5838641

6
Connections with Vitosolic 100
Rear view
B
C
D
E
F
G
A
Fig. 1
Front view
P
H
K
L
M
N
O
O
R
Fig. 2

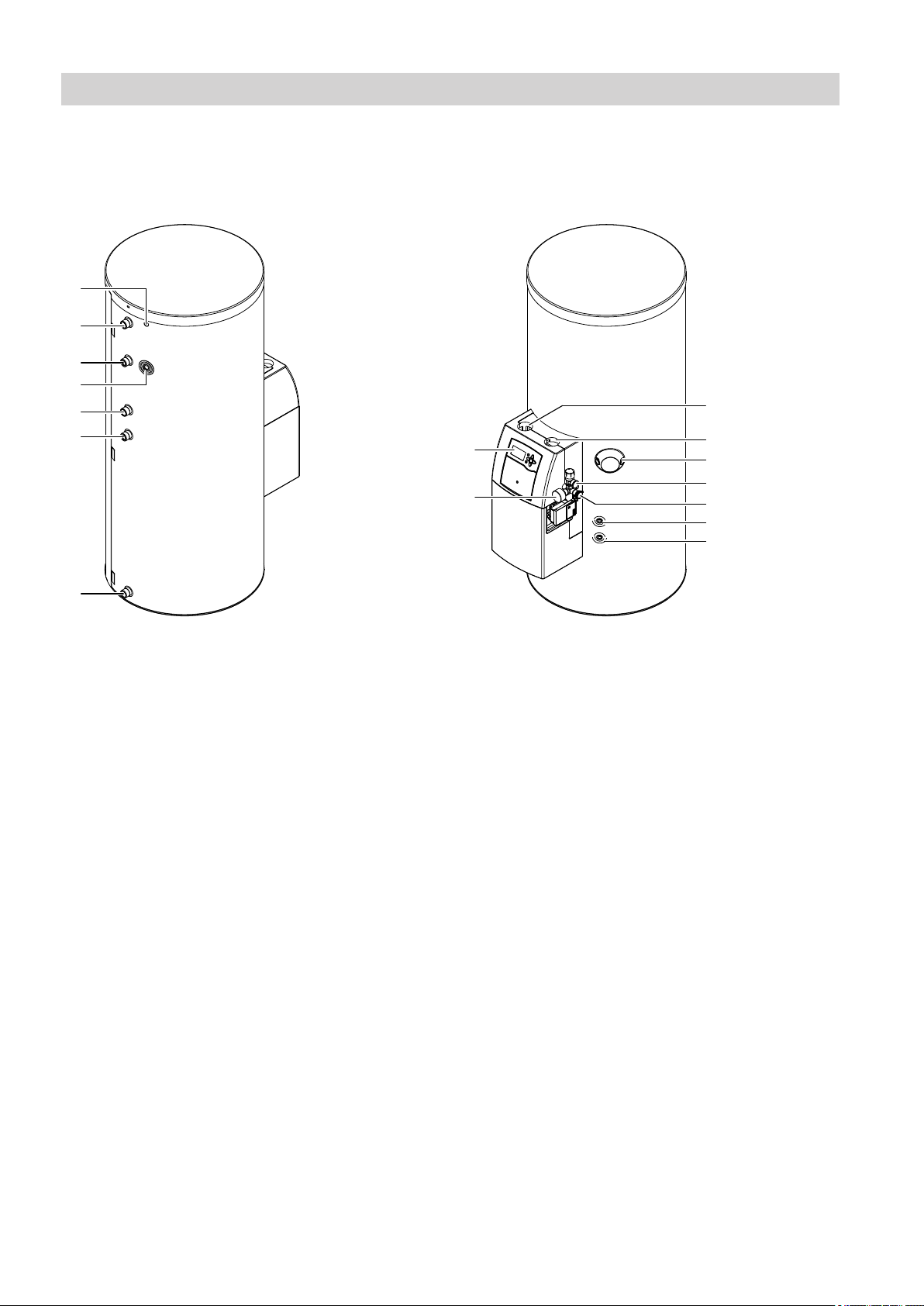

ACable entry for power cable and KM-BUS/PlusBus
cable to the control unit
BDHW with high limit safety cut-out
CHeating water flow
DSensor well
EDHW circulation
FHeating water return
GCold water
HHeating water flow, solar
KHeating water return, solar
LFemale connection for immersion heater EHE
MDischarge pipe
NSolar expansion vessel connection
OFemale thread for solar expansion vessel bracket
PVitosolic 100
RSafety assembly with
■Safety valve
■Pressure gauge
■Fill valve
■Solar expansion vessel connection N
Preparing for installation
5838641

7
Connections with electronics module SDIO/SM1A
Rear view
B
C
D
E
F
G
A
Fig. 3
Front view
H
K
L
M
N
O
O
R
P
Fig. 4
ACable entry for power cable and KM-BUS/PlusBus
cable to the control unit
BDHW with high limit safety cut-out
CHeating water flow
DSensor well
EDHW circulation
FHeating water return
GCold water
HHeating water flow, solar
KHeating water return, solar
LFemale connection for immersion heater EHE
MDischarge pipe
NSolar expansion vessel connection
OFemale thread for solar expansion vessel bracket
PSDIO/SM1A electronics module
RSafety assembly with
■Safety valve
■Pressure gauge
■Fill valve
■Solar expansion vessel connection N
Before installation

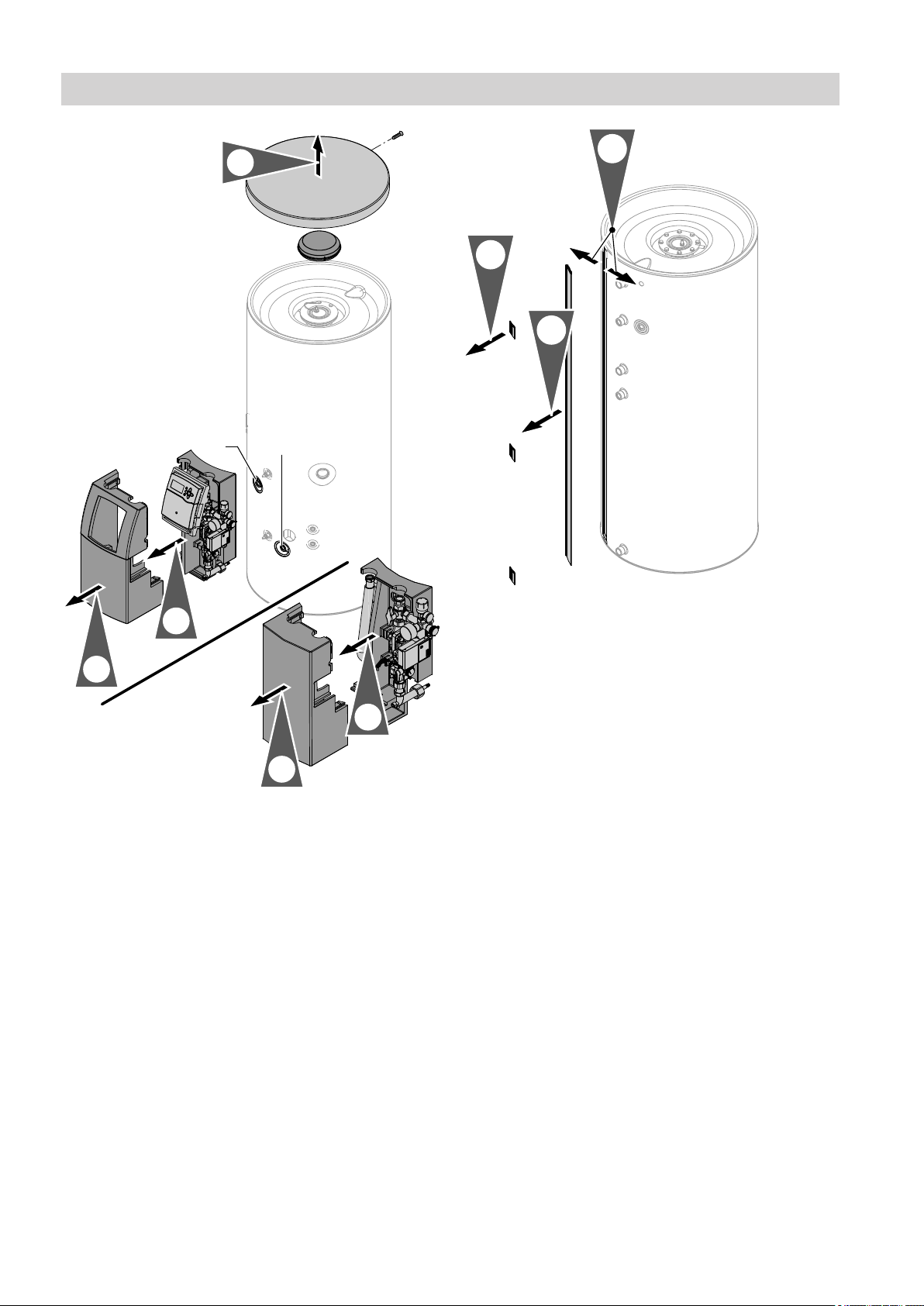

To prevent damage to the thermal insulation and the
Solar-Divicon, both can be removed prior to transpor-
tation to the installation site.
Note
Ensure that no fleece remnants enter the DHW cylin-
der through the cylinder connections.
Preparing for installation (cont.)
5838641

8
B
A
1.
2.
5.
2.
5.
Fig. 5
Step 3
Disconnect cables.
Step 4
Undo connections A and B.
Reassemble in reverse order after the installation has
been completed.
7.
6.
8.
Fig. 6
Preparing for installation (cont.)
5838641

9
!Please note
The thermal insulation must not be able to come
into contact with naked flames.
Exercise caution when welding and soldering.
!Please note
To prevent material losses, site the DHW cylin-
der in a room free from the risk of frost and
draughts.
When not in use, the DHW cylinder must be
drained if there is a risk of frost.
■Provide adequate clearance from the wall for operat-
ing the Vitosolic 100 (if installed).
Note
To facilitate access to the connections on the solar
side, the Vitosolic 100 can be moved to the right or
left.
■Use the adjustable feet to level the DHW cylinder.
Note
Never extend the adjustable feet beyond a total
length of 35 mm.
Siting a DHW cylinder with an immersion heater EHE
650≥
Fig. 7
Immersion heater EHE installation instructions
Maintain the minimum clearance.
!Please note
The unheated length of any threaded immersion
heater installed on site must be at least 100 mm.
The threaded immersion heater must be suitable
for installation in enamelled DHW cylinders.
Installing the immersion heater EHE (if available)
Connect the power supply only after the solar control
unit has been connected (see page 15).
Immersion heater EHE installation instructions
!Please note
To prevent equipment damage, cables must not
come into contact with hot parts.
Ensure adequate thermal insulation between
cables and hot pipework.
Siting the DHW cylinder
5838641

10
1. A
B
Fig. 8
AProtective magnesium anode
BEarth cable
Fitting the cover
B
1.
2.
C
3.
A
4.
5.
Fig. 9
AType plate
BPlug
CCap
If no immersion heater EHE is being installed in the
DHW cylinder: Seal connection L (see page 6) with
the Rp 1½ plug supplied.
Testing the anode connection
5838641

11
Mount the bracket on the DHW cylinder or on the wall.

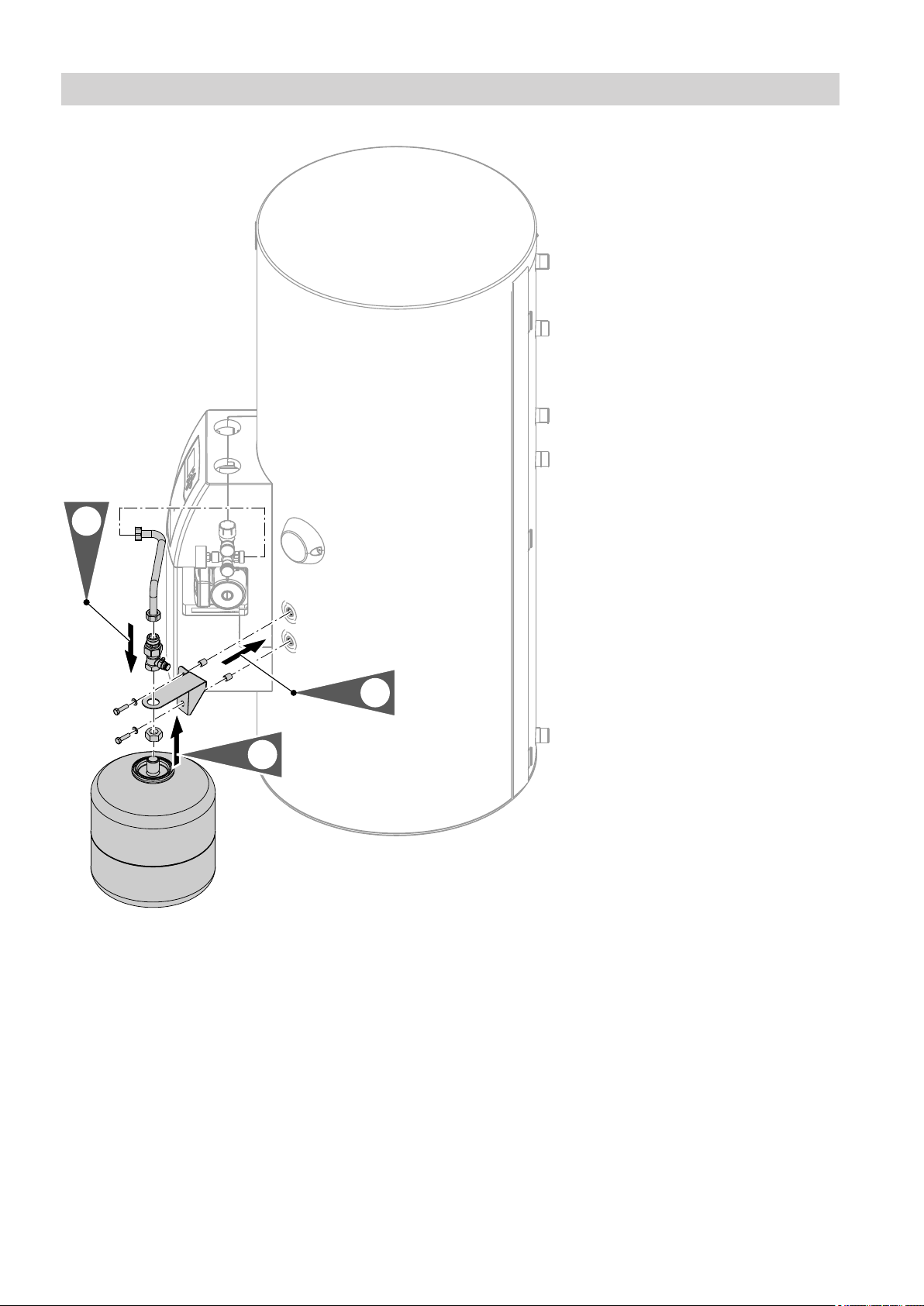

Fitting the expansion vessel to the DHW cylinder
Using the corrugated pipe supplied, connect the solar
expansion vessel to connection N (see page 6) of
safety assembly R.
x
Fig. 10
For further installation, observe dimension X.
Fitting the solar expansion vessel
5838641

12
Dimension X < 400 mm
1.
3.
2.
Fig. 11
Fitting the solar expansion vessel (cont.)
5838641

13
Dimension X > 400 mm
2.
1.
3.
Fig. 12
Fitting the solar expansion vessel (cont.)
5838641

14
Wall mounting
Make the connection to the safety assembly on site.
Fig. 13
Installing the cylinder temperature sensors
!Please note
To prevent equipment damage, cables must not
come into contact with hot parts.
Ensure adequate thermal insulation between
cables and hot pipework.
Fitting the solar expansion vessel (cont.)
5838641

15
A
4.
1.
2.
3.
5.
Fig. 14

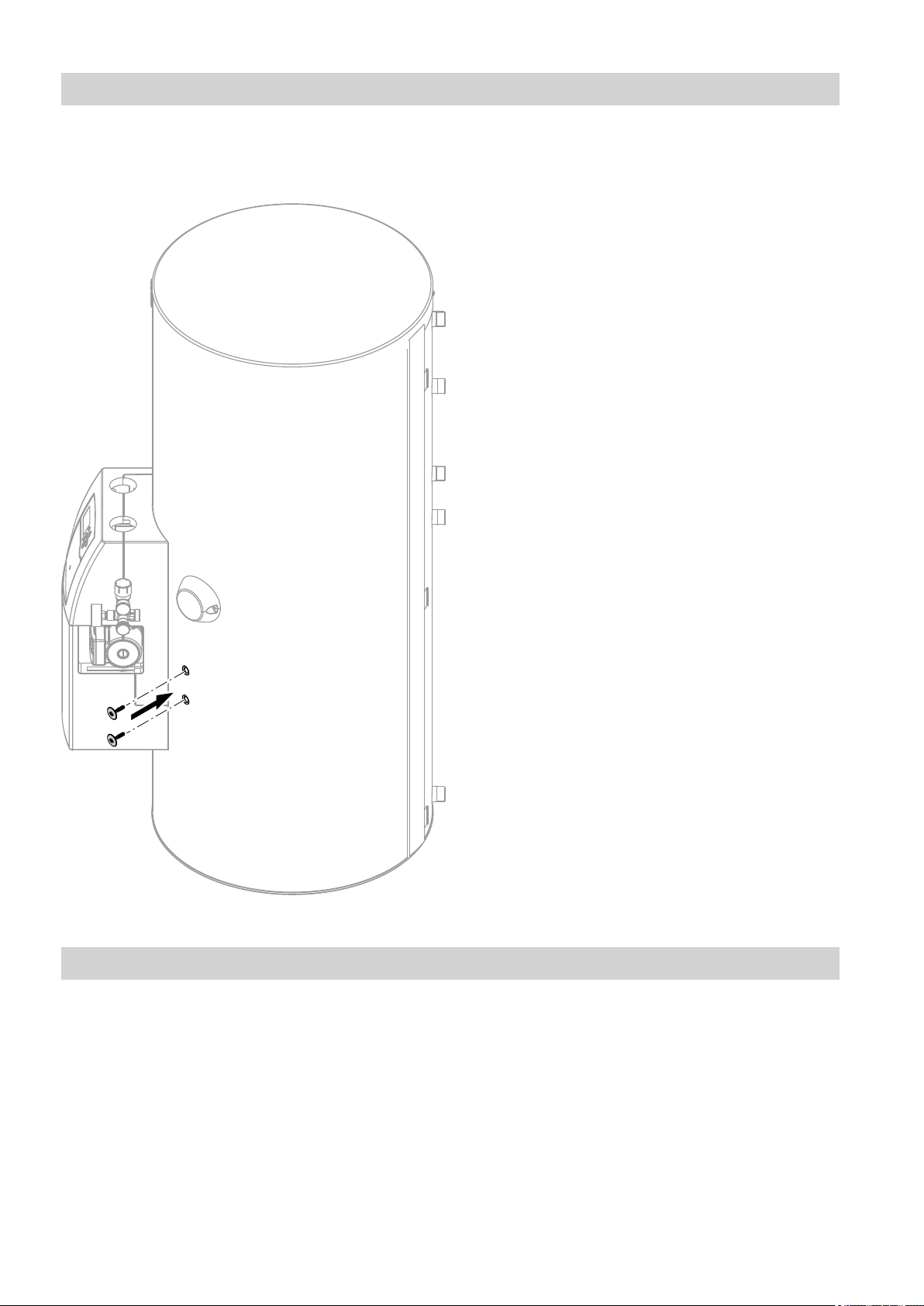

ASensor well for cylinder temperature controller
■Never wrap insulating tape around sensors.
■Secure the cylinder temperature sensor to the out-
side of the contact spring of the sensor retainer (not
in the groove) so that it is flush with the front of the
spring.
■Insert the sensor retainer together with the sensor
into sensor well A as far as it will go.
Connecting the solar control unit
Solar control unit:
■Vitosolic 100, type SD1,
or
■SDIO/SM1A electronics module
The following cables/leads are already connected to
the Vitosolic 100 or the SDIO/SM1A electronics mod-
ule:
■Cylinder temperature sensor
■Pump connecting cable
■On versions equipped with high efficiency circulation
pump: PWM cable, solar circuit pump
Note
If not yet connected, push the pump connecting cable
plug into the circulation pump.
Installing the cylinder temperature sensors (cont.)
5838641

16
The following cables/leads have yet to be connected to
the Vitosolic 100 or the SDIO/SM1A electronics mod-
ule:
■Power supply
■Collector temperature sensor
■Connection to Vitotronic boiler control units (KM-
BUS) or PlusBus
!Please note
Routing 230 V cables immediately adjacent to
extra low voltage (ELV) leads may lead to data
being corrupted during transmission.
Route extra low voltage (ELV) leads < 42 V and
cables ≥ 230 V~ separately underneath the
cover of the DHW cylinder.
Vitosolic 100 or SDIO/SM1A electronics module
installation and service instructions
Solar collector installation instructions
Connecting the immersion heater EHE
Immersion heater EHE installation instructions
Connecting the heating water side and solar side
■Connect all pipework with detachable fittings.
■Seal connections that are not required with caps.
■Adjust the high limit safety cut-out so that the DHW
temperature in the DHW cylinder does not exceed
95 °C.
Permissible temperatures
Solar side 160 °C
Heating water side 160 °C
Permissible operating pressure
Solar side 10 bar
(1.0 MPa)
Heating water side 10 bar
(1.0 MPa)
Test pressure
Solar side 16 bar
(1.6 MPa)
Heating water side 16 bar
(1.6 MPa)
Note
Vitosol collectors can be operated with up to 6 bar
(0.6 MPa).
System scheme with solar collectors and boiler
■Heating of DHW by solar collectors via the lower
internal indirect coil
■Heat supply for reheating or heating DHW with a
boiler via the upper internal indirect coil
Connecting the solar control unit (cont.)
5838641

17
KW
WW
1
2
3
5
6
7
8
9
4
S1
S2
P
M
STB
qP
Fig. 15
KW Cold water
WW DHW
S1 Collector temperature sensor (for version with
SDIO/SM1A electronics module: Insert SDIO/
SM1A plug & into electronics module)
S2 Cylinder temperature sensor (on the solar side)
(for version with SDIO/SM1A electronics module:
Insert SDIO/SM1A plug % into electronics mod-
ule)
1Vitocell 100-B or Vitocell 100-W comprising:
2 DHW cylinder
3 Solar-Divicon
4 Vitosolic 100 or SDIO/SM1A electronics mod-
ule
5Solar collector
6Heat generator
7Heating circuit
8Cylinder temperature sensor (on the heating
water side)
9Fill valve
qP Temperature sensor, high limit safety cut-out
(STB)
Connecting the heating water side and solar side (cont.)
5838641

18
A
B
C
Fig. 16
1. Install the heat supply control unit.
2. Check connections A and B for leaks and tighten
if required.
Torque: 45 to 50 Nm
3. When using copper pipes:
Insert support sleeves C supplied.
Torque for both union nuts: 30 Nm
4. Install the flow line with a rise and fit an air vent
valve at the highest point.
5. Only for heating water flow temperatures above
110 °C:
Install a type-tested high limit safety cut-out, if one
has not yet been installed in the system (see
pages 17 and 20). For this, use a temperature
limiter and a high limit safety cut-out.
Connections on the DHW side
■For connecting the DHW side, observe DIN 1988
and DIN 4753 (CH: SVGW regulations)
■Connect all pipework with detachable fittings.
■Seal any connections that are not required with red
brass caps.
■Equip the DHW circulation pipe with a DHW circula-
tion pump and a check valve.
■Connection of the DHW circulation pump:
–Connection to the boiler control unit, provided this
is equipped with a DHW circulation pump connec-
tion.
–Connection with a time switch, if there is no DHW
circulation pump connection on the boiler control
unit.
Permissible temperature: 95 °C
Permissible operating pressure: 10 bar
(1.0 MPa)
Test pressure: 16 bar
(1.6 MPa)
Connecting the heating water side and solar side (cont.)
5838641

19
G
E
F
D
C
A
B
H
K M O K R K
P
KNL O S T
P
U
Fig. 17
ADiaphragm expansion vessel
BDrain outlet
CDHW circulation pipe
DDHW
ESpring-loaded check valve
FDHW circulation pump
GVisible discharge pipe outlet point (tundish)
HSafety valve
KShut-off valve
LFlow regulating valve
MPressure gauge connection
NNon-return valve
ODrain outlet
PCold water
RDrinking water filter
SPressure reducer
TNon-return valve/pipe separator
UTemperature sensor, high limit safety cut-out (STB)
Safety valve
The system must be equipped with a type-tested dia-
phragm safety valve as protection against overpres-
sure.
Permissible operating pressure: 10 bar (1 MPa).
The safety valve must have the following connection
diameter:
R ¾ (DN 20), max. heat input 150 kW.
If the heat input of the DHW cylinder exceeds 150 kW,
select an appropriately rated safety valve for the heat
input (see E-DIN 1988-200).
Install the safety valve in the cold water line. Ensure it
cannot be shut off from the DHW cylinder. There must
be no constrictions in the pipework between the safety
valve and the DHW cylinder.
Never seal off the safety valve discharge pipe. Ensure
that any expelled water is safely and visibly drained
into a drainage system. Position a sign close to the
safety valve discharge pipe, or ideally on the safety
valve itself, with the following inscription: "For safety
reasons, water may be discharged from the discharge
pipe during heating. Never seal."
Install the safety valve above the top edge of the DHW
cylinder.
Connections on the DHW side (cont.)
5838641

20
!Please note
Damaged sensor leads (capillary tubes) result in
incorrect sensor functions.
Never route the connecting lead and the capilla-
ries near hot components.
Do not kink the capillary tubes.
4x
4.
5.
3.
2.
1.

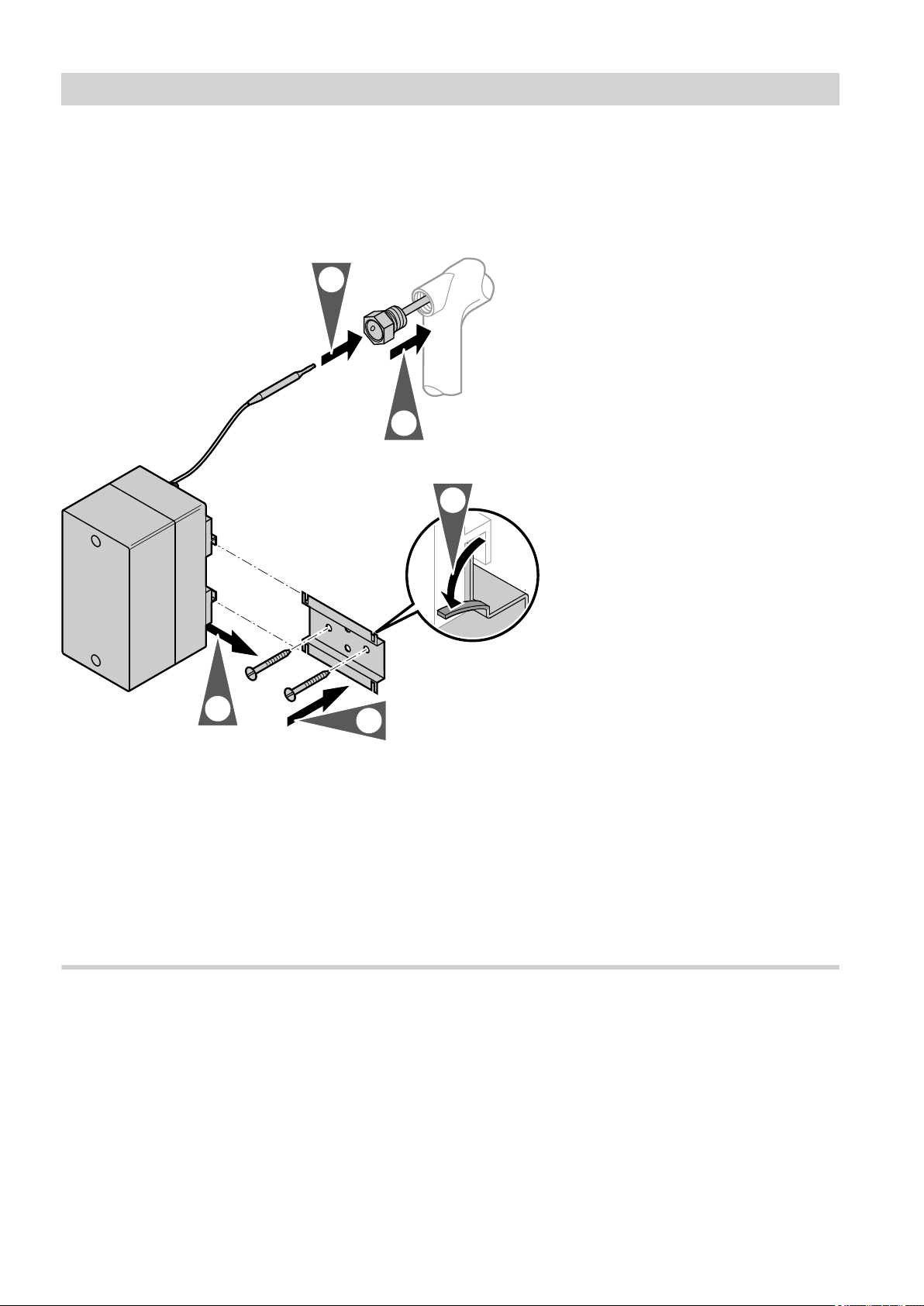

Fig. 18
1. Seal in the sensor well.
2. Insert the temperature sensor into the sensor well
as far as it will go.
Note
Never wrap insulating tape around sensors.
3. Secure the retaining bracket at the selected posi-
tion.
Note
Observe the length of the capillary tube.
4. Slide casing onto retaining bracket.
5. Secure the casing by bending up the tabs.
Electrical connections
Earth the appliance with the earth conductor at the
"PE" terminal. This cable must have at least the same
cross-section as the power cable. Never loop earth
cables, i.e. never route them from one appliance to
another.
Installing the high limit safety cut-out (STB)
5838641
