Viewpro Q20K User manual

User Manual
Q20K 20x Optical Zoom
4K Output Gimbal Camera
Standard Version
标准版 快拆版
Viewport Version
For more details please scan the QR code
or visit our website:
www.viewprotech.com

Disclaimer and Warning
Legends
1.1 Introduction
1.Product Introduction
1.
Important Note
Warning
Q20K is a high-precision 3-axis gimbal integrated with a 20x optical
zoom 4K SONY camera. It supports visible optical zoom, photo-
graphing. It features aluminum alloy housing and anti-interference.
The 3 axis gimbal can achieve stabilization in yaw, roll and pitch. The
integrated design of damping system and gimbal can greatly reduce
mechanical vibration.
Q20K is widely used in UAV industries of public security, zoom aerial
photography and real time broadcasting.
Congratulations on purchasing your new Viewpro product. Please
read this entire document carefully. Failure to read or follow instruc-
tions and warnings in this document may result in damage to your
Viewpro product. Disassemble the gimbal camera by user is not
permitted, as which may cause the camera does not work normally.
Viewpro accepts no liability for damage, injury or any legal responsi-
bility incurred directly or indirectly from the use of this project. The
user shall observe safe and lawful practices including, but no limited
to, those set forth in the manual.

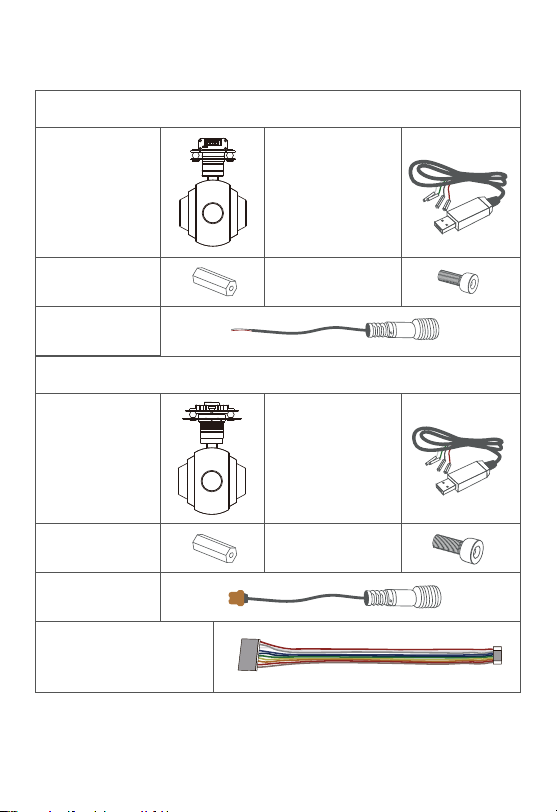

1.2 In the Box
2.
A. Standard Version
B. Viewport Version
Gimbal Camera
x 1 pc
USB to TTL Cable
x 1 pc
Power Cable
x 1 pc
Gimbal Camera
x 1 pc
USB to TTL Cable
x 1 pc
M3 Screw
x 8 pcs
Copper Cylinder
x 4 pcs
Copper Cylinder
x 4 pcs
Power Cable
x 1 pc
PWM Control Cable
x 1 pc
M3 Screw
x 8 pcs
2.

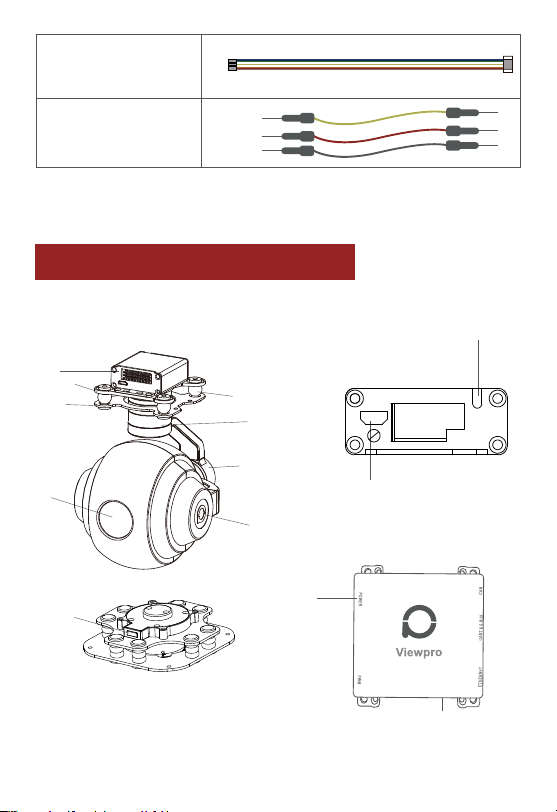

2.1 Overview
TTL / S.BUS Control
Cable x 1 pc
TTL Connect Cable
x 3 pcs
3.
Viewport
Control Box Back Side
(Standard Version)
(Viewport Version)
[11]
[10]
[10]
[9]
[9]
2. Installation Instruction
[3]
[2]
[4]
[1]
[7]
[8]
[6]
[5]

4.
2.2.1 Control Box Printing (Standard Version)
[1] Control box
[2] Upper damping board
[3] Lower damping board
[4] 4K zoom camera
[5] Damping ball
[6] Yaw axis motor
[7] Roll axis motor
[8] Pitch axis motor
[9] 3-6S power interface
[10] Micro HDMI interface
[11] Viewport unlock button
PITCH
Yellow Jumper Cap
TX RX GND
YAW
MODE
ZOOM
FOCUS
PIC/REC
MULTI
USB
AV
5V output
GND
123
Please ensure that there isn’t any obstacle while the
motor rotating.
Please remove the obstacle immediately if gimbal
camera is blocked during rotation.
The input voltage cannot be higher than 6S.
The pin insertion interface cannot be connected with
power supply.
The yellow jumper cap cannot be removed

Front Side
2.2.2 Control Box Printing (Viewport Version)
5.
Left Side
Right Side
PITCH
YAW
MODE
ZOOM
FOCUS/PPM
PIC/REC
MULTI
5V
GND
CVBS
3S-6S
GND
POWER PWM
GND
CANL
CANH
DC5V
GND
5V
S.BUS
TTX
GND
RXD
TXD
RX-
RX+
TX-
TX+
ETHERNET UART & S.BUS CAN

Unit: mm
2.3 Device Dimensions (Standard Version)
6.
24.5
69.9
69.7
104.0
169.8
150.3
69.8
60.0
45.0
47.5
34.5
105.0
140.6
14.0
19.5

Unit: mm
7.
2.3 Device Dimensions (Viewport Version)
Control Box
91.0
81.5
81.5
23.0
175.5
163.0
104.0
78.0
91.0
78.0
91.0
34.5
105.0
140.6
φ52.1

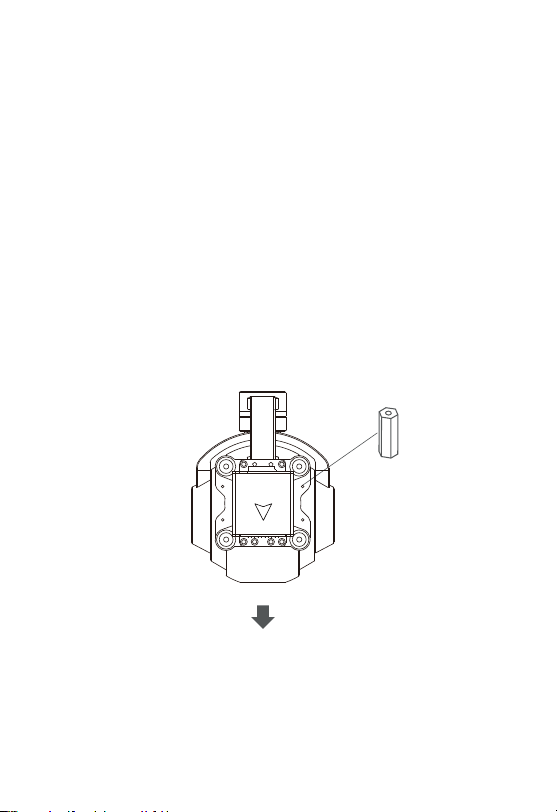

2.4 Install Mounting Part
8.
(1) Find out the arrow on the gimbal which indicating the yaw
heading of the payload (i.e. the lens direction when the camera
power on), and synchronize with the direction specified by the UAV.
(2) Fix one end of the copper cylinder on the screw hole of lower
damping board, and use M3 screw to fasten it.
(3) According to the provided screw hole dimension you can make
suitable mounting holes on the UAV mounting board, and fixes the
other end of the copper cylinder on the mounting board of the UAV
(Viewport version is the same).
Front

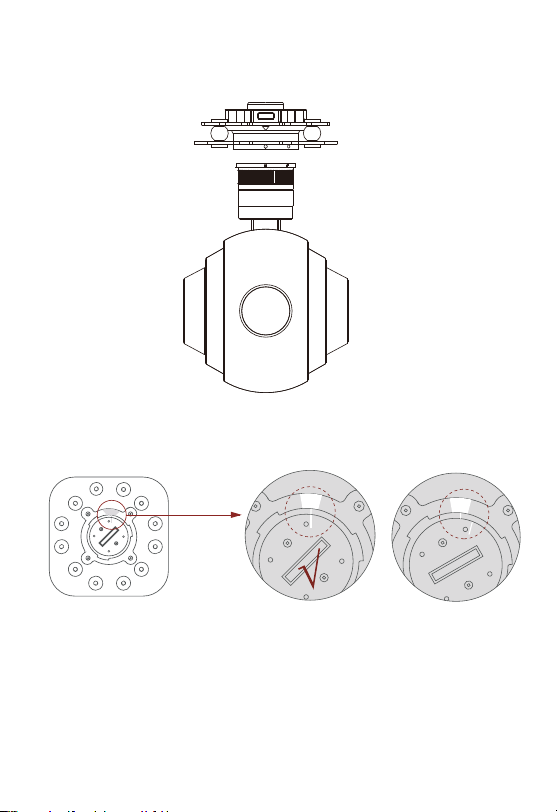

2.5 Viewport Release Instruction
9.
1. Make sure the two white stripes indicated in above picture are
aligned with each other. (If the stripes are not aligned to each other,
please pinch the connector part and turn it to left manually)
×

10.
2. Align the white dot (unlock icon) to the red triangle (below unlock
button), push the gimbal into the Viewport completely and then
rotate the gimbal camera anticlockwise.
3. When you hear "click" sound (when red dot is aligned to the red
triangle) means the gimbal camera and Viewport has been locked.
4. To unlock the Viewport, you need to press on unlock button and
rotate the gimbal camera clockwise till the white dot align to the red
triangle. Then pull the gimbal out from the Viewport.

2.7 Image Output Interface
3.1 PWM Control
11.
Control the gimbal camera functions by the multiplex pulse width
modulation signal outputted by PWM channel of the remote control
receiver. The camera needs up to 6 control channels of PWM (to
expand tracking function use up to 7 PWM channels). You can choose
needed functions according to actual usage to reduce the required
number of PWM channels.

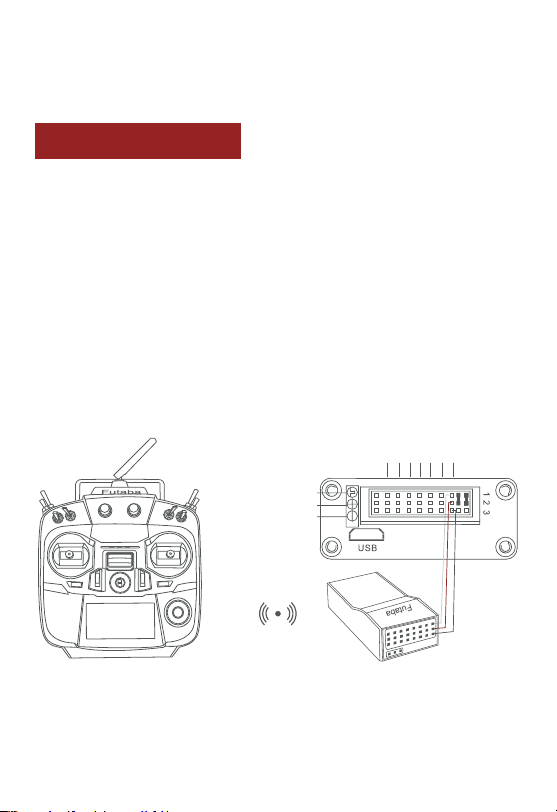

3.1.1 PWM Connection Diagram (Connect pitch chan-
nel as example)
HDMI: micro HDMI 4K output.
3. Signal Control
Remote Controller
Connection Diagram
(Standard Version)
MULTI
PIC/REC
FOCUS
ZOOM
MODE
YAW
PITCH
PWM IN
GND
5V OUTPUT
Receiver

3.1.2 PWM Control Operation Instruction
12.
1) Pitch (PWM Pitch channel in to control Pitch. Joystick, rotary knob
or 3-gear switch on remote control are optional. 3-gear switch as
example.)
Low Gear
Pitch Up
Position 1
Middle Gear
Pitch Stop
Position 2
High Gear
Pitch Down
Position 3

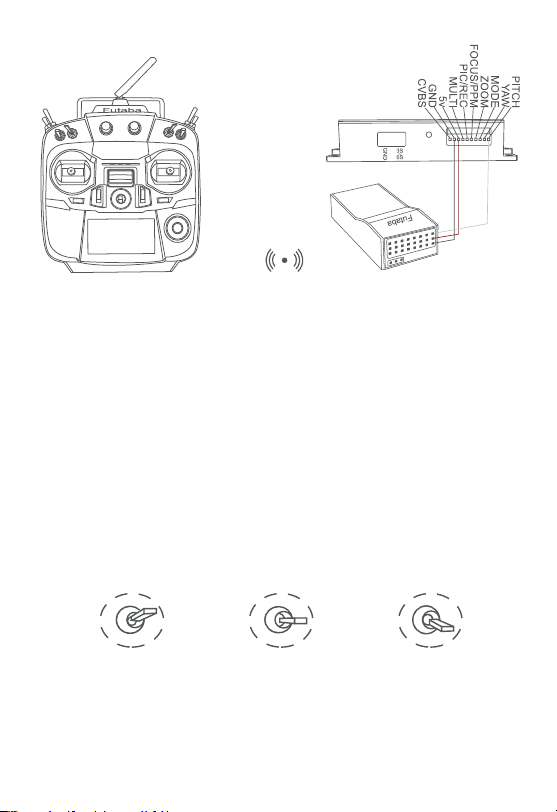

Remote Controller
Connection Diagram
(Viewport Version)
Receiver

13.
2) Yaw (PWM Yaw channel in to control Yaw. Joystick, rotary knob or
3-gear switch on remote control are optional. 3-gear switch as
example.)
3) Mode (PWM Mode channel in to adjust speed control/one key to
Home position etc functions. Rotary knob or 3-gear switch on remote
control are optional. 3-gear switch as example.)
Position 1: Low speed mode, control pitch / yaw with this mode at
lowest speed
Position 2: Middle speed mode, control pitch / yaw with this mode at
middle speed
Position 3: High speed mode, control pitch / yaw with this mode at
highest speed
(If it is controlled by rotary knob, the speed will change according to
switch position)
Low Gear
Yaw Left
Position 1
Middle Gear
Yaw Stop
Position 2
High Gear
Yaw Right
Position 3
Low Gear
Position 1
Middle Gear
Position 2
High Gear
Position 3

Function of continuous switching:
14.
3.1) Operate 1 time continuously and quickly, from position 2 - 3 - 2,
to Home position.
3.2) Operate 2 times continuously and quickly, from position 2 - 3 - 2
- 3 - 2, the camera lens looks vertically down.
3.3) Operate 3 times continuously and quickly, from position 2 - 3 - 2
- 3 - 2 - 3 - 2, to disable Follow Yaw Mode (gimbal yaw not follows by
frame)
3.4) Operate 4 times continuously and quickly, from position 2 - 3 - 2
- 3 - 2 - 3 - 2 - 3 - 2, to enable Follow Yaw Mode (gimbal yaw follows
by frame)
4) Zoom (PWM Zoom channel in to control Zoom. Joystick, rotary
knob or 3-gear switch on remote control are optional. 3-gear switch as
example.)
5) Focus ( not functional for this channel)
6) Pic/Rec ( not functional for this channel)
7) Multi ( not functional for this channel)
Low Gear
Zoom Out
Position 1
Middle Gear
Stop Zoom
Position 2
High Gear
Zoom In
Position 3

3.2 Serial Port / TTL Control
Gimbal Camera Cable
15.
PC
PC
RX GND TX
GND
S.BUS
TTX
RXD
GND
TXD
RX-
RX+
TX+
TX-
GND
GANL
CANH
DC5V
RX (White)
TX
RX
GND
TX (Green)
GND (Black)
TTL communication requirements: TTL signal is 3.3V, baud rate:
115200, data bit 8, stop bit 1, no parity, HEX send and receive.
Control Box
Viewport Control Box
USB to TTL Cable
USB to TTL Cable
Connection Diagram Standard Version
Connection Diagram Viewport Version
Connection Diagram (PC - USB to TTL Cable- Gimbal Camera as
example):

Diagram of USB to TTL Cable:
3.3 S.BUS Control
16.
Connect the camera to the upper computer by USB to TTL cable
(Adopt connection method of TX to RX, RX to TX, GNG to GND at
Dupont ends of the provided USB to TTL cable, connect to the
specified TTL of the gimbal, and the USB end of the cable connect to
computer).
Control the gimbal camera functions by one combining signals.
Connect the external S.Bus to S.Bus port on the control box, and the
external S.bus signal GND connect to the GND interface of the control
box.
Wiring Diagram (Take Futaba remote control for example):
Install Viewlink control software to test the functions directly. Users
may choose to develop their own software, please contact technical
support for TTL control protocol file.
ViewLink is a user interface developed by Viewpro for Viewpro gimbal
cameras, you can download it from Viewpro website (www.viewpro-
tech.com) or ask distributors for installation package.
Connect serial port of gimbal to pins, DO NOT connect
with power supply.
The default baud rate of serial port is 115200, which
can be changed according to the docking equipment.

17.
GND
5V
S.BUS
TTX
RXD
GND
TXD
S.BUS
5V OUTPUT
GND
Remote Control
Remote Control
Receiver
Receiver
Wiring Diagram Standard Version
Wiring Diagram Viewport Version

18.
Hardware Parameter
Working voltage
Input voltage
Output voltage
12V
3S ~ 6S
5V (connect with PWM)
S.Bus control mode: default S.Bus signal channel 9-15 to control
gimbal camera functions (the function of channel is consistent with
corresponding channel in PWM function description)
TTL control and S.bus control cannot coexist at the
same time for standard version. The defualt control is
TTL if no requirement. The user can set to S.bus control
if needed (please contact with our technical support for
the setting instruction.)
User can set the channels by setting serial command
according to the actual requirement. The S.Bus channel
position can be arranged in any sequence within
channel 1-15 to connect with the flight controller or
remote control.
4. Specification
Channel 9: Yaw Control
Channel 10: Pitch Control
Channel 11: Mode Control
Channel 12: Zoom Control
Channel 13: Focus Control(not support)
Channel 14: Pic/Rec Control(not support)
Channel 15: Multi Backup

19.
Gimbal Spec
Camera spec
Dynamic current
Idle current
500mA @ 12V
350mA @ 12V
Working environment
temp
Output
Local-storage
Vibration angle Pitch/Roll: ±0.02°, Yaw：±0.02°
One-key to center √
Control method PWM / TTL
Imager Sensor SONY 1/2.5" "Exmor R" CMOS
Total pixel 8.51MP
Optical zoom 20x, F2.0 to F3.8
Digital zoom 12x (240x with optical zoom)
-20℃~ +60℃
micro HDMI
Mechanical Range Pitch/Tilt: -160°～160°, Roll: ±60°,
Yaw/Pan:±300°
Controllable Range Pitch/Tilt: -45°～90°, Yaw/Pan: ±290°
None
Signal system
4K: 2160P/29.97,2160P/25
FHD: 1080P/59.94,1080P/50,1080i/59.94,
1080i/50,720P/59.94,720P/50
