Viewpro Blue Shark F250 User manual

www.viewprouav.com
Blue Shark F250 VTOL UAV System
User Manual
V2.1

1of 18
I. Instruction
Thank you for choosing this product. If you want to know more about this product beyond the user manual, please visit our website
or contact with our sales.
Before use this product, please read this statement carefully. Once used, this statement will be deemed to have been fully accepted
and accepted internally. Please strictly comply with the user manual to install and operate this product. Viewpro will not be liable
for any damage or damage caused by improper installation and use of the product.
Safety Caution
1) When this product works, the high-speed rotation of the propeller will bring different degrees of damage and damage to
people and articles. Therefore, when you use this product, please do not use it in places with many people or complicated
environment.
2) Please abide by local laws and regulations when using any products of our company.
3) Before use, please read the operation manual carefully and watch the video of the aircraft operation process. Our company
will not be liable for any loss caused by violation of the relevant operation process.
4) Do not modify the parameters of the remote control. When it is used, the remote control must be turned on before the
aircraft is powered on. When power is cut off, the remote control must be turned off before the aircraft is powered off.
5) Do not overcharge or put the battery long time with full or low capacity. The two connectors should be connected to the
charger at the same time to charge the battery. The red light is always on during charging, and the green light is on after
charging;The storage voltage of a single battery is controlled at about 3.85V, the total voltage of a 3S battery is controlled at
about 11.55V, the total voltage of a 4S battery is controlled at about 15.4V, and the total voltage of a 6S battery is controlled
at about 23.1V.
6) Before the flight mission, please confirm the battery voltage;
7) Keep away from unsafe factors, such as obstacles, people, children, buildings, high-voltage lines, trees, etc.
8) Do not get close to or touch the rotating motor or propeller to avoid being cut by the rotating propeller.
9) Be sure to fly under the safe take-off weight in case of danger.
10) Before flight, please check whether the propeller and arm are properly installed and firmly.
11) When using the ground station to operate the UAV, the captain and pilot should have relevant operating qualifications.
The operator must have relevant experience in aircraft operation.Novices must be trained in simulators to operate the training
machine after they have mastered the simulated aircraft.

2of 18
II. Assemble Blue Shark F250
Product packing list
1
Packing Box
2
Fuselage
3
Left VTOL arm
4
Right VTOL arm
5
Left tail wing
6
Right tail wing
7
Left wing
8
Right wing
9
Tail fuselage
10
Wing carbon tube
11
Tail propeller
12
VTOL propeller (2 CW, 2 CCW)
13
Accessory package
14
Airspeed metal nose
15
RC
16
Charger
17
18
Other

3of 18
Step 1: Assemble wing and arm
①As the picture show, you can see the leading edge of the wing is bending, the rearing edge is more flat. Wing
root
side is wider than wing tip side. In this way, you can find the right direction to assemble.
②Connect VTOL motors
Caution: Wrong connect of the motors could cause crash when takeoff!
Please double check carefully after connected.

4of 18
Step 2: Assemble tail wings
1Connect Servo cable
Pay attention to the direction of servo cable. If the connection is wrong, the servo will not work.
2Stow the wires in the tail wing, then assemble it. Make sure tail wing is well assembled, fixing button/lock has
been well reset (a clear “click” sound is heard).

5of 18
Step 3: Assemble tail fuselage
Wiring diagram:Tail motor power — Tail motor power
Left tail — Left tail
Right tail — Right tail
Tail motor — Tail motor
Note to GND VCC Signal these sequence of wires.

6of 18
Step 4: Assemble wings
1Insert wing carbon tube to fuselage
2Insert carbon tube to wing, push it close to fuselage
3Connect motor power, signal bus. Make sure they are well connected
4Align the wing locating pins and push the wing to the end. Make sure wing fixing button/lock is well reset. This
means that the buckle is completely fastened.
5Assemble another wing in the same way.

7of 18
Step 5: Assemble propellers

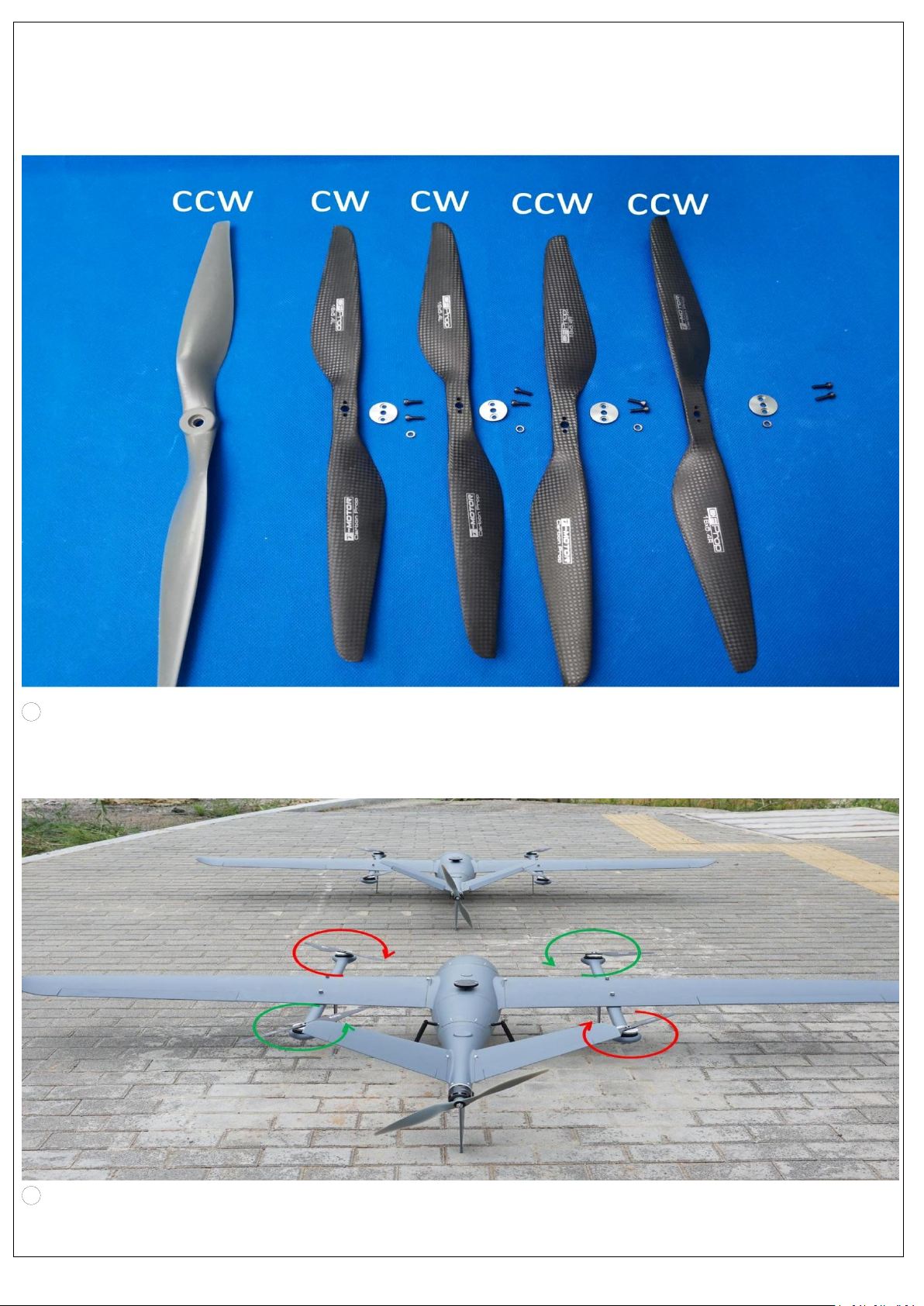

Rotations:
CW = Clockwise
CCW = Counter Clockwise
1Assemble VTOL propellers
If it is not removed frequently, an appropriate amount of screw glue can be used to prevent the screws from
loosening. No screw glue is added. You need to check the propeller screws every time you take off. Please
ensure rotations of propeller are right!
2Assemble tail motor propeller
The side with words of the propeller is close to the motor. Install propeller gasket and tighten nuts with a
wrench.

8of 18

9of 18
III. Connect flight control
Power lines, sensor, servo and ESC signal lines, RC signal line connect to flight control
IV. RC Setting
The Remote Control is set two switch as default (SD: change fly mode, SA turn on/off flight light). User can set more switch to
achieve more functions according to your requirement.

10 of 18
V. Flight Control Tuning
Flight control tuning is very important for a good flight, because tuning involves a lot of flight control parameters, such as TECS, PID,
inner loop control, outer loop control, Angle, speed, etc. Each aircraft has different adaptive parameters.
VI. Pre-flight Inspection
The aircraft is well configured and debugged, can be used directly for flight missions. Due to the difference in the earth's magnetic
field environment, you may need to re-calibrate the magnetic compass.
Note: Under no circumstances should the electronic compass be near magnets or areas with strong magnetic fields. Otherwise,
the electronic compass will be damaged and the aircraft will be abnormal or even out of control.
When is calibration required?
After updating the firmware, before the first flight.
When arriving at a new site far away from the original flight site (such as across states and cities).
The aircraft drifts or the hovering not stable.
Note:
Do not carry magnetic devices (such as mobile phones, keys, etc) during calibration.
Do not perform calibration in places with strong magnet, such as parking lots, building areas with steel bars, etc.
During the calibration process, please make sure the aircraft rotates horizontally or vertically.
Keep away from magnetic materials and other electronic equipment during the calibration process. Choose an open area without
high-rise buildings and strong magnetic fields. Before calibration, reconfirm the aircraft is placed on a flat surface and take away the
electronic devices.
1. Calibrate compass
Calibrate the compass every time to a new place.
Setup→Mandatory hardware→compass→start
Usually we only open external compass, if you use two compass you should set external compass with the most prior.
Click start then hold the aircraft and rotate it in six directions: horizontal, left, right, up, down and back until the ground station
shows that the calibration is successful.

11 of 18
Please correspond to the positions of the plane above, and then turn the plane. Each axis requires one circle of the airplane. When
the ground station progress bar reaches 100%. The calibration is completed.
After the compass calibration is completed, place the aircraft horizontally and wait for the flight control system to restart
automatically.
Note:
If the ground station prompts that the calibration has not passed, you need to re-calibrate. If the calibration fails several
times, it is recommended to change the location and re-calibrate.
This aircraft uses Mission planner for configuration. It is recommended to use Mission Planner software for sensor
calibration and configuration changes.
2. In FBWA mode, the aircraft should look up and down, and observe the feedback of the tail rudder surface of the aircraft. The tail
rudder should swing down when looking up, and the tail rudder should turn up when looking down
3. In FBWA mode, the remote control controls the rudder to observe the change of the plane's rudder surface.Left stroke, aileron
left high and right low; Right stroke, aileron left low and right high; Push rod tail rudder downward; Pull rod rudder up.

12 of 18

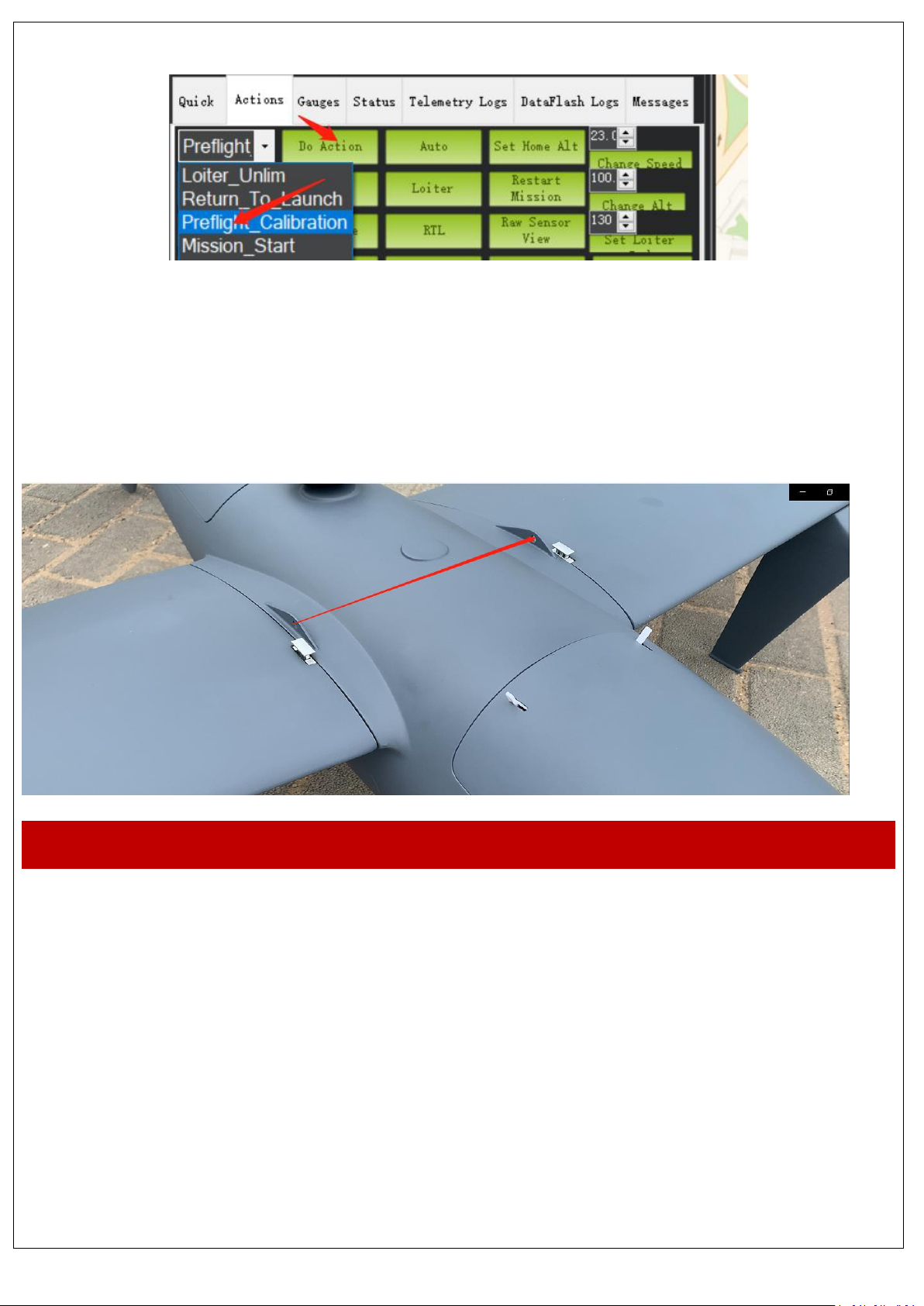

4. Calibrate arspd meter. Cover the pitot tube with your hand,click pre-flight_calibration, then Do Action
5. Confirm whether the GPS is 3D locked, and the accuracy hdop is less than 1
6. In the quick interface, check whether the battery voltage, airspeed, altitude and flight mode are normal
7. Ensure that no error is reported on HUD interface
8. Balance Center Gravity: Lift these two points to ensure that the aircraft is balanced (there is a slight forward inclination within
5 °). If it is unbalanced, the center of gravity needs to be adjusted
VII. Flight route planning

13 of 18
1. In PLAN interface ,create your flight plan,Choose relative height.
2. The first point must be set VTOL_TAKEOFF. The altitude should be set according to the surrounding environment
3. The distance from the first point to the second point should be between 150 and 200 meter
4. The last point we usually set return_to_launch,Because we set q_rtl_mode=1 in flight control parameter
5. When the route is drawn,Click Write
6. Right mouse click,click clear mission
7. Then click Read
8. You can start flying happily

14 of 18
Additional: Charger
I. Operation Procedure
1. Power on: connect to the power source and turn on the power switch. A beep sound will be heard, and the LCD screen will
be displayed as below:
2. Battery connection: Please connect your batteries to PC1080 charger as below:(Note: Be aware that the Lithium battery to
be charged should be 6 cells. Make sure the battery balance lead and charging lead are connected correspondingly to the charger.)

15 of 18
3. Parameters settings
4. Stop: if you'd like to terminate charging during the charging process, press Under Master- Slave mode, any operation must
be carried out on the Master channel.
5. Finish: In charging mode, when the charging process comes to an end
II. Storage
If a Lithium battery is not used for long time, it's highly recommended to charge or discharge the battery to 3.9V with STORAGE
mode so as to extend the battery life. If the battery voltage is higher than 3.9V, the charger will discharge the battery; If battery
voltage less than 3.9V per cell, the charger will charge the battery under STORAGE mode
III. Switch between LIPO and LIHV
Press and hold ↑and↓at the same time for 5 seconds until the corresponding battery type appears on the screen

16 of 18
ViewproUAV Tech. Ltd
Website: www.viewprouav.com
Support: [email protected]
Tell: +86 755 8605 2486
Addr.: Rm 2303, 23th Fl, East Block B, Coast Times APT, Shennan Blvd, Nanshan Dist, Shenzhen, China

17 of 18
