ViewSonic VS19693 User manual

VPC33
VPC35
VPC37
User Guide
Model No. VS19693
P/N: VPC33 | VPC35 | VPC37
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic®Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.

2
Thank you for choosing ViewSonic®
As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding
the world’s expectations for technological evolution, innovation, and simplicity.
At ViewSonic®, we believe that our products have the potential to make a positive
impact in the world, and we are confident that the ViewSonic® product you have
chosen will serve you well.
Once again, thank you for choosing ViewSonic®!

3
Contents
Introduction ................................................................ 4
Package Contents ...................................................................................................4
Product Overview...................................................................................................5
Initial Setup................................................................. 6
Installing the VPC33/VPC35/VPC37........................................................................6
Making Connections.................................................... 7
Network Connection...............................................................................................7
USB Connection......................................................................................................7
Using the Device.......................................................... 8
Selecting an Input Source .......................................................................................8
IFP Series ................................................................................................................. 8
CDE Series................................................................................................................ 9
Appendix................................................................... 10
Specifications........................................................................................................10
Regulatory and Service Information .......................... 11
Compliance Information.......................................................................................11
FCC Compliance Statement................................................................................... 11
CE Conformity for European Countries ................................................................. 12
Para su uso en México........................................................................................... 12
Declaration of RoHS2 Compliance......................................................................... 13
Indian Restriction of Hazardous Substances ......................................................... 14
Product Disposal at End of Product Life ................................................................ 14
Copyright Information ..........................................................................................15
Customer Service .................................................................................................. 16

4
Introducon
Package Contents
VPC33/VPC35/VPC37
VS19693
Slot in PC module
VPC33/VPC35/VPC37
VS19693
Slotin PC module
VPC33/VPC35/VPC37
VS19693
Slot in PC module
VPC33/VPC35/VPC37
VS19693
Slotin PC module
VPC33/VPC35/VPC37 Quick Start Guide
NOTE: If anything is missing or damaged, please contact your local reseller for
more informaon.

5
Product Overview
32 21 4 5
5 5 5
6 7 810 11 12
9
Number Item Descripon
1Security lock
2 Antenna Wi-Fi antenna interface
3Standard RJ45 (10M/100M/1G) internet connecon port
NOTE: This network port is only used for PC.
4 DisplayPort DisplayPort input. Connect to a PC or other device with
DisplayPort output.
5 USB USB 3.0 port
6 RESET Reset buon
7Power buon
8 Status LED Status indicator light
9 HDMI HDMI input. Connect to a PC or other device with HDMI
output.
10 USB Type C input (Data only; 5V/1A charging)
11 Audio out for connected headphones or speakers.
12 Microphone connecon

6
Inial Setup
Installing the VPC33/VPC35/VPC37
1. Remove the slot-in PC cover of the display.
2. Carefully insert the VPC33/VPC35/VPC37 into the PC slot of the display.
3. Secure the VPC33/VPC35/VPC37 to the display with the two (2) screws.
NOTE: Please note that the two (2) antennas must be installed on the VPC33/
VPC35/VPC37.

7
Making Connecons

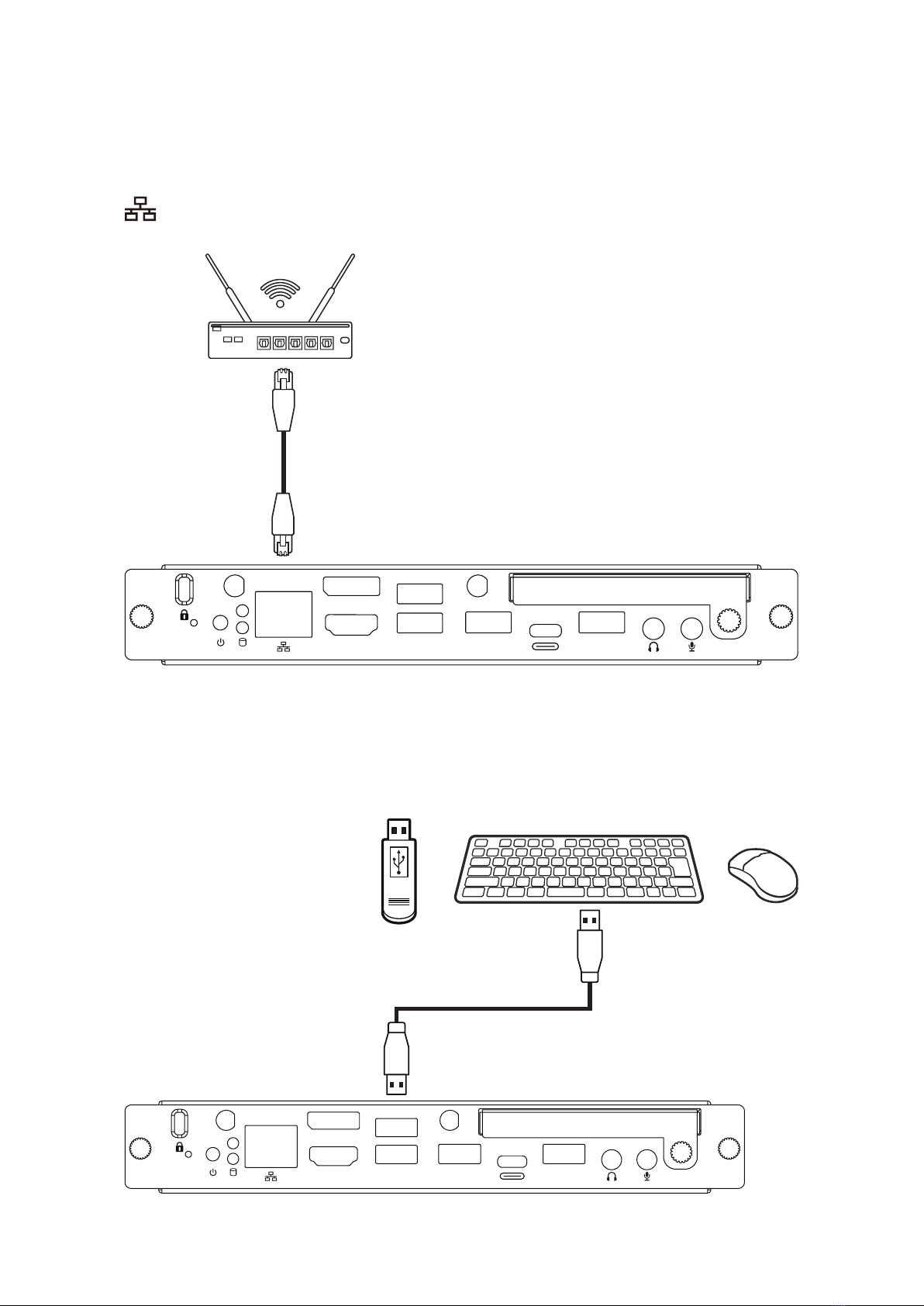

Network Connecon
To connect to the Internet or a network, connect one end of a RJ45 cable to the
RJ45 ( ) port of the VPC33/VPC35/VPC37, then connect the other end to your
network.
BSUBSUBSUIMDHTESER
DP
USB Connecon
USB peripherals such as keyboards, mice, storage devices, etc. can be connected to
the VPC33/VPC35/VPC37’s USB ports.
BSUBSUBSUIMDHTESER
DP

8
Using the Device

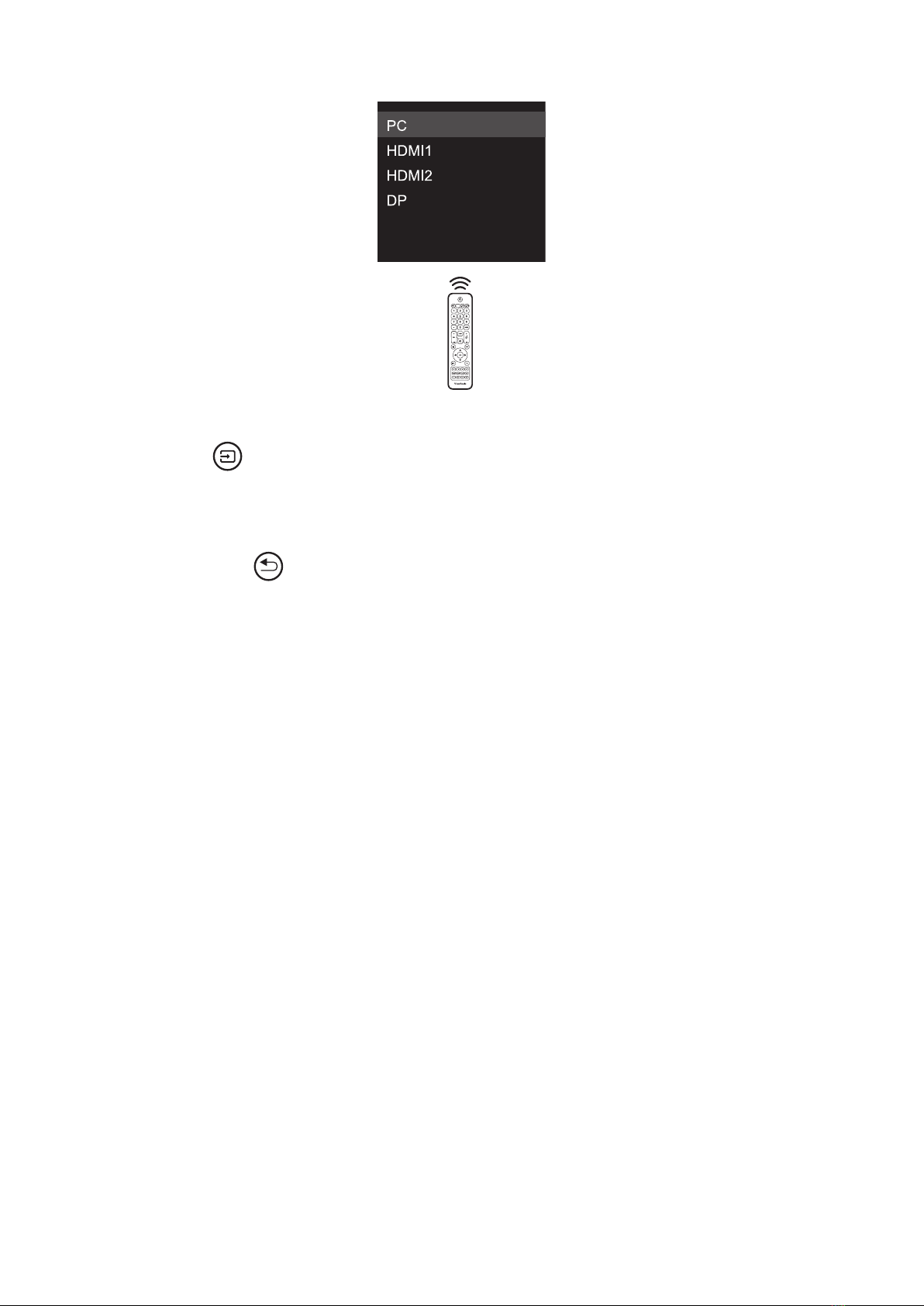

Selecng an Input Source
IFP Series
To select an input source:
1. Press INPUT/ on the remote control, press the seng buon on the front
panel, or press the Sengs icon from the toolbar to display the Input Sengs
menu.
2. Press ▼/▲/◄/►on the remote control to select the PC source.
3. Press OK/ENTER on the remote control, or touch the input source directly.
4. Press EPG/BACK/ on the remote control, or touch a blank area outside of the
menu to exit.
NOTE: The above image is for reference only and is subject to change without
noce.

9
CDE Series
VGA
Custom
To select an input source:
1. Press INPUT/ on the remote control.
2. Press ▼/▲on the remote control to select the PC source.
3. Press OK/ENTER on the remote control.
4. Press EPG/BACK/ on the remote control to exit.
NOTE: The above image is for reference only and is subject to change without
noce.

10
Appendix
Specicaons
Category Item Specicaons
I/O Ports
1 x LAN
1 x Display Port
1 x HDMI
4 x USB 3.0
1 x USB type C
1 x Earphone
1 x Microphone
Physical
Dimensions (mm) 180 x 119 x 30 mm
Dimensions (in.) 7.09” x 4.69” x 1.18”
Weight (kg) 0.6 kg
Weight (lbs.) 1.32 lbs.
Operang Condions
Altude
0~3,048 M (10,000 .)
Humidity 10% ~ 90% (non-condensing)
Temperature -5°C ~ 40°C (23°F ~ 104°F)
Storage Condions
Altude
0~12,192 m (40,000 .)
Humidity 10% ~ 90% (non-condensing)
Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Power Voltage
12~19V DC
Consumpon 96W
Wi-Fi Module
Form Factor
Wi-Fi 6 (IEEE 802.11 a/b/g/n/ac/ax Wi-
Fi 2T/2R+)
Bluetooth 5.2 (V2.1/4.2/5.2
USB2.0/3.0 Module)
Frequency Range and
Output Power (Max.)
• 2402 to 2480 MHz(BT) (5.5dBm)
• 2402 to 2480 MHz(LE) (3.73 dBm)
• 2412 to 2472 MHz (17.41 dBm)
(14.38dbm)
• 5150 to 5250 MHz (18.94 dBm)
(13.25dbm)
• 5250 to 5350 MHz (18.94 dBm)
(13.25dbm)
• 5470 to 5725 MHz (18.94 dBm)
(12.75dbm)

11
