ViewSonic PJD5523w User manual

The ViewSonic®PJD5523w is an advanced DLP®projector which
includes BrilliantColor™technology to produce more vibrant colors,
with high brightness and contrast ratio make it shine in virtually
any lighting situation. The PJD5523w delivers 2,700 ANSI lumens,
3,000:1 dynamic contrast ratio with a widescreen 1280x800 WXGA
native resolution. This projector is packed with features like HDMI
port, 120Hz / 3D-ready for any PC-based 3D applications, integrated
speaker for multimedia and supports HD 1080p video. Filter-less
design and energy saving Eco-mode provide for zero maintenance
and longer product life. With an all new design of only 3.2 inches
in height and lightweight at 5.7 lbs, it’s perfect for use in corporate,
education and home theater environments.
Broaden your vision.
PJD5523w
PORTABLE WXGA
DLP®PROJECTOR
120HZ AND 3D-READY
VERSATILE, IMPACT ANYWHERE
BrilliantColor™technology
Latest BrilliantColor technology delivers stunning all-digital
clarity with life-like color, sharp graphics and outstanding video.
The sophisticated 6-segment color wheel enhances the
yellow color performance that is key to accurate and vivid
color reproduction.
True 16:10 resolution for widescreen brilliance
Perfect for wide notebook to screen or even DVDs
and PC games.
Bright in virtually any setting with 2,700 ANSI lumens
With 3000:1 contrast ratio, it’s the bright choice
for mobile presenters.
3D-Ready powered by DLP Link technology
Supports up to 120Hz frame rate.
Give Greener presentations and save
Use energy saving Eco-mode to lower power consumption,
extend lamp life and reduce noise. Filter-less design for
saving maintenance costs and labor.
New Slim Design
With only 3.2 inches in height and lightweight at 5.7 lbs,
it’s designed for portability and convenience to move
from location to location.
>
>
>
>
>
>

Optional Accessories
> Replacement Lamp RLC-072
> Universal Ceiling Mount Kit WMK-005
> Wireless Presentation Gateway WPG-360
> Soft Case PJ-CASE-001
> Extended Express Exchange®PRJ-EE-05-03
Sales: [phone] . [email protected] . ViewSonic.com
*Running eco-mode exclusively can extend lamp life. See ViewSonic.com for full Express Exchange details. Specifications and availability subject to change without
notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. GeForce and NVIDIA logo are trademarks
and/or registered trademarks of NVIDIA Corporation in the United States and other countries. Corporate names, trademarks stated herein are the property of their
respective companies. Copyright © 2011 ViewSonic Corporation. All rights reserved [15537-00B-03/11] PJD5523w-1

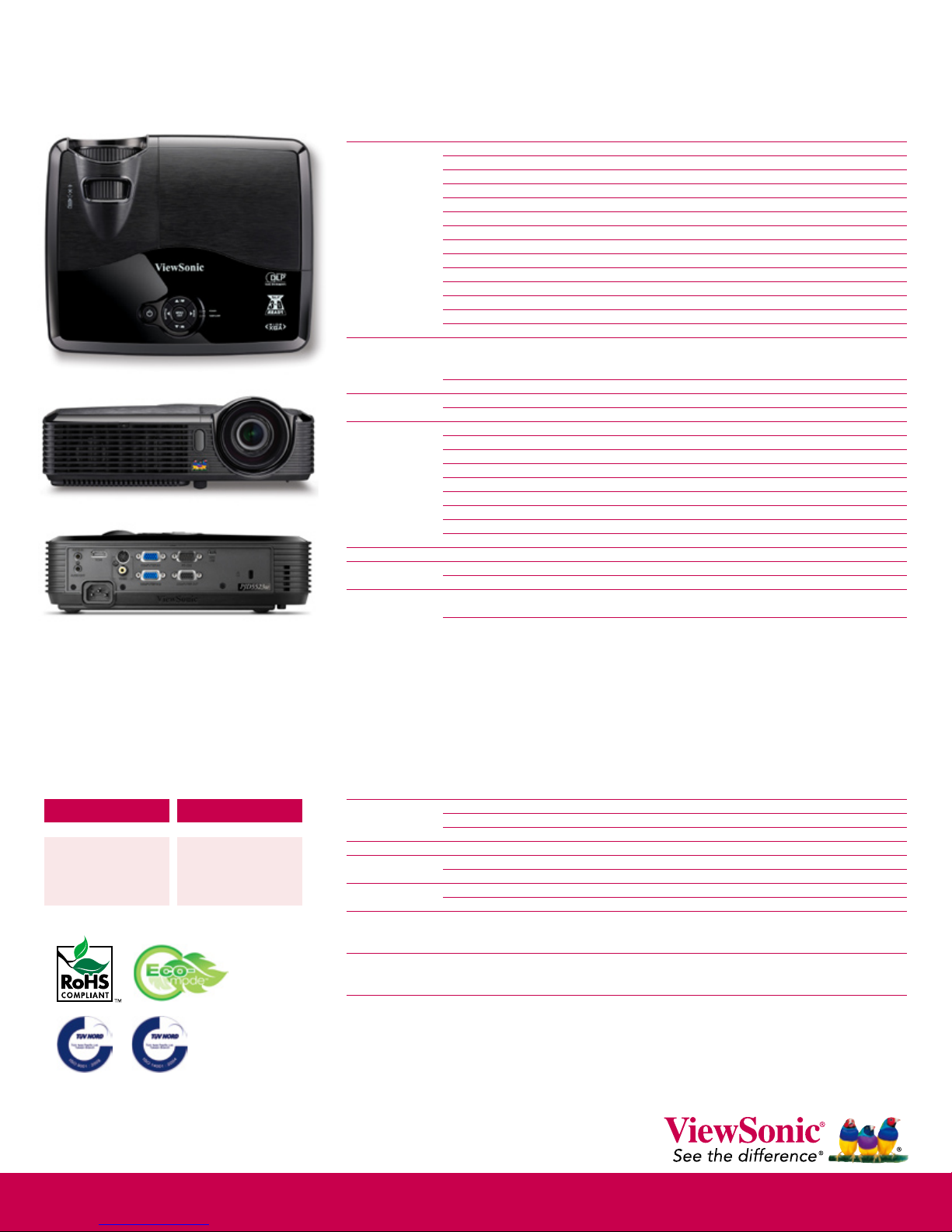

DISPLAY Type 0.65" Digital Micromirror Device (DLP™)
Resolution WXGA 1280x800 (native)
Lens 1.2× Manual optical zoom / Manual optical focus
Keystone Vertical digital keystone correction: +/– 40 degrees
Size 27"–300" / 0.69m–7.6m
Throw Distance 4.6ft–26.2ft / 1.4m–8m
Throw Ratio 1.47–1.83:1
Lamp 180 watt
Lamp Life (Normal / Eco-mode) 5000 / 6000* hours
Brightness 2700 Lumens
Contrast Ratio 2000:1 (typ), 3000:1 (dynamic)
Aspect Ratio 16:10 (native) 16:9, 4:3, Auto
Color Depth 24 bits, 16.7M color (8+8+8)
Color Wheel 6-segment RGBCYW / 7200rpm
INPUT SIGNAL Computer and Video NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60),
SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and
576p, HD 720p, 1080i and 1080p
Frequency Fh: 31–100KHz, Fv: 50–120Hz
COMPATIBILITY PC VGA to UXGA
Mac®Up to UXGA (scaled)
CONNECTOR RGB Input 15-pin mini D-sub (x2)
RGB Output 15-pin mini D-sub
Digital Input HDMI 1.3
Component 15-pin mini D-Sub (shared with RGB) (x2)
Composite Input RCA jack
S-video Input 4-pin mini-DIN
Audio Input 3.5mm mini jack
Audio Output 3.5mm mini jack
Control RS-232 (DB-9)
AUDIO Speaker 1W
POWER Voltage 100~240VAC (Auto Switching), 50/60Hz (universal)
Consumption 235W (typ) / <1W (stand-by mode)
CONTROLS Basic Power, keystone/arrow keys, left/source, menu/exit,
right/mode
OSD Picture: Color Mode, Brightest, PC, ViewMatch, Movie,
User 1, User 2, White board, Black board, Green board,
Brightness, Contrast, Color setting, User color, White
intensity, Gamma, Aspect Ratio, Keystone, 3D sync, 3D invert
Video / Audio: Frequency, Tracking, H & V position, Zoom,
Video setting, Audio setting
Setting (Basic): Projector Projection, Menu Setting, Signal
Type, Blank Screen, Test Pattern, Start up screen, Message,
Auto source, Power saving, Green Mode
Option (Advanced): Closed Caption, DCR, Password,
Presentation Timer, High Altitude, Lamp Setting, Factory Default
Information: Current System Status: Input Source,
Resolution, H & V Frequency, Lamp hours
OPERATING Temperature 32ºF–104ºF (0ºC–40ºC)
CONDITIONS Humidity 10%–80% (non-condensing)
Altitude 0~6,000 ft (1,800m), operational up to 10,000 ft (3048m)
NOISE LEVEL Normal / Eco-mode 32dB / 30dB
DIMENSIONS Physical 11.2 × 3.2 × 9.2 (in) / 284 × 82 × 234 (mm)
(W x H x D) Packaging 13.0 × 13.0 × 5.5 (in) / 330 × 330 × 140 (mm)
WEIGHT Net 5.7 lb. (2.6 kg)
Gross 7.5 lb. (3.4 kg)
REGULATIONS RoHS, CB, CCC, PSB,C-tick, KC, SASO, CE, GOST-R, Ukr,
ErP, SVHC list & REACH DoC, UL, FCC (including ICES-003),
cUL/CSA, Argen, NOM
PACKAGE CONTENTS ViewSonic projector, power cable, VGA cable, remote
control with batteries, Quick Start Guide, ViewSonic Wizard
CD (with User Guide)
WARRANTY 3-year limited warranty on parts and labor, 1-year limited
warranty on lamp, 1st year Express Exchange®service.
For more product information, visit us on the web at ViewSonic.com
PJD5523w
PORTABLE WXGA DLP®PROJECTOR – 120HZ AND 3D-READY
ViewSonic Corporation’s QMS & EMS have been registered
to ISO 9001 & ISO 14001, respectively, by TUV NORD.
Projection Distance 16:10 Screen Size
Meters
1.4
2
3
5
8
Meters
0.9-1.12
1.29-1.6
1.93-2.4
3.22-4.0
5.15-6.41
Feet
4.6
6.6
9.8
16.4
26.2
Inches
35.4-44.1
49.6-63.0
76.0-94.5
126.8-157.5
204.7-252.0
