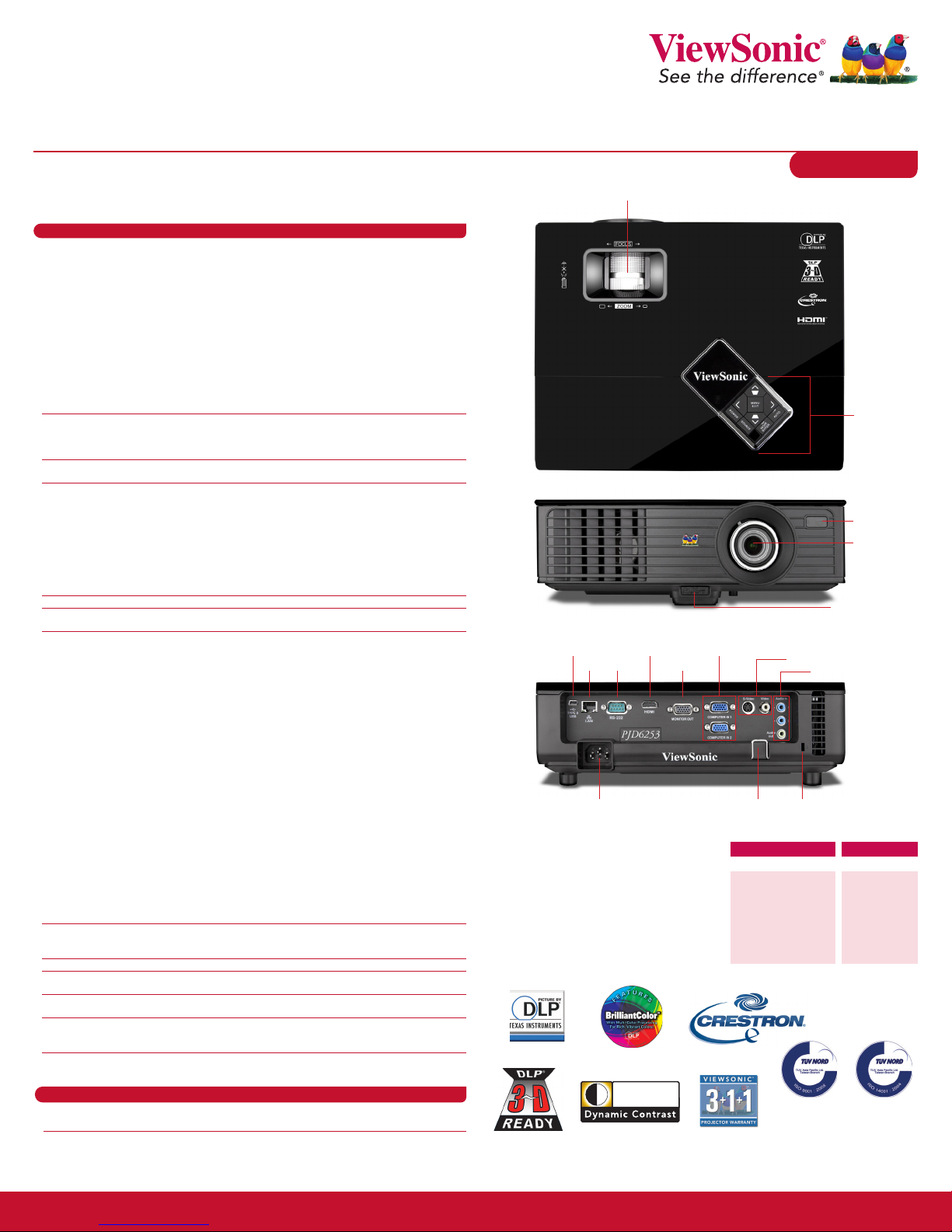

ViewSonic PJD6253 User manual

Networkable XGA Projector
ViewSonic’s PJD6253 is an advanced networkable
DLP®projector equipped with Crestron®built-in
e-Control™and RoomView Express™makes it ideal
for classroom and corporate environments. The
PJD6253 incorporates BrilliantColor™technology
to produce more vibrant colors, while 3500 ANSI
lumens and 4000:1 high contrast ratio make this
XGA 1024x768 projector shine in any location. With
Smart ECO™technology, the presenter can dim the
image for control of audience focus while saving up
to 70% in energy. It’s also packed with features like
HDMI, network management, 120Hz/3D-ready and
10-watt speaker. The PJD6253 networkable XGA
DLP projector is ideal for use in education, enterprise
or business settings.
PJD6253
Bright in virtually any setting with 3,500 lumens
Packed 3,500 lumens with 4000:1 high contrast (DCR) make this the
perfect choice for classrooms and conference rooms.
HDMI true digital connectivity
HDMI is the highest and future-proof video standard, guaranteed for true
digital picture clarity.
Smart ECO™technology
Presenters can easily control audience focus by dimming the image up to
70% with Smart ECO™button on the remote.
Network monitoring and control
IT admin can monitor, manage and schedule the projector remotely and
receive alerts of projector status with integrated Crestron®e-Control™
system and RoomView Express™management software.
Long lamp life 5,000 hours
The new advanced lamp technology extends the lamp life up to 5,000 hours*
and saves on maintenance costs.
3D-ready powered by DLP®Link™technology
Supports up to 120Hz frame rate.
Give greener presentations and save
Use energy-saving Eco-mode to lower power consumption, extend
lamp life and reduce noise. Filter-less design for saving maintenance
costs and labor.
1
2
3
4
5
6
7

Networkable XGA Projector
PJD6253
Specications
DISPLAY Type: 0.55" Digital Micromirror Device (DLP™)
Resolution: XGA 1024x768 (Native)
Lens: 1.3x Manual optical zoom / Manual optical focus
Keystone: Vertical digital keystone correction, +/- 40º
Size: 30" - 300" / 0.8 m - 7.6 m (Diagonal)
Throw Distance: 3.9 ft - 30.2 ft / 1.2 m - 9.2 m
Throw Ratio: 1.51 - 1.97:1
Lamp: 240 watt
Lamp Life (Normal / Eco-mode): 3,500 / 5,000*
Brightness: 3,500 Lumens
Contrast Ratio: 4000:1 (dynamic)
Aspect Ratio: 4.3 (native), 16:9, auto
Color Depth: 30 bits, 1.07B Colors (10+10+10)
Color Wheel: 6-Seg RGBCYW / 7200RPM
Color Gamut: 85% NTSC 1931 CIE
INPUT SIGNAL Computer and Video: NTSC M (3.58 MHz), 4.43MHz,
PAL (B, D, G, H, I, M, N), SECAM ( B, D, G, K, K1, L), SD 480i
and 576i, ED 480p and 576p, HD 720p, 1080i and 1080p
Frequency: Fh: 31 -100KHz, Fv: 48 -120Hz
COMPATIBILITY PC: VGA to UXGA
MAC®: VGA to SXGA+
CONNECTOR RGB Input: 15-pin mini D- sub (x2)
RGB Output:15-pin mini D- sub
Digital Input: HDMI 1.3
Composite Input: RCA jack
S-video Input: 4-pin mini-DIN
Audio Input: 3.5mm mini jack (x2)
Audio Output: 3.5mm mini jack
Control: DB-9
Network: RJ-45
USB: Mini B (for mouse control and service)
AUDIO Speaker: 10W
POWER Voltage: 100 ~ 240VAC (Auto Switching), 50/60Hz (universal)
Consumption: 310W (typ) <1W (stand-by mode)
CONTROLS Basic: Power, keystone/arrow keys, left/blank, menu/exit,
right/panel key lock, auto, mode/enter, source
OSD: Display: Screen color, Aspect Ratio, Keystone, Position,
Phase, H. Size, Zoom, 3D Sync, 3D Sync Invert, Color
Management
Picture: Color Mode: PC (Brightest, PC, ViewMatch, Cinema,
Dynamic PC, User 1, User 2), Video (Brightest, Gaming,
ViewMatch, Cinema, Dynamic PC, User 1, User 2),
Reference Mode: PC (Brightest, PC, ViewMatch, Cinema,
Dynamic PC), Video (Brightest, Gaming, ViewMatch, Cinema,
Dynamic PC), Brightness, Contrast, Color, Tint, Sharpness,
Brilliant Color, Color Temp., Save Settings
Source: Quick Auto Search, Color Space Conversion,
Smart Eco, Timer, Smart Restart, Pattern, My Button
System Setup (Basic): Language, Projector Position, Auto
Power Off, Blank Timer, Panel Key Lock, Splash Screen,
Screen Capture, Message, LAN Control Settings, Standby
Settings (Active VGA Out / Active Audio Out)
System Setup (Advanced): High Altitude Mode, DCR, Audio
Settings (Mute / Volume), Menu Settings, Closed Caption,
Lamp Settings, Presentation Timer (Timer Period, Timer
Display, Timer Position, Timer Counting Direction, Sound
Reminder), Security Settings, Remote Control Code,
Reset All Settings
Information: Current System Status (Source, Color mode,
Resolution, Color System, Equivalent Lamp Hour, MAC Address)
OPERATING CONDITIONS Temperature: 32 F-104 F (0ºC-40ºC)
Humidity: 10%-90% (non-condensing)
Altitude: 0~6,000 ft (1,800 m), operational up to 10,000 ft (3048 m)
NOISE LEVEL Normal / Eco-mode: 33dB / 29dB
DIMENSIONS (WxHxD) Physical: 11.6" x 3.3" x 9.5" (294 x 84 x 242 mm)
Packaging: 15" x 13.6" x 7.6" (380 x 345 x 192 mm)
WEIGHT Net: 5.7 lb. (2.6 kg)
Gross: 9.0 lb. (4.1kg)
REGULATIONS CB, UL, cUL, FCC (including ICES-003), CE, UL-Argentina, NOM,
TUV-GS, GOST-R, SASO, Ukraine, PSB, C-Tick, Korean-KC,
CCC, CECP, WEEE, RoHS
WARRANTY 3-year limited warranty on parts and labor, 1-year limited warranty
on lamp, 1st year Express Exchange®service.
Sales: [phone] or [email protected] • More product information: www.ViewSonic.com
*Lamp life may vary based on actual usage and other factors. Specifications and availability are subject to change without notice. Selection, offers and programs may vary by country; see your
ViewSonic representative for complete details.Corporate names, trademarks stated herein are the property of their respective companies, DLP® and DLP logo are registered trademarks of Texas Instruments
and BrilliantColor™is a trademark of Texas Instruments. Copyright © 2011 ViewSonic Corporation. All rights reserved. [15882-00B-10/11] PJD6253-1
Optinal Accessories
> Replacement Lamp ............................... RLC-071
> Universal Ceiling Mount Kit ..................WMK-005
> 3D HD Video Processor ........................... VP3D1
> 3D Active Shutter Glasses.....................PGD-250
> Wireless Presentation Gateway ...........WPG-360
> Soft Case....................................... PJ-CASE-001
> Extended 5-year warranty ........... PRJ-EW-07-02
4000
:
1
Focus & Zoom Rings
Control Panel
IR Remote Sensor
Projection Lens
Quick Elevation Button
Projection Distance Screen Size (4:3)
Feet
3.9 – 5.2
8.2 – 10.5
12.1 – 15.7
15.1 – 19.7
20.3 – 26.2
25.3 – 32.8
30.2 – 39.4
Inches
40
80
120
150
200
250
300
Meters
1.2 – 1.6
2.5 – 3.2
3.7 – 4.8
4.6 – 6.0
6.2 – 8.0
7.7 – 10.0
9.2 – 12.0
Meters
1.0
2.0
3.0
3.8
5.1
6.4
7.6
ViewSonic Corporation’s QMS & EMS
have been registered to ISO 9001 & ISO
14001, respectively, by TUV NORD.
S-Video/Video Inputs
Audio In (x2) / Autio Out
HDMI
RGB / Component
Video Inputs
Type B USB
(Mouse Control & Service)
RS-232LAN Monitor Out
AC Power Security Bar Kensington®Lock Slot
ViewSonic PJD6253 projector, power cable, VGA cable, remote control with batteries, lens cap,
Quick Start Guide, ViewSonic Wizard CD (with User Guide)
Package Contents
