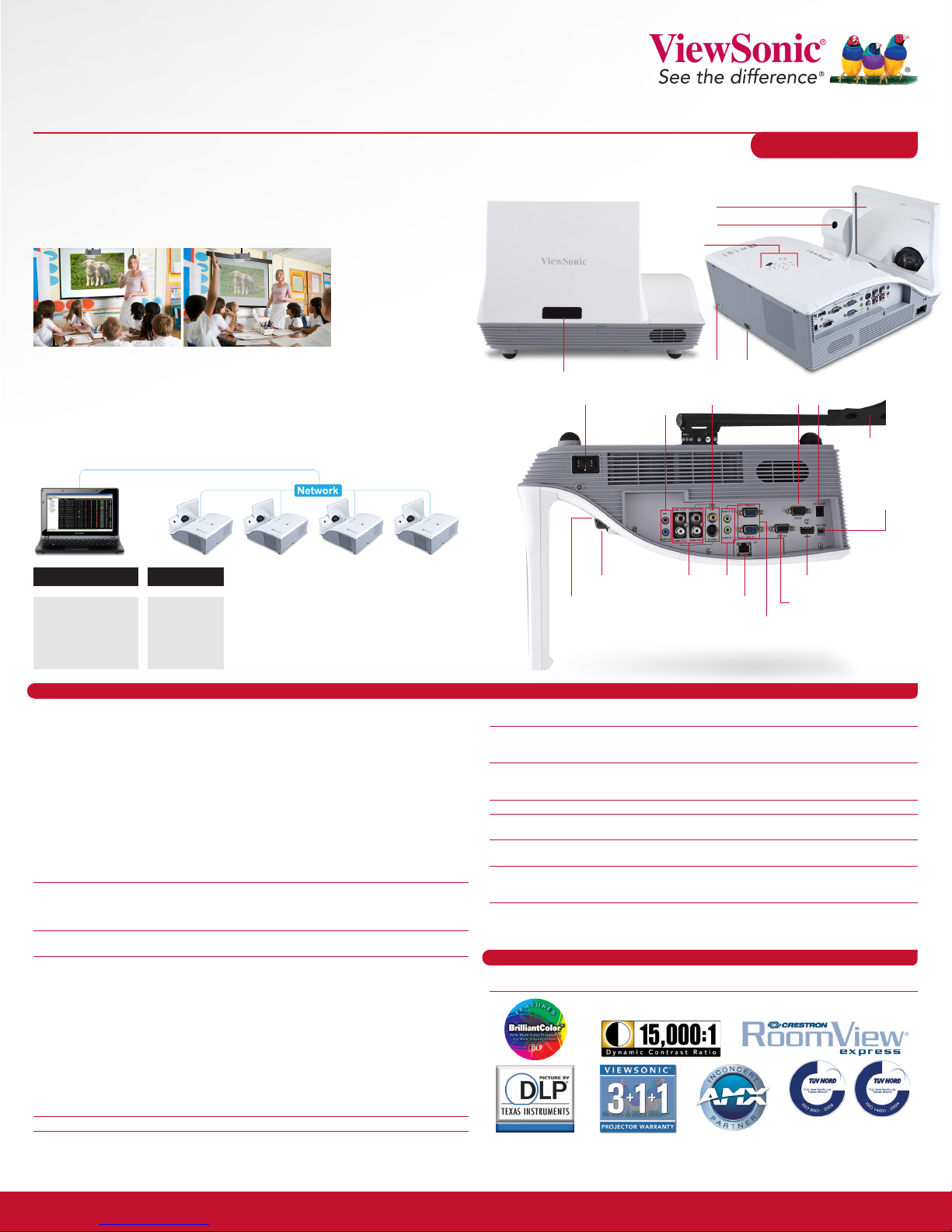

ViewSonic PJD8653ws User manual

Engage Your Audience with Dual Interactive Pens†
Ultra Short Throw
Networkable WXGA Projector
PJD8653ws
Bright Images for Classrooms & Meeting Rooms
Packed with 2,600 lumens and a high contrast ratio of 15,000:1 (w/ DynamicEco™),
the PJD8653ws is guaranteed to produce bright widescreen images in classrooms and
corporate environments.
The ViewSonic®PJD8653ws is an interactive and
networkable WXGA DLP®ultra short throw projector
that delivers widescreen presentations from a
short distance. With an ultra short throw lens, the
PJD8653ws can project an 81" image from only
2 feet away. With an optional interactive package,
the PJD8653ws supports dual interactive pens for
collaborative learning and turns any surface into
an interactive whiteboard. Built with BrilliantColor™
technology, this projector produces vibrant colors,
while 2600 ANSI lumens and 15000:1 contrast ratio
deliver sharp images. Equipped with Crestron®LAN
controller, the PJD8653ws makes it easy for IT admin
to remotely control and manage multiple projectors
from their workstations. Certified with AMX®Device
Discovery™, the PJD8653ws easily integrates into
any size campus or enterprise. In addition, the
PJD8653ws is packed with advanced features
including HDMI, two integrated 8-watt speakers,
auto keystone correction, and DynamicEco™. The
PJD8653ws is the perfect widescreen projector for
small classrooms and meeting rooms.
Project Large, Stunning Images in Small Places
With an ultra short throw lens, the PJD8653ws
can project an 81" image from only 2 feet
away—making it perfect for small rooms with
space limitations. In addition, blinding lights
in front of the presenter, distracting shadows
on the projected image, or glaring hotspots on
the whiteboard, are all eliminated because the
projector’s light source is closer to the screen.
Normal Short Throw Ultra Short Throw
Optional Dual Interactive Pens for Collaborative Learning
With the optional interactive package (PJ-PEN-003), the PJD8653ws
becomes an interactive projector that transforms any surface into an
interactive whiteboard. Along with the included LightPen3 software, the dual
interactive pens allow 2 users to simultaneously annotate, write, or draw
on the projected image. This feature encourages
collaboration and engages the audience.
Widescreen Brilliance
With a native 1280x800 (WXGA) resolution, the PJD8653ws wide format projector
offers a tremendous degree of flexibility and compatibility. Whether connecting a
widescreen notebook in the conference room, or watching 720p / 1080p HD content in
the classroom, a distortion-free image with matching aspect ratio is guaranteed.
Reliable Picture Quality
ViewSonic's DLP projectors provide reliable picture quality you can trust–even after
thousands of hours of usage. Built on DLP technology, the ViewSonic PJD8653ws projector
virtually eliminates image degredation known as "color decay" – a yellow/faded tint that LCD
projectors may develop after extended use. Even after years of use, the PJD8653ws will still
produce stunning, sharp images that last.

Sales: [phone] or [email protected] • More product information: www.ViewSonic.com
*Lamp life may vary based on actual usage and other factors. **One year Express Exchange®service requires product registration. †Optional PJ-PEN-003 required. Programs, specications and availability are subject to change without
notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies, DLP®and DLP logo are registered
trademarks of Texas Instruments and BrilliantColor™ is a trademark of Texas Instruments. HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and
other countries. Copyright © 2013 ViewSonic Corporation. All rights reserved. [16517-00B-01/13]
ViewSonic Corporation’s QMS & EMS
have been registered to ISO 9001 & ISO
14001, respectively, by TUV NORD.
DISPLAY Type 0.55" Digital Micromirror Device (DLP™)
Resolution WXGA 1280x800 (native)
Lens Fixed zoom / Manual optical focus
Keystone Vertical digital keystone correction (+/- 20º)
Display Size Focus: 70 – 100 in. / 1.8 – 2.5 m (diagonal)
Visible: 47 – 150 in. / 1.2 – 3.8 m (diagonal)
Active: 60 – 100 in. / 1.5 – 2.5 m (with optional PJ-PEN-003)
Throw Distance 1.7 – 2.5 ft. / 0.52 – 0.76 m
Throw Ratio 0.35:1
Lamp 240 watt
Lamp Life 3500 / 5000 / 7000 hours* (Normal / Eco-mode / DynamicEco)
Brightness 2600 Lumens
Contrast Ratio 15,000:1 (w/ DynamicEco™)
Aspect Ratio 16:10 (native)
Color Depth 30 bits, 1.07B Color (10+10+10)
Color Wheel 6-seg RGBCYW / 7200rpm
INPUT SIGNAL Computer and Video NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60),
SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and
576p, HD 720p, 1080i, 1080p
Frequency Fh: 31–100KHz, Fv: 48–120Hz
COMPATIBILITY PC VGA to 1600x1200 UXGA
Mac®Up to UXGA (may require MAC adaptor)
CONNECTOR RGB Input 15-pin mini D-sub (x2)
RGB Output 15-pin mini D-sub
Digital Input HDMI
Component Input 15-pin mini D-sub (x2, shared with RGB)
Composite Input RCA jack
S-Video Input 4-pin mini-DIN
Audio Input RCA L/R (x2)
PC Audio Input 3.5mm mini jack (x2)
Microphone Input 3.5mm mini jack (x1)
Audio Output 3.5mm mini jack (x1)
Control RS-232 (DB-9)
LAN RJ45
USB Mini Type B (interactive, mouse control and service)
DC 12V Trigger 3.5mm plug 12V/1A
AUDIO Speaker 8-watt (x2)
POWER Voltage 100~240VAC (Auto Switching), 50/60Hz (universal)
Consumption 300W (typ) / <0.5W (stand-by mode)
CONTROLS Basic Power, keystone/arrow keys, left, menu/exit, right, source, enter
OSD Picture, Video/Audio, Setting, Option, Language, Information
(See user guide for full OSD functionality)
OPERATING Temperature 32ºF–104ºF (0ºC–40ºC)
CONDITIONS Humidity 10%–90% (non-condensing)
Altitude 0~6,000 ft (1,800m), operational up to 10,000 ft (3,048m)
NOISE LEVEL Normal / Eco-mode 34dB / 32dB
DIMENSIONS Physical 14.1 x 9.9 x 14.4 in. / 357 x 231 x 367 mm
(W x H x D) Packaging 15.0 x 13.5 x 9.5 in. / 466 x 451 x 355 mm
WEIGHT Net 16.1 lbs. / 7.3 kg
Gross 23.2 lbs. / 10.5 kg
REGULATIONS UL/cUL, FDA (CDRH report), CB, FCC, TUV, GS+PAH, KC,
TUV (IEC60825-1), CE EMC Report, CCC, PSB, NOM,
GOST-R, C-tick
WARRANTY PJD8353s 3-year limited warranty on parts and labor, 1-year limited
warranty on lamp, 1st year free Express Exchange®service**
PJ-PEN-003 1-year limited warranty on parts and labor
PJD8653ws
PJD8653ws projector, power cable, VGA cable, remote control with batteries, Quick Start Guide,
ViewSonic Wizard DVD (with User Guide).
What's in the box?
Optional Accessories
Replacement Lamp ........................................RLC-082
Interactive Module / Pen Kit......................PJ-PEN-003
Wall Mount Kit ...........................WMK-027 / WMK-042
3D Active Shutter Glasses......................... PGD-series
Wireless Presentation Gateway ................WPG-series
Extended 5-Year Limited Warranty.......PRJ-EW-07-02
Projection Distance
(from mirror)
Screen Size (16:10)
Diagonal
Feet
1.7
2.0
2.1
2.2
2.5
Inches
70
80
87
90
100
Meters
0.5
0.6
0.65
0.67
0.76
Meters
1.8
2.0
2.2
2.3
2.5
Ultra Short Throw
Networkable WXGA Projector
Network Monitoring & Control
IT admin can monitor, schedule, and manage the projector remotely, as well
as receive projector status alerts, with the integrated Crestron®e-Control™
system and RoomView Express™management software. Because the
PJD8653ws is Crestron®and AMX® certied, IT admin can control and monitor
multiple projectors for any size campus or enterprise.
Interactive Pen
Sensor (optional)
Control Panel
Reection Mirror
Command the Attention of Your Audience
With the DynamicEco button on the remote control, take command of
presentations by dimming the screen brightness by 70%. This feature allows
presenters to easily shift the audience's focus when the projector is not in use.
The projector will also auto activate DynamicEco when idle. When DynamicEco
is activated the lamp's
power consumption is
significantly reduced –
a great energy-saving
design for low total cost
of ownership (TCO).
Without DynamicEco With DynamicEco
12V TriggerMic In /
Audio Out
Component /
RGB Video In
LAN RJ45
Mini Type B USB
(interactive, mouse
control and service)
S-Video / Video InputsAC Power In
HDMI
RS-232
Monitor Out
PC AudioAudio In R/L
(x2)
Focus Ring
Projection Lens
Optional WMK-027
Wall Mount Kit
Specications
Kensington®
Lock Slot
IR Remote Sensor
Security Bar
