ViewZ 40" WUXGA User manual

40, 46 & 55-INCH WUXGA
NARROW BEZEL
TFT-LCD MONITOR
INSTRUCTION MANUAL
Please read this manual thoroughly before use, and keep it handy for future reference.

SAFETY INSTRUCTION ………………………………………………………….……
2 ~ 3
CAUTIONS ……………………………………………………………..........................
4
FCC RF INTERFERENCE STATEMENT …………………………….......................
5
CONNECTING WITH EXTERNAL EQUIPMENT ……………………………………
6
REMOTE FUNCTIONS …………………………………………………………………
7
CONTROLS AND FUNCTIONS ………………………………………………………..
8 ~ 16
AC POWER CONNECTION GUIDE …………………………………………………..
17

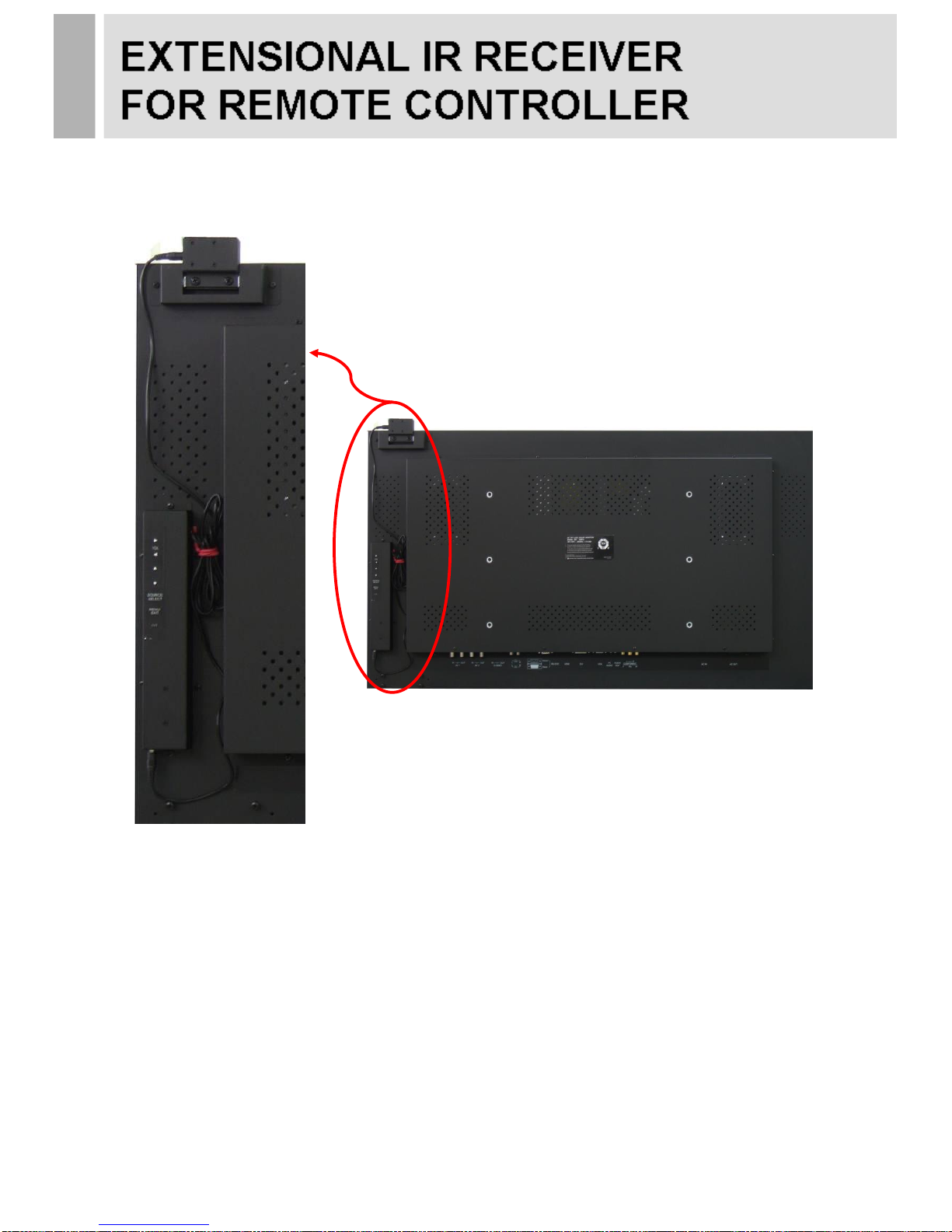

EXTENTENSIONAL IR RECEIVER FOR REMOTE CONTROLLER ..…………….
18 ~ 19
MOUNTING GUIDE ……………………………………………………………………..
20
D-SUB CONNECTOR PIN ASSIGNMENTS …………………………………………
21
POWER MANAGEMENT ………………………………………………………………
22
SPECIFICATIONS ………………………………………………………………………
23
TROUBLE SHOOTING GUIDE ………………………………………………….........
24
INSTRUCTION MANUAL ………………………………………………………………………. 1
This Monitor was
Manufactured by ISO 9001
Certified Factory

Important Safety Instruction
1. Read these instructions.
2. Keep these Instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers,stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
Apolarized plug has two blades with one wider than the other.
Agrounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement
of the bsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles and the point where they exit from the apparatus.
11. Only use attachment/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or
sold with the apparatus. When a cart is used, use caution when moving
the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused
for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus the apparatus has been exposed to
rain or moisture does not operate normally or has been dropped.
2 ………………………………………………………………………. INSTRUCTION MANUAL

- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed no the apparatus.
- Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation.
“WARNING – To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.”
“The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.”
This symbol is intended to alert the user to the presence of uninsulated :
dangerous voltage with in the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating
and maintenance(servicing) instructions in the literature accompanying the
appliance.
INSTRUCTION MANUAL ………………………………………………………………………. 3

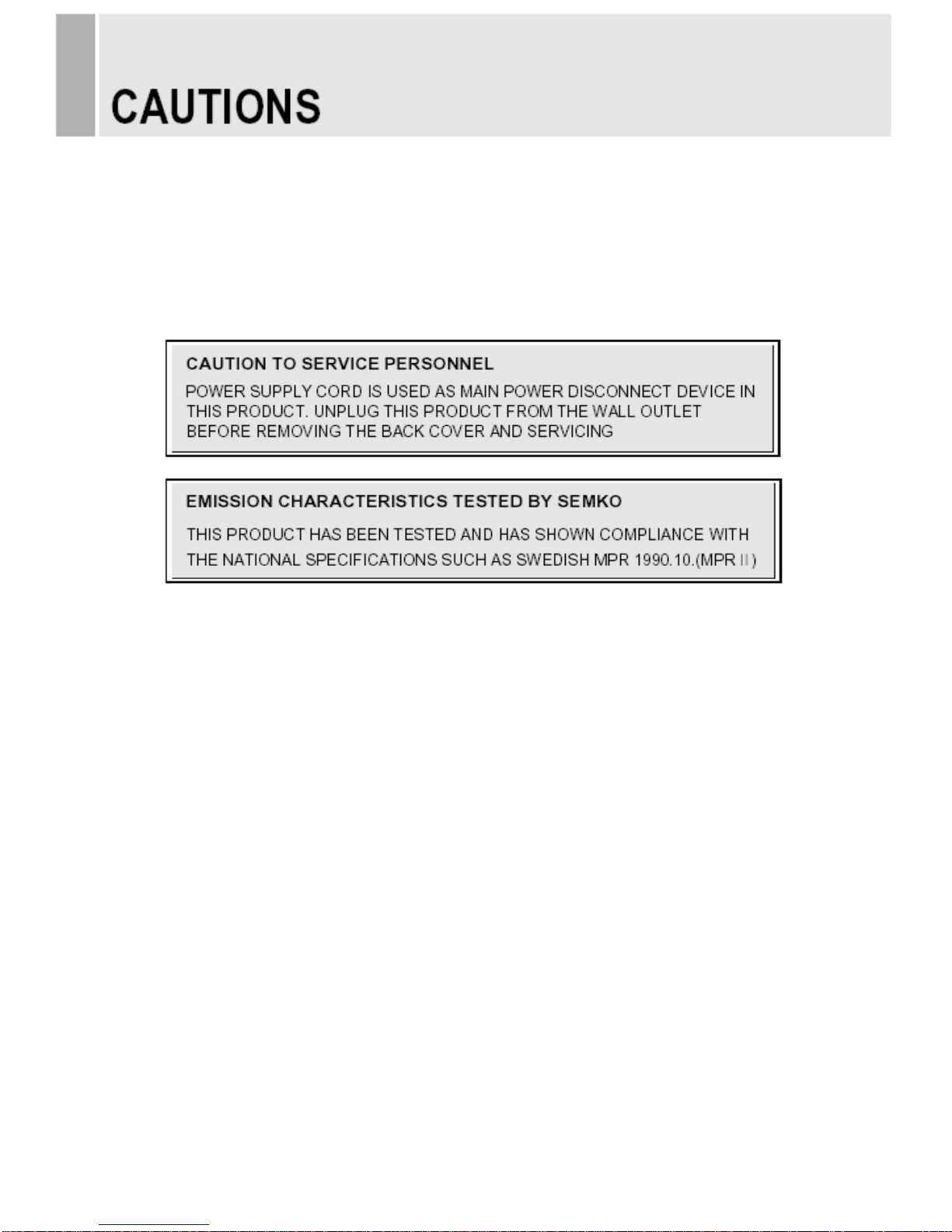

CAUTION
The power supply cord is used as the main disconnect device, ensure that the socket-outlet is
located/installed near the equipment and is easily accessible.
ATTENTIONN
Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être
située ou installée à proximité du matériel et être facile d`accès
▶NEVER REMOVE THE BACK COVER
Removal of the back cover should be carried out only by qualified personnel.
▶DO NOT USE IN HOSTILE ENVIRONMENTS
To prevent shock or fire hazard, do not expose the unit to rain or moisture.
This unit is designed to be used in the office or home. Do not subject the unit to vibrations,
dust of corrosive gases.
▶KEEP IN A WELL VENTILATED PLACE
Ventilation holes are provided on the cabinet to prevent the temperature from rising.
Do not cover the unit or place anything on the top of unit.
▶AVOID HEAT
Avoid placing the unit in direct sunshine or near a heating appliance.
▶TO ELIMINATE EYE FATIGUE
Do not use the unit against a bright back ground and where sunlight or other light sources will
shine directly on the monitor.
▶BE CAREFUL OF HEAVY OBJECT
Neither the monitor itself nor any other heavy object should rest on the power cord.
Damage to a power cord can cause fire or electrical shock.
4 ………………………………………………………………………. INSTRUCTION MANUAL

NOTE
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio, TV technician for help.
- Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly approved by
the grantee or manufacturer could void the users authority to operate such equipment.
▶DOC COMPLIANCE NOTICE
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus set out in the radio interference regulation of Canadian Department of
communications.
INSTRUCTION MANUAL ………………………………………………………………………. 5

A. BACK PANEL CONTROL
1. Extensional Port for Remote Controller Receiver (See page 16 & 17).
2. AV 1 IN.
3. AV 1 OUT.
4. AV 2 IN.
5. AV 2 OUT.
6. S-VIDEO IN.
7. S-VIDEO OUT.
8. AV 1 & SVIDEO AUDIO L/R IN.
9. AV 2 AUDIO L/R IN.

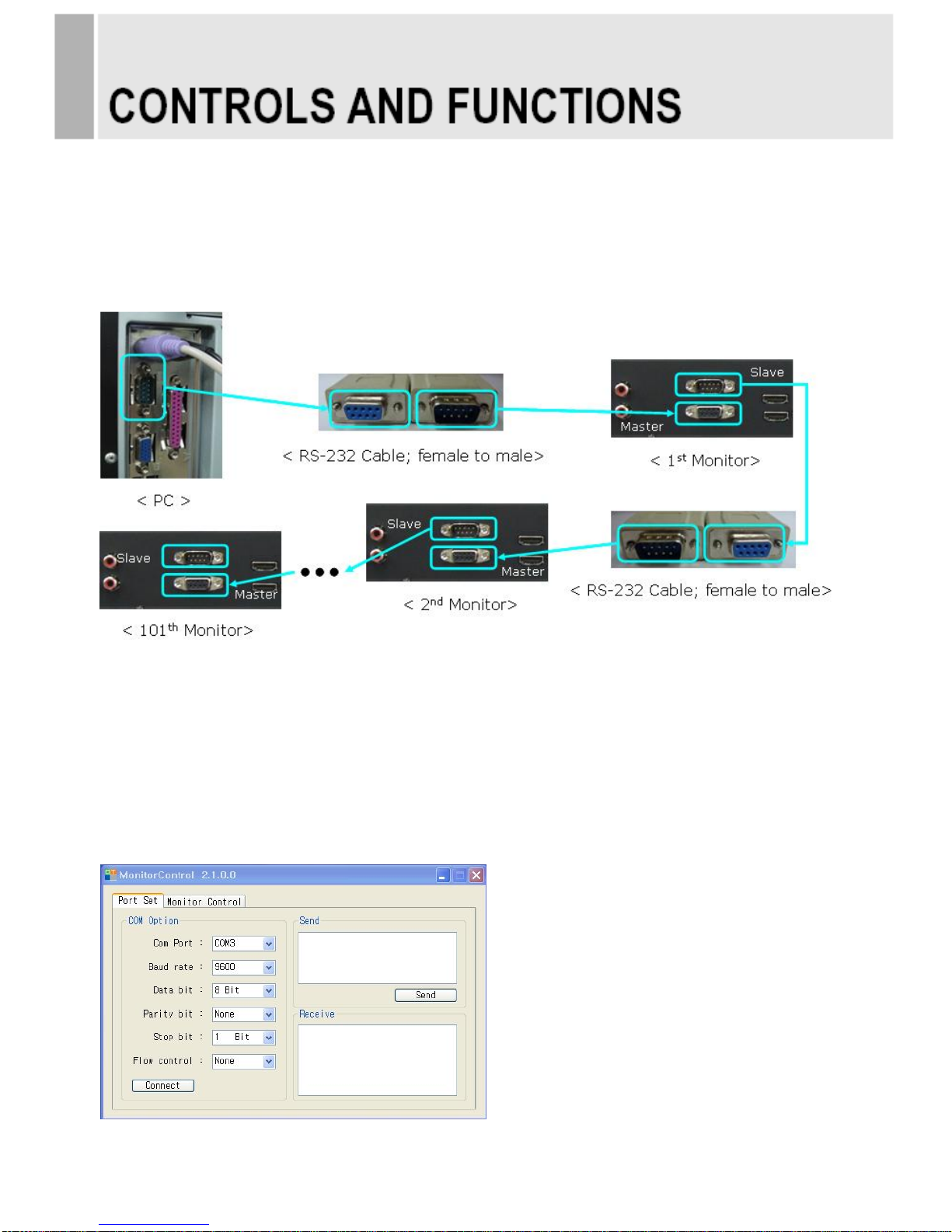

10. Slave RS-232.
11. Master RS-232.
12. HDMI 2 IN.
13. HDMI 1 IN
14. DVI IN.
15. PC VGA IN.
16. PC AUDIO IN.
17. AUDIO OUT.
18. COMPONENT Y/Pb/Pr IN & COMPONENT AUDIO L/R IN.
19. AC IN.
20. AC OUT.
※PC cable

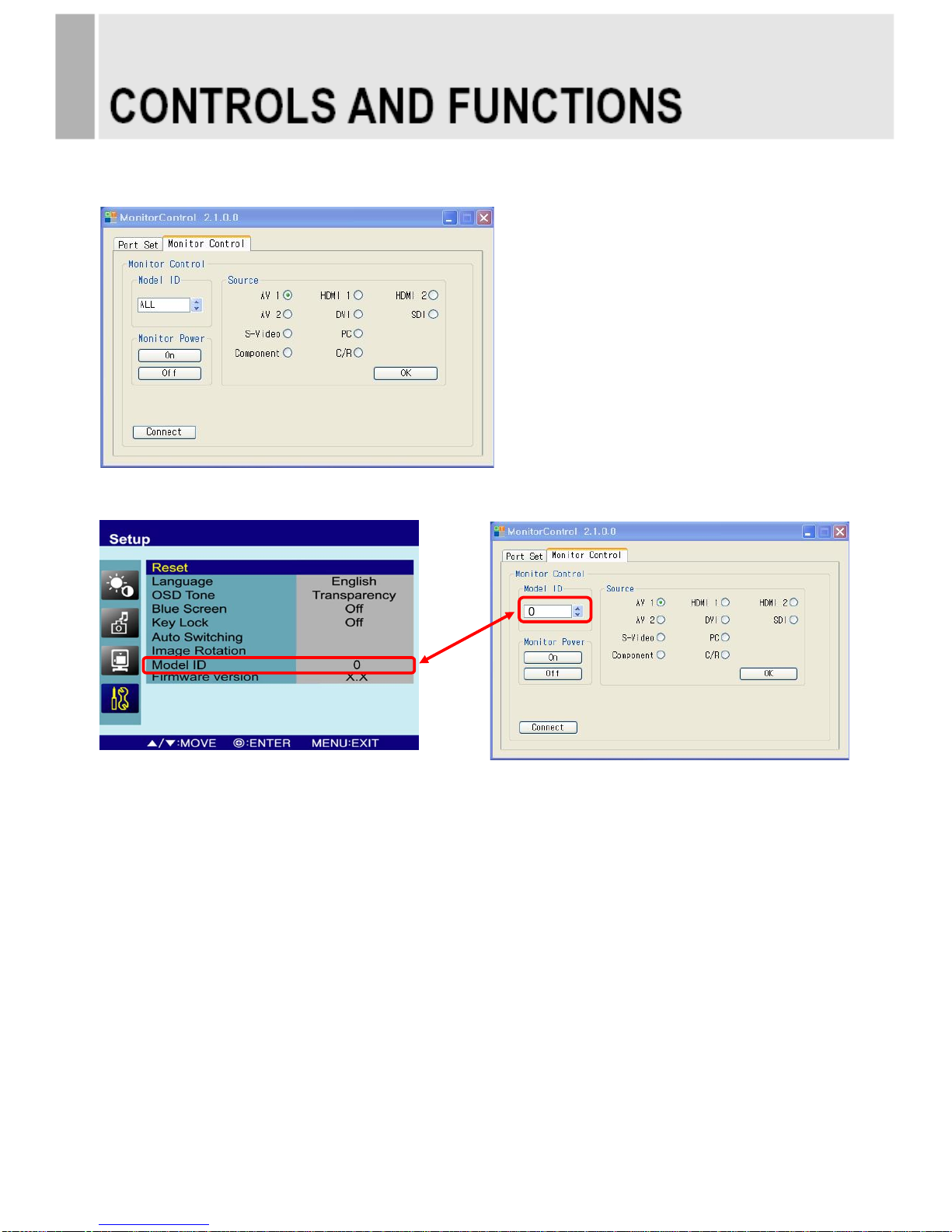

To use the “Model ID”function using RS-232 cable, the pin 4 in the PC cable must be deleted.
6 ………………………………………………………………………. INSTRUCTION MANUAL

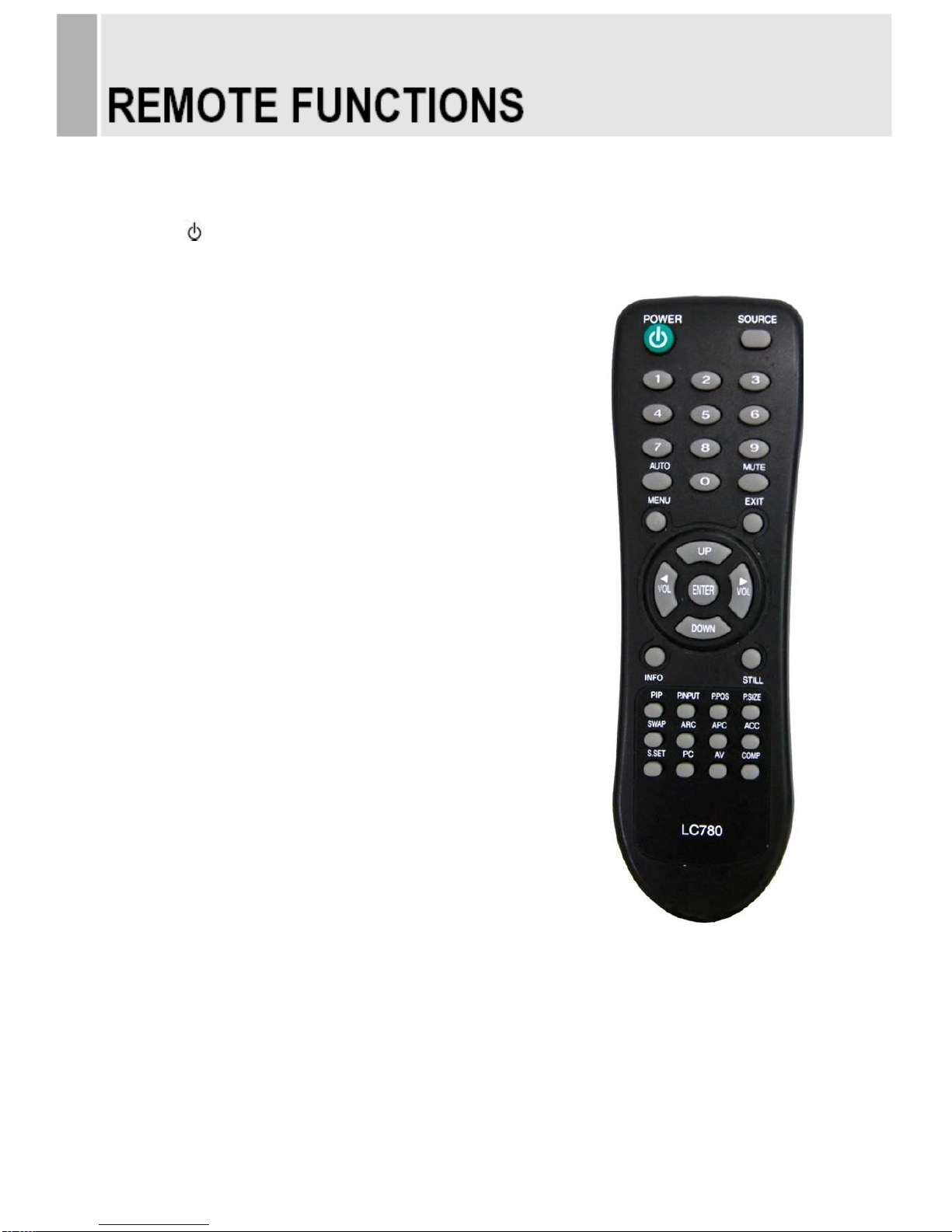

B. REMOTE CONTROLLER(Optional)
1. POWER( )
Turns the power ON or OFF. There will be a few seconds delay before the display appears.
2. SOURCE
Selects an input source.
3. AUTO
Auto geometry adjustment in the RGB PC source.
4. MUTE
Mutes the sound.
5. MENU
Activates and exits the On Screen Display.
6. EXIT
Exits the On Screen Display.
7. VOL(◀& ▶)
Increases or decreases the level of audio volume.
8. UP/DOWN
Moves upwards or downwards in the OSD menu.
9. ENTER
Enters an OSD submenu or accepts your selection.
10. INFO
Displays the information about input source.
11. STILL
Pauses the picture.
12. PIP (Picture In Picture)
Activates the PIP mode.
13. P.INPUT
Changes the source of sub-picture in the PIP mode.
14. P.POS
Changes the position of sub-picture in the PIP mode.
15. P.SIZE
Changes the sizes of sub and main pictures in the PIP mode.
16. SWAP
Alternates between sub and main pictures in the PIP mode.
17. ARC (Aspect Ratio Control)
Selects a screen ratio.
18. APC (Auto Picture Control)
Selects a picture mode.
19. ACC (Auto Color Control)
Selects a color mode.
20. S.SET
Selects the source of sound between main and sub pictures in the PIP mode.
21. PC
Selects a PC mode(PC, DVI & HDMI).
22. AV
Selects an AV mode(AV1, AV2 & S-Video).
23. COMP
Selects the Component mode.
INSTRUCTION MANUAL ………………………………………………………………………. 7

C. RIGHT SIDE BUTTON CONTROL
1 & 2. VOL(+) & VOL(-)
Adjust the volume and menu settings.
3 & 4. ▲& ▼
These buttons allow user to enter the sub-menu of the activated function.
The up(▲) button is HOLD function and stop the Trigger & Auto switching
functions.
5. SOURCE/SELECT
Selects an input source.
Enters a submenu or accepts your selection in the OSD menu.
6. MENU/EXIT
Activates and exits the On Screen Display.
This button can also be used to move previous menu or status.
7. POWER ON/OFF( / I )
Turns the power ON or OFF. There will be a few seconds delay
before the display appears.
8. POWER LED
The power LED lights with green when the power is turned ON.
The power is turned off by pressing the power button again,
and the power LED goes Red.
9. IR Sensor
Remote controller sensor.
8 ………………………………………………………………………. INSTRUCTION MANUAL
1
2
3
4
5
6
7
8
9

OSD MENU DESCRIPTION
All picture, sound settings and setup for the monitor can be adjusted in the OSD menu.
(On Screen Display)
To adjust the OSD screen:
1. Press the Menu button to enter the OSD menu.
2. Press the ▲/▼ buttons to select the desired option. The selected option is highlighted.
3. Press the ▶button to enter the submenu for adjusting items.
4. Change the value you wish to adjust by using the ▲/▼ buttons.
5. Press the ◀button to exit the submenu for adjusting items.
6. Press the Menu button to exit the OSD menu.
A. Custom
Option
Function
Value
Brightness
Adjusts brightness of the screen.
0 ~ 100
Contrast
Adjusts intensity of the image.
0 ~ 100
Color1)
Adjusts color of the picture.
0 ~ 100
Tint1) 2)
Adjusts tint of the picture.
0 ~ 100
Sharpness1)
Adjusts sharpness of the picture.
0 ~ 100
1) Unavailable in RGB PC, DVI, HDMI1 and HDMI2.
2) Unavailable in Component mode and PAL system.
INSTRUCTION MANUAL ………………………………………………………………………. 9

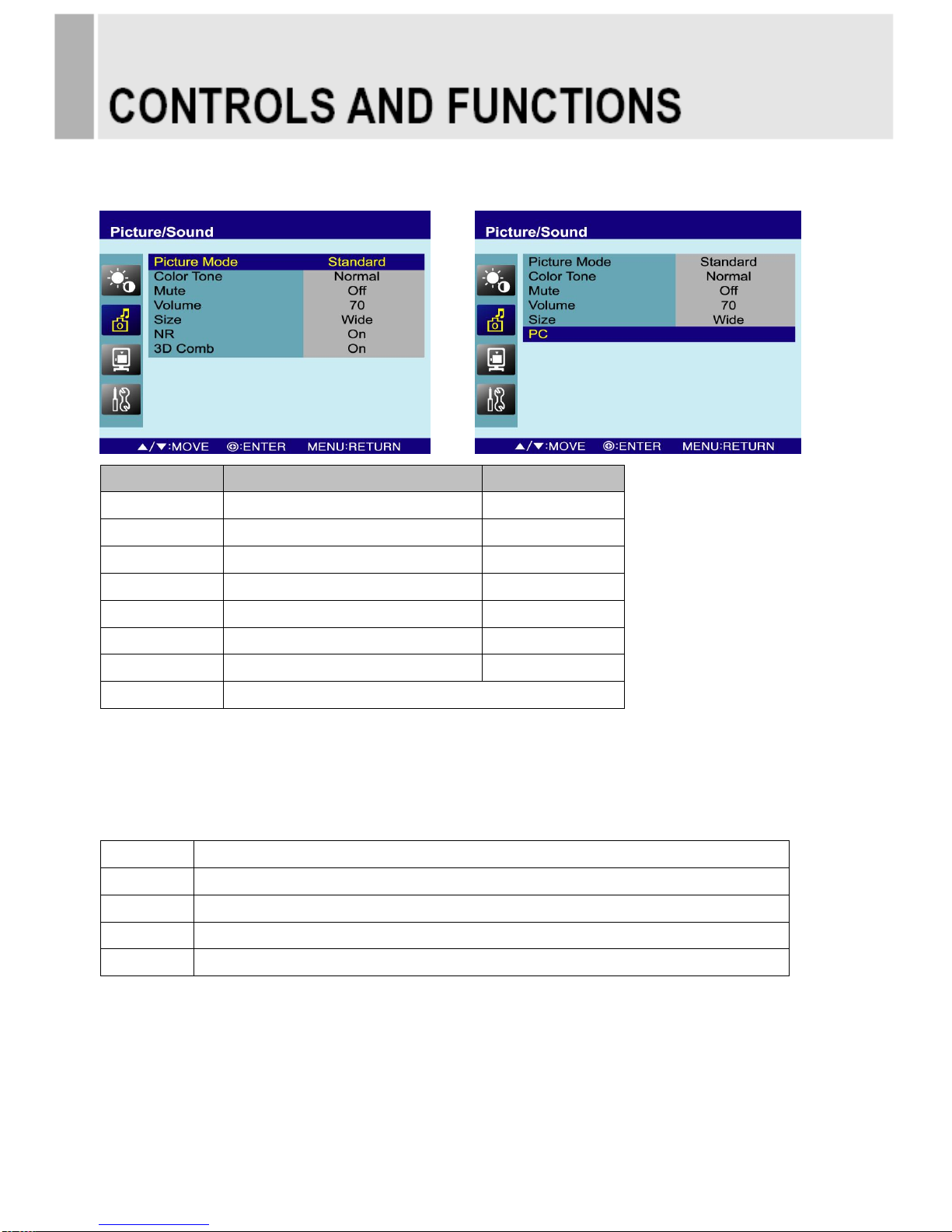

B. Picture/Sound
Option
Function
Value
Picture Mode
Sets picture mode.
See table below
Color Tone
Sets color tone.
See table below
Mute
Mutes speaker sound.
Off or On
Volume
Adjust the level of audio volume.
0 ~ 100
Size
Display picture size.
See table below
NR1)
Reduces noise of the picture.
On or Off
3D Comb2)
Activates the 3D comb filter.
On or Off

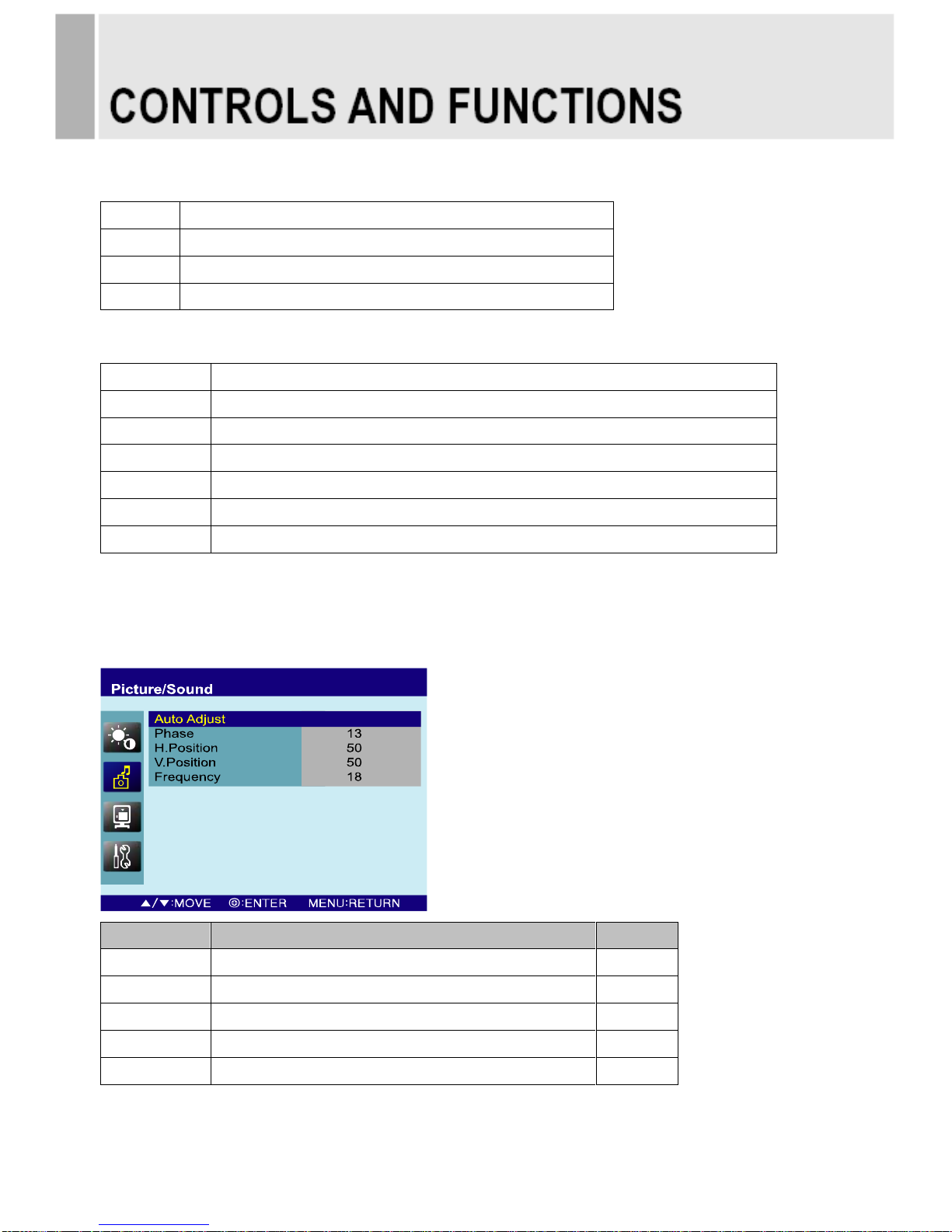

PC3)
See table below.
1) Unavailable in RGB PC, DVI, HDMI1 and HDMI2.
2) Unavailable in S-Video, RGB PC, DVI, HDMI1, HDMI2 and Component.
3) Only available in RGB PC.
Picture Mode
Custom
Applies user selected values.(Brightness, Contrast, Color, Tint and Sharpness)
Dynamic
Provides enhanced contrast and sharpness.
Standard
Provides standard contrast and sharpness.
Movie
Is recommended for viewing film-based content.
Mild
Reduces contras and sharpness.
10 ………………………………………………………………………. INSTRUCTION MANUAL

Color Tone
Cool
Gives the white color a bluish tint.
Normal
Gives the white color a neutral tint.
Warm
Gives the white color a reddish tint.
User
To manually adjust the color tones(Red, Green, and Blue).
Size
4:3
Sets the image size to 4:3
Panorama1)
Sets the image to panorama
Zoom11)
Expands the image size about two times to upward and downward
Zoom21)
Expands the image size about one and half times to upward and downward
Wide
Sets the image size to wide
Under2)
Adjusts the image size to display resolution without overscan
1:11)
Adjusts the image size to input resolution with overscan
1) Unavailable in RGB PC, DVI, HDMI1, HDMI2 and Component.
2) Unavailable in RGB PC.
PC
Option
Function
Value
Auto Adjust
Auto geometry adjustment.
Phase
Adjusts the number of horizontal picture elements.
0 ~ 100
H-Position
Adjusts the horizontally picture position.
0 ~ 100
V-Position
Adjusts the vertically picture position.
0 ~ 100
Frequency
Adjusts the vertical noise of screen image.
0 ~ 100
INSTRUCTION MANUAL ………………………………………………………………………. 11

C. PIP
Option
Function
Value
PIP
Activates the PIP feature.
Off or On
Input Source
Selects the input source for the PIP area.
See table below
PIP Mode
Enables 3 screen size.4:3 side by corner, 4:3 side by 4: 3,
and full screen side by side.
PIP, PBP1 or PBP2
PIP Size
Selects the size of PIP screen.
Size1, Size2 or Size3
Position
Selects the position of PIP screen. Right of Bottom, Left of
Bottom, Left of Top and Right of Top.
RB, LB, LT or RT
Swap
Alternates between the main and sub picture
Sound Select
Selects the sound source from either the Main or PIP
Main or Sub
Input Source
Main
Sub
Available
combination
AV1, AV2 or S-Video
AV1, AV2 or S-Video
AV1, AV2 or S-Video
RGB PC, DVI, HDMI1, HDMI2
or Component
RGB PC, DVI, HDMI1, HDMI2
or Component
AV1, AV2 or S-Video
Unavailable
combination
RGB PC, DVI, HDMI1, HDMI2
or Component
RGB PC, DVI, HDMI1, HDMI2
or Component
12 ………………………………………………………………………. INSTRUCTION MANUAL

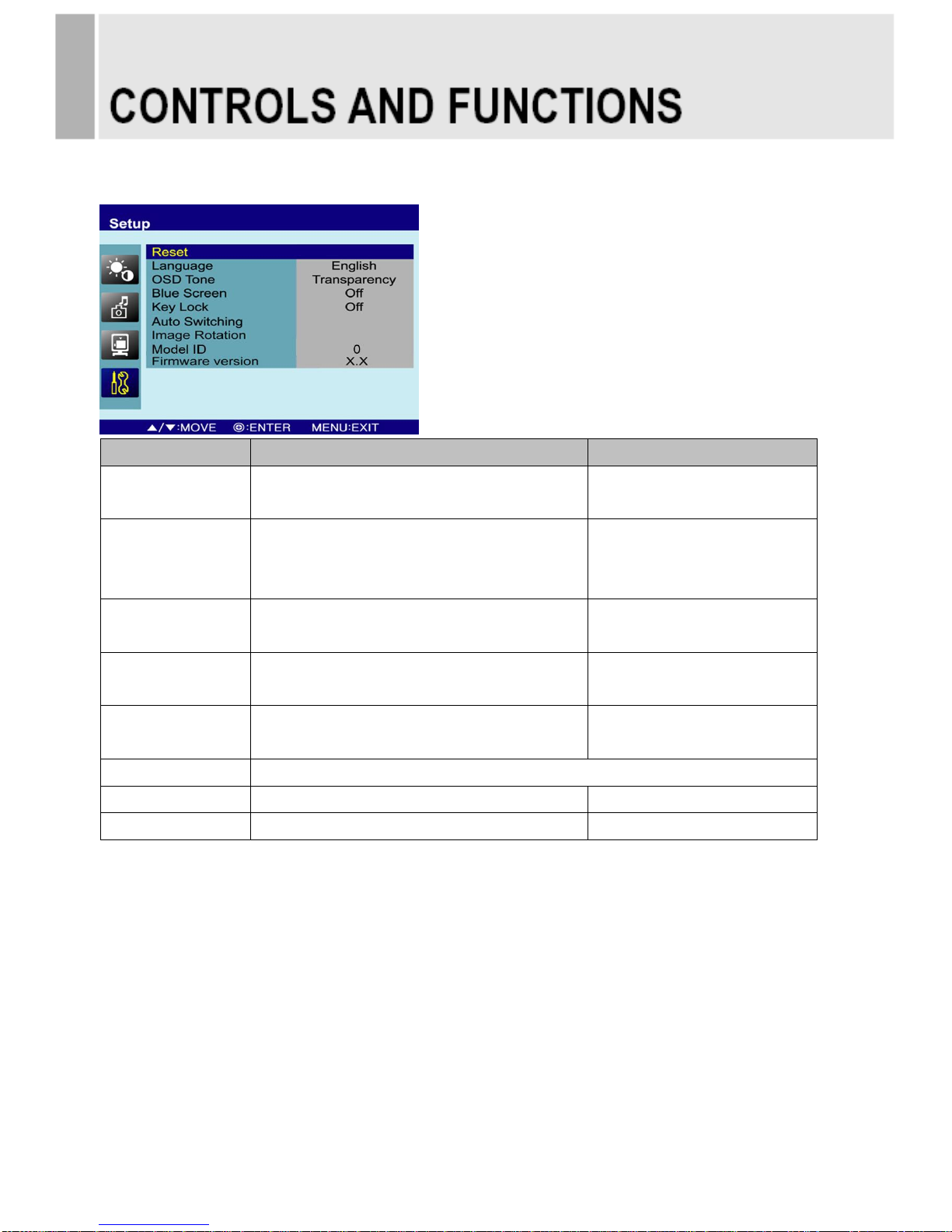

D. Setup
Option
Function
Value
Reset
Resets the monitor settings to their
factory default.
Language
Sets the language of the OSD menu.
English, French, Deutsch,
Italian, Spanish, Portuguese
or Nederland
OSD Tone
Changes background of monitor menus.
(e.g. input source & information)
Transparency or On
Blue Screen
Displays a blue screen if the monitor
receives no signal.
Off or On
Key Lock1)
Locks all buttons of the monitor.
Note: Use remote controller to unlock.
Off or On
Auto Switching
See table below
Image Rotation2)
Activates the Image Rotation function.
Off or On
Model ID
See below.
0 ~ 100, ALL
1) How to unlock
①On the front key: Press the SOURCE/SELECT and MENU button at the same time over 3 seconds.
②On the Remote Controller: The Remote Controller operates well because the Key Lock function is
only allowed for the front key of this product.
2) The displayed image is slightly moved to prevent image persistence when the Image Rotation function
is On. The user is able to adjust the image rotation time from 0~10Min. in the sub-menu of image
rotation.
※Image persistence
When an LCD panel is continuously displaying the same image(graphic) for a long period of time, a trace
of the image can remain visibly. Image persistence is not a product defect, and all LCD products are
subject to image persistence.
INSTRUCTION MANUAL ………………………………………………………………………. 13

※NOTICE: When watching moving images on a computer or a DVR through this monitor using a PC-
RGB, DVI or HDMI input, you can see blurred images on the edge of icons and pop-up windows but,
this is not a defect. The blur may appear on the fixed images such as another icon and pop-up window
because the 120Hz feature is focused on fast moving images to enhance the quality of moving image.
Auto Switching
Option
Function
Value
Auto Switching
Activates the Auto Switching feature.
Off or On
Input Enable
Opens another menu and you can select the input
sources to include in the Auto Switching cycle.
AV1, AV2, S-Video, RGB PC,
DVI, HDMI1, HDMI2 and
Component
Time
Selects the amount of time, in seconds, that the
monitor displays each selected input source.
3 ~ 100
14 ………………………………………………………………………. INSTRUCTION MANUAL

Model ID
You can control this monitor with “Monitor control”software and “Model ID”functions.
Available controls are Turn on, Turn off or change the input source of this monitor.
1. Connect the PC and Monitor(s) with RS-232 Cable. The PC and Monitor(s) have to be turned on.
2. Install the “Monitor Control”software using an enclosed CD.
1) Insert the CD into the PC and open the CD-ROM drive folder.
2) Copy the “Monitor Control”icon and paste it on the screen of the PC.
3) Double click the icon.
3. Monitor Control
1) Port Set: Click the “Connect”. - Com Port: Can be set up from Com1 to Com6.
- Baud rate: Can be set up form 600 to 25600.
- Data bit: Can be set up from 5 to 8 bit.
- Parity bit: Can be set up as None, Odd, Even,
Mark or Space.
- Stop bit: Can be set up as 1, 1.5 or 2bit.
- Flow control: Can be set up as None,
DTR/DSR, RTS/CTS or
Space.
INSTRUCTION MANUAL ………………………………………………………………………. 15

2) Monitor Control: Click the “Connect”. - Model ID: Match with the monitor which you
want to control.
- Monitor Power: Can be “turned on”or “turned
off”the monitor.
- Source: Can be changed the source of the
Monitor
e.g.) In this case, you can control the “Model ID No. 0”monitor.
※For the detail explanation, refer to the enclosed “Monitor Control”CD.
16 ………………………………………………………………………. INSTRUCTION MANUAL

※CAUTION: Do not connect five or more monitors into one wall socket.
< Good >
< Bad >
INSTRUCTION MANUAL ………………………………………………………………………. 17

1. Extensional Remote Controller Receiver is on the top of the monitor.
18 ………………………………………………………………………. INSTRUCTION MANUAL
