ViewZ VZ-42D2iP User manual

42-INCH D2iP
IP OUTPUT MONITOR
USER MANUAL
Please read this manual thoroughly before use, and keep it handy for future reference.

SAFETY INSTRUCTION ………………………………………………………….……
2 ~ 3
CAUTIONS ……………………………………………………………..........................
4
FCC RF INTERFERENCE STATEMENT …………………………….......................
5
CONNECTING WITH EXTERNAL EQUIPMENT ……………………………………
6
CONTROLS AND FUNCTIONS ………………………………………………………..
7 ~ 10
MOUNTING GUIDE ……………………………………………………………………..
11
POWER MANAGEMENT ………………………………………………………………
12
SPECIFICATION ………………………………………………………………………
13
TROUBLE SHOOTING GUIDE ………………………………………………….........
14
- 1 -
This Monitor was
Manufactured by ISO 9001
Certified Factory

Important Safety Instruction
1. Read these instructions.
2. Keep these Instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers,stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
Apolarized plug has two blades with one wider than the other.
Agrounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement
of the bsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles and the point where they exit from the apparatus.
11. Only use attachment/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or
sold with the apparatus. When a cart is used, use caution when moving
the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused
for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus the apparatus has been exposed to
rain or moisture does not operate normally or has been dropped.
- 2 -

- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed no the apparatus.
14 Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation.
“WARNING – To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.”
“The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.”

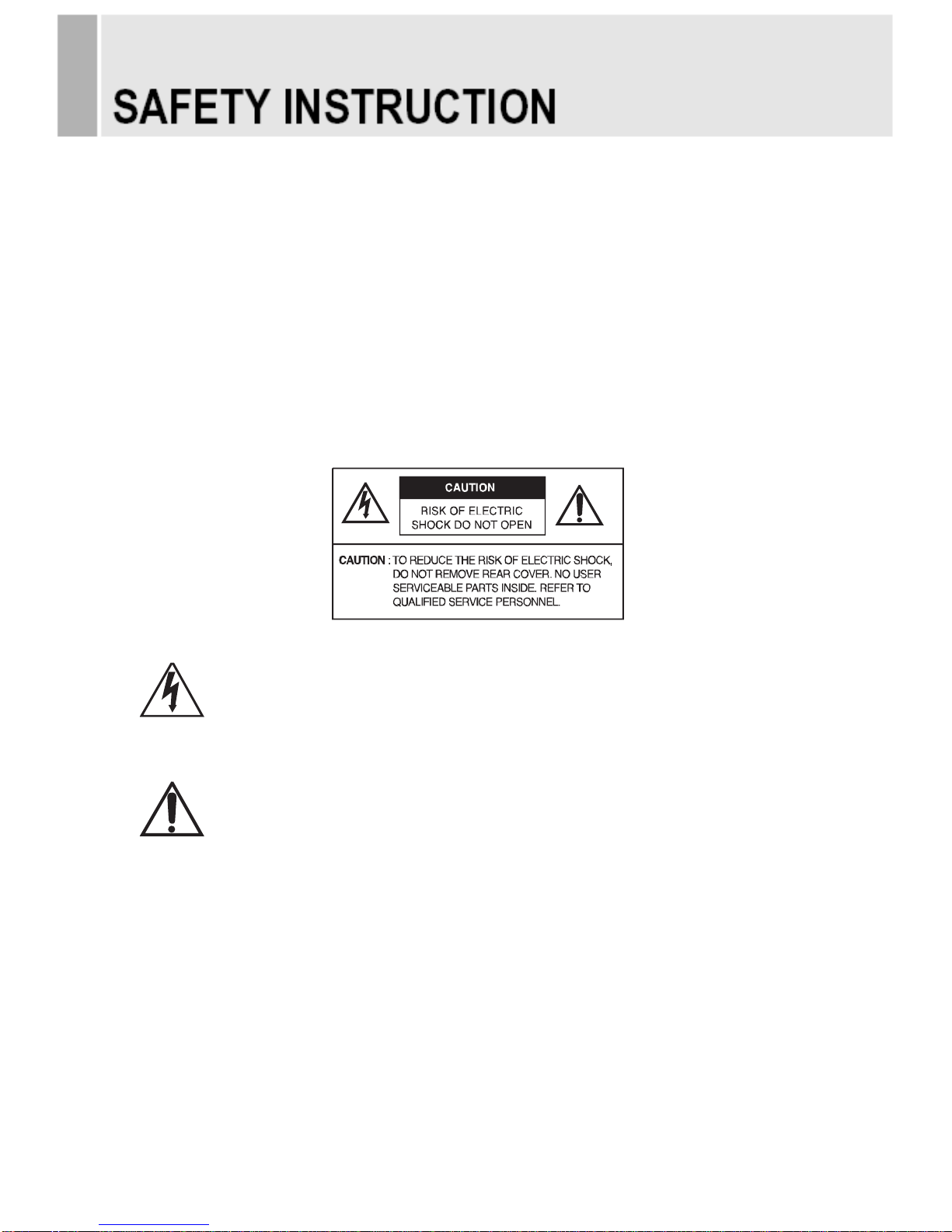

This symbol is intended to alert the user to the presence of uninsulated:
dangerous voltage with in the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating
and maintenance(servicing) instructions in the literature accompanying the
appliance.
- 3 -

CAUTION
The power supply cord is used as the main disconnect device, ensure that the socket-outlet is
located/installed near the equipment and is easily accessible.
ATTENTIONN
Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être
située ou installée à proximité du matériel et être facile d`accès
▶NEVER REMOVE THE BACK COVER
Removal of the back cover should be carried out only by qualified personnel.
▶DO NOT USE IN HOSTILE ENVIRONMENTS
To prevent shock or fire hazard, do not expose the unit to rain or moisture.
This unit is designed to be used in the office or home. Do not subject the unit to vibrations,
dust of corrosive gases.
▶KEEP IN A WELL VENTILATED PLACE
Ventilation holes are provided on the cabinet to prevent the temperature from rising.
Do not cover the unit or place anything on the top of unit.
▶AVOID HEAT
Avoid placing the unit in direct sunshine or near a heating appliance.
▶TO ELIMINATE EYE FATIGUE
Do not use the unit against a bright back ground and where sunlight or other light sources will
shine directly on the monitor.
▶BE CAREFUL OF HEAVY OBJECT
Neither the monitor itself nor any other heavy object should rest on the power cord.
Damage to a power cord can cause fire or electrical shock.
- 4 -

NOTE
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio, TV technician for help.
- Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly approved by
the grantee or manufacturer could void the users authority to operate such equipment.
▶DOC COMPLIANCE NOTICE
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus set out in the radio interference regulation of Canadian Department of
communications.
- 5 -

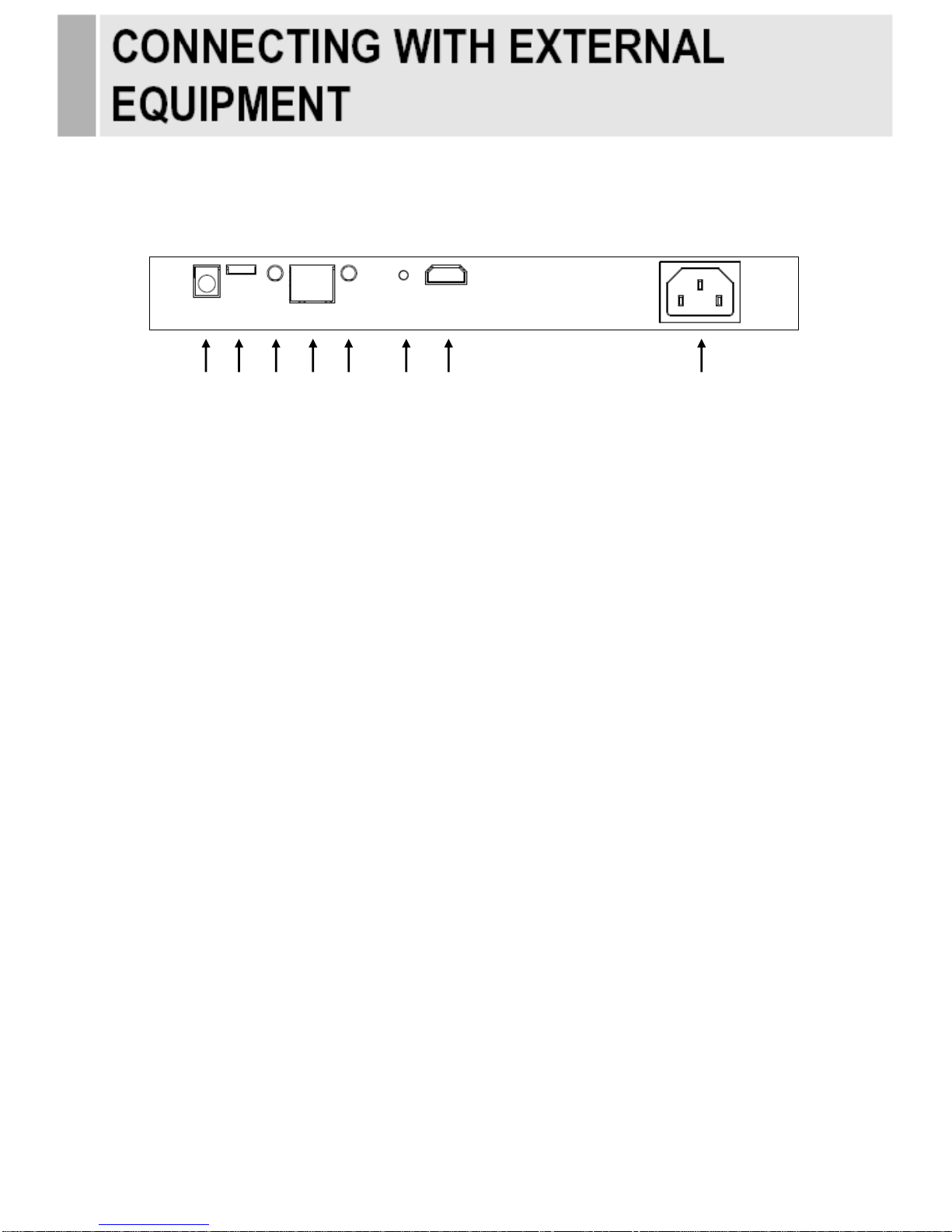

Rear Connection
1. DC 12V OUT
2. UPGRADE SELECT S/W
3. UPGRADE 1
4. RJ45
5. UPGRADE 2
6. IP RESET
7. HDMI IN
8. AC IN
- 6 -
1
2
3
4
5
6
7
8

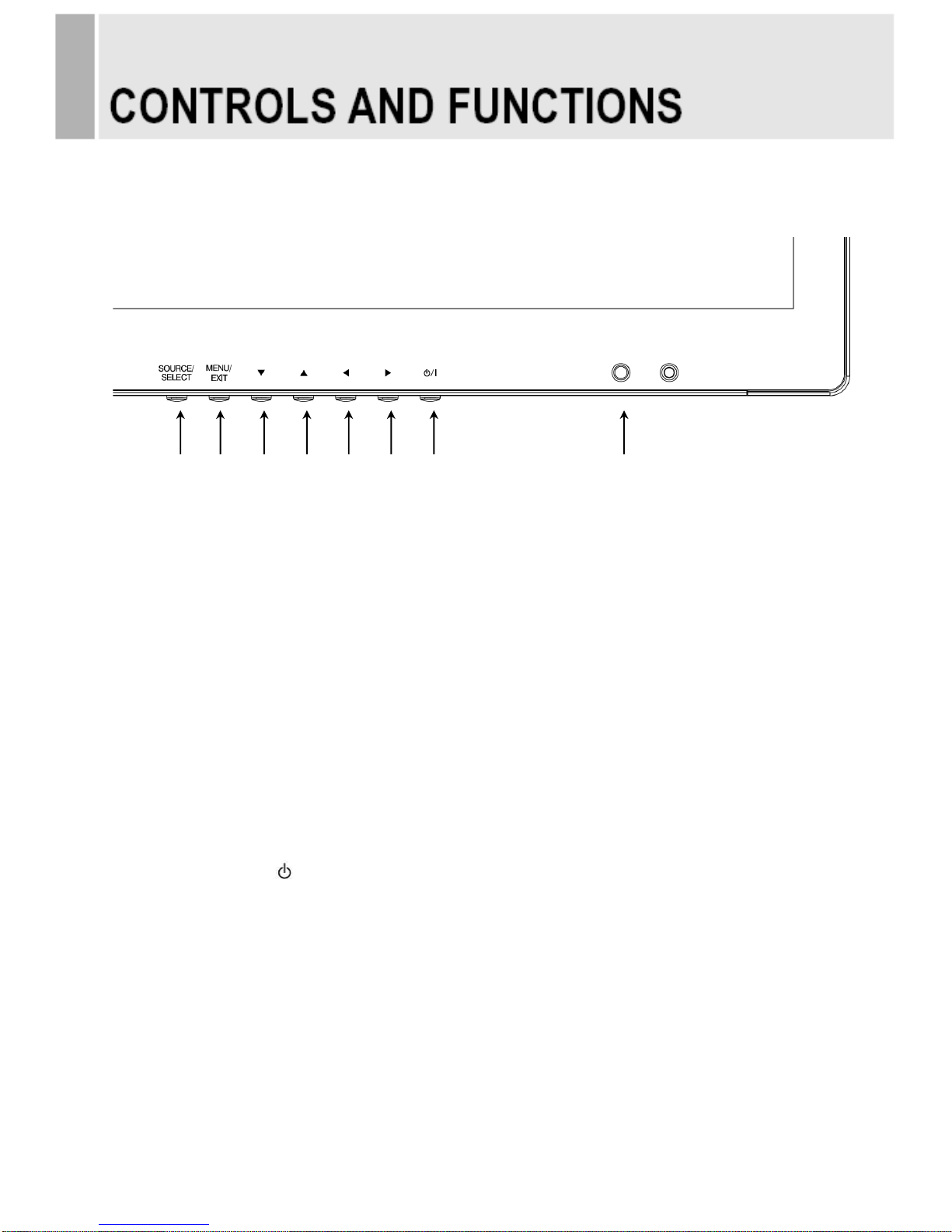

FRONT KEY CONTROL
1. SOURCE/SELECT
Selects an input source.
Enters a submenu or accepts your selection in the OSD menu.(OSD menu works with HDMI
only.)
2. MENU/EXIT
Activates or exits the OSD.
Moves previous menu or status in the OSD.
3 / 4. ▼/ ▲
Moves another option in the OSD.
5 / 6. ◀/ ▶
Adjust the volume or menu settings.
The first production goods do not have the speaker and stereo out, so this function does not
work.
7. POWER ON/OFF( / I )
Turns the power ON or OFF. There will be a few seconds delay before the display appears.
8. POWER LED
Turned on: Blue color.
Turned off: LED off
- 7 -
1
2
3
4
5
6
7
8

OSD Menu Description
All picture, sound settings and setup for the monitor can be adjusted in the OSD menu.
(On Screen Display)
To adjust the OSD screen:
1. Press the Menu button to enter the OSD menu.
2. Press the ▲/▼ buttons to select the desired option. The selected option is highlighted.
3. Press the ▶button to enter the submenu for adjusting items.
4. Change the value you wish to adjust by using the ▲/▼ buttons.
5. Press the ◀button to exit the submenu for adjusting items.
6. Press the Menu button to exit the OSD menu.
A. PICTURE
Submenu
Definition
Brightness
Adjusts the brightness level for video performance (range 0-100).
Contrast
Adjusts the intensity of the image (range 0-100).
Color Temp
Adjusts the color of the picture Choices are Warm, Normal, Cool, and User
(Red , Green, and Blue).
Zoom
Sets the aspect ration for the monitor. Choices are 16:9 and 4:3.
- 8 -

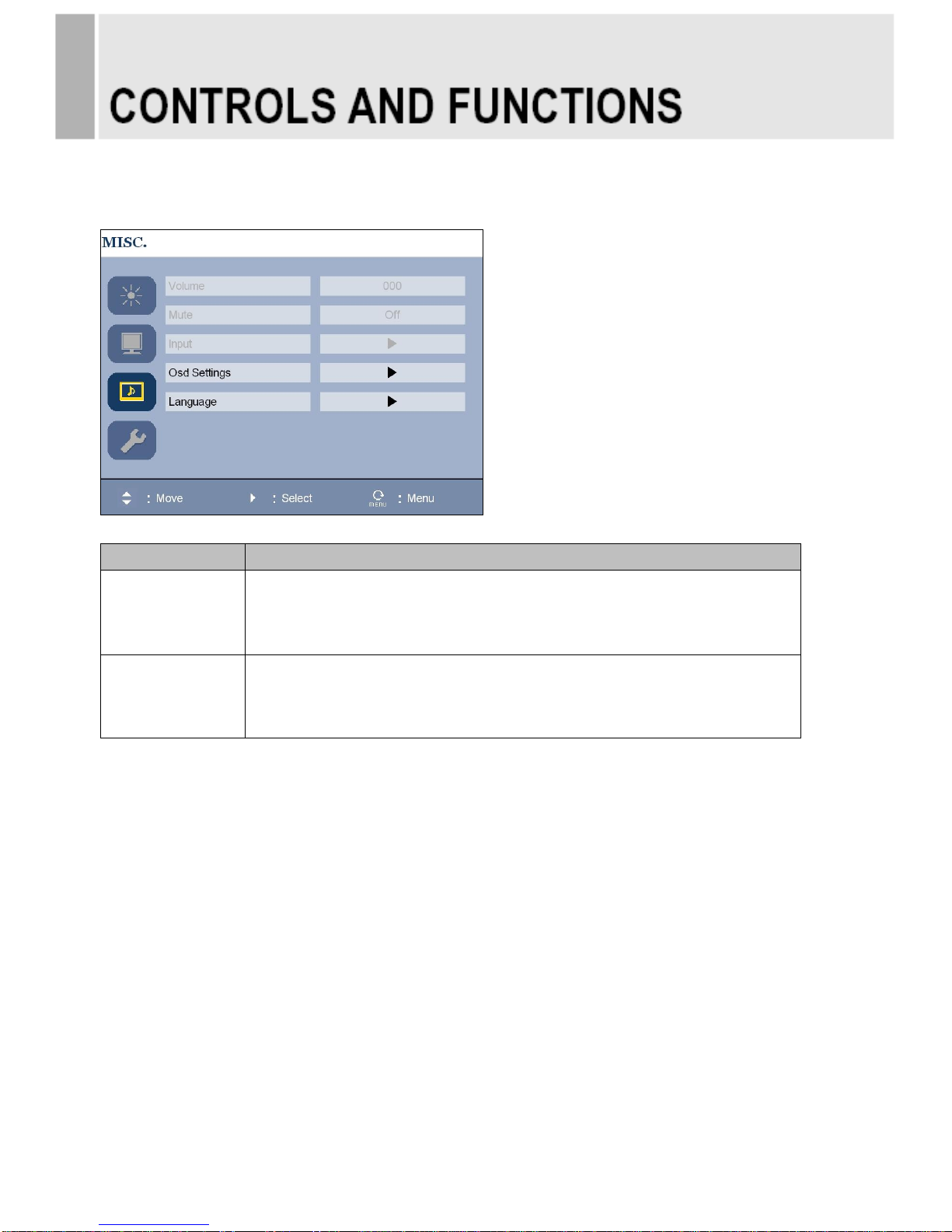

B. OSD
Submenu
Definition
Osd Settings
Adjusts the number of horizontal picture elements.
Choices are Timer (3sec, 6sec, 12sec), Rotation (0°, 90°, 180°, 270°),
Position and Transparancy (range 0-100).
Language
Adjusts the language of the OSD.
Choices are: English, Italiano, Russian, Espnol, Deutsch, Portugues,
Francais, Polski, Nederlands, Chinese
- 9 -

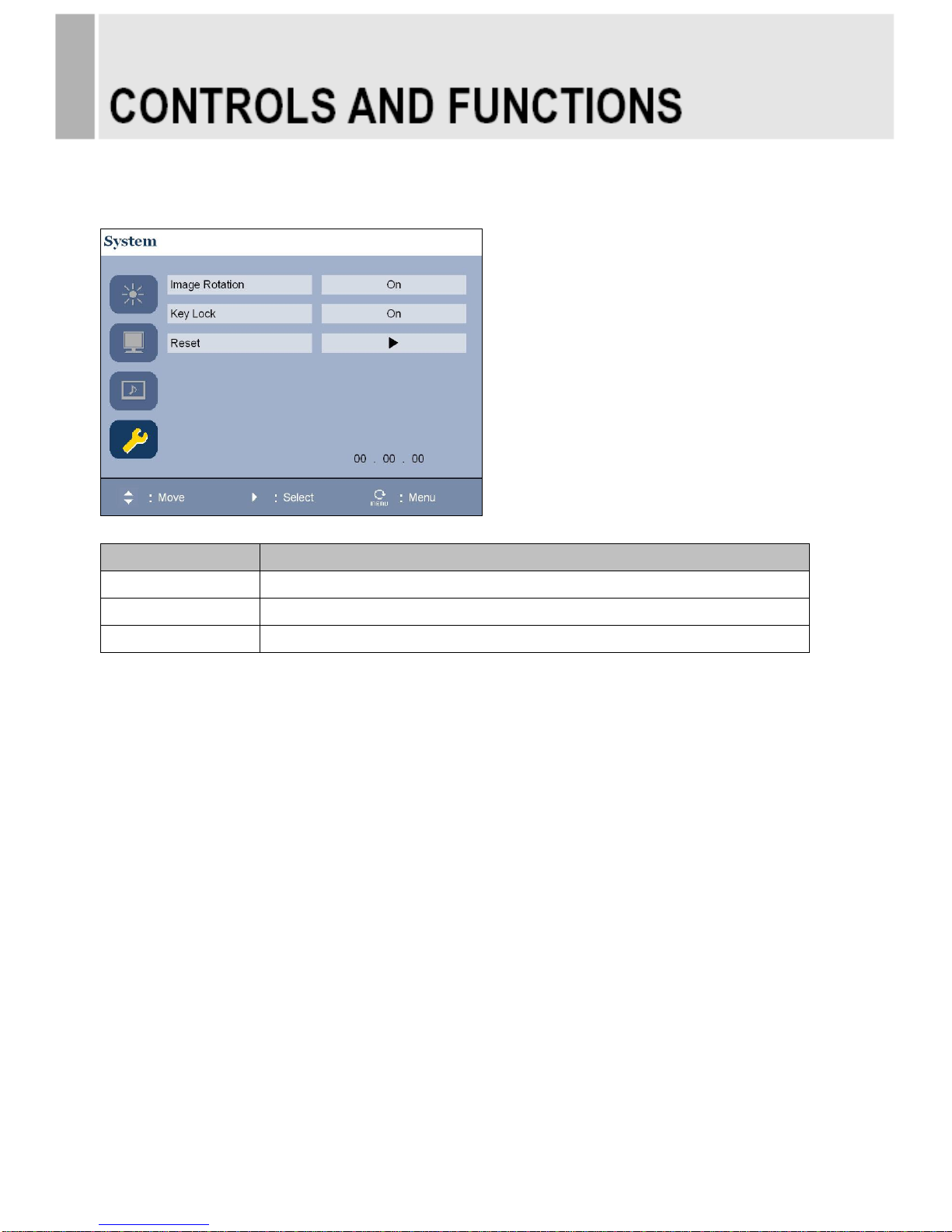

C. OSD
Submenu
Definition
Image Rotation
Activates the Image Rotation function.
Key Lock1)
Locks all buttons of the monitor.
Reset
Resets the monitor settings to their factory default.
1) How to unlock
On the front key: Press the Left and Down button at the same time over 3 seconds.
- 10 -

Wall mounting (Optional)
The LCD monitors are suitable for VESA standard wall mount (not included in the delivery).
(VESA : 600mm x 100mm x 100mm)
※Attention!
You must use six M8x8 screws to assemble this monitor and the wall mount bracket.
※WARNING!
If user use longer than M8x8 it may cause the damage on the unit.
Please follow instructed bolt size & length.
- 11 -
Screws

Power Consumption
Mode
Power Consumption
Turned On
< 67W
Turned Off
< 1W
LED Indicator
The power management feature of the monitor is comprised of two stages:
Turned on(Blue) and turned off(LED Off).
Mode
LED
Monitor Operation
Turned On
Blue
Normal Operation
Turned Off
LED Off
Not Operation
Accessories
1. Power cord
2. HDMI cable
3. Quick manual
4. CD (User manual, Quick manual)
- 12 -

42”
LCD Type
42˝ Diagonal AM-TFT(Active-Matrix)
Pixel pitch(mm): 0.4845(H) x 0.4845(V)
350cd/m²(Typical)
3000:1 (Typical)
178°/178°(H/V)
6.5msec (Gray to Gray)
Resolution (H x V)
1920X1080 @60Hz
Frequency
Horizontal: 31~80kHz,
Vertical: 56~75Hz
Input Signal
UPGRADE 1-2
UPGRADE SELECT S/W
RJ45
IP RESET
HDMI IN
Active Display
Area (H x V)
930.24 X 523.26 mm
Packing Dimensions
(W x H x D)
1294 x 900 x 320 mm
(50.16”x 34.65”x 11.81”)
Weight
18.4 kg (40.57 Ibs)
26 kg (57.3 lbs)
Electrical Ratings
100-240V~, 50/60Hz (Auto Switching)
▶▶ NOTE: Technical specifications are subject to change without notice.
- 13 -

WEEE Symbols
- 14 -
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other
European countries with separate collection systems)
This marking shown on the product or its literature,
indicates that it should not be disposed with other
household wastes at the end of its working life. To
prevent possible harm to the environment or human
health from uncontrolled waste disposal, please
separate this from other types of wastes and
recycle it responsibly to promote the sustainable
reuse of material resources. Household users should
contact either the retailer where they purchased this
product, or their local government office, for details of
where and how they can take this item for
environmentally safe recycling. Business users
should contact their supplier and check the terms
and conditions of the purchase contract. This product
should not be mixed with other commercial wastes
for disposal.

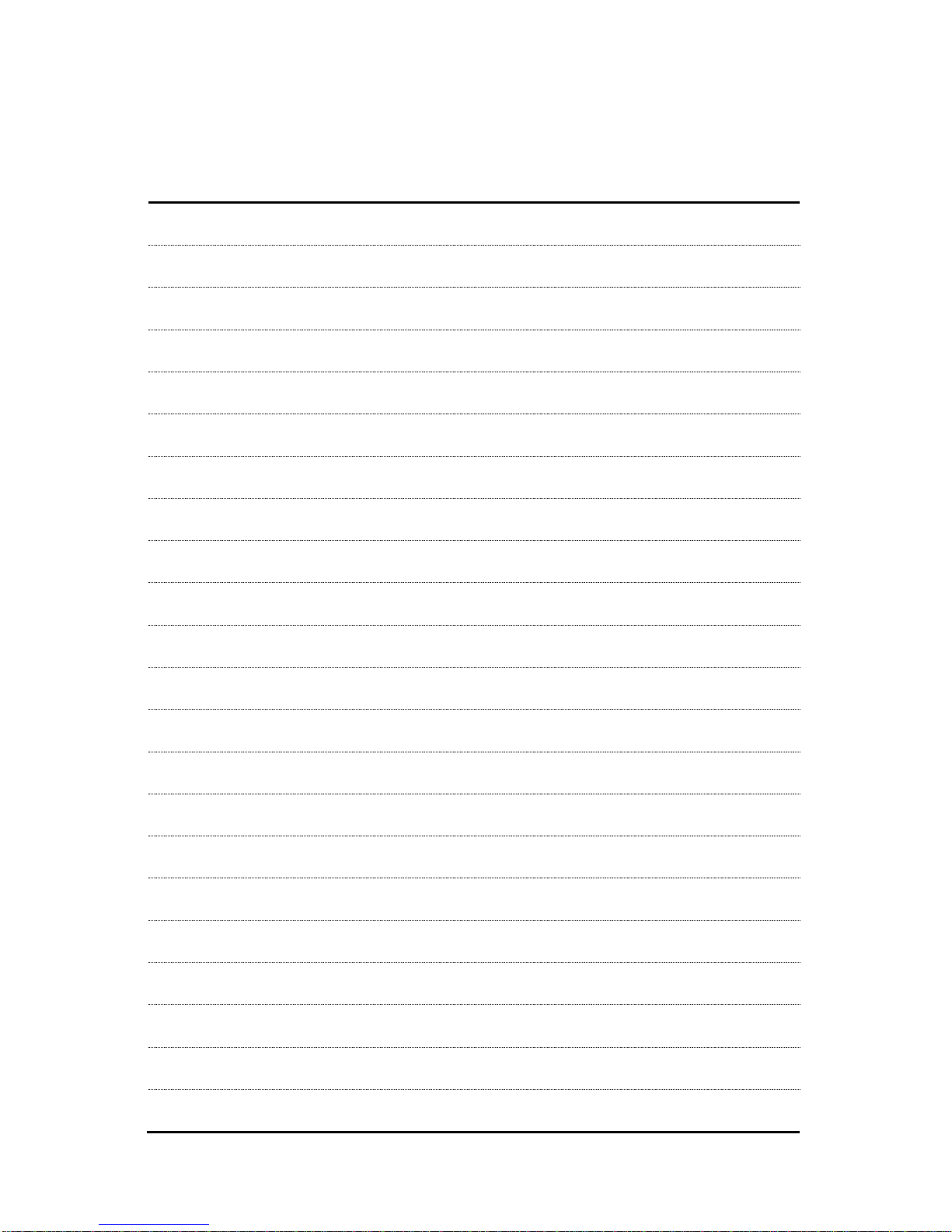

MEMO

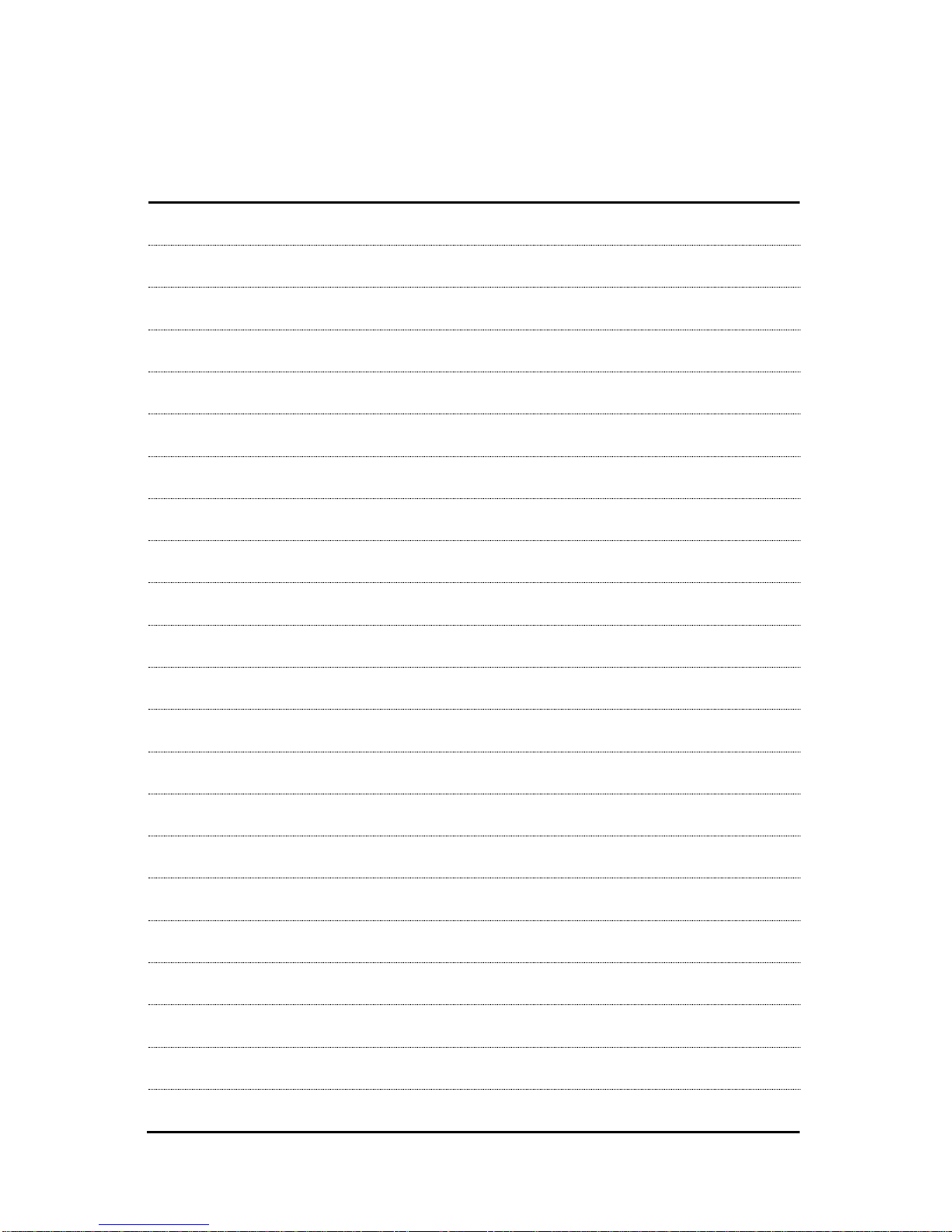

MEMO

P/N : L39ME0380 Rev.0
