Vigitron Vi50000 User manual

Vi50000 and Vi50001 PoE Media Converter Installation

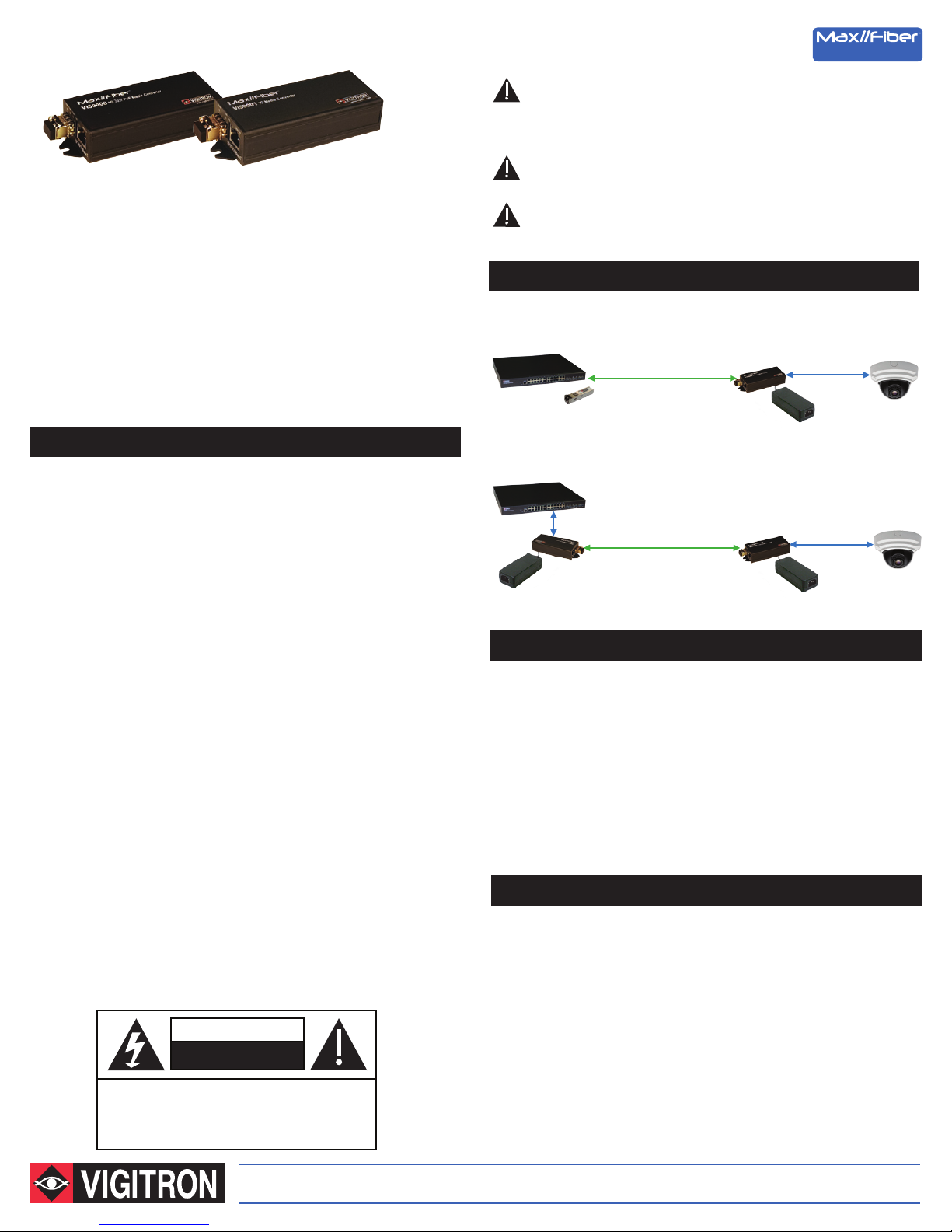

Application Drawing
Media Converter
Important Safety Warning
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a mains socket outlet thru an AC to DC Power supply.
WARNING! - The mains plug is used as the disconnect device and
shall remain readily operable.
Vi0017
PoE Camera
Vi3026/Vi3326
Vi50000 SFP
SFP +
+
Fiber Data & PoE
Vi0017
PoE Camera
Vi3026/Vi3326
Fiber Data & PoE
Vi0012
The Vi50000 connects to the optical port of Network Switch
The Vi50000 connects to a Vi50001
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
IP Camera-end Installation
The Smart Choice for Transmission Solutions www.vigitron.com
Ethernet Switch/NVR-end Installation
- Connect an approved 12VDC power supply to the power connector of
Vi50001 if there is no PoE available. A power adapter connector is provided
to simplify connection.
- Connect the RJ45 connector of the Ethernet switch to the 10/100/1GBaseT
Ethernet port of Vi50001 using a standard Cat5/6 cable of maximum
328 feet (100 m) in length.
- Connect one end of the long fiber optic cable to a SFP module, then
connect the SFP module to the SFP socket of Vi50001.
The Ethernet link, Fiber link, activity LEDs should be "ON" and "Blink" to
indicate the status of each port.
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer’s instructions.
- This installation should be made by a qualified service person and should
conform to all local codes.
- DO NOT bundle UTP or Coax signals in the same conduit as high-voltage
wiring.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient tempera
ture exceeds 75° C.
- Make sure that the external power supply output voltage is in the recom
mended range.
- Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus (including DVRs) that produce heat.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The power plug is used as the disconnect device and shall remain readily
operable.
Vigitron’s Vi50000 and Vi50001 work together to form a media converter
that enables Ethernet signals to be transmitted over fiber optic cables to
meet long distance transmission applications or reusing existing analog
fiber connections for IP applications.
The use of SFP fiber modules resulting in compatibility with all major
single-mode and multi-mode fiber optics cables to achieve transmission
distances depending on the cable and SFP. The Vi50000 provides IEEE
802.3af/at PoE up to 30W to the connected IP device such as IP camera
when used with appropriate power supplies. The Vi50001 can be
powered locally or by a PoE source.
The Vi50000/Vi50001 is an ideal solution for converting existing analog
fiber infrastructures to IP systems. It provides a unique, reliable, and cost
effective solution to combine a variety of transmission methods to meet
any application requirement.
- Insert a suitable 1000MBps SFP into the SFP socket of the Vi50000. The
SFP needs to match the specification of the fiber optics cable.
- Connect the fiber connector of the optical wire to the SFP.
- If the IP Camera is non-PoE use an approved 12VDC or 48VDC power
adapter to power the Vi50000.
- If the IP Camera is a PoE enabled use the Vi0017 or another approved
48VDC power adapter to power the Vi50000.
- Connect the IP camera's RJ45 connector to the “10/100/1GBaseT Ethernet”
port
Vi50000 SFP
+
Vi50001 SFP
+

Electrical
Ethernet Interface Standard 10/100/10000BaseT
Ethernet Rate Auto Negotiates 10/100/1G Mb/s
Fiber Optics SFP socket
Input Power 12VDC / 48VDC (when provides PoE)
PoE 802.3af/at up to 30W
Consumption 2W maximum
Connectors SFP Interface: SFP Socket
Ethernet Interface: RJ-45 Connector
Power: Pluggable Terminal Block
Environmental
Humidity 0 to 95%, non-condensing
Temperature Operating: -40°C to +80°C
Storage: -40°C to +85°C
Mechanical
Dimensions Vi50000: 0.97 x 1.75 x 4.26 in., 2.46 x 4.45 x 10.8 cm
(HxWxL) Vi50001: 0.97x1.75x3.93 in., 2.5x4.45x10 cm
Weight Vi50000: 0.235 lb, 107 g
Vi50001: 0.22 lb, 102 g
Material Extruded Aluminum
Accessories
12 VDC wall-mount power supply (optional)
48 VDC wall-mount power supply (optional)
*Specifications subject to change without notice.
**Distance figures are obtained using in house testing mirroring installations. Factors such as cabling, connections,
use of power and environmental conditions may affect actual distances and should be taken into consideration.
Limited Lifetime Warranty
Vigitron, Inc. warrants that all Vigitron products (“Product”), if used in accordance
with these instructions, will be free of defects in material and workmanship for
lifetime defined as the duration period of time until product end of life is announce-
ment. After which Vigitron will continue to provide warranty services for a period of 3
years. Period covering valid warranty will be determined by proof of purchase in the
form of an invoice from an authorized Vigitron dealer.
Warranty will only be provided for as long as the original end user purchaser owns
the product. Warranty is not transferrable. At Vigitron's option, defective product will
be repaired, replaced or substituted with a product of equal value. This warranty
does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used
or maintained not conforming to Product manual instructions, has been modified, or
serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an
approved agent will void this warranty. Vigitron, Inc. shall not under any circum-
stances be liable to any person for any incidental, indirect or consequential
damages, including damages resulting from use or malfunction of the product, loss
of profits or revenues or costs of replacement goods. The maximum liability of
Vigitron, Inc. under this warranty is limited to the original purchase price of the
Product only.
Technical Specifications*
RoHS
0.97x1.75x4.26 in., 2.46x4.45x10.8 cm (HxWxL)
Ordering Information
Status LEDs
© Copyright 2016 Vigitron, Inc.
TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205
7810 Trade Street, Suite 100, San Diego, CA 92121, USA • [email protected] • www.vigitron.com
Manual_Vi50000 and Vi50001
LED Name Color Status Function
OFF Power is OFF
ON Power is ON
OFF No PoE
ON PoE
OFF Fiber Link is OFF
YELLOW ON /
FLASHING Fiber Activity
OFF 10/100Mbps Connection When Linked
ON 1000Mbps Connection
OFF No Link
ON Link Flashes With Activity
Ethernet
Port
Power GREEN
PoE
(Vi50000 Only)
Fiber Port
Ethernet
Port GREEN
ORANGE
GREEN
Vi50000 Single Port 1G Media Converter
Vi50001 Ethernet to Fiber 1G (1000Mbps)
Media Convertor
Vi0012 12VDC @ 1 amp
Vi0017 40W @ 48VDC Power Supply
Vi1120 120W @ 56 Volts Power Supply
Vi00850MM-H 850nm MM SFP (multi-mode), Hardened
Vi01310SM-H 1310SM SFP (single-mode), Hardened
Part No. Description
