2016 Owner’s Manual
The BP Power System

TABLE OF CONTENTS
• Important Safety Instructions 2
Personal Safety Precautions 5
Installation an Set-Up Instructions 5
Electrical Requirements (VS100) 5
Electrical Requirements (BP-601) 7
Electrical Specifications 8
• Spa Directions 9
• Operation Instructions 9
Topsi e Control Instructions (all single pump systems) 10
Topsi e Functions 11
Diagnostic Messages 12
Features foun on various Viking mo els 14
Topsi e Control Instructions (all two pump systems) 15

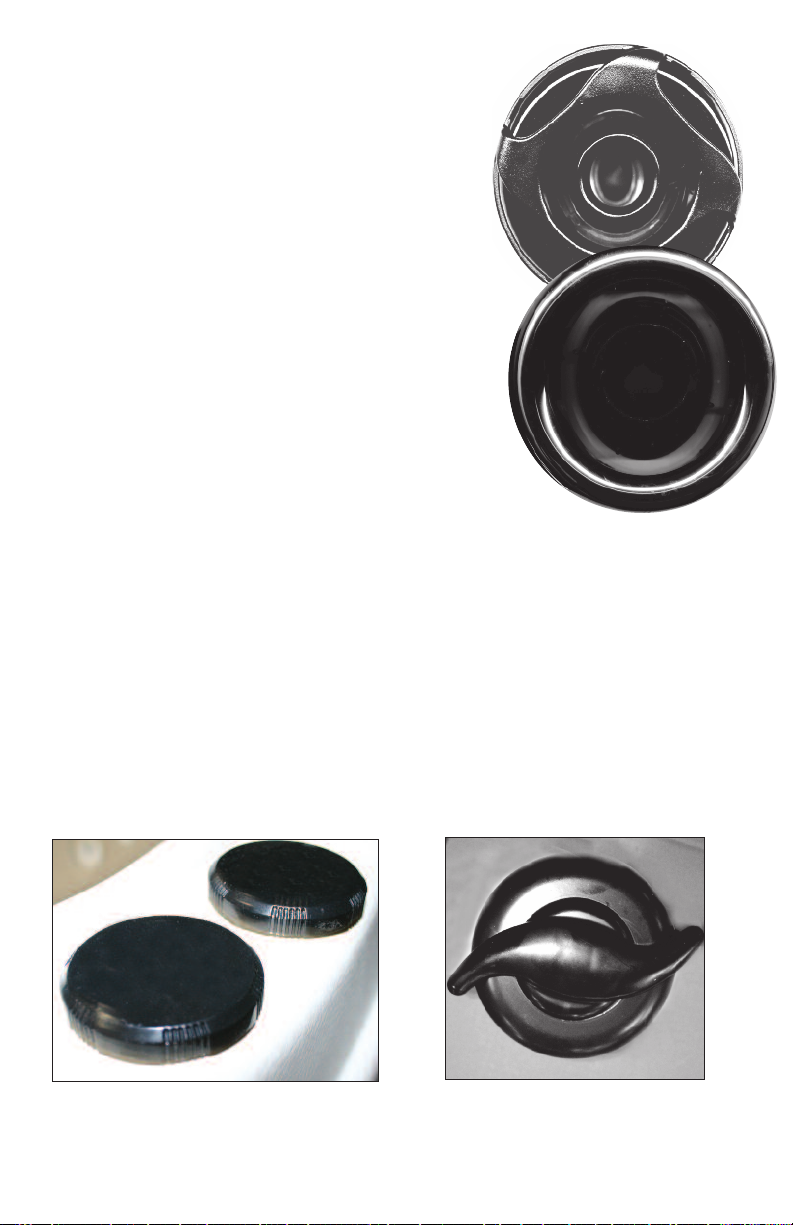

Spa Jets an Air Controls 18
• Filling Directions
Fill the Spa With Water 21
Skimmer Si e Filter 21
A Start-Up Chemicals 21
• Maintenance 22
Spa Draining 22
Spa Surface Care 23
Long-Term Storage 23
Pillow Maintenance 23
Filter Cleaning 24
Spa Cabinet Maintenance 24
• Ozonator 26
• Gallon Specifications 26
• Spa Situations & Solutions 27
• Trouble Shooting 28
1

IMPORTANT SAFETY INSTRUCTIONS
When installing an using this electrical equipment, basic safety pre-
cautions shoul always be followe , inclu ing the following:
READ AND FOLLOW
ALL INSTRUCTIONS
1. WARNING: To re uce the risk of injury, o not permit
chil ren to use this pro uct unless they are closely supervise
at all times. Keep spa cover locke when not in use.
2. A wire connector is provi e on this unit to connect a minimum
No. 8 AWG (8.4mm2) soli copper con uctor between this
unit an any metal equipment, metal water pipe or con uit
within 5 feet (1.5m) of the unit.
3. DANGER: Risk of Injury. The suction fittings in this spa are
size to match the specific water flow create by the pump.
Shoul the nee arise to replace the suction fittings or the
pump, be sure that the flow rates are compatible. Never
operate the spa if the suction fittings are broken or missing.
Never replace a suction fitting with one rate less than the flow
rate marke on the original fitting.
4. DANGER: Risk of Acci ental Drowning. Extreme Caution
must be exercise to prevent unauthorize access by chil ren.
To avoi acci ents, insure that chil ren cannot use this spa
unless they are supervise at all times.
5. DANGER: Risk of Electric Shock. Install at least 5 feet (1.5m)
from all metal surfaces. As an alternative, a spa may be
installe within 5 feet of metal surfaces if each metal surface is
permanently connecte by a minimum No. 8 AWG (8.4mm2)
soli copper con uctor to the wire connector on the terminal
box that is provi e for this purpose.
2

6. DANGER: Risk of Electric Shock. Do not permit any
electrical appliance, such as a light, telephone, ra io or
television within 5 feet (1.5m) of a spa.
7. WARNING: To Re uce the Risk of Injury:
a) Before using your spa you shoul check the water
temperature with a thermometer that is known to be
accurate. The water temperature in a spa shoul never
excee 104°F (40°C). A water temperature of 104°F is
consi ere safe for a healthy a ult. Lower water
temperatures are recommen e for young chil ren an
when spa use excee s 10 minutes.
b) Since excessive water temperatures have a high potential for
causing fetal injury uring the early months of pregnancy,
pregnant or possibly pregnant women shoul limit spa
water
temperature to 100°F (38°C).
c) The use of alcohol, rugs, or me ication before or uring
spa use may lea to unconsciousness with the possibility of
rowning.
) Persons suffering from obesity or with a me ical history of
heart isease, low or high bloo pressure, circulatory
system problems or iabetes shoul consult a physician
before using a spa.
e) Persons using me ication shoul consult a physician before
using a spa since some me ication may in uce rowsiness
while other me ications may affect heart rate, bloo
pressure an circulation.
8. The causes, symptoms an affects of hyperthermia may be
escribe as follows:
Hyperthermia occurs when the internal temperature of the bo y
reaches a level several egrees above the normal temperature
of 98.6°F. The symptoms of hyperthermia inclu e an increase
in the internal temperature of the bo y, izziness, lethargy,
rowsiness an fainting.
The effects of hyperthermia inclu e:
• Failure to feel heat
• Failure to recognize the nee to exit the spa
3

• Unawareness of impen ing hazar s
• Fetal injury in pregnant women
• Physical inability to exit the spa or hot tub
• Unconsciousness resulting in the potential of rowning
9. WARNING: The use of alcohol, rugs or me ication can
greatly increase the risk of fatal hyperthermia. If you suspect
hyperthermia, imme iately get me ical help, lay the victim on
their back with the hea slightly elevate for easier breathing,
cover the bo y with a blanket an apply ice packs to the
hea .
10. Never touch or come in contact with any electrical accessory
when in your spa or when your bo y is wet.
11. Prior to performing any service to the spa pack, turn off ALL
power to the system at the main power source breaker.
NOTE: A READILY ACCESSIBLE DISCONNECTING MEANS
SHALL BE PROVIDED DURING INSTALLATION.
SAVE THESE INSTRUCTIONS
PERSONAL SAFETY PRECAUTIONS
1. Please use the spa when others are present.
2. Chil ren shoul have spa access only with the permission an
supervision of an a ult.
3. To re uce the risk of chil rowning, keep the spa filter clean
an unclogge . Do not mo ify the suction or filtration
systems.
4. Exercise caution when entering or leaving the spa. When
moving or changing positions, be sure of your footing before
applying your full weight as water refraction can be
mislea ing.
5. Do not stay in the spa for exten e perio s of time. Set a
reasonable time limit after which you leave the spa, cool
own, take a shower, relax an then return for another stay in
the spa.
4

INSTALLATION AND SET-UP INSTRUCTIONS
SURFACE AND PAD REQUIREMENTS
• Your new portable spa must be place on a uniformly firm,
flat an level surface. A concrete pa 4 inches thick is best.
• In or er to prevent floo ing of the electrical equipment, the
pa must be such that water will rain away from the spa.
• If your spa is locate near sprinklers, a just or cap them so
as not to hit the si ing of the spa.
NOTE: Do not put your spa on any soft surface such as san , grass,
crushe rock or irt. Any settling surface will put an uneven pressure an
tension to the spa structure an may voi the warranty.
BALCONIES AND DECK REQUIREMENTS
• Decking must be constructe to support 85 poun s per sq. ft.
• Balconies must be constructe to meet current state an
local co es.
• Gates must be self-closing an self-latching.
ELECTRICAL REQUIREMENTS
NOTE: Name ba ge on rub rail in icates equipment location
15 amp GFCI Rating
Viking 1P 120v, Viking 2P 120v, Aurora 1P 120v, Aurora 1PSL 120v,
Royale P 120v, Royale PSL 120v, Regal P 120v, Regal PSL 120v
50 amp GFCI Rating
Viking 3, Aurora 2, Aurora 3, Royale, Regal, Royale ETS, Regal ETS,
Legacy 1 & Legen 1
60 amp GFCI Rating
Legacy 2, Legen 2, Heritage 1 & 2, Tra ition 1 & 2,
• Your 110-volt or 220-volt spa pack is esigne to be
“PERMANENTLY CONNECTED”.
• It is the customer’s responsibility to acquire necessary
permits and to arrange for installation and hook up of
the electrical power. 5

220-VOLT
(BP601 Power System)
\
6
*Green groun connection locate on left si e of control panel.
WHITE
BLACK
RED
GREEN*

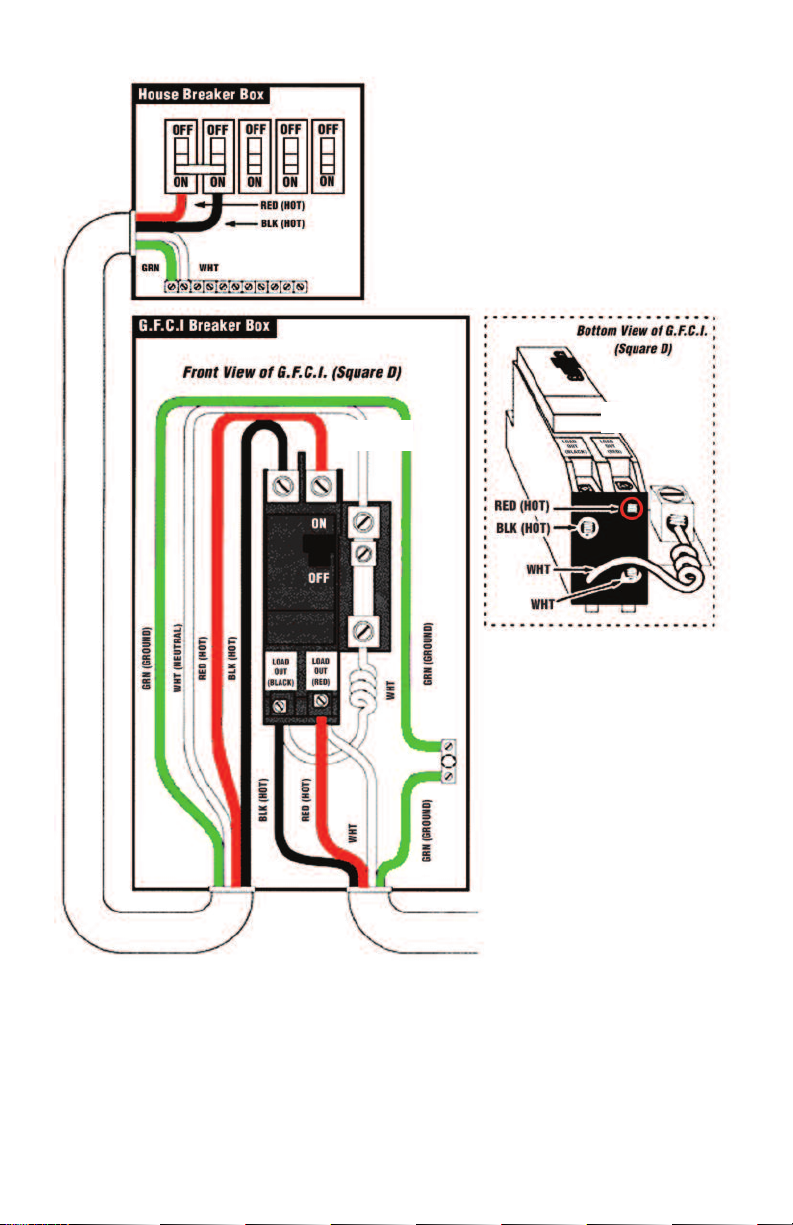

GFCI WIRING INSTALLATION (220V)
(BP601 Power System)
7

ELECTRICAL SPECIFICATIONS
GENERAL
NOTICE: All spa electrical wiring must be performed by
a qualified licensed electrician in order to meet NEC
(National Electrical Code) state and local codes.
1. The lines carrying power to the spa must be e icate to the
spa an shoul not be share with any other appliance(s).
2. All electrical wiring lines must originate from the electrical
panel an terminate, har wire , into the electrical wiring
compartment. The use of extension cor s or improper plug
type termination is expressly prohibite an voi s the warranty.
3. Do not use aluminum wiring. Use only copper conductive
wiring.
4. Wire gauge must be in accordance with NEC
requirements for the istance from current source to spa an
the current rating as state on the ID label that is attache to
the equipment control enclosure.
5. All wiring installe in con uit must be approve for usage
by state an local co es. The con uit must terminate at the
electrical access compartment either from the bottom of the
spa or through a hole in the si e panel of the spa.
8

SPA STARTUP DIRECTIONS
All Viking Spas require a soli , flat surface.* This is to ensure that the
spa cabinet is not expose to a pressure stress con ition that may
result in cabinet amage an shell cracking. A concrete pad is
the best example of a solid flat surface however wood
decking is suitable provided it can withstand 85# per sq.
ft. without deflection.
* FAILURE TO PROVIDE A PROPER SOLID FLAT SURFACE
MAY DAMAGE YOUR SPA AND VOID YOUR WARRANTY.
Please check with a license contractor an local co es prior to any
construction.
OPERATION INSTRUCTIONS VS100/BP601
It is very important to make sure that the spa is fille at least 3/4 way
up the skimmer opening. Make sure the gate valves are in the
open or up position.
WARNING: Do not run spa with gate valves close or run pump with
no water circulating in spa for long perio s. Damage coul occur to
the spa equipment.
9

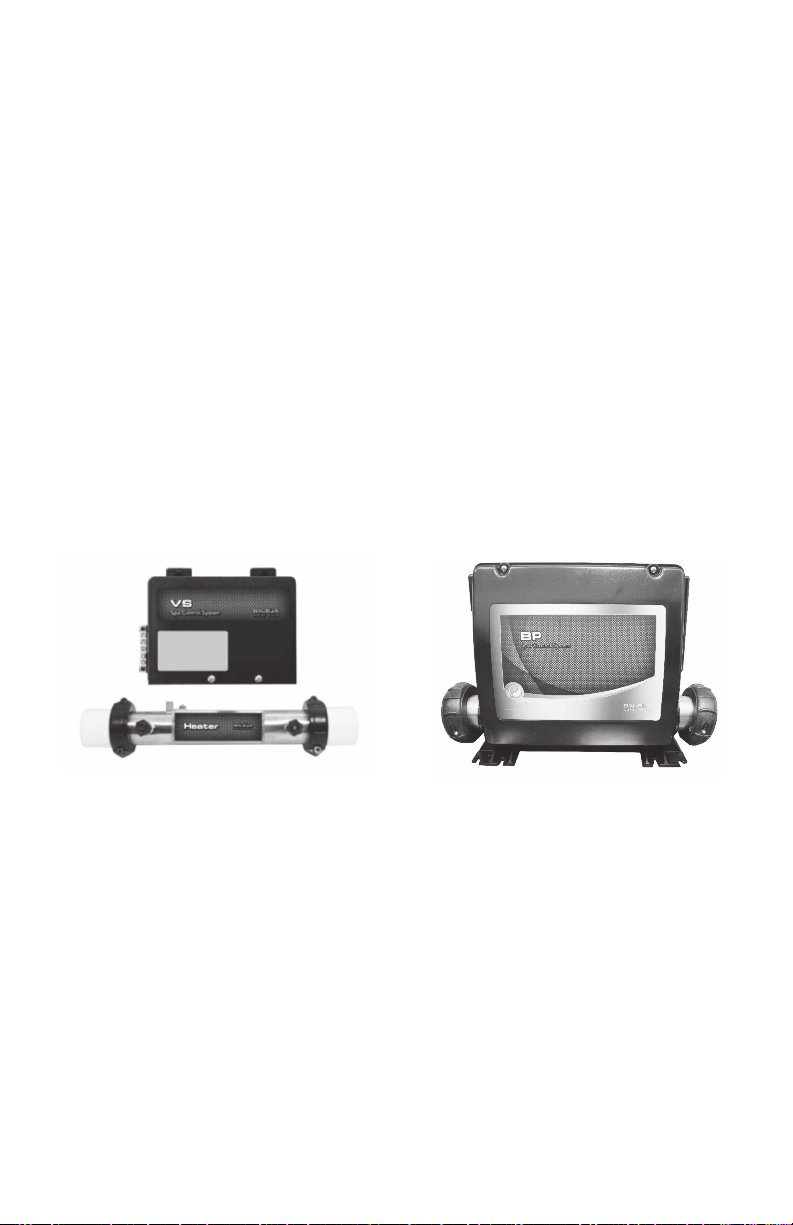

VS100 System
Installed in: Viking 1P, Viking 2P
Aurora 1P, Aurora 1PSL, Royale P,
Royale PSL, Regal P, Regal PSL
BP601 System
Installed in: Viking 3, Aurora 2,
Aurora 3, Royale, Regal, Royale
ETS, Regal ETS, All Legacy,
Legen , Heritage an Tra ition

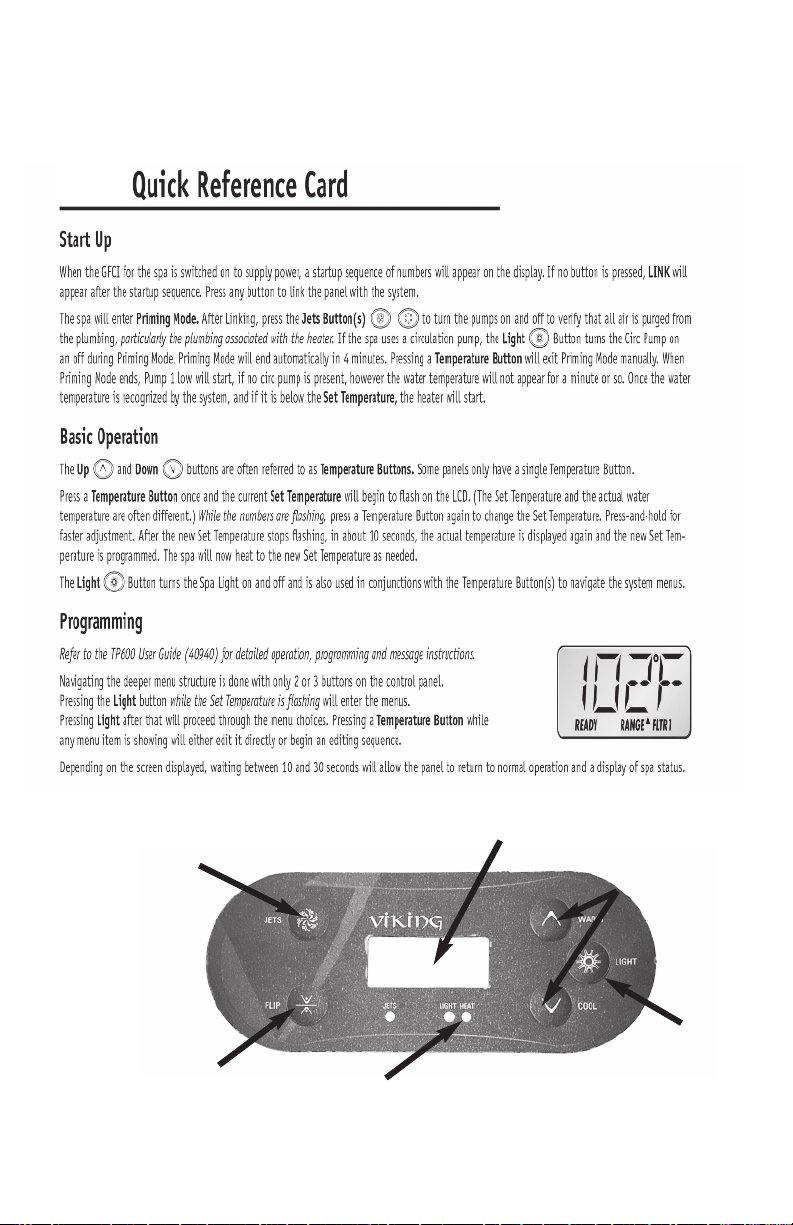

TOPSIDE CONTROL INSTRUCTIONS
(All Models except Royale ETS Regal ETS Legacy Legend
Heritage & Tradition)
10
Heat On
Indicator Light
Turns Light
On/Off
Controls Low
Speed/High Speed Pump
Displays Temperature and
Diagnostic Messages
Sets Water
Temperature
Inverts Display

NOTES:
11

DIAGNOSTIC MESSAGES
Message Meaning Action Required
_ _ Temperature Unknown After the pump has been
running for 2 minutes, the
temperature will be isplaye .
HH “Overheat” – The spa DO NOT ENTER THE WATER.
has shut own. Remove the cover an allow
One of the sensors has water to cool. Reset by pushing
etecte 118°F/48°C any button.
at the heater.
OH “Overheat” – The spa DO NOT ENTER THE WATER.
has shut own. One of Remove the spa cover an
the sensors has etecte allow the water to cool. At
that the spa water is 107°F/42°C the spa shoul
110°F/43°C. automatically reset. If it oes not,
shut off the power to the spa an
call your ealer or service
organization.
IC “Ice” – Potential freeze No action require . The pump(s)
con ition etecte . will automatically activate
regar less of spa status.
SA The spa has shut own. If the problem persists, contact
The sensor that is your ealer or service organ-
plugge into the ization. (May appear temporari-
Sensor “A” jack is not ly in an overheat situation an
working. isappear when the heater cools.)
SB The spa has shut own. If the problem persists, contact
The sensor that is your ealer or service organ-
plugge into the ization. (May appear temporari-
Sensor “B” jack is not ly in an overheat situation an
working. isappear when the heater cools.)
12

Sn Sensors are out of If the problem persists,
balance. If alternating contact your ealer or service
with spa temp, it may organization.
just be a temporary
con ition. If flashing by
itself, spa is shut own.
HL A significant ifference Check water level in spa.
between temperature Refill if necessary. If the water
sensors has been level is okay, make sure the
etecte . This coul pump(s) have been prime .
in icate a flow problem.
LF Persistent low flow Follow action require for “HL”
problems. (Displays
on the fifth occurrence of
HL message within 24 hrs.)
Heater is shut own, but
other spa functions continue
to run normally.
dr Possible ina equate Check water level in spa. If
water, poor flow or water level is okay, make sure
air bubbles etecte pump(s) have been prime .
in the heater. Spa Press any button to reset or this
is shut own for 15 message will automatically reset
minutes. within 15 minutes.
dy Ina equate water Follow action require for “ r”
etecte in heater. message.
(Displays on thir
occurrence of “ r”
message.) Spa is shut
own.
WARNING! / Shock Hazard! / No User Serviceable Parts.
Do not attempt service of this control. Contact your spa
retailer or service organization for assistance. Installation
and/or service must be performed by a licensed electrician
and all grounding connections must be properly installed. 13

WATERFALL ADJUSTABILITY
All mo els (except the Viking 1P, Aurora 1P, Royale P an Regal mo -
les) feature a Waterfall, which allows the user to regulate the flow of
water to the jet by simply turning the valve for the waterfall from “off”
to “on”. (See illustration below)
LED LIGHTING FEATURE
The Aurora 1PSL, Royale PSL, Regal PSL, Viking 3, Aurora 3, Royale,
Royale ETS, Regal, Regal ETS, Legacy, Legen , Heritage & Tra ition
Series mo els are also equippe with an LED light system. This light-
ing, which encompasses the interior of the spa, is also incorporate
into the light in the foot well of these mo els. The LED Lighting system
consists of a 9 position controller. The first time the light is turne on,
it will begin to isplay all 9 colors available in an automatic rotating
sequence. Each time you sequence the light on/off, all colors will be
isplaye in ivi ually. The last function of the cycle is a unique
strobe feature. It may be necessary to wait 1-2 secon s between
cycling the lights on an off in or er to get to the next color sequence.
14
Regulates Air
into Jets
Waterfall
On/Off Control
NOTE: Close air controls
when not in use.

OPERATION INSTRUCTIONS BP601 - 2 pumps
(Royale ETS Regal ETS Legacy Legend Heritage & Tradition)
TOPSIDE CONTROL INSTRUCTIONS - 2 pumps
15
BP601 System
Heat On
Indicator Light
Turns Light
On/Off
Controls Low
Speed/High Speed Pump
Displays Temperature and
Diagnostic Messages
Sets Water
Temperature
Inverts Display
Controls
High Speed
Secondary
Pump

TOPSIDE CONTROL INSTRUCTIONS
2 pump continued
16

FREEZE PROTECTION
Note: For all other diagnostic messages please refer to
the Balboa Operation Guide that came with your spa.
Warning! / Shock Hazard! / No User Serviceable Parts.
Do not attempt service of this control system. Contact your
dealer or service organization for assistance. Follow all
owner’s manual power connection instructions. Installation
must be performed by a licensed electrician and all
grounding connections must be properly installed.
17

SPA JETS AND AIR CONTROLS
SPA JETS
A justable Spa Jets may be turne off an on by rotating jet faceplate
left or right.
Note: DO NOT TURN ALL SPA JETS OFF AT THE
SAME TIME. THIS MAY CAUSE DAMAGE TO THE
PUMP AND MOTOR.
Note: To remove jet insert, turn jet face counter-clockwise to the shut
off point. Continue turning until the jet unscrews from bo y. To rein-
stall the jet, insert jet into bo y an turn clockwise until the jet stops.
18
Twin A justable Roto Power Storm
Directional & Roto Poly
Directional Mini
& Roto Storm
Directional Cluster

TURBO/WHIRLPOOL JET (Viking 2P &
Viking 3 only)
VOLCANO Jet (Heritage & Tradition
only)
The Turbo jet is locate on the filter cavity
wall is the Turbo jet. This jet is a combina-
tion valve an high capacity jet. To turn
the Turbo jet on, simply turn the face counter-
clockwise to the first stop position. To turn the
Turbo jet off, turn the face clockwise to bring the main
jets back to full power.*
The Volcano Jet operates on a valve
locate in the mi le of the lounger. Turn
the valve to activate the jet. Note: this valve
irects one of the pumps an will effect the flow
this pump use to power other jets in the spa.
* Due to the substantial amount of water pressure when the Turbo Jet
is operating, you must turn the pump to the off or low spee cycle
position before attempting to rotate the jet face.
AIR CONTROLS
Air controls are a juste by rotating the topsi e ial. These controls
serve to regulate the amount of air mixe with water when the
whirlpool or hy rotherapy jets are operating in the high pump
mode.
19
Viking 1P Viking 2P Viking 3
Only
All other models (See illus-
tration on page 14)
