Takara Belmont YUME SWING User manual

1Version 6 2022.09
●The precautions listed here are to ensure that YUME SWING can be installed safely, and to prevent any danger or risk to the person installing
YUME SWING or those around them. All of these precautions are important for safety. Takara Belmont is not responsible for any damage or risk
to the person installing YUME SWING or those around them due to accidents if YUME SWING is installed without adhering to the precautions.
If YUME SWING is installed after ignoring this symbol, “there is the risk of light or moderate injury or physical damage”.
Table of Contents
Before Installation 2
1 Overall Layout Diagram 2
2 Product Fixing Position 5
3 Installation Conditions 8
Usage Conditions 9
Name of Parts 10
Contents of Packaging 11
Carrying the Product 15
Installation of the Product 16
1 Check the Position of Mirror and Cabinet 17
2 Installation of SWINGArm 17
3 Installation of Caster Rail 19
4 Installation of Basin Unit 23
5 Plumbing 25
6 Installation of Chair 27
7 Adjustment of Center of Basin Unit and Chair 28
8 Checking after Plumbing 30
9 Installation of Base Front Cover 31
10 Installation of Rotation Arm Cover 31
11 Installation of Maintenance Cover 32
12 Installation of Caster Cover 32
13 Installation of Plumbing Cover 33
After Installation 34
Installation of Neck Cushion 34
■Yume Swing (Reverse Slide Layout Spec.)
○Basin Unit
EX-YMSBXYM2 (YUME Basin, Reverse Slide Spec.)
EA-YMSPK2 (Wall mounted plumbing)
EA-YMSPY2
(Under the floor plumbing)
○SWING Arm
EX-YMSAF2 (Front Layout, Reverse Slide Spec.)
EX-YMSAR2 (Rear Layout, Reverse Slide Spec.)
(Image is of EX-YMSBXYM2/EX-YMSAR2/EA-YMSPY2)
Caution
To the clients
・Clients must ask professional to install YUME SWING.
・Clients must not install YUME SWING by themselves.
・Clients must store these manuals in a safe place so as not to lose them.
To the installer
・The manuals should be thoroughly read and understood before installation to ensure
that YUME SWING is installed correctly.
・After installation, give these instructions to the client.
*The actual shape of YUME SWING, the images and dimensions listed in these manuals may be modified
and are subject to change without notice.
YUME SWING for Reverse Slide Layout
Installation Manual
Basin Unit
SWING Arm
Plumbing Cover
○Plumbing Cover
EA-YMSPU2 (Above the floor plumbing)
MEMO 35

2
Before Installation
Overall Layout Diagram
1
■Side View (Seeing from A)
Chair maximum height
850
15
73
Neck position
Height to neck fittings（*1）
Height to neck cushion ：800
＜Front Layout＞
■Top View
*When installing more than 1 unit, space between unit to unit to be 2200 mm or more.
[Unit: mm]
3000 or more
30
80
302
34.5
36.5
8
135
102.5
27
156
(β)
45
340
(γ)
185
98
164.5
4050
40 60 377
(Width of fixing base)
206
550
2200 or more
(Cabinet)
317
99
190
(α)
[X]
900 (1300)
[Ｙ]
700 (Cabinet)
103.5
164
321or more
Piping
Wall
Chair center
Edge of fixing base
Drain pipe center
Cabinet
Fixing base
Mirror center line
Drain
VU/VP40
H=140
Plumbing cover
Water supply
Rc1/2”
13m/m
H=90
<In case of Under the floor plumbing>
A
Edge of fixing base
Caster rail F
Rotation
center
Hot water
supply
Rc1/2”
13m/m
H=60
*Be sure to use the
plumbing cover for
Under the floor plumbing.
759
624
2761517141 SET JOY ABLE
795
660
2401565105REGALOⅡ
783
648
2521549117
LUXURY MAXIM
786
651
2491553114DIVAN
756
621
2791513144INOVA
771
636
2641533129LEGEND
783
648
2521549117LUAR
(α) (β) (γ)
[Y][ X]
Chair
[X] and [Y] dimensions differ depending
on the type of chair using with YUME SWING.
Check the dimensions from the list as shown below.
(α, β, γdimensions are for reference.)
233
50
Basin Unit
Height of neck fittings ( *1)
EX-YMSBXYM2
[YUME Basin] 774
macaron
143 1515 278 622 757

3
Chair maximum height
■Side View (Seeing from B)
Neck position
Height to neck fittings（*1）
*When installing more than 1 unit, space between unit to unit to be 2200 mm or more.
＜Rear Layout＞
■Top View
[Unit: mm]
VU/VP40
H=140
Cabinet
Plumbing
<In case of Under
the floor plumbing>
Plumbing cover
*Be sure to use plumbing
cover for Under the floor plumbing.
Wall
Edge of fixing base
Drain pipe center
Drain
Hot water
supply
Water supply
Fixing base
Rotation
center
Caster rail R
Mirror
Mirror center
Edge of fixing base
Chair center
Detail view of the plumbing
<In case of Wall mounted plumbing>
Hot water
supply
Water
supply
Drain
or more
[X] and [Y] dimensions differ depending on the type of
chair using with YUME SWING.
Check the dimensions from the list as shown below.
( dimensions are for reference.)
Basin Unit
Height of neck fittings ( *1)
EX-YMSBXYM2
[YUME Basin] 774
Wall mounted
plumbing
*Be sure to use
the plumbing
cover for Wall
mounted
plumbing.
Chair
macaron
1047
273
1473
1338
990
(1285)
788
1157
3000
or more
or more
1000
191
1391
1256
943
(1203)
1046
271
1471
1336
989
(1283)
1077
325
1525
1390
1020
(1337)
1067
308
1508
1373
1010
(1320)
1070
312
1512
1377
1013
(1324)
1045
269
1469
1334
988
(1281)
1057
290
1490
1355
1000
(1302)
1067
308
1508
1373
1010
(1320)
penta
LUXURY MAXIM
DIVAN
INOVA
LEGEND
LUAR
SET JOY ABLE
REGALOⅡ
[Y][X]
1200 100
Rc1/2”
13m/m
H=90H=60
Rc1/2”
13m/m
302 45 190
27 40
50
185
16498
254
310
250
6040
34.5 135 36.5
103.5 102.5
206 104
8
86
50
40
45
2200
850
73
15
233
50
Height to neck cushion ：800
(Width of fixing base)

4
＜In case of Under the floor plumbing/
Above the floor plumbing＞
・Be sure to use the plumbing cover for Above the floor plumbing.
＜In case of Wall mounted plumbing/
Above the floor plumbing＞
・Be sure to use the plumbing cover for Wall mounted plumbing.
＜Front LayoutーPiping construction diagram＞
50 40
45
Drain pipe
Water supply
Hot water
supply
wall
Cabinet
Above the floor plumbing（Diagonal line)
(Be sure to use the plumbing cover for Above the floor plumbing.）
377
6040
60 90
140
Water supply
Hot water
supply
Drain pipe
wall
Cabinet
50
30
50
45（
Hot water supply
）
55（
Drain pipe
）
85（
Water supply
）
Drain pipe
Water supply
Hot water
supply
wall
Cabinet
60 90
140
Water supply
Hot water
supply
Drain pipe
Cabinet
wall
■Top View
■Side View

5
Product Fixing Position
２

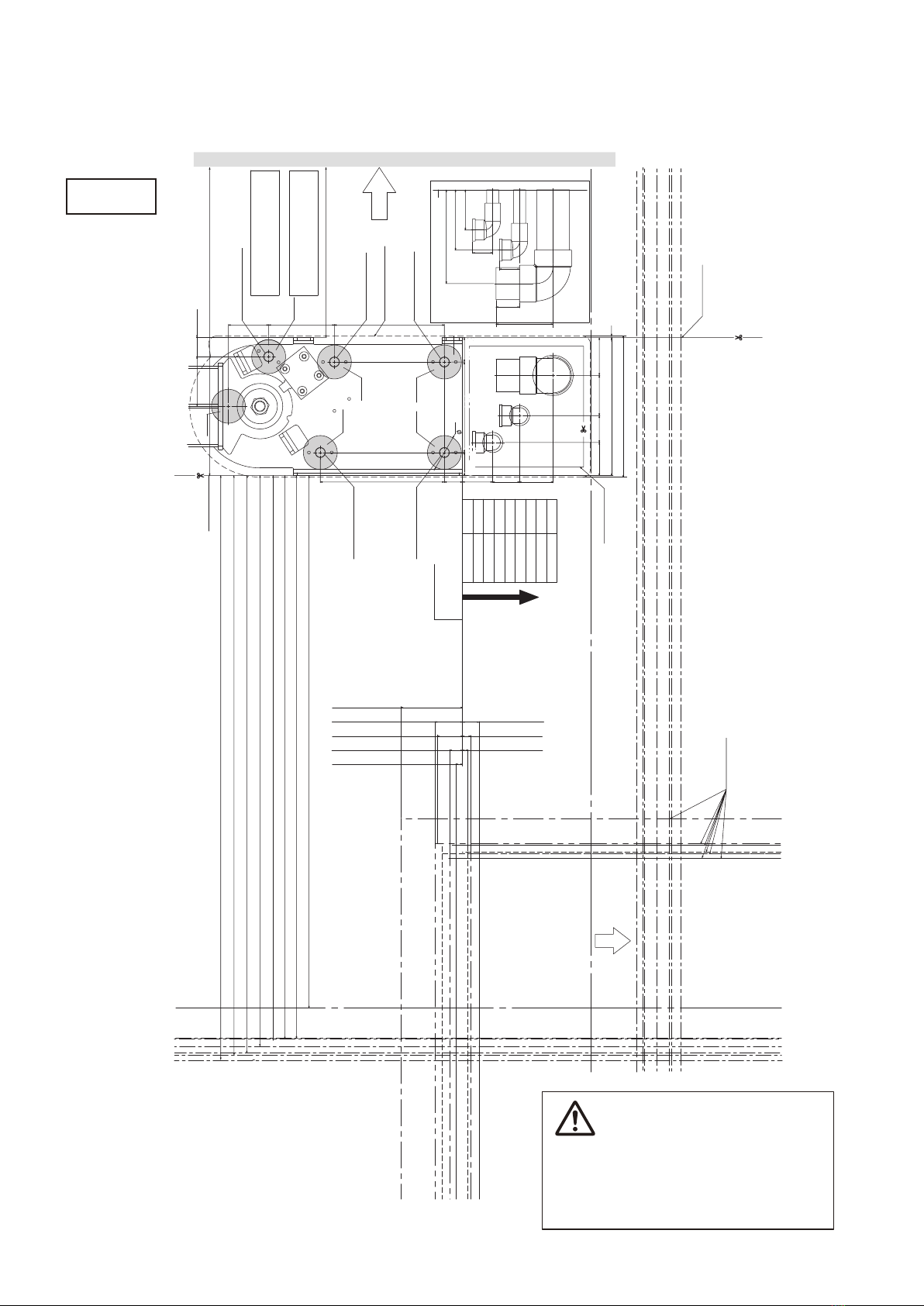

＜Floor template / Front Layout＞[Unit: mm]
MACARON
757
LUAR
783
LEGEND
771
INOVA
756
DIVAN
786
LUXURY MAXIM
783
REGALOⅡ
795
SET JOY Able
759
(49.5)
40 60
(56.5)
454050 27 185
164 98
28.5
74
60
105
(REGALOⅡ）
114 (DIVAN)
117
(LUAR , MAXIM)
129
(LEGEND)
141 (SET JOY Able)
143 (MACARON)
144 (INOVA)
51
689
(Belle Chaise)
679
(MACARON)
677
(INOVA)
701
(SET JOY Able)
707
(LEGEND)
723
(LUAR , LUXURY MAXIM)
727
(DIVAN)
739
(REGALOⅡ)
2
85
35
140
90 60
ＧＬ
30
30
34.5
135
36.5
LUXURY
<Raised pipes> 【1：1】
Perforations②
206 (Width of fixing base)
210.2 (Outer size of plumbing cover)
Hot water supply
Rc1/2"
13m/m
Water supply
Rc1/2"
13m/m
Drain VU40
／
VP40
Floor setting
Floor setting
Floor setting
Floor setting
Floor setting
Edge of fixing base
Bolt (anchor) fixing position
Bolt (anchor) fixing position
*In the case that space between
wall and chair center is
<(In case of wall mounting or using more than 1 unit), from edge of Yume Swing basin to edge of fixing base>
Perforations①
Edge of fixing base
<From edge of fixing base to mirror center>
<From edge of fixing base to chair base front edge>
Chair front
Please note that this is a template for the
standard slide layout and not for the reverse
slide layout.
However, you can use this as a template for
the reverse slide layout by turning it over.
Caution
Perforations③
527 mm or more
Reference
<Note>
Be sure to have 50 mm or more between the Basin rear cover and wall. If it is less than 50mm, cover may hit the wall when sliding the main unit.
(
※）
In case that dimension is 304mm
【
In case of YUME basin
】
From Basin rear cover to wall
･･･
99㎜
Wall
(※)321mm or more
Bolt (anchor) fixing position
<From wall to edge of fixing base>
Bolt (anchor) fixing position Bolt (anchor) fixing position
Floor setting
Outer figure of plumbing cover

6
45
4050
（49.5）
40 60
（56.5）
27 185
164 98
28.5
60
74
2
794
(PENTA)
861
(LUAR , LUXURY MAXIM)
841
(macaron)
851
(LEGEND)
871
(REGALOⅡ)
839
(INOVA)
840
(SET JOY Able)
864
(DIVAN)
41 (INOVA)
91.5 (PENTA)
37 (macaron)
10 (LEGEND)
19 (SET JOY Able)
8
(LUAR , MAXIM)
12 (DIVAN)
25
(REGALOⅡ)
140
90
60
85
35
ＧＬ
LUAR
1508
LEGEND
1490
INOVA
1469
DIVAN
1512
LUXURY MAXIM 1508
REGALOⅡ
1525
SET JOY Able
1471
PENTA
1391
macaron
1473
30
30
36.5 36.5
135 135
（34.5） （34.5）
51
LUXURY
Floor setting
Floor setting
Floor setting
Floor setting
Water supply
Rc1/2" 13m/m
Hot water supply Rc1/2" 13m/m
Drain VU40
／
VP40
206 (Width of fixing base)
210 (Outer dimension of plumbing cover)
Perforations②
<Raised pipes> 【1：1】
Drain VU40
／
VP40
Water supply
Rc1/2" 13m/m
Hot water supply
Rc1/2" 13m/m
Outer figure of plumbing cover
Bolt (anchor) fixed position
Bolt (anchor) fixed position
（※）254㎜
Wall
<From wall to edge of fixing base>
（※）
In case that dimension is 254
㎜
【In case of YUME Basin 】 From basin rear cover to wall ・・・
86㎜
<Note> Be sure to have 50mm or more between the basin rear cover and wall. If it is less than 50mm, cover may hit the wall when sliding the basin unit.
Bolt (anchor) fixed position
Floor setting
460㎜or more
Reference
Edge of fixing base
<From edge of fixing base to mirror (chair) center>
Bolt (anchor) fixed position
Bolt (anchor) fixed position
Edge of fixing base
Perforations①
*In case of space between wall to chair center is
1200mm
<From edge of fixing base to chair base back edge>
<From edge of fixing base to chair base back edge>
Perforations③
<Center line of each chair base>
Chair front
Please note that this is a template for the
standard slide layout and not for the reverse
slide layout.
However, you can use this as a template for
the reverse slide layout by turning it over.
Caution
Floor setting
＜Floor template / Rear Layout＞[Unit: mm]

7

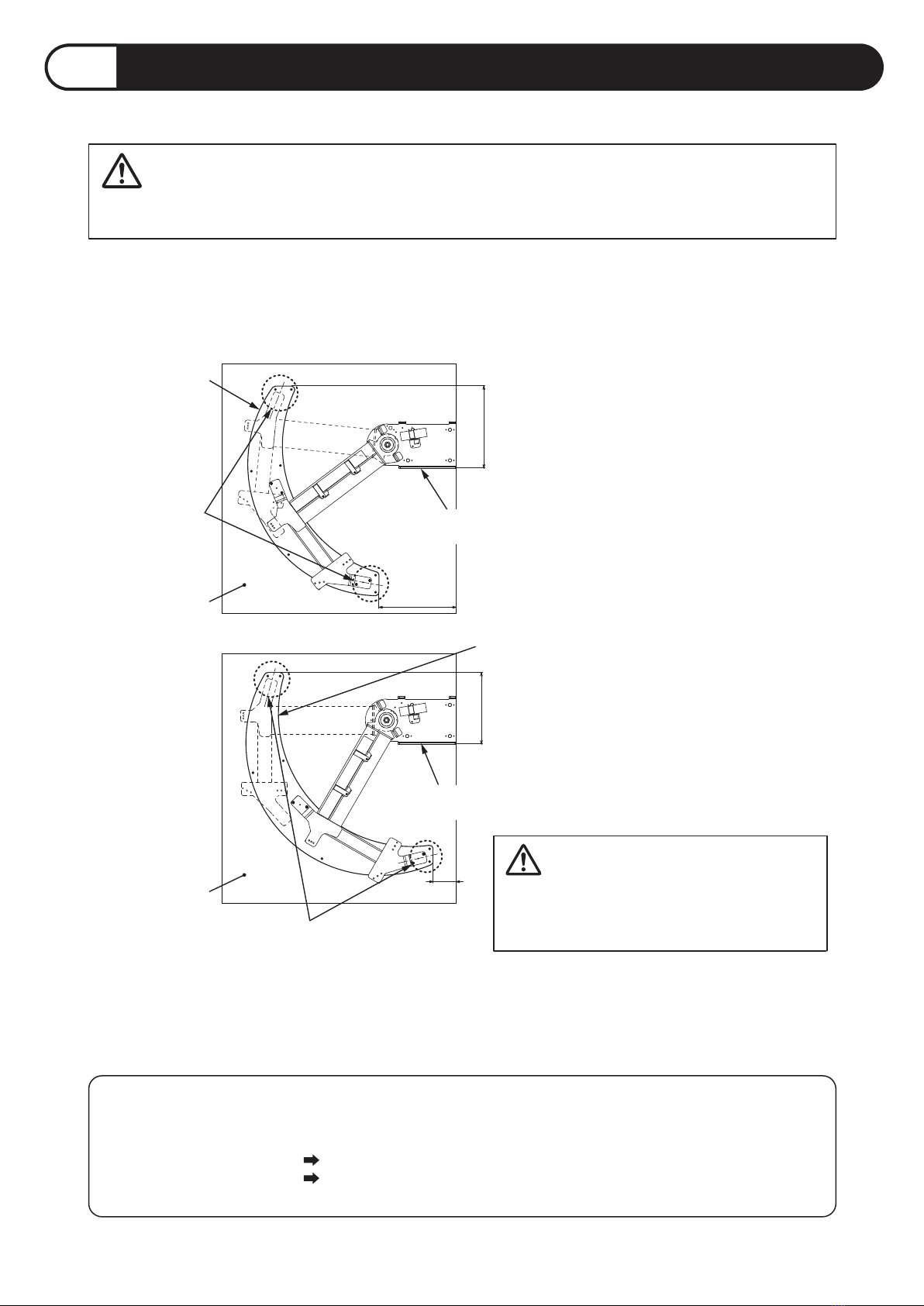

＜Caster Rail Floor Template / Front Layout＞
＜Caster Rail Floor Template / Rear Layout＞
[Unit: mm]
Reference
Reference
104
100
Wall
Caster Rail
Perforations
Perforations
Perforations
Perforations
Perforations
Caster rail fixing hole
Align to the edge
of the fixing base
Arm rotation center line
Arm rotation center line
Fixing base
Please note that this is a template for the standard slide layout and not for the reverse slide layout.
However, you can use this as a template for the reverse slide layout by turning it over.
Caution

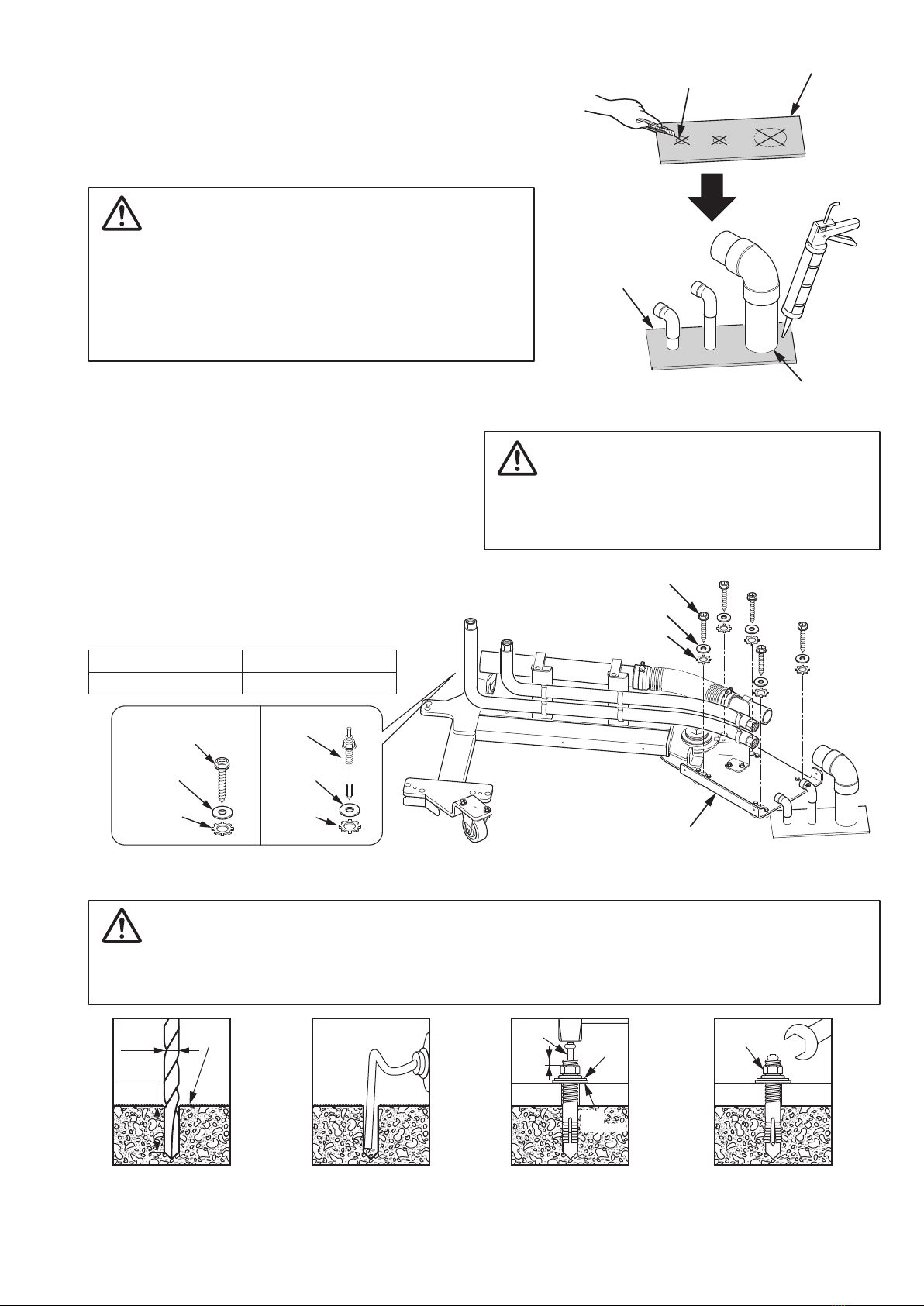

Fixing base
156
340
Perforations
Perforations
Perforations
Perforations
Arm rotation center line
Caster Rail
Caster rail fixing hole
Arm rotation center line
Wall
Align to the edge
of the fixing base

8
■Floor surface
○Ensure that the material or finishing of the floor surface is waterproof or has a waterproof coating applied.
○Always ensure that the floor surface is horizontally level so that the product slides smoothly.
○Ensure that the floor surface is smooth and free from bumps around the attachment areas.
○Raised pipes
【Plumbing specifications】
Drain
Rc 1/2”
VU40/VP40
Hot water / water supply
○If the floor surface is tiled, cracks and so on may occur when fastening the bolts during installation of the fixing base.
If this looks likely to happen, use the floor template as a reference, and change the material of the installation area
to another material such as plywood or mortar, etc.
○The following levels of strength are required for the floor surface.
Wooden floor
Mortar floor Mortar thickness of 50 mm or more
Special floor (stone finish, etc.)
A foundation with levels of strength listed above around the installation areas is required.
Plywood thickness of 30 mm or more (two 15 mm sheets joined together)
○Be sure to take the necessary precautions to prepare for and prevent possible water leakage.
○Use waterproof flooring materials.
○When installing the product on the 2nd floor or higher, be sure to observe waterproofing (waterproofing works,
installing a pan made of stainless panel, etc. or installing water leakage sensor.).
○Be sure to cover an opening of raised plumbing and a connection of pipes by caulking material, etc.
■Request measures to prevent water leakage under the floor and downstairs
【Raised pipe dimension】
Raise dimensions
Hot water supply
Drain
Under the floor plumbing
Wall mounted plumbing
Above the floor plumbing
60mm
60mm 90mm 140mm
90mm 140mm
Water supply
Plumbing Spec.
60mm 90mm 140mm
■Installation of pipes
■”Precautions during installation of pipes”
The following are important points to adhere during the installation of pipes. Read through
the details carefully and ensure that the pipes are installed correctly.
○When installing this product, ensure that installation of pipes adheres to the instructions outlined in “Precautions
during installation of pipes”. Installing pipes without observing the precautions will mean water may not
mix properly, and a set temperature may not be achieved.
○This product is designed for indoor installation. Always install this product indoors.
○Do not use pipes made of materials that may introduce rust for the water supply pipe. In general, VP pipes or
other materials specified by regulations in that particular region, are recommended for installation.
○In general, Type L deoxidized copper pipes are recommended for hot water pipes.
○In general, the same diameter and same pressure is recommended for hot water pipes and water supply pipes.
○Always use a reamer to deburr the ends of cut pipes.
○Avoid using inverted U-shaped pipes (siphon) as these can cause air to become trapped.
Installation Conditions
３
○Do not use the tile or glass and so on for the floor surface where caster rail is attached.

Usage Conditions
■Hot water and water supply conditions
・Use a pressure between 0.1 - 0.4 MPa (1 - 4 kgf/cm2). If multiple Yume Swing are
used, ensure that the pressure does not drop below 0.1MPa (1 kgf/cm2).
・Set the water supply pressure ≧hot water supply pressure.
・Set the difference between the hot water supply pressure and water supply pressure to
within 0.2 MPa (2 kgf/cm2).
・Set the hot water temperature to 80°C or less.
・Set the temperature 10°C or higher than the shower temperature used.
Water used
Hot water,
water supply
pressure
Hot water
temperature
into the product
Boiler
・Public water supply (do not use non-drinkable well water or water that contains rust or sand.)
・If the water hardness is 80 ppm or higher, install a water softener to prevent the build up of
lime scale within the basin unit. Aeration may be minimal when using shampoo even if drinkable
well water is used, so a water softener should be installed.
・Do not use steam with the hot water supply.
9
○Always connect hot water and water supply pipes after removing all contaminants such as dirt, sand and
oil. Failure to follow this instruction may cause problem.
○Ensure that the drain pipe is installed at a gradient of 1/50 for a diameter of φ75 or less, or 1/100 for a diameter
of φ75 or more.
○Do not connect the hot water and water supply pipes in reverse.
Connecting pipes in reverse will mean the temperature of water cannot be controlled properly by the water faucet,
which can cause problems including burns.
○Ensure that the hot water pipe from boiler is only run over a short distance so as to minimize resistance.
Longer pipe can cause fluctuations in temperature and poor hot water delivery.
○Boiler pipes
・In general, the same diameter and same pressure is recommended for main hot water pipe and main water
supply pipe.
・Ask professional to install boiler.
○Product comes with hair catchers installed. Handle it with care.
○Always wrap pipes with lagging material after installation is complete.
○After connecting the pipes and executing water flow test, clean the filters and shower head.

10
Name of Parts
○This page shows the name of parts which is necessary for the installation, and instruction pages for each parts.
Before executing installation, please check this page.
●YUME Basin
“Attach the head
pillows”
(page 34)
Head Pillows
Drain pipe
Water supply pipe
Hot water supply pipe
Drain hose stopper (big)
Drain hose
stopper (big)
Drain hose stopper (small)
Drain hose
gasket (big)
Drain hose
gasket (big)
Drain hose gasket (small)
“5. Plumbing” (page 25)
“5. Connecting of the raised pipes” (page 25)
“11. Installation of Maintenance Cover”
(page 32)
Caster cover
●Plumbing
●Seeing from shower head side
Arm drain pipe
Arm drain pipe
Arm water
supply pipe
Arm hot water
supply pipe
Arm hot water
supply pipe
Gasket
Gasket
Arm water supply
pipe
Gasket
Check valve
Maintenance cover
Gasket
Nipple
Flexible pipe
Stop valve
Drain hose
Main unit drain
hose
PVC 90 °elbow
pipe
PVC pipe
Plumbing cover
Rotation arm
Fixing base
Drain
Shower head side
Neck cushion side
Hot water supply
Water supply
Plumbing gasket
Block
“5. Plumbing 5-1 Connecting
the raised pipes”
(page 25)
“2. Installation of SWING Arm”
(pages 17, 18)
“10. Installation of Rotation Arm Cover”
(page 31)
“13. Installation of Plumbing
Cover” (page 33)
“Installation of Basin Unit”
(pages 23, 24)
“3. Installing of Caster Rail” (page 19)
“12. Installation of Caster Cover”
(page 32)
”8. Checking after Plumbing”
(page 30)
“4. Installation of Basin Unit”
(pages 23, 24)
“5. Plumbing
”5-2 Connecting the basin unit
side” (page 26)
“6. Installation of Chair” (page 27, 28)
“9. Installation of Base Front Cover”
(page 31)
Rotation arm cover
Caster cover
Caster
Caster rail
Base front cover
Basin unit
Dual function shower head
Neck cushion
Chair

11
■Contents
＜Basin Unit＞
*Image is of YUME Basin [ EX-YMSBXYM］.
Skid
Basin
Air mattress
Base
Basin unit cover
Film tape
Film tape
As air mattress protects the basin
and film tape protects the basin unit,
do not remove them until starting
plumbing installation.

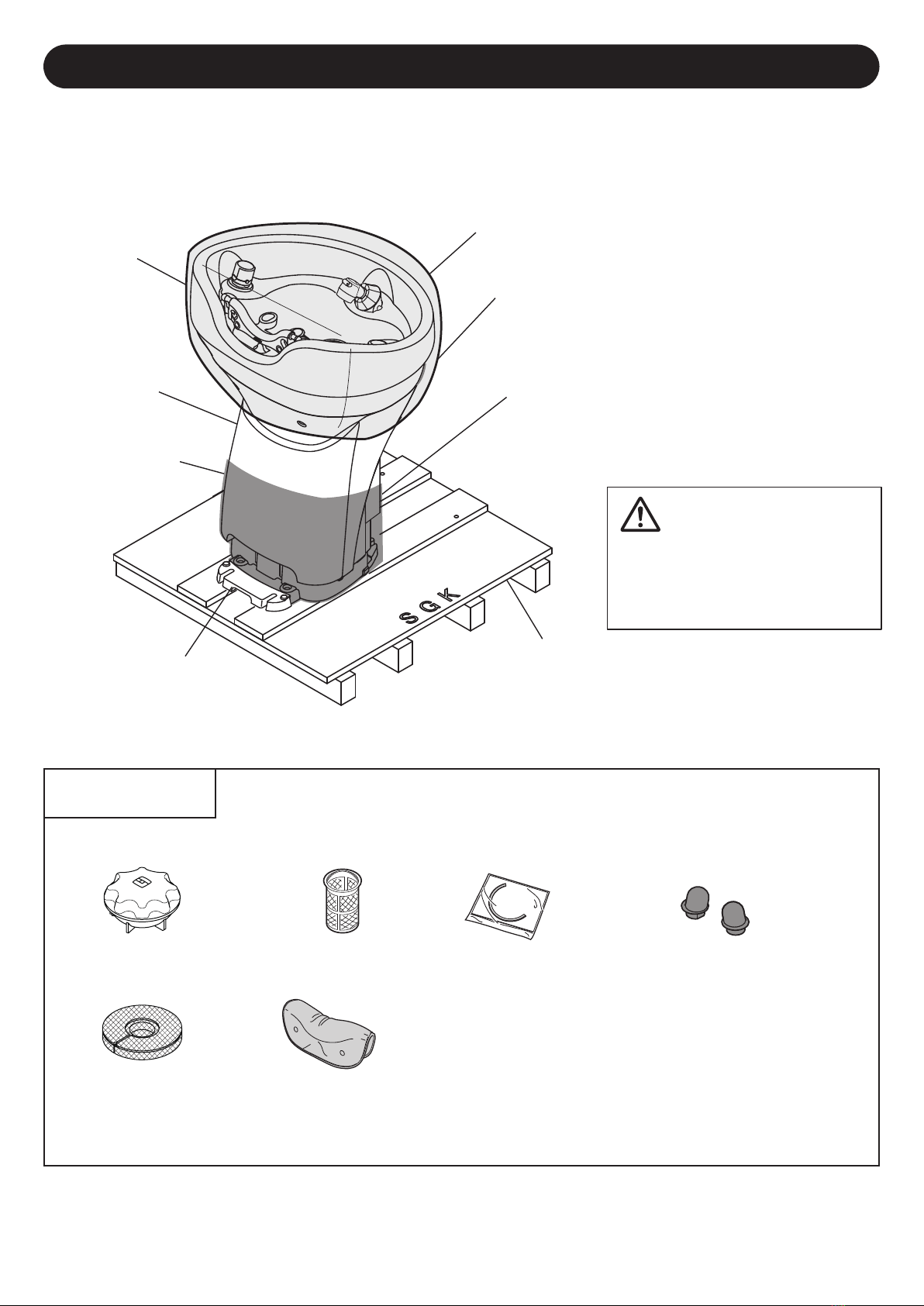

○Before installation, check if all of the below parts is coming with the product.
Caution
■Accessories
□Drain cap (1)
□“Mohair tape” Manual
□Hair catcher (1)□Head pillows (1 pair)□Spare mohair tape
□Sponge(1) □Neck cushion (1)
□YUME SPA Technical Manual(except for China)
Maintenance cover
* The Urea screws are held down
the main body with the
maintenance cover.
(Urea screw M5 × 15)
Contents of Packaging

■Packing size and weight
＜Basin Unit: YUME Basin ＞Basin unit 37kg, Wood frame 30kg
[Unit: mm]
852
106
595650
821
1028.5
922.5
12

13
□Screw set
□Caster rail (1)
□Floor fixing screw set
□Stop valve (2)
□Drain gasket (sponge)
□Caster cover (2)
□Nipple (2)
□PVC pipe (1) □ PVC 90°elbow pipe (1)
□Block (1)
□Seal (6 sheets)
□Base front cover (1)
□Flexible pipe (2)□Drain hose (1)
(L= 200mm)
* 4 sheets are spares.
(L=65ｍｍ)
＜SWING Arm＞
■Accessories
□Drain hose stopper
(big x 2, small x 1)
□Drain hose gasket
(big x 2, small x 1)
□Operating manual □Installation manual (this manual)
＜Common parts for YUME Basin and Side Basin＞
■Packing size and weight
＜SWING Arm : Front Layout / Rear Layout＞Rotation arm 19kg (including caster rail)
Carton case 5kg
*Weight of front layout and rear layout is the same.
＜Front Layout＞ ＜Rear Layout＞
[Unit: mm]
300
1140
680
■Contents of Packaging
Fixing base
Rotation arm
Rotation arm cover
Caster
Drain pipe
Hot water supply pipe
Water supply pipe
Water supply
pipe
Hot water
supply pipe

14
■Packing size and weight
＜Plumbing cover: Under the floor plumbing, Above
the floor plumbing and Wall mounted plumbing＞
Plumbing cover 5kg, carton case 1kg
250
600
230
＜Plumbing cover＞
■Accessories □Plumbing cover screw set
＜Under the floor plumbing, Wall mounted
plumbing and Above the floor plumbing＞
■Contents of Packaging
＜Under the floor plumbing＞ ＜Wall mounted plumbing＞ ＜Above the floor plumbing＞
[Unit: mm]
＜Paper Template＞
○Paper template is supplied separately. (Refer to pages 5 to 7.)
For receiving it, please contact the nearest dealer or Takara Belmont directly.
Please note that this is a template for the standard slide layout and not for the reverse slide layout.
However, you can use this as a template for the reverse slide layout by turning it over.
Caution

15
Carrying the Product
○While supporting the basin unit with hands, remove the screws which are fixing base and skid (four locations).

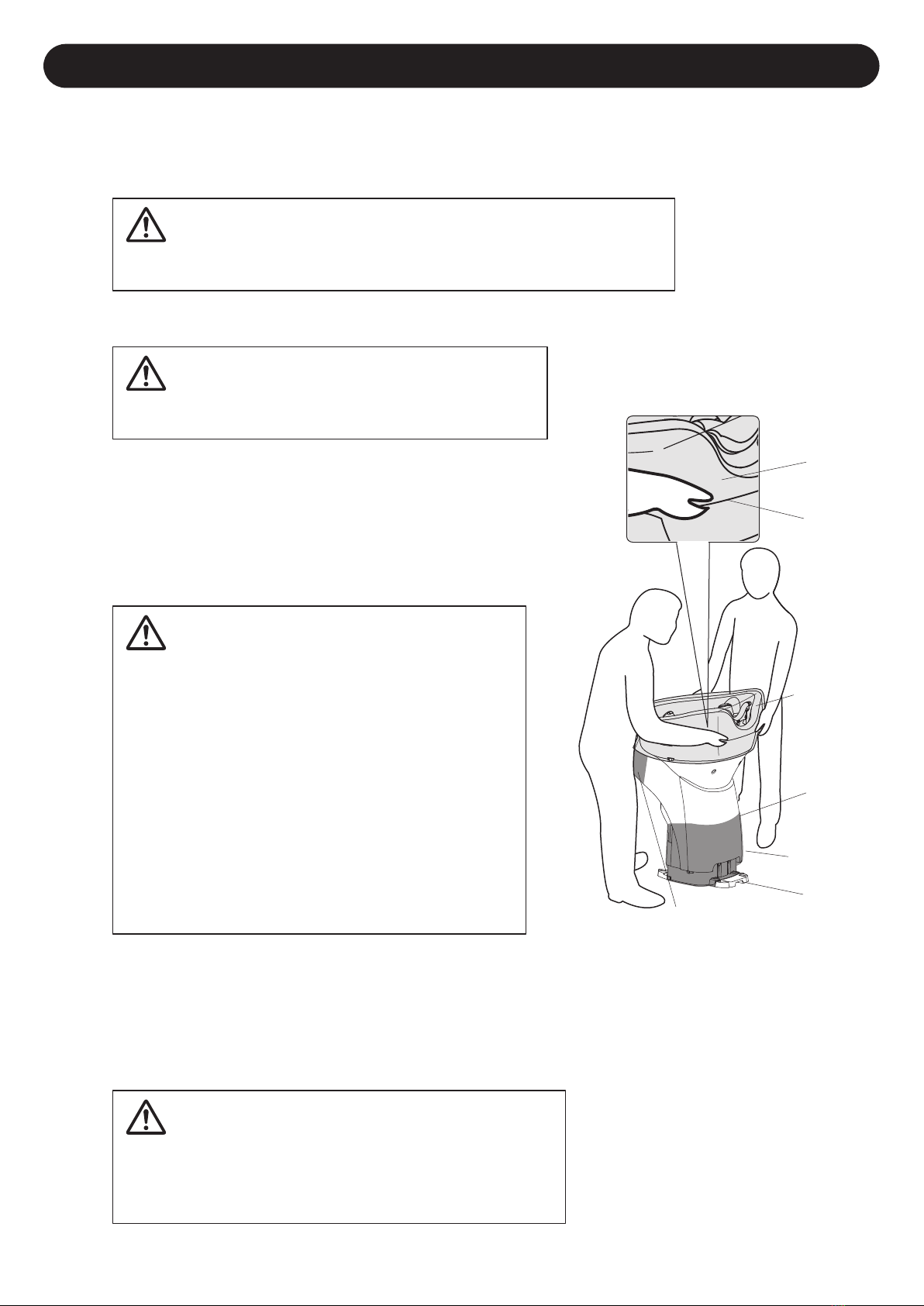

■Carrying the Basin Unit
2Detach the basin unit from the skid.
3Carrying the basin unit.
○When carry the basin unit, be sure to observe the below.
・Carry it without removing air mattress from the basin
and film tape from the basin unit.
・Carry the stepped part under the basin. Do not hold
basin unit cover. Also, carry it with two people.
(Refer to the right illustration.)
■Carrying the SWING Arm
Always have at least two people to do this process. Not holding
the basin unit while removing the screws may cause it to fall.
The rotation arm cover may cause peeling of the painting of the
surface if scratched by metallic objects such as watches or belts.
Pay greatest possible attention not to damage it.
Remove all metallic objects such as watches when carrying it.
(1) Take out the SWING arm from the carton case.
(2) When carrying the SWING arm, be sure to observe the below.
・Hold it at the fixing base and rotation arm.
Do not hold it at the rotation arm cover, hot water/water pipes or drain pipe.
Always have two people to carry it.
Caution
Caution
Caution
Do not lose the Urea screws holding down the maintenance cover.
The Urea screws are used for holding down the maintenance cover later. (see page 32)
Caution

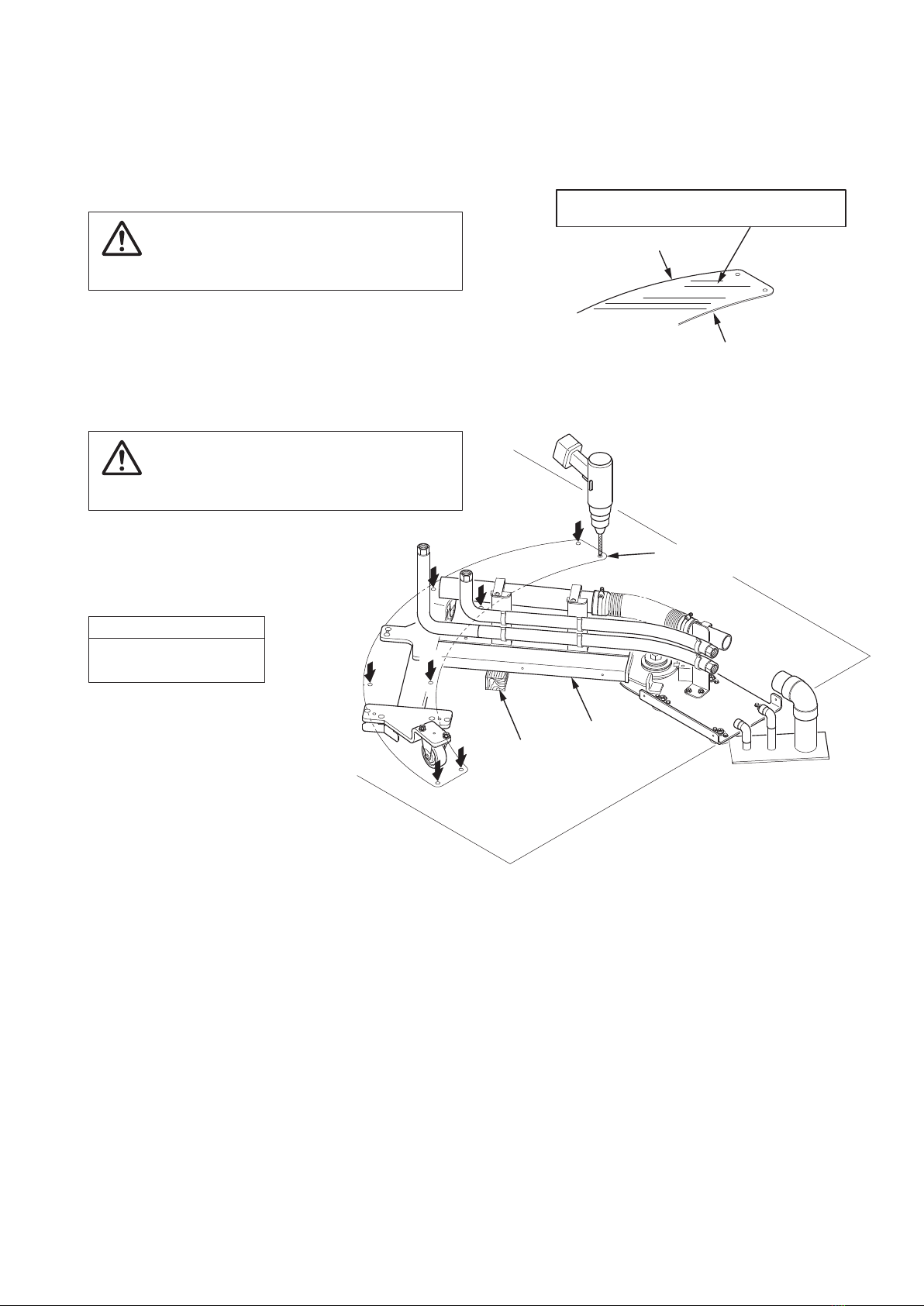

○Remove the protective tape and the Urea screws from the maintenance cover.
*Remove the maintenance cover keeping the protective tape taped to the main body cover.
1Remove the maintenance cover from the main body.
Base
Stepped part
of the basin
Basin
Air mattress
Basin unit
cover
Film tape
Film tape
●Never hold the basin unit cover. Failure to follow this caution
may cause breakage of the basin unit cover.
●Take care when handling the basin as it is heavy and fragile.
●Do not drag the unit while holding the basin (ceramic).
The foot part of the basin is made of steel, so dragging it may
damage the floor surface or crack the basin itself.
●The basin may become damaged if scratched by metallic
objects such as watches or belts. Remove all metallic objects
such as watches when carrying the basin.
●Take extra care to ensure not to damage the covers.
●Do not touch the pipes of basin unit.
Doing so may cause water leaks.
●Since the basin unit tends to tumble, when it is not fixed on the
floor, be careful of the falling accidents.

16
*Be sure to follow the below instructions to install the product.
Failure to follow these instructions or not in order may prevent to install the basin unit and SWING arm correctly.
Installation of the Product
Flow of installation of the product 【In case of new construction】
1 Check the Position of Mirror and Cabinet
2 Installation of SWING Arm
* Use the floor template when fixing it.
(Refer to pages 5, 6)
3 Installation of Caster Rail
* Use the floor template when fixing it.
(Refer to page 7)
4 Installation of Basin Unit
5 Plumbing
6 Installation of Chair
* For the details, refer to installation manual supplied with each chair.
7 Adjustment of Center of Basin Unit and Chair
8 Checking after Plumbing
9 Installation of Base Front Cover
10 Installation of Rotation Arm Cover
11 Installation of Maintenance Cover
12 Installation of Caster Cover
13 Installation of Plumbing Cover
○Inspection items
○Attach the neck cushion and the head pillows
*Attach head pillows only for YUME Basin.
page 17
pages 17, 18
pages 19 to 22
pages 23, 24
pages 25, 26
pages 27, 28
pages 28, 29
page 30
page 31
page 31
page 32
page 32
page 33
page 34
page 34
After Installation
＜Front Layout＞＜Rear Layout＞Common procedures Refer to
Refer to
＜Front Layout＞＜Rear Layout＞Common Procedures
Before fixing the SWING arm and caster rail, always mark on the floor referring to the floor template. (Refer to pages 5 to 7.)
Caution

２Marking the bolt anchor points.
(1) Check the mirror and cabinet center line.
○Refer to the floor template (pages 5 to 6) and overall
layout diagram, check the dimension of the raised
pipes of water, hot water and drain, and prepare
for the installation.
(1) Set the paper template on the floor aligning it with
the floor fixing position of the fixing base.
*The floor fixing point of the fixing base differs
depending on the chair used with Yume Swing.
(2) Mark the screw or bolt anchor position of the
fixing base of SWING arm (five locations).
(3) Drill holes at the screw or bolt anchor
position on the marked points of the floor.
(4) Remove the paper template.
*Without detaching the rotation arm cover, fixing base
can not be fixed on the floor.
*The screws of rotation arm cover (screw with gasket
(M5 x 12) x 5 pcs.) will be used when attaching it again,
so please pay attention not to lose them.
１Detach the rotation arm cover of SWING arm.
＜Front Layout＞＜Rear Layout ＞
Check the Position of Mirror and Cabinet
１
Installation of SWING Arm
２
Wooden floor Other than wooden floor
Screw (M8 x 65) Anchor bolt (M8 x 70)
[Unit: mm]【Bolts to be used 】
Paper template
Drain pipe
Water
supply
pipe Hot water
supply pipe
Drill
Drill holes.
Fixing base
Rotation arm
Screws (M5 x 12)
(with gasket)
Rotation arm cover
Detach
Please note that this is a template for the standard
slide layout and not for the reverse slide layout.
However, you can use this as a template for the
reverse slide layout by turning it over.
Caution
Cabinet Wall
Mirror
Center
Mirror Wall
Center
17

４Secure the fixing base on the floor using the
screws or the anchor bolts.
・The strength of the anchor bolts will be reduced if they are hammered to the bottom of the hole.
Be sure to open up a gap.
・When using anchor bolts, install it with the head of the bolts comes out 2-5mm from the nut.
(1)Align the holes of the fixing base with the drilled
holes (process 2) on the floor.
*Be sure to align those holes at each center position.
(2) Fix the fixing base by five pcs. of the screws
(M8 x 65) or anchor bolts (M8 x 70), five pcs. of flat
washer (for M8) and five pcs. of gear washer (for
M16) on the floor.
(3) If the plumbing gasket comes out from the fixing base,
cut the plumbing gasket.
●Installation process for anchor bolts (Other than wooden floor)
(1) Cut a slit in the plumbing gasket to suit the position of the raised
pipes.
(2) Peel away the sheet from the adhesive surface of the plumbing
gasket and stick it to the floor surface.
(3) Cut out a circle around the slit cut in the plumbing gasket to suit
the pipes, and fill in any gaps with caulking materials.
３Attach plumbing gasket.
Always attach plumbing gasket and apply caulking materials to the
areas around the pipes so that there are no gaps, in order to prevent
condensation within the basin unit and inside of the SWING arm or
water seeping on the floor in the event of water leaks.
・If plumbing gasket is not used, condensation may cause water to
pool on the floor, structural parts may start degradation and
malfunctions may occur.
Be sure to fix the fixing base to come to parallel to the wall.
・If it is not in parallel, basin unit may hit the wall at the
initial position or position adjustment with chair becomes
difficult.
Wooden floor Other than wooden floor
Screws (M8 x 65) Anchor bolts (M8 x 70 )
[Unit: mm]
【Bolts to be used 】
Caution
Caution
Caution
(1) Drill open a hole of the
specified diameter and
depth.
Floor
Paper
template
8.5mm
Depth of hole:
50 mm or more
(2) Remove the dust from
each anchor hole by
cleaning with a vacuum
cleaner, etc.
→
(4)Adjust the fastening
strength of the nut using
a wrench, etc.
(3) Insert the anchor bolt and tap
it with a hammer until the
center pin makes contact with
the head.
Cut a slit
Plumbing gasket (Sponge)
Screws (M8 x 65)
Gear washer for M16
Flat washer for M8
Fixing base
Apply caulking materials to fill in any gaps.
Plumbing gasket
Nut
Flat washer
Center pin
2 to 5
mm
Gear
washer
Anchor bolt
(M8 x 70)
Screws
(M8 x 65)
Flat washer
for M8
Gear washer
for M16
Flat washer
for M8
Gear washer
for M16
18

Installation of Caster Rail
3
(1) Carry the rotation arm and insert the paper template (Refer to page 7.).
(2)Align the caster of rotation arm and caster rail (perforations).
*Check that the caster of the rotation arm comes to the center line of the caster rail.
(3)Align the fixing base with the fixing base part in the paper template (perforations).
(4) Fix the paper template on the floor.
(5) Insert the block (30mm x 40mm x 60mm) under the rotation arm and make the gap between floor and
rotation arm.
１Hold the rotation arm and set the paper template.
Do not apply excessive force when carrying the rotation arm.
・Failure to follow this caution may result in product breakage.
Important
The following process 2 differs depending on the floor material.
Do the appropriate process.
■Wooden floor Refer to page 20 “Drill holes on the attachment position of the caster rail.”.
■Other than wooden floor Refer to page 21 “Hammer anchor bearing in the attachment positions of
caster rail.”.
Caution
<Front Layout>
Caster rail installed
position (perforations)
Caster of
rotation arm
comes to the
center rail.
Paper
template
340
362
Fixing base installed
position (perforations)
<Rear Layout>
Paper
template
100
310
Fixing base installed
position (perforations)
Caster of rotation arm
comes to the center of caster rail
Caster rail installed
position (perforations)
Please note that this is a template for the standard slide
layout and not for the reverse slide layout.
However, you can use this as a template for the reverse
slide layout by turning it over.
Caution
19

(2) Mark the center part of screw attachment position of caster rail.
(3) Remove the caster rail.
(4) Drill the holes at the marked positions.
Wooden floor
Tapping (5 x 30)
Unit: mm【Screws to be used 】
Use the actual caster rail and mark the points. Be sure to
mark at the center of each screw hole.
２Drill holes on the caster rail attachment position.
(1) Insert the caster rail under the rotation arm and set to the paper template position.
*Hairline surface to be placed upward.
Hairline surface of caster rail to be placed upward.
■Wooden floor
Drill holes on marked
positions. (8 locations)
Rotation arm
Support with
the inserted block.
Caster rail
Caution
Caution
Caster rail
attachment points
Upper surface : Hairline finish
(Surface containing the line in the same direction)
Under surface
(Surface without line)
20
