Viking In tallation Guide
De igner Free tanding 30” Dual Fuel
Self-Clean Sealed Burner Range

IMPORTANT–Read and Follow!
3
2
Table of Contents
• Before beginning, please read these
instructions completely and carefully.
•DO NOT remove permanently affixed
labels, warnings, or plates from product.
This may void the warranty.
• All local and national codes and ordinances
must be observed. Installation must
conform with local codes or in the absence
of codes, the National Fuel Gas Code ANSI
Z223.1/NFPA-54 –latest edition.
• The installer must leave these instructions
with the consumer who should retain for
local inspector’s use and for future
reference.
In Canada: Installation must be in accordance
with the current CAN/CGA B149.1 & 2 Gas
Installation codes and/or local codes. Electrical
installation must be in accordance with the
current CSA C22.1 Canadian Electrical Codes
Part 1 and/or local codes.
In Massac usetts: All gas products must be
installed by a “Massachusetts” licensed
plumber or gasfitter. A “T” type handle
manual valve must be installed in the gas
supply line to the appliance.
Your safety and the safety of others is
very important.
We have provided many important safety
messages in this manual and on your
appliance. Always read and obey all
safety messages.
This is the safety alert symbol. This
symbol alerts you to hazards that
can kill or hurt you and others.
All safety messages will be preceded by
the safety alert symbol and the word
“DANGER,” “WARNING” or “CAUTION.”
These words mean:
Hazards or unsafe pra ti es
whi h WILL result in severe personal
injury or death.
DANGER
Hazards or unsafe pra ti es
whi h COULD result in severe personal
injury or death.
Hazards or unsafe pra ti es whi h
COULD result in minor personal injury or
property damage.
All safety messages will identify the
hazard, tell you how to reduce the chance
of injury, and tell you what can happen if
the instructions are not followed.
WARNING
CAUTION
Warnings & Important Safety Instructions_____________________________________________________3
Dimensions __________________________________________________________________________________6
Specifications ________________________________________________________________________________7
Clearance Dimensions (Proximity to Cabinets) ________________________________________________8
Clearance Dimensions (Wood/Composite Overlay) ___________________________________________9
Electrical & Gas Requirements ______________________________________________________________10
General Information ________________________________________________________________________12
Installation__________________________________________________________________________________13
Door Removal __________________________________________________________________________13
Leg Installation _________________________________________________________________________14
Electrical Connection (3 Wire)___________________________________________________________15
Electrical Connection (4 Wire)___________________________________________________________17
Leveling/Adjustments/Alignment________________________________________________________19
Anit-tip Device Installation ______________________________________________________________20
Connecting Gas & Electrical ____________________________________________________________21
Final Installation ________________________________________________________________________22
Door Replacement and Adjustment _____________________________________________________23
Final Preparation____________________________________________________________________________24
Performance Checklist ______________________________________________________________________24
Service & Registration ______________________________________________________________________25

IMPORTANT–Read and Follow!
5
4
DANGER
GAS LEAK HAZARD
To avoid risk of personal injury
or death; leak testing of the
appliance must be conducted
according to the manufacturer’s
instructions. Before placing appliance in
operation, always check for gas leaks
with soapy water solution.
• DO NOT USE AN OPEN FLAME TO
CHECK FOR GAS LEAKS.
DANGER
ELECTRICAL SHOCK
HAZARD
To avoid risk of electrical shock,
personal injury or death; verify
your appliance has been properly
grounded in accordance with local codes
or in absence of codes, with the National
Electrical Code (NEC). ANSI/NFPA 70-
latest edition.
WARNING
MOVING HAZARD
To avoid risk of severe
personal injury; this appliance
requires two or more personnel
while handling and moving. Possible
use of appliance moving devices is
recommended.
DANGER
FIRE/EXPLOSION
HAZARD
IF THE INFORMATION IN
THIS MANUAL IS NOT
FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL
INJURY, OR DEATH.
•DO NOT store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
•WHAT TO DO IF YOU SMELL GAS:
–DO NOT try to light any appliance.
–DO NOT touch any electrical switch;
DO NOT use any phone in your
building.
–Immediately call your gas supplier from
a neighbor’s phone.
–Follow the gas supplier’s instructions.
–If you cannot reach your gas supplier,
call the fire department.
• Installation and service must be
performed by a qualified installer, service
agency, or the gas supplier.
DANGER
CHEMICAL HAZARD
To avoid risk of property
damage and/or personal injury
or death; this appliance is not
too be used as a heating source.
• Benzene is a chemical which is part of
the gas supply to this cooking product,
which is consumed in the flames during
combustion. Exposure to a small
amount of benzene is possible if a gas
leak occurs. Formaldehyde and soot are
by-products of incomplete combustion.
• This appliance contains or produces
chemicals which can cause serious
injury or death and which are known to
the state of California to cause cancer,
birth defects or other reproductive harm.
To reduce the risk from substances in
the fuel or from fuel combustion make
sure this appliance is installed,
operated, and maintained in accordance
to the instructions in this document.
WARNING
TIPPING HAZARD
To reduce the risk of property
damage or personal injury;
install anti-tipping device
provided in accordance with
the installation instructions in
this document. Device must be
engaged properly to prevent
product from tipping over.
• This range can tip.
• Injuries to persons can result.
• Install anti-tip device packed with range.
• See installation instructions.
WARNING
To prevent possible damage to cabinets
and cabinet finishes, use only materials
and finishes that will not discolor or
delaminate and will withstand temperatures
up to 194°F (90°C). Heat resistant
adhesive must be used if the product is to
be installed in laminated cabinetry. Check
with your builder or cabinet supplier to
make sure that the materials meet these
requirements.
A GFI shall be used if required by NFPA-70 (National Electric Code), federal/state/local
laws, or local ordinances.
• The required use of a GFI is normally related to the location of a receptacle with respect to
any significant sources of water or moisture.
• Viking Range Corporation will NOT warranty any problems resulting from GFI outlets which
are not installed properly or do not meet the requirements below.
If the use of a GFI is required, it should be
• Of the receptacle type (breaker type or portable type NOT recommended)
• Used with permanent wiring only (temporary or portable wiring NOT recommended)
• On a dedicated circuit (no other receptacles, switches or loads in the circuit)
• Connected to a standard breaker of appropriate size (GFI breaker of the same size NOT
recommended)
• Rated for Class A (5 mA +/- 1 mA trip current) as per UL 943 standard
• In good condition and free from any loose-fitting gaskets (if applicable in outdoor situations)
• Protected from moisture (water, steam, high humidity) as much as reasonably possible

7
Dimensions
6
35-7/8”
(91.1cm)min.
to
37”
(94cm)max.
29-7/8”
(75.9cm)
Note: Unit shown with standard island trim.
*Add 3/8” (0.95 cm) to overall depth of ranges installed against a combustible wall.
35-7/8”
(91.1 cm) min.
to
37”
(94 cm) max.
25-3/4” (65.4 cm)
45” (114.3 cm)
19-1/4”
(48.9 cm)
24” (61.0 cm)
25” (63.5 cm)
28-1/4” (71.8 cm)
6”
(15.2 cm)
25” (63.5 cm)
1-1/2”
(3.8 cm)
26-1/2” (67.3 cm)
Dual Fuel 30” W. Range

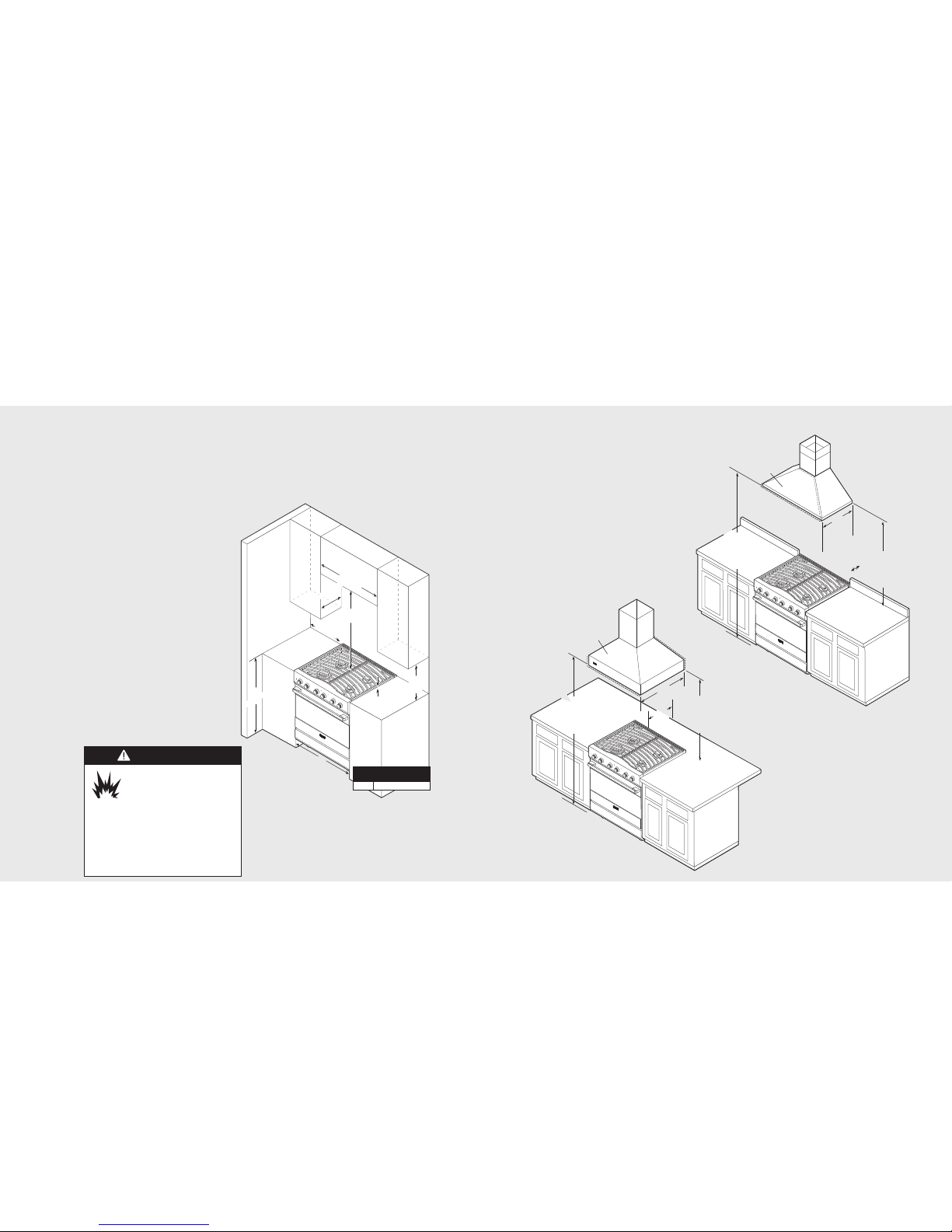

Minimum clearances from adjacent combustible construction
Below cooking surface (36” [91.4 cm] and below)
• Sides - 0”
• Top grate support - 36” (91.4 cm)
Above cooking surface (above 36” [91.4 cm])
• Sides - 6” (15.2 cm)
• Within 6” (15.2 cm) side clearance, wall cabinets no deeper than 13” (33.0 cm) must be minimum 18”
(45.7 cm) above cooking surface
• Wall cabinets directly above product must be a minimum of 42” (106.7 cm) above cooking surface
• Rear - 0” with 6” backguard or high shelf; 0” with island trim and non-combustible rear wall;
• 6” (15.2 cm) with island trim and combustible rear wall
Dual Fuel 30” W. Range
Description
DSCD
Overall width 29-7/8” (75.9 cm)
Overall height To top of side trim - 35-7/8” (91.1 cm) min. 37” (94.0 cm) max.
Legs adjust - 1-1/8” (2.9 cm)
Overall depth
from rear
To front of side panel - 25” (63.5 cm)
To front of door - 25-3/4” (65.4 cm)
To front of landing ledge - 26-1/2” (67.3 cm)
To front of door handle - 28-1/4” (71.8 cm)
*Add 3/8” (0.95 cm) to overall depth of ranges installed against a combustible wall.
Additions to Overall
Height
To top of island trim - add 0” (0.0 cm)
To top of backguard - add 6” (15.2 cm)
To top of high shelf - add 18-3/16” (46.2 cm)
Gas Requirements Shipped Natural or LP/Propane, field convert with conversion kit (purchased separately);
accepts standard residential 1/2” (1.3 cm) ID gas service line
Gas Manifold Pressure Natural 5.0” W.C.P./ Liquid Propane L/P 10.0” W.C.P.
Electrical Requirements 240-208 VAC 60 Hz electrical connection box on product, connect with locally supplied 3-
wire, flexible cord or “pigtail” rated 40 amp. 125-250 VAC minimum. Cord must be
agency approved for use with household electric ranges.
Max Amp Usage 240V - 25.4 amps
208V - 22.9 amps
Surface Burner Rating
Natural/LP
Left front
Left rear
Right rear
Right front
16,000 BTU Nat./12,500 BTU LP/Propane (4.7 kW Nat/ 3.7 kW LP/Propane)
12,000 BTU Nat./11,500 BTU LP/Propane (3.5 kW Nat/ 3.4 kW LP/Propane)
8,000 BTU Nat./7,500 BTU LP/Propane (2.3 kW Nat/ 2.2 kW LP/Propane)
6,000 BTU Nat./5,500 BTU LP/Propane (1.8 kW Nat/ 1.6 kW LP/Propane)
Oven Interior Width 25-5/16” (64.6 cm)
Oven Interior Height 16-1/2” (41.9 cm)
Oven Interior Depth Overall - 19-1/2” (49.5 cm)
AHAM - 16-13/16” (42.7 cm)
Oven Volume
Overall
AHAM
4.7 cu. ft.
4.1 cu. ft.
Approximate
shipping weight
410 lbs.
(184.5 kg)
Specifications

42”min.
(106.7cm)
13”max.
(
33.0cm)
6”min.
(15.2cm)
18”min.
(45.7cm)
3/8”
(0.95cm)
36”
(91.4cm)
29-7/8”
(75.9cm)
A
(openingwidth)
Clearance Dimensions (Wood/Composite Overlay)
9

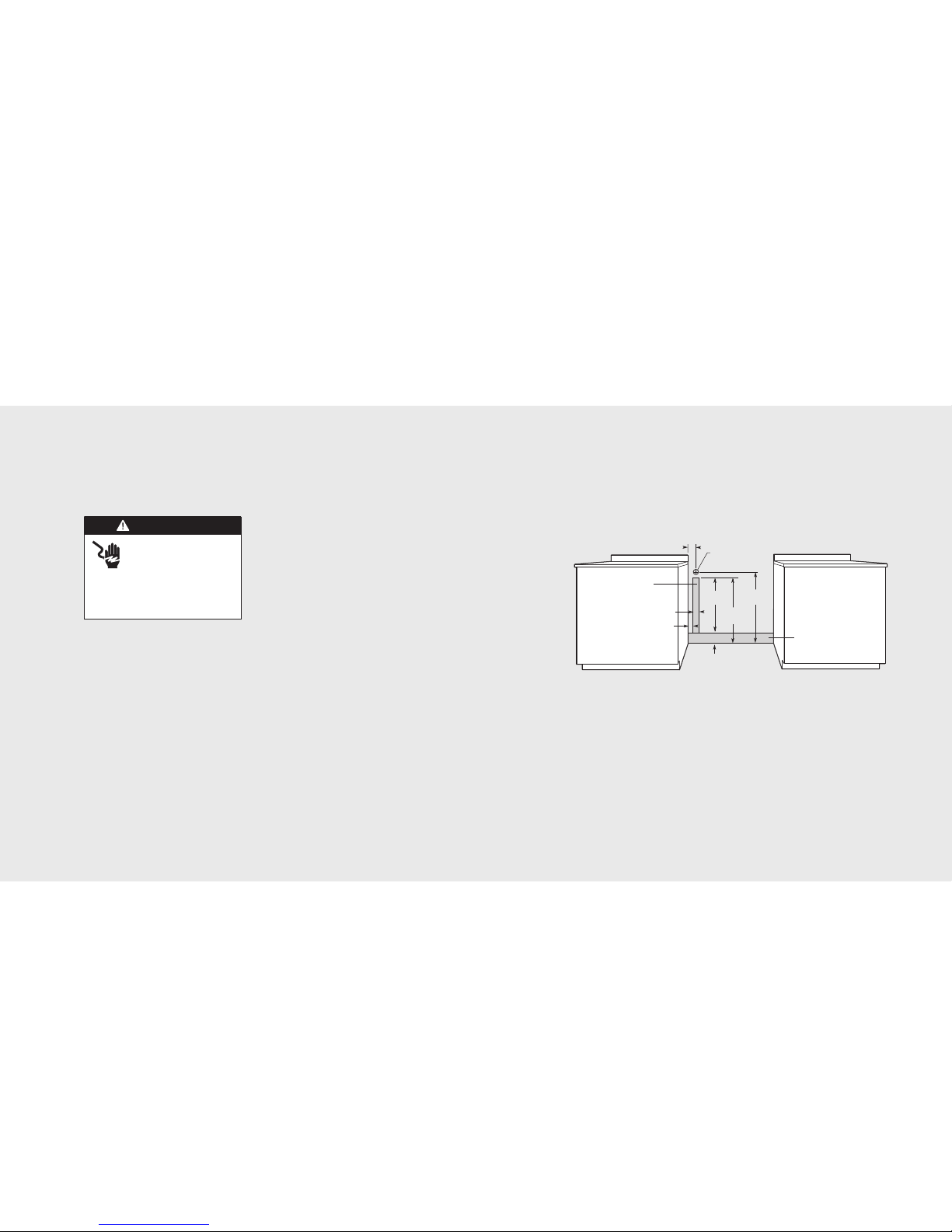

Clearance Dimensions (Proximity to Cabinets)
8
• This range may be installed directly
adjacent to existing 36” (91.4 cm) high
base cabinets.
IMPORTANT: The side trim MUST be
3/8” (.95 cm) above the adjacent base
cabinet countertop. This can be
accomplished by raising the unit using
the adjustment spindles on the legs.
• The range CANNOT be installed
directly adjacent to sidewalls, tall
cabinets, tall appliances, or other
side vertical surfaces above 36”
(91.4 cm) high. There must be a
minimum of 6” (15.2 cm) side
clearance from the range to such
combustible surfaces above the
36” (91.4 cm) counter height.
• Within the 6” (15.2 cm) side
clearance to combustible vertical
surfaces above 36” (91.4 cm), the
maximum wall cabinet depth
must be 13” (33.0 cm) and wall
cabinets within this 6” (15.2 cm)
side clearance must be 18”
(45.7 cm) above the 36”
(91.4 cm) high countertop.
• Wall cabinets above the range must be a
minimum of 42” (106.7 cm) above the
range cooking surface for the full width
of the range. This minimum height
requirement does not apply if a range
hood is installed over the cooking surface.
The bottom of a standard hood should be
30” (76.2 cm) min. to 36” (91.4 cm) max.
above the countertop. This would typically
result in the bottom of the hood being
66” (167.6 cm) to 72” (182.9 cm) above the
floor. Refer to the range hood installation
instructions for additional information. These
dimensions provide for safe and efficient
operation of the hood.
66”min.
(167.6cm)
to
72”max.
(182.9cm)
30”
(76.2cm)
6”
(15.2cm)
Wood/Composite
Overlay
30”min.
(76.2cm)
to
36”max.
(91.4cm)
66”min.
(167.6cm)
to
72”max.
(182.9cm)
24”
(61.0cm)
or
27”
(38.6cm)
Wood/Composite
Overlay
0”
(
0cm)
30”min.
(76.2cm)
to
36”max.
(91.4cm)
Wall Installation
Island Installation
Note: Minimum clearance for back wall is 0” with
backguard or high-shelf.
Note: If a range hood is installed, wall cabinets
above the range have a different minimum
clearance height.
CAUTION
Burn hazard.
To avoid risk of personal injury;
the use of cabinets for storage
above the appliance may result
in a potential burn hazard. Combustible
items may ignite, metallic items may
become hot and cause burns. If a cabinet
storage is to be provided the risk can be
reduced by installing a rangehood that
projects horizontally a minimum 5”
(12.7 cm) beyond the bottom of cabinets.
Note: Minimum clearance
for back wall is 0” with
backguard or high-shelf.
Important: This range comes
standard with an Island Trim. There
must be a minimum of 6” (15.2 cm)
clearance from rear of range to a
combustible wall or 0” clearance to
anon-combustible wall.
Range
Widt
“A”
Dimension
30” 30” (76.2 cm)

11
Electrical & Gas Requirements
10
Flexible Connections:
If the unit is to be installed with flexible
couplings and/or quick-disconnect fittings,
the installer must use a heavy-duty AGA
design-certified flexible connector of at least
1/2” (1.3 cm) ID NPT (with suitable strain
reliefs) in compliance with ANSI Z21.41
and Z21.69.
Electrical Requirements
Check your national and local codes
regarding this unit. This range requires
3 wire or 4 wire, 240-208 VAC/60 Hz. See
“Electrical Connection” section for
grounding instructions. Must be fused
seperately from any other circuit.
Gas Connection
The gas supply (service) line must be the
same size or greater than the inlet line of the
appliance. This range uses a 1/2” (1.3 cm) ID
NPT (Sch40) inlet. Sealant on all pipe joints
must be resistive to LP gas.
T e range is designed specifically for
natural gas or liquid propane (LP) gas.
Before beginning installation verify t at
t e model is compatible wit t e intended
gas supply.
Manual s ut-off valve:
This installer-supplied valve must be installed
in the gas service line before the appliance
in the gas stream and in a location where it
can be reached quickly in the event of
an emergency.
In Massac usetts: A “T” handle type
manual valve must be installed in the gas
supply line to the appliance.
IMPORTANT: Any conversion required
must be performed by your dealer or a
qualified licensed plumber or gas service
company. Please provide the service person
with this manual before work begins.
Pressure Regulator:
• All heavy-duty, commercial type cooking
equipment must have a pressure regulator
on the incoming service line for safe and
efficient operation, since service pressure
may fluctuate with local demand. External
regulators are not required on this range
since a regulator is built into each unit at
the factory. Under no condition bypass
this built-in regulator.
• Manifold pressure should be checked with
a manometer, natural gas requires 5.0”
W.C.P. and LP gas requires 10.0” W.C.P.
Incoming line pressure upstream from the
regulator must be 1” W.C.P. higher than
the manifold pressure in order to check
the regulator. The regulator used on this
range can withstand a maximum input
pressure of 1/2” PSI (14.0” W.C.P.). If the
line pressure is in excess of that amount, a
step down regulator will be required.
• The appliance must be disconnected from
the gas supply piping system during any
pressure testing of that system.
2” dia.
(5.1 cm)
3-1/8”
(7.9 cm)
2-1/2”
(6.4 cm)
1-1/2”
(3.81 cm)
29-1/4”
(79.3 cm)
24-7/8”
(63.2 cm)
Gas or electrical
connection in
this area
Gas connection
in this area
3-1/2”
(8.9 cm)
32”
(81.3 cm)
In Canada: CAN 1-6, 10-88 metal
connectors for gas appliances and CAN
1-6.9 M79 quick disconnect devices for use
with gas fuel.
In Massac usetts: This appliance must be
installed with a 36” (3-foot) long flexible
gas connector.
WARNING
Ele tri al sho k hazard.
To avoid the risk of electrical
shock, personal injury or death;
verify electrical power is turned
off at the breaker box and gas supply is
turned off until the range is installed and
ready to operate, installation by an
authorized installer only.

1312
General Information Installation
READ AND FOLLOW ALL WARNING
AND CAUTION INFORMATION WHEN
INSTALLING THIS APPLIANCE.
• All openings in the wall behind the
appliance and in the floor under the
appliance must be sealed.
• Do not obstruct the flow of combustion and
ventilation air.
Moving, Handling, and Unpacking
Remove and discard all packing materials,
including cardboard and tape on the outside
and inside of the range.
Remove the cardboard top pack containing
the burner heads, burner caps, grates, leveling
legs and anti-tip bracket from the top of the
range.
Do not discard the anti-tip metal
bracket supplied with the range.
This is the anti-tip device and must
be installed with the unit. Refer to
“Anti-ti Device Installation”
section.
Some stainless steel parts may have a plastic
protective wrap which must be peeled off.
The interior should be washed thoroughly
with hot, soapy water to remove film
residues and any dust or debris before being
used, then rinsed and wiped dry. Solutions
stronger than soap and water are rarely
needed.
NOTICE
DO NOT use the handle or oven door to
lift the oven. Remove door before
installation to ensure that it is not used to
lift the unit. DO NOT lift or carry the door
by the handle.
Removing the door must be done by your
dealer, a qualified licensed plumber, or
certified gas installer.
Door Removal
CAUTION
Avoid any damage to oven vents. The vents
need to be unobstructed and open to provide
proper airflow for optimal oven performance.
CAUTION
The cooling fan should be operating when
the unit is in operation. If you notice the
cooling fan is not operating or you observe
unusual or excessive noise coming from the
cooling fan, contact a iking Authorized
Service Center before continuing operation.
Failure to do so can result in damage to the
oven or surrounding cabinets.

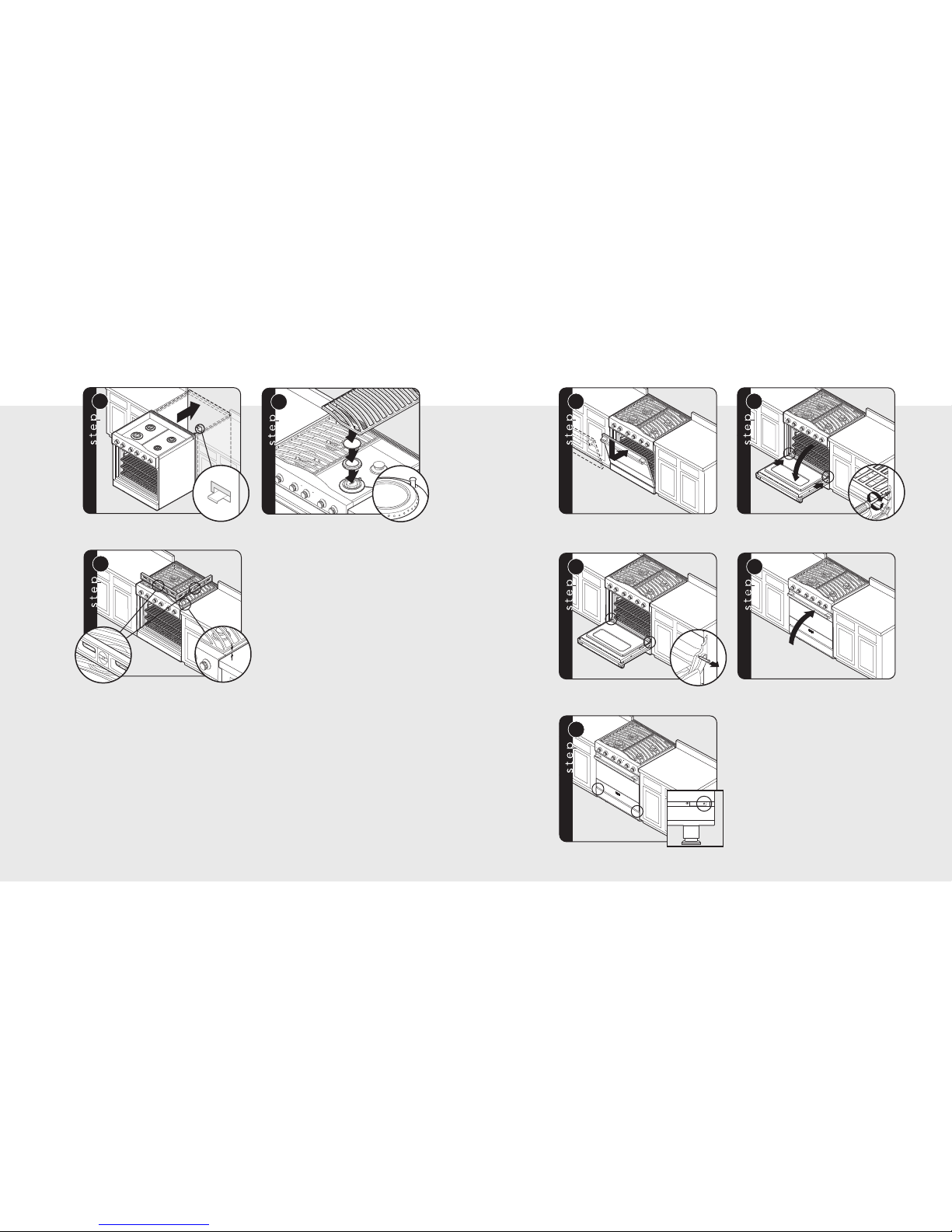

1
Open door completely. Place pins, supplied with unit, in
pin holes. For personal safety, ONLY use pins
supplied with the unit.
2
Remove hinge trim screws. Take off hinge trim. Identify
right and left hinge for future re-installation.
3
Gently close until pins stop door.
4
Lift door up and out.

14 15
1
Remove access door.
Electrical Connection (3-wire)
Note: If you have a 4-wire connection, see following section for
4-wire connection instructions.
Use a 3-wire power supply cord kit rated for
40 amps – 125/250 volts with closed loop
terminals and marked for use with ranges.
Where local codes do not permit grounding
through neutral, use a 4-wire power supply
cord. The cord or conduit must be secured
to the range with the strain relief bracket.
The electrical connection is made at the
terminal block, which is located behind the
access door on the back of the range.
2
Remove supply cord strain relief
bracket and three supply cord mounting screws
on terminal block.
WARNING
Ele tri al sho k hazard.
To avoid risk or electrical
shock, personal injury or death;
grounding product to the frame
of the unit may or may not be permitted
through your local codes. If ground to the
frame is not permitted then a 4 conductor
power cord must be used.
WARNING
Ele tri al sho k hazard.
To avoid risk of electrical shock,
personal injury or death; verify
your appliance has been
properly grounded in accordance with
local codes or in absence of codes, with
the National Electrical Code (NEC).
ANSI/NFPA 70-latest edition.

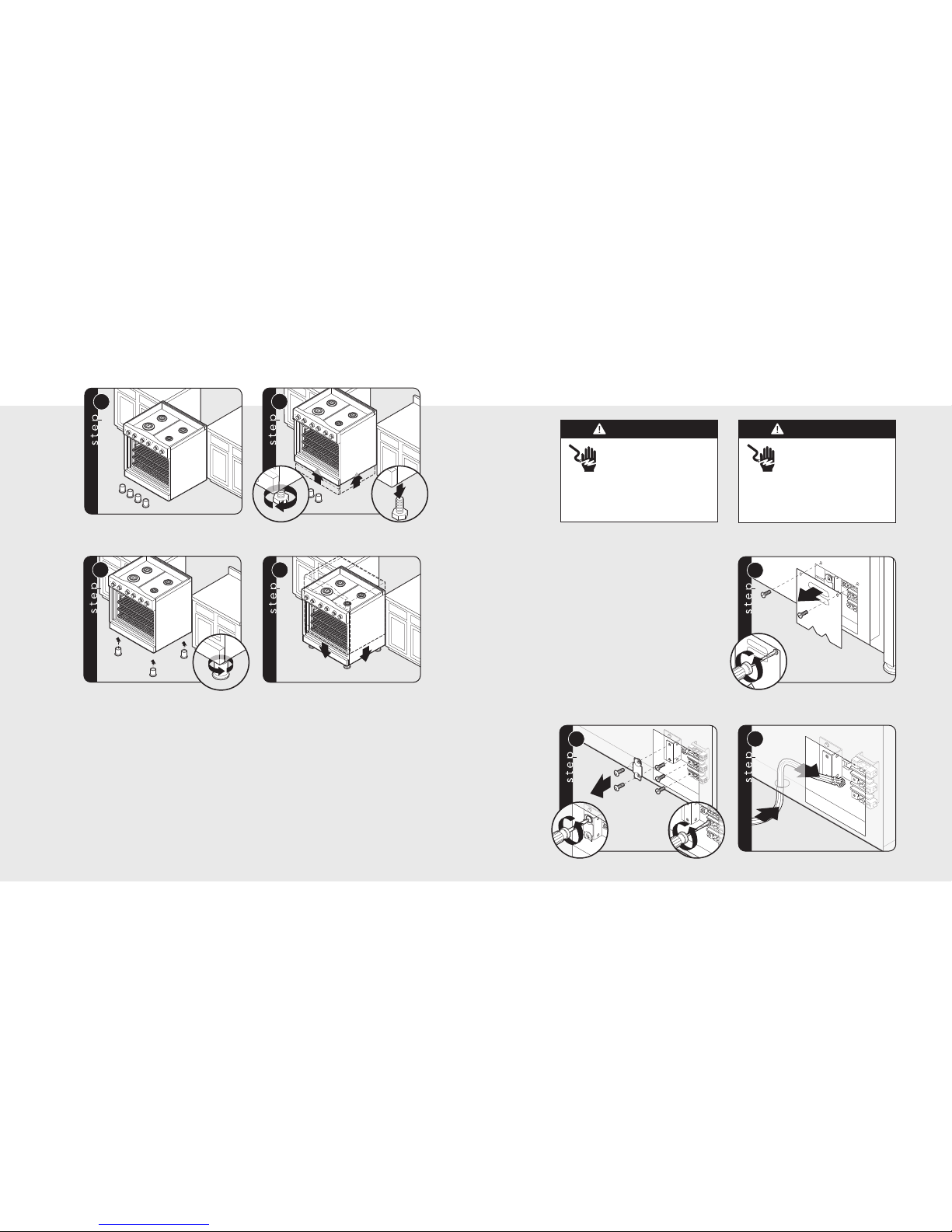

Leg Installation
3
Feed supply cord up through hole in bottom
of range back.
1
1
1
2
3
2
Legs are packed in the cardboard top pack.
Note: Legs should be installed near to where
a liance is to be used, as they are
not secure for long transit.
Note: It is strongly recommended
that a allet or lift jack be used rather than tilting.
Raise unit about a foot. Unscrew tem orary legs from
cou lings .
4
Lower range gently to keep any undue strain from
legs and internal mounting hardware.
3
Screw legs into couplings on all
four corners.

1716
1
2
Remove access door.
Remove supply cord strain relief
bracket and three supply cord mounting screws on
the terminal block.
Electrical Connection (4-wire)
Electrical Connection (3-wire) (cont.)
WARNING
Ele tri al sho k hazard.
To avoid risk or electrical
shock, personal injury or death;
grounding product to the frame
of the unit may or may not be permitted
through your local codes. If ground to the
frame is not permitted then a 4 conductor
power cord must be used.
WARNING
Ele tri al sho k hazard.
To avoid risk of electrical shock,
personal injury or death; verify
your appliance has been
properly grounded in accordance with
local codes or in absence of codes, with
the National Electrical Code (NEC).
ANSI/NFPA 70-latest edition.
Use a 4-wire power supply cord kit rated for
40 amps – 125/250 volts with closed loop
terminals and marked for use with ranges.
Where local codes do not permit grounding
through neutral, use a 4-wire power supply
cord. The cord or conduit must be secured
to the range with the strain relief bracket.
The electrical connection is made at the
terminal block, which is located behind the
access door on the back of the range.
3
Remove grounding screw. Cut-off
and discard ground strap.
4
1
1
5
Attach line #1 (red) and line #2 (black)
leads to outside terminal. Attach neutral wire (white)
to center terminal on the terminal block.
Push supply cord toward terminal
block to relieve strain, reattach supply cord strain relief
bracket over supply cord.
6
Reattach access door.

1918
1
2
Measure the four corners in cutout area to verify if
flooring is level.
For uneven or sloped floors, level unit with metal shims
only, as the adjustment required may exceed
the thread available in the leg.
Move unit into opening.
Leveling/Adjustments/Alignment
Electrical Connection (4-wire) (cont.)
Check that unit is level side to
side and front to back. Side trim of the high corner
must be 3/8” (0.95 cm) above countertop.
If leveling is required, move unit out of opening. Lift unit and prop on wood blocks.
4
Feed supply cord up through hole in bottom
of range back.
5
6
Attach ground lead (green)
with ground screw that was removed.
Attach line #1 (red) and line #2 (black)
leads to outside terminal. Attach neutral wire (white) to
center terminal on terminal block.
1
1
7
8
Push supply cord toward terminal
block to relieve strain, reattach supply cord strain
relief bracket over supply cord.
Reattach access door.
3
3/8” 3/8”
(0.95cm)
(0.95 cm)
3/8”
(0.95cm)
4
5
6
1
1
2

2120
1
Note: Refer to electrical and gas
requirements section for proper
installation information.
Connect gas and electrical. Before placing appliance in operation,
always check for gas leaks. This must be performed by your
dealer, a qualified licensed plumber, or gas service company.
Leveling/Adjustments/Alignments (cont.)
Connecting Gas & Electric
WARNING
Tipping hazard.
To reduce the risk of property
damage or personal injury;
install anti-tipping device
provided in accordance with
the installation instructions
in this document. Device
must be engaged properly to
prevent product from tipping
over.
DANGER
Gas leak hazard.
To avoid risk of personal injury
or death; leak testing of the
appliance must be conducted
according to the manufacturer’s
instructions. Before placing appliance in
operation, always check for gas leaks
with soapy water solution.
• DO NOT USE AN OPEN FLAME TO
CHECK FOR GAS LEAKS.
Anti-tip Device Installation
Anti-tip Device Installation (cont.)
7
Set the high corner of range so that the top of side trim is
3/8” (0.95 cm) above countertop. Level range to high corner.
Measure from floor to bottom
of the anit-tip opening located on the back of range.
This will be measurement (A).
3
Mark and drill holes where bracket will be located.
4
Attach bracket with
mounting hardware provided.
1
Measurement(A)
Measurement (A)
Measurement(A)
2
Measurement(A) Measurement (A)
+1/2”
+1/2” (1.3cm)
(1.3 cm)
Measurement(A)
+1/2”(1.3cm)
3-5/8”
(9.2 cm)
3-5/8”
(9.2cm)
Locate anti-tip bracket on rear wall with the top left corner at
measurement (A) plus 1/2” (1.3 cm) from the floor and 3-5/8” (9.2 cm)
from where the right side of range (facing range) is to be located.

22 23
Door Replacement and Adjustment
1
2
3/8” 3/8”
(0.95cm)
(0.95 cm)
3/8”
(0.95cm)
3
Burner heads and burner caps are packed in the
cardboard top pack with the grates. Align burner head
on burner base. Place burner cap on burner head.
Place grate onto the burner pan.
Check that unit is level side to side
and front to back. The side trim must be 3/8” (0.95 cm)
above countertop. If unit is not level repeat steps 5-7
of “Leveling/Adjustments/Alignment” section.
Slide range into place. Be sure
anti-tip bracket slides into the anti-tip opening.
Final Installation
1
2
Reattach door to range. Open door completely. Reattach hinge trim on both
sides.
3
4
Remove pins from holes in hinges. Close door.
5
If the door needs to be adjusted, loosen hinge trim screws
located in step 2. Adjust the screws located between the
door and kickplate using a 5/32” hex head Allen wrench.
After adjustment, tighten hinge trim screws.

2524
Performance Checklist
A qualified installer should carry out the
following checks
hCheck top burner
ignition. See
drawing for proper
flame height on HI.
The low flame should
light at every port.
h Check oven bake function—bake element
on full power, center and outside broil
elements at partial power.
h Convection bake function—bake and broil
elements the same with the convection fan
on.
h Check TruConvec™ function—TruConvec
element (behind convection fan cover) on
and convection fan on.
hCheck HI broil function–both broil
elements at full power.
h Check LOW broil function—inner broil
element only.
h Check convection broil function—both
broil elements at full power with convection
fan on.
h Check self-clean function—door will lock in
approximately 30 seconds, the center and
outside broil elements will turn on and the
bake element will turn on at partial power.
Check broil elements through window to
make sure they are on, then abort
self-clean cycle to unlock door.
Final Preparation
• All stainless steel body parts should be
wiped with hot, soapy water and with a
liquid cleaner designed for this material.
If buildup occurs, DO NOT use steel wool,
abrasive cloths, cleansers, or powders!
If it is necessary to scrape stainless steel
to remove encrusted materials, soak with
hot, wet cloths to loosen the material, then
use a wool or nylon scraper. DO NOT use
a metal knife, spatula, or any other
material tool to scrape stainless steel!
Scratches are almost impossible to
remove.
NOTICE
When conducting performance test,
DO NOT run self-clean cycle for more
than 10 minutes with oven racks inside
oven. This could cause them to discolor
due to the high temperature required
for self-cleaning.
1-1/2”
(3.8 cm)
3/8”
(0.95 cm)
Only authorized replacement parts may be used in performing service on the appliance.
All servicing should be referred to a qualified technician.
Contact Viking Range Corporation, 1-888-VIKING1 (845-4641), for the nearest service parts
distributor in your area or write to
VIKING RANGE CORPORATION
PREFERRED SERVICE
1803 Hwy 82W
Greenwood, Mississippi 38930 USA
The model and serial number can be found by either tilting range back or
using a mirror to look underneath on the front edge of the bottom base.
Record the following information indicated below. You will need it if service is ever required.
Model number ____________________________________________________________________________________
Serial number _____________________________________________________________________________________
Date of purchase __________________________________________________________________________________
Date installed ______________________________________________________________________________________
Dealer's name _____________________________________________________________________________________
Address ___________________________________________________________________________________________
T ese installation instructions s ould remain wit t e unit
for future reference.
Service & Registration

2726
