Viking F20495 User manual

Viking Range Corporation
111 Front Street
Greenwood Mississippi 38930 USA
[phone]
For product information
call 1-888-VIKING1 (845-4641)
or visit the Viking Web site at
vikingrange.com
F20495B EN (062608J)
®
Viking In tallation Guide
Profe ional Free tanding
30” Dual Fuel Range

IMPORTANT–Read and Follow!
3
2
Table of Contents
Warnings & Important Safety Instructions_____________________________________________________3
Dimensions __________________________________________________________________________________6
Specifications ________________________________________________________________________________7
Clearance Dimensions (Proximity to Cabinets) ________________________________________________8
Clearance Dimensions (Wood/Composite Overlay) ___________________________________________9
Electrical & Gas Requirements ______________________________________________________________10
General Information ________________________________________________________________________12
Installation__________________________________________________________________________________13
Door Removal __________________________________________________________________________13
Leg Installation _________________________________________________________________________14
Electrical Connection (3 Wire)___________________________________________________________15
Electrical Connection (4 Wire)___________________________________________________________17
Leveling/Adjustments/Alignment________________________________________________________19
Anit-tip Device Installation ______________________________________________________________20
Connecting Gas & Electrical ____________________________________________________________21
Final Installation ________________________________________________________________________22
Door Replacement and Adjustment _____________________________________________________23
Final Preparation____________________________________________________________________________24
Performance Checklist ______________________________________________________________________24
Service & Registration ______________________________________________________________________25
• Before beginning please read these
instructions completely and carefully.
• Do not remove permanently affixed labels
warnings or plates from product. This may
void the warranty.
• All local and national codes and ordinances
must be observed. Installation must
conform with local codes or in the absence
of codes the National Fuel Gas Code ANSI
Z223.1-latest edition.
• The installer must leave these instructions
with the consumer who should retain for
local inspector’s use and for future
reference.
In Canada: Installation must be in accordance
with the current CAN/CGA B149.1 & 2 Gas
Installation codes and/or local codes. Electrical
installation must be in accordance with the
current CSA C22.1 Canadian Electrical Codes
Part 1 and/or local codes.
In Massac usetts: All gas products must be
installed by a “Massachusetts” licensed
plumber or gasfitter. A “T” type handle
manual valve must be installed in the gas
supply line to the appliance.
Your saf ty and th saf ty of oth rs is
v ry important.
We have provided many important safety
messages in this manual and on your
appliance. Always read and o ey all
safety messages.
This is the safety alert sym ol. This
sym ol alerts you to hazards that
can kill or hurt you and others.
All safety messages will e preceded y
the safety alert sym ol and the word
“DANGER,” “WARNING” or “CAUTION.”
These words mean:
Hazards or unsaf practic s
which WILL r sult in s v r p rsonal
injury or d ath.
DANGER
Hazards or unsaf practic s
which COULD r sult in s v r p rsonal
injury or d ath.
Hazards or unsaf practic s which
COULD r sult in minor p rsonal injury or
prop rty damag .
All safety messages will identify the
hazard, tell you how to reduce the chance
of injury, and tell you what can happen if
the instructions are not followed.
WARNING
CAUTION

IMPORTANT–Read and Follow!
5
4
DANGER
Gas l ak hazard.
To avoid risk of personal injury
or death; leak testing of the
appliance must e conducted
according to the manufacturer’s
instructions. Before placing appliance in
operation, always check for gas leaks
with soapy water solution.
• DO NOT USE AN OPEN FLAME TO
CHECK FOR GAS LEAKS.
DANGER
El ctrical shock hazard.
To avoid risk of electrical shock,
personal injury or death; verify
your appliance has een
properly grounded in accordance with
local codes or in a sence of codes, with
the National Electrical Code (NEC).
ANSI/NFPA 70-latest edition.
WARNING
Moving hazard.
To avoid risk of severe
personal injury; this appliance
requires two or more personnel
while handling and moving. Possi le
use of appliance moving devices is
recommended.
DANGER
Fir / xplosion hazard.
IF THE INFORMATION IN
THIS MANUAL IS NOT
FOLLOWED EXACTLY, A
FIRE OR EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE,
PERSONAL INJURY, OR DEATH.
•DO NOT store or use gasoline or other
flamma le vapors and liquids in the
vicinity of this or any other appliance.
•WHAT TO DO IF YOU SMELL GAS:
–DO NOT try to light any appliance.
–DO NOT touch any electrical switch;
DO NOT use any phone in your
uilding.
–Immediately call your gas supplier from
a neigh or’s phone.
–Follow the gas supplier’s instructions.
–If you cannot reach your gas supplier,
call the fire department.
• Installation and service must e
performed y a qualified installer, service
agency, or the gas supplier.
DANGER
Ch mical hazard.
To avoid risk of property
damage and/or personal injury
or death; this appliance is not
too e used as a heating source.
• Benzene is a chemical which is part of
the gas supply to this cooking product,
which is consumed in the flames during
com ustion. Exposure to a small
amount of enzene is possi le if a gas
leak occurs. Formaldehyde and soot are
y-products of incomplete com ustion.
• This appliance contains or produces
chemicals which can cause serious
injury or death and which are known to
the state of California to cause cancer,
irth defects or other reproductive harm.
To reduce the risk from su stances in
the fuel or from fuel com ustion make
sure this appliance is installed,
operated, and maintained in accordance
to the instructions in this document.
WARNING
Tipping hazard.
To reduce the risk of property
damage or personal injury;
install anti-tipping device
provided in accordance with
the installation instructions in
this document. Device must e
engaged properly to prevent
product from tipping over.
• This range can tip.
• Injuries to persons can result.
• Install anti-tip device packed with range.
• See installation instructions.

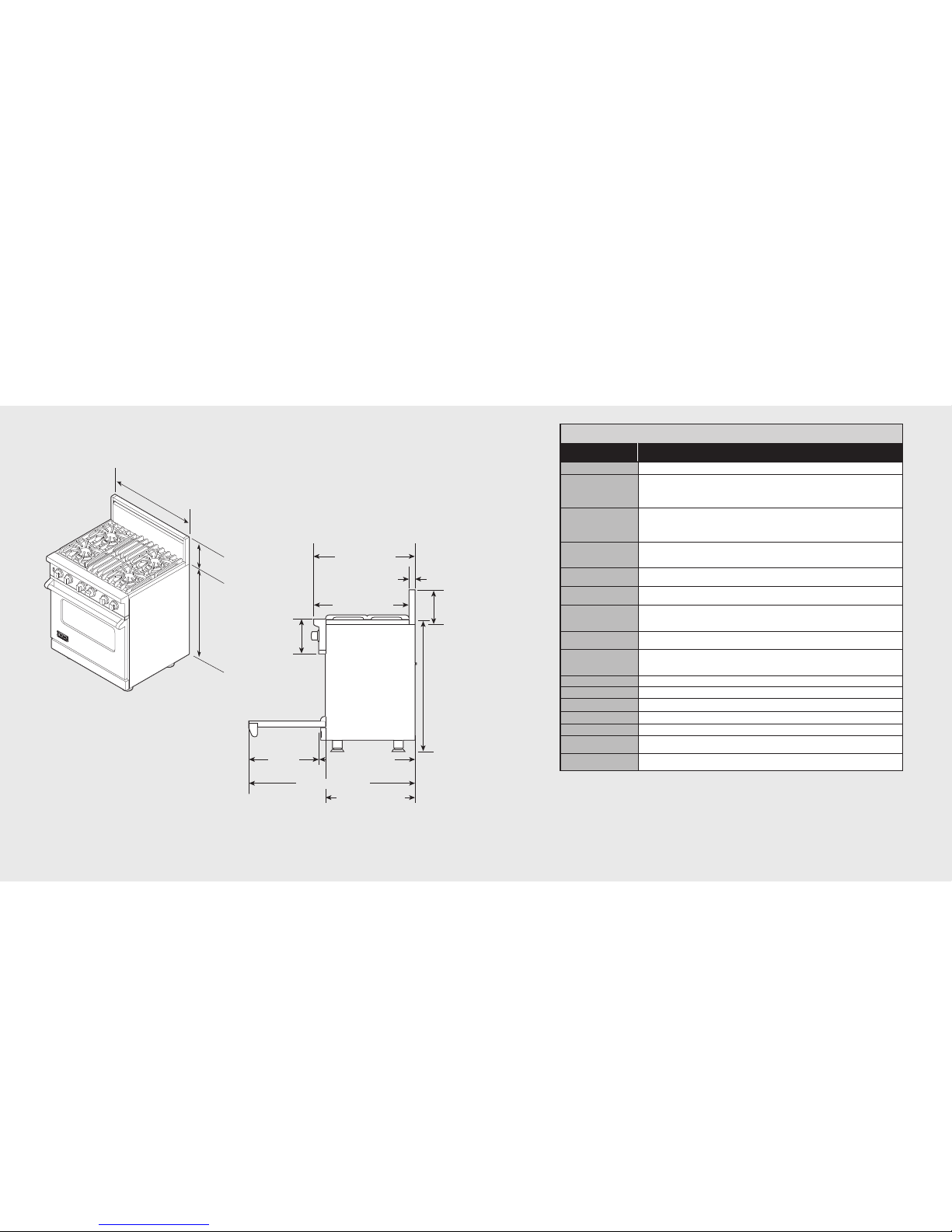

Specifications
7
Dimensions
6
Dual Fuel 30” Range Dual Fuel 30” Range
Description
VDSC530-4B
Overall width 29-7/8” (75.9 cm)
Overall height To top of side trim
35-7/8” (91.1 cm) min.
37” (94 cm) max.
Legs adjust 1-1/8” (2.9 cm)
Overall depth from
rear
To end of side panel—24-5/16” (61.8 cm)
To front of door—25-3/4” (65.4 cm)
To end of landing edge—28-1/16” (71.2 cm)
To end of door handle—28-11/16” (72.9 cm)
Additions to Base
Height
To top of island trim—add 1” (2.5 cm)
To top of backguard—add 8” (20.3 cm)
To top of high-shelf—add 23-1/2” (59.7 cm)
Gas requirements Shipped natural or LP/Propane gas; field convertible with conversion kit
(purchased separately); accepts standard residential 1/2” (1.3 cm) ID gas service line.
Gas manifold
pressure Natural 5.0” W.C.P. / Liquid propane L/P 10.0” W.C.P.
Electrical
requirements
240-208 VAC 60 Hz electrical connection box on product connect with locally
supplied 3-wire flexible cord or “pigtail” rated 40 amp 125-250 VAC minimum.
Cord must be agency approved for use with household electric ranges.
Maximum amp usage 240V—6098 watts; 25.4 amps
208V—4757 watts; 22.9 amps
Surface burner rating
Natural gas
LP
15 000 BTU (4.4 kW)
12 500 BTU (3.7 kW)
Griddle burner rating N/A
Grill burner rating N/A
Oven interior width 25-5/16” (64.6 cm)
Oven interior height 16-1/2” (41.9 cm)
Oven interior depth AHAM 16-13/16” (42.7 cm) Overall—19-1/2” (49.5 cm)
Oven volume Total oven capacity—4.7 cu. ft.
Measure to AHAM standards 4.1 cu. ft.
Approximate
shipping weight 410 lbs. (184.5 kg)
29-7/8”
(75.9cm)
35-7/8”
(91.1cm) min.
to
37”
(94cm) max.
8”
(20.3 cm)
Minimum clearances from adjacent combustible construction:
Below cooking surface (36” [91.4 cm] and below)
• Sides - 0”
• Top grate support - 36” (91.4 cm)
Above cooking surface (above 36” [91.4 cm])
• Sides - 6” (15.2 cm)
• Within 6” (15.2 cm) side clearance wall cabinets no deeper than 13” (33.0 cm) must be minimum 18” (45.7 cm)
above cooking surface
• Wall cabinets directly above product must be a minimum of 42” (106.7 cm) above cooking surface
• Rear - 0” with 8” backguard or high shelf; 0” with island trim and non-combustible rear wall;
• 6” (15.2 cm) with island trim and combustible rear wall
25-3/4” (65.4 cm)
45-1/8” (114.6 cm)
19-3/8”
(49.2 cm)
8-1/8”
(20.6 cm)
26-7/16” (67.2 cm)
1-5/8”
(4.1 cm)
8”
(20.3 cm)
35-7/8”
(20.3 cm) min.
to
37”
(94 cm) max.
24-5/16” (61.8 cm)
28-1/16” (71.2 cm)
Note: Unit shown with standard 8” (20.3 cm) backguard.

42” min.
(106.7cm)
13” max.
(
33.0cm)
6” min.
(15.2cm)
18”min.
(45.7cm)
3/8”
(0.95 cm)
36”
(91.4 cm)
29-7/8”
(75.9cm)
Clearance Dimensions (Wood/Composite Overlay)
9
Clearance Dimensions (Proximity to Cabinets)
8

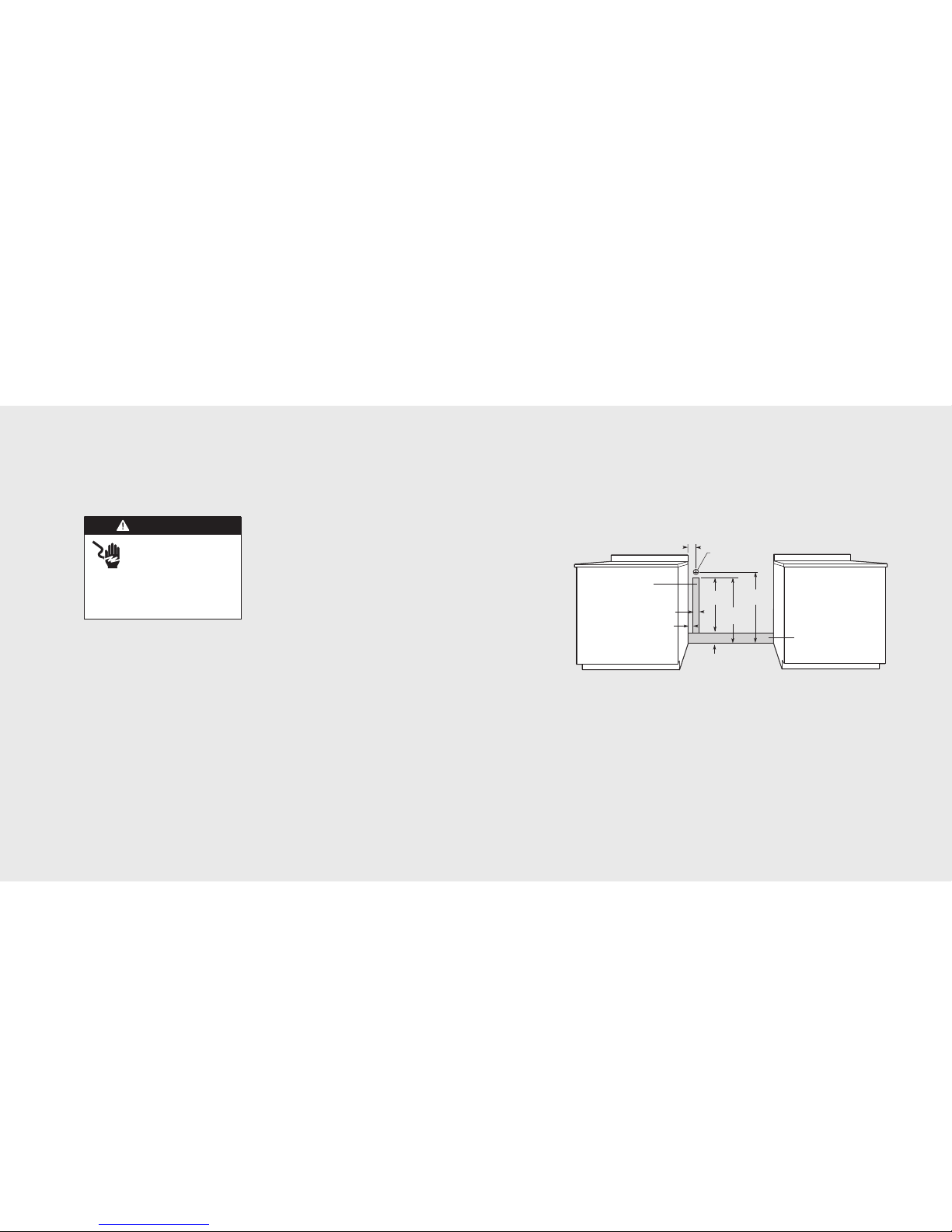

• This range may be installed directly
adjacent to existing 36” (91.4 cm) high
base cabinets.
IMPORTANT: The side trim MUST be
3/8” (.95 cm) above the adjacent base
cabinet countertop. This can be
accomplished by raising the unit using
the adjustment spindles on the legs.
• The range CANNOT be installed
directly adjacent to sidewalls tall
cabinets tall appliances or other
side vertical surfaces above 36”
(91.4 cm) high. There must be a
minimum of 6” (15.2 cm) side
clearance from the range to such
combustible surfaces above the
36” (91.4 cm) counter height.
• Within the 6” (15.2 cm) side
clearance to combustible vertical
surfaces above 36” (91.4 cm) the
maximum wall cabinet depth
must be 13” (33.0 cm) and wall
cabinets within this 6” (15.2 cm)
side clearance must be 18”
(45.7 cm) above the 36”
(91.4 cm) high countertop.
• Wall cabinets above the range must be a
minimum of 42” (106.7 cm) above the
range cooking surface for the full width
of the range. This minimum height
requirement does not apply if a range
hood is installed over the cooking surface.
The bottom of a standard hood should be
30” (76.2 cm) min. to 36” (91.4 cm) max.
above the countertop. This would typically
result in the bottom of the hood being
66” (167.6 cm) to 72” (182.9 cm) above the
floor. Refer to the range hood installation
instructions for additional information. These
dimensions provide for safe and efficient
operation of the hood.
66”min.
(167.6 cm)
to
72”max.
(182.9 cm)
66”min.
(167.6 cm)
to
72”max.
(182.9 cm)
24”
(61.0 cm)
or
27”
(38.6 cm)
30”
(76.2 cm)
6”
(15.2 cm)
Wood/Composite
Overlay
Wood/Composite
Overlay
30”min.
(76.2 cm)
to
36”max.
(91.4 cm)
0”
(
0cm)
30”min.
(76.2 cm)
to
36”max.
(91.4 cm)
Wall Installation
Island Installation
Note: Minimum clearance for back wall is 0” with
backguard or high-shelf.
Note: If a range hood is installed, wall cabinets
above the range have a different minimum
clearance height.
Note: 6” (15.2 cm) min. with island trim and
combustible rear wall. 0” with island trim
and non-combustible rear wall.
Note: Minimum clearance for back wall
is 0” with backguard or high-shelf.
CAUTION
Burn hazard.
To avoid risk of personal injury;
the use of ca inets for storage
a ove the appliance may result
in a potential urn hazard. Com usti le
items may ignite, metallic items may
ecome hot and cause urns. If a ca inet
storage is to e provided the risk can e
reduced y installing a rangehood that
projects horizontally a minimum 5”
(12.7 cm) eyond the ottom of ca inets.

11
Electrical & Gas Requirements
Flexible Connections:
If the unit is to be installed with flexible
couplings and/or quick-disconnect fittings
the installer must use a heavy-duty AGA
design-certified flexible connector of at least
1/2” (1.3 cm) ID NPT (with suitable strain
reliefs) in compliance with ANSI Z21.41
and Z21.69.
10
Electrical Requirements
Check your national and local codes
regarding this unit. This range requires
3 wire or 4 wire 240-208 VAC/60 Hz. See
“Electrical Connection” section for
grounding instructions. Must be fused
seperately from any other circuit.
Gas Connection
The gas supply (service) line must be the
same size or greater than the inlet line of the
appliance. This range uses a 1/2” (1.3 cm) ID
NPT (Sch40) inlet. Sealant on all pipe joints
must be resistive to LP gas.
T e range is designed specifically for
natural gas or liquid propane (LP) gas.
Before beginning installation verify t at
t e model is compatible wit t e intended
gas supply.
Manual s ut-off valve:
This installer-supplied valve must be installed
in the gas service line before the appliance
in the gas stream and in a location where it
can be reached quickly in the event of
an emergency.
In Massac usetts: A “T” handle type
manual valve must be installed in the gas
supply line to the appliance.
IMPORTANT: Any conversion required
must be performed by your dealer or a
qualified licensed plumber or gas service
company. Please provide the service person
with this manual before work begins.
Pressure Regulator:
• All heavy-duty commercial type cooking
equipment must have a pressure regulator
on the incoming service line for safe and
efficient operation since service pressure
may fluctuate with local demand. External
regulators are not required on this range
since a regulator is built into each unit at
the factory. Under no condition bypass
this built-in regulator.
• Manifold pressure should be checked with
a manometer natural gas requires 5.0”
W.C.P. and LP gas requires 10.0” W.C.P.
Incoming line pressure upstream from the
regulator must be 1” W.C.P. higher than
the manifold pressure in order to check
the regulator. The regulator used on this
range can withstand a maximum input
pressure of 1/2” PSI (14.0” W.C.P.). If the
line pressure is in excess of that amount a
step down regulator will be required.
• The appliance must be disconnected from
the gas supply piping system during any
pressure testing of that system.
2” dia.
(5.1 cm)
2-3/4”
(7.0 cm)
2-1/2”
(6.4 cm)
1-3/4”
(4.4 cm)
28-5/16”
(71.9 cm)
23-7/16”
(59.5 cm)
Gas or electrical
connection in
this area
Gas connection
in this area
4-3/8”
(11.1 cm)
31-1/16”
(78.9 cm)
In Canada: CAN 1-6 10-88 metal
connectors for gas appliances and CAN
1-6.9 M79 quick disconnect devices for use
with gas fuel.
In Massac usetts: This appliance must be
installed with a 36” (3-foot) long flexible
gas connector.
WARNING
El ctrical shock hazard.
To avoid the risk of electrical
shock, personal injury or death;
verify electrical power is turned
off at the reaker ox and gas supply is
turned off until the range is installed and
ready to operate, installation y an
authorized installer only.

1312
General Information Installation
READ AND FOLLOW ALL WARNING
AND CAUTION INFORMATION WHEN
INSTALLING THIS APPLIANCE.
• All openings in the wall behind the
appliance and in the floor under the
appliance must be sealed.
• Do not obstruct the flow of combustion and
ventilation air.
Moving, Handling, and Unpacking
Remove and discard all packing materials
including cardboard and tape on the outside
and inside of the range.
Remove the burner grates and styrofoam
off the top cooking surface. Be sure to
remove the burner caps packaged in
styrofoam below the burner grates.
Do not discard the anti-tip metal
bracket supplied with the range.
This is the anti-tip device and must
be installed with the unit. Refer to
“Anti-ti Device Installation”
section.
Some stainless steel parts may have a plastic
protective wrap which must be peeled off.
The interior should be washed thoroughly
with hot soapy water to remove film
residues and any dust or debris before being
used then rinsed and wiped dry. Solutions
stronger than soap and water are rarely
needed.
NOTICE
DO NOT use the handle or oven door to
lift the oven. Remove door efore
installation to ensure that it is not used to
lift the unit. DO NOT lift or carry the door
y the handle.
Removing the door must e done y your
dealer, a qualified licensed plum er, or
certified gas installer.

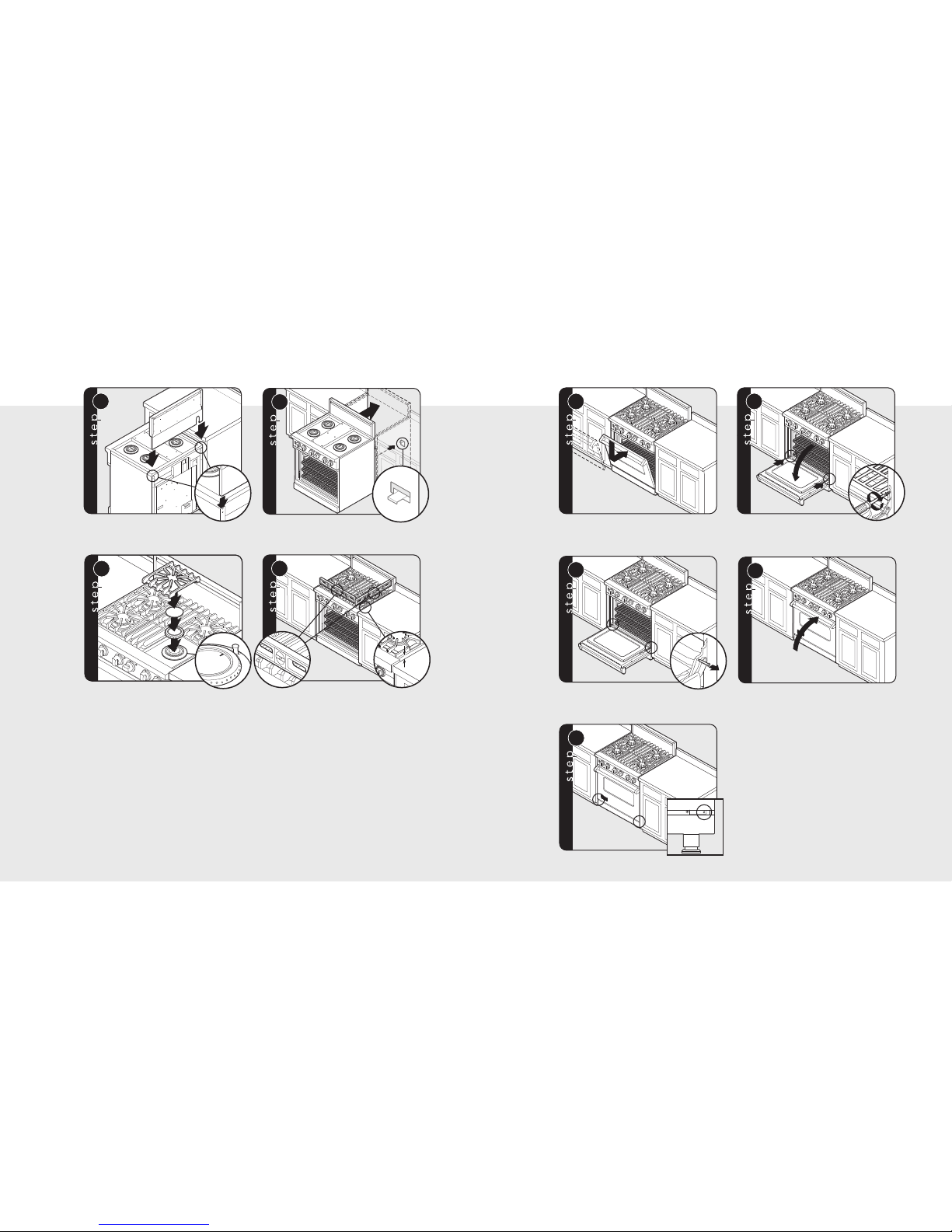

Door Removal
1
Open door completely. Place pins supplied with unit in
pin hole. For personal safety ONLY use pins
supplied with the unit.
2
Remove hinge trim screws. Take off hinge trim. Identify
right and left hinge for future re-installation.
3
Close until pins stop door.
4
Lift door up and out.

14 15
1
Remove access door.
Electrical Connection (3-wire)
Note: If you have a 4-wire connection, see following section for
4-wire connection instructions.
Use a 3-wire power supply cord kit rated for
40 amps – 125/250 volts with closed loop
terminals and marked for use with ranges.
Do not use a GFI circuit. Where local codes
do not permit grounding through neutral
use a 4-wire power supply cord. The cord or
conduit must be secured to the range with
the strain relief bracket.
The electrical connection is made at the
terminal block which is located behind the
access door on the back of the range.
2
Remove supply cord strain relief
bracket and three supply cord mounting screws
on terminal block.
WARNING
El ctrical shock hazard.
To avoid risk or electrical
shock, personal injury or death;
grounding product to the frame
of the unit may or may not e permitted
through your local codes. If ground to the
frame is not permitted then a 4 conductor
power cord must e used.
WARNING
El ctrical shock hazard.
To avoid risk of electrical shock,
personal injury or death; verify
your appliance has een
properly grounded in accordance with
local codes or in a sence of codes, with
the National Electrical Code (NEC).
ANSI/NFPA 70-latest edition.
1
1
1
2
3
2

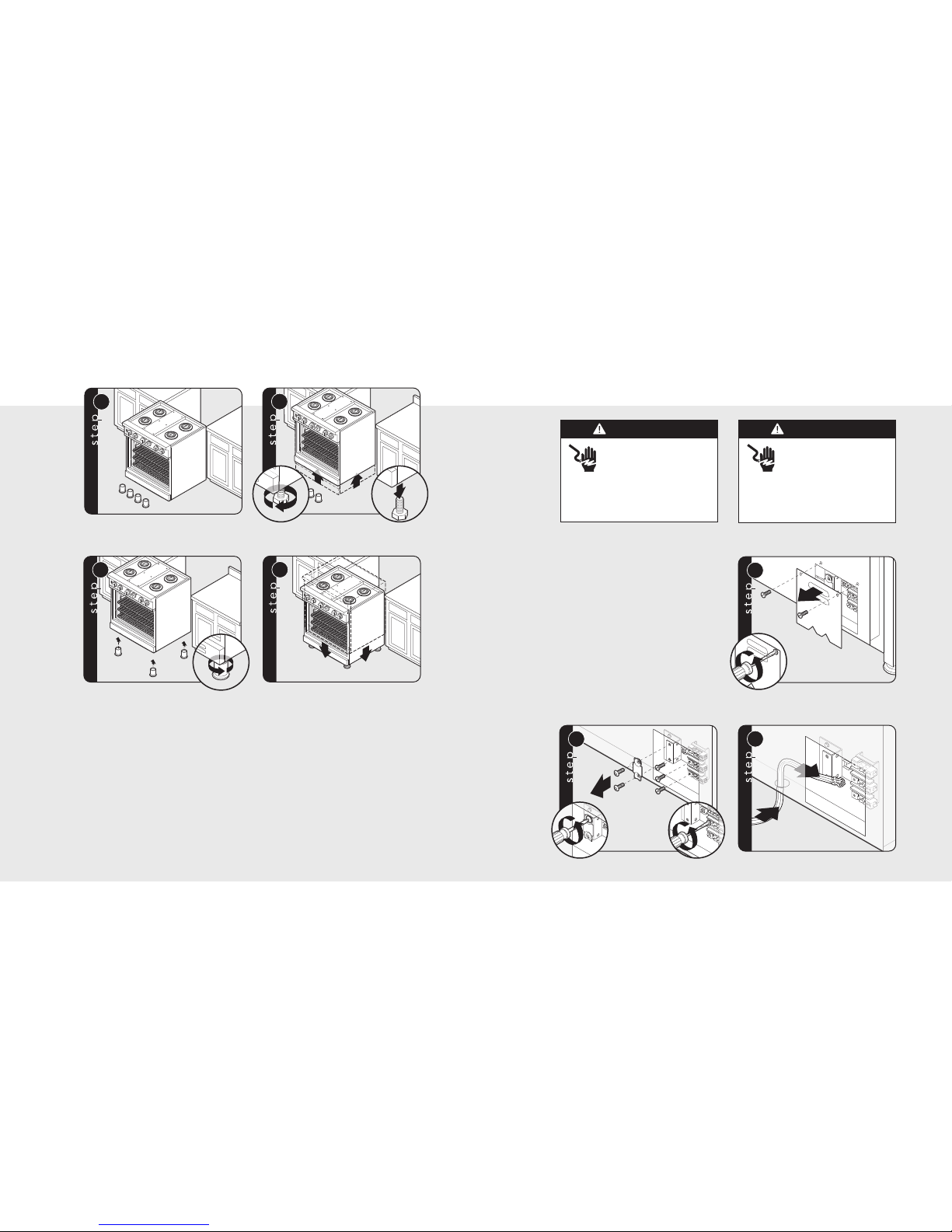

Legs are packed in styrofoam top pack.
Note: Legs should be installed near to where
a liance is to be used, as they are
not secure for long transit.
Note: It is strongly recommended
that a allet or lift jack be used rather than tilting.
Raise unit about a foot. Unscrew temporary legs from
couplings on all four corners .
4
Lower range gently to keep any undue strain from
legs and internal mounting hardware.
3
Screw legs into couplings on all
four corners.
Leg Installation
3
Feed supply cord up through hole in bottom
of range back.

1716
1
2
Remove access door.
Remove supply cord strain relief
bracket and three supply cord mounting screws on
the terminal block.
Electrical Connection (4-wire)
Electrical Connection (3-wire) (cont.)
WARNING
El ctrical shock hazard.
To avoid risk or electrical
shock, personal injury or death;
grounding product to the frame
of the unit may or may not e permitted
through your local codes. If ground to the
frame is not permitted then a 4 conductor
power cord must e used.
WARNING
El ctrical shock hazard.
To avoid risk of electrical shock,
personal injury or death; verify
your appliance has een
properly grounded in accordance with
local codes or in a sence of codes, with
the National Electrical Code (NEC).
ANSI/NFPA 70-latest edition.
Use a 4-wire power supply cord kit rated for
40 amps – 125/250 volts with closed loop
terminals and marked for use with ranges.
Do not use a GFI circuit. Where local codes
do not permit grounding through neutral
use a 4-wire power supply cord. The cord or
conduit must be secured to the range with
the strain relief bracket.
The electrical connection is made at the
terminal block which is located behind the
access door on the back of the range.
3
Remove grounding screw. Cut-off
and discard ground strap.
4
1
1
5
Attach line #1 (red) and line #2 (black)
leads to outside terminal. Attach neutral wire (white)
to center terminal on the terminal block.
Push supply cord toward terminal
block to relieve strain reattach supply cord strain relief
bracket over supply cord.
6
Reattach access door.

1918
1
2
Measure the four corners in cutout area to verify if
flooring is level.
For uneven or sloped floors level unit with metal shims
only as the adjustment required may exceed
the thread available in the leg.
3
4
3/8”3/8”
(0.95cm)
(0.95 cm)
3/8”
(0.95cm)
Move unit into opening.
Leveling/Adjustments/Alignment
Electrical Connection (4-wire) (cont.)
5
Check that unit is level side to
side and front to back. Side trim of the high corner
must be 3/8” (0.95 cm) above countertop.
If leveling is required move unit out of opening.
6
1
2
1
Lift unit and prop on wood blocks.
4
Feed supply cord up through hole in bottom
of range back.
5
6
Attach ground lead (green)
with ground screw that was removed.
Attach line #1 (red) and line #2 (black)
leads to outside terminal. Attach neutral wire (white) to
center terminal on terminal block.
1
1
7
8
Push supply cord toward terminal
block to relieve strain reattach supply cord strain
relief bracket over supply cord.
Reattach access door.
