Viking VBCV3038 User manual

VENTILATION
Built-In Custom Ventilator Systems
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
R E L E A S E D 0 5 / 1 2 / 0 8
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
All models include
• Must purchase and install an interior-
or exterior-power ventilator (motor) kit
(see Insta ation Requirements table
for recommendations)
• For use with custom hoods
o The look and performance of Viking
ventilation in a blank canvas for
virtually endless overlay options
o Easily installs into almost any custom
hood application
• Powerful enough to handle even the
most pungent cooking odors
• Heat sensor on hood turns ventilator
on full power when cooking
temperatures reach uncomfortable
levels
• Variable speed controls for custom
venting—separate on/off switch allows
you to leave ventilator at
favorite/most-used setting
• Quiet fans also keep temperatures
down
• Heavy-duty construction
o Virtually seamless stainless steel
design with no visible screws
• Easy cleanup
o Design of low-profile filter system
means less interior hood space to
be cleaned
o Stainless steel liner for increased
rigidity, seamless appearance, and
easy cleaning
• 50-watt halogen lights with dimmer
control (bulbs included)
o Power switch and dimmer control
are separate, allowing you to leave
dimmer at favorite position
o See Dimensions & Specifications
table for number of lights per model
Professional models include
• Professional-type size, design, and
styling
• Heat lamps standard on wall ventilator
systems (bulbs not included)
• Commercial-type baffle filter system
efficiently removes grease and heated
vapors from the air; especially
designed for use with commercial-
type products
o See Dimensions & Specifications
table for number of filters per model
• Removable trough catches liquefied
grease, making cleanup quick and
easy
Desi ner models include
• Elegant design and styling
• 12-hour timer built into ventilator
controls
• Delay feature allows you to set the
ventilator to shut off on its own from
10 – 30 minutes later
• Dishwasher-safe, stainless steel mesh
filters efficiently remove grease and
heated vapors from the air, and are
easily removed for quick cleaning
o See Dimensions & Specifications
table for number of filters per
model
Model numbers
PROFESSIONAL CUSTOM WALL
VENTILATOR SYSTEMS (for use with
custom wall hoods)
• VBCV3038—30"W./18"H./22"D.
• VBCV3638—36"W./18"H./22"D.
• VBCV4238—42"W./18"H./22"D.
• VBCV4838—48"W./18"H./22"D.
• VBCV5438—54"W./18"H./22"D.
• VBCV6038—60"W./18"H./22"D.
• VBCV6638—66"W./18"H./22"D.
PROFESSIONAL CUSTOM ISLAND
VENTILATOR SYSTEMS (for use with
custom island hoods)
• VICV3698—36"W./18"H./29"D.
• VICV4298—42"W./18"H./29"D.
• VICV5498—54"W./18"H./29"D.
• VICV6698—66"W./18"H./29"D.
DESIGNER CUSTOM WALL VENTILATOR
SYSTEMS (for use with custom wall
hoods)
• DBCV3082—30"W./12"H./18"D.
• DBCV3682—36"W./12"H./18"D.
• DBCV4282—42"W./12"H./18"D.
• DBCV4882—48"W./12"H./18"D.
DESIGNER CUSTOM ISLAND VENTILATOR
SYSTEMS (for use with custom island
hoods)
• DICV3632—36"W./12"H./23"D.
• DICV4232—42"W./12"H./23"D.
• DICV5432—54"W./12"H./23"D.
FINISH DETAILS
• Designed to be covered by custom
materials—no standard exterior finish
• Stainless steel interior
• See Custom Pane s section for more
information and additional
specifications.

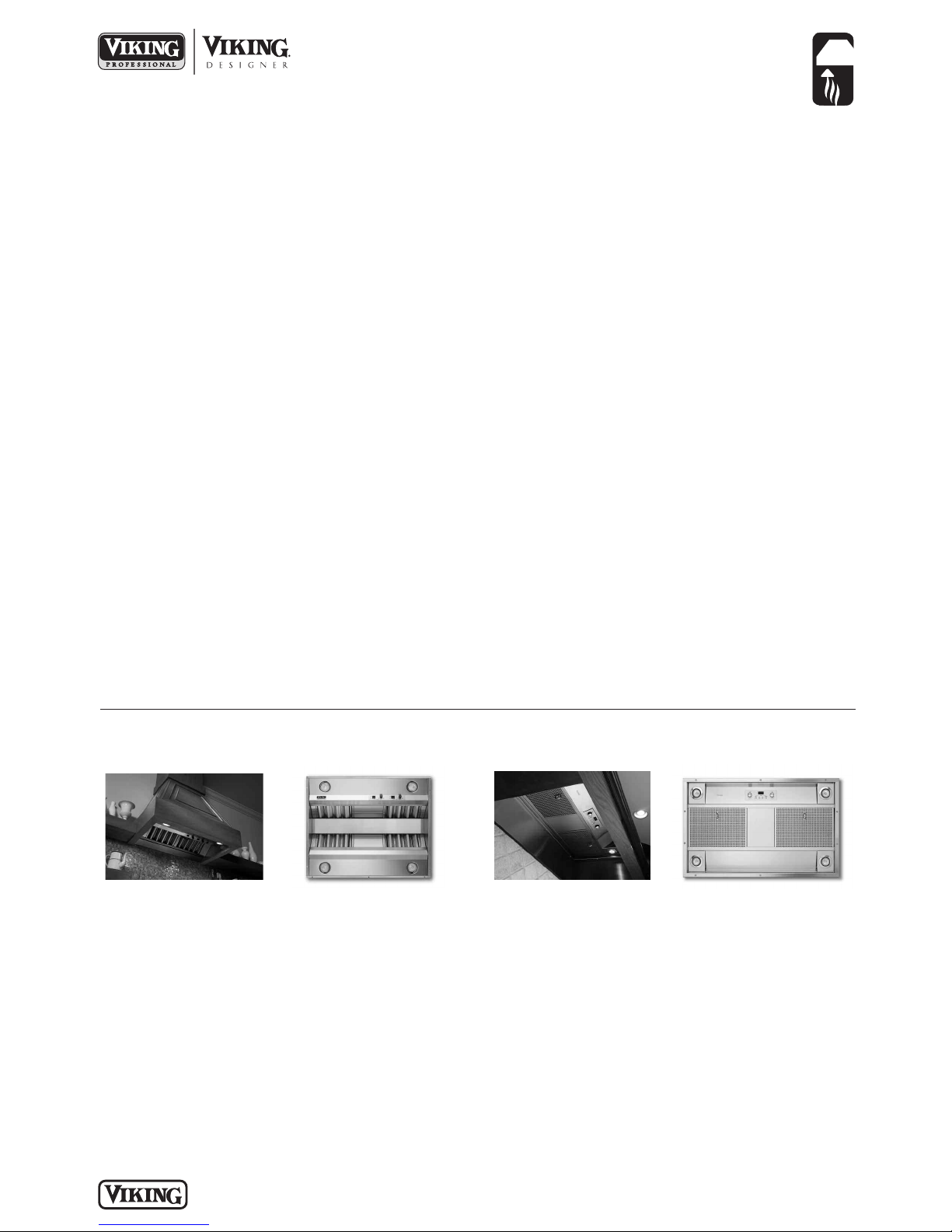

VBCV Professiona
Custom Wa
Venti ator System
VICV Professiona
Custom Is and
Venti ator System
Standard Features & Accessories
DBCV Designer
Custom Wa
Venti ator System
DICV Designer
Custom Is and
Venti ator System
Model Options
27-7/16”
(69.7 cm)
28-7/16”
(72.2 cm)
A
17-1/4“
(43.8 cm)
6”
(15.2 cm)
1”
(2.5 cm)
VBCV Professiona
Custom Wa
Venti ator System
VICV Professiona
Custom Is and
Venti ator System
DBCV Designer
Custom Wa
Venti ator System
DICV Designer
Custom Is and
Venti ator System
VENTILATION
Built-In Custom Ventilator Systems
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
R E L E A S E D 0 5 / 1 2 / 0 8
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
16”
(40.6 cm)
17-1/4”
(43.8 cm)
A
11-3/4“
(29.8 cm)
5”
(12.7 cm)
1”
(2.5 cm)

Please see
Insta ation Notes &
Accessories for
important information,
including ventilator
kits.
21-1/8”
(53.7 cm)
A
17-1/4“
(43.8 cm)
6”
(15.2 cm)
1”
(2.5 cm)
21-7/8”
(55.8 cm)
Dimensions & Specifications
PRODUCT DIMENSIONS
Model Hood Li hts Filters Heat Approx.
Width (A) Depth Hei ht Lamps Ship. wt.
VBCV3038 28-1/4” (71.8 cm) 21-7/8” (55.8 cm) 17-1/4” (43.8 cm) 22160 lbs. (27.0 kg)
VBCV3638 34-1/4” (87.0 cm) 21-7/8” (55.8 cm) 17-1/4” (43.8 cm) 22168 lbs. (30.6 kg)
VBCV4238 40-1/4” (102.2 cm) 21-7/8” (55.8 cm) 17-1/4” (43.8 cm) 22176 lbs. (34.2 kg)
VBCV4838 46-1/4” (117.5 cm) 21-7/8” (55.8 cm) 17-1/4” (43.8 cm) 33288 lbs. (39.6 kg)
VBCV5438 52-1/4” (132.7 cm) 21-7/8” (55.8 cm) 17-1/4” (43.8 cm) 33296 lbs. (43.2 kg)
VBCV6038 58-1/4” (148.0 cm) 21-7/8” (55.8 cm) 17-1/4” (43.8 cm) 442108 lbs. (48.6 kg)
VBCV6638 64-1/4” (163.2 cm) 21-7/8” (55.8 cm) 17-1/4” (43.8 cm) 442121 lbs. (54.5 kg)
VICV3698 34-1/4” (87.0 cm) 28-7/16” (72.2 cm) 17-1/4” (43.8 cm) 44N/A 73 lbs. (33.1 kg)
VICV4298 40-1/4” (102.2 cm) 28-7/16” (72.2 cm) 17-1/4” (43.8 cm) 44N/A 83 lbs. (37.7 kg)
VICV5498 52-1/4” (132.7 cm) 28-7/16” (72.2 cm) 17-1/4” (43.8 cm) 66N/A 115 lbs. (52.2 kg)
VICV6698 64-1/4” (163.2 cm) 28-7/16” (72.2 cm) 17-1/4” (43.8 cm) 88N/A 128 lbs. (58.1 kg)
DBCV3082 29-5/8” (75.2 cm) 17-1/4” (43.8 cm) 11-3/4” (29.8 cm) 22N/A 63 lbs. (28.4 kg)
DBCV3682 35-5/8” (90.5 cm) 17-1/4” (43.8 cm) 11-3/4” (29.8 cm) 22N/A 70 lbs. (31.5 kg)
DBCV4282 41-5/8” (105.7 cm) 17-1/4” (43.8 cm) 11-3/4” (29.8 cm) 23N/A 77 lbs. (34.7 kg)
DBCV4882 47-5/8” (121.0 cm) 17-1/4” (43.8 cm) 11-3/4” (29.8 cm) 23N/A 85 lbs. (38.3 kg)
DICV3632 35-5/8” (90.5 cm) 22-1/4” (40.6 cm) 11-3/4” (29.8 cm) 42N/A 88 lbs. (40.0 kg)
DICV4232 41-5/8” (105.7 cm) 22-1/4” (40.6 cm) 11-3/4” (29.8 cm) 42N/A 96 lbs. (43.6 kg)
DICV5432 53-5/8” (136.2 cm) 22-1/4” (40.6 cm) 11-3/4” (29.8 cm) 43N/A 106 lbs. (48.1 kg)
21”
(53.3 cm)
22-1/4”
(56.5 cm)
A
11-3/4“
(29.8 cm)
5”
(12.7 cm)
1”
(2.5 cm)
VBCV
VICV
DBCV
DICV
VBCV Professiona
Custom Wa
Venti ator System
VICV Professiona
Custom Is and
Venti ator System
DBCV Designer
Custom Wa
Venti ator System
DICV Designer
Custom Is and
Venti ator System
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
R E L E A S E D 0 5 / 1 2 / 0 8
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
VENTILATION
Built-In Custom Ventilator Systems
Proper insta ation/ ducting is
extreme y important to ensure
maximum performance. Use a qua ified
and trained insta er.
DUCTING
• Check with a qualified and
trained installer or local codes
for makeup air requirements, if
any.
• Max. duct run length
o For 300 – 1,200 CFM—
50’ (152.4 m)
o
For 1,500 CFM—75’ (22.9 m)
o Duct run length is for
general reference only;
always use a qualified and
trained installer.
o Straight runs and gradual
turns are best; for example,
each 90 elbow is equivalent
to 5’ – 10’ (1.52 – 3.05 cm)
of straight run.
• 7” (17.8 cm) round duct for
300 – 600 CFM; 10” for 900 –
1500 CFM
o Never use flexible duct; it
creates back pressure/air
turbulence and greatly
reduces performance.
GAS
Not applicable
ELECTRICAL
• Hardwire direct with two-wire
ground
• 120 VAC/60 Hz
• Max. amp usage (rating
includes recommended
ventilator kit rating)—see
Insta ation Requirements
table
PLUMBING
Not applicable
Installation Requirements
Model Ventilator Kits Duct Size Max. Amps
Interior Exterior Interior Exterior Interior Exterior
VBCV3038 VIV300/600/1200* VEV900/1200* 7” (17.8 cm)/ 10” (25.4 cm) 5.0/6.2/8.7 8.7/6.1
10” (25.4 cm)
VBCV3638 VIV300/600/1200* VEV900/1200* 7” (17.8 cm)/ 10” (25.4 cm) 5.0/6.2/8.7 8.7/6.1
10” (25.4 cm)
VBCV4238 VIV600/1200*VEV900/1200*7” (17.8 cm)/ 10” (25.4 cm) 6.2/8.7 8.7/6.1
10” (25.4 cm)
VBCV4838 VIV1200*VEV1200*/1500 10” (25.4 cm) 10” (25.4 cm) 11.1 8.4/9.1
VBCV5438 VIV1200*VEV1200*/1500 10” (25.4 cm) 10” (25.4 cm) 11.1 8.4/9.1
VBCV6038 VIV1200*VEV1200*/1500 10” (25.4 cm) 10” (25.4 cm) 11.5 8.8/9.5
VBCV6638 VIV1200*VEV1200*/1500 10” (25.4 cm) 10” (25.4 cm) 11.5 8.8/9.5
VICV3698 VIV600/VIV1200* VEV900/1200* 7” (17.8 cm) 10” (25.4 cm) 4.9/7.4 7.4/4.7
VICV4298 VIV600/1200* VEV900/1200*/1500 7” (17.8 cm) 10” (25.4 cm) 4.9 7.4/4.8/5.4
VICV5498 VIV1200*VEV1200*/1500 10” (25.4 cm) 10” (25.4 cm) 8.2 5.6/6.2
VICV6698 VIV1200*VEV1200*/1500 10” (25.4 cm) 10” (25.4 cm) 9.0 6.3/7.1
DBCV3082 DIV300/440 DEV900**/1200* 7” (17.8 cm) 10” (25.4 cm) 1.7/3.2 6.6/3.9
DBCV3682 DIV300/440 DEV900**/1200* 7” (17.8 cm) 10” (25.4 cm) 1.7/3.2 6.6/3.9
DBCV4282 DIV440 DEV900**/1200* 7” (17.8 cm) 10” (25.4 cm) 3.2 6.6/3.9
DBCV4882 DIV880 DEV1200/1500 10” (25.4 cm) 10” (25.4 cm) 5.6 4.3/5.1
DICV3632 DIV440 DEV900**/1200* 7” (17.8 cm) 10” (25.4 cm) 4.0 7.5/5.2
DICV4232 DIV440 DEV900**/1200/1500 7” (17.8 cm) 10” (25.4 cm) 4.0 7.5/5.2/6.0
DICV5432 DIV880 DEV1200/1500 10” (25.4 cm) 10” (25.4 cm) 6.4 5.2/6.0
*1200 CFM interi r and exteri r (if applicable) ventilat r sh uld be used with all utd r appr ved m dels and when ind r m dels are installed ver
ranges/ranget ps with gas grill.
**Must use 8” duct fr m can py t ceiling – trasiti n t 10” duct past duct c ver.
Note: Exhaust capacity based on tests with 0.1 static pressure. Without applying static pressure (some brands do not), CFM could be
greatly o erstated.
UTILITY REQUIREMENTS
R E L E A S E D 0 5 / 1 2 / 0 8
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
VENTILATION
Built-In Custom Ventilator Systems
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
Ventilator Kits
• See Insta ation Requirements table for recommendations for each hood model
• One ventilator, one duct run for any size hood/ventilator
•A 1,200 CFM interior or 1,500 CFM exterior (if applicable) ventilator should be used over ranges/rangetops with gas grill
• Must use Viking ventilator kits with Viking hoods; use of non-Viking kits voids product warranty
Compliance Information
WARRANTY SUMMARY*
• One-year full warranty—complete product
• Five-year limited warranty—all ventilator motors
• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items
*Must use Viking venti ator kits with Viking hoods; use of non-Viking kits voids product warranty. For complete warranty see Use & Care Guide.
Warranty valid on Viking products shipped within the United States and Canada.
Installation Notes & Accessories
Kit model Description Hood models Approx. ship wt. lbs. (k )
VIV300 300 CFM interi r-p wer VBCV3038/3638 27 (12.2)
VIV600 440 CFM interi r-p wer VBCV3038/3638/4238 & VCIV3698/4298 27 (12.2)
VIV1200 1200 CFM interi r-p wer VBCV3038/3638/4238/4838/5438/6038/6638 & 43 (19.4)
VCIV3698/5498/6698
VEV900 900 CFM exteri r-p wer VBCV3038/3638/4238 & VICV3698/4298 39 (17.6)
VEV1200 1200 CFM exteri r-p wer VBCV4838/5438/6038/6638 & VICV3698/4298/ 53 (23.9)
5498/6698
VEV1500 1500 CFM exteri r-p wer VBCV4838/5438/6038/6638 &VICV4298/5498/6698 47 (21.3)
DIV300 300 CFM interi r-p wer DBCV3082/3682 15 (6.8)
DIV440 440 CFM interi r-p wer DBCV3082/3682/4282 & DICV3632/4232 25 (11.3)
DIV880 880 CFM interi r-p wer DBCV4882 & DICV5432 36 (16.2)
DEV900 900 CFM exteri r-p wer DBCV3082/3682/4282 & DICV3632/4232 39 (17.6)
DEV1200 1200 CFM exteri r-p wer DBCV3082/3682/4282/4882 & DICV3632/4232/5432 53 (23.9)
DEV1500 1500 CFM exteri r-p wer DBCV4882 & DICV4232/5432 53 (23.9)

Other manuals for VBCV3038

1

This manual suits for next models

21

Other Viking Ventilation Hood manuals

Viking DWH3006SS User manual

Viking

Viking DWH3006SS User manual

Viking DBCV3082 User manual

Viking

Viking DBCV3082 User manual

Viking DCIH User manual

Viking

Viking DCIH User manual

Viking DCH 12''H User manual

Viking

Viking DCH 12''H User manual

Viking DBCV3082 User manual

Viking

Viking DBCV3082 User manual

Viking VWH3610MS User manual

Viking

Viking VWH3610MS User manual

Viking RDIPR101RSS Owner's manual

Viking

Viking RDIPR101RSS Owner's manual

Viking DCIH3604SS User manual

Viking

Viking DCIH3604SS User manual

Viking VBCV5438 User manual

Viking

Viking VBCV5438 User manual

Viking DBCV3082 User manual

Viking

Viking DBCV3082 User manual

Viking VERSAVENT RVDD330R User manual

Viking

Viking VERSAVENT RVDD330R User manual

Viking DCWH Classic Chimney User manual

Viking

Viking DCWH Classic Chimney User manual

Viking VBCV3038 User manual

Viking

Viking VBCV3038 User manual

Viking VIPR101 User manual

Viking

Viking VIPR101 User manual

Viking VWH3610AG User manual

Viking

Viking VWH3610AG User manual

Viking VWH2410 User manual

Viking

Viking VWH2410 User manual

Viking DIPR100R User manual

Viking

Viking DIPR100R User manual

Viking MVLH636SS Installation guide

Viking

Viking MVLH636SS Installation guide

Viking VCWH3048SS User manual

Viking

Viking VCWH3048SS User manual

Viking DGWH User manual

Viking

Viking DGWH User manual

Viking VWH2410 User manual

Viking

Viking VWH2410 User manual

Viking RVCH330 User manual

Viking

Viking RVCH330 User manual

Viking VWH30481SS User manual

Viking

Viking VWH30481SS User manual

Viking VBCV36381 User manual

Viking

Viking VBCV36381 User manual

Popular Ventilation Hood manuals by other brands

Schako RS-N Additional operating instructions

Schako

Schako RS-N Additional operating instructions

KOBE RA9236SQ Installation instructions and operation manual

KOBE

KOBE RA9236SQ Installation instructions and operation manual

Whirlpool UXT4030AD Installation Instructions and Use & Care Guide

Whirlpool

Whirlpool UXT4030AD Installation Instructions and Use & Care Guide

Kaiser La Perle AT 9343 user manual

Kaiser

Kaiser La Perle AT 9343 user manual

AIRFORCE F184 Instruction on mounting and use

AIRFORCE

AIRFORCE F184 Instruction on mounting and use

ETNA A4499ARVS Instruction on mounting and use

ETNA

ETNA A4499ARVS Instruction on mounting and use

GE Monogram ZV755 owner's manual

GE

GE Monogram ZV755 owner's manual

Pando E-219 installation manual

Pando

Pando E-219 installation manual

Taurus GALLERY 60 INOX manual

Taurus

Taurus GALLERY 60 INOX manual

Xo XOV36S User instructions

Xo

Xo XOV36S User instructions

Zelmer 522.60 user manual

Zelmer

Zelmer 522.60 user manual

ROBLIN PROFIL MURALE 900 Directions for use

ROBLIN

ROBLIN PROFIL MURALE 900 Directions for use

ROBLIN PILOT OPTIMA Dimensions

ROBLIN

ROBLIN PILOT OPTIMA Dimensions

Vortice VORT MAX ES Instruction booklet

Vortice

Vortice VORT MAX ES Instruction booklet

GE JVB37 Owner's Manual & Installation Instructions

GE

GE JVB37 Owner's Manual & Installation Instructions

Fisher & Paykel HC60DCXB1 Installation instructions & user guide

Fisher & Paykel

Fisher & Paykel HC60DCXB1 Installation instructions & user guide

Luisi Air VERONA Installation, use and maintenance instructions

Luisi Air

Luisi Air VERONA Installation, use and maintenance instructions

ROBLIN SL 600 operating instructions

ROBLIN

ROBLIN SL 600 operating instructions

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
