Wine Cooling System
WM-1500HZD, WM-
2500HZD WM-3500HZD,
WM-4500HZD WM-
6500HZD, WM-8500HZD
Installation, Use & Care Manual
www.vinotemp.com
Read and save these instructions

-1-
Important Safety Information
NOTES:
• Do not plug in until 24 hours after delivery.
• Do not use a ground fault interrupter (GFI).
• A dedicated 20 AMP circuit for WM-1500~2500HZD and 30 AMP for WM-
3500~8500HZD are required.

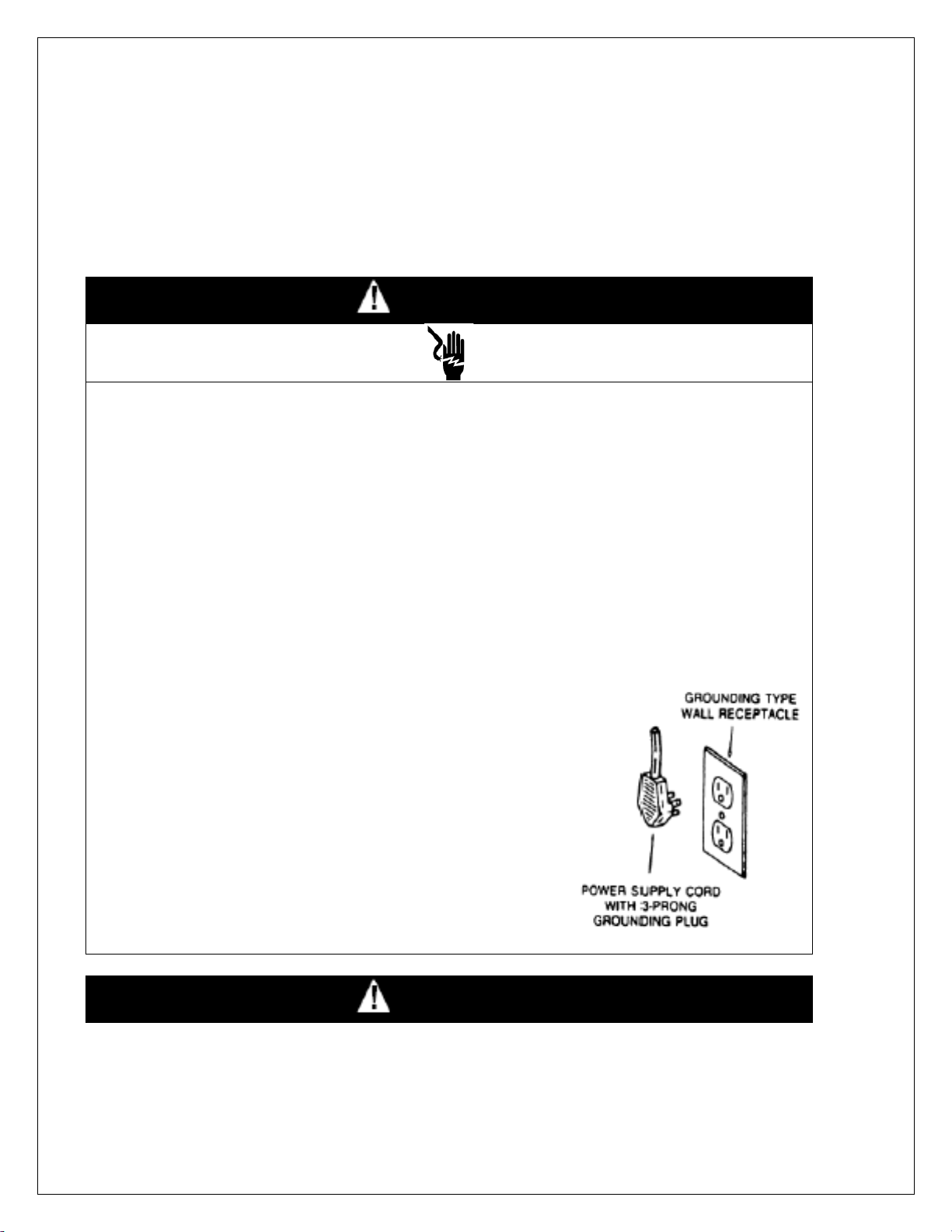

WARNING
To avoid the risk of electrical shock, property damage, personal injury, or death:
•The power cord must be plugged into a 3-prong grounding type wall
receptacle, grounded in accordance with the National Electrical Code,
ANSI/NFPA 70 –latest edition and local codes and ordinances.
•It is the personal responsibility of the consumer to have a proper 3-prong wall
receptacle installed by a qualified electrician.
•DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER CORD
GROUNDING PRONG.
•A separate adequately fused and grounded circuit should be available for this
appliance.
•Do not remove any grounding wires from individual components while servicing
unless the component is to be removed and replaced. It is extremely important
to replace all grounding wires when components are replaced.
WARNING

-2-
ELECTRICAL SHOCK HAZARD
•Disconnect electrical supply from appliance before servicing.
•Replace all panels before operating.
•Failure to do so could result in death or electrical shock.

-3-
Table of Contents
Features & Specifications..................................................3
Installation Instructions…..................................................6
Temperature & Humidity… ..............................................16
Care Guide........................................................................20
Troubleshooting…............................................................21
Electrical Diagrams… ......................................................24
Customer Support…........................................................26
Warranty….........................................................................27

-4-
Features and Specifications
oHZD series cooling units are designed and used to provide a stable
temperature between 50~65 °F for a properly insulated space.
oThe refrigerated space will maintain humidity ranges within 50~70% RH.
oThese temperature and humidity ranges are optimized for long term
storage of wine.
oTemperature is controlled and humidity is adjusted using
▪innovative technology.
oHorizontal cold-air supply is optimized for use in the wide cabinets or wine
rooms.
oThe unit is self-contained ready for easy installation and use.

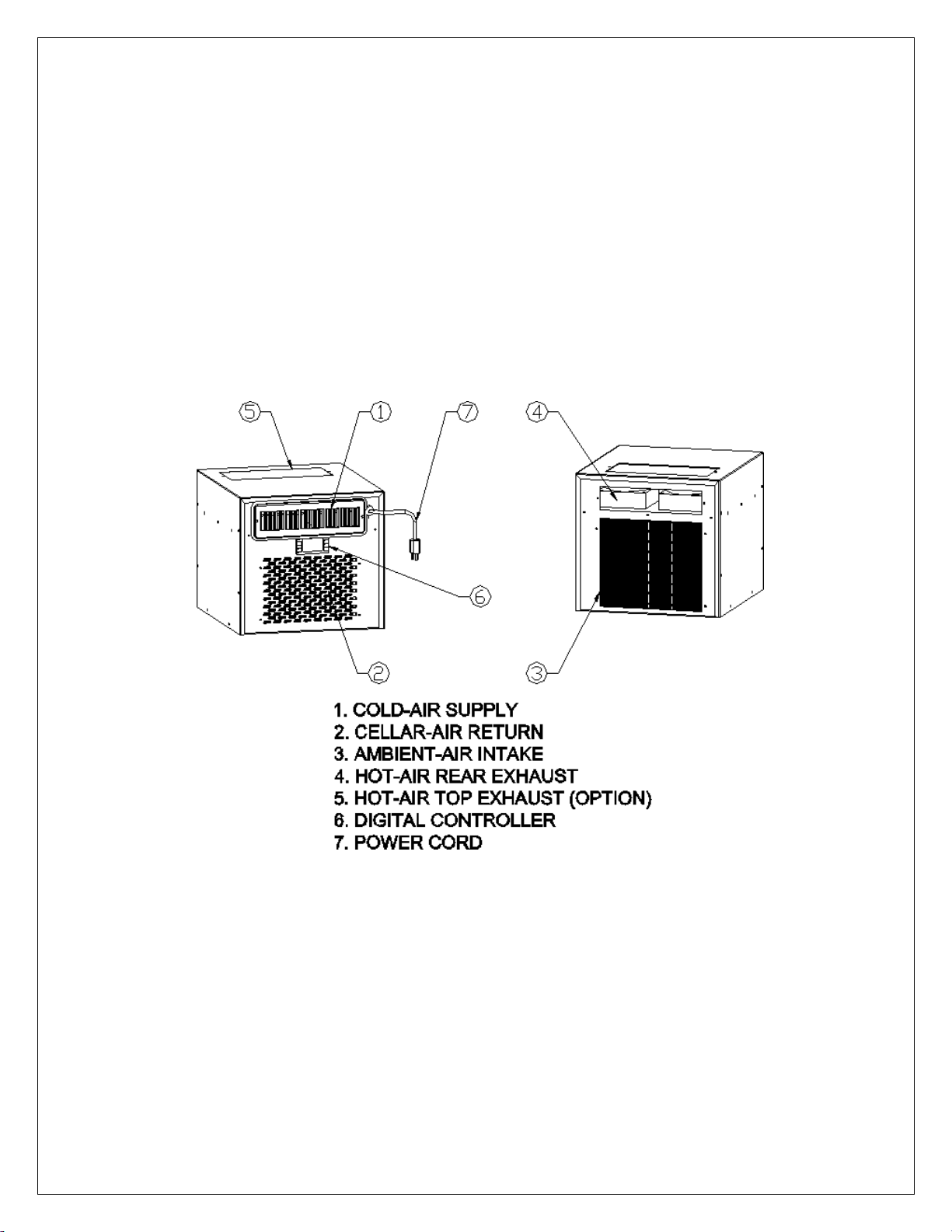

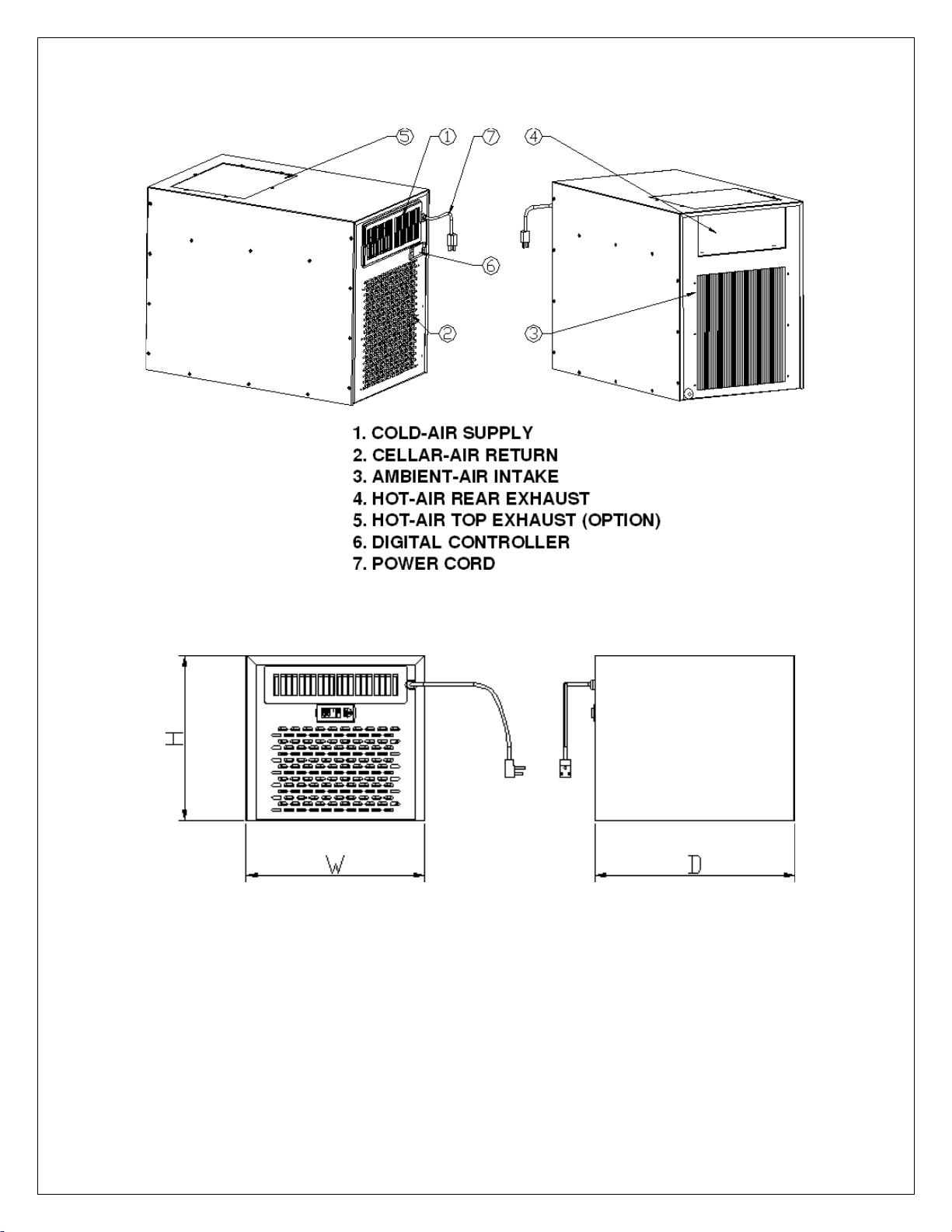

Fig. 1.1 WM-1500~2500HZD FEATURE DESCRIPTIONS

-5-
Fig. 1.2 WM-3500~8500HZD FEATURE DESCRIPTIONS
Fig. 1.3 WM-1500~2500HZD DIMENSIONS

-6-
Fig. 1.4 WM-3500~8500HZD DIMENSIONS
The specifications and dimensions are listed as follows:
Model
CFM
Cellar Size
(cu ft)
Dimensions
W”XD”XH”
Electrical
Weight(lb)
WM-1500HZD
120
90
14.25X16X13.25
115V/60HZ/4A
50
WM-2500HZD
180
200
14.25X16X13.25
115V/60HZ/5A
55
WM-3500HZD
250
650
14.25X21.25X19.75
115V/60Hz/6A
75
WM-4500HZD
250
1000
14.25X21.25X19.75
115V/60Hz/9A
75
WM-6500HZD
500
1500
17X28X22
115V/60Hz/14A
110
WM-8500HZD
500
2000
17X28X22
115V/60Hz/16A
110
NOTES:
• Also see the voltage, frequency and current specified on the label at the
cooling unit.
• The rated capacity is determined under the cellar and ambienttemperatures
of 55°F and 75°F with R13 interior and R19 exterior insulations. Any lower
cellar temperature, higher ambient temperature and less insulation will
cause reducing capacity and may not maintain 55°F.
• The ambient temperatures for WM-1500HZD shall not be higher than78°F
or lower than 50°F in order to operate properly.
• The ambient temperatures for WM-2500HZD shall not be higher than95°F
or lower than 50°F in order to operate properly.
• The ambient temperatures for WM-3500~8500HZD shall not be higher than
95°F or lower than 50°F in order to operate properly.

-7-
Installation Instructions
WARNING
•Always check wiring harness connections before initiating any test procedures.
•Disconnect electric power from the appliance before performing any
maintenance or repairs.
•Voltage checks should be made by inserting meter proves beside the wires in
the connector blocks with the electric power source on and the connector block
plugged in.
•Resistance checks should be made on components with the electric power off
and the connector block disconnected.
NOTES:
• Mounting brackets, screws, gaskets and other seal materials are not included.
• Do not install any ducts onto the supply, return, intake and exhaust.
• Because of potential safety hazards under a certain condition we strongly
recommend against the use of an extension cord. However, if you still select to
use an extension cord, it is absolutely necessary that it is a UL LISTED 3- wire
grounding type appliance extension cord having a 3-blade groundingplug
and a 3-slot receptacle that will plug into the appliance. The marked rating of
the extension cord shall be 115 V, 15 A or equivalent for WM- 1500~2500HZD
and 115 V, 20 A or equivalent for WM-3500~8500HZD and not greater than
15ft in length.
1. General Instructions
• The cooling unit produces cooling supplied into the cellar, meanwhile it also
generates heat that must be exhausted outside the cellar. So the cold- air supply
with return-air intake side and thehot-air exhaustwith ambient-air intake side must
be separated and sealed. Through-wall installations can separate these two sides.
• Furthermore, the condenser of cooling unit must intake adequate fresh ambient-
air to work properly. The ambient-air intake and hot-air exhaust must not be short-
circulated. Both of them must remain unobstructed 36” clearanceall around. The
area into which the hot air is exhausted must be well ventilated. If it is not, heat
generated by the unit will build up and the unit will not operate properly.
• Additionally, cold-air supply from the front grille must remain unobstructed 36”
clearance.
• The ambient temperatures shall not be above and below what are specified.

-8-
2. WM-1500~2500HZD cabinet installation
• Cut a rectangular inside opening with the 1/4” clearance inwards to the width and
height of the cooling unit. By not going through, leave 1/2” lip inside at thewall to
place the gaskets (see Fig 2.1).
• If top exhaust installation, cut another rectangular opening at the top of the cabinet
to the length and width of the top exhaust.
• Install 2 pieces of 1/4” ID wood thread inserts at the ceiling (see Fig.2.1 & 2.2).
• Place the gaskets (1/2” foam tape) on the mounting lip sides (see Fig 2.3).
• If top exhaust installation, place another gaskets along the top exhaust at thetop
of the cooling unit (see Fig.2.4).
• Move the cooling unit towards the mounting sides and push to press the
gaskets (see Fig 2.5).
• Use 2 brackets and ¼” screws with 7/16” wrench to secure the cooling unit
(see Fig 2.6).
• Install the cabinet grille on the cabinet exterior wall (see Fig. 2.7).
• Plug the cooling unit in the cabinet receptacle.
• Plug the wine cabinet.

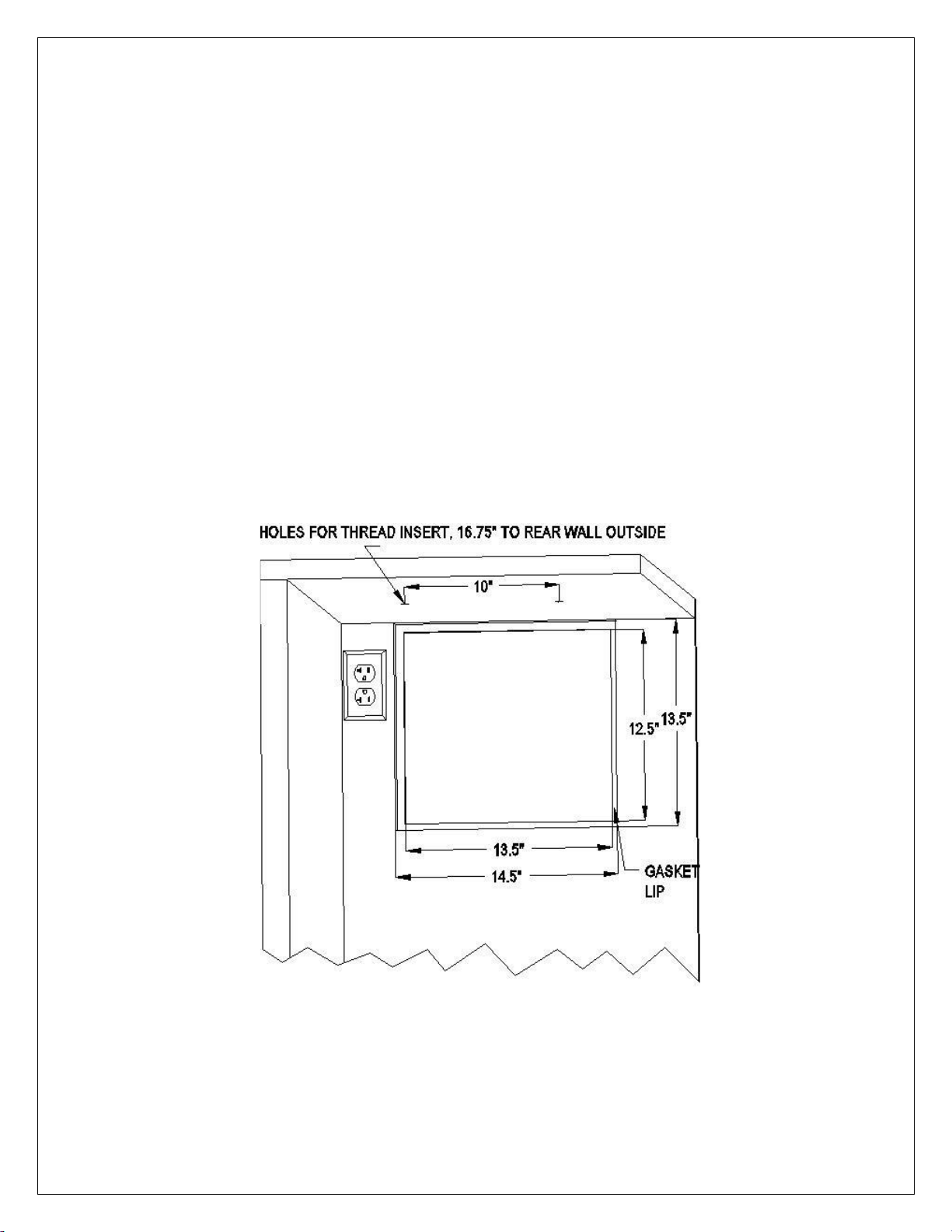

Fig. 2.1 CABINET CUTOUT & GASKET LIP

-9-

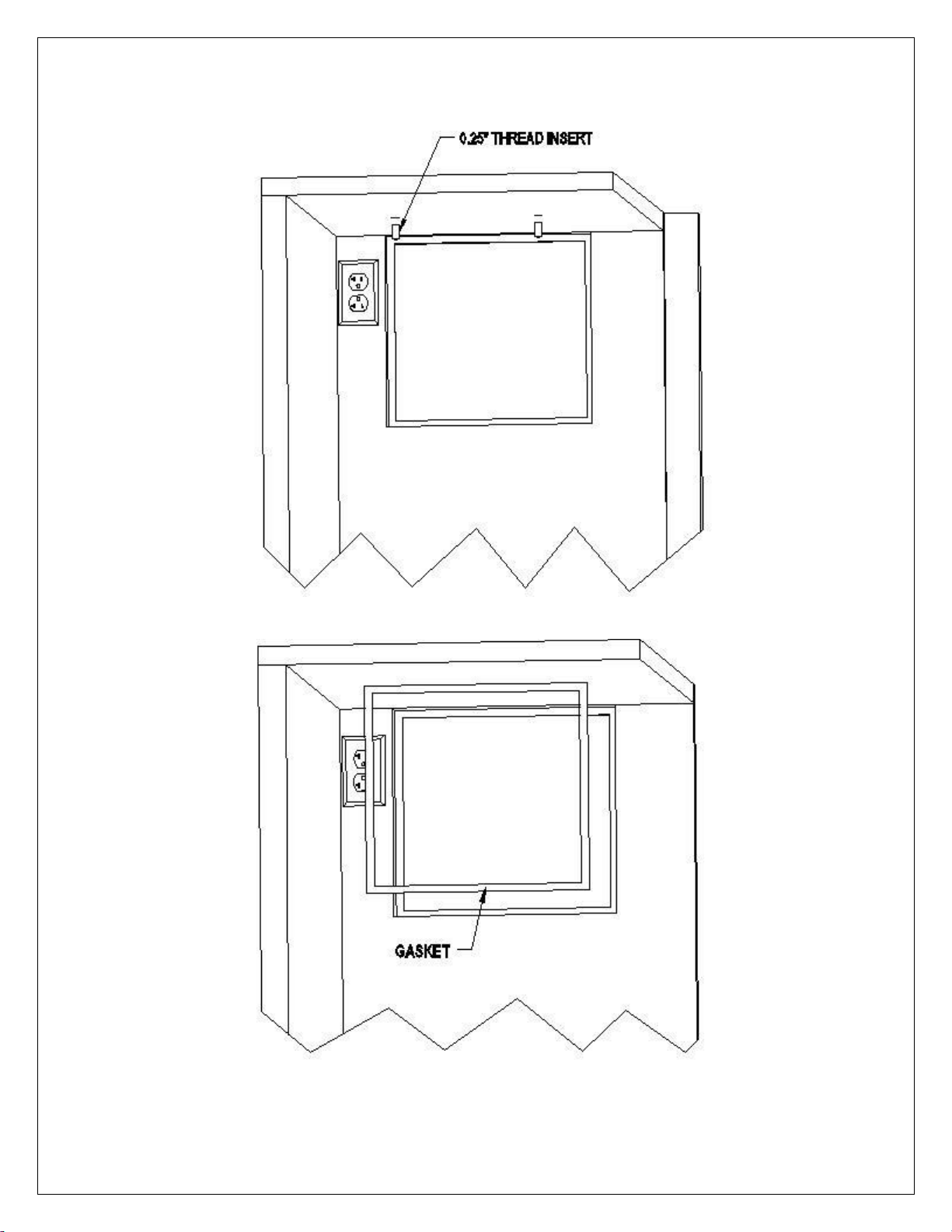

Fig. 2.2 THREAD INSERT

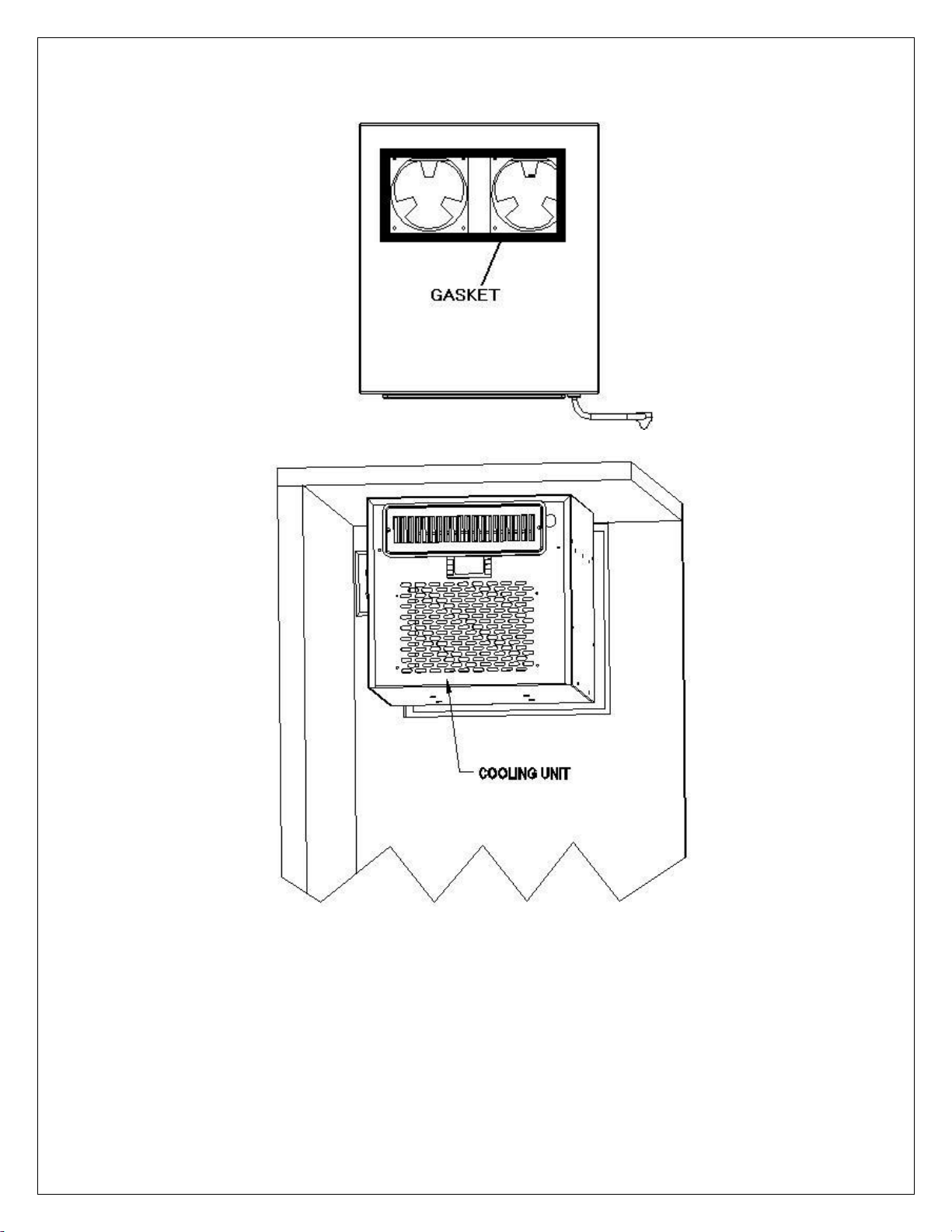

Fig. 2.3 REAR GASKET

-10-
Fig. 2.4 TOP EXHAUST GASKET
Fig. 2.5 COOLING UNIT MOUNTING

-11-

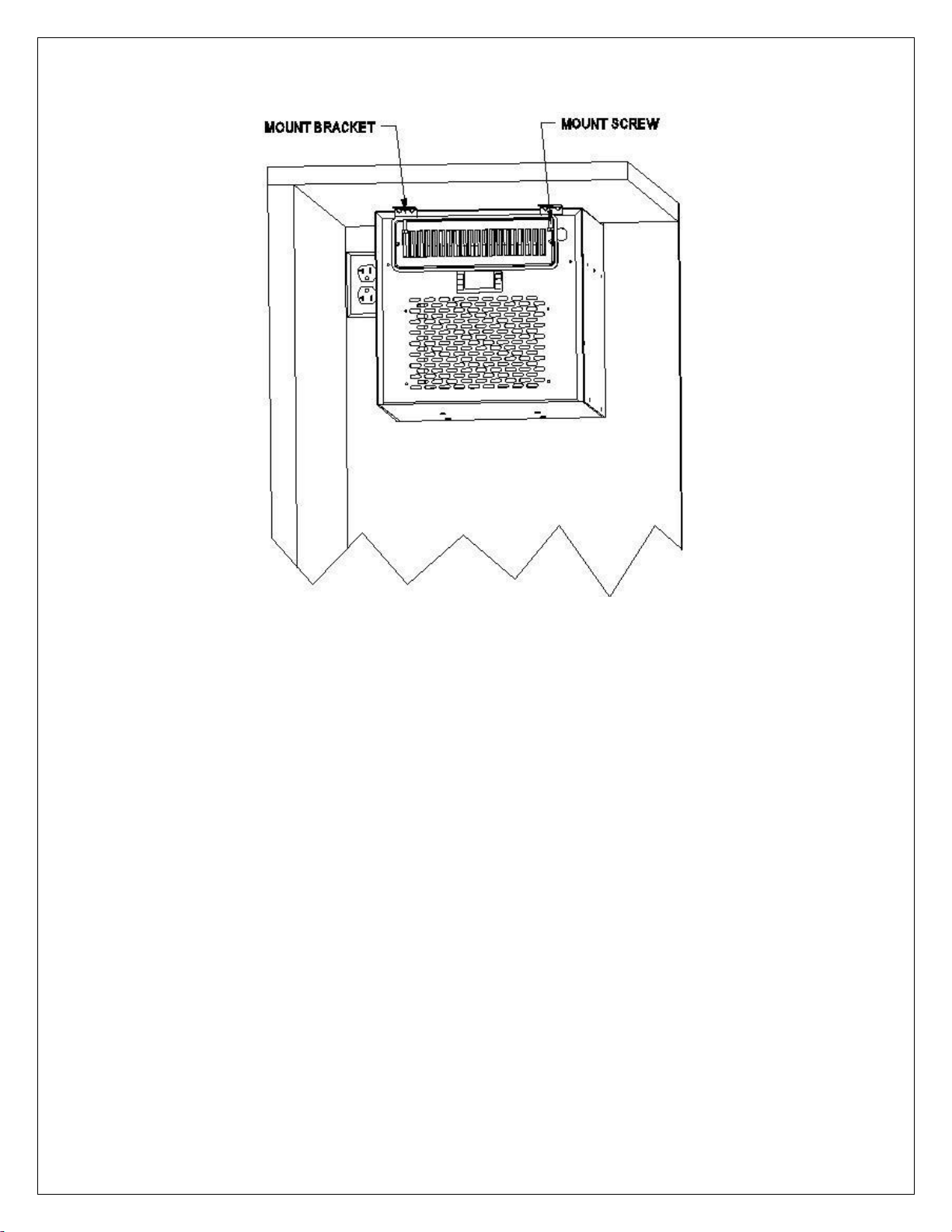

Fig. 2.6 SECURING BRACKET & SCREW

-12-

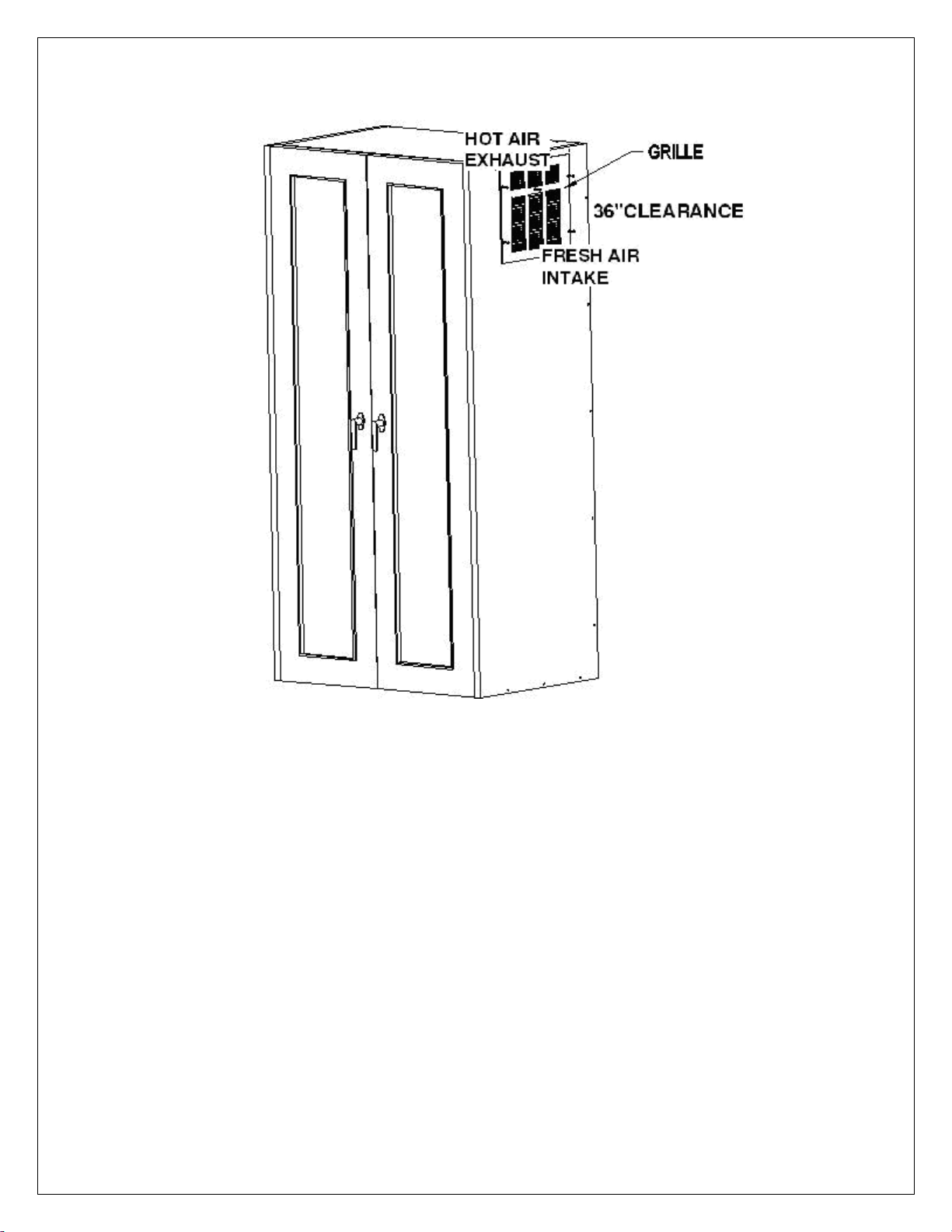

Fig. 2.7 CABINET GRILLE

-13-
3. WM-3500~8500HZD through-wall installation
Fig. 2.8 THROUGH- WALL INSTALLATION
• The cooling unit shall be mounted near the ceiling with equal distance from each
side of the room.
• Cut a rectangular opening at the wine room wall as illustrated. The dimensions of
the opening shall be 1/4” larger than the width and height of thecooling unit.
• If top exhaust installation, cut another rectangular opening at the top of the room
to the length and width of the top exhaust.
• Construct a shelf as shown. The shelf must be capable of supporting the weight of
the cooling unit and preventing it from moving.
• Place the cooling unit on the shelf with the back of the unit flush with the outside
of the wall.
• Seal the clearance between the cooling unit and opening with a high quality
weather stripping, polyurethane spray foam, or foam tape. Cover the seal with
molding and attach the molding to the wall not the unit.
• If top exhaust installation, place another gaskets along the top exhaust at the top
of the cooling unit.
• Install a wall grille on the room exterior wall.
• Plug the unit into a properly grounded and dedicated outlet of adequate capacity.

-14-

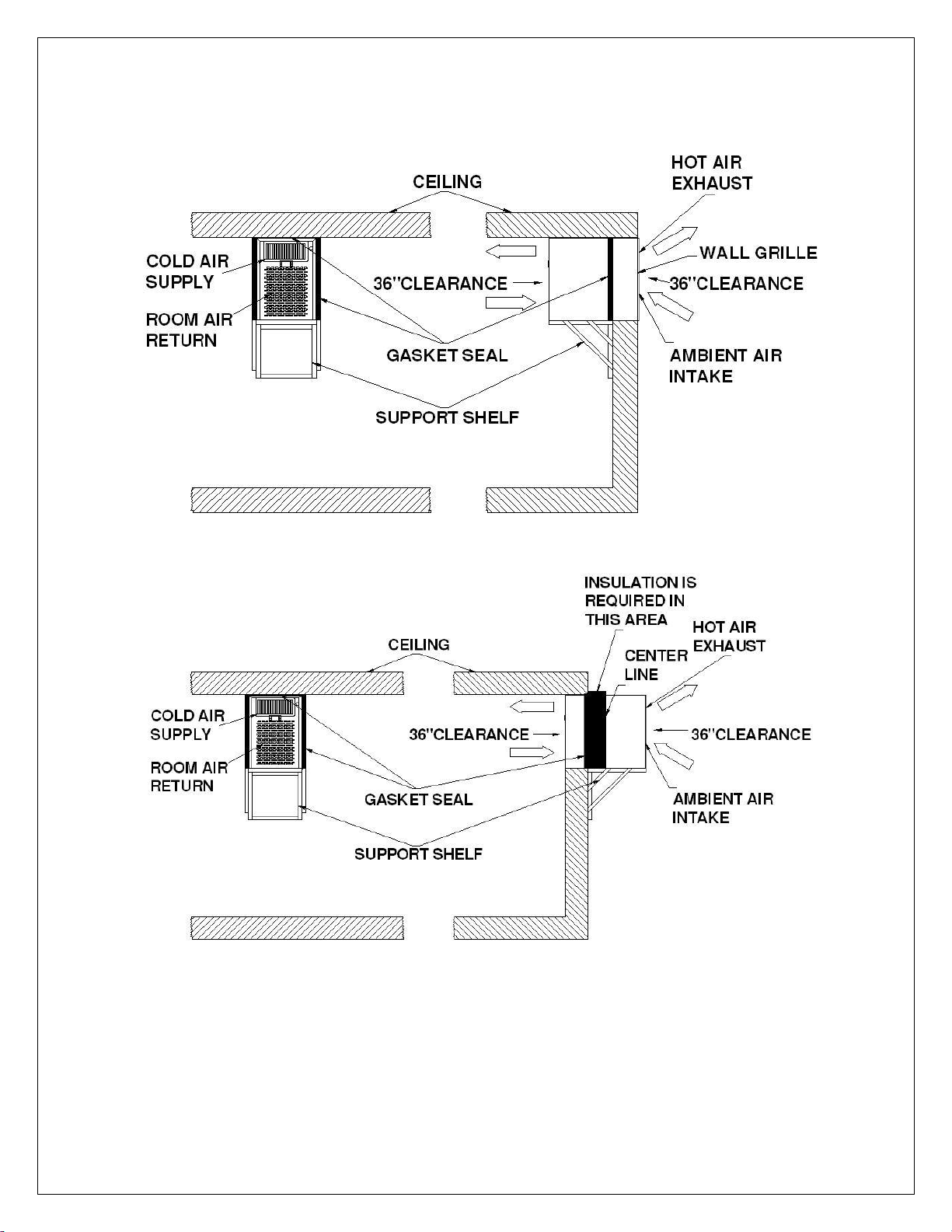

NOTE: The cooling unit can be installed with the front of the unit flush with
the inside of the wall. Construct a shelf outside the room accordingly.
Fig. 2.9 THROUGH-WALL INSTALLATION (OUTSIDE WALL FLUSH)
Fig. 2.10 THROUGH-WALL INSTALLATION (INSIDE WALL FLUSH)

-15-

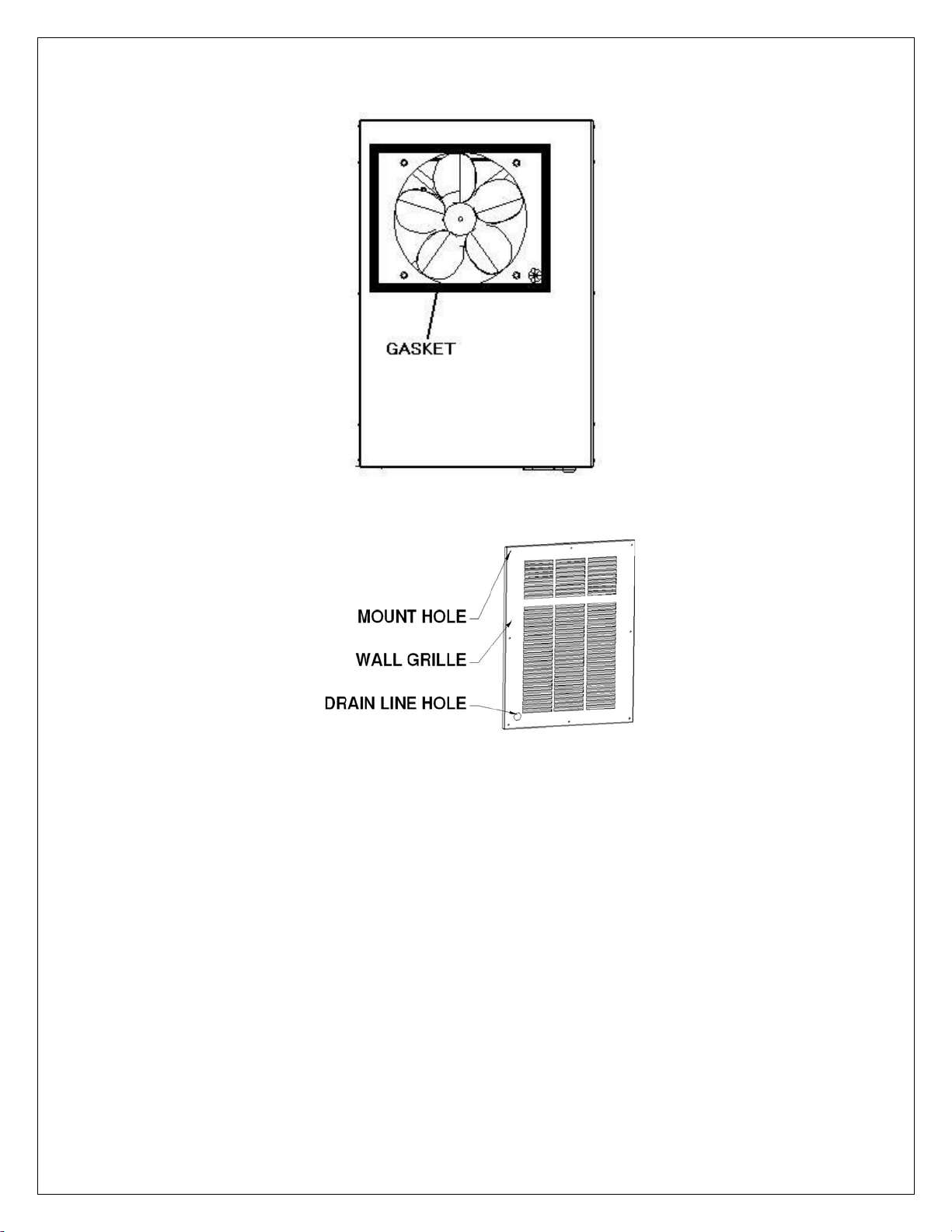

Fig. 2.11 TOP EXHAUST GASKET
Fig. 2.12 WALL GRILLE

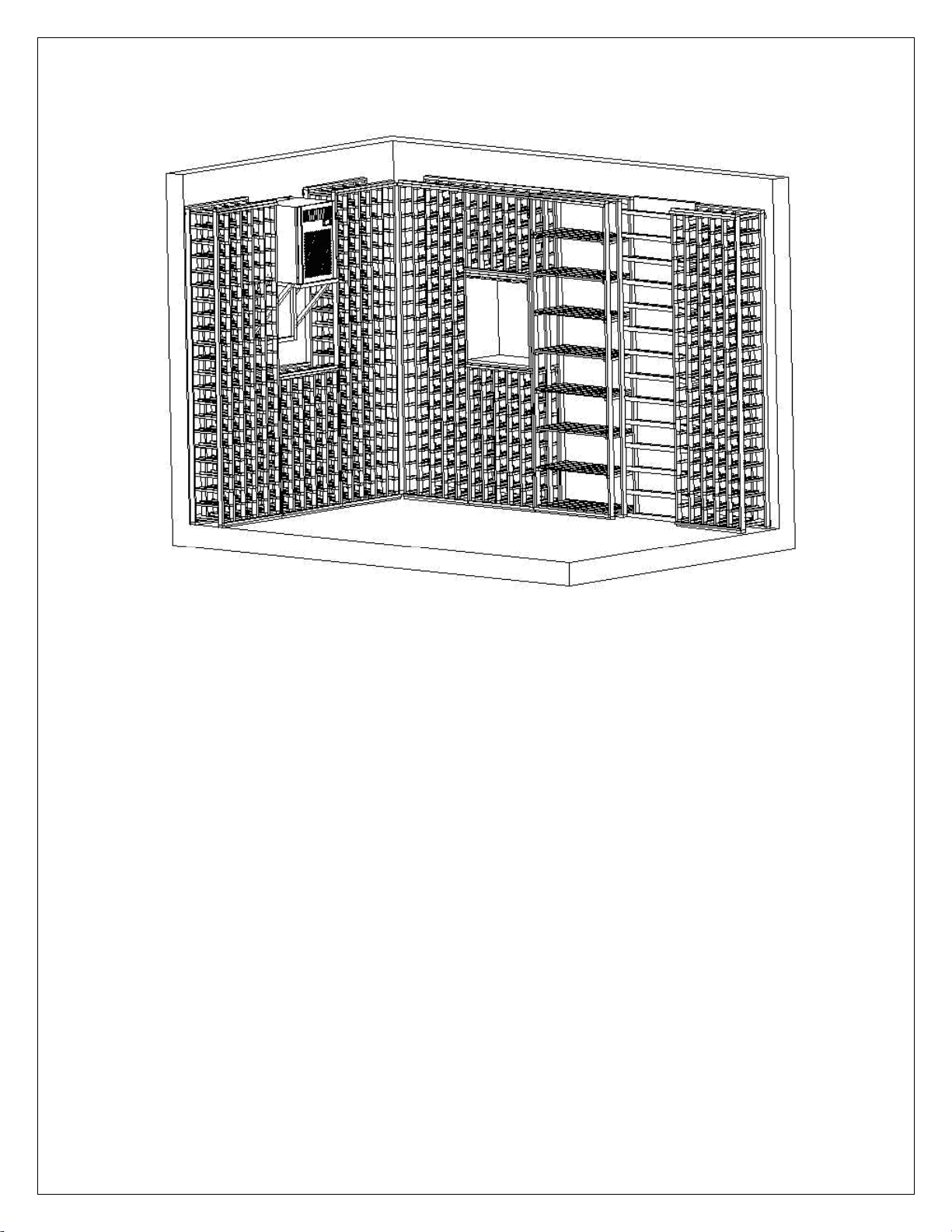

4. Cellar Construction
This is only a guide and shall be considered as minimum requirements.
All interior walls and floors shall have a vapor barrier and a minimum of R13
insulation. All exterior walls and ceiling shall have a vapor barrier and a minimum
of R19 insulation. The vapor barrier shall be installed on the warm side of the
insulation. All joints, door frames, electrical outlets or switches and any pipes or
vents that go through the cellar shall be sealed to prevent airand moisture leakage
into the cellar. Concrete, rock, and brick are not insulation or vapor barriers.

-16-
Doors shall be of a minimum size, insulated to at least R13 and tightly sealed
with high quality weather stripping. Be sure to seal the bottom of the door and fill
gap between the door’s frame and wall before installing the cap molding.
In order to maintain 55 °F in the wine cellar, the ambient temperature surrounding
the enclosure shall not exceed the temperature of the cellar by morethan 25 °F.
No cellar wall shall receive direct sun or strong wind.
Lighting shall be of low wattage, with a timer to insure lights are not left on when
the cellar is not occupied.
The cooling system will not be able to maintain the proper temperature if fresh
moisture-laden air is constantly being introduced to the cellar. Symptoms of this
condition are; cooling unit runs all the time with only a slight reduction in
temperature and/or water overflows from the unit. Because of the temperature
difference between the inside and outside, very small cracks can allow large
amounts of outside air to enter into the cellar. Please be aware that moisture can
pass through solid concrete, paint and wood. Often a newly constructed cellar
contains fresh wood, paint, concrete and other building materials. These materials
contain large amounts of moisture. When placed into operation in this type of
environment, the system will work harder to remove this extra moisture resulting
in increased “run” time.

-17-
Temperature and Humidity

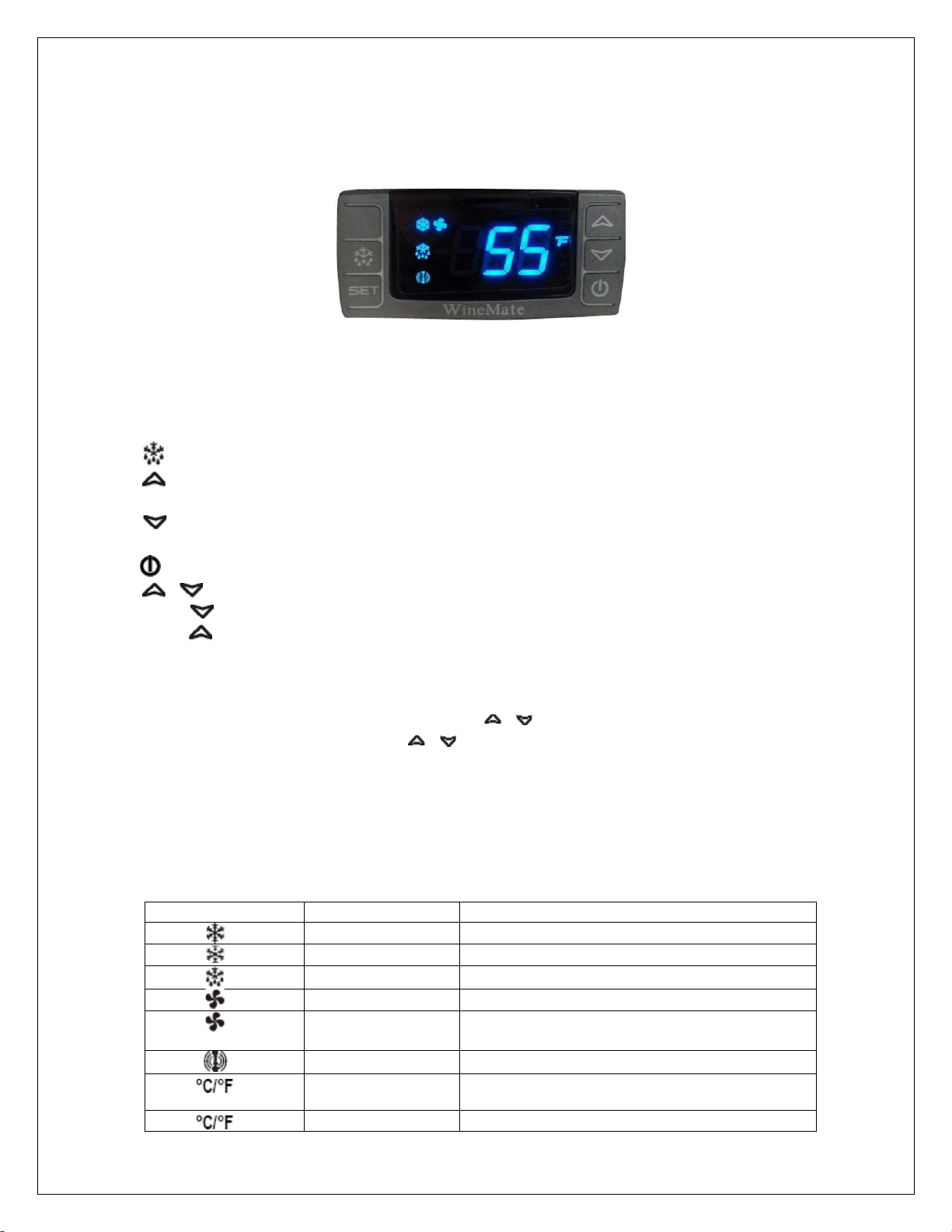

1. The controller
Fig. 3.1 TEMPERATURE CONTROLLER
1) Keys
SET: To display set-point; in programming mode it selects a parameter or
confirms an operation.
: To start a manual defrost.
: To see the maximum stored temperature; in programming mode it browses
the parameter codes or increases the displayed value.
: To see the minimum stored temperature; in programming mode it browses
the parameter codes or decreases the displayed value.
: To turn on/off the power to the unit.
+ : To lock/unlock the keypad.
SET+ : To enter in the programming mode.
SET+ : To return to the temperature display.
2) Lock and unlock the keys
To lock the keys, press up + down keys + until POF is displayed; to unlock
the keys, press up + down keys + until PON is displayed.
3) Display
During normal operating conditions, the display shows the value measured by
the air temperature probe. In case of active alarm, the temperature flashes
alternately to the code alarm. The LED functions are listed as follows.
LED
MODE
FUNCTION
ON
Compressor enabled
Flashing
Anti-short cycle enabled
ON
Defrost cycle enabled
ON
Fan enabled
Flashing
Fan delay after defrost
enabled
ON
Alarm occurring
ON
Temperature measuring
unit
Flashing
Programming mode

-18-
4) Alarm Signals
The alarm codes are described as follows.
MESSAGE
CAUSE
FUNCTION
P1
Temperature probe
faulty
Compressor switching to Con and CoF
HA
High temperature
alarm
Probe temperature ALU higher than thesetting
temperature; Outputs unchanged
LA
Low temperature alarm
Probe temperature ALL lower than the
setting temperature; Outputs unchanged
CA
External alarm
All outputs off
Probe alarms P1”, start a few seconds after the fault in the related probe; they
automatically stop a few seconds after the probe restarts normal operation.Check
connections before replacing the probe. Temperature alarms “HA”, “LA”
automatically stops as soon as the temperature returns to normal value. Alarm
“CA” (with i1F=PAL) recovers only by switching off and on the instrument.
2. Temperature Setting
• Set the temperature at 55 °F for the optimum aging of wine
• On initial start-up, the time required to reach the desired temperature willvary,
depending on the quantity of bottles, temperature setting and surrounding
temperature.
• Allow 24 hours to stabilize the temperature for each new temperature setting
operation
3. How to see temperature set-point
1) Press and immediately release the SET key, the display will show the set-point
value.
2) Press again and immediately release the SET key to display the probe value.
4. How to change the set-point
1) Press and hold the SET key until the “°C” or “°F” LED starts flashing and the
set-point is displayed.
2) Press the up/down keys / to change the set-point value within 10 sec.
3) Press the SET key again to store the new set-point value.
NOTE: The unit turns on at set-point Set plus regulation differential Hy after anti-
short cycle AC has elapsed; the unit turns off at set-point Set.
5. Manual Defrost
Press and hold the defrost key until defrost starts. The defrost indicator will be
on.

-19-
6. Parameter Programming
1) Press and hold the SET + keys until the “°C” or “°F” LED starts flashing,
then release the keys.
2) Press and hold again the SET + keys until the Pr2 label is displayed, then
release the keys. The first parameter Hy will be displayed.
3) Press up/down keys / to scroll to the required parameter within 10 sec.
4) Press the “SET”key to display its value.
5) Use up/down keys to change its value within 10 sec.
6) Press “SET”to store the new value and the display will flash 3 times.
7) To exit: Press SET + or wait 15sec without pressing a key.
PARAMETER
DESCRIPTION
DEFAULT VALUE
Set
set-point (°)
55
Hy
temperature regulation differential (°)
4
AC
anti-short cycle delay (min)
10
Con
compress on with probe faulty (min)
15
CoF
compress off with probe faulty (min)
30
CF
temperature unit (°F/ °C)
F: Fahrenheit
rES
display resolution
in: integer
dLy
temperature display delay (min)
1
ot
probe calibration (°)
0
LS
minimum set-point (°)
50
US
maximum set-point (°)
65
idF
defrost cycle interval time (hour)
12
MdF
defrost cycle endurance time (min)
30
ALC
temperature alarm type
rE: relative to set-point
ALU
high temperature alarm (°)
10
ALL
low temperature alarm (°)
10
AFH
alarm recovery differential (°)
5
ALd
temperature alarm delay (min)
60
dAO
temperature alarm delay on startup (hr)
23
SAA
heater set-point (°)
40
SHy
heater regulation differential (°)
4
FSU
fan action
Std
FnC
fan operating mode
C-n: on with compressor & off
during defrost
Fon
fan on with compressor off (min)
0
FoF
fan off with compressor off (min)
15
NOTE: Depending on the controller, not all parameters are used.
7. How to calibrate the air probe
If the actual cellar temperature differs from the setting temperature, set
parameter ot = actual cellar temperature minus set-point.
8. How to adjust defrost cycle
