Vinyl Works ORGPP1 User manual

POOL ORGANIZER SYSTEM
POOL ORGANIZER SYSTEMPOOL ORGANIZER SYSTEM
POOL ORGANIZER SYSTEM
( Model ORGPP1)
( Model ORGPP1)( Model ORGPP1)
( Model ORGPP1)
877-846-9595
www. inylworkscanada.com
SEND US YOUR PHOTO !
Each season we select prize-
winning installations.
Send our high resolution image
toda - visit our website
for more details
Required:
Required:Required:
Required:
Pencil Screw-
driver
Drill Level
Included:
Included:Included:
Included:
Base & Connector
Plates
Solar Light Drink Tray Hooks
ALL HARDWAR INCLUD D
Detail 1.1
1. Position base plate at
desired location around
pool. With suction cups
down, center on top rail
of pool. very pool is
different; don’t be
alarmed about uneven
fit (see Detail 1.1)
2. Insert connector plates into base plate on
both sides. Connector plates can slide in &
out to fit different size pool top rails. Slide
until tight to top rail of pool (Detail 1.2 & 1.3)
Detail 1.2
Detail 1.3
3. With connector plates tight to top rail of pool,
pre-drill 1/8" holes at four corners of base plate.
Secure all four places with screws provided &
packed with connector plates (see Detail 1.4)
Detail 1.4
4. With base plate & connectors tight to top
rail of pool, level assembled parts front to
back (Detail 1.5). Note that each connector
plate has a range of holes facing the pool rail
(Detail 1.6). With assembly level, pre-drill a 1/8"
hole through the hole that meets edge of pool
top rail and secure assembly to top rail of pool
using remaining screws. Repeat for both
sides. Be cautious when using power tools
around water & keep debris out of water
Detail 1.5 Detail 1.6

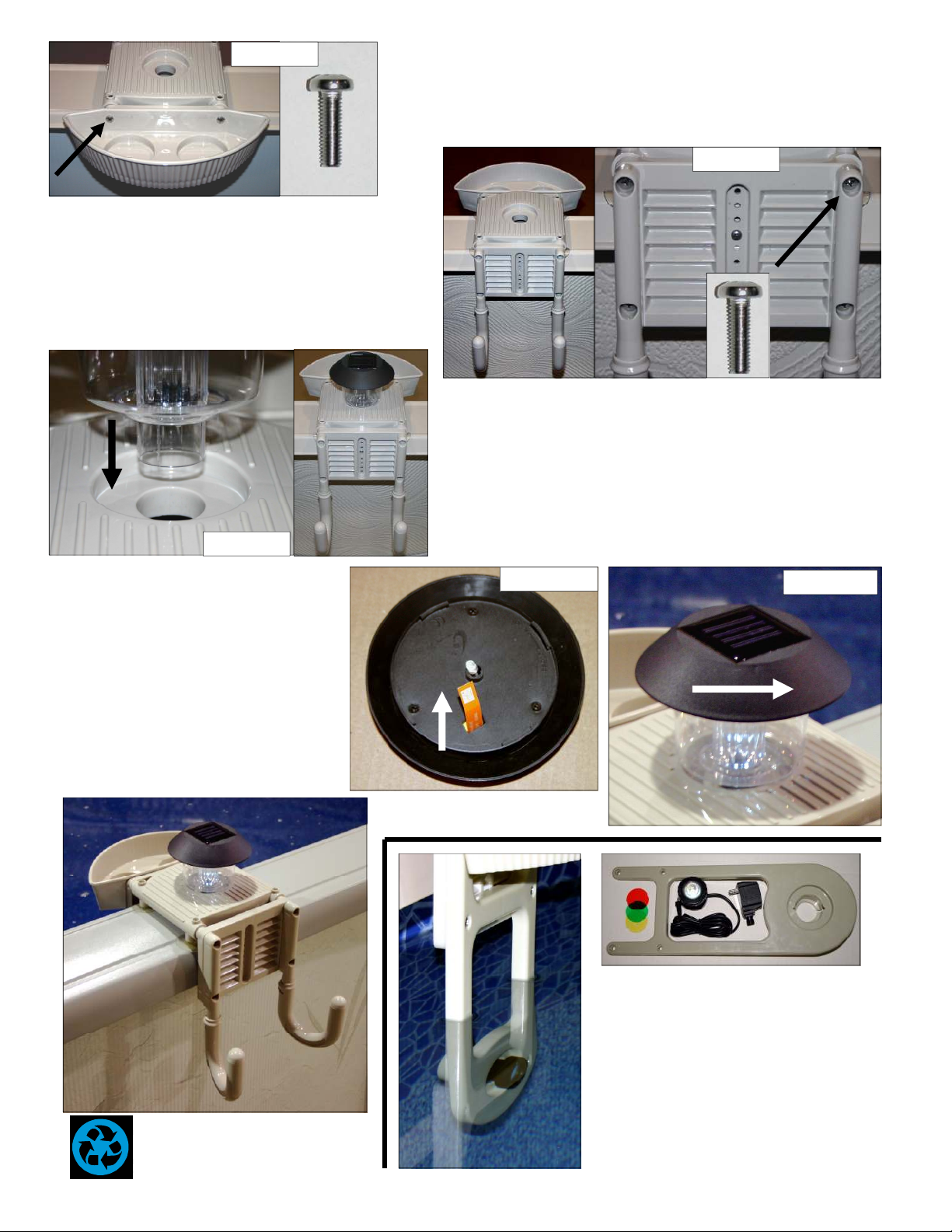

5. Attach drink tray to inside of organizer - towards pool.
The bolts required are packaged with the drink tray (see
Detail 1.7). ach connector plate has threaded grommets
to accept bolts. Use top two grommets. Tighten hardware
Detail 1.7
6. Attach hooks to outside of organizer -
outside of pool. The four bolts required are
packaged with hooks (see Detail 1.8). The
connector plate has threaded grommets to
accept bolts. Tighten hardware
Detail 1.8
7. Fit solar light into center of base plate (see Detail
1.9). Gently press solar light down until it is tight into
base plate. Turn top portion of solar light counter-
clockwise to remove. Remove protective strip to
activate light (see Detail 1.10 & 1.11). Put your hand
over top solar collector to test if light works (battery
may need to be charged). Fit light top back in place
and make certain it is secure
Detail 1.11 Detail 1.10
8. Your assembly & installation is
complete. Remove pool organizer
system for winter pool closure &
store in a safe place. It is
recommended to remove battery
from solar light or replace
protective strip as shown in Detail
1.11 - this will prolong life of
battery. Swim Safely
OPTIONAL 12 VOLT
IN-POOL LIGHT
We offer an optional in-pool light
that can be added to your pool
o r g a n i z e r s y s t e m ( s o l d
separately). It is designed to fit
neatly behind the drink tray. Ask
your retailer for more information
or visit our website
Detail 1.9
